The Beginning and Development of the Theranostic Approach in Nuclear Medicine, as Exemplified by the Radionuclide Pair 86Y and 90Y
Frank Rösch 1,*, Hans Herzog 2 and Syed M. Qaim 3
1
Institute of Nuclear Chemistry, Johannes Gutenberg University Mainz, Mainz D-55126, Germany
2
Institute of Neuroscience and Medicine (INM), INM-4 (Physics of Medical Imaging), Research Center Jülich, Jülich D-52425, Germany
3
Institute of Neuroscience and Medicine (INM), INM-5 (Nuclear Chemistry), Research Center Jülich, Jülich D-52425, Germany
*
Correspondence: Tel.: +49-6131-3925302.
Academic Editor: Klaus Kopka
Received: 25 April 2017 / Accepted: 15 June 2017 / Published: 20 June 2017

Abstract

:
In the context of radiopharmacy and molecular imaging, the concept of theranostics entails a therapy-accompanying diagnosis with the aim of a patient-specific treatment. Using the adequate diagnostic radiopharmaceutical, the disease and the state of the disease are verified for an individual patient. The other way around, it verifies that the radiopharmaceutical in hand represents a target-specific and selective molecule: the “best one” for that individual patient. Transforming diagnostic imaging into quantitative dosimetric information, the optimum radioactivity (expressed in maximum radiation dose to the target tissue and tolerable dose to healthy organs) of the adequate radiotherapeutical is applied to that individual patient. This theranostic approach in nuclear medicine is traced back to the first use of the radionuclide pair 86Y/90Y, which allowed a combination of PET and internal radiotherapy. Whereas the β-emitting therapeutic radionuclide 90Y (t½ = 2.7 d) had been available for a long time via the 90Sr/90Y generator system, the β+ emitter 86Y (t½ = 14.7 h) had to be developed for medical application. A brief outline of the various aspects of radiochemical and nuclear development work (nuclear data, cyclotron irradiation, chemical processing, quality control, etc.) is given. In parallel, the paper discusses the methodology introduced to quantify molecular imaging of 86Y-labelled compounds in terms of multiple and long-term PET recordings. It highlights the ultimate goal of radiotheranostics, namely to extract the radiation dose of the analogue 90Y-labelled compound in terms of mGy or mSv per MBq 90Y injected. Finally, the current and possible future development of theranostic approaches based on different PET and therapy nuclides is discussed.
Keywords:
theranostics; 86Y; 90Y; dosimetry; positron emission tomography; PET

1. Introduction and Historical Background

Radioactivity is unique in the sense that it can be routinely used in nuclear medicine both for diagnosis and therapy [1]. Each application, however, demands a special type of radionuclide, the choice being dependent on its decay properties. The underlying principle in diagnostic nuclear medicine is that the radiation dose to the patient is as low as possible, compatible with the required quality of imaging and the diagnostic advantage in comparison to non-radioactive methods. In internal radionuclide therapy (endoradiotherapy), on the other hand, a localized, well-defined radiation dose needs to be deposited in a malignant or inflammatory tissue to achieve the desired therapeutic effect. Thus, for in vivo diagnostic investigations, radionuclides are required that do not cause much radiation dose and can be efficiently detected from outside of the body. To this end, short-lived γ-ray emitters like 99mTc (t½ = 6.0 h), 123I (t½ = 13.2 h), 201Tl (t½ = 3.06 d), etc., and positron emitters, like 11C (t½ = 20.4 min), 18F (t½ = 110 min), 68Ga (t½ = 67.6 min), etc., are commonly used. As regards internal radionuclide therapy (endoradiotherapy), in general, radionuclides emitting low-range highly ionizing radiation, i.e., α- or β-particles, conversion and/or Auger electrons, have been of great interest. The major problem in internal radiotherapy, however, has been the quantification of radiation dose caused to various organs, mainly due to uncertainties in the measurement of radioactivity from outside of the body of the patient. Although in the case of a few therapeutic radionuclides, e.g., 131I (t½ = 8.02 d) and 188Re (t½ = 17.0 h), γ-scanning or SPECT has been used to determine the radioactivity distribution in the body, the methodology lacks precision. The uncertainty in radioactivity distribution is still higher for radionuclides decaying by pure β-emission, e.g., 32P (t½ = 14.3 d), 89Sr (t½ = 50.5 d) and 90Y (t½ = 2.7 d), because imaging is usually done through the use of bremsstrahlung.
In the early 1990s, thoughts started developing in several laboratories to use an SPECT radionuclide as a surrogate of a therapeutic radionuclide [2], e.g., 111In (t½ = 2.8 d), a trivalent metal, as a surrogate of 90Y, another trivalent metal. The use of an 111In-labelled monoclonal antibody (MAb) as a surrogate to carry out biodistribution and imaging studies to be able to do therapy planning with the analogue 90Y-MAb continued for many years and has only recently been abandoned. There has also been discussion about the use of several other metallic radionuclides [3,4]. Yet, none of those approaches provided patient-individual quantitative data on radiation doses.
Within the last few years, the combination of both diagnosis (molecular imaging) and therapy (molecular targeted treatment) using one identical (or similar) molecular targeting vector for the same disease is reflected in the term “theranostics”. It is also referred to as “personalized medicine”, which proposes the customization of healthcare with medical decisions, practices and/or products being tailored to the individual patient. Diagnostic testing employed for selecting appropriate therapies is referred to as “companion diagnostics” or “theranostics”. Customized therapeutic products themselves can fall under personalized medicine, as well. Personalized medicine commonly denotes the use of some kind of technology or discovery, enabling a level of personalization not previously feasible or practical. This includes technologies for producing customized pharmaceutical drug products containing individualized dose levels for one or more drug substances.
In the context of radiopharmacy and molecular imaging, the concept is similar: it is a therapy-accompanying diagnosis with the aim of a patient-specific treatment. Using the adequate diagnostic radiopharmaceutical, the disease and the state of the disease are verified for an individual patient. The other way around, it verifies that the radiopharmaceutical in hand represents a target-specific and selective molecule: the “best one” for that individual patient, cf. Figure 1. Transforming diagnostic imaging into quantitative dosimetric information, the optimum radioactivity (expressed in maximum radiation dose to the target tissue and tolerable dose to healthy organs) of the adequate radiotherapeutical is applied to that individual patient. Finally, post-therapeutic imaging is part of the monitoring of the success of the treatment process for that individual patient.
In terms of radiation dosimetry, the radiodiagnostic version of the targeting vector should reflect the pharmacology of the radiotherapeutic version. Technically speaking, the accuracy of the diagnostic information is best when positron-emitting radionuclides are used within the radiopharmaceutical. Chemically speaking, if the diagnostic version is identical to the therapeutic radiopharmaceutical, the imaging data can be used directly to extract the radiation doses of the therapeutic version. This is commonly denoted by the nomenclature of “matched pairs”, where the diagnostic and therapeutic radionuclides belong to one and the same chemical element.
In 1992, a few researchers at the Research Center Jülich, Germany, came to the idea of combining PET and endoradiotherapy by using a pair of radionuclides of the same element, one emitting positrons and the other β-particles. This paper intends to illustrate the general approach to radiotheranostics, first exemplified for the pair 90Y/86Y, which allowed a combination of PET and internal radiotherapy. Whereas the β-emitting therapeutic radionuclide 90Y had been available for a long time, the β+ emitter 86Y (t½ = 14.7 h) had to be developed for medical application. A brief outline of the various aspects of development work (nuclear data, cyclotron irradiation, chemical processing, quality control, etc.) is given. In parallel to the nuclear and radiochemical aspects, the paper discusses the methodology introduced to quantify molecular imaging of 86Y-labelled compounds in terms of multiple and long-term PET recordings. Finally, it highlights the ultimate goal of radiotheranostics, namely to extract the radiation dose of the analogue 90Y-labelled compound in terms of mGy or mSv per MBq 90Y injected in an individual patient. Experience was already available at Jülich in the clinical use of 90Y, but the radionuclide 86Y needed to be developed for PET studies. In the sections given below, we elaborate the developments in various areas of this systematic work.

2. Nuclear Data

2.1. Decay Data

The gross features of the decay schemes of the two radionuclides under investigation are known fairly well [5,6,7,8,9,10], though some deficiencies exist in the case of 86Y. The main decay data are summarized in Table 1. The therapeutic radionuclide 90Y is known to decay 100% by β-emission to stable 90Zr (spin: 0+), with only one major component having an end point energy of 2290 keV and average β-energy of 933 keV. Only a very small fraction (0.011%) of the β-emission leads to the population of the first excited state of 90Zr (spin: 0+) at 1761 keV. Since in the monopole transition of 90Zr (0+ → 0+) the emission of a γ-ray is forbidden, the excited state de-excites by internal conversion and pair production, the latter resulting in positron emission of very weak intensity.
With regard to the diagnostic radionuclide 86Y, the decay proceeds via electron capture (EC) and β+ emission, followed by emission of a large number of γ-rays. There are six positron groups with varying end-point energies and intensities (see Table 1). The total β+ emission intensity amounts to about 33%. This value is rather uncertain, and recommendations have been made to do new measurements utilizing improved methods of detection and quantification [8,9]. Furthermore, a re-evaluation of the whole decay scheme of 86Y has also been recommended [10]. On the other hand, it is pointed out that right from the beginning, it was expected that due to rather high positron energy and the presence of several γ-rays in the vicinity of the annihilation radiation, considerable effort would be needed to make use of 86Y in PET investigations; see below.

2.2. Production Data: Reaction Cross-Sections and Integral Yields

Several routes have been suggested for the production of both 90Y and 86Y. The former is produced in a nuclear reactor and the latter via charged particle-induced reactions at a cyclotron. Some evaluated data for the two nuclides are available [11]. As regards 86Y, the possible methods of production at a small to medium-sized cyclotron include 86Sr(p,n)86Y, 86Sr(d,2n)86Y, 88Sr(p,3n)86Y, natRb(3He,xn)86Y, 85Rb(α,3n)86Y, 90Zr(p,αn)86Y and natZr(p,x)86Y. Some other possible reactions have very low cross-sections.
Till 1992, in the literature, some cross-section data existed for several of the above-mentioned reactions [12,13,14]. However, the first systematic study of 86Y from the production point of view was performed at the Research Center Jülich [15], and the suitability of the 86Sr(p,n)86Y reaction was demonstrated [16] using a highly enriched target. Since then, many groups have repeatedly investigated this reaction for production, but no new cross-section measurement has been done. For the natRb(3He,xn)86Y reaction, also cross-sections were measured only once [15], but for the natZr(p,x)86Y reaction, a few new measurements have been reported over the last few years [17,18,19,20]. Very recently, cross-section data for a few reactions have been evaluated using rigorous nuclear model calculations, and recommended data have been presented [21]. Using those data, the 86Y yields from the 86Sr(p,n)86Y and 88Sr(p,3n)86Y reactions were calculated, and the results are given in Figure 2 as a function of the projectile energy. To date, those two reactions are the only ones that have been practically used in the production of 86Y. As regards other reactions, we consider only the natRb(3He,xn)86Y and natZr(p,x)86Y processes because they have been fairly well investigated; the expected yields are not very low, and possibilities exist to control the levels of radioactive impurities through the choices of the proper energy ranges in the target. In the case of 3He-particle irradiations, the (3He,γ) and (3He,n) reactions have negligibly small cross-sections [22,23], so that the yields of the impurities 90Y, 88Y and 87Y in the natRb(3He,xn)86Y process at 3He-particle energies of < 24 MeV could be expected to be small. Similarly, in the natZr(p,x)86Y process, the level of the 87Y impurity formed via the 90Zr(p,α)87Y reaction could be minimized if the incident protons have energies >25 MeV where the 90Zr(p,αn)86Y reaction is favored. We therefore show the integral yields of 86Y in Figure 2 also from those reactions, taking the data for the natRb(3He,xn)86Y process from [15] and those for the natZr(p,x)86Y process from [17,18,19,20,21]. It should be mentioned that in the case of the latter two reactions, the use of highly enriched 85Rb and 90Zr as targets would increase the 86Y yield by about 25 and 100%, respectively, but it would not alter the radioactive impurity level to any significant extent, provided the energy ranges used in the targets are the same as given in Table 2 (see below).
From the available data, the optimum energy ranges for the production of 86Y via the four above-mentioned routes were deduced, and the results are given in Table 2. The yield for 86Y is the sum of 86mY and 86gY. Considering the associated radioactive impurities, the most preferable route for the production of 86Y is the 86Sr(p,n)86Y reaction on highly enriched 86Sr, although the yield of the product is not very high. The small amount of 87m,gY impurity associated with this process was determined in real production experiments and not through calculation. In fact, this impurity should be vanishingly small because the main contributing reaction 86Sr(p,γ)87m,gY is expected to have a very small cross-section [24,25]. However, since the enriched 86Sr target used had an isotopic enrichment of only 96.4% [16,26,27,28,29,30,31,32,33,34,35,36], the small amount of 87Sr (1.33%) present in the target contributed to the formation of the 87m,gY impurity via the 87Sr(p,n)-reaction. The same applies to the very small amount of the 88Y impurity. It is possibly formed via the 88Sr(p,n)88Y reaction on 88Sr (2.26%) present in the target. Obviously, the levels of both the radionuclidic impurities could be reduced further if the 86Sr target used could be of higher enrichment than that given above. An added advantage of the 86Sr(p,n)86Y route is that a small-sized medical cyclotron is adequate for the production of this radionuclide in quantities sufficient for clinical applications. This reaction has therefore become the method of choice for the production of 86Y.

3. Production Methodologies

3.1. Targetry

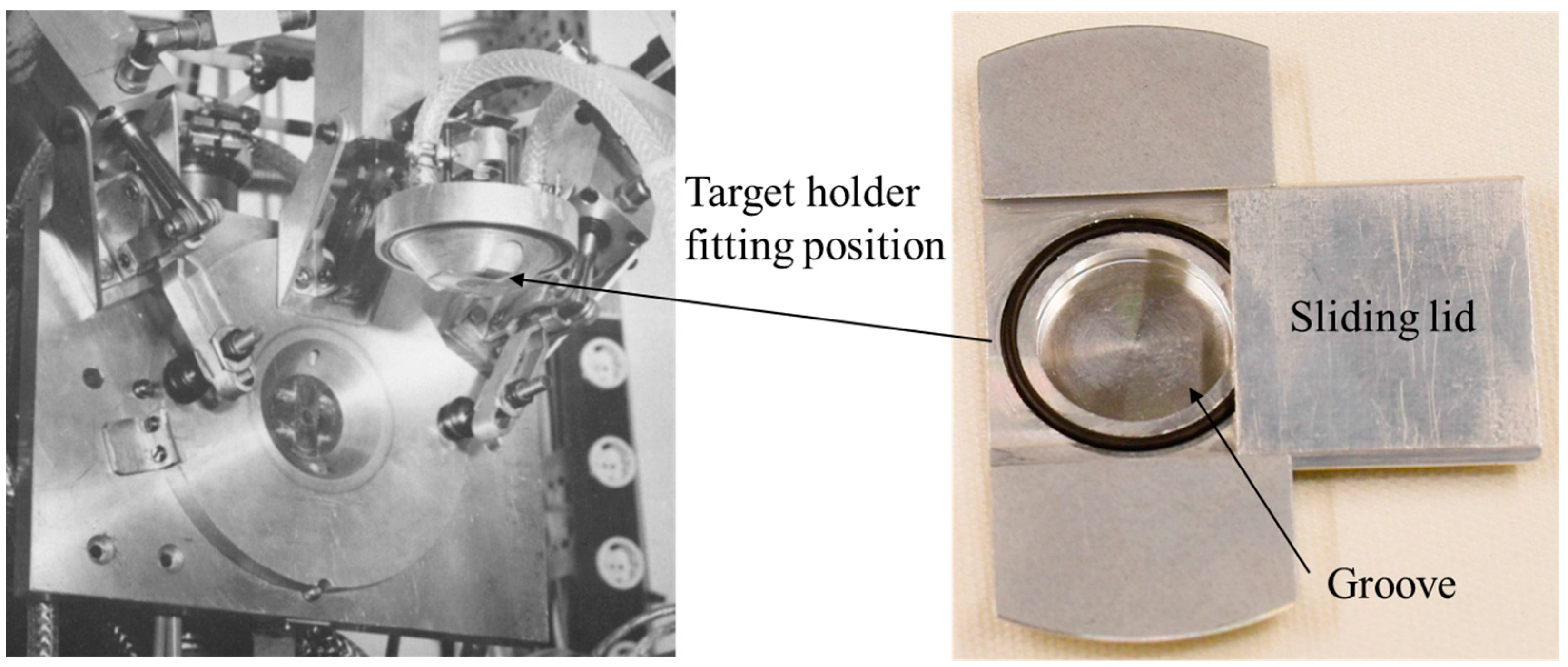

Based on the above discussion, the major efforts to produce 86Y have concentrated on the 86Sr(p,n)86Y reaction, and target systems have been designed for use at low energy cyclotrons (Ep ≤ 18 MeV). The originally used highly-enriched 86SrCO3 as the target material [16] was employed in most of the later works, as well [26,27,28,29,30,31,32,33,34,35,36]. In one case, 86SrO was also used [31]. In general, a pressed pellet of the target material was irradiated in a conventional target holder, covered by a thin metal foil and cooled at the back by circulating water. This system could withstand beam currents of up to about 5 μA of 16-MeV protons in irradiations of a few hours in real production runs [16,31,33]. In a modified system [28], the 86SrCO3 pellet was placed into a groove in a target holder made of Al. The groove was closed by a sliding lid. The target was then fitted in a 4π water-cooled target head, similar to the one described by Michael et al [37]. A photograph of the target system is shown in Figure 3. The primary proton beam energy was 19 MeV, and the energy incident on the target material (after some absorption in the lid) was 16 MeV. The target could withstand beam currents of up to about 10 μA, but during long production runs, nominal currents of about 6 μA were used. In another system [32], besides the water-cooling of the target at the back, chilled He cooling in front of the target was applied, and irradiation currents of up to 15 μA of 11-MeV protons could be used. In yet another system [27,31,35,36], the target material was irradiated with 15-MeV protons at an inclined angle between 6° and 15° in a target holder cooled by a jet of cooling water across its back. A beam current of 10 μA was used [27], but the target may withstand higher currents [31,35,36], at least for short irradiations. Due to limited progress in high-current targetry, the production yield of 86Y using a solid target has been so far limited to about 3.5 GBq per batch [28].
In recent years, a new impulse has come to the production of 86Y via the 86Sr(p,n) reaction at hospital-based cyclotrons. Since those cyclotrons have in general only liquid and gaseous targets (to produce 18F, 11C, 15O, etc.), two conspicuous developments have come up, namely to install solid targetry [38] or to utilize an existing or modified liquid target for irradiating solutions of target isotopes [39,40]. In the latter case, effort is needed to separate radiation-induced chemical species. The yield of 86Y achieved using a liquid target is generally low, but it may be enough for local use [40].
Besides the low-energy 86Sr(p,n)86Y reaction for the production of 86Y, the intermediate energy reaction 88Sr(p,3n)86Y has also been applied in one laboratory [4,41]. A thick 88SrCl2 pellet was irradiated with protons in the energy range of Ep = 45→39 MeV in a well-cooled target holder for 0.5 h at a beam current of 25 μA. The batch yield of 86Y achieved was about 4 GBq, with the level of the radionuclidic impurities 87Y and 87mY amounting to 5.1% and 56.0%, respectively. The product could thus be used for chemical and labelling studies, but not for clinical investigations.

3.2. Chemical Processing

Six major separation methods for 86Y from an irradiated strontium target (SrCO3, SrO or SrCl2) have been suggested. They involve coprecipitation and ion exchange, electrolysis, single column chromatography, multiple column chromatography, solvent extraction and precipitation of the target element. Each method has its own advantages and disadvantages. The method involving coprecipitation and ion exchange was first developed by Rösch et al., [16]. The irradiated enriched 86SrCO3 was dissolved in a small volume of HCl, and no-carrier-added 86Y was coprecipitated with La(OH)3 by the addition of NH4OH solution. The precipitate was centrifuged off and taken up in a few drops of HCl. The separation of radioyttrium from inactive La was then effected through cation-exchange chromatography by elution with α-hydroxyisobutyric acid, either at normal pressure [16] or, as developed later by Kettern et al., [28], in combination with HPLC. The radioactivity amounting to several GBq was collected in only 150 μL solution. The radionuclidic quality control was done via γ-ray spectrometry, and the chemical purity of the product was checked via inductively-coupled plasma-mass spectrometry (ICP-MS) [28]. In a slight variation of this method [26], the coprecipitation of radioyttrium was done with Fe(OH)3, followed by a final purification of 86Y by ion-specific resin chromatography.
The electrolytic method of separation was first developed by Reischl et al., [27] and later optimized by Yoo et al., [31] and Lukic et al., [33]. The target was dissolved in dilute HNO3 and electrolyzed at 2 A using two Pt plate electrodes. Thereafter, the electrodes were removed from the cell and placed in a second glass vial filled with fresh dilute HNO3. A third electrode (platinum wire) was then inserted, and a second electrolysis was performed at 200–400 mA. The 86Y activity was collected on the Pt wire from where it was recovered by 250 μL of 0.05 M HCl.
The single column chromatographic method of separation of radioyttrium was investigated by Kandil et al., [34], using both the cation-exchanger Dowex 50W-X8 (H form) and the anion-exchanger Dowex 21k (Cl form). The irradiated 86SrCO3 was dissolved in 6 M HCl, and the solution was evaporated to near dryness. For cation-exchange separation, the residue was dissolved in 0.1 M citrate buffer, pH 4. For anion-exchange separation, however, the dissolution of the residue was done in 0.1 M citrate buffer, pH 5. The column was loaded with the radioactive solution, and elution was done with 0.1 M citrate buffer, pH 4, while working with the cation-exchange column, or with 0.1 M citrate buffer, pH 5, when using the anion-exchange column. In the former case, 86Y passed through the column, while Sr remained on the column. In the latter case, Sr passed through the column, and 86Y remained on the column, which was later removed and collected by elution with 1 M HCl. The cation-exchange method was found to be superior because it led to higher chemical purity. However, the final volume of the product was large (~60 mL), and the concentration of the activity was needed. In a similar study, Sadeghi et al., [35,36] investigated the separation of radioyttrium from an irradiated natSrCO3 target via ion-exchange chromatography. The mixture of strontium and radioyttrium was absorbed onto a chelating resin Chelex 100 column (H+ form). Strontium and radioyttrium were then eluted sequentially with 0.01 M HNO3 and 1 M HNO3, respectively. The final volume of the radioyttrium fraction was large (~20 mL). In yet another method [41], the irradiated 88SrCl2 target was dissolved in 2.5 M HCl and transferred on to an Eichrom DGA resin column. Thereafter, radioyttrium was eluted with 0.5 M HCl in a total volume of about 10 mL.
The multiple column chromatographic method of the separation of 86Y was introduced by Garmestani et al., [29] and further developed by Park et al., [30]. In this method, the irradiated target was dissolved in 4 N HNO3, and the solution was loaded onto a Sr-selective resin. On washing the column further with 4 N HNO3, radioyttrium was removed and then adsorbed on a second RE-SPEC column. Thereafter, the radioyttrium was further eluted by using 0.1 N HCl and readsorbed on a third Aminex A5 resin column connected in sequence. Finally, 86Y was eluted from the Aminex column with 3 N HCl and, after concentration, obtained in 200 μL of 0.1 N HNO3 or radiolabeling buffer. Labelling herceptinTM or DOTA-biotin, whereby a specific binding was proven, testified the purity of the product 86Y.
The solvent extraction method for the separation of 86Y from a 86SrCO3 target was developed by Kandil et al., [34]. It consisted of dissolution of the irradiated target in 1 M HCl, transfer to a separatory funnel and addition of an equal volume of 10% (v/v) di-ethylhexyl phosphoric acid (HDEHP) diluted in n-heptane. The mixture was shaken for 3 min. After disengagement, the organic phase was washed with 200 mL of 1 M HCl for 2 min. Then, 9 M HCl led to the recovery of the radioyttrium activity in the aqueous phase. The solution was dried and the residue dissolved in dilute HCl.
The isolation of radioyttrium from the irradiated 86SrCO3 by simple precipitation of the target element was developed by Avila-Rodriguez et al., [32]. The target material was dissolved in 0.5 mL of 6 M HCl and made basic by the addition of 5 mL of 1 M NH4OH. This solution was loaded onto a chimney supporting a Whatman 42 filter paper and filtered under vacuum. The filter paper was then washed with water to remove traces of strontium. The no-carrier-added 86Y was recovered from the filter paper using 1 M HCl. The solution was evaporated to dryness and the activity taken up in 500 μL of 0.1 M HCl. The technique was also applied by Sadeghi et al., [42] after some modifications. From the irradiated natSrCO3 target solution in 8 M HCl, at first, Cu and Zn impurities were removed via anion-exchange chromatography. Thereafter, sulfuric acid was gradually added to the 86–88Y/Sr solution under heating, followed by filtration of the SrSO4 precipitate. Most of the radioyttrium passed through the filter paper. The solution was evaporated to dryness and the residue taken up in HCl.

3.3. Comparison of Separation Methods

The pertinent data are summarized in Table 3. The solvent extraction method was studied using natSrCO3, and the chemical purity achieved was modest. In all other cases, 86SrCO3 was used as the target material unless otherwise stated. The method involving coprecipitation of 86Y with La(OH)3, followed by cation-exchange chromatography led to a pure product in a batch yield sufficient for first clinical application [16]. The method was further optimized, both with respect to targetry and chemical separation [28]; the batch yield increased considerably; and 86Y of the highest chemical purity was achieved. The two-step electrolytic process has also been successfully developed, and clinical-scale batch yields have been reported [27,31,33]. Regarding the chemical impurity, only the level of Sr was investigated; it was higher than in the coprecipitation/cation-exchange method. The single column cation-exchange chromatography led to similar results as the electrolytic method. The multiple column chromatography has somewhat lower chemical separation efficiency than the other methods. The chemical impurities were not checked, but the separated 86Y was tested by labelling two molecules with satisfactory results. The very simple precipitation and filtration method was found to be effective from the separation and batch yield points of views, but the level of the associated chemical impurity was rather high.
Regarding the radionuclidic purity, it should be emphasized here that all of the chemical separation methods lead approximately to the same result because in each work, the enrichment of the target isotope 86Sr used was approximately the same (95.6–97%). The major impurities reported in all works were 87Y (~0.4%) and 87mY (<3%). While using 88SrCl2 as the target material [41] to produce 86Y via the 88Sr(p,3n)86Y reaction, on the other hand, the level of the radionuclidic impurity, as expected, was very high (87mY: 56%). Furthermore, the level of the chemical impurity associated with the single column chromatographic method used was high.

3.4. Concluding Remarks about Production Methodologies

Out of all of the above discussed production routes, the 86Sr(p,n)86Y reaction over the energy range of Ep = 14→7 MeV has become the method of choice because it leads to 86Y of the highest radionuclidic purity. The 87mY impurity at the level of <3% can be considerably reduced if 86Sr of ~99% enrichment would be used. The target material 86SrCO3 in the form of a pellet, embedded in a 4π water-cooled Al target holder, withstands 16-MeV proton beams of up to 10 μA. For chemical processing of the irradiated material to obtain 86Y, the method involving coprecipitation followed by cation-exchange chromatography appears to lead to the product of the highest chemical purity. So far, the maximum batch yield of about 3.5 GBq was also reported using that method. The two-step electrolytic process is also very useful.

4. 86Y for PET Imaging

4.1. Radiation Emission Properties of 86Y

Since the positron abundance of 86Y is only 33%, compared to radiotracers labelled with 18F (positron abundance of 97%), the PET sensitivity per injected MBq of an 86Y-labelled radiotracer is rather low. This is, however, a common feature of many other clinically-adopted positron emitters, as well, such as 89Zr (22.3% positron abundance) and 64Cu (17.8% positron abundance). Nevertheless, many examples of successful PET-imaging of 86Y-labelled radiopharmaceuticals are present in the literature (see Section 5). However, the decay of 86Y does not only result in positron emissions with their annihilation photons of 511 keV, but also in the emission of a whole spectrum of additional (single) gamma photons ranging from 443–1921 keV (Table 1). Although many of the gamma photons have energies that are above the upper level of the typical energy window of the PET detector, the detector may accept them after these photons have lost enough energy due to Compton scattering in the subject investigated and/or in the detector crystals. If the single gamma photons, which are accepted by the energy window (ranging, e.g., between 450 and 650 keV), are emitted independent of the positrons, they would just increase the amount of random coincidences and would be corrected together with other random coincidences resulting from those annihilation photons that originate from two different positron emissions, but detected within the coincidence time window. Most of the single gamma photons occurring in the 86Y decay are emitted simultaneously with the positron emission (leading to annihilation photons) or electron capture. When one of these photons is accepted by the PET detector together with an annihilation photon within the coincidence time window, this combination is counted as a “coincident PET event”. In the literature, this event is called (cascade) gamma or prompt coincidence. It distorts the “pure” PET recording in addition to other false coincidences, i.e., random and scattered coincidences and to coincidences lost by tissue attenuation and Compton scattering (Figure 4).

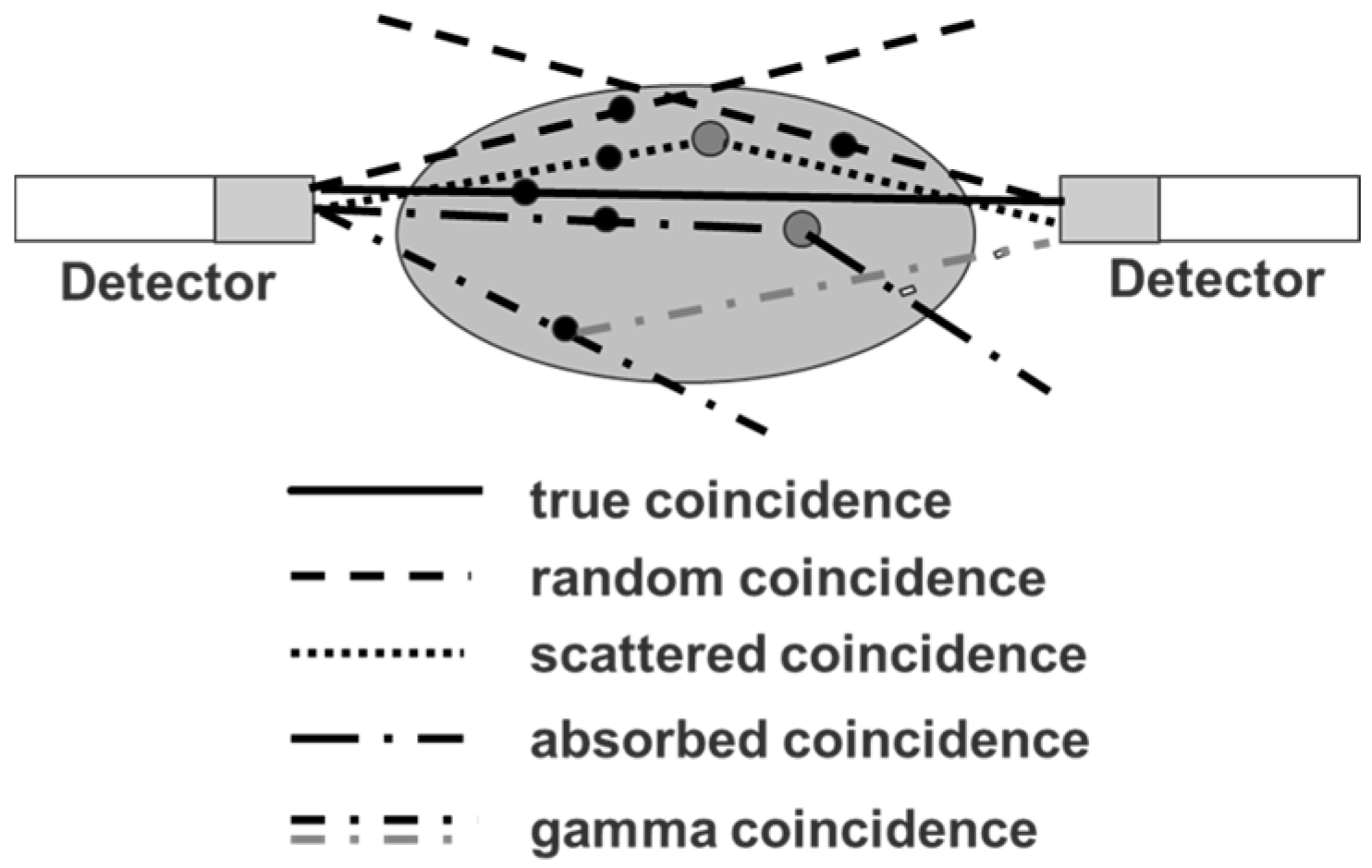

The latter three kinds of “non-true” coincidences occur in the same way in the case of the four standard positron emitters 18F, 11C, 13N and 15O and can be corrected in a satisfactory way. The gamma coincidences, however, influence the PET measurement qualitatively, as well as quantitatively. Besides 86Y, there are other non-standard positron emitters such as 76Br or 124I that emit cascade gamma photons together with positrons, so that PET measurements are affected by gamma coincidences, as well. On the other hand, different non-standard positron emitters have quite different emission schemes regarding the abundance and energy of the cascade gamma photons. Therefore, a common method for correcting the gamma coincidences has not been achieved. Instead, corrections dedicated to each individual non-standard positron emitter have been suggested as described below for 86Y.

4.2. Errors Caused by Gamma Coincidences and Their Correction

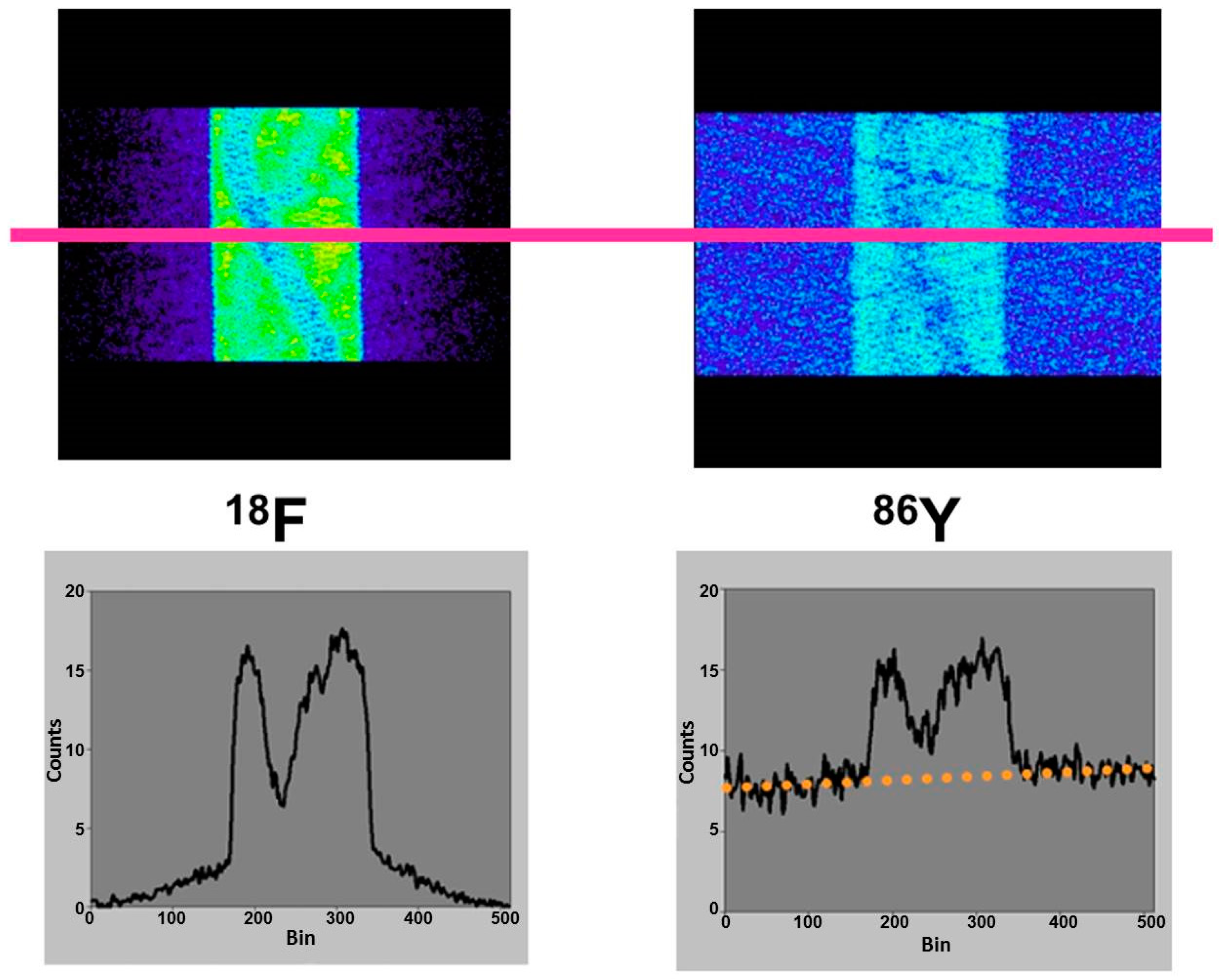

Since the directions of the gamma photons and the annihilation photons are not correlated, the gamma coincidences are distributed nearly uniformly within the PET field of view (FOV), causing a primarily flat background in the sinograms, as indicated in Figure 5, in comparison with the equivalent phantom study done with 18F.
This leads to a corresponding background in reconstructed images and, consequently, to a diminished contrast. Whereas this outcome might be tolerated in the qualitative respect, it leads to quantitative errors, which cannot be accepted. One must consider that the most important motivation for using 86Y is the quantitative measurement of its temporal and spatial distribution throughout the body so that the radiation dose caused by the therapeutic 90Y can be derived. The quantitative error caused by the gamma coincidences is amplified by the attenuation correction, especially in areas of tissue with a high attenuation coefficient, such as bone. This problem is demonstrated by images of a study with a three-rod phantom (Figure 6). Outside the rods, the phantom was filled with 18F, 124I or 86Y. The three rods were filled with air, (non-radioactive) water and Teflon, which has an attenuation coefficient similar to that of bone. In the image of the phantom filled with 18F, all three rod regions look like the background outside the phantom. In contrast, when the phantom was filled with 86Y, the water region shows “radioactivity” somewhat less than the radioactivity inside the main chamber. Moreover, in the Teflon region, a considerably erroneous high “radioactivity” is found. In both the water and Teflon regions, the counts caused by gamma coincidences are multiplied by attenuation correction factors, which are especially high in the Teflon (= bone) region. This fact would result in a totally wrong estimation of the radiation dose, in particular in bone metastases, which are among the major aims of 90Y-labelled radiotherapeuticals. Figure 6 includes also the findings for 124I. The quite different radiation emission scheme of 124I results in lower background and correspondingly lower errors compared to 86Y. Comparisons between 124I and 86Y can be found in Herzog et al., [43] and Lubberink and Herzog [44].

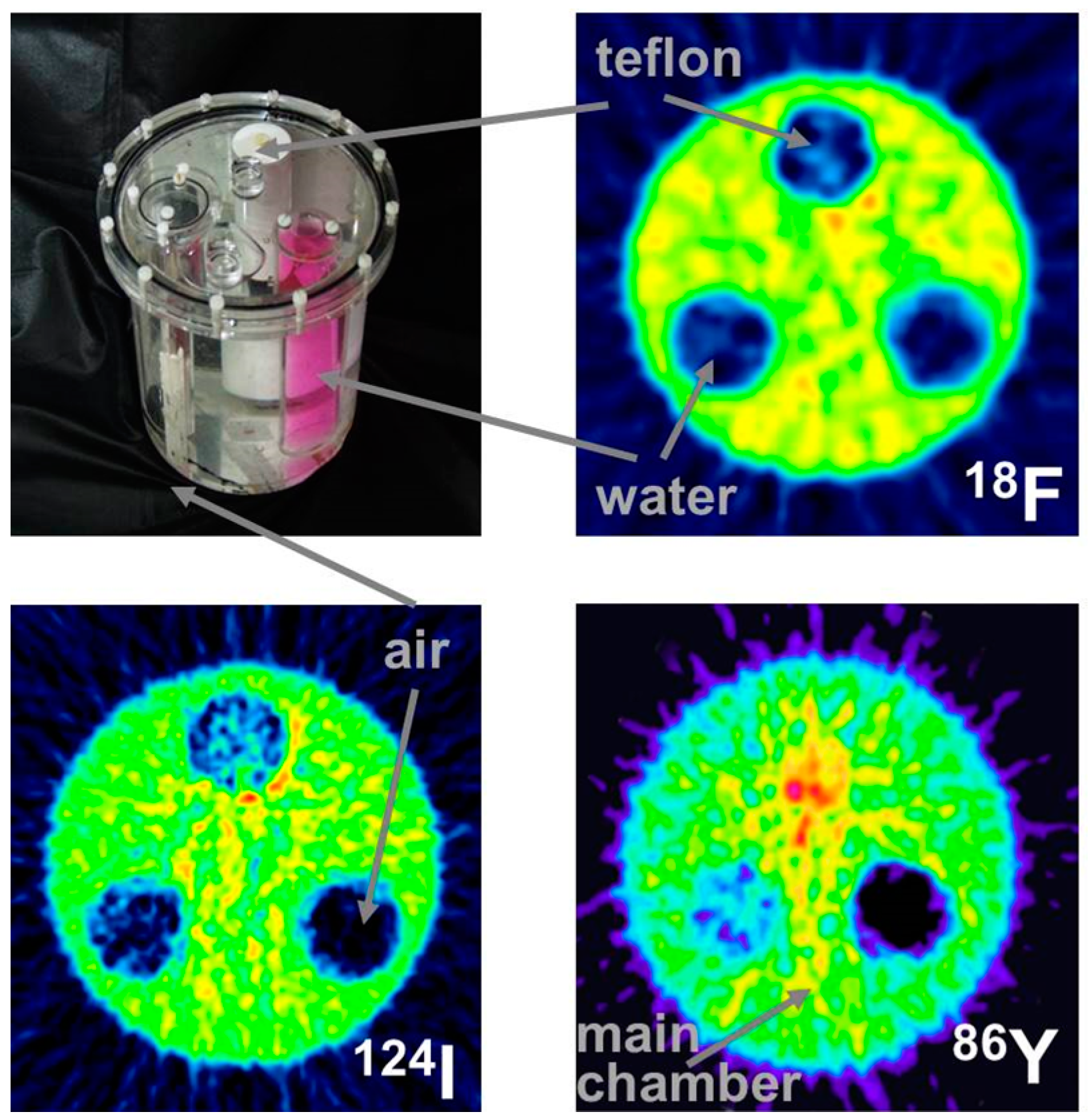

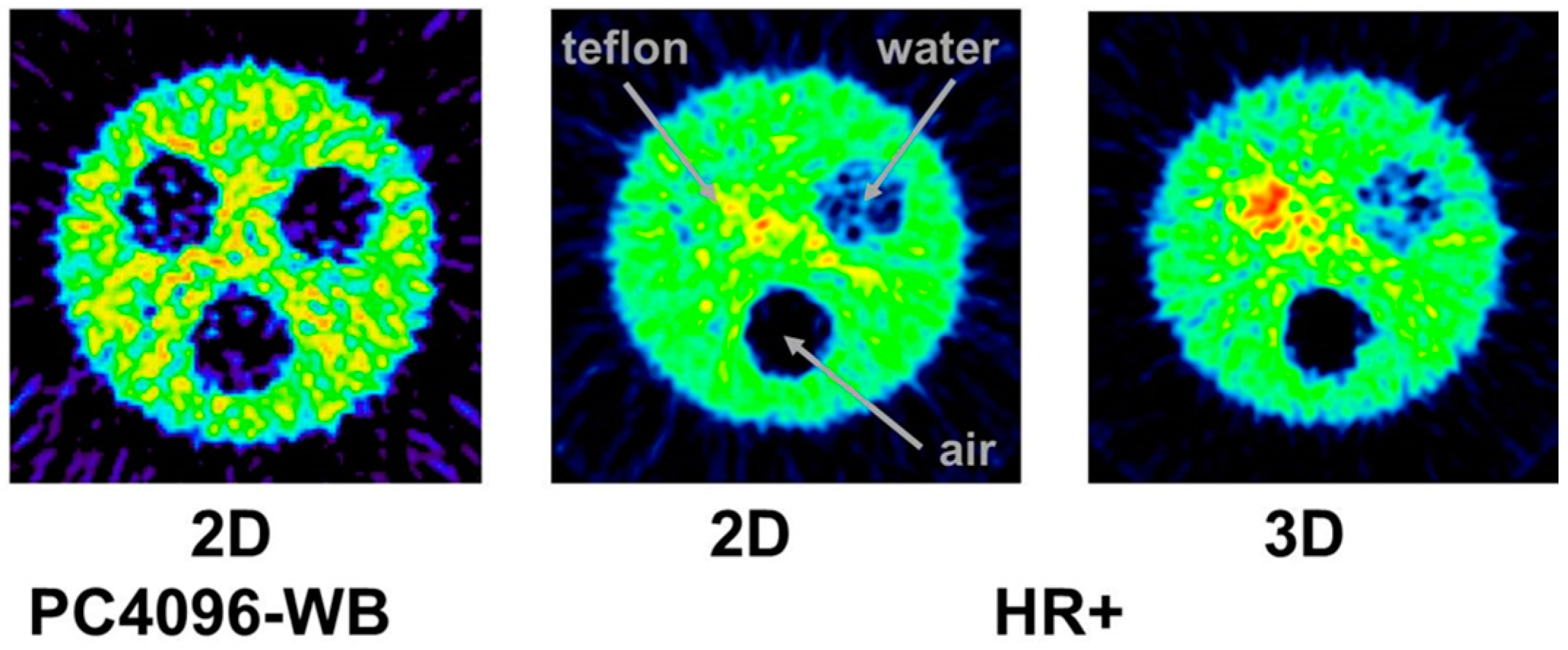

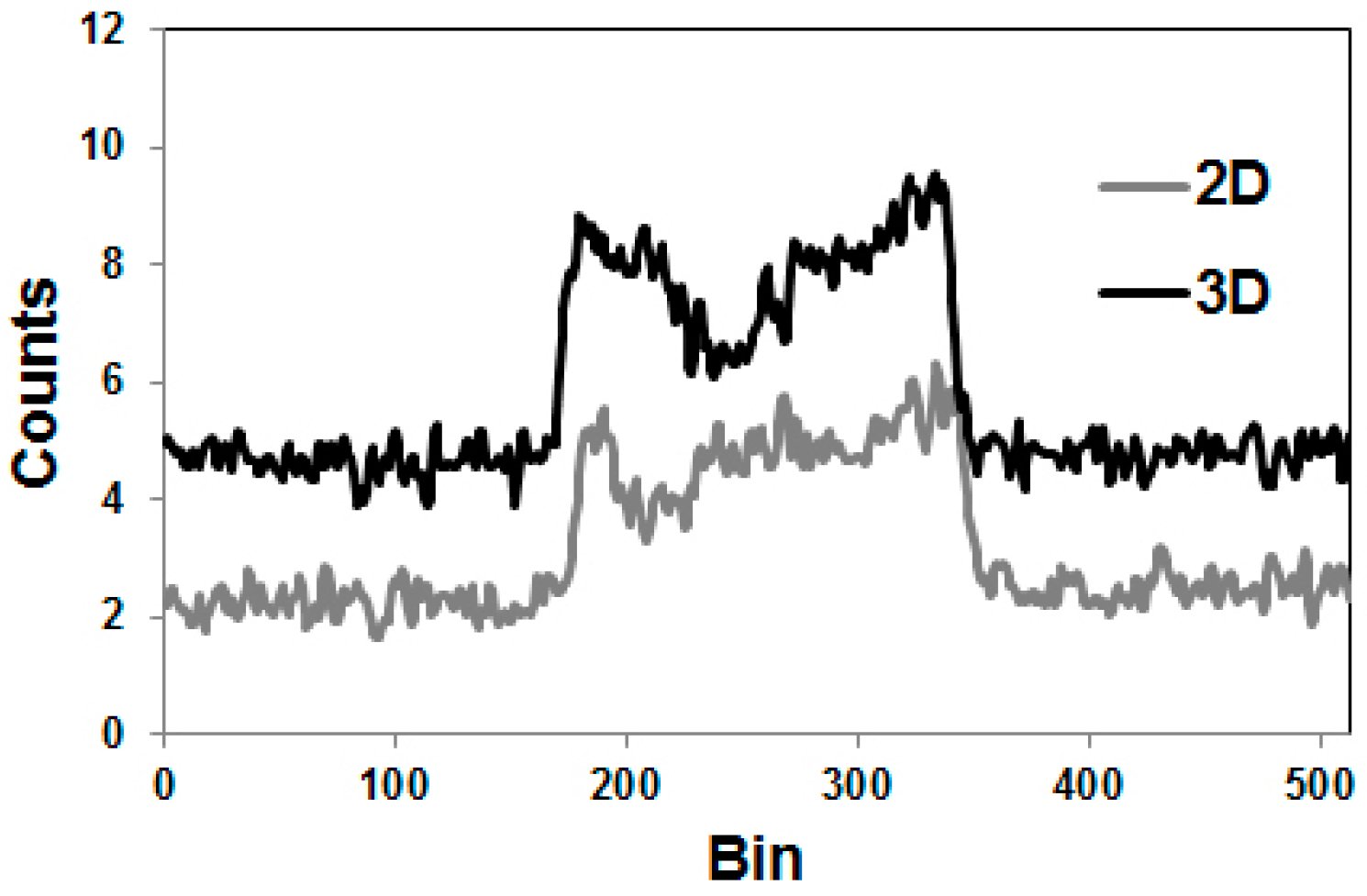

The tests just described were done with the 3D-acquisition mode of the PET detector, i.e., the septa of the PET-Scanner Siemens ECAT Exact HR+ were retracted. When our group performed the first studies with 86Y in the early 1990s, all data were acquired with the Scanditronix/GE PET PC4096-WB, in which the detector rings were separated by heavy lead rings, so that the 2D-acquisition was exclusively possible. Compared to 3D-acquisition, considerably less random and scattered coincidences, but also considerably less gamma coincidences, are recorded in 2D-mode. The Scanditronix/GE PC4096-WB had much stronger septa than the Siemens HR+. The septa of the Scanditronix/GE PC4096-WB were 20 cm long and 3 mm thick, whereas those of the Siemens HR+ were 7 cm long and 0.7 cm thick. Considering the construction of the septa of the Scanditronix/GE PC4096-WB, it is not astonishing that an image of the three-rod-phantom recorded with that scanner shows no or only minor (for Teflon) differences between the cold rods and the background outside the phantom (Figure 7).

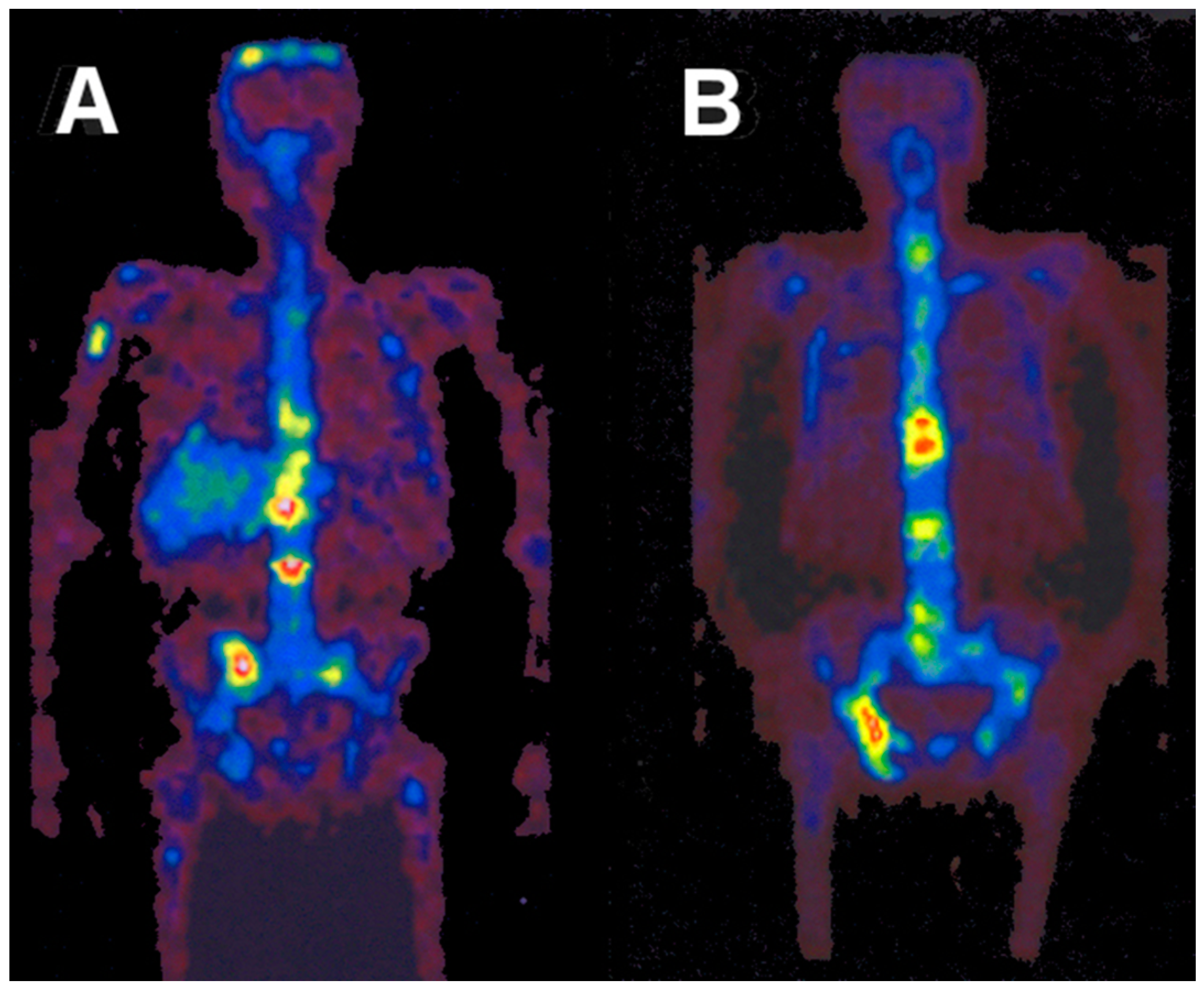

The first human study after injection of 86Y-citrate in a patient with a history of breast tumor and multiple bone metastases was performed with the Scanditronix/GE PC4096-WB by Herzog et al., in 1993 [45], Section 5.2. This PET scanner was also applied for further investigations: a comparison between 86Y-citrate and 86Y-EDTMP in ten patients with prostate cancer in 1996 [46] and a study reporting the uptake kinetics of 86Y-DOTA-DPhe1-Tyr3-octreotide in non-human primates by Rösch et al., 1999 [47]. As a conclusion from the experiences with the phantom studies just described, we are quite confident that the uptake and radiation doses reported in those human and non-human studies were reliable.
The publications by other groups [48,49,50] are not based on the use of the Scanditronix/GE PC4096-WB, but of different scanners with smaller septa (as described above for the Siemens HR+, for example). In our own study with the Siemens HR+ operated in 2D- and 3D-acquisition modes, images of the three-rod-phantom filled with 86Y showed false radioactivity uptake in all cold rods (Figure 7). Compared to the 86Y activity in the main chamber outside the rods, the “uptake” in the Teflon rod was higher by 107% and 147% for 2D and 3D, respectively. The corresponding findings for the (cold) water rod were 41% and 56%. For the air rod, negative “radioactivity” of −10% and −21%, respectively, was found. Regarding these data, a simple PET measurement without correction for the gamma coincidences will lead to non-negligible errors of the estimated uptake of 86Y-labelled diagnostics and consequently of the calculated radiation dose caused by 90Y-labelled therapeutics. Because of the smaller errors associated with the 2D-acquisition mode, most of the publications on 86Y reported the use of this mode, together with different suggestions for correcting the gamma coincidences. As mentioned above (and indicated in Figure 5), the gamma coincidences cause a flat background in the sinograms so that the correction can be done here before entering the reconstruction including the common corrections, such as for scatter. Therefore, we suggested a linear interpolation between the tales of the single projection lines of the sinogram (yellow line in Figure 5, bottom right) and subtracted this line from the recorded counts [43,51].
Looking at two different Siemens PET scanners, ECAT Exact and the ECAT Exact HR+, the best correction was achieved when 100% of the linearly-interpolated counts were subtracted for the first scanner, but only 75% for the second scanner. These findings did not differ between 2D- and 3D-mode. Using a larger phantom, the IEC whole body phantom [52], Kull et al., [50] found that a parabolic approximation to the background caused by the gamma coincidences resulted in a better correction than a mere linear interpolation. More sophisticated methods to remove the gamma coincidences in the sinograms were suggested by Walrand et al., [53], who applied a patient-dependent method based on sinogram tail fitting using an 86Y point spread function library, and by Beattie et al., [54], who applied convolution kernels to the entire two-dimensional sinogram (and not just to projection lines).
Especially the more sophisticated methods for correcting the gamma coincidences were primarily developed for and tested with the 2D-acquisition, i.e., with septa-in. Nowadays, however, no PET/CT scanner is manufactured with a 2D-option. In 3D-mode, the amount of gamma coincidences is considerably increased (Figure 8). Thus, as indicated above, the reconstructed activity exhibits greater errors if not corrected appropriately (Figure 7). As stated by Walrand et al., [53] and as far as we know, such corrections have not been validated for realistic phantoms.
A number of studies with 86Y-labelled radiopharmaceuticals in small animals have been reported (see Section 6.1). Small animal PET scanners have no septa so that they offer only the 3D-acquisition mode. In spite of that, gamma coincidences play a minor role here. Because of the small size of mice or rabbits, there is much less scattering in the animals, so that most of the high-energy cascade gamma photons do not lose enough energy to be stopped by the detector crystals or to be registered within the energy discrimination window of the detector.

5. Radiation Doses of 90Y-Therapeuticals Extracted from 86Y PET-Imaging

The radionuclide 90Y had been intensely used in the 1970s, 1980s and 1990s in the treatment of both benign bone disease [55] and cancer [56,57]. Traditionally, 90Y has been considered as a β-emitter with 100% abundance accompanied by very low bremsstrahlung, but without any γ-radiation, cf. International Commission on Radiological Protection (ICRP) Publ. 38, 1983 [58]. It did not seem possible to observe the radioactivity distribution in the patient from outside with an imaging modality such as positron emission tomography (PET), so that radiation doses to tumorous and normal tissue could not be quantitatively derived.

5.1. PET Imaging Based on 90Y Positrons

As mentioned in Section 2.1, a small fraction of the β-decay of 90Y ends up in the emission of positrons, generated via the internal pair production. This was reported already in 1955 by Ford [59] and Johnson et al., [60]. Its intensity was accurately measured by Greenberg and Deutsch [61], but a more precise value of 0.003186% was recently published by Selwyn et al., [62]. The first experiments towards PET were, however, performed only in 2004 [63] and showed the general feasibility of this imaging approach. In 2009 and 2010, Lhommel et al., [64] and Werner et al., [65] confirmed the possibility of PET imaging of 90Y in the case of selective internal radiotherapy (SIRT) in the liver, where high amounts of radioactivity are locally administered. With radioactivity concentrations in the range of some MBq/mL and acquisition times of half an hour, the low PET sensitivity for 90Y is nearly compensated. In a further paper, Lhommel et al., [66] described a specific method to achieve quite accurate estimates of the radiation dose to normal liver and tumor. Recently, Fabbri et al., [67] reported a phantom study towards using 90Y for peptide receptor radionuclide therapy. Here, the applied concentration of 90Y was also rather high with more than 0.2 MBq/mL. One may be skeptical whether PET-imaging of 90Y will be used for further applications. A comprehensive comparison of 86Y and 90Y can be found in Walrand et al., [53].

5.2. PET Imaging with 86Y Instead of Using 90Y

If the 90Y is substituted by a positron-emitting isotope, the spatial and temporal distribution of yttrium or of a therapeutic compound labelled with yttrium can be measured with PET, especially for applications beyond those where direct PET imaging of 90Y is feasible. Among the different isotopes of yttrium, 86Y is the most appropriate positron emitter (for its decay properties, cf. Table 1). With respect to uptake, biodistribution and metabolism, 90Y and 86Y or compounds labelled with 90Y and 86Y, respectively, do not differ. After the 86Y-based biodistribution has been determined by PET quantitatively, the radiation dose caused by 90Y can be derived directly using the MIRD formalism [68,69,70]. For this purpose, the S-factors valid for 90Y have to be applied instead of those for 86Y. The MIRD formalism requires that the measured time-activity curves must be decay-corrected using the half-life of 86Y and thereafter multiplied with the decay function of 90Y (Figure 9).

5.3. The First Human Study with 86Y

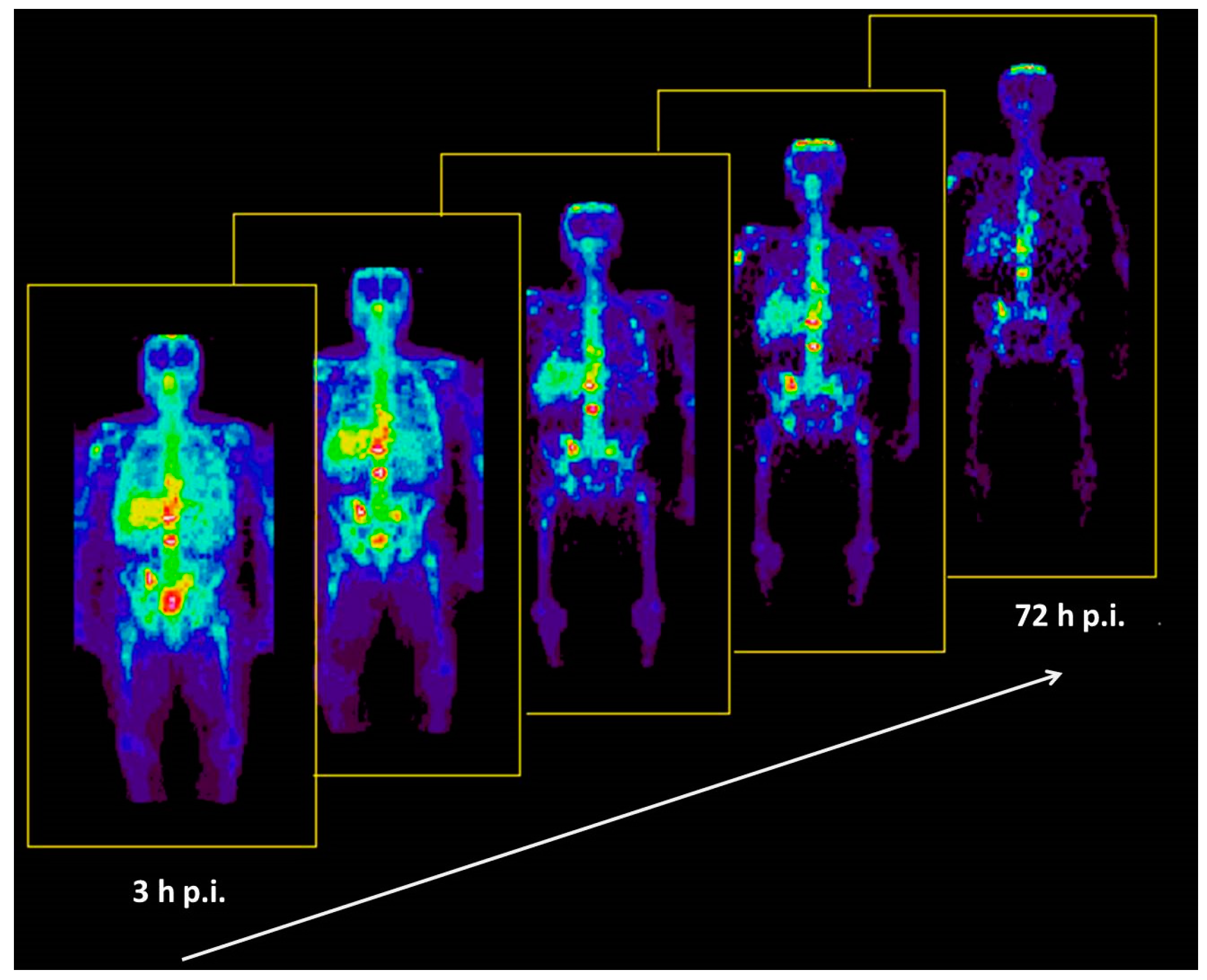

After the successful development of the production and the radiochemistry of 86Y and satisfactory phantom measurements at Jülich, the very first human study applying 86Y was performed in a female patient with breast cancer, cf. Herzog et al., in 1993 [45]. In spite of surgical treatment, radiation therapy and chemotherapy, the patient suffered from painful bone lesions and further metastases located in the facial bone, the lung, the pelvis, the right femur and at different locations in the spine. The aim of the PET study, for which the Scanditronix/GE PET PC4096-WB was used, was to deliver data for planning the radiation dose to be delivered by a palliative treatment with 90Y-citrate directly after the PET investigation. Following injection of 100 MBq 86Y-citrate, whole body scans of 147 cm in length ranging from the head to the most caudally-located metastasis were acquired at 4, 10, 21, 28 and 45 h after tracer injection (p.i.) (Figure 10). The reconstruction with filtered back projection included the common corrections for detector efficiency, dead time, random, scatter and attenuation. Decay-corrected time-activity curves obtained from volumes of interest (VOIs), marking different metastases, normal bone and liver, are displayed in Figure 11.
The decay-corrected pharmacokinetic data, i.e., percentage of injected 86Y activity per organ or per cm3 tissue, were considered to be valid also for the therapeutic labelled with 90Y. After extrapolating these data to five half-lives of 90Y, introducing the decay function of 90Y and integrating the extrapolated curves, the cumulated activities à were obtained using the MIRD formalism [69], so that the radiation doses caused by 1 MBq of injected 90Y to the red marrow, liver and the metastases could be calculated: 1008 μGy, 593 μGy and 3.5 mGy (metastasis with the highest uptake), respectively.

5.4. Comparative Evaluation of 86Y-Citrate and 86Y-EDTMP

Based on the experience with the above-mentioned investigation, the bio-distributions of 86Y-citrate and 86Y-EDTMP were compared in ten patients with prostate cancer by Rösch et al., in 1996 [46]. The two radiopharmaceuticals were injected in five patients, each with activities of 86Y between 130 and 295 MBq. Using the Scanditronix/GE PET PC4096-WB, a dynamic scan of the upper abdomen was acquired from 0, to 40–90 min p.i. Up to five whole-body PET scans were performed, the first at about 3 h p.i. and the last up to 72 h p.i. (Figure 12). The decisive difference between the two compounds was the lacking liver uptake in the case of 86Y-EDTMP (Figure 13). Knowing the 86Y-based biodistribution, the radiation doses for 90Y-citrate and 90Y-EDTMP were estimated for bone metastases, red marrow, liver, kidneys and bladder. The radiation dose to the bone metastases per cm3 volume was 26 ± 11 mGy/MBq in the case of 86Y-citrate and 18 ± 2 mGy/MBq in the case of 86Y-EDTMP. The radiation dose to the red marrow was 2.5 ± 0.4 mGy/MBq and 1.8 ± 0.6 mGy/MBq, respectively. It was concluded that a substantial fraction of 90Y-citrate is taken up by the liver and then slowly released from it, so that the concentrations in metastases reached a maximum within about two days and that the corresponding (therapeutic) radiation doses were higher than those with 90Y-EDTMP.

5.5. Radiation Dose of 90Y-DOTA-DPhe1-Tyr3-Octreotide Based on 86Y-DOTA-DPhe1-Tyr3-Octreotide

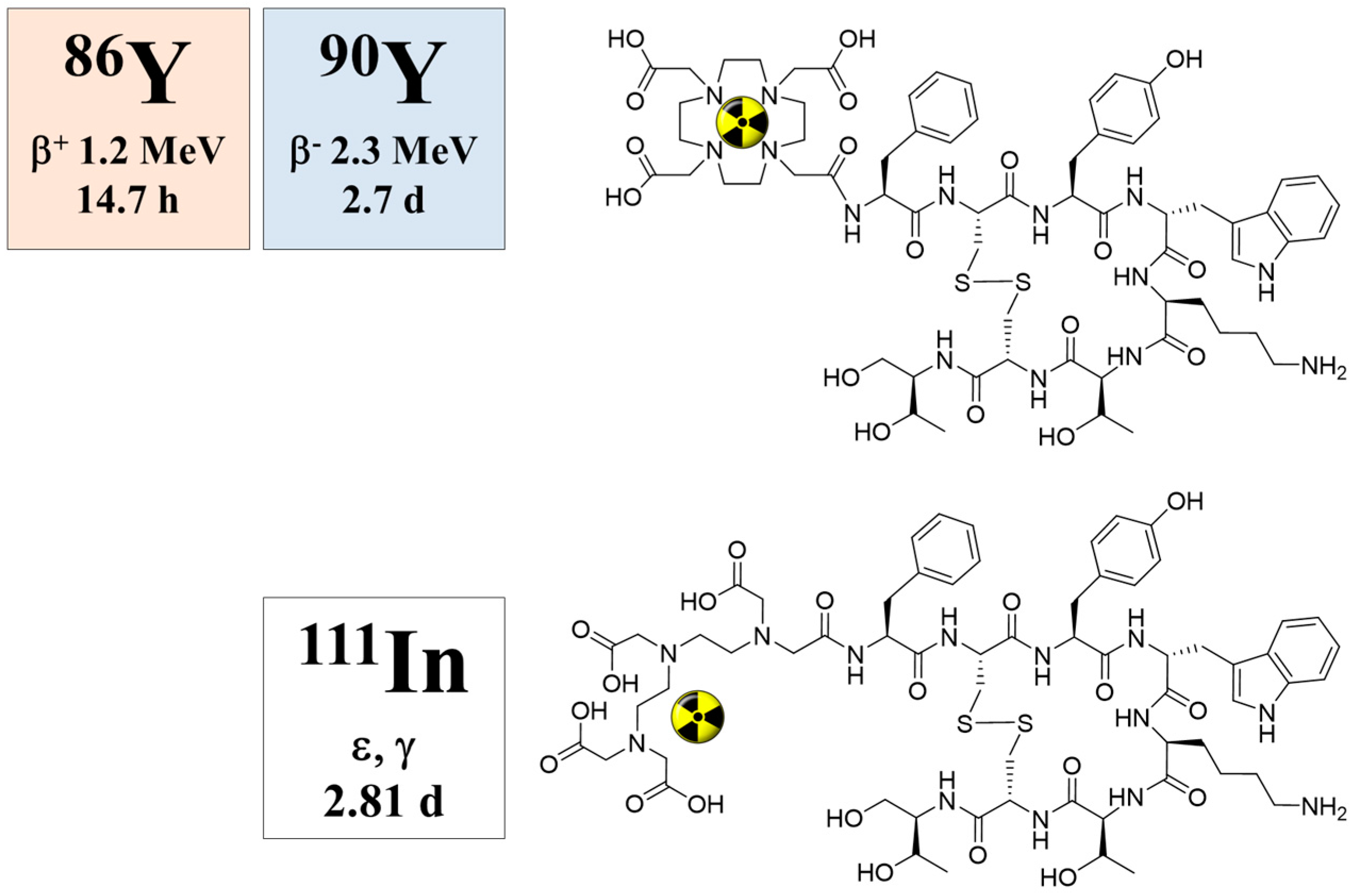

When 90Y-DOTA-DPhe1-Tyr3-octreotide (90Y-SMT487), cf. Figure 14, was suggested as a promising radiotherapeutic agent for somatostatin receptor-expressing tumors in 1998 (Otte et al., [71]), our group immediately estimated the radiation dosimetry of this compound in non-human primates with the help of the 86Y-labelled analogue (Rösch et al., 1999, [47]). Once again, the Scanditronix/GE PET PC4096-WB was applied. Three baboons (two male and one female) aged between three and four years and weighing between 7.9 and 12.4 kg were investigated three times each with intervals of one week. In the first two weeks, the injected 86Y-SMT487 contained 100 μg and 2 μg of (cold) SMT487 per m2 body surface, respectively. The 100 μg SMT487 reflected the peptide dose in a radiotherapeutic dose of 90Y-SMT487, whereas 2 μg SMT487 corresponded to the diagnostic dose of the peptide of <10 μg/m2 as used for 111In-OctreoScan. In Week 3, an amino acid solution was added to the 100 μg/m2 SMT487 protocol. The PET data were acquired over different parts of the baboons from 0–90 min p.i. (first baboon) and at 5 h p.i. (second baboon) and 24 h p.i. (third baboon); Figure 15. For further details, see [47]. Furthermore, radioactivity in blood and urine was measured.
Using the pharmacokinetic data measured with 86Y-SMT487, the radiation doses in the case of 90Y-SMT487 were derived. The kidneys received the highest radiation dose, with 2.1–3.3 mGy per MBq 90Y-SMT487. For the 100 μg/m2 SMT487 protocol with amino acid co-infusion, this dose was about 20–40% lower. The liver and the red bone marrow received doses ranging from 0.32–0.53 mGy and 0.03–0.07 mGy per MBq 90Y-SMT487, respectively. The average effective dose equivalent amounted to 0.23–0.32 mSv/MBq. Based on those results with comparatively low estimated radiation doses to normal organs, clinical phase 1 trials with 86Y-SMT487 in patients with somatostatin receptor-expressing tumors were initiated (see below).
In 2001, Förster et al., [72] reported “preliminary data on biodistribution and dosimetry for therapy planning of somatostatin receptor positive tumors” using 86Y-DOTA-DPhe1-Tyr3-octreotide (86Y-DOTATOC) or 86Y-SMT487. Their scanner was a Siemens ECAT Exact acquiring with 2D-mode. Three patients with metastatic carcinoid tumors were examined up to 48 h p.i. with dynamic and static PET scans. Then, 77–186 MBq 86Y-DOTATOC were injected. The resulting radiation doses for kidneys, liver and whole body did not differ much from the values deduced from non-human primates [47]; Table 4. In another group of eight patients with progressive metastatic neuroendocrine tumors, the same group estimated the radiation doses comparatively, based on PET measurements with 86Y-DOTA-TOC and on combined anterior/posterior gamma scintigraphy with 111In-pentetreotide, respectively [73]. Renal protection by administering amino acids was also examined, confirming that the coinjected amino acids lower the radiation dose to the kidneys. While the PET-based radiation doses were in the range of the numbers reported in [47,72], the dose to liver obtained from the 111In-pentetreotide scintigraphy was underestimated by 44%, whereas the doses to kidney and the spleen were higher by 16% and 51%, respectively.
Results of a phase 1 clinical study with 86Y-DOTATOC on the pharmacokinetics and biodistribution in 24 patients with somatostatin receptor-positive neuroendocrine tumors and especially at the “renal protective effect of different regimens of amino acid co-infusion” were reported in 2003 [74]. The maximum dose deliverable to the tumor was reached with a mixture of amino acid infused over 10 h. In another paper, that group compared the radiation doses of 90Y-DOTATOC to kidneys and tumorous tissues, which were alternatively derived from 86Y-DOTATOC PET and 111In-DTPA-DPhe1-octreotide SPECT [75]. This intra-patient comparison showed that the use of 86Y-DOTATOC was more appropriate for the planning of therapy of somatostatin receptor-bearing tumors. Based on the basic research with 86Y-DOTATOC just described, the therapeutic 90Y-DOTATOC was approved by pharmaceutical administration authorities and introduced to the clinical treatment of neuroendocrine tumors [76,77,78].

6. Discussion

6.1. Further Use of 86Y

As far as we know, no other 86Y-labelled peptides or 86Y-labelled antibodies have been examined in humans. However, 86Y has been used and is being used for a variety of experimental pre-clinical investigations. The main intention is to benefit from the longer half-life of 86Y instead of extracting quantitative radiation doses in the context of internal radiation therapy in patients. The focus is on small animal studies. For a review of the many 86Y-based PET radiopharmaceuticals: radiochemistry and biological applications, cf. [79,80]; targeted vectors of interest included are tumor receptor binding peptides [81,82,83,84], monoclonal antibodies and antibody fragments [85,86,87,88,89,90] or artificial nanoparticles [91], i.e., constructs with longer retention times. Within this group of investigations, only a few papers yield dosimetric data; however, based on ex vivo organ distribution data in terms of %ID/g, such as Banerjee et al., [84], Cheal et al., [92] and Palm et al., [93].

6.2. Alternative Approaches in Radiotheranostics

Within the last decade, an impressive number of small peptides has been developed, beyond the octreotide class, showing extraordinary promise for the diagnosis and therapy of other than neuroendocrine tumors. Most of them are labelled with the positron emitter 68Ga for PET/CT imaging. Some of them are transferred into therapeutic analogues, mainly labelled with 177Lu. When applied as the 68Ga/177Lu pair within the tumor targeting vector (typically DOTA-conjugated), the procedure is referred to as theranostics, as well (e.g., Baum and Rösch [94], Rösch and Baum [95], Velikyan [96]), although a “diagnostic” radionuclide from an element chemically different from the “therapeutic” one is used, cf. Figure 16.
In such a case, however, pharmacological studies need to ensure that the analogy (rather than identity) in chemistry reflects a similarity in pharmacology for the two differently-radiolabeled compounds. Most probably, this would not be the case, and binding affinities, lipophilicities and pharmacologies will differ, cf., for example, [97,98]. Nevertheless, this deviation between the diagnostic version and the therapeutic version of the radiometal may be handled by introducing a correction factor, similar to the case of 18F-FDG (2-deoxy-2-[18F]fluoro-D-glucose, a deoxy-glucose derivative) used to quantify glucose consumption rates in units of μmol per mL per minute. 18F-FDG does not fully represent the pharmacology of endogenous glucose, but a “lumped constant” introduced in the mathematical interpretation of diagnostic data corrects for that deviation in a way that indeed in vivo FDG data lead to the parameter wanted.
Nevertheless, even if there is a difference in the chemistry and pharmacology of the two versions of the theranostic molecule, which can be addressed by correction factors, the question remains whether the half-life of the diagnostic radionuclide is able to cover the relevant uptake kinetics of the 177Lu-labelled therapeutic as needed for the extraction of dosimetric parameters. Supposing that the pharmacology of a molecule is very similar for the 68Ga- (a positron emitting radionuclide of a 67.7-minute half-life for PET) and the 177Lu-labelled version (β-emitting radionuclide of a 6.4-day half-life for therapy), 68Ga is only able to measure the early uptake kinetics, covering about 4 h post-injection. The “theranostic” measure derived refers to the standard uptake value (SUV) at a certain, early time point only, while it is not possible to obtain radiation doses for the 177Lu compound in terms of mGy per MBq injected. The problem is illustrated in Figure 17. The hypothetical uptake kinetics of a radiotherapeutic compound labelled with, for example, 90Y, 177Lu or 225Ac, in the target tissue is given in grey. The region of uptake kinetics, which can be covered by a 68Ga-labelled analogue, is given in orange. Obviously, the PET tracer covers only the very early phase of the pharmacology of the analogue compound. It is by far not able to determine the area under the grey curve.
Obviously, the similarity between the physical half-lives of the two radionuclides remains one of the key requirements in radio-theranostics. Currently, 44Sc, a positron-emitting radionuclide of a 3.9-h half-life, is attracting interest, as it allows monitoring the uptake kinetics of structurally-similar radiotherapeuticals labelled with, for example, 177Lu, cf. [99,100,101]. Indeed, this radionuclide may contribute to the determination of patient-individual radiation dosimetry. However, also in the case of pairs like this with chemically non-identical structures of the two compounds, a combination of 86Y/177Lu appears to be superior, as the half-life of 86Y allows covering more than two days of the pharmacokinetics of the relevant targeting vector. Other promising systems include 44Sc (t½ = 3.9 h)/47Sc (t½ = 3.35 d), 64Cu (t½ = 12.7 h)/67Cu (t½ = 2.58 d) and 83Sr (t½ = 32.4 h)/89Sr (t½ = 50.5 d) [10]. However, many of those radionuclides are not easily available, e.g., 47Sc, 67Cu, 83Sr, etc.

7. Conclusions

The concept of theranostics in radiopharmacy and nuclear medicine involves individual patient treatment considering (i) the right therapy (i.e., the adequate targeting vector) applying a potent PET-radiopharmaceutical, (ii) for the right person for a given disease (i.e., the patient expressing the specific target qualitatively in terms of SUV values), (iii) at the right time, (iv) at an individualized radiation dose level (corresponding to the quantitative expression of the specific target) and (v) including the determination of the efficacy of a radiotherapy in terms of post-therapeutic PET imaging.
We believe that our first studies on the radionuclide pair 86Y/90Y done in 1993 were the starting point of the concept of theranostics. They exemplified the use of radiometal-labelled compounds, i.e., a combination of diagnosis via PET and internal radiotherapy, utilizing two radionuclides of the same element. Both the half-life of 86Y and its positron emission property allowed quantification of long-term uptake kinetics and resulted in the ultimate parameter, the radiation dose in terms of mGy or mSv of the 90Y analogue per MBq of the injected 90Y activity.
In typical present-day examples of so-called theranostics, such as the pair 68Ga/177Lu, this ultimate goal is not achieved. Although the qualitative aspect, namely the identification of the right therapeutic compound based on the information of an analogue PET tracer for one and the same patient, is now clinical routine for important compounds, yet patients are treated with standard activities of the 177Lu-labelled radiotherapeutical, no matter what the quantitative expression of the specific tumor target is. Thus, new approaches are necessary to finally allow for a patient-individual internal 177Lu radiation therapy. Radiotheranostics thus still appears to be in a transition phase “between dream and reality”.
Due to the ease of production of 86Y, its 33% abundance of positron emission, its physical half-life of 14.7 h (mimicking the uptake kinetics of most of the long-lived therapeutic radionuclides 90Y, 177Lu, 225Ac, etc.) and due to the chemical similarity of 86Y (being a trivalent metal) to nuclides 90Y, 177Lu, 225Ac, etc., we believe that this radionuclide represents a valuable choice for radiotheranostics, provided a sufficient accuracy of quantification is warranted with the 3D PET systems exclusively available today.
