Sensors 2009, 9(10), 8083-8108; doi:10.3390/s91008083

Article
Efficient Aggregation of Multiple Classes of Information in Wireless Sensor Networks
Xiaoling Qiu 1,*, Haiping Liu 1, Deshi Li 2, Jennifer Yick 3, Dipak Ghosal 1 and Biswanath Mukherjee 1
1
Department of Computer Science, University of California, Davis, CA, USA; E-Mails: hpliu@ucdavis.edu (H.P.L.); mukherje@cs.ucdavis.edu (B.M.)
2
School of Electronic Information, Wuhan University, China; E-Mail: dsli@whu.edu.cn
3
Qualcomm Inc., San Diego, CA, USA; E-Mail: jyick@qualcomm.com
*
Author to whom correspondence should be addressed; E-Mail: xqiu@ucdavis.edu; Tel: +(530)-754-9251.
Received: 22 July 2009; in revised form: 8 September 2009 / Accepted: 27 September 2009 /
Published: 14 October 2009

Abstract

: Congestion in a Wireless Sensor Network (WSN) can lead to buffer overflow, resource waste and delay or loss of critical information from the sensors. In this paper, we propose the Priority-based Coverage-aware Congestion Control (PCC) algorithm which is distributed, priority-distinct, and fair. PCC provides higher priority to packets with event information in which the sink is more interested. PCC employs a queue scheduler that can selectively drop any packet in the queue. PCC gives fair chance to all sensors to send packets to the sink, irrespective of their specific locations, and therefore enhances the coverage fidelity of the WSN. Based on a detailed simulation analysis, we show that PCC can efficiently relieve congestion and significantly improve the system performance based on multiple metrics such as event throughput and coverage fidelity. We generalize PCC to address data collection in a WSN in which the sensor nodes have multiple sensing devices and can generate multiple types of information. We propose a Pricing System that can under congestion effectively collect different types of data generated by the sensor nodes according to values that are placed on different information by the sink. Simulation analysis show that our Pricing System can achieve higher event throughput for packets with higher priority and achieve fairness among different categories. Moreover, given a fixed system capacity, our proposed Pricing System can collect more information of the type valued by the sink.
Keywords:
wireless sensor networks; congestion control; fairness; performance analysis

1. Introduction

In a Wireless Sensor Network (WSN), sensors cooperate to sense, collect, and report information about the environment to sinks. With the help of multihop wireless communication, a WSN can cover a large area without the infrastructure or a backbone wired network. However, congestion can exist inside a WSN due to the following inherent characteristics. First, in a multihop WSN, resources are limited. Typical sensors have limited battery power, memory, and computing capability. In addition, sensors also need to compete for shared resources inside the WSN, such as the shared wireless channel with neighboring nodes and common paths to sinks. Second, majority of the time, the topology of a WSN is not completely under control. As a result, a lot of traffic might contend for the same links or nodes that can become the bottlenecks of the whole network. This imbalance of network traffic due to the network topology can cause severe congestion in bottleneck nodes and/or links. Third, sensors that detect an important event usually increase the data generation rate to accurately alarm the sinks in time. For example, sensors used for monitoring temperature in a forest will generate a large number of alert packets in a short period of time when they detect fires. Fourth, some new applications, such as patient health monitoring [1] and image sensing [2], require high throughput and low delay, which can further aggravate the congestion inside a WSN. Therefore, congestion control is necessary and inevitable in the WSN. In the absence of congestion control, WSNs can suffer from packet loss due to buffer overflows and inefficient utilization of critical resources such as shared wireless channel capacity and sensor battery power.

Existing proposals to address congestion control in WSNs are either hop-by-hop data rate control or source rate limiting mechanisms. In this paper, we propose a Priority-based Coverage-aware Congestion Control (PCC) mechanism in Section 2.. PCC operates at the network and MAC layers. It is a distributed method that avoids aggregating network information in the sink and therefore does not require complicated and expensive communication among nodes [3].

For advanced WSN applications, we expect to collect multiple categories of information from sensor nodes. For example, from an under-water sensor network, we may collect data about the temperature, the degree of ambient light, the pollution level, and other relevant parameters. The sink can request and store different monitored information from the sensors for each data collection cycle. It is much more efficient and economical than using separate overlapping sensor networks to gather different information. Currently, sensor nodes such as the Mote [4] has the capability to gather all the information. The Mote can be equipped with different kinds of sensor interfaces in the circuit board; Arch Rock's EPIC Mote has integrated temperature, light and humidity sensors [5]. However, multiple categories of information contend for the limited network resource to send data from sensors to the sink. Managing the sensors to cooperate and send multiple classes of data fairly and efficiently is a challenging problem, especially when the network is congested. The sensors could ignore the difference between data in the application-layer and send them to the sink with the same weight. However, different data have different value to the sink. For example, in the military application as in Figure 1, the sensor network can collect real-time battlefield information to identify an infantry, a tank, or a helicopter. However, different enemy units pose different level of hazard. The information about hostile helicopters and tanks are important and urgent since they may be more dangerous than infantries. On the other hand, it is also not advisable to assign very high priority to only one type of data. For example, although the data pertaining to hostile tanks are important, it is also important to collect some information regarding infantries. It may be disastrous to utilize all sensor network resources to locate hostile tanks at the cost of ignoring other enemy units.

Consequently, a WSN should be able to allocate network resource to a specific kind of data according to the “price” the sink places on the type of data. Hence, resource consumption depends on the following factors: (1) properties of the events, such as priority, location, and frequency; (2) properties of the sensor network, such as topology and link quality, and (3) other categories of events.

In Section 2., we provide a mechanism to estimate the success probability for transmitting a data packet from a sensor to the sink. The success probability is a good metric for resource consumption and includes both bandwidth and buffer. Based on the method in Section 2., we generalize our scheme to efficiently and fairly collect different categories of information when the WSN is congested. This is presented in Section 3.. The following are the key contributions of this paper:

  • In a WSN, packets with information of the desired event (Event packets), such as fires in the forest, are more important and urgent than those without event information (Non-Event packets). (Note that Non-Event packets are inevitable since sensor nodes need to contact with the sink periodically to notify that they are alive.) Therefore, in PCC we distinguish them with different priority thereby providing different throughput and dropping probability.

  • When congestion occurs, packets from nodes far from the sink have a smaller chance to reach the destination than those from the nodes close to the sink [6]. Without any control, the WSN can only collect the information from the nodes near the sinks. Therefore, in PCC, we assign packets an index to store the probability of a packet successfully reaching any node along its path to the sink. Then PCC can dynamically adjust its dropping probability during congestion, to guarantee fairness for all nodes and coverage fidelity of the whole network.

  • In a large WSN, wireless link quality changes according to multiple factors, such as obstacles between transmitter and receiver, multiple-path transmissions, and interference among neighbor links. In PCC, we consider the influence of link quality as an important parameter to indicate network resource utilization and the successful probability of transmissions.

  • We make use of cumulative survival probability of a packet reaching a node along its path to the sink and the priority of different event information to design a mechanism to efficiently and fairly collect different categories of information in a single WSN, called Pricing System.

The remainder of this paper is organized as follows. In Section 2., we present the details of the PCC mechanism, describe the design objectives, and present the simulation results. In Section 3., we propose a generalized pricing based scheme to efficiently collect multiple categories of information using one WSN. Related research is discussed in Section 4.. Finally, we conclude in Section 5..

2. Priority-based Coverage-aware Congestion Control (PCC)

2.1. System Model and Design Considerations

We design our congestion control mechanism based on the system model shown in Figure 2. We consider a WSN with N sensor nodes that act both as source nodes as well as routers to forward packets through a multihop network to the sink. Each sensor node has a fixed size buffer to store packets, which is shown for node C in Figure 2. The buffer of node C contains packets generated by itself and packets from other sensors, like packet PA from node A and packet PB from node B.

Under normal condition of the physical attribute monitored by the WSN, nodes generates Non-Event packets at a constant rate of r packets per second (pkts/sec) which are forwarded towards the sink. Upon sensing an event, sensor nodes generate Event packets at higher rate, k × r pkts/sec where k ≥ 1, to report the information to the sink. A one-bit field in the packet header is used to identify Event packets. The intermediate nodes can use this bit to route packets with different priority.

Based on the above system model, the goal is to find a novel mechanism to efficiently collect information generated by the nodes in the WSN. Before discussing the details of our approach, we first explain the objectives, the design challenges and the corresponding solutions to the challenges.

  • High Event Packets Throughput: In a WSN with both Event and Non-Event packets, it is important to ensure that Event packet throughput is high. In addition, since Event packet generation rate is normally higher than that of Non-Event packets, congestion may occur when events are detected by different sensor nodes simultaneously. Therefore, our mechanism should first guarantee high Event packet throughput when nodes are congested, to make sure that emergency information, like fire in the forest, is reported to the sink correctly and in a timely manner. We set up two thresholds in the sensor node queue to drop Event and Non-Event packets to give the former higher priority. To the best of our knowledge, few papers differentiate Event and Non-Event packets in WSNs with the exception of Event-to-Sink Reliable Transport (ESRT) [7]. Note that our work is different from ESRT, which is implemented in the transport layer and is an end-to-end congestion control method. PCC, on the other hand, is distributed and is based on network layer queue scheduling and MAC layer information feedback, as will be discussed in the following sections.

  • Coverage Fidelity: As we explained in Section 1., packet throughput from a specific sensor node drastically decreases when packets traverse multiple hops to the sink. Therefore, packets generated by nodes nearby the sink have much higher probability of reaching the sink than those generated by nodes far away from the sinks. This leads to a spatial bias in the information collected in a multihop WSN. However, it is crucial to achieve coverage fidelity in a WSN because each monitoring area is usually equally important or remote areas are even more important since they are more difficult to be monitored by direct methods. Unlike other proposed methods, we consider the fairness among different areas at the application layer. Our proposed mechanism ensures that the sink receives equal number of packets with the same priority from all the sensor nodes in the sensor network. In IFRC [8], authors describe MAC layer fairness. However, MAC layer fairness does not ensure application layer fairness since the sink is biased to receive packets from nodes that are near it.

  • Flexible Queue Scheduler: Most queue schedulers drop packets from the tail rather than any position in the queue. But tail-dropping does not work well in our new scheme. For instance, if the queue in a sensor node is near fully occupied and dominated with Non-Event packets, when an Event packet arrives, it is better to drop Non-Event packets because Event packets are more important. To address Coverage Fidelity, we can consider the scenario in Figure 3, where node B is closer to node C than node A, and the sink is at the rightmost end. If node A generates packet PA and node B generates packet PB simultaneously, PB will normally arrive at node C earlier. When PA arrives at node C whose queue is highly utilized, PA may be dropped while PB remains in the queue. This results in unfairness to different sensors. To mitigate this our proposed method checks the status of all packets in the queue and selectively drops packets according to an optimization algorithm, which will be introduced in the next section. With the help of a list of pointers to packets in the queue, it is feasible to drop intermediate packets with much lower complexity than expected.

  • Resource Efficiency: Another important concern in a WSN is resource efficiency since sensor nodes usually have limited power and channel bandwidth [9, 10]. In a WSN, packets from sensors far from the sink normally consume more network resource than those from nodes nearby the sink. In our proposed method, we give preference to maintain packets from remote nodes since those packets have consumed more network resource and have lower probability to reach the sink when the intermediate relaying node experiences severe congestion. Therefore, when the same information is collected from different sensors in the network, our mechanism can efficiently utilize network resources by reducing the average number of point-to-point transmissions.

  • MAC/PHY Link Quality: In a multihop WSN, the interference among neighboring links can severely reduce the transmission opportunities in MAC layer. In addition, in a WSN, wireless link qualities, such as noise and channel fading, are quite distinct according to locations, obstacles, etc. The link condition at MAC/PHY layer can also influence the success probabilities that packets reach the sink. In respect to resource efficiency, packets traveling through low quality links consume higher system resource since they require more re-transmission due to MAC collisions or more transmission time due to lower PHY layer transmission rate. Therefore, our mechanism will give packets traveling though poor quality links from remote nodes higher probability to reach the sink.

2.2. Protocol and Algorithm Design of PCC

PCC is a distributed protocol. First, a distributed protocol is more robust to node or link failures than a centralized protocol. Second, a distributed protocol does not have to collect global information and distribute centrally determined control information, which may introduce large overheads that are not acceptable in a WSN. Third, the distributed algorithm is more scalable in large WSNs.

The protocol structure of PCC is shown in Figure 4. It operates both at the network and the MAC layers, which are shown in the left and the right branches, respectively. As in the left branch, when new packets arrive (from the application layer of the node or from other nodes as in Figure 2) into the network queue (Part 1.1 in PCC), we selectively drop packets in the queue during congestion according to an optimization algorithm (Part 1.2 in PCC), introduced in the next subsection. Since our protocol is distributed, each packet i has an additional field in the header, Pi, to store the cumulative survival probability of the packet along the path. Therefore, at a sensor node when a packet chosen to be dropped, we need to update the Pi for all the remaining packets in the queue. Furthermore, as in the right branch of Figure 4, when the MAC layer is ready to transmit a packet (Part 2.1 in PCC), we need to update Pi of this packet with the probability that the packet will survive in the MAC/PHY link transmission from the node (Part 2.2 in PCC), and the packet is then send it to the next hop (Part 2.3 in PCC).

When a sensor node A generates a packet i, we initialize Pi = 1. Along the path from node A to the sink, all relaying nodes including A updates Pi based on the packet dropping probability in network layer and link layer transmission error and loss in the MAC/PHY layer. The cumulative survival probability of a packet reaching any node in the network is used to determine the dropping probability of the packet in the node.

Queue Handler

As we explained in Section 2.1., PCC supports two priority classes of packets, Event and Non-Event packets. In any node in the network, suppose that the total buffer size is Q and in the queue there are NE Event packets and NN Non-Event packets with the total number of packets N = NE + NN. We set up two thresholds, Qmin and Qmax as shown in Figure 2, for handling different kinds of packets and apply the following logic.

  • 0 ≤ NQmin: buffer all incoming packets.

  • Qmin < N < Qmax: begin dropping Non-Event packets while keeping all Event packets. The dropping rate is selected such that the average number of Non-Event packets NN̄ = FN(N).

  • QmaxNQ: drop all Non-Event packets and begin to drop some Event packets. The dropping rate is selected such that the average number of Event packets NĒ = FE(N).

Function FN(N) and FE(N) will be discussed later on.

As we discussed in Section 2.1., the coverage fidelity and high Event packet throughput are important objectives. Therefore, we cannot randomly select packets in the queue to drop. In order to achieve coverage fidelity we need to give fair chance to all packets from different sensor nodes in the network to reach the sink. In other words, assuming that the accepting probability of a packet i is ki (i.e., (1 − ki) is the dropping probability), we would like to ensure that ∀i, j, Pi × ki = Pj × kj. In this case, we can guarantee that packets from different nodes have the same or similar probability to reach the sink. Therefore, our scheme is to find KE = [k1, k2, …, kNE] and KN = [k1, k2, …, kNN] under the following constraints:

i N E k i = F E ( N )
j N N k j = F N ( N )
i , j N E P i × k i = P j × k j
i , j N N P i × k i = P j × k j

However, solving the above problem can result in conflicts. For example, consider three (Event) packets with P1 = 0.1, P2 = 0.25 and P3 = 0.5, and FE(3) = 2. Solving the above problem yields KE = [1.25,0.5,0.25]. Note that ki is the accepting probability within [0, 1], so k1 is not an acceptable probability measure. In other words, it is impossible to strictly guarantee the constraints (3) and (4). To resolve this, we borrow another popular fairness metric, Jain's Fairness Index([11]) ( x i ) 2 ( n x i 2 ), to give a relatively fair opportunity to packets. The optimization problem for both Event and Non-Event packets can be stated as follows

maximize { K } ( P i × k i ) 2 N P × ( P i × k i ) 2
such that
i N P k i = F ( N )
i N P k i [ 0 , 1 ]
where K is the decision variable and K, NP, F(N) could be either KE, NE, FE(N) or KN, NN, FN(N) corresponding to Event and Non-Event packets, respectively.

It is difficult to implement the quadratic optimization problem in Equation (5) with limited resources in the sensor nodes. Therefore, a simpler algorithm is required. Note that our initial objectives are Equations (3) and (4), so for both Event and Non-Event packets, the objective can be restated as

P 1 × k 1 = P 2 × k 2 = = P N P × k N P = c
i , k i = c P i
i c P i = F ( N ) ( i k i = F ( N ) )
c = F ( N ) i 1 P i
i , k i = c P i = F ( N ) i 1 P i × P i

In this solution, if ki > 1 as discussed above, packet i should be kept in the queue, and therefore ki ⇐ 1. However, this change influences the accepting probabilities of other packets, which need corresponding updates given ki = 1. The details of how this done is shown in Algorithm 1, which finds the solution for objective in Equation (5).

In Algorithm 1, there are two loops inside the while statement, each of which has a complexity of O(N). The worst case for each execution of the while loop is that we separate one Pi from P⃗ in each iteration with complexity O(N). Therefore, overall computation complexity of Algorithm 1 is N × (2N) = 2N2 which is O(N2).

The solution of this optimization problem, KE and KN, gives the accepting probability of each packet in the queue. This can be used by the node to drop packets when the node is congested while maintaining coverage fidelity by giving each packet a fair chance to remain in the queue. After the selection and dropping process, the Pi of each packet i is updated to Pi = Pi × ki for all remaining packets since they experience dropping one more time (Part 1.3 in PCC).

FE(N) and FN(N) are accepting functions for Event and Non-Event packets, respectively. In a tail-dropping scheme, when a new packet arrives, the accepting function is (N + 1) − fdrop(N) where fdrop(N) is the dropping probability of the new packet given N packets in the queue. In our system, since the queue handler could drop any number of packets, PCC can implement different kinds of FE(N) and FN(N) functions. Note that the basic purpose of FE(N) and FN(N) is to reduce the congestion as a result the dropping probability monotonically increases with the number of packets in the queue. In general, FN(N) can be a linear, convex, or concave function within [Qmin, Qmax] through two fixed points, (Qmin, NN) and (Qmax, 0) as shown in the left part of Figure 5. Clearly, with the convex function, packets are dropped very aggressively resulting in lower buffer utilization, while the concave function is more conservative and will result in higher buffer utilization. The linear function is between the convex and concave functions.

Algorithm 1 Optimization Algorithm
Input: P⃗, F(N)
Output: K
1:Initial K ⇐ [0]
2:while TRUE do
3:for i = 1 to NP do
4: k i = F ( N ) i 1 P i × P i
5:end for
6:counter ⇐ 0
7:for i = 1 to NP do
8:if ki > 1 then
9:ki ⇐ 1
10:countercounter + 1
11:P⃗ ⇐ P\Pi
12:end if
13:end for
14:if counter = 0 then
15:return K;
16:else
17:F(N) ⇐ F(N) − counter
18:end if
19:end while

When N > Qmax, we begin dropping Event packets. Furthermore, since we drop all Non-Event packets, N = NE, which means the buffer is occupied only by Event packets. Since the buffer utilization ratio should monotonically increase with congestion, it implies FE(N) ≤ FE(N + 1). Additionally, since the dropping probability also needs to monotonically increase with N to relieve congestion, we can conclude that when there are NE > Qmax packets with a new incoming packet, we have NFE(N) ≤ (N + 1). Consequently, we have FE(N) = N + 1 − dE(N), where dE(N) is a non-decreasing function with the value bounded between [0,1]. While the above scheme looks similar to a tail-dropping scheme, it is important to point out that our mechanism is different from tail-dropping since we may drop a packet from any position in the queue. The only similarity is that the average number of remaining packets FE(N) is similar to that in the tail-dropping scheme. The curve dE(N) is shown in Figure 5, and it can also be a convex, linear or concave function. The convex function is conservative, the concave function is aggressive, and the linear function is in between since dE(N) is the minus term.

Link Quality Measurement

As we discussed in Section 2.1., collisions in MAC layer and link failures in PHY layer influence the probability that a packet is successfully received by the sink. Therefore, when the MAC layer is ready to send the packets in the queue, we also need to update Pi to record the link quality information. A number of parameters can provide the link quality information, such as the number of interfering neighbors and Signal-to-Interference-and-Noise Ratio (SINR). However, due to limited resources in a WSN, we prefer to find an efficient parameter which can also be easily obtained through link measurement. In our system, we choose the ratio of the number of successful transmissions (MS) to the total number of transmission attempts (MT) as the metrics to indicate link quality. First, MT and MS represent the influence from both collisions in the MAC layer and transmission failures in the PHY. Second, each node can easily maintain this information by counting the transmissions in the MAC layer.

Note that wireless link quality in a WSN is usually time-variant. Therefore, recent measurement results are more important than those that are older; the new measurements can more accurately represent the current link quality. In other words, if we time 0 to t to be slotted into small intervals, M S ( t 2 ) M T ( t 2 ) is more valuable than M S ( t 1 ) M T ( t 1 ) as long as 0 ≤ t1t2t. On the other hand, we also do not want the instantaneous perturbation of link quality to destroy the accuracy of estimation of Pi, so we cannot simply abandon the information from M S ( t 1 ) M T ( t 1 ) Therefore, we follow the basic idea of machine learning [12]. In each time interval tj, we independently collect the statistic information of M S ( t j ) M T ( t j ) and the link quality in time interval tj, denoted by L(tj) to be given by

L ( t j ) = ( 1 α ) × L ( t j 1 ) + α × M S ( t j ) M T ( t j )

Then in Part 2.2 we update Pi = Pi × L(tj) where tj, is the current time. The parameter α will depend on the wireless network is and its value may be decided by the network administrator. If the link changes quickly, for example, as in an underwater WSN, α will be set close to 1 so as to incorporate more recent information. On the contrary, if the link is stable, α should be smaller so as to accept more history information to avoid instantaneous variation of the link.

Discussions

As we described in this section, different components in PCC realize the design considerations in Section 2.1.. First, the separate thresholds for Event and Non-Event packets in queue handler guarantee the high throughput of Event packets during congestion. Second, the optimization algorithm in Equations (5), (6) and (7) provides coverage fidelity of the whole network. Third, the proposed new queue dropping schemes, and corresponding packet admission probabilities KE and KN implements flexible queue scheduler. Finally, updating Pi by the probability of network dropping and MAC/PHY link failure efficiently utilize the network resource.

2.3. Evaluation and Comparison

In this section, we evaluate PCC and compare its performance with other existing solutions. Compared with the dynamic queue scheduling in PCC, most queue schedulers, such as FIFO or RED [13] use tail-dropping. Since it is not our focus to compare different existing queue schedulers, we only show comparison results with FIFO. Note that the conclusions in this section still apply to other queue schedulers.

In the following simulations, we use standard IEEE 802.11 protocol for the MAC and physical layer. Ad hoc On-Demand Distance Vector (AODV) [14] is used as routing protocol in network layer and User Datagram Protocol (UDP) and Constant Bit Rate (CBR) are used in the transport and application layers, respectively. For the results presented in the following subsections, the X-axis represents the rate at which the Non-Event packets are generated. Sensors with events generate Event packets at a higher rate, which is 1.5 times the basic rate. Note that in our simulations, all the sensor nodes that detect the Event generate at the same rate. However, this is not a requirement of our scheme. We compare the performance based on different metrics, such as throughput, packet delay and fairness. We consider random topologies with 24 sensors and one sink, where 12 sensors are Event nodes and the others are Non-Event nodes. The following results are the average of 25 simulation runs.

Throughput and Delay

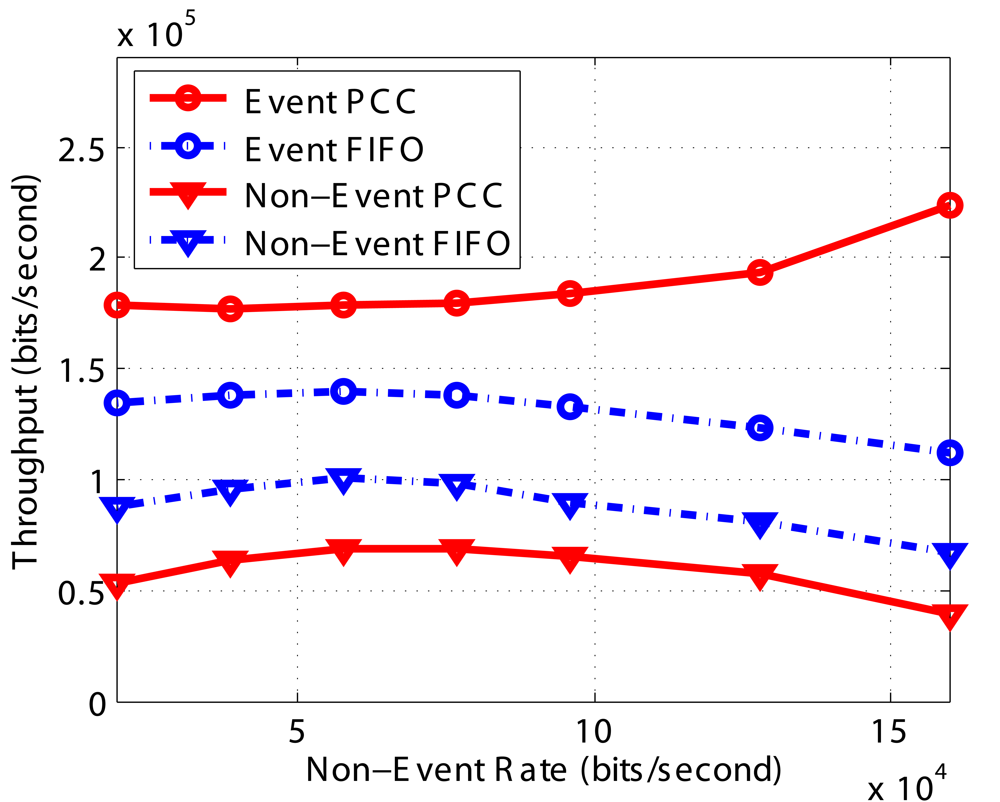

The throughput and end-to-end delay are shown in Figure 6 and Figure 7, respectively. In Figure 6, since FIFO does not distinguish Event and Non-Event packets, the capacities of “Event FIFO” and “Non-Event FIFO” are roughly proportional to the traffic generation rate. However, when the traffic generation rate exceeds the bound, which degrades the wireless link quality by introducing more collision and larger contention window in MAC protocol, the overall capacity of FIFO decreases. PCC provides Event packets higher priority. Therefore, the throughput of “Event PCC” keeps increasing until it reaches the whole system capacity. On the other hand, more Non-Event packets are dropped during congestion, and therefore the capacity of “Non-Event PCC” decreases with the increase of the basic packet generation rate. As we explained before, with the constraint of the system capacity, sinks are more interested in the Event packets, so the results are consistent with our design objective.

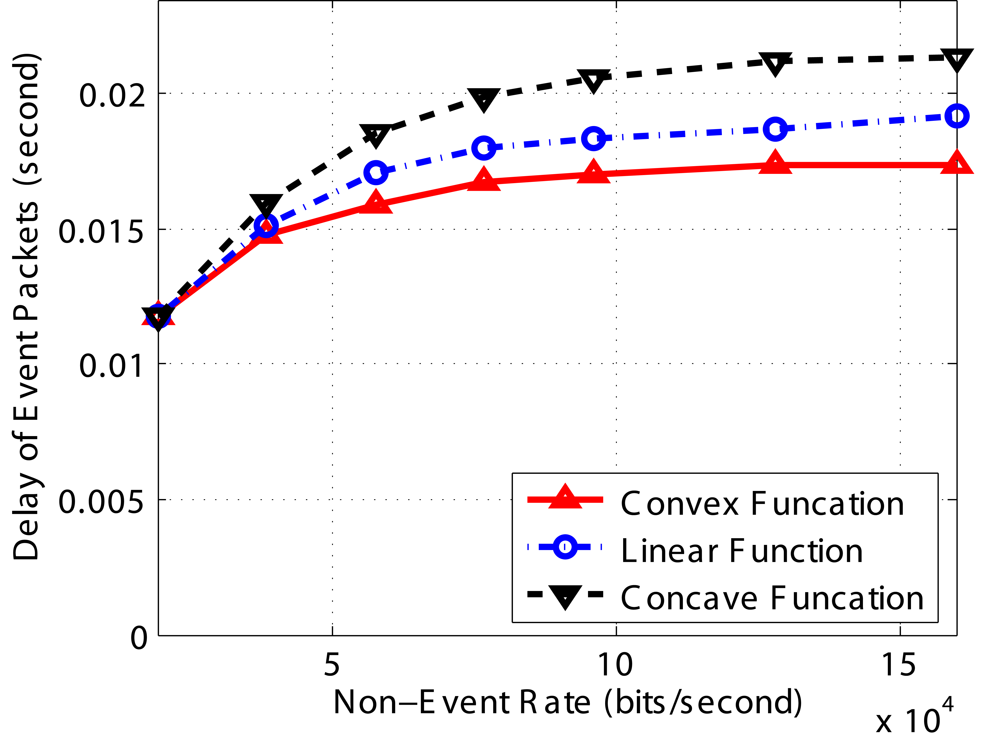

In Figure 7, it is obvious that the end-to-end delay of Event or Non-Event packets in FIFO almost remains the same. Since PCC preferentially accepts Event packets, Event packets experience longer queue delay on average. However, during congestion, only a few Non-Event packets reach the sink (most are dropped in the intermediate nodes) and they experience low queueing delay. Therefore, the average delay of Non-Event packets in PCC is comparably low.

Coverage Fidelity

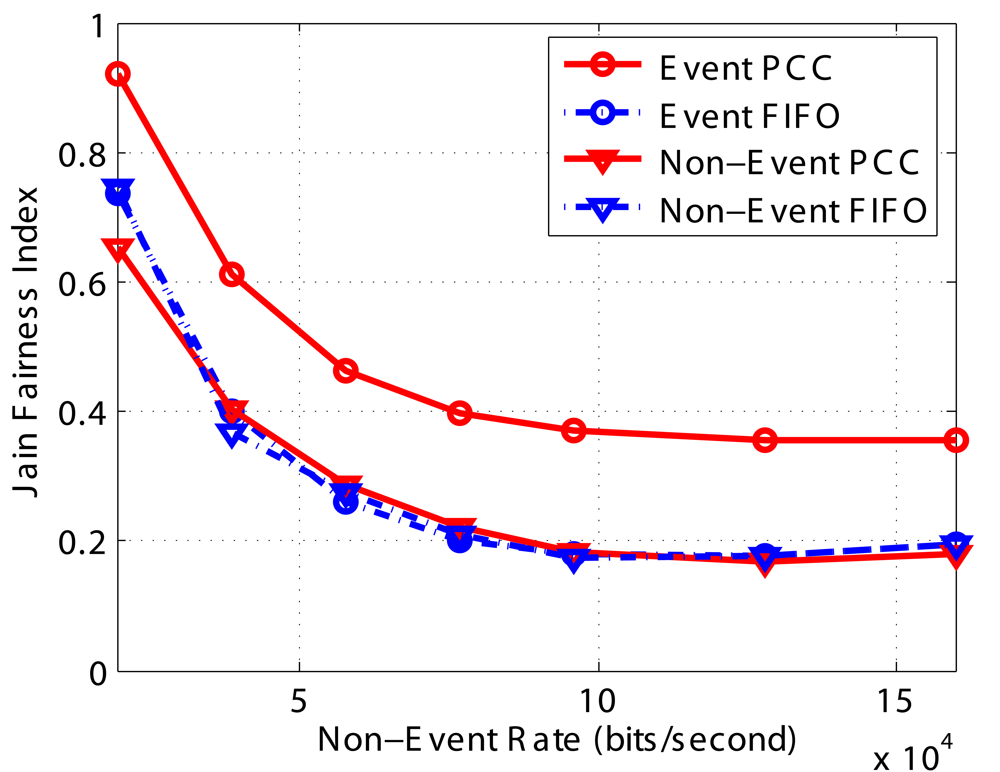

The most important improvement of PCC is that it provides fairness to all sensor irrespective of their location, and therefore offers coverage fidelity of the whole WSN. In Figure 8, we count the number of packets from different sensors and derive the Jain's Fairness Index (JFI). From the results, it is clearly observed that the fairness of FIFO decreases with the increase in the basic packet generation rate when the network is heavily congested and only the sensors very close to the sink are able to forward their packets to the sink. However, the JFI of Event packets in PCC is much higher since sensors give packets equal probability to go to the next hop. Since PCC drops Non-Event packets during congestion, only a few Non-Event of the packets can reach the destination. Therefore, the JFI of Non-Event packets does not improve.

To explicitly compare the performance of PCC, we use a chain topology, which contains three sensors and one sink. Node 1 is closest to the sink; node 3 is farthest from the sink and node 2 is in the middle. The distance between the nodes are the same. All sensors are either Event or Non-Event nodes. We count the number of packets received by the sink from the three sensors, and results are shown in Table 1. We found that in FIFO, packets from remote nodes have a lower probability to reach the sink while in PCC, the network provides an equal chance to packets from all sensors. The fairness of both Event and Non-Event packets improve significantly with PCC.

FE(N) and FN(N)

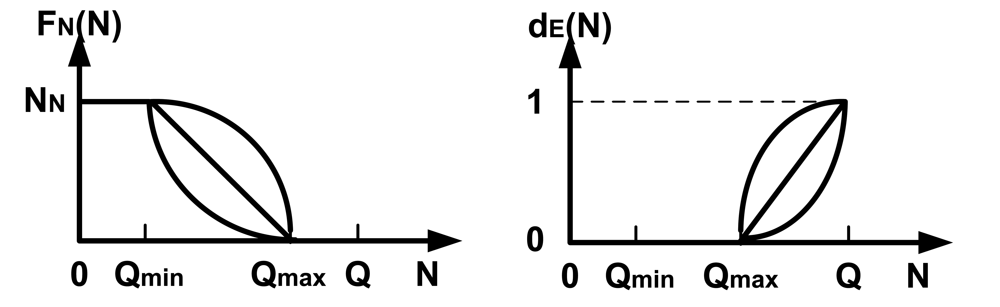

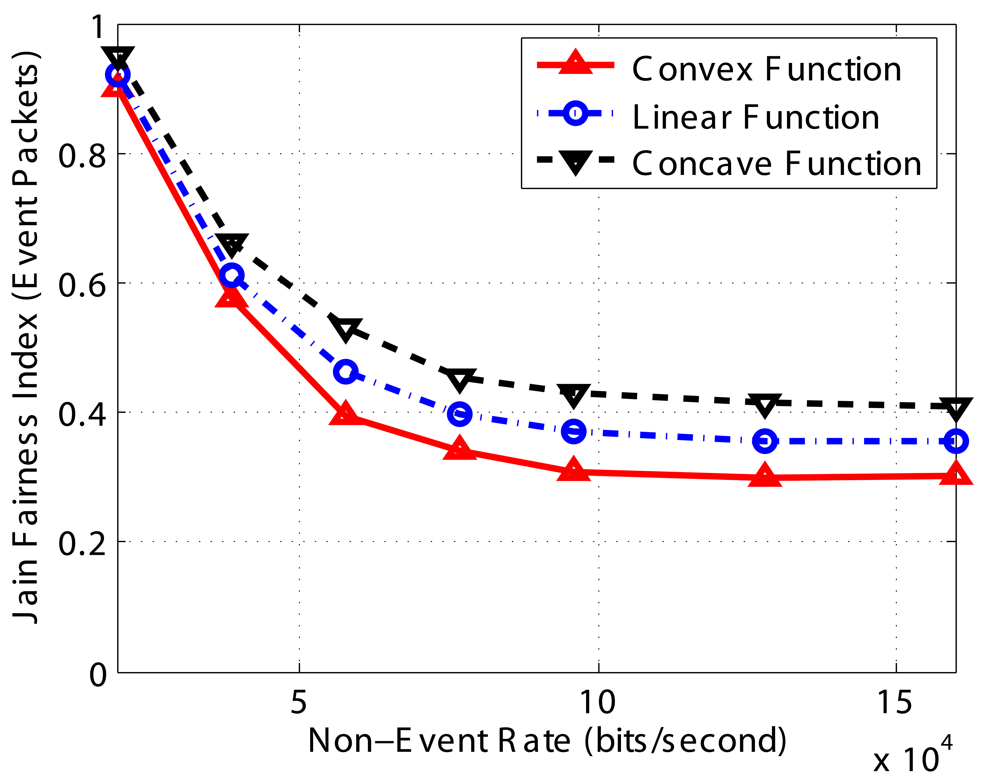

All the above results are based on the linear function for both FE(N) and FN(N). In this section, we compare the influence of different functions (e.g., convex, concave, direct line) on the performance of PCC. Since we collected the results when the network is congested and every sensor kept transmitting packets to the next hop, the throughput of the three functions are almost the same. The results of end-to-end delay and fairness are shown in Figure 9 and Figure 10. In Figure 9, the delay of the concave curves (Note that “concave” refers to FE(N), not dE(N)) is largest since this scheme conservatively kept more packets in the buffer than the other two schemes; therefore packets have longer queue delay. However, if we employ the convex function, which aggressively drop more packets, the packet delay decreases since the average queue length of all nodes is the smallest among the three schemes.

Since PCC can selectively drop any packets in the queue, the more packets there are in the buffer, the more options PCC has, which means PCC can provide better fairness performance and hence higher coverage fidelity. The analysis is validated in Figure 10 which shows that the performance of the concave function is the best among three schemes and that of the convex function is the worst.

Qmin and Qmax

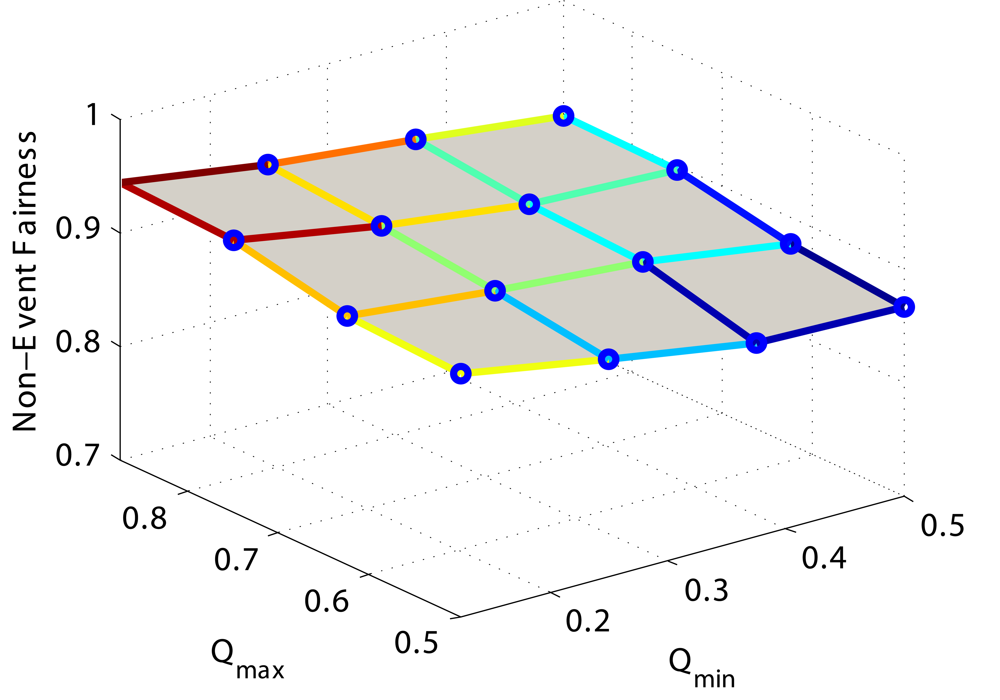

Qmin and Qmax are important parameters in PCC since they are the thresholds in the queue scheduler to determine when Event and Non-Event packets will be dropped. Similar to previous discussion, higher values of Qmin and Qmax are related to higher buffer utilization, so the average packet delay is larger due to longer queueing delay. Therefore, in this section we only show the fairness results of Non-Event packets, which are influenced by both Qmin and Qmax. In Figure 11, Qmin and Qmax are normalized by the total buffer length. We find that when Qmin is increased with fixed Qmax, more Non-Event packets remain in the buffer without being selected by the queue scheduler. Consequently, the fairness is determined more by the wireless link quality and the lower fairness is due to the randomness. When Qmax is increased with a fixed Qmin, more Non-Event packets have the opportunity to remain in the buffer and the queue scheduler can implement the optimization algorithm to selectively drop packets. Consequently, the fairness index is higher. However, note that the influence of Qmin and Qmax is not obvious, or in other words, PCC is not very sensitive to the choice of the thresholds.

3. A Generalized Approach for Multiple Event Types

In general, sensor nodes may have multiple sensing devices to monitor multiple attributes of the physical environment in which they are deployed. Each of these sensing devices will generate its own Event and Non-Event packets. Consequently, simply distinguishing Event and Non-Event packets may not be enough when the WSN is in a congested state. Different sensed data will have different value to the sink and it is important to ensure that more of the valuable data is collected by the sink when the network is congested. In this section, we extend PCC by introducing a Pricing System which modifies the packet dropping policy based on different priorities of different Event packets to achieve a specified balance between the aggregate “value” of the collected data and coverage fidelity. The key features of the proposed Pricing System are the following:

  • The sink acts as the information consumer and sets a price that it is willing to pay for each different types of Event packets. Higher prices indicates the sink prefers the sensor network to collect this corresponding category of Event packet at the cost of more transmission resource. The ratio of different prices determines the balance between the priority and coverage. If all prices are equal, the Pricing system degrades to PCC. If one of the prices is ∞, the sink is willing to only accept the corresponding category of Event packets and consequently the wireless sensor network would block all other types of Event packets.

  • The sensors operate as the information providers and when congested selectively drop packets according to the value that the sink places on the information in each packet (determined by the price set by the sink). When the buffer utilization is high, the sensor tends to keep packets with the lower accumulated survival probability Pi and higher price. The detailed algorithm is introduced in Section 3.1..

  • The prices can dynamically vary according to the changes in the physical environment and the network condition. When the sink modifies the prices, the new prices are broadcast to the entire network and each sensor node uses the new prices to adjust the dropping policy during congestion.

The Pricing System gives more flexibility to the network administrators. It is easy to add or delete a category of information by adding a new price or setting the price to zero, as long as the hardware can sense the corresponding type of information. Adjusting the ranking of different types of Event packets can also be done through changing the prices of the data collected by the sensors. In addition, the prices configured by the network administrators is able to accurately control the dropping probabilities, and thus control the ratio of received packets in the sink. Based on the structure of PCC, we describe the algorithm for the Pricing System in Section 3.1. and evaluate the performance improvement in Section 3.2..

3.1. Protocol and Algorithm

The structure of the Pricing System is almost the same as PCC described in Section 2.1.. However, in order to support multiple types, it is necessary to modify the communication protocol and the dropping strategy as described below.

Task 1

In the Pricing System, the sink needs to broadcast the updated prices to all sensors in the network. This functionality could be implemented on multiple layers, such as application, network or MAC layers. In order to avoid additional burden to the network, the Pricing System broadcasts the prices through the ACKs of the MAC layer so as not to introduce a new protocol. In wireless networks, ACKs in the MAC layer is inevitable due to the CSMA/CA protocol as the sender needs the confirmation of the transmission from the receivers. In the proposed approach, the sink could update the prices and notify the nodes within one hop when it receives their data frames. Later those sensors receiving the new prices could propagate the information to their neighbors. This process will eventually ensure that all sensors are aware of the new prices. This process does take some time to propagate the updated information to the whole network. However, note that the MAC layer transmissions occur frequently even without any data communication. For example, most routing protocols need to detect whether the next hop is still alive, which triggers periodic transmissions between two neighbors at the MAC layer.

In order to support the above approach, it is also necessary to modify the format of ACK frame. Suppose there are totally M types of packets, M − 1 types of Event packets and one type of Non-Event packet. In the payload of an ACK, M variables (2 bytes for each) present the prices of all categories; and one variable presents the time stamp, with which the nodes can compare the newly received prices with the stored ones. Therefore, the possible price range is 216 ≈ 64K; and the length of the time stamp is 64K, which could be utilized circularly if necessary.

Task 2

Unlike PCC, Pricing System supports multiple Event types. Therefore, in the header of each packet, we augment an additional part with n = log2M bits to label the type of the packet. When a sensor generates a packet, it sets the header with the category so that all nodes along the path to the sink are able to process this packet according to the dropping strategy introduced below.

The overall structure of the algorithm is similar to Figure 4, except that we replace the Part 2.1 with the following new dropping strategy. To support the multiple categories of events, we introduce a new notation Ri, which is the price of packet i. Ri can be any one of the M prices, ranging from 1 to 64K. With the definition of Ri, the Part 2.1 becomes

  • 0 ≤ NQmin: Keep all packets since the utilization of the buffer is low.

  • QminNQmax: Keep all types of Event packets and begin to drop Non-Event packets according to the function FN(N) shown in left part of Figure 5. The optimization problems becomes

    maximize { K N } ( i N N P i × k i R ) 2 N N × i N N ( P i × k i R ) 2
    such that
    i N N k i = F N ( N )
    i N N k i [ 0 , 1 ]
    where R is the price of Non-Event packets, and KN = [k1, k2, …, kNN] is the accepting probability, which is the decision variable. In the optimization algorithm, we would like the ratio of different type of price to be equal to the ratio of the cumulative survival probability of different types of packets as much as possible. The ideal case is when the Jain's Fairness Index equals 1, which is achieved when R1 : R2 : … : RM = P1k1 : P2k2 : … : PMkM. In other words, we ensure that Event packets for which the sink is willing to pay a higher price has higher accumulated survival probability (Piki) and the ratio of the cumulative survival probability follows the ratio of the prices. If two classes of packets traverse through similar network conditions, the ratio of throughput of these two types of packets should be similar to the ratio of the prices. Note that network condition includes both network link quality and the probability of being dropped in a node along the path to the sink. If the prices of two classes of packets are the same, we would like the probability of packets received at the sink to be the same. If all the prices are equal, the optimization problem becomes the same as Section 2.. Since all Non-Event packets have the same price and we selectively drop Non-Event packets, Equation 14 becomes
    maximize } K N { ( P i × k i ) 2 N N × ( P i × k i ) 2

    Note that if R = 0, then ki = 0.

  • QmaxNQ: After dropping all Non-Event packets, begin dropping Event packets since the buffer is highly utilized. The dropping strategy follows the optimization problem given by,

    maximize { K E } ( i N E P j × k j R j ) 2 N E × i N E ( P j × k j R j ) 2
    such that
    j N E k j = F E ( N )
    j N E k j [ 0 , 1 ]
    where Rj is the price of packet j, and KE = [k1, k2, …, kNE] is the accepting probability, which is the decision variable. The meaning of the optimization is the same as explained in last paragraph. FE(N) = N + 1 − dE(N) and the dE(N) function are shown in the right part of Figure 5. Note that, if Rj = 0, then kj = 0.

The algorithm is similar to Algorithm 1. The only difference is to set Pi/Rj instead of Pi. Furthermore, the computation complexity is the same as PCC, which is O(N2).

3.2. Simulations

In this section, we compare the performance of our Pricing System with FIFO. Note that the results shown here also apply to other tail dropping active queue management algorithm such as RED. We consider total throughput, throughput per class, fairness and “value” as the performance metrics for the performance comparison. In a multihop wireless network, i = 1 N h i indicates the capacity of network, where N is the number of packets successfully received at the destination node, and hi is the number of hops traversed by packet i from source to destination. The implicit assumption is that all packets are equally important. In this study, we consider a WSN with several classes of packets with different priorities. We use price Ri in our Pricing System to indicate the relative priority of packet i. Based on this, we define the new metric “value” as i = 1 N R i h i, where Ri is the price of packet i and hi is the number of hops traversed by packet i from source to destination. The higher the “value”, the more information is collected from the WSN.

We evaluate the correctness and performance of our algorithm using a chain topology and a random topology. The chain topology is used as a base case to analyze and validate the results. In the simulations, IEEE 802.11 is used at the MAC/PHY layer, AODV is used as the routing protocol in the network layer, UDP is set as the transport layer protocol and CBR traffic source is used in the application layer.

The chain scenario consists of five nodes in a linear topology with equal distance between nodes. Node 1 is the sink and all packets generated by node 5 pass through nodes 4, 3, 2 to reach node 1. Node 5 generate Non-Event packets and three types of Event packets with price 2, 4, and 8 units, respectively. In order to explicitly evaluate the performance of our algorithm, we set Qmin and Qmax to 0 so that our optimization algorithm is always active during the simulation. Results are shown in Figure 12 to Figure 15. The x-axis in all the figures is packet generation rate which is set to be the same for all the four (Non-Event and three Event) types of packets.

From Figure 12 we can see that for FIFO which does not differentiate the packets, the throughput of different Event packets and Non-Event packets are almost the same. For our Pricing System, type 3 Event packets have the highest throughput since they have the highest price; type 1 Event packets have the lowest throughput since they have one fourth of type 1 price and one half of type 2 price. No Non-Event packets are received by the sink since they are all dropped. We set Qmax equal to 0 as to explicitly test our optimization algorithm, therefore, all Non-Event packets are dropped. We also find that the throughput of the type 1 Event in the Pricing System is less than that of FIFO. Since the total throughput of the network is fixed, the increased throughput of type 3 decrease the throughput of type 1. The total throughput is shown in Figure 13.

From Figure 13, we can see that the throughput increases with packet generation rate until the network capacity is reached at which point it saturates. We can also see that the total throughput of FIFO and our Pricing System has the same trend. However, the total throughput of our Pricing System is lower than that of FIFO because both Qmin and Qmax are 0. Consequently, the queue utilization is lower. But the total throughput should be almost the same for FIFO and Pricing System, which can be seen from our random topology simulation where Qmin = 1/3 * QueueSize and Qmax = 2/3 * QueueSize.

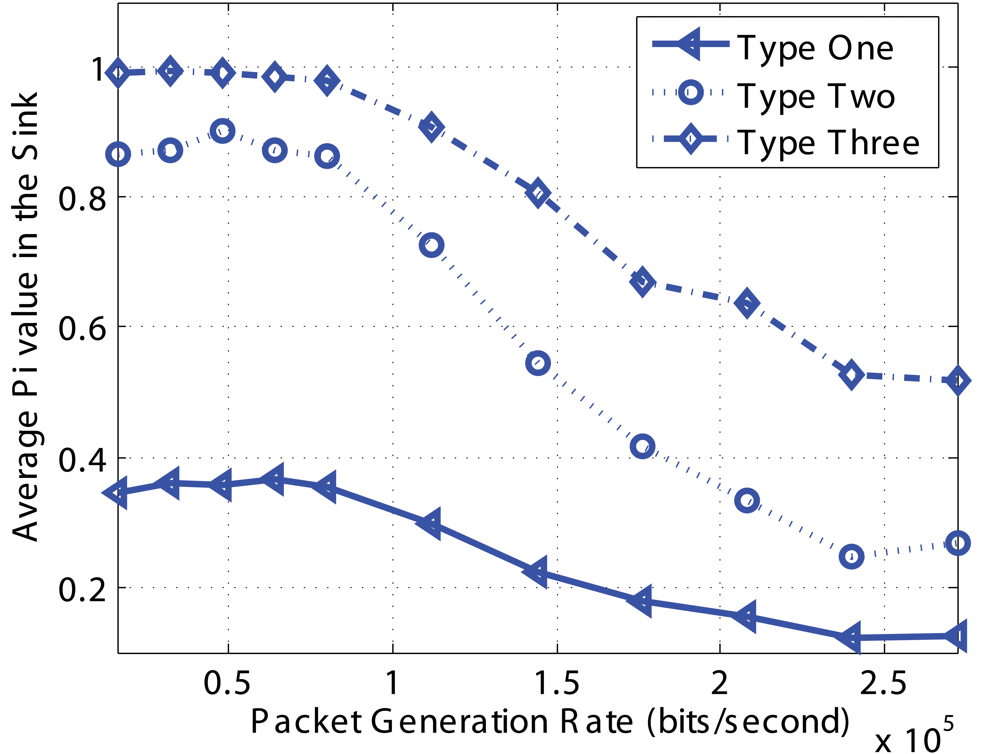

To validate the design of our Pricing System, Figure 14 shows the the average Pi values of the received packets at the sink. Note that the Pi value in the sink means the successful transmission probability of packet to the sink. When the packet generation rate is small and there is sufficient network capacity, the successful transmission probability is higher. When the packet generation rate is high and the network becomes congested, the probability of successful transmission becomes smaller. The most important validation here is that when the network is highly congested, the ratio of average Pi values is almost the same as the ratio of price. For example, when the packet generation rate is 272 kbps, P1 = 0.1253, P2 = 0.2686, and P3 = 0.5176, which is in the same ratio as the price for the different types of packets namely, 2 : 4 : 8.

Figure 15 plots the “value” as a function of the packet generation rate. We see that the “value” of Pricing System is much better than FIFO when network is congested. When the traffic generation rate is low, the “value” is smaller than FIFO due to the low utilization of the queue buffer. It is not the case when Qmin = 1/3 * QueueSize and Qmax = 2/3 * QueueSize, which will be shown in the random topology simulation.

Figure 16 to Figure 19 show the simulation results for random topologies; the results are average of 25 simulation experiments which corresponds to 25 different random topologies. Each random topology contains 25 nodes, including a sink. Eight of the nodes send Non-Event packets and 3 types of Event packets with the price 2 : 4 : 8. Other nodes do not generate packets but forward packets to the sink. The X-axis in the figures is the packet generation rate which is the same for each of the different types. In these simulations, we set Qmin = 1/3 * QueueSize and Qmax = 2/3 * QueueSize and the dropping functions are linear functions shown in Figure 5.

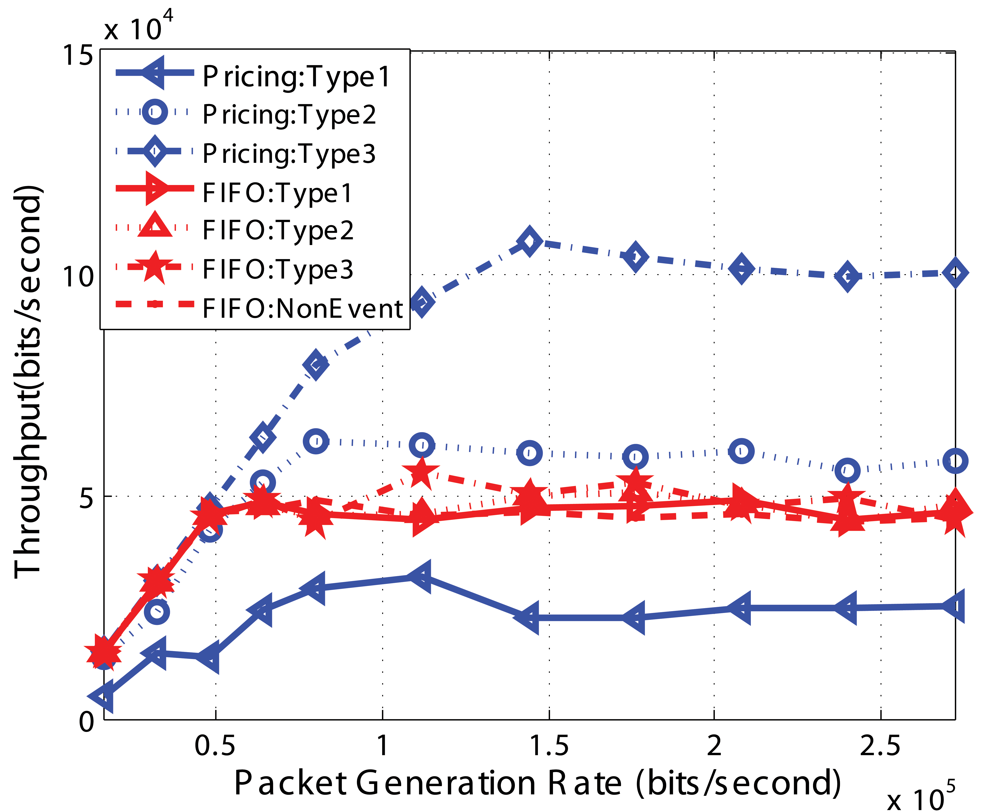

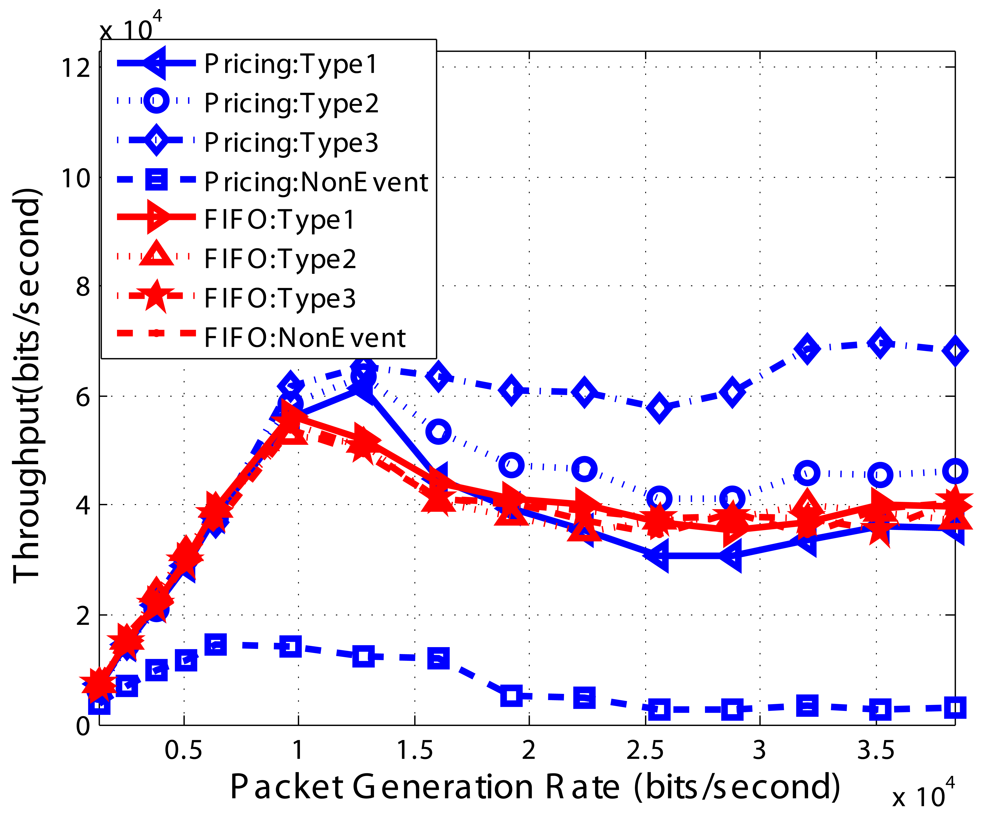

Figure 16 shows the throughput of different types of packets using FIFO and our Pricing System. First, the throughput of different types packets using FIFO are almost the same, since FIFO does not differentiate different type of packets. Second, when the network is not or lightly congested, FIFO and Pricing System has the similar throughput. But the throughput of Non-Event packets using Pricing System is smaller than that using FIFO, because the Pricing System begins to selectively drop some Non-Event packets so as to avoid congestion. Third, when network is highly congested, the throughput of type 3 and type 2 packets using Pricing System are much higher than those using FIFO. The Pricing System is able to guarantee higher probability of successful transmission of packets with higher priority when network is congested. Furthermore, the ratio of successful transmission of packets is consistent with the ratio of price decided by the network operator.

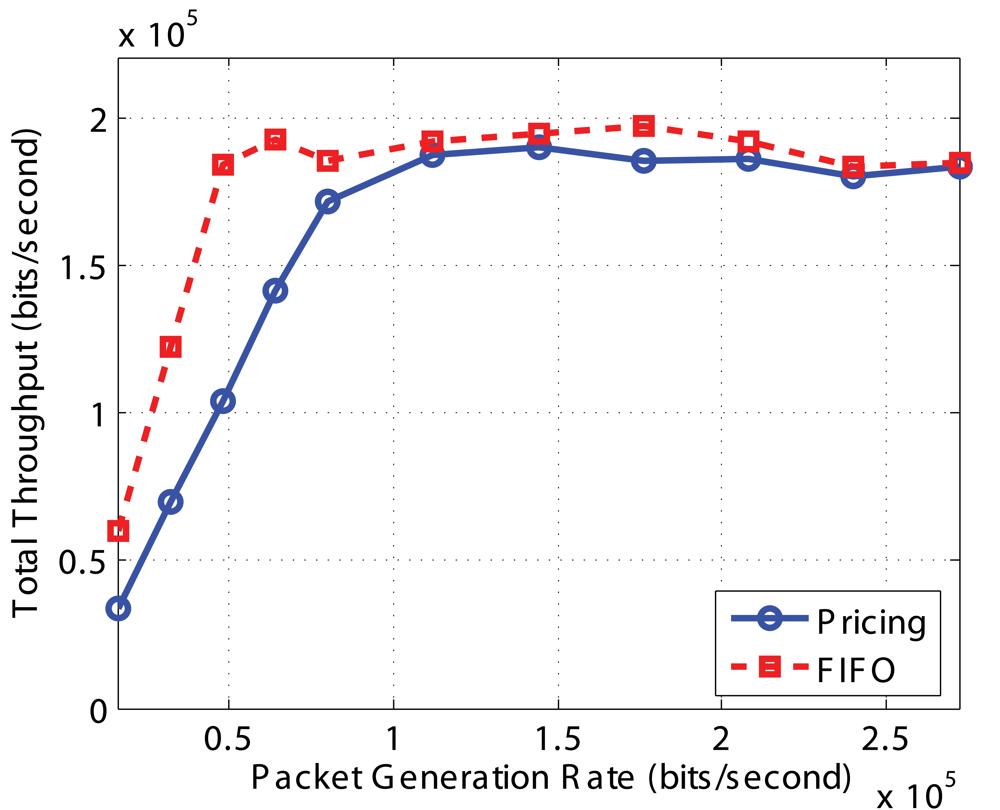

Figure 17 shows the total throughput of all types of packets using FIFO and our Pricing System. We can see that their throughputs are similar. In a wireless network, throughput increases as packet generation rate increasing. When the network is saturated, the total throughput decreases lightly because of the severe MAC layer contention. The FIFO line is more smooth since FIFO only drop packets when the buffer size is full. However, the pricing line has some randomness, since our Pricing System drop packet using the probability obtained from our optimization algorithm.

We show Jain's Fairness Index of different types of packets in Figure 18. Our optimization algorithm lets packets with the same price have the same probability of success to reach the sink. Our simulation results show that our Pricing System has higher fairness than FIFO. But the fairness of Non-Event packets using Pricing System has lower fairness than FIFO. This is because we drop all Non-Event packets when buffer size is bigger than Qmax.

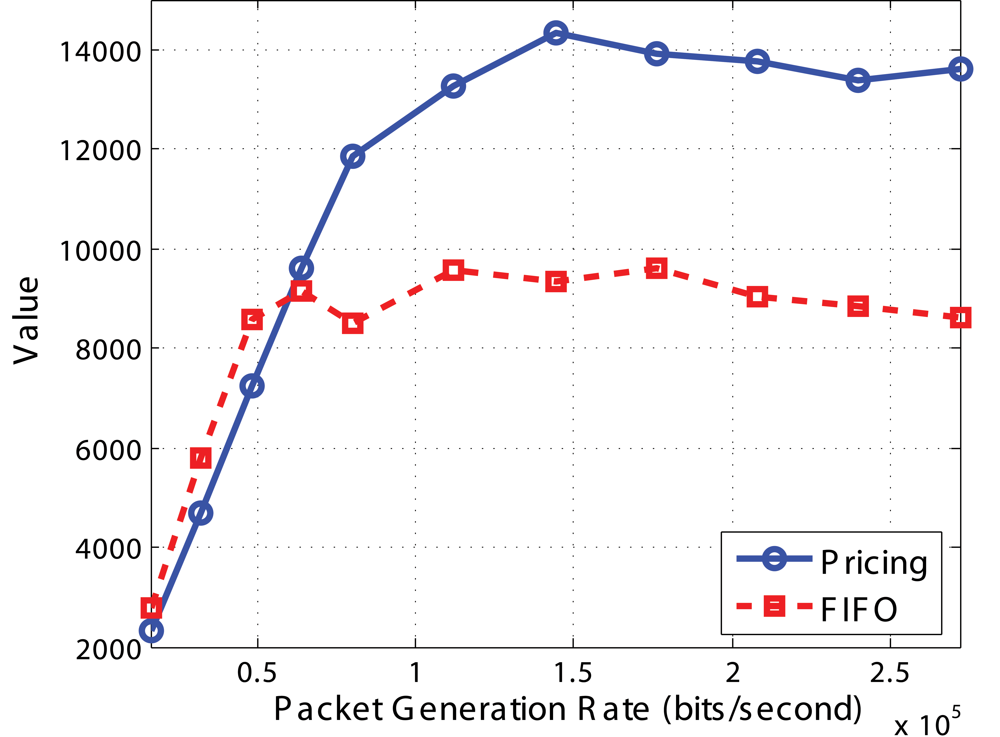

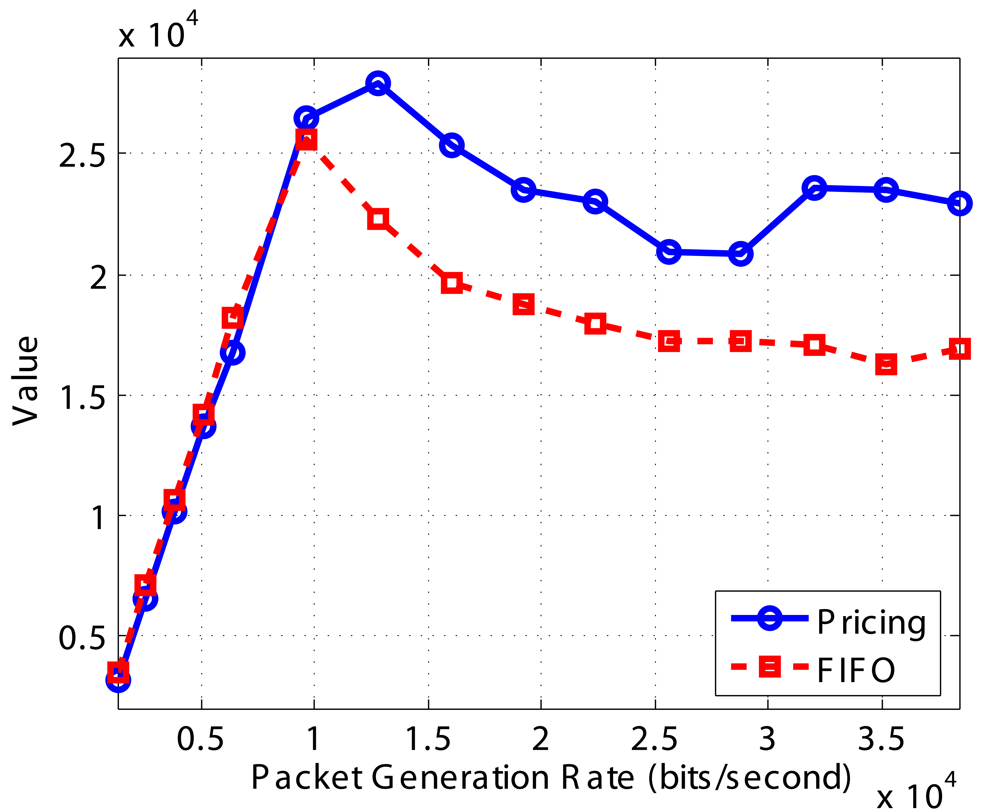

Figure 19 shows the simulation results of our newly defined metric “value”. When network is not congested, the values of FIFO and Pricing System are almost the same. However, when the network is congested, the proposed Pricing System receives more packets with higher priority and has much higher value than FIFO.

4. Related Work

Prior works on congestion control mechanisms in WSNs are mainly embedded in the end-to-end controls, such as CODA [15], ESRT [7], STCP [16], PORT [17], SenTCP [18] and [19]. The underlying method in these papers is the use of end-to-end rate adjustment to fulfil congestion control. These protocols detect and prevent congestion by reducing the number of packet retransmissions and energy used. We briefly summarize the main contributions of these papers. Congestion Detection and Avoidance(CODA) is one of the early papers discussing congestion control in wireless sensor networks. CODA is a energy efficient scheme which comprises of three mechanisms: (1) receiver-based congestion detection, (2) open-loop hop-by-hop backpressure, and (3) closed-loop multi-source regulation. CODA is evaluated by two metrics proposed by the authors, namely, energy tax and fidelity penalty. Event-to-Sink Reliable Transport (ESRT) is based on the observation that sensor networks are event-based systems. ESRT protocol operation is determined by the network state in terms of congestion condition in the network and path reliability. Simulation analysis of ESRT shows that proposed transport protocol achieves desired reliability with minimum energy consumption. Sensor Transmission control Protocol (STCP) is a scalable and reliable transport layer protocol for sensor networks. STCP is central control protocol since most of the functionalities are implemented at the base station. Simulations show that STCP can increase network lifetime and achieve high reliability. Price-Oriented reliable Transport (PORT) protocol is proposed to obtain reliability and minimize energy consumption. Price refers to the communication cost between sources and the sink. PORT uses price information to achieve reliability. Minimization of energy consumption is achieved by two schemes, upstream information optimization of the sink and downstream optimal routing scheme locally implemented in sensor nodes. Simulations show the effectiveness of PORT for reducing energy consumption comparing to existing schemes. SenTCP is an open-loop hop-by-hop congestion control protocol for wireless sensor networks to improve system throughput, reduce packet dropping, and minimize energy consumption. The work in [19] proposes a congestion control using the congestion degree calculated by the remaining buffer size and net flow.

Rate-Controlled Reliable Transport (RCRT) protocol proposed in [20] ensures efficient and flexible rate control like previous protocols. However, RCRT has the improvement that combine reliable transmission and congestion control together. Congestion detection and rate adaptation functionality are performed by the sink. The author also evaluated RCRT on a 40-node wireless sensor network testbed and show that it achieves better performance compared with IFRC [8].

The studies reported in [2124] address the congestion problem using routing protocols. In [21], congestion control is achieved by dividing the monitoring areas into several subareas and adjust the local and forwarding traffic based on the transmission parameter. In [22], an interference-minimized multipath routing protocol is proposed for load balancing and a congestion control scheme to reduce the loading rate of the source. The main idea of [23] is to find a less congested node to forward packets to when congestion occurs. In [24] a routing protocol is proposed for congestion control in WSNs by selecting a route which use Network Allocation Vector (NAV)[25] information to determine the channel status. Our optimization algorithm is orthogonal with these protocols since they work in different layers.

Other research based on priority fairness are [26], IFRC [8], Fusion [27], and [2830]. The study reported in [26] gives a design of a distributed, scalable congestion elimination mechanism in the transport layer, which ensures fair delivery of packets to the sink when using either a probabilistic selection or a epoch-based proportional selection. Interference-Aware Fair Rate Control (IFRC) discusses a mechanism for each node to detect the contending flows locally and fairly by adapting its own transmission rate and using a congestion sharing mechanism. It can achieve MAC layer fairness, but not application layer fairness. Application layer fairness is more important to users. Fusion combines three mechanisms that span to different layers. They are hop-by-hop flow control, rate limiting source traffic, and a prioritized MAC protocol. Hop-by-hop flow control is used for congestion detection and mitigation. Rate limiting is used to prevent unfairness toward sources which are far from the sink. A prioritized MAC scheme is designed for congested nodes to have higher priority to access the channel as to quickly drain out their buffer. The works reported in [2830] share a similar idea and use node priority index to reflect the importance of each node for priority-based congestion control. These papers neglect the details of MAC protocols and assume they provide even access opportunities for each node, which neglect the important characteristic of time-varying wireless links in WSNs. Finally, the priority index design is based on node priority, not priority of different classes of information.

To the best of our knowledge, there is only one paper that discusses congestion control for heterogeneous traffic [31]. But the protocol did not consider the wireless link characteristic, fairness and coverage fidelity. Our scheme, however, can efficiently collect different categories of information based on their relative priorities and also consider the affect of wireless links to achieve fairness.

5. Conclusion

In this paper, we have proposed a new scheme PCC to address congestion problem in a WSN and then we extend PCC to efficiently collect multiple categories of information in an advanced WSN. In PCC, we assign different priorities to Event and Non-Event packets, which have different values in a WSN. We propose an optimization algorithm to provide fair opportunity to sensors irrespective of their locations. We present a novel queue scheduler, which can drop any packets in the queue, supplies much more flexibility to information collection during congestion. Finally, also carefully involve the factor of different wireless link qualities and utilize the statistic information to adjust the dropping decision. In PCC, sensors only need to collect local information about the queue in the network layer and link quality in MAC layer, which is scalable and practical for large WSNs. Our analysis and simulation show that PCC can achieve high Event throughput and much better fairness and hence higher coverage fidelity. We also discussed the influence of some of the parameters on PCC, such as admission function and two thresholds for Event and Non-Event packets.

In the Pricing System, we propose an optimization algorithm for the queue scheduler. The Pricing System is simple and efficient to distribute network resources to different Event packet according to the decision of the network operator. The Pricing System is carried out when the network is congested. Following the design, we can control congestion and fully utilize the WSN. Our simulations show that higher throughput can be achieved for packets with higher price, and fairness can be guaranteed within one category.

The authors would like to thank the reviewers for their detailed comments that have helped improve the quality of the paper. This research was funded in parts by NSF Grant 0551654, China National High Technology Plan grant 2007AA01Z225 and NSF China 60972044.

References and Notes

  1. Paek, J.; Chintalapudi, K.; Govindan, R.; Caffrey, J.; Masri, S. A Wireless Sensor Network for Structural Health Monitoring: Performance and experience. Proceedings of the 2nd IEEE Workshop on Embedded Networked Sensors, Washington, DC, USA; 2005.
  2. Rahimi, M.; Baer, R.; Warrior, J.; Estrin, D.; Srivastava, M.B. In Situ Image Sensing and Interpretation in Wireless Sensor Networks. Proceedings of the 3rd ACM Conference on Embedded Networked Sensor Systems (SenSys), San Diego, CA, USA; 2005.
  3. Qiu, X.; Ghosal, D.; Mukherjee, B.; Yick, J.; Li, D. Priority-Based Coverage-Aware Congestion Control for Multihop Sensor Networks. Proceedings of the 28th International Conference on Distributed Computing Systems Workshops, Beijing, China; 2008.
  4. Wikipedia. http://en.wikipedia.org/wiki/Motes (accessed in May, 2009).
  5. Dutta, P.; Taneja, J.; Jeong, J.; Jiang, X.; Culler, D. A Building Block Approach to Sensornet Systems. Proceedings of the Sixth ACM Conference on Embedded Networked Sensor Systems (SenSys), Raleigh, NC, USA; 2008.
  6. Cheng, X.; Mohapatra, P.; Lee, S.; Banerjee, S. Performance Evaluation of Video Streaming in Multihop Wireless Mesh Networks. Proceedings of the 18th International Workshop on Network and Operating Systems Support for Digital Audio and Video, Braunschweig, Braunschweig, Germany; 2008.
  7. Sankarasubramaniam, Y.; Akan, O.B.; Akyilidiz, I.F. ESRT: Event-to-Sink Reliable Transport in Wireless Sensor Networks. Proceedings of the 4th ACM International Symposium on Mobile Ad hoc Networking & Computing (MobiHoc), New York, NY, USA; 2003.
  8. Rangwala, S.; Gummadi, R.; Govindan, R.; Psounis, K. Interference-Aware Fair Rate Control in Wireless Sensor Networks. Proceedings of the Conference on Applications, Technologies, Architectures, and Protocols for Computer Communications, Pisa, Italy; 2006.
  9. I.F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci. A Survey on Sensor Networks. IEEE Commun. Mag. 2002, 8, 142–114.
  10. Yick, J. Advanced Services in Wireless Sensor Networks. Ph.D Thesis, University of California, Davis, CA, USA, 2006.
  11. R. Jain. The Art of computer systems Performance Analysis, 1st ed. ed.; New York, NY, USA: Wiley, 1991.
  12. M.T. Mitchell. Machine Learning, 1st ed. ed.; New York, NY, USA: McGraw Hill, 1997.
  13. S. Floyd, and V. Jacobson. Random Early Detection Gateways for Congestion Avoidance. IEEE ACM Trans. Netw. 1993, 1, 397–413.
  14. Perkins, C.; Royer, E. Ad-hoc On-Demand Distance Vector Routing. Proceedings of the 2nd IEEE Workshop on Mobile Computing Systems and Applications, New Orleans, LA, USA; 1999.
  15. Wan, C.-Y.; Eisenman, S.B.; Campbell, A.T. CODA: Congestion Detection and Avoidance in Sensor Networks. Proceedings of the First ACM Conference on Embedded Networked Sensor Systems (SenSys), Los Angeles, CA, USA; 2003.
  16. Iyer, Y.G.; Gandham, S.; Venkatesan, S. STCP: A Generic Transport Layer Protocol for Wireless Sensor Networks. Proceedings of 14th International Conference on Computer Communication and Networks (ICCCN), San Diego, USA; 2005.
  17. Zhou, Y.; Lyu, M.R. PORT: A Price-Oriented Reliable Transport Protocol for Wireless Sensor Networks. Proceedings of IEEE Symposium on Software Reliability Engineering (ISSRE), Chicago, IL, USA; 2005.
  18. Wang, C.; Sohraby, K.; Li, B. SenTCP: A Hop-by-Hop Congestion Control Protocol for Wireless Sensor Networks. Proceedings of IEEE INFOCOM, Miami, FL, USA; 2005.
  19. Sheu, J.-P.; Hu, W.-K. Hybrid Congestion Control Protocol in Wireless Sensor Networks. Proceedings of IEEE Vehicular Technology Conference (VTC), Marina Bay, Singapore; 2008.
  20. Paek, J.; Govindan, R. RCRT: Rate-Controlled Reliable Transport for Wireless Sensor Networks. Proceedings of the 5th ACM Conference on Embedded Networked Sensor Systems (SenSys), Sydney, Australia; 2007.
  21. Liu, Y.; Liu, Y.; Pu, J.; Xiong, Z. A Robust Routing Algorithm with Fair Congestion Control in Wireless Sensor Network. Proceedings of 17th International Conference on Computer Communications and Networks (ICCCN), St. Thomas, U.S. Virgin Islands, USA; 2008.
  22. J.-Y. Teo, Y. Ha, and C.-K. Tham. Interference-Minimized Multipath Routing with Congestion Control in Wireless Sensor Network for High-Rate Streaming. IEEE Trans. Mobile Comput. 2008, 7, 1124–1137.
  23. Chen, J.; Zhou, M.; Li, D.; Sun, T. A Priority Based Dynamic Adaptive Routing Protocol for Wireless Sensor Networks. Proceedings the Workshop on Intelligent Networks and Intelligent Systems, Beijing, China; 2008.
  24. Hsu, Y.-P.; Feng, K.-T. Cross-layer Routing for Congestion Control in Wireless Sensor Networks. Proceedings of 2008 IEEE Radio and Wireless Symposium, Orlando, FL, USA; 2008.
  25. I.C. Society. IEEE Standard 802.11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications.; Piscataway, NJ, USA: IEEE, 1997.
  26. Ee, C.T.; Bajcsy, R. Congestion Control and Fairness for Many-to-One Routing in Sensor Networks. Proceedings of the Second ACM Conference on Embedded Networked Sensor Systems (SenSys), Baltimore, MD, USA; 2004.
  27. Hull, B.; Jamieson, K.; Balakrishnan, H. Mitigating Congestion in Wireless Sensor Networks. Proceedings of the Second ACM Conference on Embedded Networked Sensor Systems (SenSys), Baltimore, MD, USA; 2004.
  28. Wang, C.; Sohraby, K.; Lawrence, V.; Li, B.; Hu, Y. Priority-based Congestion Control in Wireless Sensor Networks. Proceedings of IEEE International Conference on Sensor Networks, Ubiquitous, and Trustworthy Computing, Washington, DC, USA; 2006.
  29. Li, Z.; Liu, P.X. Priority-based Congestion Control in Multi-path and Multi-hop Wireless Sensor Networks. Proceedings of IEEE Conference on Robotics and Biomimetics, Sanya, China; 2007.
  30. Yaghmaee, M.H.; Adjeroh, D. A New Priority based Congestion Control Protocol for Wireless Multimedia Sensor Networks. Proceedings of International Symposium on a World of Wireless, Mobile and Multimedia Networks (WoWMoM), Washington, DC, USA; 2008.
  31. Monowar, M.M.; Rahman, M.O.; Hong, C.S. Multipath Congestion Control for Heterogeneous Traffic in Wireless Sensor Network. Proceedings of 10th International Conference on Advanced Communication Technology (ICACT), Gangwon-Do, Korea; 2008.
Sensors 09 08083f1 200

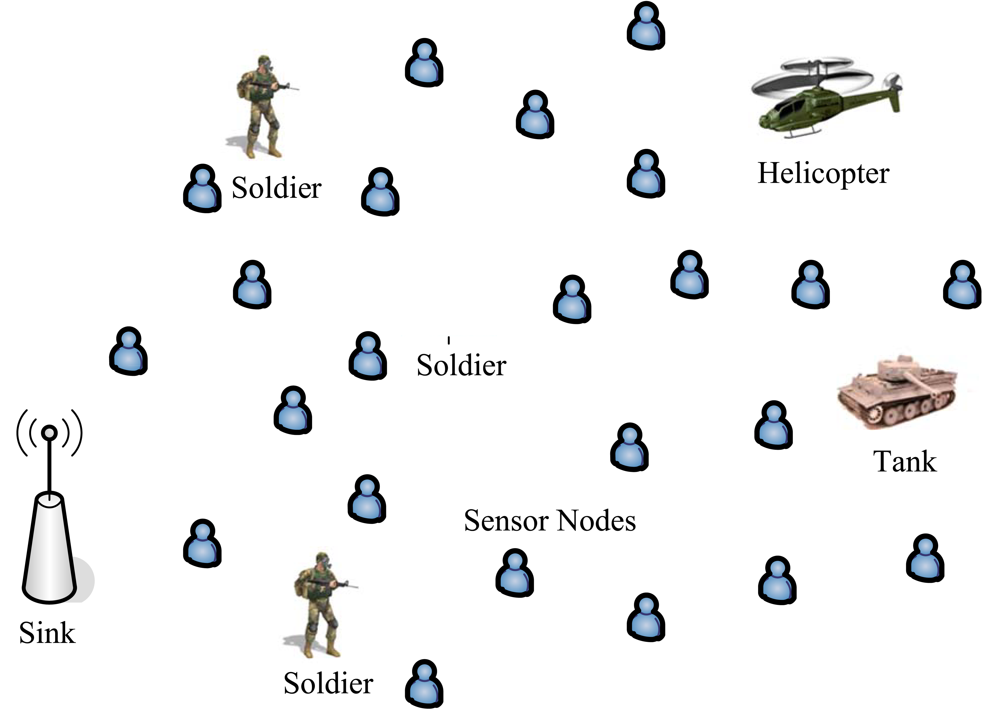

Figure 1. Collection of multiple classes of information in a WSN.

Click here to enlarge figure

Figure 1. Collection of multiple classes of information in a WSN.
Sensors 09 08083f1 1024
Sensors 09 08083f2 200

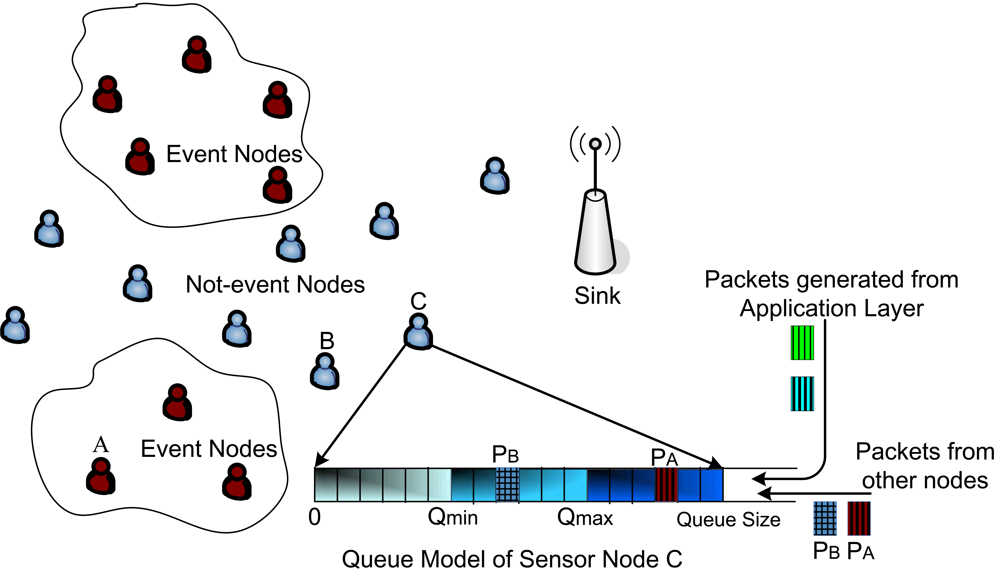

Figure 2. The overall system model.

Click here to enlarge figure

Figure 2. The overall system model.
Sensors 09 08083f2 1024
Sensors 09 08083f3 200

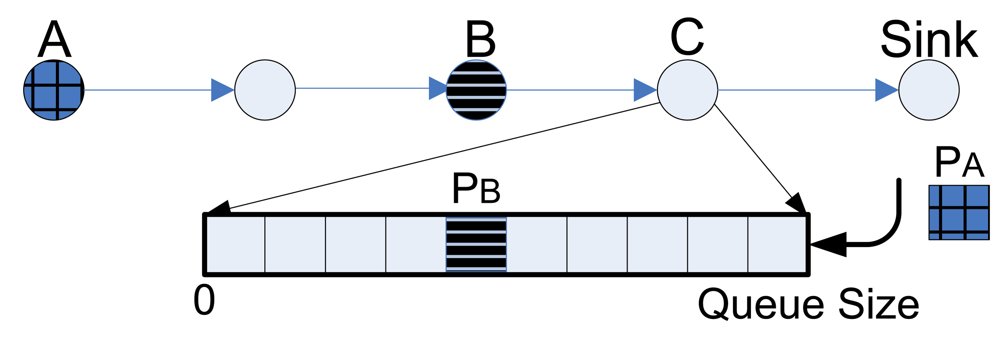

Figure 3. Queue scheduler that allows dropping intermediate packets.

Click here to enlarge figure

Figure 3. Queue scheduler that allows dropping intermediate packets.
Sensors 09 08083f3 1024
Sensors 09 08083f4 200

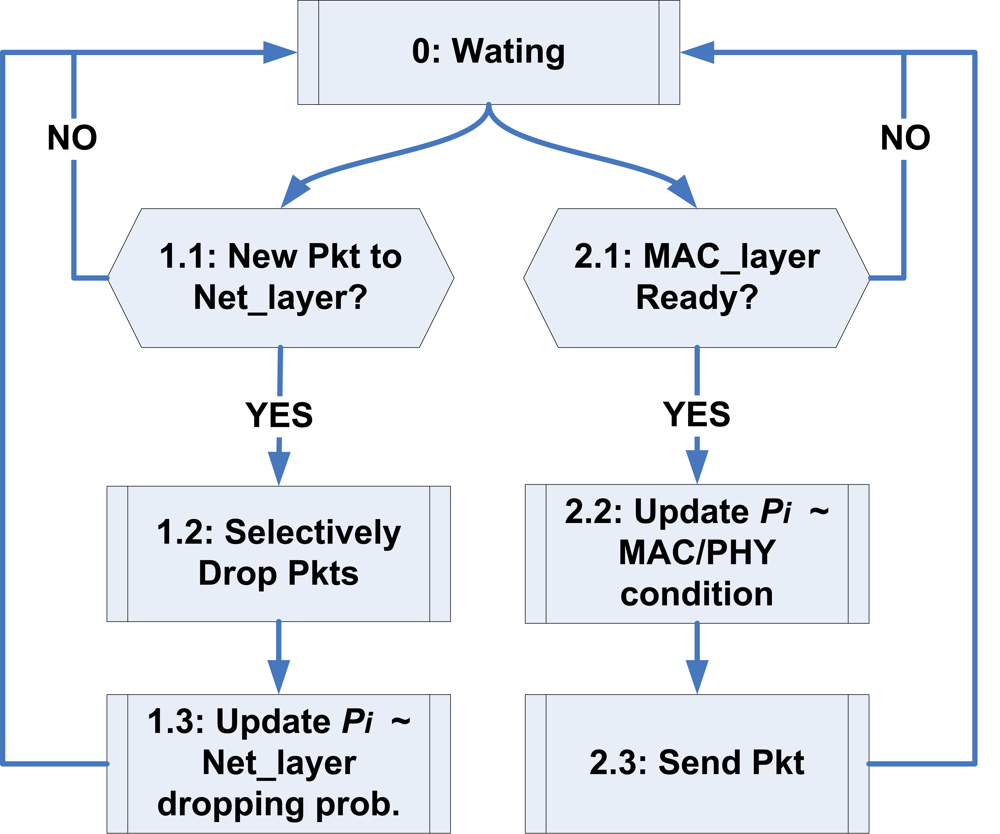

Figure 4. A block diagram illustrating the overall structure of PCC.

Click here to enlarge figure

Figure 4. A block diagram illustrating the overall structure of PCC.
Sensors 09 08083f4 1024
Sensors 09 08083f5 200
Figure 5. Candidate FN(N) and dE(N) functions.

Click here to enlarge figure

Figure 5. Candidate FN(N) and dE(N) functions.
Sensors 09 08083f5 1024
Sensors 09 08083f6 200
Figure 6. System throughput.

Click here to enlarge figure

Figure 6. System throughput.
Sensors 09 08083f6 1024
Sensors 09 08083f7 200
Figure 7. Avgerage end-to-end delay.

Click here to enlarge figure

Figure 7. Avgerage end-to-end delay.
Sensors 09 08083f7 1024
Sensors 09 08083f8 200
Figure 8. Jain's fairness of the different schemes.

Click here to enlarge figure

Figure 8. Jain's fairness of the different schemes.
Sensors 09 08083f8 1024
Sensors 09 08083f9 200
Figure 9. End-to-end delay for the three different functions for implementing FE(N)

Click here to enlarge figure

Figure 9. End-to-end delay for the three different functions for implementing FE(N)
Sensors 09 08083f9 1024
Sensors 09 08083f10 200
Figure 10. Fairness for the three different functions for implementing FE(N).

Click here to enlarge figure

Figure 10. Fairness for the three different functions for implementing FE(N).
Sensors 09 08083f10 1024
Sensors 09 08083f11 200
Figure 11. Influence of Qmin and Qmax.

Click here to enlarge figure

Figure 11. Influence of Qmin and Qmax.
Sensors 09 08083f11 1024
Sensors 09 08083f12 200
Figure 12. Throughput of multiple types of packets for chain topology.

Click here to enlarge figure

Figure 12. Throughput of multiple types of packets for chain topology.
Sensors 09 08083f12 1024
Sensors 09 08083f13 200
Figure 13. Aggregate system throughput for chain topology.

Click here to enlarge figure

Figure 13. Aggregate system throughput for chain topology.
Sensors 09 08083f13 1024
Sensors 09 08083f14 200
Figure 14. Pi values of different types of Event packets for chain topology.

Click here to enlarge figure

Figure 14. Pi values of different types of Event packets for chain topology.
Sensors 09 08083f14 1024
Sensors 09 08083f15 200
Figure 15. Comparison of value for chain topology.

Click here to enlarge figure

Figure 15. Comparison of value for chain topology.
Sensors 09 08083f15 1024
Sensors 09 08083f16 200
Figure 16. Throughput of different Event types for random topology.

Click here to enlarge figure

Figure 16. Throughput of different Event types for random topology.
Sensors 09 08083f16 1024
Sensors 09 08083f17 200
Figure 17. Aggregate system throughput for random topology.

Click here to enlarge figure

Figure 17. Aggregate system throughput for random topology.
Sensors 09 08083f17 1024
Sensors 09 08083f18 200
Figure 18. Fairness of different classes of Event packets for random topology.

Click here to enlarge figure

Figure 18. Fairness of different classes of Event packets for random topology.
Sensors 09 08083f18 1024
Sensors 09 08083f19 200
Figure 19. Comparison of value for random topology.

Click here to enlarge figure

Figure 19. Comparison of value for random topology.
Sensors 09 08083f19 1024
Table Table 1. Packets successfully received from different sensors in a chain topology.

Click here to display table

Table 1. Packets successfully received from different sensors in a chain topology.
Node 1Node 2Node 3Jain's Fairness Index
Event PCC1391301350.99925
Event FIFO29777200.54735
Non-Event PCC1491251240.99247
Non-Event FIFO29260230.52437
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
