Simultaneous Measurements of Chlorophyll Concentration by Lidar, Fluorometry, above-Water Radiometry, and Ocean Color MODIS Images in the Southwestern Atlantic

1
Instituto Nacional de Pesquisas Espaciais (INPE), PO Box 515, 12201-970, São José dos Campos, SP, Brazil
2
PETROBRAS/CENPES, Cidade Universitária, Q.7, Ilha do Fundão, 21949-900, Rio de Janeiro, RJ, Brazil
3
Pontifícia Universidade Católica do Rio de Janeiro (PUC-Rio), PO Box 38008, 22453-900, Rio de Janeiro, RJ, Brazil
4
Universidade Federal do Rio de Janeiro (UFRJ), Cidade Universitária, Av. Pau Brasil 211, Ilha do Fundão, 21941-590, Rio de Janeiro, RJ, Brazil
*
Author to whom correspondence should be addressed.
Sensors 2009, 9(1), 528-541; https://doi.org/10.3390/s90100528
Submission received: 27 November 2008 / Revised: 8 January 2009 / Accepted: 15 January 2009 / Published: 16 January 2009
(This article belongs to the Special Issue Ocean Remote Sensing)

Abstract

:
Comparisons between in situ measurements of surface chlorophyll-a concentration (CHL) and ocean color remote sensing estimates were conducted during an oceanographic cruise on the Brazilian Southeastern continental shelf and slope, Southwestern South Atlantic. In situ values were based on fluorometry, above-water radiometry and lidar fluorosensor. Three empirical algorithms were used to estimate CHL from radiometric measurements: Ocean Chlorophyll 3 bands (OC3MRAD), Ocean Chlorophyll 4 bands (OC4v4RAD), and Ocean Chlorophyll 2 bands (OC2v4RAD). The satellite estimates of CHL were derived from data collected by the MODerate-resolution Imaging Spectroradiometer (MODIS) with a nominal 1.1 km resolution at nadir. Three algorithms were used to estimate chlorophyll concentrations from MODIS data: one empirical - OC3MSAT, and two semi-analytical - Garver, Siegel, Maritorena version 01 (GSM01SAT), and CarderSAT. In the present work, MODIS, lidar and in situ above-water radiometry and fluorometry are briefly described and the estimated values of chlorophyll retrieved by these techniques are compared. The chlorophyll concentration in the study area was in the range 0.01 to 0.2 mg/m3. In general, the empirical algorithms applied to the in situ radiometric and satellite data showed a tendency to overestimate CHL with a mean difference between estimated and measured values of as much as 0.17 mg/m3 (OC2v4RAD). The semi-analytical GSM01 algorithm applied to MODIS data performed better (rmse 0.28, rmse-L 0.08, mean diff. -0.01 mg/m3) than the Carder and the empirical OC3M algorithms (rmse 1.14 and 0.36, rmse-L 0.34 and 0.11, mean diff. 0.17 and 0.02 mg/m3, respectively). We find that rmsd values between MODIS relative to the in situ radiometric measurements are < 26%, i.e., there is a trend towards overestimation of RRS by MODIS for the stations considered in this work. Other authors have already reported over and under estimation of MODIS remotely sensed reflectance due to several errors in the bio-optical algorithm performance, in the satellite sensor calibration, and in the atmospheric-correction algorithm.

1. Introduction

Ocean-color remote sensing has changed our perspective of ocean observation. Global maps of surface chlorophyll concentration (CHL), a proxy of phytoplankton primary productivity can be routinely produced [1, 2]. However, these satellite products are based on the application of generally complex bio-optical algorithms [3], including atmospheric correction models [4] applied on the radiance values measured by the remote sensors to estimate the water leaving radiances. In order to guarantee good quality and long term consistency of satellite data time series, orbital images must be calibrated and validated with the use of in situ measurements from research ships, moored buoys and drifters, for example [3].
Satellite images have been systematically used for monitoring the oceanic environment on the Brazilian Southeastern continental margin. However, only very seldom, has simultaneous in situ data been available in this region for the assessment of satellite algorithm accuracies. Aiming to advance scientifically and technically the current remote sensing data analysis procedures a research project - FITOSAT was jointly conducted by INPE, PETROBRAS R&D Center and other universities. One of the phases of this project involved an oceanographic cruise with the simultaneous acquisition of in situ and remote sensing data in the Campos Basin region. The simultaneous data acquisition enabled the meteo-oceanographic contextualization of the in situ data collection and allowed the evaluation of the remote sensing products.
Among other measurements, in situ estimates of CHL were obtained with laboratory fluorometry, above-water radiometry and through a lidar fluorosensor. The satellite estimates of CHL were derived from MODIS data. In this article, these different methods used for estimating CHL are briefly described and their results are statistically compared.

2. Data and Methods

2.1. In situ Chlorophyll

Chlorophyll measurements were done at 18 stations during an oceanographic cruise held in November 2004. The study area included the Brazilian Southeastern continental shelf and slope region, from Cape Sao Tome (22°S) to Cape Frio (23°S), at Campos Basin, Rio de Janeiro (Figure 1). Phytoplankton abundance was estimated from 2 L surface water samples filtered through Millipore cellulose membranes (0.45 μm). The filters were kept in liquid nitrogen and the chlorophyll-a concentrations were determined after extraction in 90% acetone for 18 hours at 4°C in a Turner TD-700 fluorometer [5].

2.2. In situ Radiometry

Above water radiometric measurements of water leaving radiance and incident irradiance were obtained with a hyperspectral SPECTRON SE590 radiometer at 30 stations (Figure 1). Each radiance spectrum was sampled between 400–800 nm, with a 5 nm resolution. The protocol adopted for the measurements was the one proposed by Fougnie et al. [6], with a polarizer filter. The radiometric data were numerically integrated to simulate the spectral bands of SeaWiFS and MODIS orbital sensors, using the trapezoidal rule. The remote sensing reflectance, RRS(λ), was calculated by the following equation:
R RS = L w ( λ ) E d ( λ )
where Lw(λ) is the water leaving spectral radiance and Ed (λ) is the downwelling spectral irradiance incident on the sea surface. Ed (λ) was estimated by the radiance reflected by a Spectralon plate [7], as follows:
E d ( λ ) = L ( λ ) f c π
where fc is a correction factor estimated in the laboratory by the ratio of Lref (λ) of a standard reference (approximately 100%) by the Spectralon plate's L(λ) used in the field.
The SeaWiFS empirical algorithms Ocean Chlorophyll 4-bands - OC4v4 and Ocean Chlorophyll 2-bands - OC2v4, and the MODIS algorithm Ocean Chlorophyll 3-bands - OC3M were applied to the radiometric data to estimate CHL.
The OC2v4 algorithm estimates CHL based on a band ratio of RRS(490)/RRS(555) using a modified cubic polynomial function [3]:
CHL = 10 , 0 ( 0 , 319 2 , 336 R 2 S + 0 , 879 R 2 S 2 0 , 135 R 2 S 3 ) 0 , 071
where R 2 S = log 10 ( R 555 490 ).
The algorithm OC4v4 also relates a band ratio with CHL using a polynomial function, but is based on the maximum band ratio determined as the highest ratio (Rmax) between the values of RRS(443)/RRS(555), RRS(490)/RRS(555), and RRS(510)/RRS(555) through the following function of forth order [3]:
CHL = 10 , 0 ( 0 , 366 3 , 067 R 4 S + 1 , 930 R 4 S 2 0 , 649 R 4 S 3 1 , 532 R 4 S 4 )
where R4M = log10(Rmax).
The algorithm OC3M also uses a polynomial function of forth order from Rmax between RRS(443)/RRS(550) and RRS(490)/RRS(550), through the following equation [3]:
CHL = 10 , 0 ( 0 , 283 2 , 753 R 3 M + 1 , 457 R 3 M 2 0 , 659 R 3 M 3 1 , 403 R 3 M 4 )
where R3S = log10(Rmax).

2.3. Lidar

The PUC-Rio fluorosensor lidar system operated in a pulse mode uses the excitation line at 532 nm of the doubled frequency radiation (second harmonic) of Q-switch Nd:YAG laser as light source. A rotating rectangular metal mirror directs the probing beam to the water surface and deflects the water backscattered signal to a 200 mm-diameter Newton-type reflecting telescope, which is filtered in order to eliminate elastic backscattering. This return signal passes through the entrance slit of the polychromator, which is assembled as an auto collimation lens focusing system. A 1024 elements array CCD camera with Peltier cooling system was used to detect the spectrum of the return signal.
Two types of radiation are collected: one is the water-Raman backscattering (which occurs at 655 nm) and the other is the fluorescence radiation generated when the light source interacts with the fluorescent elements present in the water. The laser light at this wavelength excites the fluorescence of chlorophyll, in a band centered at 685 nm, and of dissolved organic matter, in a region from 540 to 620 nm. Over 13.000 spectra were obtained during the campaign, with the lidar installed at the gangway of the R/V Astro-Garoupa. In order to validate each spectrum, an analysis of the Fourier Transform power spectrum was made, and then a validation criterion of these spectra was established. Of the total number of spectra collected during the vessel's course between the November 21st and 25th, 9,511 of them were the objects of analysis.
The intensities of the chlorophyll bands (Icl) were calculated according to the method developed by Barbosa [8] for the equipment. The values of CHL were obtained by means of an adjustment using calibration parameters obtained via laboratorial analysis of the samples collected during the present cruise and from a prior cruise at the same region. The calibration used is given by:
CHL LIDAR = 4 , 9 ( I cl ) 0 , 175

2.4. Remote Sensing

Ocean color remote sensing images acquired by MODIS sensor during the same period of the oceanographic cruise were processed as CHL fields with the application of one empirical and two semi-analytical algorithms. The MODIS sensor has 36 spectral bands, with eight dedicated to ocean color applications. These bands have a spatial nominal resolution of to 1.1 km and a temporal resolution of 1-2 days.
MODIS images were acquired locally by INPE's receiving station and processed using SeaDAS software distributed by NASA. Initially, the data were radiometrically calibrated to generate the water normalized upwelling radiances. The images considered of interest were selected in accordance to the study area. Atmospheric correction algorithms [4] were applied to each image using the more updated atmospheric ancillary files available before the calculation of CHL values.
As mentioned before, the OC3M empirical algorithm [3], and two semi-analytical algorithms, Garver, Siegel, Maritorena version 01 – GSM01 [9], and Carder [10] were applied to estimate CHL with MODIS data. Maritorena et al. [9] presented a protocol to improve the semi-analytical model initially proposed by Garver and Siegel [11], for global applications. The complete formulation of the model can be expressed as the following:
L WN ( λ ) = t F 0 ( λ ) n w 2 i = 1 2 g i { b b w ( λ ) + b b p ( λ 0 ) ( λ / λ 0 ) η b b w ( λ ) + b b p ( λ 0 ) ( λ / λ 0 ) η + a w ( λ ) + C h l ph ( λ ) + a cdm ( λ 0 ) exp [ S ( λ λ 0 ) ] }
where LWN is the normalized water leaving radiance, t is the air-sea transmission factor; F0(λ) is the extra-terrestrial solar irradiance; nw is the refraction index of water; g1 = 0.0949 sr-1 and g2 = 0.0794 sr-1; bbw(λ) is the backscattering of water; aw(λ) is the absorption by water; bbp(λ) is the backscattering by particles; C h l ph is the chlorophyll-a specific absorption coefficient; S is the spectral decay for the dissolved matter and detritus absorption (cdm); η is the exponent of the power law for the particulate backscattering coefficient; λ0 is the wavelength 443 nm wavelength.
The Carder algorithm [10] utilizes a more complex approach. The components associated with the absorption of the pigments are divided from those associated with the degradation products (for example, gelbstoff and detritus, a g ( λ )). The absorption coefficient of phytoplankton chlorophyll, a p h ( λ ), is adjusted in relation to the chlorophyll concentration and the availability of light and nutrients. The distinction between the effects of the principal constituents is obtained by the spectral differences between a p h ( λ ) and a g ( λ ). Comparing sea surface temperature with nitrate depletion temperature (NDT) [12], the presence of big cells rich in chlorophyll and small cells poor in chlorophyll can be deduced from the satellite data [10]. The chlorophyll rich cells with low values of a p h ( λ ), i.e., with packed pigments, occurs generally in ambient with low level of light and rich in nutrients. On the other hand, chlorophyll poor cells but with high values of a p h ( λ ), i.e., without packaging, are present in ambient replete of photons, but poor in nutrients. During the development and validation of the Carder algorithm, in situ data sets were compartmented into 2 regions. In the first, the pigment packaging would not be expected, and a second one where this packaging effect would probably occur more frequently or more intensely. Besides, a global average algorithm was developed to be used in conditions where the packaging effect is unknown or transitional. The algorithm also alternates between the empirical and the semi-analytical formulation, using different coefficients for the varying levels of pigment packaging.

3. Results and Discussion

3.1. Statistical comparisons

The comparisons obtained between the in situ CHL and those estimated with MODIS data were calculated inside a time window of 12 hours. The pairs of data were composed between the CHLinsitu and the median value of a 3 × 3 pixels (9 km2) centered on the geographical position of the sampling station in the equivalent MODIS image. The fluorometric data were statistically compared to the satellite estimates, above-water radiometric data and lidar data, through linear regression analysis, root mean square error (rmse), and transformed-rmse (rmse-L) [10].
CHLinsitu values varied between 0.077 and 0.197 mg/m3 with a mean value of 0.12 (±0.04) mg/m3. These low values are typical of the oligotrophic waters of the Brazil Current (BC) as observed previously by other authors [13, 14]. With Z90 depths [15] of ∼13 m, the chlorophyll concentration was constant over one optical depth in 8 stations, with an increase in 10 stations. The mean chlorophyll concentration to a depth of one optical depth was 0.15 (±0.04) mg/m3, with a maximum value of 0.303 mg/m3.
In general, the empirical algorithms applied to the in situ radiometric data overestimated CHLinsitu (Figure 2). OC3M and OC4v4 presented a similar performance, with rmse-L (1.09, 1.08) and rmse (0.33, 0.32) as compared to OC2v4 (1.57 and 0.45), respectively (see Table 1). But the lower mean difference between estimated and measured values was calculated for OC4v4 (0.01 mg/m3).
In addition to the bio-optical algorithm performance, there may be some errors in the satellite sensor calibration and in the atmospheric-correction algorithm (see below).
Based on the MODIS chlorophyll fields, in situ data and numerical modeling was possible to observe an anticyclonic Brazil Current frontal eddy in the study area during the cruise [16]. Concurrent with the mesoscale eddy there was an uncommon sea floor oil seep event [17], which surface signature won't be discussed in detail here.
For illustration, examples of MODIS images processed using with the three algorithms tested in this study are shown (Figure 3). In the 11/25/2004 image, the oligotrophic waters of the BC are observed offshore, over the slope region, in dark blue colors (OC3M<0.08 mg/m3; GSM01<0.08 mg/m3; Carder<0.10 mg/m3). A surface signature of the mesoscale eddy with a mean diameter of 75-80 km was identified in front of Cape Sao Tome between 22.00°S–22.65°S, and 39.9°W–40.77°W, with relatively higher CHL values (0.10<OC3M<0.15 mg/m3; 0.08<GSM01<0.13 mg/m3; 0.20<Carder<0.30 mg/m3).
In order to perform a quantitative analysis of differences between the images produced by the three algorithms, we compared the histograms of the full area (not shown) and of the in situ sampled area (Figure 4, Table 2). Considering the full area, the CHL values varied similarly (0.011–19.929 mg/m3 OC3M, 0.010–19.862 mg/m3 Carder, 0.010–19.154 mg/m3 GSM01). But the mean value of the GSM01 (0.15 ± 0.25 mg/m3) was relatively lower than OC3M (0.45 ± 1.26 mg/m3) and Carder (0.43 ± 1.07 mg/m3). Now considering the in situ sampled area (Figure 4) the relative pattern was the same (Table 2) with the GSM01 mean value (0.10 ± 0.07 mg/m3) relatively lower than OC3M (0.21 ± 0.27 mg/m3) and Carder (0.23 ± 0.27 mg/m3).
Ocean color satellite algorithms OC3M and Carder overestimated on average the values of CHLinsitu, with a mean difference of 0.02 and 0.17 mg/m3, respectively (Table 1), but the algorithm GSM01 has underestimated the relatively higher in situ concentrations (Figure 2). Statistically, the best performance was obtained with the semi-analytical algorithm GSM01, with the lowest values of rmse-L (0.28), rmse (0.08), and mean difference (-0.01 mg/m3), respectively. The empirical algorithm OC3M also presented a good performance, with rmse-L equal to 0.36, rmse of 0.11, and mean difference of 0.02 mg/m3 (see Table 1).
There are some discrepancies between the datasets, which may be due to different reasons. A relevant aspect is that there is usually a time difference between the satellite and in situ measurements. This could be particularly significant when the chlorophyll distribution features are dynamic, as during the cruise period when an anticyclonic eddy was active in the study area. Besides, to evaluate semi-analytical algorithms properly, inherent optical properties measurements are required, but these measurements were not acquired for this work. The absorption coefficient is one of the inherent optical properties that affect the reflectance of the aquatic systems. Therefore, the knowledge about the total absorption and its components is fundamental to improve the description of the spectral reflectance variability and chlorophyll concentration estimated by ocean color remote sensing sensors [18].
The spectral distributions of RRS measured at 30 stations are shown on Figure 5. In general, all the spectra are typical of Case 1 oceanic and oligotrophic waters with low chlorophyll concentrations. The noise observed at station S-5 (red on Figure 5) was due to the low light level at the time of data acquisition. The different shape of the spectrum at station S-21 corresponds to more coastal waters (green on Figure 5), with relatively higher chlorophyll concentration (0.54 mg/m3 OC3M) and with the probable presence of other optically active components.
A spectral comparison between average MODIS-derived RRS and the in situ estimates from the radiometer for 15 “match-up” stations is shown in Figure 6. The 1:1 line of perfect correspondence is also shown. We define rmsd at any wavelength λ as [19]:
rmsd ( λ ) = 100 [ N 1 ( R RS SAT R RS RAD ) 2 ( R RS RAD ) ] ,
where R R S S A T and R RS RAD are the remote sensing reflectance estimates from MODIS and the above-water radiometer, respectively at the same station and N is the number of matched stations, where the summation Σ is over N stations (here N = 15). We find that rmsd values between MODIS relative to the in situ radiometric measurements are 25.3% at 412 nm, 25.9% at 443 nm, 25.9% at 488 nm, 15.6 % at 531 nm, and 13.2% at 551 nm, i.e., largest for 443–448 nm, and least for 551 nm.
It was shown that RRS measured RRS and estimated from MODIS are generally in agreement. The OC3M empirical algorithm overestimated CHLinsitu when applied to measured RRS and to satellite-derived RRS. However, OC3M bio-optical algorithm performed much better with MODIS-derived RRS (see Table 1). The reduced number of satellite “match-ups” available for analysis (N = 10) compared to the in situ radiometric measurements (N = 17) may partially account for the difference found. Furthermore, as mentioned before, there are some discrepancies between the datasets, which may be due to different reasons. The vertical chlorophyll profile was homogeneous over one optical depth only in 8 stations, with concentration increasing in other 10 stations. And the “match-up” stations are not coincident. In addition, we speculate here that compensation could occur between errors in atmospheric correction, satellite sensor calibration and uncertainty in the bio-optical algorithm.
The fluorescence spectra processed from the lidar data are presented on Figure 7. The chlorophyll concentrations estimated with the lidar (CHLLIDAR) at the stations with simultaneous water sampling for fluorometric analysis varied between 0.064 and 0.016 mg/m3, with a mean value of 0.12 (±0.03)mg/m3, very similar to CHLinsitu. In fact, a paired t-test confirmed that the two mean values are statistically equal. The performance of the lidar was similar to that obtained by the in situ fluorometric and radiometric methods, with rmse, rmse-L and mena diff. values of 0.14, 0.48, and 0.01 mg/m3 respectively.
The amplitude of laser excited fluorescence on Figure 7, where the observations were conducted at the same point, can be associated with a diurnal variation. The laser excited fluorescence exhibits a high fluorescence in the night while phytoplankton is not conducting photosynthesis. During the day, exhibited a low fluorescence while phytoplankton is already excited by the solar irradiation and emitting less fluorescence against the laser excitation. The relationship between phytoplankton biomass and pigment content varies widely with light acclimation and nutrient status, while the fluorescence yield also varies with the physiological condition of the phytoplankton and with the type of plankton present. In both laboratory studies and in the field, researchers have observed a daily rhythm of fluorescence that is not correlated with diel changes in the concentration of chlorophyll-a. During periods of high irradiance fluorescence tends to be lower than it is at night [2022].
We learned from previous experiments that our lidar measurements are well correlated with the surface (∼1 m) chlorophyll concentration. The analysis conducted to adjust the lidar with the fluorometric estimates was based on the observation that de relative standard deviation (variance coefficient) of the latter was much higher than the former. As mentioned on Section 2.3, the values of CHLLIDAR were obtained by means of a single equation (see Equation 6).
Spectrally resolved local and remote laser induced fluorescence detectors are emerging as very reliable tools for the collection of information on fluorescent targets for sea and land diagnostics purposes [23, 24]. Barbini et al. [25] also compared lidar data and local spectrophotometer and/or spectro-fluorometer measurements in Antarctica. The observed discrepancies were explained as a result of the fact that lidar signals were collected from a layer where mixing processes can take place, whereas seawater samples were collected at a well defined depth.
Barbini et al. [26] compared lidar measurements of surface chlorophyll-a concentrations in the Ross Sea and in the Antarctica-New Zealand transect to data collected by SeaWiFS. The authors concluded that in coastal waters, lidar values were significantly higher than the orbital estimates. In open waters the differences were smaller and the sampling stations were considered robust to calibrate the SeaWiFS algorithm against the lidar measurements in the Ross Sea.

4. Conclusions

To our best knowledge this is the first published result of simultaneous measurements of surface chlorophyll concentration in the Brazilian Southeastern continental shelf and slope region using in situ fluorometric, above-water radiometry, and lidar, complemented with ocean color remote sensing MODIS imagery.
The empirical algorithms applied to the in situ radiometric and satellite data showed a tendency of overestimating the in situ CHL values by as much as 0.17 mg/m3 (for OC2v4RAD). The semi-analytical GSM01 algorithm applied to MODIS data presented the best performance (rmse 0.28, rmse-L 0.08, mean diff. -0.01 mg/m3). With the available dataset, MODIS showed a trend in overestimating the RRS (up to 26%) relative to the in situ measurements.
When a comprehensive bio-optical dataset from future cruises is collected, a regional algorithm can be developed, to suit local Brazilian Southeastern continental shelf and slope waters. However, this new algorithm must be able to estimate not only CHL, but also other optically active constituents to allow the monitoring of other important water quality parameters and to advance in the ecosystemic study of the interest area.
A better calibration of the lidar equipment is necessary to account for the daily rhythm of fluorescence that is not correlated with diel changes in CHL. This would provide the opportunity to have a CHL onboard monitoring equipment that would automatically and autonomously determine the surface chlorophyll concentrations along the ship track.

Acknowledgments

This work was supported by the PETROBRAS R&D Center, the National Space Research Institute (INPE), and institutions involved in the FITOSAT Project, including the Federal University of Rio de Janeiro and the Catholic University of Rio de Janeiro. NASA provided the satellite images and SeaDAS software. The authors would like to thanks the crew of R/V Astro Garoupa, researchers and students that participated in the field work, and for the comments of two anonymous referees.

References and Notes

  1. Falkowski, P.G.; Raven, J.A. Aquatic Photosynthesis; Blackwell: Malden, Massachusetts, 1997; p. 37. [Google Scholar]
  2. Behrenfeld, M.J.; Falkowski, P.G. Photosynthetic rates derived from satellite-based chlorophyll concentration. Limn. Oceanogr. 1997, 42, 1–20. [Google Scholar]
  3. O'Reilley, J.E.; Maritorena, S.; O'Brien, M.C.; Siegel, D.A.; Toole, D.; Menzies, D.; Smith, R.C.; Mueller, J.L.; Mitchell, B.G.; Kahru, M.; Chavez, R.P.; Strutton, P.; Cota, G.F.; Hooker, S.B.; McClain, C.R.; Carder, K.L.; Mueller-Karger, F.; Harding, L.; Magnusion, A.; Phynney, D.; Moore, G.F.; Aiken, J.; Arrigo, K.R.; Letelier, R.; Culver, M. SeaWiFS Postlaunch Calibration and Validation Analyses, Part 3; Volume 11, Hooker, S.B., Firestone, E.R., Eds.; NASA/TM-2000-2206892. NASA Goddard Space Flight Center: Greenbelt, MD, 2000. [Google Scholar]
  4. Gordon, H.R.; Wang, M. Retrieval of water-leaving radiance and aerosol optical thickness over the oceans with SeaWiFS: a preliminary algorithm. Appl. Opt. 1994, 33, 443–452. [Google Scholar]
  5. Parsons, T.R.; Maita, Y.; Lalli, C.M. A manual of chemical and biological methods for seawater analysis; Pergamon Press: Oxford, 1984; p. 173. [Google Scholar]
  6. Fougnie, B.; Frouin, R.; Lecomte, P.; Deschamps, P.-Y. Reduction of skylight reflection effects in the above-water measurement of diffuse marine reflectance. Appl. Opt. 1999, 38, 3844–3856. [Google Scholar]
  7. Mobley, C.D. Estimation of the remote-sensing reflectance from above-surface measurements. App. Opt. 1999, 38, 7442–7455. [Google Scholar]
  8. Barbosa, P.C.C. Aplicações de Fluorescência Induzida por Laser em Monitoramento Ambiental. (PUC-Rio, No 9916186/CA). PhD Thesis, Pontifícia Universidade Católica do Rio de Janeiro, Rio de Janeiro, Brazil, 2003. (in Portuguese). [Google Scholar]
  9. Maritorena, S.; Siegel, D.A.; Peterson, A.R. Optimization of a semi-analytical ocean color model for global-scale applications. Appl. Opt. 2002, 41, 2705–2714. [Google Scholar]
  10. Carder, K.L.; Chen, F.R.; Cannizzaro, J.P.; Campbell, J.W.; Mitchell, B.G. Performance of the MODIS semi-analytical ocean color algorithm for chlorophyll-a. Adv. Space Res. 2004, 33, 1152–1159. [Google Scholar]
  11. Garver, S.A.; Siegel, D.A. Inherent optical property inversion of ocean color spectra and its biogeochemical interpretation. I. Time series from the Saragasso Sea. J. Geophys. Res. 1997, 102, 18607–18625. [Google Scholar]
  12. Kamykowski, D. A preliminary biophysical model of the relationship between temperature and plant nutrients in the upper ocean. Deep-Sea Res. I 1987, 34, 1067–1079. [Google Scholar]
  13. Kampel, M. Estimativa da produção primária e biomassa fitoplanctônica através de sensoriamento remoto da cor do oceano e dados in situ na costa sudeste brasileira. PhD Thesis, Universidade de São Paulo, Instituto Oceanográfico, São Paulo, Brazil, 2003. [Google Scholar]
  14. Gaeta, S.A.; Metzler, P.M.; Lopes, R.M. Plâncton e produtividade primária na plataforma da costa norte do Estado do Rio de Janeiro-Campanha de verão (dez/91-jan/92). Relatório do Projeto Monitoramento Oceânico da Bacia de Campos FUNDESPA/GEOMAP-PETROBRÁS 1993. [Google Scholar]
  15. Smith, R.C. Remote sensing and depth distribution of ocean chlorophyll. Mar. Ecol. Prog. Ser. 1981, 5, 359–361. [Google Scholar]
  16. Lorenzzetti, J.A.; Kampel, M.; Bentz, C.M.; Torres, A.R., Jr. A meso-scale Brazil Current frontal eddy: observations by ASAR, Radarsat-1, complemented with visible and infrared sensors, in situ data, and numerical modelling. In Advances in SAR Oceanography from Envisat and ERS Missions, Proceedings of SEASAR; Frascati, Italy, January 23–26 2006. [Google Scholar]
  17. Bentz, C.M.; Lorenzzetti, J.A.; Kampel, M.; Politano, A.T.; Genovez, P.; Lucca, E.V.D. The contribution of ASTER, CBERS, R99/SIPAM and OrbiSAR-1 data to improve the oceanic monitoring. XII Simpósio Brasileiro de Sensoriamento Remoto, Proceedings of XIISBSR, Florianópolis, 2007 [CDROM], Sao Paulo, Brazil; Sao Jose dos Campos, 2007; pp. 3755–3762. [Google Scholar]
  18. Mueller, J.L.; Fargion, G.S.; McClain, C.R. Inherent optical properties - instruments, characterizations, field measurements and data analysis protocols. In Ocean optics protocols for satellite ocean color sensor validation, revision 4; NASA Goddard Space Flight Center: Greenbelt, MA, 2002; NASA/TM-2003-211621/Rev4-Vol IV; p. 76. [Google Scholar]
  19. Desa, E.; Suresh, T.; Prabhu Matondkar, S. G.; Desa, E. Sea truth validation of SeaWiFS ocean colour sensor in the coastal waters of the Eastern Arabian Sea. Curr. Sci. 2001, 80, 854–860. [Google Scholar]
  20. Kiefer, D.A. Fluorescence properties of natural phytoplankton populations. Mar. Biol. 1973, 22, 263–269. [Google Scholar]
  21. Loftus, M.E.; Seliger, H.H. Some limitations of the in vivo fluorescence technique. Chesapeake Sci. 1975, 16, 79–92. [Google Scholar]
  22. Dandonneau, Y.; Neveux, J. Diel variations of in vivo fluorescence in the eastern equatorial Pacific: an unvarying pattern. Deep-Sea Res. II 1997, 44, 1869–1880. [Google Scholar]
  23. Hoge, F.E.; Swift, R.N. Absolute tracer dye concentration using airborne laser induced water Raman backscatter. Appl. Opt. 1981, 20, 1191–1202. [Google Scholar]
  24. Reuter, R.; Diebel, D.; Hengstermann, T. Oceanographic laser remote sensing: measurements of hydrographic fronts in the German Bight and in the northern Adriatic sea. Int. J. Remote Sens. 1993, 14, 823–848. [Google Scholar]
  25. Barbini, R.; Colao, F.; Fantoni, R.; Palucci, A.; Ribezzo, S. Differential lidar fluorosensor system used for phytoplankton bloom and seawater quality monitoring in Antarctica. Int. J. Remote Sens. 2001, 22, 369–384. [Google Scholar]
  26. Barbini, R.; Colao, F.; Fantoni, R.; Fiorani, L.; Palucci, A. Lidar fluorosensor calibration of the SeaWiFS chlorophyll algorithm in the Ross Sea. Int. J. Remote Sens. 2003, 24, 3205–3218. [Google Scholar]

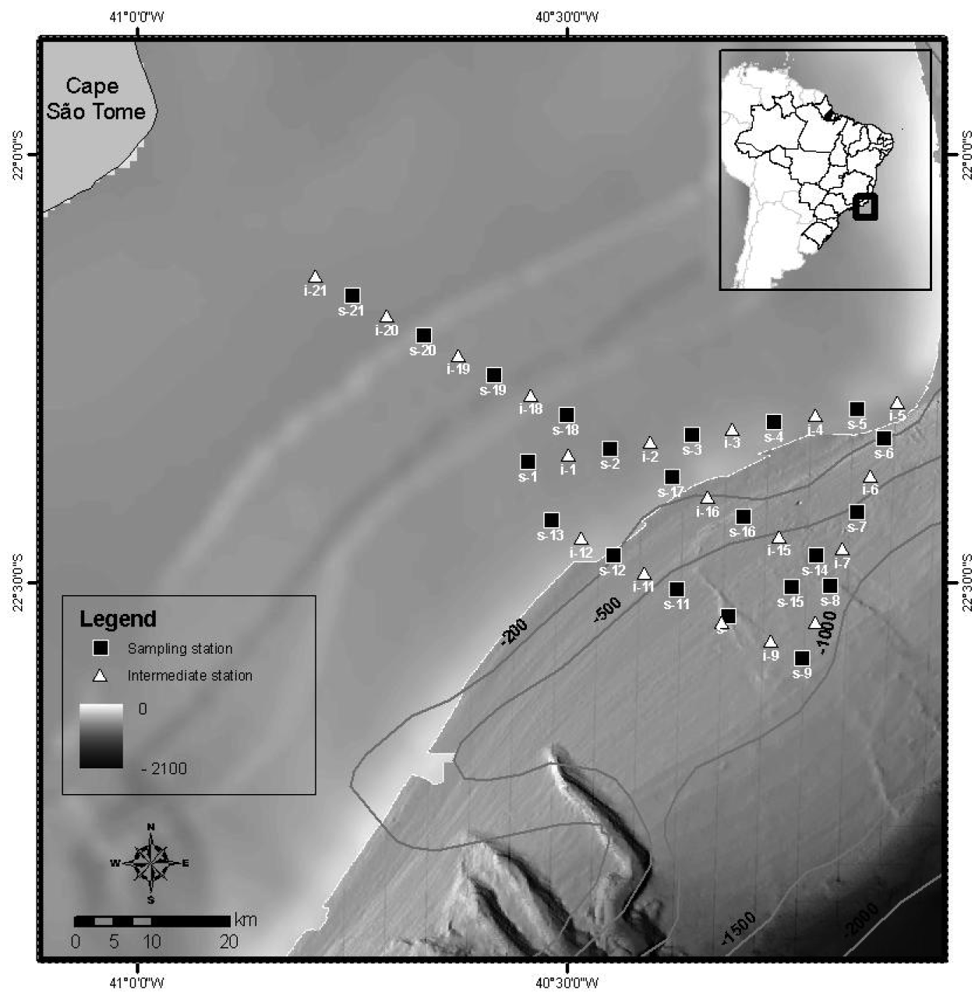

Figure 1. Study area and field stations occupied during November 2004 at the Brazilian Southeastern continental margin. Water sampling, above-water radiometry and lidar stations labeled with an “s” (black squares). Stations without water sampling labeled with an “i” (white triangles). Isobaths in meters.
Figure 1. Study area and field stations occupied during November 2004 at the Brazilian Southeastern continental margin. Water sampling, above-water radiometry and lidar stations labeled with an “s” (black squares). Stations without water sampling labeled with an “i” (white triangles). Isobaths in meters.
Sensors 09 00528f1

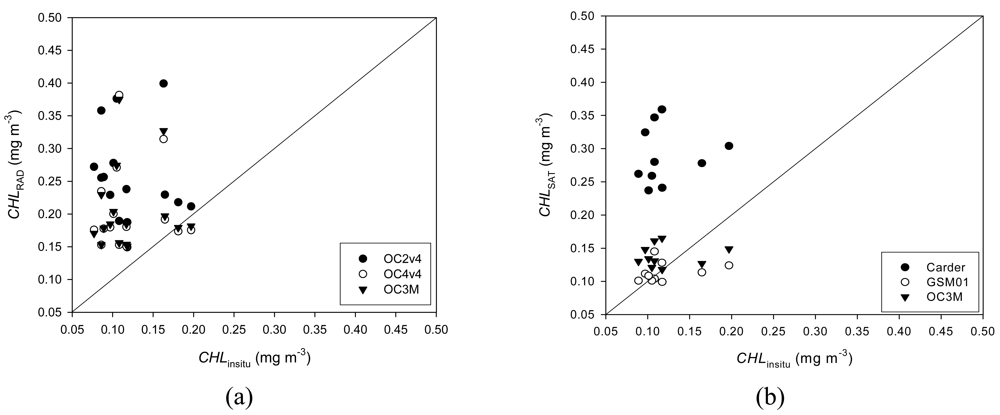

Figure 2. Scatter plots of chlorophyll concentration estimates obtained with (a) above-water radiometric data (three algorithms), and (b) MODIS ocean color remote sensing data (three algorithms) against in situ fluorometric estimates.
Figure 2. Scatter plots of chlorophyll concentration estimates obtained with (a) above-water radiometric data (three algorithms), and (b) MODIS ocean color remote sensing data (three algorithms) against in situ fluorometric estimates.
Sensors 09 00528f2

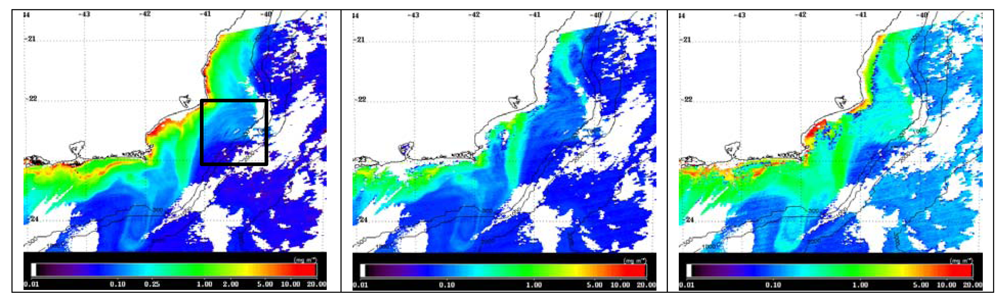

Figure 3. Surface distributions of chlorophyll concentration estimated with OC3M (left), GSM01 (center), and Carder (right) algorithms applied to MODIS data acquired on 11/25/2004 (see text for details). Isobaths in meters. Color table in logarithmic scale. Land and clouds are masked in white. Black square on the left indicates the in situ sampled area.
Figure 3. Surface distributions of chlorophyll concentration estimated with OC3M (left), GSM01 (center), and Carder (right) algorithms applied to MODIS data acquired on 11/25/2004 (see text for details). Isobaths in meters. Color table in logarithmic scale. Land and clouds are masked in white. Black square on the left indicates the in situ sampled area.
Sensors 09 00528f3

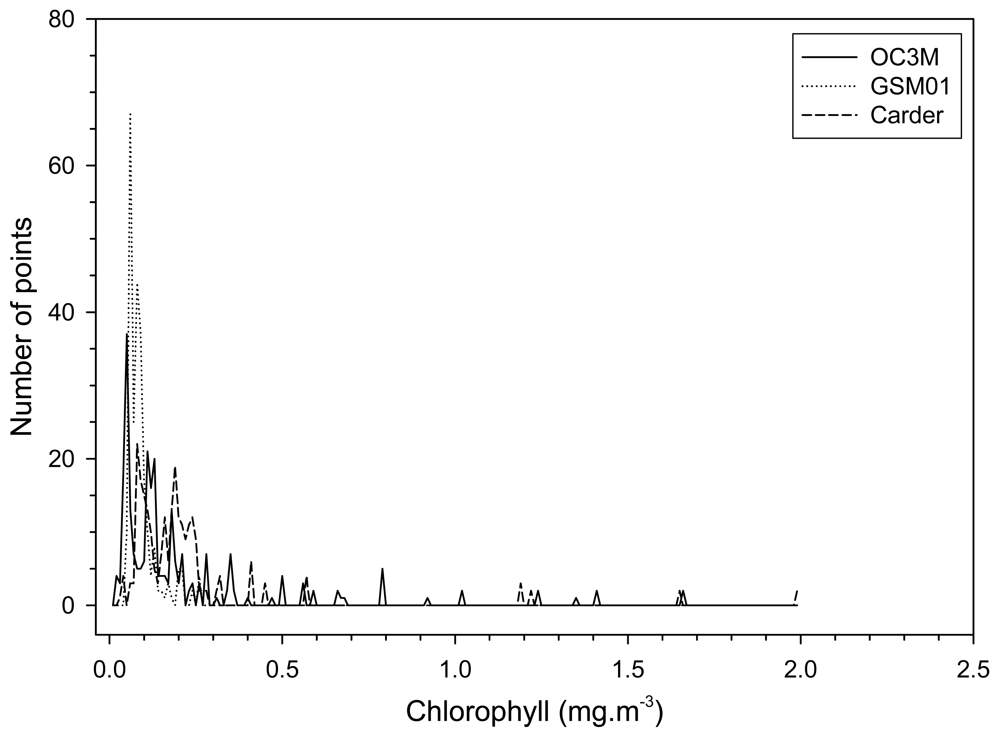

Figure 4. Histograms of MODIS chlorophyll concentration estimates obtained with OC3M, GSM01, and Carder algorithms for the in situ sampled area on 11/25/2004 (see text for details).
Figure 4. Histograms of MODIS chlorophyll concentration estimates obtained with OC3M, GSM01, and Carder algorithms for the in situ sampled area on 11/25/2004 (see text for details).
Sensors 09 00528f4

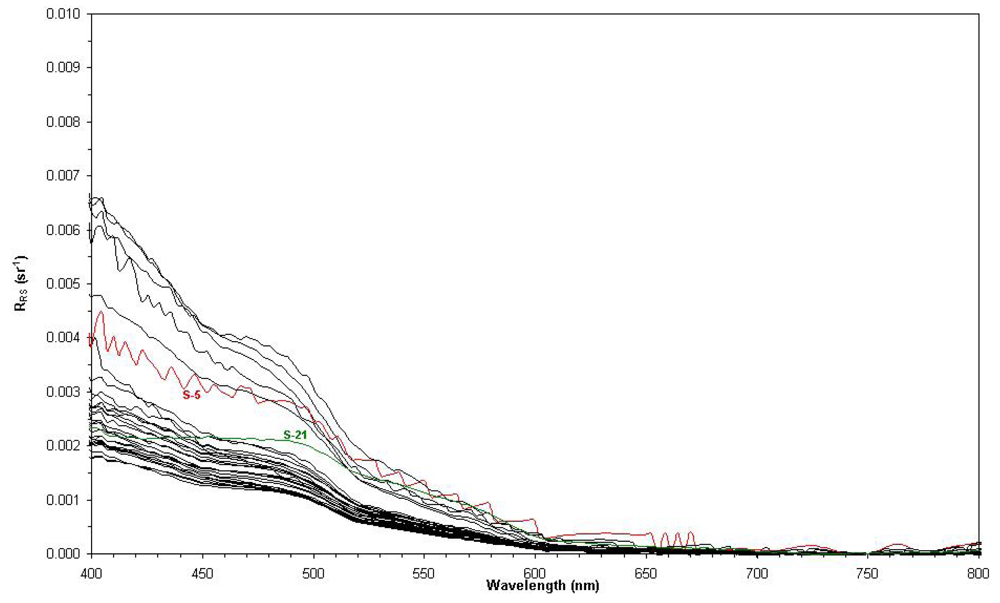

Figure 5. Surface remote sensing reflectance spectra obtained by above-water radiometry during the cruise FITOSAT I cruise, November 2004, in the Brazilian Southeastern continental shelf and slope. Stations S-5 and S-21 in red and green, respectively (see text).
Figure 5. Surface remote sensing reflectance spectra obtained by above-water radiometry during the cruise FITOSAT I cruise, November 2004, in the Brazilian Southeastern continental shelf and slope. Stations S-5 and S-21 in red and green, respectively (see text).
Sensors 09 00528f5

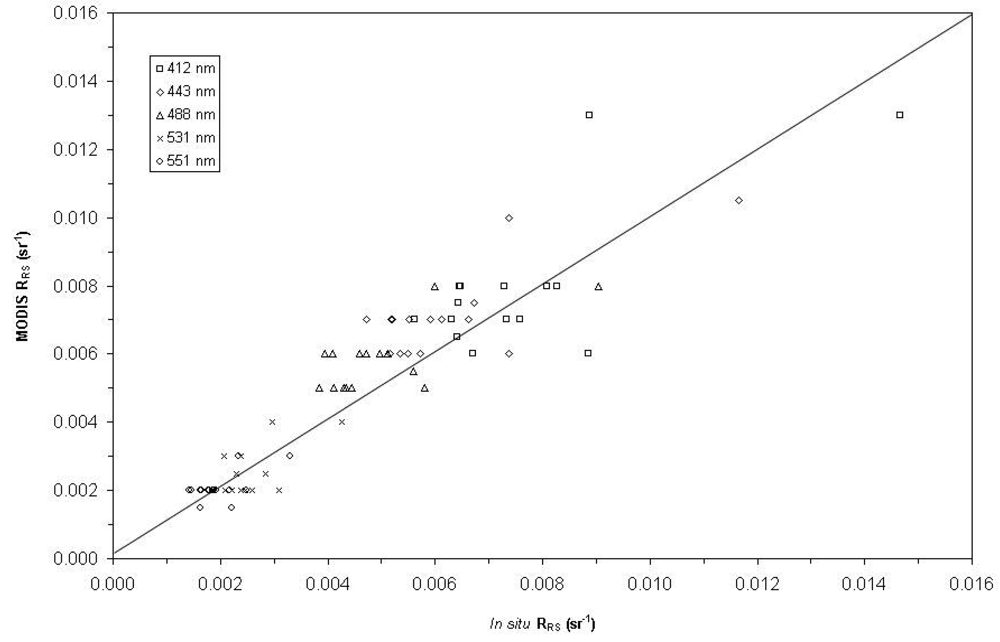

Figure 6. Scatter plot of MODIS remote sensing reflectance (RRS) with respect to in situ above-water RRS for 15 stations where inter-comparison were made.
Figure 6. Scatter plot of MODIS remote sensing reflectance (RRS) with respect to in situ above-water RRS for 15 stations where inter-comparison were made.
Sensors 09 00528f6

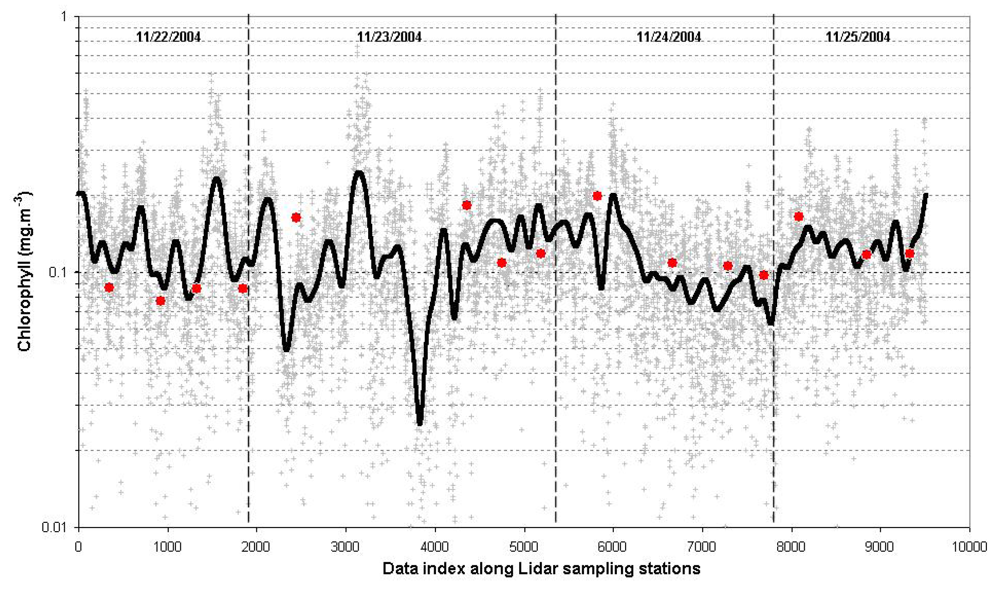

Figure 7. Surface chlorophyll concentration estimated with the along-track lidar sampling during the cruise FITOSAT I cruise, November 2004, in the Brazilian Southeastern continental shelf and slope compared with fluorometric estimates (grey crosses – Lidar measurements; black line – Lidar processed; red circles – fluorometric).
Figure 7. Surface chlorophyll concentration estimated with the along-track lidar sampling during the cruise FITOSAT I cruise, November 2004, in the Brazilian Southeastern continental shelf and slope compared with fluorometric estimates (grey crosses – Lidar measurements; black line – Lidar processed; red circles – fluorometric).
Sensors 09 00528f7
Table 1. Comparison between different in situ and satellite estimates of surface chlorophyll-a concentration in the Brazilian Southeastern continental shelf and slope waters in November 2004. (N= number of observations; RAD= in situ radiometry; SAT= MODIS data).
Table 1. Comparison between different in situ and satellite estimates of surface chlorophyll-a concentration in the Brazilian Southeastern continental shelf and slope waters in November 2004. (N= number of observations; RAD= in situ radiometry; SAT= MODIS data).
Algorithm/Lidarrmse-LRmseNmean diff.*
OC2v4RAD1.570.45170.17
OC4v4RAD1.080.32170.01
OC3MRAD1.090.33170.06
OC3MSAT0.360.11100.02
GSM01SAT0.280.0810-0.01
CarderSAT1.140.34100.17
CHLLIDAR0.520.16150.01
*(estimated – measured)
Table 2. Comparison between histograms of MODIS chlorophyll concentration estimates obtained with 3 algorithms for the full image area and for the in situ sampled area (mg/m3).
Table 2. Comparison between histograms of MODIS chlorophyll concentration estimates obtained with 3 algorithms for the full image area and for the in situ sampled area (mg/m3).
AlgorithmMin.Max.Meanstd.
Full area
OC3M0.0119.930.451.26
GSM010.0119.150.150.25
Carder0.0119.860.431.07

Sampled area
OC3M0.021.660.210.27
GSM010.050.260.100.04
Carder0.032.000.230.27
