Article

Intercomparison of Evapotranspiration Over the Savannah Volta Basin in West Africa Using Remote Sensing Data

Department of Geography, Durham University, Science Site, Durham, DH1 3LE, UK
*
Author to whom correspondence should be addressed.
Sensors 2008, 8(4), 2736-2761; https://doi.org/10.3390/s8042736
Submission received: 7 January 2008 / Accepted: 19 March 2008 / Published: 17 April 2008
(This article belongs to the Special Issue Remote Sensing of Natural Resources and the Environment)

Abstract

:
This paper compares evapotranspiration estimates from two complementary satellite sensors – NASA's Moderate Resolution Imaging Spectroradiometer (MODIS) and ESA's ENVISAT Advanced Along-Track Scanning Radiometer (AATSR) over the savannah area of the Volta basin in West Africa. This was achieved through solving for evapotranspiration on the basis of the regional energy balance equation, which was computationally-driven by the Surface Energy Balance Algorithm for Land algorithm (SEBAL). The results showed that both sensors are potentially good sources of evapotranspiration estimates over large heterogeneous landscapes. The MODIS sensor measured daily evapotranspiration reasonably well with a strong spatial correlation (R2=0.71) with Landsat ETM+ but underperformed with deviations up to ∼2.0 mm day-1, when compared with local eddy correlation observations and the Penman-Monteith method mainly because of scale mismatch. The AATSR sensor produced much poorer correlations (R2=0.13) with Landsat ETM+ and conventional ET methods also because of differences in atmospheric correction and sensor calibration over land.

1. Introduction

Understanding the spatial dynamics of evapotranspiration (ET) is critically important for food security and water resources management in Africa. With reference to the Volta basin (Fig 1), studies such as [1] and [2] have failed to estimate regional ET because of the sheer size of the area, surface heterogeneity and poor distribution of spatially referenced hydro-climatic data. For example, there are only five rainfall stations above Lake Volta and there are no ground-based energy flux towers. In this context, remote sensing is an attractive method for obtaining or modelling evaporative fluxes at the regional scale. NASA's Moderate Resolution Imaging Spectroradiometer (MODIS) and ESA's Environmental Satellite (ENVISAT) Advanced Along-Track Scanning Radiometer (AATSR) sensors present some of the most suitable sources of land surface information to help achieve this [3-5]. However, the quality of satellite data, the ease of application and availability of algorithms for retrieving key ET model parameters remains very important. In this context, it is necessary to evaluate the utility of different sensor data to ascertain their quality and value in terms of information sharing among scientific users, policy managers and data providers. This, in part, explains why the literature provides a range of studies that deal with regional synthesis of heat fluxes from previous satellites such as the NOAA Advanced Very High Resolution Radiometer (AVHRR) data [5, 6]. Recently, papers have also been published on ET intercomparison from MODIS and AVHRR sensors [4, 6, 7], and MODIS against the Environmental Satellite (ENVISAT) Medium Resolution Imaging Spectrometer (MERIS) [8]. More specifically, recent studies have demonstrated the advantage of MODIS over AVHRR, taking advantage of MODIS bands for land temperature detection and biomass estimation [6]. First, MODIS has narrower spectral bands at the visible and near infrared wavelengths (36 channels) than AVHRR, which enhances discrimination of vegetation properties [8]. Secondly, the MODIS sensor has one of the most accurate calibration subsystems. This allows the raw brightness values to be converted into true percentage reflectance or radiance measurements [9, 10]. Thirdly, MODIS has a higher radiometric resolution than AVHRR using 16 bits of quantization in all bands as opposed to AVHRR's 10 bits [8]. However, this is the first study to compare MODIS with AATSR. Specifically, the paper seeks to examine the relative potential of MODIS and AATSR for measuring key components of the energy balance equation such as surface temperature (Ts) and ET over the Volta basin, which might potentially be used to predict regional water availability.
The paper is structured in the following way: the first part provides a description of the MODIS and AATSR sensor data, followed by their application to the study area. The second part describes the study methods including a stepwise description of image processing, derivation of key energy fluxes and sensor intercomparison. This section also deals with data evaluation using a 30m resolution Landsat ETM+ image, ground data and published information. The third part discusses the results, which is followed by a summary of the key findings.

2. Materials and Methods

2.1. The Study Area

The Tamale district (right-hand-side inset of Fig 1) was selected as the study area for three principal reasons: (1) the area is representative of the main land cover types in the Guinea savannah region; (2) the Tamale hydrometeorological monitoring station is a good source of historical data; and (3) the area is one of the most accessible for equipment installation and field data collection. The Volta basin encompasses six West African countries (Benin, Burkina Faso, La Côte d'Ivoire, Ghana and Mali – boundaries shown in light grey in Fig 1) covering an area of about 400,000 km2. Over 70 million of West Africans depend on the Volta for food and water resources, housing, energy in terms of hydropower supply, and lake transport. The need to understand fluctuations in the key energy processes that control water availability in the region is therefore of utmost importance.
The climate of tropical West Africa is largely influenced by the movement of the Inter-Tropical Convergence Zone (ITCZ), which is an area of low pressure cells, where the Northeast Trade Winds meet the Southeast Trade Winds near the Earth's equator [12]. As these winds converge, moist air is forced upward causing water vapour to condense, and as the air cools and rises a band of heavy precipitation results. West Africa is also characterised by high daily/annual temperatures (see Table 1), which are closely related to the region's position in terms of the Equator, Gulf of Guinea and Sahara desert. Table 1 is important for two reasons: (1) it provides general long-term climatic information about West Africa, and (2) it places the study area and subsequent discussion into a regional context.
West Africa is largely drained by three transboundary river systems - the Niger, Senegal and Volta. The Volta Lake (∼8,500 km2) developed from the Volta River (see Fig1), forms a massive inland drainage and flow regulating system, whose hydrological conditions are central to the region's economy. The geology of the area is often valued in terms of rich mineral resources, but shallow aquifers also contribute significantly to the rural economy in terms of surface flow discharge and borehole water supply, particularly during the dry season [13]. Although a regional background is given here, it needs to be stressed the current data (Section 2.2) and subsequent discussion focuses on the Volta basin.

2.2. Data Sources

Landsat ETM+ (NOAA/NASA), Level 1B MODIS (NASA) and AATSR (ESA) imagery (Table 2) were used as the main sources of remotely sensed data [15]. For spatial validation of the MODIS and AATSR data, a single Landsat ETM+ (30m resolution) was required. However, cloud-free Landsat ETM+ data coincidental with the coarse-resolution data were unavailable. As a result, an image (Landsat ETM+) acquired on 5th January 2004 was used as proxy data (Table 2). Although the Level 1B products do not directly contain images, they still contain calibrated data which are often used by other software applications to construct the images. Aside from satellite data, a 40-year (1961-2000) record of daily air temperatures as a well as historical (1970-1980) daily wind speed and sunshine data observed from the Tamale meteorological monitoring station served as key reference and ET modelling input data [14]. Unfortunately, spatially observed surface temperature (Ts) data were not available for the study area. Indeed, data scarcity is a widely recognised problem in Africa and remains a major disincentive to regional-based studies [1-3; 15]. In this case, a number of assumptions were made in Section 2.3 to be able to operate the SEBAL algorithm. An important data set which was used to initialize and validate the SEBAL algorithm was energy flux (eddy correlation) data (Fig 2) measured for the Tamale district, courtesy of the GLOWA-Volta Project [11]. Additional sources of model input and validation data included field surface temperatures, which were observed from thermal data loggers at the time of satellite overpass (Table 3). The thermal loggers named A-E were installed in the study area as follows: north-western (urban), north-eastern (grassland bush), central (agriculture), eastern (open woodland) and southern (closed woodland) locations of the study area, with actual geographical coordinates shown in Table 3b.
For regional-scale studies, the MODIS and AATSR sensors provide high quality spectral products with good radiometric and geometric properties. As indicated above, the MODIS sensor has a number of advantages including (36) multi-spectral channels (bands), which enable precise discrimination of vegetation types [4-8] and a daily revisit capability, which provides high data temporal frequency. Most of the MODIS data products are also freely available to users from the USGS website. The AATSR sensor has a number of particular capabilities. For example, it delivers data from both the reflectance and thermal infrared bands, which provides useful land-based parameters (e.g. land-cover and surface temperatures) often needed as key inputs to energy and water balance models. In terms of temperature mapping, the AATSR scenes are supplied to users as a ready source of brightness temperatures [7]. This is extremely valuable because data re-calibration problems which are often associated with the AVHRR and MODIS sensors are easily avoided. Furthermore, the spectral bands and spatial resolution (1 km) are quite similar to MODIS, which makes sensor inter-comparison possible [5, 6, 16, 17]. It is also worth noting that the digital data format of both the MODIS and AATSR provides capabilities which easily lend them for integration with new-generation GIS-based data assimilation schemes [18, 19]. Table 4 displays the general characteristics of the satellite data sets used.

2.3. Study Methods

2.3.1. Image Processing

The main image processing steps are described as follows:
  • The raw Level 1B AATSR images (Table 2) were first read using the Windows version of the European Space Agency (ESA) Basic ERS & ENVISAT AATSR and MERIS software (BEAM) ( http://www.brockmann-consult.de/beam/). The BEAM is a collection of executable tools and an application programming interface which have been developed to facilitate the utilisation, viewing and processing of ENVISAT data products. It is particularly useful for importing image data, visual interpretation, image geo-referencing, band arithmetic and image statistics.
  • Brightness temperatures at the top of atmosphere (TB) were directly retrieved after running the BEAM software; the software automatically implements an inverted version of the Planck's equation where image radiances are converted to TB (see equation 1). The TB files were then exported and stored as GeoTIFF for further use.
  • The raw Level 1B MODIS data (Table 2) were also read using NASA's HDF-EOS to GIS (HEG) conversion toolbox ( http://eosweb.1arc.nasa.gov/PRODOCS/misr/geotiff_tool.html). The HEG software is useful for image viewing, geo-referencing to standard projections such as UTM and data conversion to GeoTIFF.
  • Examination of the MODIS header files enabled the retrieval of calibration constants from the reflectance (Bands 1 and 2) and radiance (Bands 31 and 32) files of the composite product. The reflectance and radiance values were then used as appropriate to calculate calibrated versions of time series data following NASA's re-calibration procedures described in the MODIS L1B Product User's Guide [16]. The inverted Planck's equation was then applied to convert the image radiances (L) of each of the thermal infrared bands (TIR) to TB following the approach of [20] (equation 1) and later used as model inputs for calculating Ts.
T B = c 2 λ ln [ c 1 λ 5 L + 1 ]
where c1 = 3.74*108 and c2 = 1.439*104 and λ = average wavelength of the TIR bands; represented as bands 31 and 32 for MODIS and 6 for Landsat ETM+ (see Table 4). TB was used at a later stage to calculate Ts in the next section.
  • To solve for equation 1 an ERDAS-Imagine based algorithm was applied for both the Landsat ETM+ scene (5th January 2004) and the MODIS time series data (Table 2).
  • Further, ERDAS spatial modelling tools were used to calculate NDVI (normalized difference vegetation index) for the Landsat ETM+, MODIS and AATSR imagery using the equation below [21]:
    NDVI = NIR R NIR + R
    where NIR and R are light reflectance in the near infrared band and the red bands of the electromagnetic spectrum, respectively.

2.3.2 SEBAL Processing in MATLAB

For the MODIS and AATSR data, the results of equations (1) and (2) were applied as key inputs to the Surface Energy Balance Algorithm for Land (SEBAL) code [22, 23] which was run through code written in MATLAB. For the single Landsat ETM+ image, it was quicker to derive ET using ERDAS/GIS-based spatial modelling tools. Another important reason is that the ERDAS approach is easily repeatable in developing countries where software facilities and the image processing skills of users are quite limited [8]. The other inputs to the SEBAL algorithm are described in Table 5 below. The theoretical basis of the SEBAL is that it solves the energy and radiation balance equations (equations 3 & 4) on per-pixel basis, from which ET may be derived as the residual term of the regional energy balance model at the time of satellite overpass following the scheme shown in Fig 3.
E T = R n H G 0
where ET = latent heat flux (evaporation), Rn = net radiation, H = sensible heat flux, and G0 = soil heat flux. The units for all the above parameters are Wm-2.

Net Radiation (Rn)

Following Equation (3), the net radiation (Rn), which is the amount of radiation left after all outgoing radiation (L) is subtracted from all incoming radiation (L), was calculated as follows:
R n = K ( 1 α ) + ( L + L )
where K = incoming shortwave radiation, α = albedo (dimensionless) and L and L are incoming and outgoing long wave radiation, respectively and the shortwave radiation (Wm-2) reaching the Earth's surface under cloud-free conditions is calculated as:
K = τ × K toa
where τ is atmospheric transmissivity and Ktoa is the extraterrestrial solar radiation (Wm-2). The extraterrestrial solar radiation at a given point in time is calculated according to the following relationship:
K toa = G S C E o ( sin δ sin ϕ + cos δ cos ϕ cos ϖ )
where GSC = solar constant (1367 W-2), Eo = is eccentricity correction factor (i.e. average/actual Earth-sun distance, which ranges 0.980-0.989 [24; 25]), δ = solar declination, ø = latitude and ω = hour angle (all angles are in radians). Surface albedo (α) is calculable following an empirical formula derived by [26] as:
α = r p r a τ 2
where ra = albedo path radiance, rp = top-of-atmosphere radiance and τ2 = the two-way transmittance for solar radiation (Wm-2). The surface albedo (α) of the darkest pixel (e.g. deep sea) is usually assumed to take a value of zero. If α = 0, it follows from equation 7 that ra = rp of a deep sea and by approximation, the darkest pixel target. It has been shown that, for a known surface elevation (z), the one way transmission (τ) may be predicted following an empirical relationship as [24]:
τ = 0.75 + 2 × 10 5 × z
Thus, assuming that the average elevation of the Tamale area is 180 m, the two-way transmittance (τ2) is approximately, 0.568. The above report has also shown that the fractional path radiance (ra) ranges from 0.025 – 0.04. For tropical areas, a constant value of 0.03 has been suggested [24; 27]. Further, the incoming long wave radiation (Wm-2) is the downward thermal radiation flux from the atmosphere. It is computed using Stefan-Boltzmann equation as:
L = ɛ a × σ × T a 4
where εa = atmospheric emissivity (dimensionless), σ = Stefan-Boltzmann s constant (5.67×10 Wm-2 K-4) and Ta = near surface temperature (K) from climate records [14], which for lack of spatially-observed estimates, was first assumed to be invariant for each pixel, but later predicted from equation 18; εa may be calculated using an empirical model following as follows [27]:
ɛ a = 0.85 × ( ln τ ) 0.09
The outgoing long wave radiation (Wm-2) is the upward thermal radiation leaving the surface. It is calculated using the Stefan-Boltzmann equation as follows:
L = ɛ 0 × σ × T s 4
where ε 0 = surface emissivity (dimensionless), σ = Stefan-Boltzmann's constant and Ts = surface temperature (K) which was first estimated as a crude spatial average from Table 3b (304 K), but later calculated on per-pixel basis from the split-window algorithm (equation 24). The emissivity of an object is the ratio of the energy radiated by that object at a given temperature to the energy radiated by a black body at the same temperature. Since the thermal radiation of the surface is observed in the thermal bands of satellite data, one can compute the surface temperature if the emissivity of the land surface is estimated. In SEBAL, surface emissivity may be estimated using NDVI and an empirically-driven method [28]:
ɛ 0 = 1.009 + 0.047 ln ( NDVI )
where NDVI > 0; otherwise, emissivity is assumed to be zero (e.g. water).

Soil Heat Flux (G0)

The soil heat flux is the rate of heat storage in a soil as a result of temperature gradient between soil surface and the underlying topmost soil layers. The SEBAL uses an empirical relationship by [23] which attempts to estimate G0 as a function of NDVI, surface temperature and albedo as follows:
G 0 = R n ( T s 273 α ) [ 0.0032 × ( 1.1 × α ) + 0.0062 × ( 1.1 × α ) 2 ] × ( 1.0978 × NDVI 4 )

Sensible Heat Flux (H)

Sensible heat flux is the rate at which energy is lost through convection and diffusion processes as a result of temperature difference between the surface and the lowest layers of the atmosphere:
H = ρ a × C p × Δ T r a h
where ρ = density of air (Kg m-3), cp = air specific heat capacity 1013 (JKg-1K-1), ΔT = difference between surface and air temperature (0K) and rrah = aerodynamic resistance for heat transport (sm-1), determined by wind speed, surface roughness, displacement height and thermal instability of the atmosphere.
r a h = 1 k u * [ ln ( z ref d z o h ) ψ h ]
and,
u * = k × u blend [ ln ( z blend d z o m ) ] ψ m
where u* = friction velocity, k = von Karman's constant (0.41), ublend = wind speed at the blending height (i.e. mixing layer), zblend = blending height, zoh = roughness length for heat transport, zom = roughness length for momentum transport, d = displacement height and ψh and ψm = are stability correction factors for heat and momentum transport, respectively. The temperature difference (ΔT) is predicted in order to estimate H from equation 14 following [22, 23]:
Δ T = H × r a h ρ a × C p
In this equation, H and ΔT are both unknown factors but are directly related to one another, as well as to the value of rah. Therefore, ΔT is calculated at two extremes, “indicator pixels” (wettest and driest pixels) by assuming values for H at these reference pixels. The wettest pixel is the pixel where H ∼ 0 (i.e. all the available energy [Rn – G0] is converted λET or ΔT becomes zero), and the driest pixel is where λET ∼ 0, so that H = Rn – G0 or ΔT is maximum. The wettest pixels are selected as pixels with high NDVI but with low temperature, while the driest pixels are selected as pixels with high temperature but with low NDVI and albedo. Subsequent to the selection of the wettest and driest pixels, the linear equation which gives value of ΔT as a function of surface temperature is developed as:
T s T a = Δ T = a × b × T s
where Ts = surface temperature, Ta = air temperature (previously defined as near surface in equation 9), and a & b are constants. With the values of Ts and ΔT at the two pixels, a & b may then be solved iteratively, as rah is also a function of H, where rah is calculated using equations 15 and 16 above. As noted before, lack of spatially-observed ground temperature data makes equation 18 relevant in the derivation of temperature difference (Ts-Ta).

Evapotranspiration (ET) Up-scaling Methods

Under fair weather conditions, the evaporative fraction (Λ), which is the ratio of latent heat flux to available energy, is generally assumed to be constant during daytime [23, 27]. Thus, Λ may be used to integrate remotely sensed ET over the diurnal cycle as follows:
Λ = λ E T λ E T + H = λ E T R n G 0
where the instantaneous evaporative fraction (Λins) is equal to the integrated daily evaporative fraction (Λday). Guided by the above principles, instantaneous net radiation may also be aggregated as daily net radiation (Rn-day) following the approach by [23] as:
R n day = ( 1 1.1 × α ) × K day 110 × τ day
where τday = daily atmospheric transmissivity for radiation, which was calculated using the Angstrom formula as τday = 0.25 + 0.5 ×n/N, where n = actual duration of sunshine and N = maximum possible sunshine or daylight hour. Cloud-free actual sunshine data (n) were obtained from the US Navy website – http://aa.usno.navy.mil. Daily incoming short wave radiation (Kday) was then calculated using the following relationship:
K day = 11.5741 × τ day × K day toa
where K day toa = daily incoming short wave radiation at the top-of-atmosphere (TOA) was calculated using the sine method as:
K day toa = 24 π G S C E o sin δ sin ϕ [ π 180 ω s tan ω s ]
where ωs = sunset or sunrise hour angle (radians); the definition of the remaining parameters is given in equation 6. From equations 19 and 20, actual ET was set as a constant following [23] who used similar empirical models for the Sahel region in West Africa. Daily ET derived from equation 23 was validated using the GLOWA-Volta ground energy flux observations [11].
E T day = Λ × R n day 28.588

Derivation of Land Surface Temperature (Ts)

Following the split-window approach by [8], Ts was estimated as:
T s = 0.39 T 1 2 + 2.34 T 1 0.78 T 1 × T 2 1.34 T 2 + 0.39 T 2 2 + 0.56
where T1 and T2 represent AATSR bands 6 & 7 and MODIS bands 31 & 32, respectively; and the coefficients are empirically determined on the basis of land cover types, vegetation fraction, season and time of day, atmospheric vapour pressure, satellite zenith angle and surface emissivity [7]. For the Landsat ETM+ data, Ts was estimated using the single channel algorithm [31] and applying coefficients derived for the dry Roxo catchment in Portugal [27].

3. Results and Discussion

Sensor intercomparison studies can deliver several benefits, of which data quality assurance, provision of market information and sharing of technical information among key stakeholders are paramount. Nevertheless, several constraints remain crucial, such as lack of consensus about image pre-processing methods, differences in sensor footprints and occurrence of random errors including missing data [5 - 7]. Some of these issues are discussed in the subsequent section.

3.1. Results

3.1.1. Sensor Intercomparison of Ts

An important motivation for evaluating Ts from different sensors is the close interaction between temperature, sensible and latent heat fluxes. At the catchment scale, dynamics of surface energy is a critical indicator of water availability, which in turn, constitutes very useful information for water resources management. For example, the operational management of the downstream Volta Lake for hydropower generation is of great economic importance. The results in Table 6 present the temporal variability of Ts over the Tamale district derived from the Landsat ETM+, MODIS and AATSR sensors. The Tamale district is important for both economic and environmental reasons. As one of the largest urban areas in the Guinea savannah zone in Ghana, water scarcity is a severe problem. Secondly, the area is heterogeneous in terms of savannah land cover [18]. This explains the importance of understanding the energy dynamics of the area.
Table 6 shows that the average MODIS Ts over the Tamale district was 309.9 K compared with 320.6 K by the AATSR instrument. Although the MODIS Ts compares well with the Landsat sensor (∼302 K), the result is inconclusive without ground truth validation. This makes two types of validation necessary; first, evaluation of the image thermal calibration methods and the secondly, verification of the results from independent field data (see Table 3). As shown in Section 2.3.1, the data from both sensors were subjected to similar image processing methods, where image radiances were first converted to brightness temperature (TB) using the inverted Planck's equation and subsequent derivation of surface temperature (Ts), using the split-window algorithm. The only difference is that the AATSR TB was obtained directly whereas the MODIS TB was calibrated manually [18]. The effect of this is examined in Table 7.
Table 7 shows that the average AATSR TB (full-scenes) are slightly higher than MODIS in the 11 and 12μm thermal bands (channels) at nadir viewing angles; the deviations in these channels being 5.1 and 4.7 K, respectively. The difference between the coarse-resolution sensors (MODIS & AATSR) and the reference Landsat ETM+ TB is even wider (7-13 K). Over a large area, the above TB variations are large [5, 7], which also closely reflect the magnitude of Ts deviations in Table 6. This tends to emphasize the previous opinion that the Ts deviations may not be due to differences produced from image processing, but variations in sensor and instrument characteristics.
In the second case, reference is made to Fig 5, which compares satellite derived Ts with field soil temperatures observed at the time of the satellites overpass (10:00 - 12:00 noon). Fig 5 was derived by calculating the mean (diurnal) logger temperatures from Table 3b and plotting them against the satellite measurements. It is not always easy to compare point data with spatially derived satellite measurements without making some assumptions [5]. The following assumptions were made: (1) surface temperatures do not vary significantly within 1 km pixels where satellite measurements are made; and (2) sensor geometric effects on the location of the thermal loggers are of minimal significance. Guided by ground control points (geographical coordinates), five nearest Ts data points from MODIS and AATSR maps were extracted and compared with the ground truth data. In the case of the Landsat ETM+ thermal map, average Ts values were extracted from 30×30 pixel windows, reference to existing ground control points and the coarse-resolution data. As expected, the MODIS sensor better predicted Ts (R2 = 0.73), compared with both the AATSR (R2 = 0.41) and Landsat ETM+ (R2 = 0.59) as shown in Fig 4. The detailed data analysis and error assessment are discussed in the subsequent section.

Sensor Intercomparison of NDVI

From Table 6, the variations in NDVI (used here as surrogate for biomass density) are closely related to dynamics of thermal energy and therefore, transpiration processes. The temporal variation of MODIS NDVI portrays this more consistently than the AATSR, which is also exemplified by the wider range of the MODIS NDVI values (∼0.36) compared with AATSR (∼0.22). For medium resolution (1×1 km) satellites, an NDVI difference of approximately 0.20 (Fig 5) may cover an extremely wide ground area, vegetation types and biomass volume, which reinforces the advantage of the MODIS visible bands for NDVI estimation compared with AATSR.

Sensor Intercomparison of ET

The importance of ET as a key indicator of water availability in dry savannah regions has previously been noted. In fact, the over- or underestimation of ET can provide misleading information required for water policy decision-making and resource allocation. Also, the question of data accuracy is an important issue because precise data sets are needed for continuous monitoring of ET, which in turn is needed for quantifying regional water balance. Both Table 6 and Fig 6 compare the temporal variability of ET measured from the MODIS and AATSR sensors. These are further compared with a detailed (30m resolution) Landsat ETM+ data acquired 4-5 weeks later. A detailed discussion follows here.

3.2. Discussion

Consideration of Table 6 shows that the average range of Ts measured over the Tamale district by the MODIS sensor was 309.4 - 310.4 K compared with 317.0 – 323.1 K by the AATSR sensor. This is consistent with the sensor brightness temperatures shown in Table 7, which shows that Ts measurements by the AATSR sensor are potentially higher Ts than the MODIS instrument; additional evidence is shown in Fig 5. Here, the MODIS sensor produced a much better prediction of Ts (R2 = 0.73) than AATSR instrument (R2 = 0.41). A simple error analysis (i.e. calculation of the mean sensor deviations from the observed values) shows that the MODIS instrument underestimated ground temperatures by about 1.2 K. By contrast, the AATSR overestimated surface temperatures by 4.1 K. The difference between the sensor measurements may be due to their respective engineering design, sensor calibration and the satellite overpass time gap (∼60 minutes). It must be noted, however, that the above variation is consistent with the sensor design efficiency of both satellites and other published results. For example, comparing Ts measurements from the MODIS and NOAA-14 AVHRR sensors, a difference of 25 K was observed within the overpass gap of 2 – 3 hours of the two satellites [5]. In this case, output variations were attributed to a number of technical factors such as sensor characteristics, atmospheric correction and the spectral response function of the thermal infrared channels [5, 29]. In this study, differences between satellite and ground temperatures are important because the characteristics of “passive” thermal sensors make measurement of “skin” temperatures of bare soils difficult in the presence of other materials such as vegetation and water. In view of this, the results in Table 6 and Fig 4 represent soil surface temperatures as against radiant temperature measured by the sensors. Theoretically, these two measurements are quite different but are often compared for the sake of practicality [31]. Aside from this, differences between radiant and “skin” temperatures may not be unexpected over heterogeneous landscapes [30, 31]. Indeed, the infrared channels of MODIS and AATSR can be considered well suited for surface temperature measurement, but only to the degree of their design efficiency, which is rarely better than 3 K [32]. It can be concluded, therefore, that the MODIS and AATSR sensors have quite similar capabilities for measuring Ts over complex savannah landscapes. An important question is why is there a relatively weak correlation between the Landsat ETM+ and the ground truth (logger) data (R2 = 0.59). The differences in the local environment at the time of Landsat overpass may account for this. For example, whereas the logger and MODIS and AATSR sensor measurements were made on the same day (2nd December 2004), the Landsat temperatures were measured nearly 4 weeks later (5th January 2005). As noted earlier on, the Landsat ETM+ data was used mainly because of the absence of cloud-free alternatives for December 2004.
Both Table 6 and Fig 5 show that the AATSR sensor generally measures a narrower range of NDVI values, which may be due to the sensor's narrower bandwidth (see Table 4). Table 4 also confirms that the red (R) and near infrared (NIR) bands of MODIS are more clearly separated than those of AATSR. For example, the width of the MODIS R band is 0.50 μm, while that of AATSR is 20 μm. Still, AATSR has a narrower bandwidth in the NIR range. Previous studies have shown that broader reflectance bandwidths are correlated with spectral sensitivity of green vegetation [5, 33]. Also, the percentage of incident energy reflected by vegetation is a function of wavelength [30], which also explains why vegetation reflectance increases significantly over the NIR region; the wider the NIR region, the more variable vegetation discrimination can be over large areas. It should be noted, however, that the primary purpose of the AATSR sensor (unlike MODIS) is measurement of global sea surface temperature [7] which means, the optical range of the AATSR sensor has not been as fully calibrated and widely validated on land as MODIS [5]. The conclusion here is that although MODIS and AATSR may both derive reasonable Ts measurements over vegetated surfaces, their NDVI products are not equivalent because of the wavelength positions of the appropriate reflectance bands, sensor and inter-calibration, and atmospheric correction. In this case, the AATSR may not be as suitable as MODIS for hydrological applications. However, the AATSR is a good sensor and so it should be possible to derive high quality products for hydrology with better calibration over land targets.
From Table 6, the AATSR sensor underestimates ET by about 32% in comparison with the MODIS sensor. Since data from both sensors have received the same modelling treatments, a plausible explanation is aggregated errors from key intermediate variables related with the ET model namely, Ts, NDVI and net radiation (Rn). Whereas the MODIS instrument estimates a regional ET value of approximately 1.48 mm day-1, the AATSR sensor measures only 0.47 mm day-1. Thus, for one AATSR pixel (1×1 km), the cumulative difference in water loss is approximately 2.45*106 MJ km-2 day; assuming that 1.0mm day-1 evaporation is equivalent to 2.45MJ m-2 day-1. Over very large areas, a large amount of moisture loss could be underestimated. To better understand sensor differences, a quantitative evaluation is pursued using calculated values from the Penman-Monteith method, ground (eddy correlation) observations and Landsat ETM+ spatial measurements as validation sources. The range of estimated ET values for the Tamale district based on the Penman-Monteith method (in 2004) was 2.5 – 2.8 mm day-1 [18]. While agreeing that sensor validation based on point data is not always convenient, it still provides a good source of comparison in the absence of extensive field campaigns [29]. Based on the geographical extent of (x-y coordinates) of the Tamale area, a linear interpolation model was derived covering an approximate area of 70 km2. The mean ET value for Tamale, geo-referenced from MODIS and AATSR ET maps was then compared. Here, both sensors underestimated regional ET by an average of 2.0 mm day-1; the difference was probably related to the sensor footprints being too wide.
Energy flux (eddy correlation) observations (see Fig 2) were used as an additional basis for comparison in the absence of spatially observed ET estimates. In this case, diurnal latent heat for December 2001 (i.e. 50.87W m-2) was converted as 1.79 mm day-1, but again, both sensors underestimated ET by about 1.29 mm day-1. As a final step, ET estimates from MODIS and AATSR were correlated with high resolution (30m) Landsat ETM+ data (Fig 7).
Fig 7a reveals a closer agreement between Landsat ETM+ and MODIS than AATSR (Fig 7b) where sensor correlation discrepancy could be as large as 0.6 mm day-1. This strongly suggests that the AATSR errors may have aggregated from the measurement of the model intermediate parameters. Why this happens may also be related to problems in sensor calibration for land targets, atmospheric correction and/or poorly derived coefficients for the NDVI algorithm. Table 8 compares satellite-based ET with other methods.
Careful consideration of Tables 6 to 8 and Figures 4 to 7 shows that both the MODIS and AATSR sensors have good potential for measuring energy fluxes over very large areas but are not as useful as Landsat over smaller areas. Also, AATSR appears to underestimate ET, which means for hydrological applications users have to apply this product with caution; further calibration of the (AATSR) reflectance bands may be necessary to derive accurate vegetation parameters.

4. Conclusion

This paper evaluated the potential of both MODIS and AATSR sensors for measuring regional-scale evapotranspiration (ET), based on the regional energy balance equation and driven by the SEBAL algorithm. The results show that both MODIS and AATSR can derive reasonable estimates of key variables such as NDVI (surrogate for biomass density), surface temperature (Ts) and ET over large vegetated savannah landscapes. The MODIS sensor measured daily NDVI, Ts and ET much better than its AATSR counterpart. For example, a high spatial correlation was found between MODIS and thermal logger data (R2 = 0.73) in comparison with (R2 = 0.41) by the AATSR sensor. In terms of ET, a similar correlation (R2 = 0.71) was found between the MODIS and Landsat ETM+ sensors as against R2 = 0.13 by the AATSR sensor. When the MODIS and AATSR sensors were evaluated against point observations of ET such as eddy correlation observations and the Penman-Monteith method, they both underperformed (∼2.0 mm day-1) mainly because of scale mismatch. It must be noted that the AATSR sensor performed poorly against the MODIS, Landsat ETM+ and ground data, mainly because of differences in the spectral bands, sensor calibration and atmospheric correction. This will require further investigation if an improved land-calibrated AATSR product becomes available. Indeed, the AATSR was primarily designed for ocean rather than land-based studies. Therefore, for hydrological applications, the MODIS data is preferred at the present time.

Acknowledgments

We wish to sincerely thank ESA for supplying ENVISAT-AATSR data through the ESA/UNESCO Volta TIGER Project #2992 and NASA for providing free access to MODIS L1B data. The research fellowship provided by the Government of Ghana for the principal author to complete his Ph.D. at Durham University (UK) is also greatly appreciated. Finally, we gratefully acknowledge the helpful comments of the anonymous referees.

References

  1. Washington, R.; Harrison, M.; Conway, D.; Black, E.; Challinor, A.; Grimes, D.; Jones, R.; Morse, A.; Kay, G.; Todd, M. African climate change: Taking the shorter route. BAMS 2006, 10, 1355–1365. [Google Scholar]
  2. Gyau-Boakye, P.; Timbulto, J.W. The Volta Lake and declining rainfall and streamflows in the Volta river basin. Environ. Dev. Sustainability 2000, 2, 1–10. [Google Scholar]
  3. Oguntunde, P.G. Evapotranspiration and complimentary relations in the water balance of the Volta basin: Field measurements and GIS-based regional estimates; Ecology and Development Series; Denich, M., Martius, C., van de Giesen, N., Eds.; Cuvillier Verlag: Göttingen, 2004; pp. 103–155. [Google Scholar]
  4. Bisht, G.; Venturini, V.; Jiang, L.; Islam, S. Estimation of the net radiation using MODIS data for clear-sky dates. Rem. Sens. Environ. 2005, 97, 52–97. [Google Scholar]
  5. Brata, N.; Islam, S.; Venturini, V.; Bisht, G.; Jiang, L. Estimation and comparison of evapotranspiration from MODIS and AVHRR sensors for clear sky days over the Southern Great Plains. Rem. Sens. Environ. 2006, 103, 1–15. [Google Scholar]
  6. Parks, S.; Feddema, J.J.; Egbert, S.L. MODIS land surface temperature composite data their relationships with climate water budget factors in the Central Great Plains. Int. J. Rem. Sens. 2005, 26(6), 1127–1144. [Google Scholar]
  7. Prata, F. Land surface temperature measurement from space: AATSR algorithm – Theoretical basis document.; Technical Report: 2002; CSIRO, Canberra: Australia.
  8. Sòria, G.; Sobrino, J.A. AATSR derived land surface temperature from heterogeneous areas. Proc. ESA's ENVISAT MERIS-AATSR workshop; Frascati, Italy, 2005; pp. 1–6. http://envisat.esa.int.
  9. Jiang, L.; Islam, S. An intercomparison of regional heat flux estimation using remote sensing data. Int. J. Rem. Sens. 2003, 24(11), 2221–2236. [Google Scholar]
  10. Günther, K.P.; Maier, S.W. AVHRR compatible vegetation index derived from MERIS data. Int. J. Rem. Sens. 2007, 24(3-4), 693–708. [Google Scholar]
  11. ZEF (Centre for Development Research). Ecology and Development Series: GLOWA-Volta Project, 1999-2005; Cuvelier Verlag: Göttingen, 2004. [Google Scholar]
  12. Nicholson, S.E.; Grist, J.P. A conceptual model for understanding rainfall variability in the West African Sahel interannual and interdecadal timescales. Int. J. Climatol. 2001, 21, 1733–1757. [Google Scholar]
  13. Ayibotele, N.B. Regional hydrology and water resources in the African humid tropics. In Hydrology and water management in the humid tropics.; Bonnel, M., Hufschmidt, M.M., Gladwell, J.S., Eds.; University Press: Cambridge, 1993; pp. 112–134. [Google Scholar]
  14. Ghana Meteorological Services Department (MSD). Daily rainfall and temperature records over the Volta basin in Ghana, 1961- 2000; July 2004; pp. 22–134. [Google Scholar]
  15. Prince, S.D.; Kerr, Y.H.; Goutorbe, T.; Lebel, J-P.; Tinga, A.; Bessemoulin, P.; Brouwer, J.; Dolman, A.J.; Engman, E.T.; Gash, J.C.H. Geographical, biological and remote sensing aspects of the Hydrological Atmospheric Pilot Experiment in the Sahel (HAPEX-Sahel). Rem. Sens. Environ. 1995, 51, 215–234. [Google Scholar]
  16. MODIS Characterization Support Team (MCST). MODIS LUT Information Guide For Level 1B; MCST Internal Memorandum # M1036, 1 December 2003. The latest release is available on-line at http://www.mcst.ssai.biz/mcstweb/L1B/product.html.
  17. Wan, Z. MODIS land surface temperature validation. The Earth Obs. 1999, 11(3), 29–31. [Google Scholar]
  18. Opoku-Duah, S. Remote Sensing of Energy and Water Fluxes over Volta Savannah Catchments in West Africa. Unpublished Ph.D. Thesis, Durham University, UK, 2007; pp. 123–222. [Google Scholar]
  19. Donoghue, D.N.M. Remote Sensing: sensors and applications. Prog. Phys. Geogr. 2000, 24(3), 407–414. [Google Scholar]
  20. Price, J.C. Land surface temperature measurements from split window channels of the NOAA-7 Advanced Very High Resolution Radiometer. J. Geophys. Res. 1984, D5(89), 7231–7237. [Google Scholar]
  21. Goetz, S.J. Multi-sensor analysis of NDVI, surface temperature and biophysical variables at a mixed grassland site. Int. J. Rem. Sens. 1987, 18(1), 71–94. [Google Scholar]
  22. Bastiannssen, W.G.M.; Menenti, M.; Feddes, R.A.; Holtslag, A.A.M. A remote sensing surface energy balance algorithm for land (SEBAL) – Part 1: Formulation. J. Hydrol. 1998, 228, 198–212. [Google Scholar]
  23. Bastiaanssen, W.G.M.; Pelgrum, H.; Wang, J.; Ma, J.; Moreno, J.; Roerink, G.J.; Van Der Wal, T. (1998) The Surface Energy Balance Algorithm for Land (SEBAL): Part 2 validation. J. Hydrol. 1998, 228, 213–229. [Google Scholar]
  24. Morse, A.; Tasumi, M.; Allen, R.G.; Kramber, W.J. Application of the SEBAL Methodology for Estimating Consumptive Use of Water and Streamflow Depletion in the Bear River Basin of Idaho through Remote Sensing. In Final Project Report; 2000; The Raytheon Systems Company: Idaho, USA; pp. 1–107. [Google Scholar]
  25. FAO. Evapotranspiration Guidelines for computing crop water requirements. In UN-FAO, Irrigation & Drainage Paper No. 56; Land and Water Division, FAO Press: Rome, 1998; pp. 107–288. [Google Scholar]
  26. Chen, T.S.; Ohring, G. On the relationship between clear-sky planetary and surface albedos: a parameterization for simple energy balance climate models. Adv. Space Res. 1985, 5(6), 41–144. [Google Scholar]
  27. Mekonnen, S.C. Assessment of catchment water balance using GIS and Remote Sensing: Roxo Portugal. Unpublished MSc. Thesis, ITC-Enschede, The Netherlands, 2005; pp. 1–39. [Google Scholar]
  28. van de Griend, A.A.; Owe, M. On the relationship between thermal emissivity and the normalized difference vegetation index for natural surfaces. Int. J. Rem. Sens. 1993, 14(6), 1119–1131. [Google Scholar]
  29. Prata, F. Land surface temperatures derived from the Advanced Very High Resolution Radiometer and the Along-Track Scanning Radiometer. J. Geophys. Res. 1994, 99, 13–25. [Google Scholar]
  30. Sellers, P.J. Canopy reflectance, photosynthesis and transpiration. Int. J. Rem. Sens. 1985, 6(8), 1335–1372. [Google Scholar]
  31. Sobrino, J.A.; Jiménez-Muńoz, J.C. Land surface temperature retrieval from thermal infrared data: An assessment in the context of the surface processes and ecosystem changes through response analysis (SPECTRA) mission. J. Geophy. Res. 2005, 110, D16103, doi: 1029/2004JD005588. [Google Scholar]
  32. Salomonson, V.V.; Barnes, W. L.; Xiong, X.; Kempler, S.; Masuoka, E. An Overview of the Earth Observing System MODIS Instrument and Associated Data Systems Performance. In Proceedings of IGARSS; Barnes, T.G., Ed.; Chicago, 2002; pp. 23–31. [Google Scholar]
  33. El Maayar, M.; Chen, J.M. Spatial scaling of evapotranspiration as affected by heterogeneities in vegetation, topography and soil texture. Rem. Sens. Environ. 2006, 102, 33–51. [Google Scholar]
Figure 1. Location of the Volta river basin in West Africa Source: Modified after GLOWA-Volta Project [11]. The Tamale White Volta catchment area (5,311 km2) is shown as an inset on the right-hand-side. The inset is a false colour composite Landsat ETM+ image dated 05/01/2004. The Red-Green-Blue colours represent ETM+ bands 4, 3, 2. The study area encompasses parts of the Tamale, Yendi and Salaga districts of Ghana.
Figure 1. Location of the Volta river basin in West Africa Source: Modified after GLOWA-Volta Project [11]. The Tamale White Volta catchment area (5,311 km2) is shown as an inset on the right-hand-side. The inset is a false colour composite Landsat ETM+ image dated 05/01/2004. The Red-Green-Blue colours represent ETM+ bands 4, 3, 2. The study area encompasses parts of the Tamale, Yendi and Salaga districts of Ghana.
Sensors 08 02736f1

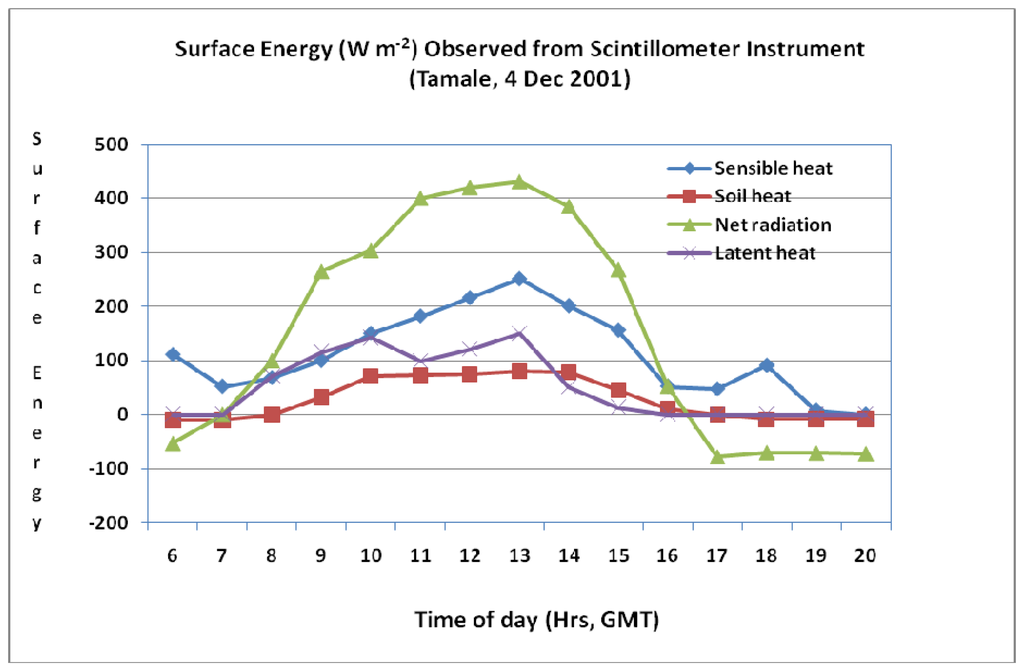

Figure 2. Local energy flux observations from the Dutch-type scintillometer instrument, which measures turbulent intensity fluctuations of the refractive index of air. Source: Reproduced from field data retrieved from the GLOWA-Volta database [11].
Figure 2. Local energy flux observations from the Dutch-type scintillometer instrument, which measures turbulent intensity fluctuations of the refractive index of air. Source: Reproduced from field data retrieved from the GLOWA-Volta database [11].
Sensors 08 02736f2

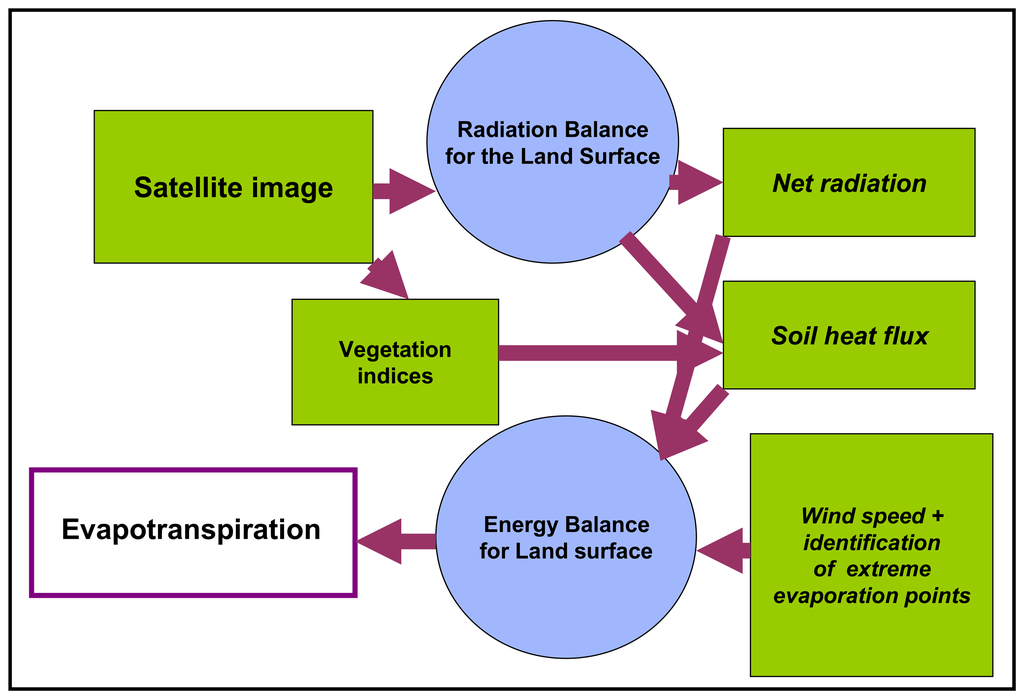

Figure 3. Schematic illustration of how evapotranspiration (ET) may be estimated from remotely sensed data. Source: Modified after [24].
Figure 3. Schematic illustration of how evapotranspiration (ET) may be estimated from remotely sensed data. Source: Modified after [24].
Sensors 08 02736f3

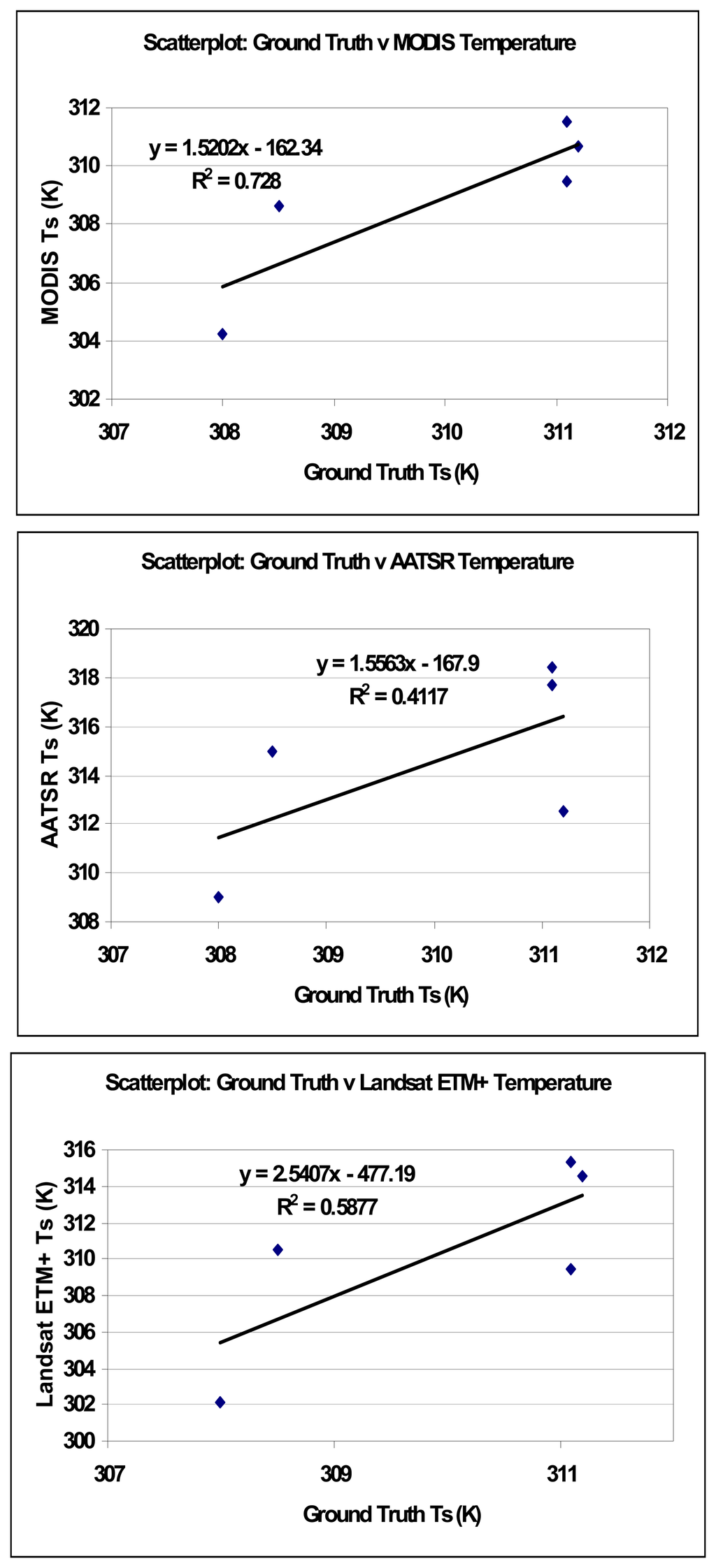

Figure 4. Comparison between satellite and logger temperature observations. The logger temperatures were calculated as an average observation from 10:00-12:00 noon. To compare with the 1 km resolution MODIS and AATSR data, the Landsat temperatures were extracted as average values from 30×30 pixel windows.
Figure 4. Comparison between satellite and logger temperature observations. The logger temperatures were calculated as an average observation from 10:00-12:00 noon. To compare with the 1 km resolution MODIS and AATSR data, the Landsat temperatures were extracted as average values from 30×30 pixel windows.
Sensors 08 02736f4

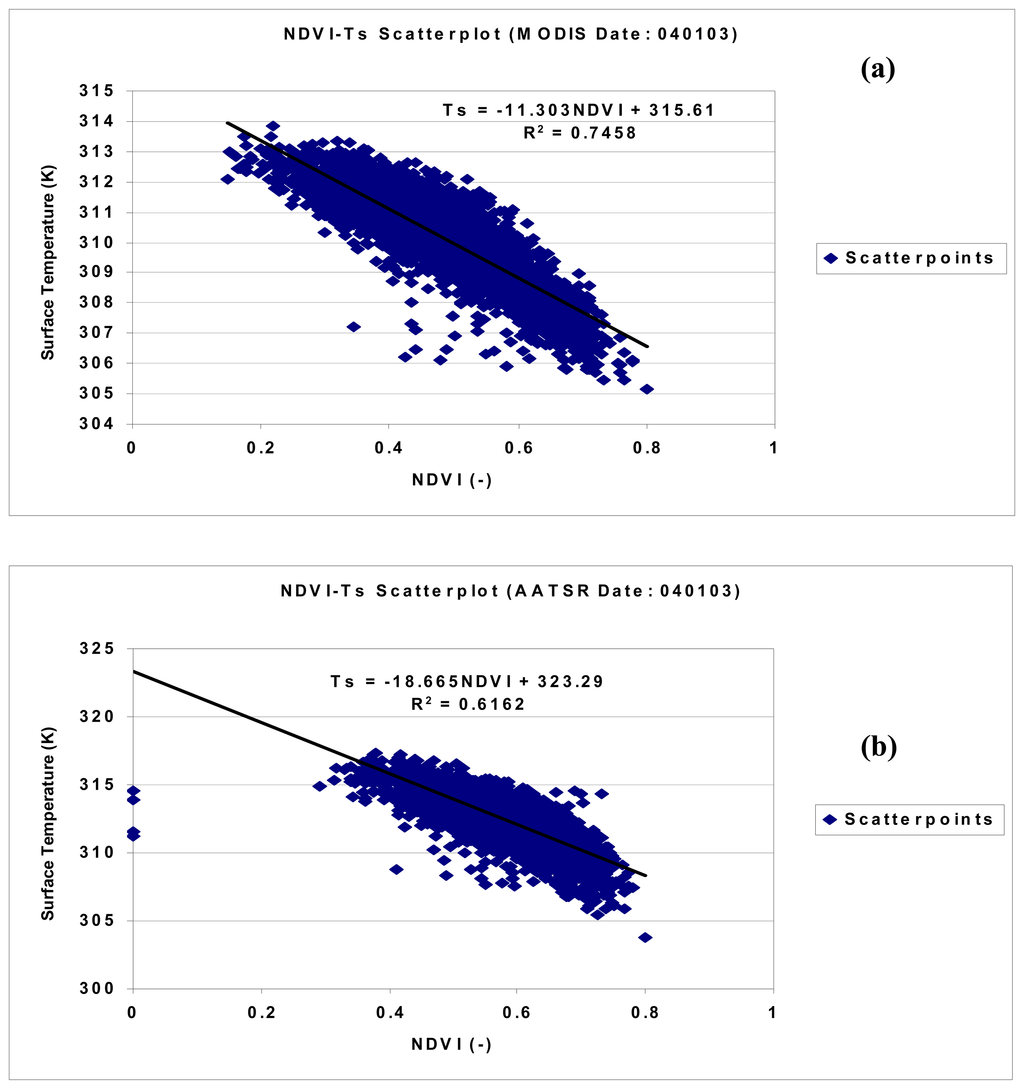

Figure 5. Regression models between NDVI and surface temperature (Ts). The models are derived from full MODIS (N = 5486 pixels) and AATSR (N = 4139 pixels) scenes, (a) Ts = -11.303NDVI + 315.61; R2 = 0.7458; RMSE = 0.051; and (b) Ts = -18.655NDVI + 323.29; R2 = 0.6162; RMSE = 0.04993.
Figure 5. Regression models between NDVI and surface temperature (Ts). The models are derived from full MODIS (N = 5486 pixels) and AATSR (N = 4139 pixels) scenes, (a) Ts = -11.303NDVI + 315.61; R2 = 0.7458; RMSE = 0.051; and (b) Ts = -18.655NDVI + 323.29; R2 = 0.6162; RMSE = 0.04993.
Sensors 08 02736f5

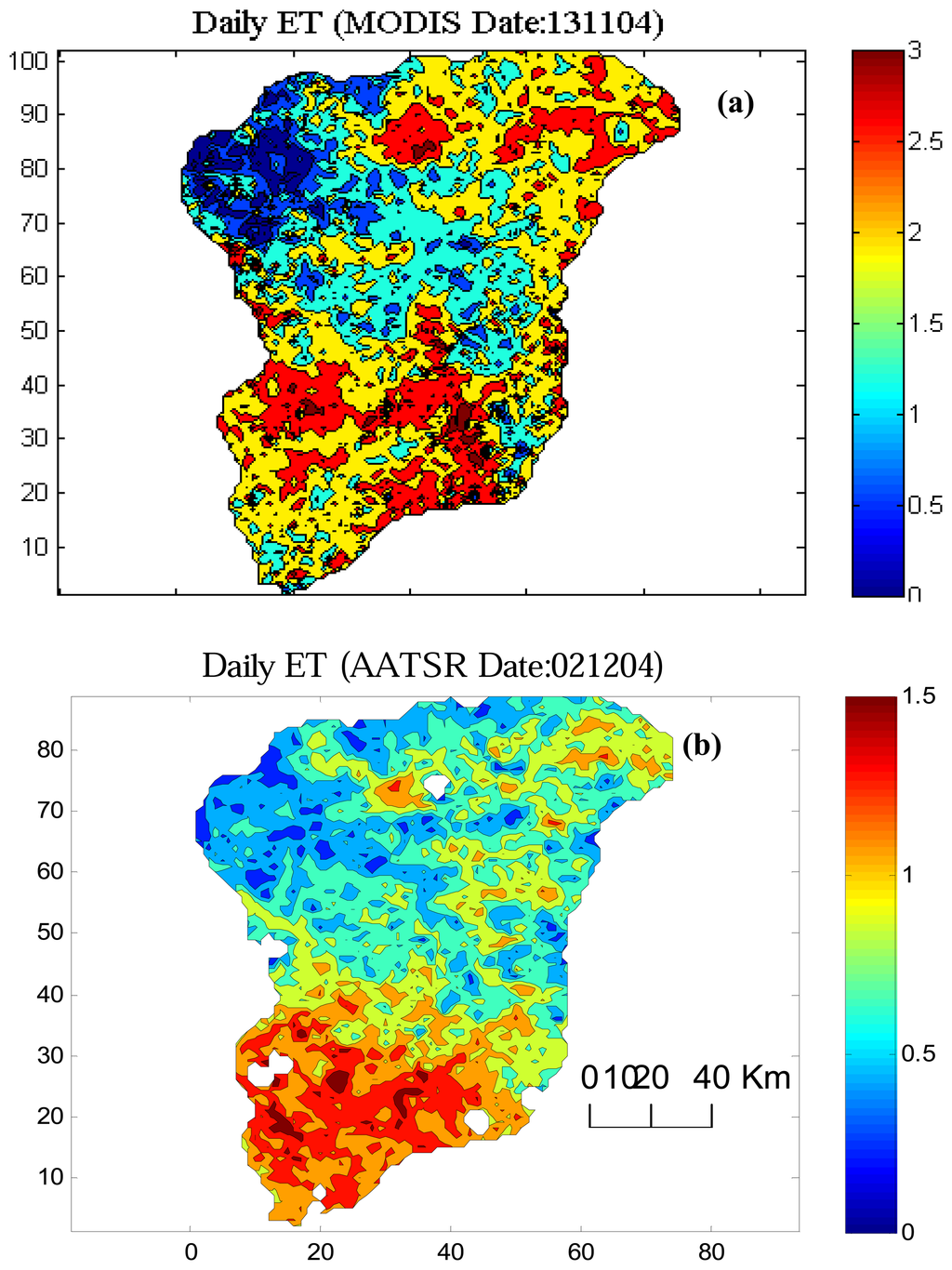

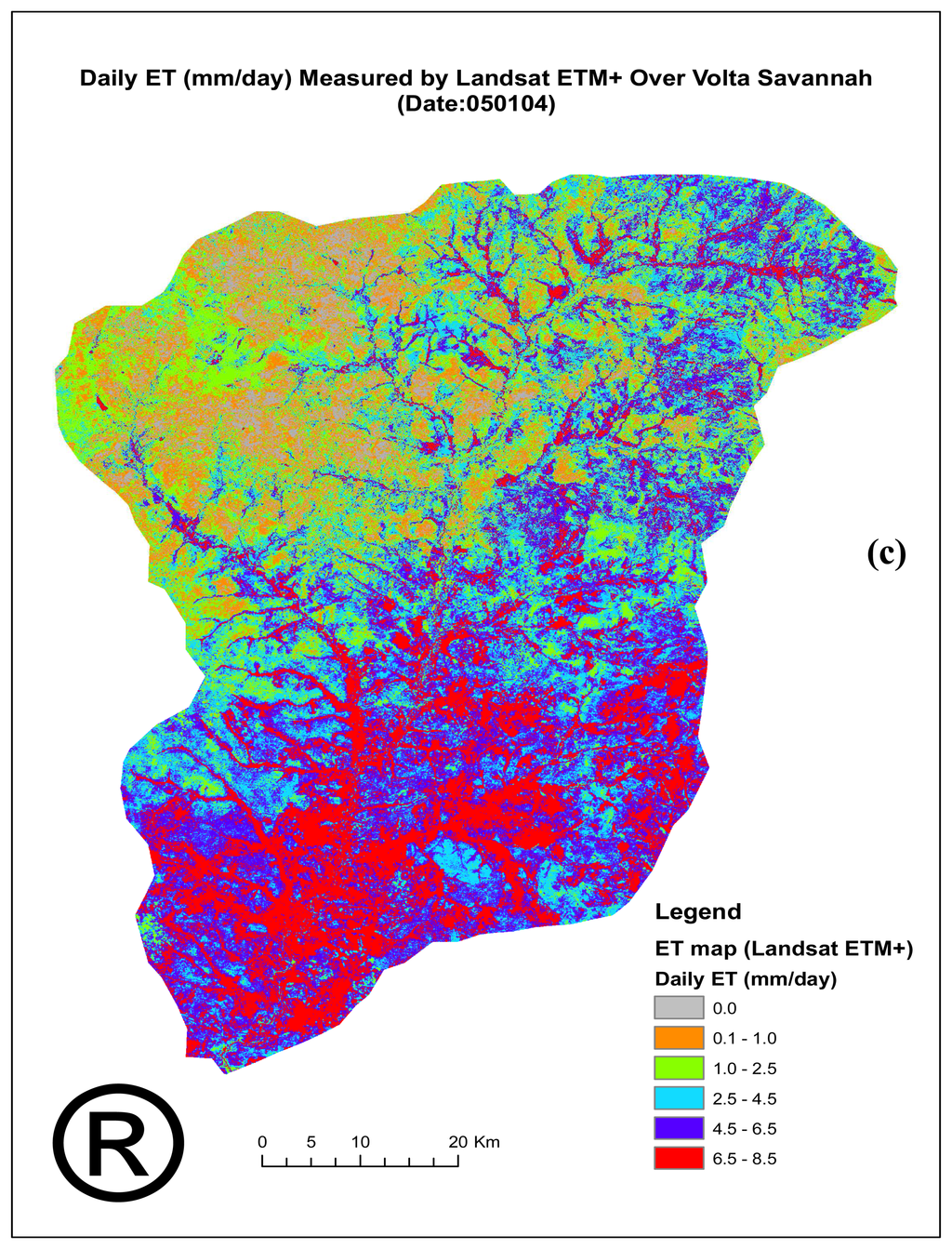

Figure 6. Distributed ET (mm day-1) predicted from (a) MODIS, (b) AATSR and (c) Landsat ETM sensors on 131104, 121204 & 05/01/04 respectively. Notice the spatial resemblance of both the MODIS and AATSR with Landsat ETM+, but the Landsat data better estimates ET because of its high spatial resolution (30m). At least two Landsat scenes were required as a mosaic to cover the study area; lack of exact mosaic scenes presents an important limitation in regional synthesis. The blank spaces in (b) represent missing data, which rendered the November image unsuitable here. In this example, notice the similarity of the spatial relationship between ET and dense vegetation in the southern part of the image and sparsely vegetated Tamale urban area in the northwestern part.
Figure 6. Distributed ET (mm day-1) predicted from (a) MODIS, (b) AATSR and (c) Landsat ETM sensors on 131104, 121204 & 05/01/04 respectively. Notice the spatial resemblance of both the MODIS and AATSR with Landsat ETM+, but the Landsat data better estimates ET because of its high spatial resolution (30m). At least two Landsat scenes were required as a mosaic to cover the study area; lack of exact mosaic scenes presents an important limitation in regional synthesis. The blank spaces in (b) represent missing data, which rendered the November image unsuitable here. In this example, notice the similarity of the spatial relationship between ET and dense vegetation in the southern part of the image and sparsely vegetated Tamale urban area in the northwestern part.
Sensors 08 02736f6aSensors 08 02736f6b

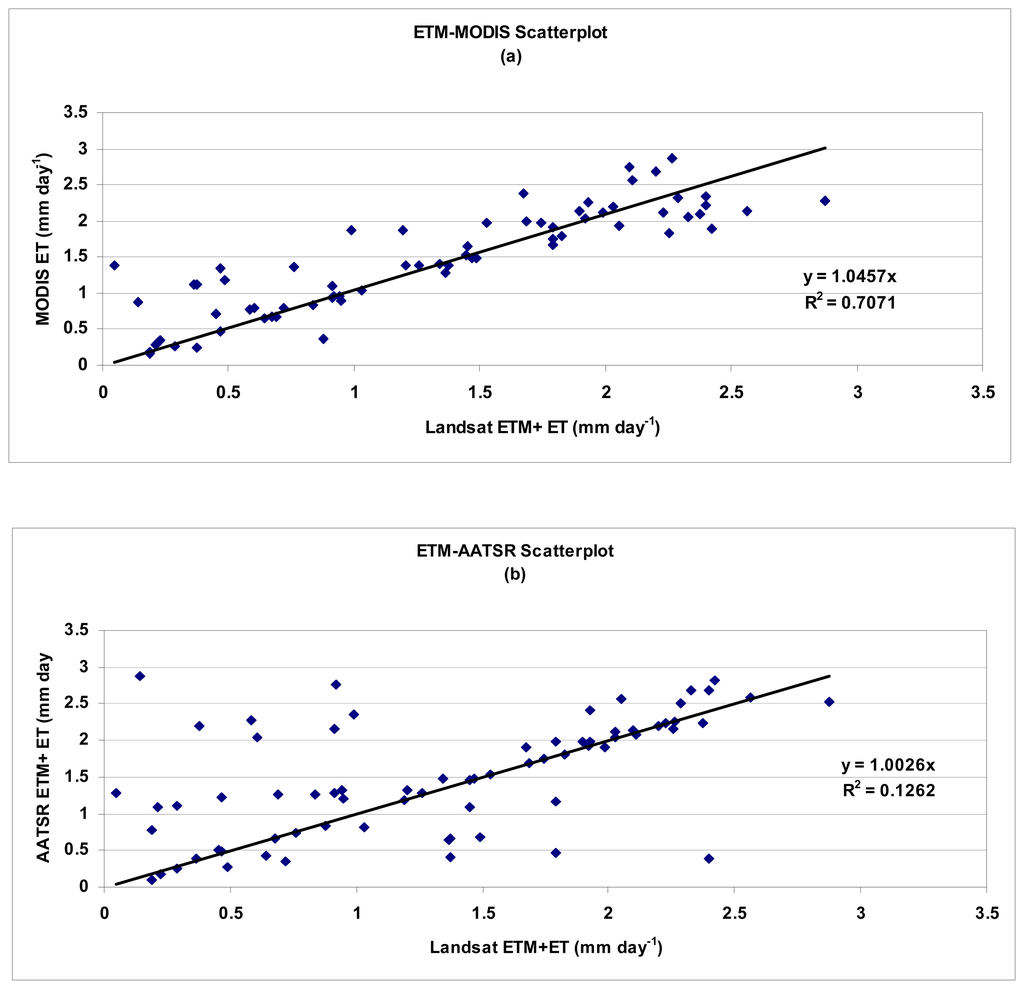

Figure 7. Regression models between ETM+ ET and (a) MODIS; y = 1.0457x; R2 = 0.7071; RMSE = 0.3359; and (b) AATSR: y = 1.0026x; R2 = 0.1262; RMSE = 0.6211. Note:N=71 pixels because analysis covered the Tamale district where it was possible to cross validate with ground truth data.
Figure 7. Regression models between ETM+ ET and (a) MODIS; y = 1.0457x; R2 = 0.7071; RMSE = 0.3359; and (b) AATSR: y = 1.0026x; R2 = 0.1262; RMSE = 0.6211. Note:N=71 pixels because analysis covered the Tamale district where it was possible to cross validate with ground truth data.
Sensors 08 02736f7
Table 1. Climatic conditions of West Africa.
Table 1. Climatic conditions of West Africa.
Data Monitoring StationGeographical locationCountryEcological zoneMean annual rainfall (mm)Mean annual evapotran-spiration (mm)Mean annual temp. (0C)Period of climate records
Lat.Lon.
Niamey130 48′N20 16′ WNigerSahel savannah560200036.01905-1989
Koro120 46′N70 49′ WMaliSahel savannah522204136.81971-1990
Bobo Dioulasso110 16′N40 31′ WBurkina FasoSudan savannah759195831.51971-2000
Tamale9025′N0050′WGhanaGuinea savannah1087165028.21961-2000
Axim50 09′N20 57′ WGhanaForest2148131525.81961-2000
Sources: Modified after [14]; http://www.climate-zone.com/.
Note: The study area is highlighted.
Table 2. Characteristics of AATSR and MODIS data used for the study
Table 2. Characteristics of AATSR and MODIS data used for the study
Image DateSatellite overpass (UTC)OrbitTrackFrameCentral coordinates
LatLon
AATSR Sensor
04010310:13:07 - 10:14:434441380350090 51′N10 58′W
13110410:04:47 - 10:06:231414665350090 18′N00 04E
02120410:07:35 - 10:09:1114418337350090 36′N00 35′W
18120410:04:44 - 10:06:201464765350090 19′N00 04′E
25010510:10:25 - 10:12:0115191108350090 37′N10 18′W
MODIS Sensor
04010310:25:00 - 10:30:0016209--90 51′N010 58′W
13110410:30:00 - 10:35:0026097--30 54′N000 530E
02120411:00:00 - 11:05:0026374--60 83′N070 510E
18120411:00:00 - 11:00:0026607--70 91′N070 320E
25010510:25:00 - 10:30:0027160--90 37′N010 18′W
Landsat ETM+
05010410:40:00 - 10:41:00-19453100 06′N000 36′W
Note: The Landsat ETM+ scene acquired on 5th January 2004 was used mainly because of the absence of cloud-free data coincidental with the MODIS and AATSR overpass.
Table 3. Table 3a. Soil temperatures (K) observed from thermal data logger at the time of MODIS & AATSR overpass.
Table 3. Table 3a. Soil temperatures (K) observed from thermal data logger at the time of MODIS & AATSR overpass.
Logger ALogger BLogger CLogger DLogger E
Date: 131104
Time 10:12309.19310.21309.19308.72307.58
10.32309.27310.32309.97308.86307.97
11:12309.27310.29309.92308.45308.49
Av. Temp (K)309.24310.29309.69308.68307.95
Date: 021204
Time 10:12312.67312.08312.39308.11307.88
10.32312.98312.21312.33308.07307.70
11:12312.98312.29312.38308.64308.66
Av. Temp (K)312.88312.19312.37308.27308.08
Table 3. Table 3a. Soil temperatures (K) observed from thermal data logger at the time of MODIS & AATSR overpass.
Table 3b. Geographical locations of the thermal loggers.
Geographical description (see Fig 2)Latitude (0N)Longitude (0W)Land cover class
Logger ANorth-west090 26′000 51′Urban
Logger BNorth-east090 28′000 26′Grassland-bush
Logger CCentral090 14′000 37′Agriculture
Logger DEast090 04′000 28′Open Woodland
Logger ESouth080 56′000 50′Closed Woodland
The locations of the thermal loggers named here as A-E are given in Table 3b
The thermal loggers were installed in the Tamale study area only (see Fig 1)
Table 4. Technical characteristics of key sensor data sets applied in this study.
Table 4. Technical characteristics of key sensor data sets applied in this study.
Data sourceSpatial resolution (m)Spectral range (μm)

*VISNIR bandMIR bandTIR band

Landsat ETM+30 (15m for panchromatic and 60m for thermal band)Band1 (0.45-0.52)Band4 (0.76-0.90)Band5 (1.55- 1.75)Band6 (10.4-12.50)
Band2 (0.52-0.60)
Band3 (0.63-0.69)Band7 (2.08- 2.35)
Pan (0.5-0.90)

ENVISAT AATSR Level 1B1kmBand1 (0.545-0.565)Band3 (0.855-0.875)Band4 (1.580-1.640)Band5 (3.50-3.89)
Band2 (0.649-0.669)Band6 (10.40-11.30)
Band7 (11.50-12.50)

MODIS Level 1B250 (500m for bands 3-7) and 1000m for bands 8-36)Band1 (0.62-0.670)Band2 (0.84-0.87)Band6 (1.628-1.652)Band20 (3.66-3.84)
Band3 (0.46-0.48)Band5 (1.23-2.50)Band21 (3.92-3.98)
Band4 (0.55-0.57)Band15(0.74-0.75)Band7 (2.105-2.155)Band22 (3.92-3.98)
Band8 (0.41-0.42)Band16(0.86-0.87)Band23 (4.02-4.08)
Band9 (0.44-0.45)Band17(0.89-0.92)Band26 (1.36-1.39)Band24 (4.43-4.49)
Band10 (0.44-0.49)Band18(0.93-0.94)Band25 (4.48-4.54)
Band11 (0.53-0.54)Band19(0.91-0.96)Band31 (10.78-11.28)
Band12 (0.55-0.56)Band32 (11.77-12.27)
Band13(0.66-0.67)
Band14 (0.67-0.68)
*VIS=Visible, NIR=Near Infrared, MIR=Middle Infrared & TIR=Thermal Infrared band
Table 5. Satellite and ground data used for regional-scale ET estimation and validation.
Table 5. Satellite and ground data used for regional-scale ET estimation and validation.
Data TypeUse of the Data
Satellite dataMODIS/AATSR time seriesThe MODIS and AATSR provided the key instantaneous data needed for energy and water balance modelling (net radiation, NDVI, BT)
imagery A Landsat ETM+ scene acquired on 5th January 2004The Landsat image also provided energy balance modelling data. In addition, it was used for a detailed land use/cover classification and ET maps for other purposes: (1) a guide for fieldwork; (2) to map wet and evaporation points to guide SEBAL-based energy balance modelling; and (3) as a source of validation for MODIS & AATSR ET estimates
Satellite- based intermediate parametersBrightness temperatures (TB)TB was derived from satellite data. It served as the main intermediate data for deriving Ts using the split-window algorithm [8]
Local and global climate recordsRadiation data and constants (e.g. US Navy website)Radiation constants e.g. sunshine duration (n=12-14) were used as input data to: (1) validate satellite radiation measurements; and (2) up-scale instantaneous to daily net radiation (see equation 20).
Local wind speed (u)Wind speed was used as a source of momentum data for SEBAL-based energy balance modelling
Local air temperature (Ta)Ta was used as a data source for the prediction of pixel-based Ta in equation 18.
Data from fieldworkHOBO logger temperaturesField temperatures were used as a source of SEBAL initialization and validation data for satellite-based temperature estimates
ET validation dataGLOWA-Volta field dataThe GLOWA data was used as one of the main sources validation for satellite-derived net radiation and energy fluxes (e.g. ET)
Penman-Monteith estimates (Tamale district)The Penman-Monteith estimates were used as additional source of validation data for satellite-based ET
Table 6. Variation of surface temperature (Ts), normalised difference vegetation indeed (NDVI) and daily evapotranspiration (ET) over the Volta savannah from MODIS & AATSR sensors (N = 71 pixels).
Table 6. Variation of surface temperature (Ts), normalised difference vegetation indeed (NDVI) and daily evapotranspiration (ET) over the Volta savannah from MODIS & AATSR sensors (N = 71 pixels).
Date of image acquisition [Julian day]Landsat ETM+MODISAATSR
050104 [05]131104 [318]021204 [337]250105 [25]131104 [318]021204 [337]250105 [25]
Land Surface Temperature (Ts)
Maximum312.451309.476309.650310.390317.037323.089322.356
Minimum286.318302.078302.616306.691308.623308.750312.347
Mean301.869304.383306.217308.586312.463318.970319.050
Std. Deviation7.0911.5941.9990.9651.8712.8901.882
NDVI
Maximum0.8090.7270.7200.6610.7510.7010.693
Minimum0.0250.3870.3260.3120.5190.4610.488
Mean0.5210.6200.5660.4890.6390.5870.582
Std. Deviation0.0830.0660.0790.0680.0450.0740.046
Daily Evapotrans piration (ET 24)
Maximum8.5102.2973.0822.8310.9871.4710.706
Minimum0.0000.0200.0250.9040.0000.3000.000
Mean3.1020.9181.4692.0520.2830.9650.170
Std. Deviation1.4240.6090.8400.4000.2130.2820.140
Table 7. Temporal statistics of MODIS & AATSR brightness temperatures (TB).
Table 7. Temporal statistics of MODIS & AATSR brightness temperatures (TB).
Date of image acquisition [Julian day]MODIS
131104 [318]021204 [337]250105 [25]
11μm12μm11μm12μm11μm12μm
Maximum301.8299.3303.2301.6309.1306.3
Minimum281.4289.8291.6294.3298.0299.9
Mean296.0292.0299.3292.7302.2300.8
Std. Deviation1.2311.0320.8531.1101.5431.276
AATSR
131104 [318]021204 [337]250105 [25]
11μm12μm11μm12μm11μm12μm
Maximum303.2297.6314.8312.2317.7313.3
Minimum292.6289.2299.6298.4307.7302.8
Mean298.9294.8305.0303.3309.1304.7
Std. Deviation1.0550.8072.2762.0781.4411.511
Landsat ETM+(10.4-12.5 μm)
050104 [05]
Maximum309.990
Minimum283.720
Mean293.719
Std. Deviation7.691
Table 8. Satellite-based ET (mm day-1) vs. conventional methods in the Tamale Volta district.
Table 8. Satellite-based ET (mm day-1) vs. conventional methods in the Tamale Volta district.
MethodScaleRangeMeanStandard deviation
Penman-MonteithLocal (Tamale)1.53 – 4.873.900.66
ScintillometerLocal (Tamale)-1.79-
Landsat ETM+Regional0.15 – 2.932.100.42
MODISRegional0.05 – 2.832.070.37
AATSRRegional0.01 – 2.091.210.86

Share and Cite

MDPI and ACS Style

Opoku-Duah, S.; Donoghue, D.N.M.; Burt, T.P. Intercomparison of Evapotranspiration Over the Savannah Volta Basin in West Africa Using Remote Sensing Data. Sensors 2008, 8, 2736-2761. https://doi.org/10.3390/s8042736

AMA Style

Opoku-Duah S, Donoghue DNM, Burt TP. Intercomparison of Evapotranspiration Over the Savannah Volta Basin in West Africa Using Remote Sensing Data. Sensors. 2008; 8(4):2736-2761. https://doi.org/10.3390/s8042736

Chicago/Turabian Style

Opoku-Duah, S., D. N.M. Donoghue, and T. P. Burt. 2008. "Intercomparison of Evapotranspiration Over the Savannah Volta Basin in West Africa Using Remote Sensing Data" Sensors 8, no. 4: 2736-2761. https://doi.org/10.3390/s8042736

Article Metrics

Back to TopTop
