Sensors 2008, 8(11), 7428-7437; doi:10.3390/s8117428
Published: 19 November 2008
Abstract: Extensive evidence supports an important role for soluble oligomers of the amyloid β-protein (Aβ) in Alzheimer's Disease pathogenesis. In the present study we combined intracerebroventricular (icv) injections with brain microdialysis technology in the fully conscious rat to assess the effects of icv administered SDS-stable low-n Aβ oligomers (principally dimers and trimers) on excitatory and inhibitory amino acid transmission in the ipsilateral dorsal hippocampus. Microdialysis was employed to assess the effect of icv administration of Aβ monomers and Aβ oligomers on dialysate glutamate, aspartate and GABA levels in the dorsal hippocampus. Administration of Aβ oligomers was associated with a +183% increase (p<0.0001 vs. Aβ monomer-injected control) in dorsal hippocampal glutamate levels which was still increasing at the end of the experiment (260 min), whereas aspartate and GABA levels were unaffected throughout. These findings demonstrate that icv administration and microdialysis technology can be successfully combined in the awake rat and suggests that altered dorsal hippocampal glutamate transmission may be a useful target for pharmacological intervention in Alzheimer's Disease.
Extensive evidence supports an important role for soluble oligomers of the amyloid β-protein (Aβ) in Alzheimer's Disease (AD) pathogenesis . To study the effects of soluble forms of Aβ we have taken advantage of an amyloid precursor protein-over-expressing cell line (referred to as 7PA2) that secrete Aβ peptides which migrate on SDS-PAGE at ∼4, 8 and 12 kDa and are recognized by antibodies specific for the mid-region, N- and C-termini of Aβ. These putative dimers and trimers potently block long-term potentiation (LTP) both in vivo and in vitro and perturb the memory of learned behavior, whereas Aβmonomer has no adverse effects [2–4]. The dorsal hippocampus (DH) is a key brain region implicated in learning acquisition and memory consolidation  and contains excitatory glutamate and aspartate-containing afferent and efferent pathways and inhibitory GABA interneurons. Evidence from both postmortem and in vivo studies suggests that the hippocampus is significantly involved in the pathophysiology of AD [6, 7]. Here we combine intracerebroventricular (icv) injections with brain microdialysis via a surgically implanted microdialysis probe in the dorsal hippocampus of the fully conscious Wistar rat to compare the effect of icv administration of Aβ oligomer with that observed for the Aβ monomer on dialysate glutamate, aspartate and GABA levels in the ipsilateral dorsal hippocampus.
2. Experimental Section
The experimental protocols employed in the project were approved by the University College Dublin, Animal Research Ethics Committee and the Department of Health and Children (Ireland) in accordance with the European Community Directive, 86/609/EC, licence number B100/3367. All experiments were carried out using the male Wistar rat supplied by Harlem U.K. Animals were housed individually in a thermoregulated environment (22°C) with a 12 hour light/dark cycle for the duration of the experiment. Food and water were available ad libitum.
2.1. Aβ Monomer/Oligomer Preparation
7PA2 conditioned medium (CM) was generated and fractionated as described previously . Briefly, cells were allowed to condition glutamine- and serum-free Dulbecco's Modified Eagle's Medium and the resulting CM was concentrated 10-fold using a Centriprep Ultracel YM-3 filter. An aliquot of concentrate (1 mL) was chromatographed on a Superdex 75 10/300 GL column and eluted with 50 mM ammonium acetate pH 8.5 in 1 mL fractions. Aliquots of each fraction (300 μL) were used for Western blotting to identify monomer and oligomer-containing fractions (Figure 2A) and the remaining 700 μL of monomer and oligomer-enriched fractions were stored at −80°C pending use.

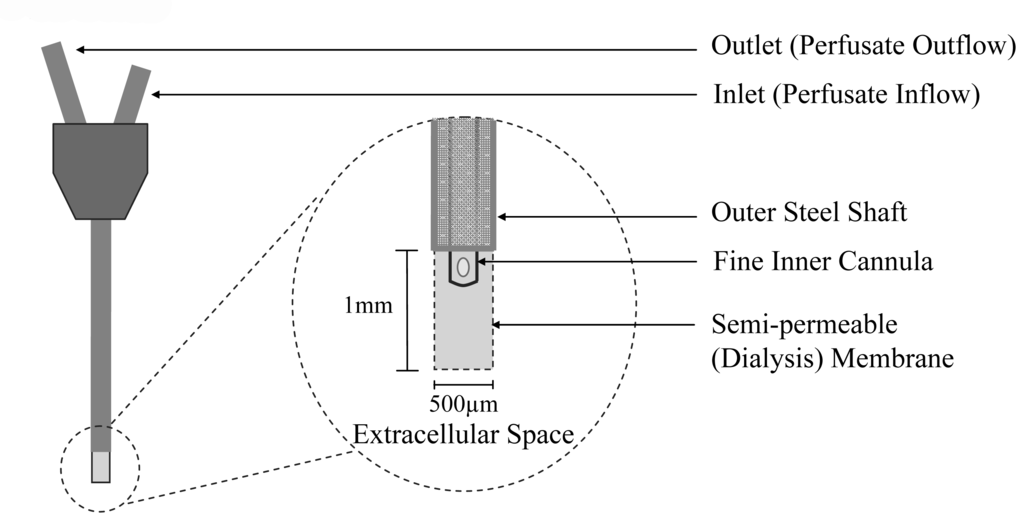

Microdialysis enables the sampling of chemicals from the extracellular space of brain tissue via the microdialysis probe. The probe consists of a semi-permeable polycarbonate membrane (20,000 Dalton cut-off) mounted between the tip of an inner steel inlet cannula and an outer steel outlet shaft (Figure 1). Ringer perfusate is pumped at a controlled flow-rate into the membrane space of the probe through two holes in the inner cannula. Here, chemicals in the surrounding extracellular space passively diffuse across the membrane into the perfusate which then exits the probe for collection via the outer shaft. Thus, a representative proportion of the extracellular chemicals are measured by microdialysis as opposed to the absolute concentration of chemicals in the extracellular space.
2.3. Intra-Ventricular Cannulation and Intra-Hippocampal Microdialysis Probe Implantation
Each rat was anaesthetised under isoflurane (4–2% in air) inhalation using a Univentor 400 anaesthesia unit (Univentor, Malta) (delivered at 3.4 mL/min, air flow 500 mL/min) via a modified mouthpiece to maintain anaesthesia during surgery. The rat was then placed in a Kopf stereotaxic frame (David Kopf Instruments, USA) and stabilised with blunt ear bars to prevent damage to the tympanic membrane. A 1 mg/kg dose of rimadyl (Pfizer, U.K.) was administered (s.c.) as an analgesic. The incisor bar was set at -3.3 mm. During surgery the body temperature was continuously maintained at 37°C with a thermostatically regulated heating pad (CMA 150, Carnegie Medicin AB, Sweden). The parietal and the frontal bones were exposed by a sagittal incision of the scalp at the midline from the level of the eyes to the occipital protuberance. Two holes (0.8 mm outer diameter) were drilled according to stereotaxic co-ordinates  through the left side of the skull bone and the dura were carefully punctured. A 4 mm intraventricular (icv) injection cannula and a 1 mm concentric microdialysis probe (Carnegie Medicine AB, Stockholm, Sweden) were surgically implanted to the left lateral ventricle (AP -0.8 mm, ML +1.3 mm) and ipsilateral DH (AP -3.8 mm, ML -1.5 mm, DV -3.4 mm) respectively according to stereotaxic co-ordinates. A fresh injection cannula and microdialysis probe was used for each rat. Sterile Ringer solution (Baxter, U.K., composition in mmol/l concentrations: Na+ 147; K+ 4; Ca2+ 2.2; Cl− 156, pH ≈6) was perfused at a constant flow rate of 2 μL/min through the microdialysis probe using a microperfusion pump (CMA 100; Carnegie Medicin AB, Sweden) during probe implantation. Rats were given 48 hours to recover from surgery and received a high calorie (5% sucrose) solution to prevent dehydration and loss of body weight for the first 24 hours.
On completion of the experiment rats were sacrificed by pentobarbital (Euthatal, Rhone Merieux, Harlow, UK) overdose after which the brain was removed and immersion-fixed in 4% paraformaldheyde in preparation for visual verification of cannula and probe positioning. Animals with incorrect positioning were not included in the study.
2.4. Experimental Procedure

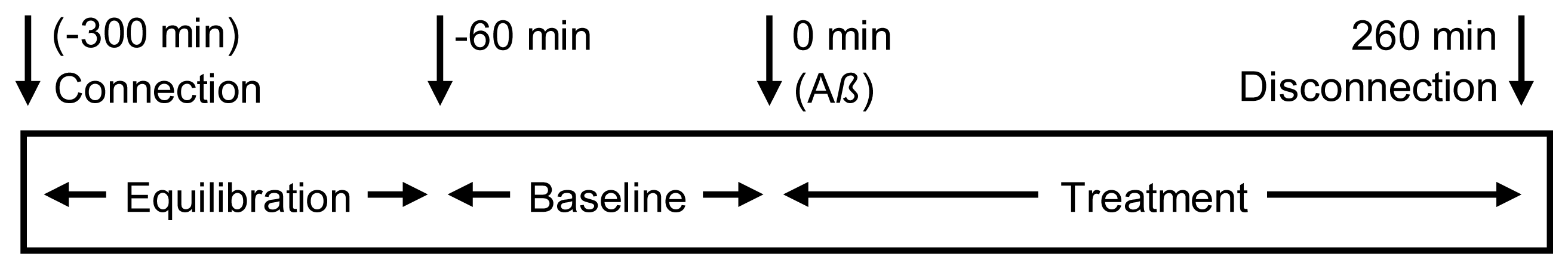

Each rat was placed in a hemispherical experimental microdialysis bowl (40cm diameter) (BAS, U.S.A.). The previously implanted microdialysis probe was connected to a microperfusion pump and ringer solution perfused at 2 μL/min. Following a 300 min washout period , three successive basal dialysate fractions (60 min) were collected and immediately following this a 20 μL aliquot of either monomer or oligomer was injected icv (Figure 2). The Aβ monomer-injected group acted as control. A further 13 successive fractions (260 min) were collected for GABA, glutamate and aspartate analysis.
2.5. Neurotransmitter Analysis

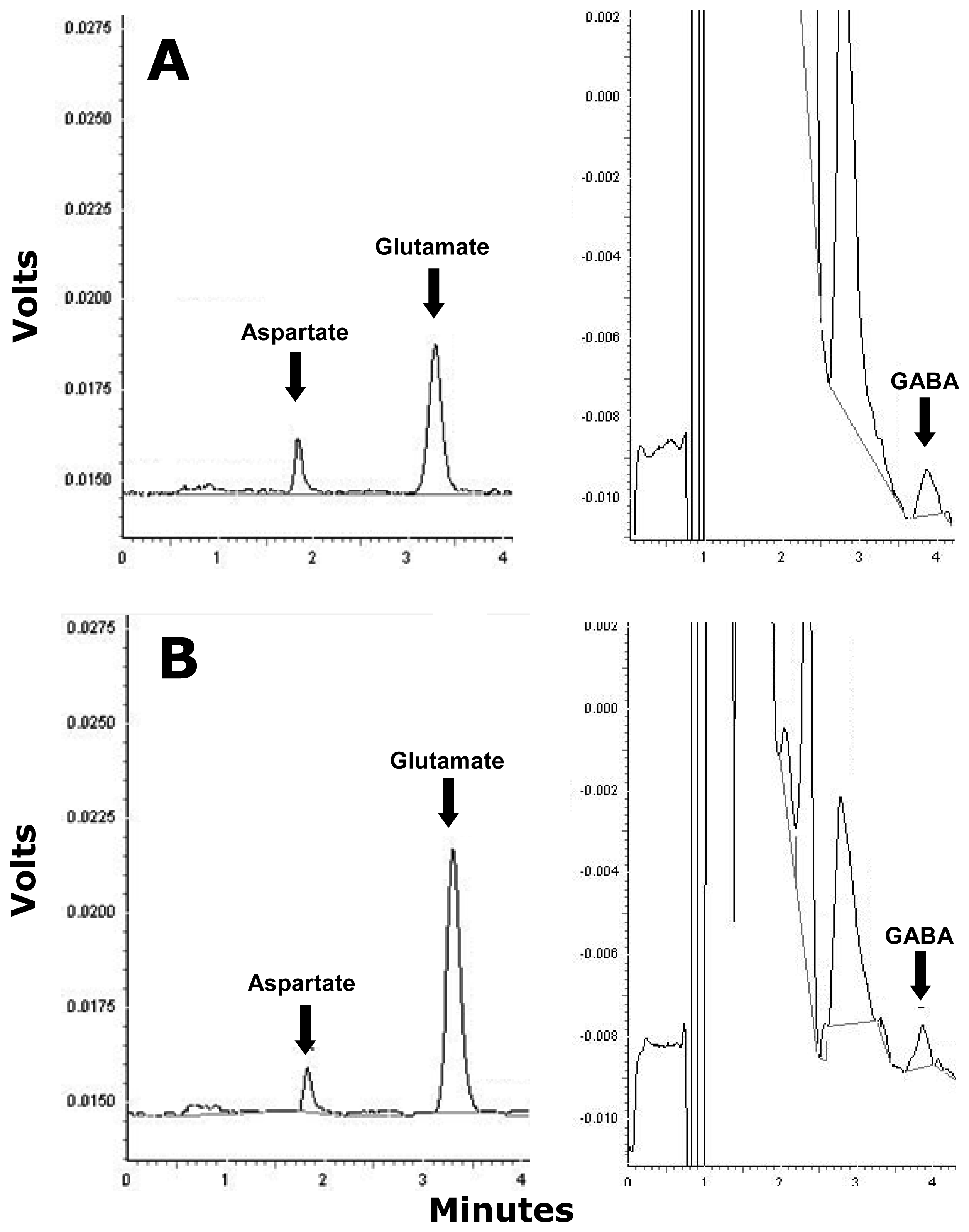

Dialysate glutamate and aspartate levels were quantified using pre-column ortho-phthalaldehyde (OPA) derivatization in the microsampler followed by separation via isocratic High Performance Liquid Chromatography (HPLC) coupled to fluorimetric detection . A 10 μL aliquot from each dialysate sample was pipetted into 0.3 mL eppendorfs and placed in a CMA 200 refrigerated microsampler (Carnegie Medicine AB, Sweden). Distilled H2O and a 2.5 μM glutamate/aspartate standard solution were analysed regularly to check for contamination and reliability. As part of the precolumn derivatization process the microsampler was programmed to add 5.4 μL of a derivatization reagent containing (OPA) and 2-mercaptoethanol to the dialysate sample prior to injection onto the HPLC column. The reaction was allowed to proceed for 120 seconds and then 14 μL of the derivatized sample was injected onto the column. The total run time sample separation and detection was typically 12 min. Retention time for glutamate and aspartate was typically 3.3 minutes and 1.8 minutes respectively with the limit of detection being 30 fmol/sample (Figure 3).
Dialysate GABA levels were detected following a pre-column OPA derivatization followed by reverse phase HPLC coupled to electrochemical detection . A 10 μl aliquot from each dialysate sample was pipetted into 0.3 mL eppendorfs and placed in a CMA 200 refrigerated microsampler. Distilled H2O and a 25 nM GABA standard solution were analysed regularly to check for contamination and reliability. As part of the precolumn derivatization procedure the microsampler was programmed to add 0.5 μL of a derivatization reagent containing OPA and 2-methyl-2-propanethiol to the dialysate sample prior to injection onto the HPLC column. The reaction was allowed to proceed for 120 seconds and then 9 μL of the derivatized sample was injected onto the column. The total run time for sample separation and detection was typically 12–14 min. Retention time for GABA was 3.8 minutes and limit of detection was 50 fmol/sample (Figure 3).
2.6. Data Presentation and Statistical Analysis
Data are reported either as raw data or as normalised percentage change from basal levels (calculated as the mean of the two dialysate samples prior to icv injection) in the form of mean ± standard error of the mean (SEM). Statistical analysis between groups was performed using a two-way analysis of variance (ANOVA) with Bonferroni post-hoc analysis. P values are quoted where appropriate with P<0.05 considered significant.
3. Results and Discussion
3.1. Basal Dialysate Amino Acid Levels
Basal dialysate glutamate, GABA and aspartate levels (raw data) did not differ between the two experimental groups prior to ipsilateral icv Aβ monomer or oligomer injection (Table 1).
3.2. Effect of Aβ Monomer and Oligomer

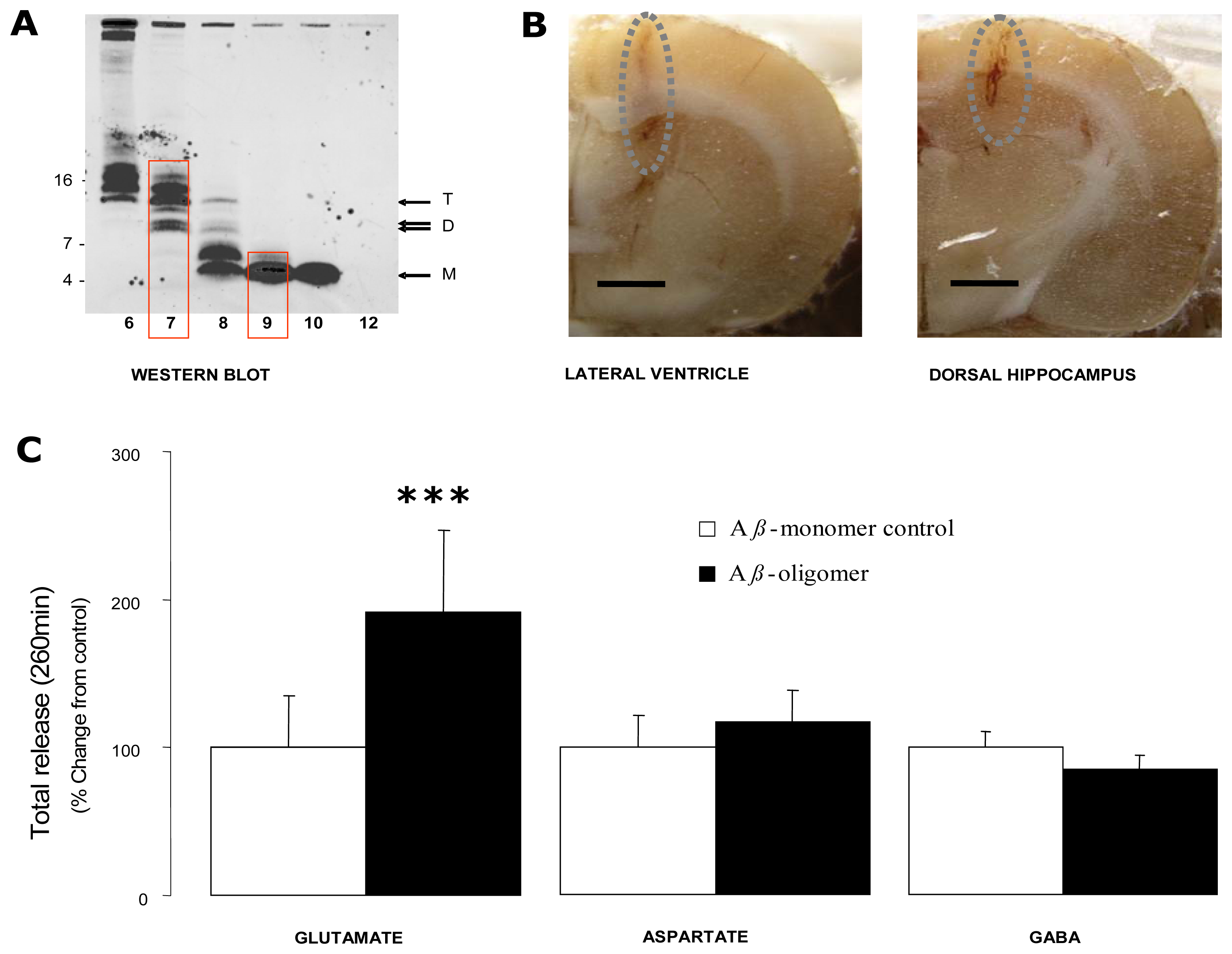

An icv injection of the Aβ monomer had no effect on ipsilateral dorsal hippocampal dialysate glutamate, aspartate or GABA levels. In contrast, icv injection of the Aβ oligomer was associated with a gradual and prolonged selective +55% increase (vs. basal pre-treatment levels) in dialysate glutamate levels representing a +92% increase when normalised against the Aβ monomer-injected group (p<0.0001 vs. Aβ monomer-injected control) and was still increasing at the end of the experiment 260 min post-icv injection. Aspartate and GABA levels were not affected (Figure 4).
Dialysate levels of the excitatory amino acid neurotransmitters glutamate, aspartate and the inhibitory amino acid neurotransmitter GABA are at least in part derived from neuronal pools. Thus, dialysate glutamate and aspartate levels in the hippocampus are derived from local afferent and efferent pathways while GABA is derived from local interneurons. Falkenberg et al.  reported that injections of the glutamate receptor agonist quisqualate into the lateral entorhinal cortex increased dialysate GABA levels in the hippocampus CA1 region and that this GABA increase was attenuated by local administration of the sodium channel antagonist tetrodotoxin, indicating a neuronal origin. Furthermore, perfusion with the glutamate receptor agonist N-methyl-D-aspartic acid (NMDA) into the lateral entorhinal cortex increases dialysate glutamate release in the ipsilateral dorsal hippocampus . In the present study the gradual and prolonged Aβ oligomer-induced increase in dialysate glutamate levels in the dorsal hippocampus suggests an increase in local afferent/efferent glutamate-mediated excitatory transmission, inhibition of reuptake and/or neurotoxicity while the lack of effect on aspartate indicates that glutamate and aspartate may originate from separate neuronal pools in this brain region. Previous studies report a differential release of aspartate and glutamate in the striatum, prefrontal cortex and hippocampus [14, 15]. The lack of an effect of Aβ oligomers on local GABA release demonstrates a neuronal specificity for local excitatory glutamatergic transmission within the dorsal hippocampus and suggests a neuronal specificity whereby release and/or reuptake from local glutamate-containing afferent and efferent pathways, but not local GABA interneurons, within the dorsal hippocampus are targets for Aβ oligomer action.
The present findings demonstrate that icv injection and microdialysis technologies can be successfully combined in the awake rat to demonstrate a selective and prolonged Aβ oligomer-induced increase in local glutamate levels in the ipsilateral dorsal hippocampus. The appropriate balance between the excitatory (glutamate) and inhibitory (GABA) neurotransmitter systems in this brain region is essential for normal neuronal function, while an imbalance may be neurotoxic . Thus, the ability of low to sub-nanomolar concentrations of Aβ oligomers to induce this selective increase in excitatory glutamatergic transmission within the dorsal hippocampus suggests a highly sensitive neurochemical substrate for Alzheimer's Disease. Similarly, the lack of effect of similar concentrations of Aβ monomer is in keeping with our prior observations that monomer does not alter LTP or learned behavior, whereas oligomers potently inhibit LTP and perturb the memory of learned behavior. Taken together these findings could provide a useful avenue for pharmacological intervention in the treatment of Alzheimer's Disease.
Supported by NIH Grant 1R01AG027443 and Wellcome Trust grant 067660 (Walsh), SFI Investigator Award (O'Connor), HEA, NDP, PRTLI and Wyeth.
References and Notes
- Walsh, D.M.; Selkoe, D.J. A beta oligomers - a decade of discovery. J. Neurochem. 2007, 101, 1172–1184, doi:10.1111/j.1471-4159.2006.04426.x. 17286590
- Cleary, J.P.; Walsh, D.M.; Hofmeister, J.J.; Shankar, G.M.; Kuskowski, M.A.; Selkoe, D.J.; Ashe, K.H. Natural oligomers of the amyloid-beta protein specifically disrupt cognitive function. Nat. Neurosci. 2005, 8, 79–84, doi:10.1038/nn1372. 15608634
- Walsh, D.M.; Klyubin, I.; Fadeeva, J.V.; Cullen, W.K.; Anwyl, R.; Wolfe, M.S.; Rowan, M.J.; Selkoe, D.J. Naturally secreted oligomers of amyloid beta protein potently inhibit hippocampal long-term potentiation in vivo. Nature 2002, 416, 535–539, doi:10.1038/416535a. 11932745
- Walsh, D.M.; Townsend, M.; Podlisny, M.B.; Shankar, G.M.; Fadeeva, J.V.; El Agnaf, O.; Hartley, D.M.; Selkoe, D.J. Certain inhibitors of synthetic amyloid beta-peptide (Abeta) fibrillogenesis block oligomerization of natural Abeta and thereby rescue long-term potentiation. J. Neurosci. 2005, 25, 2455–2462, doi:10.1523/JNEUROSCI.4391-04.2005. 15758153
- Daumas, S.; Halley, H.; Frances, B.; Lassalle, J.M. Encoding, consolidation, and retrieval of contextual memory: differential involvement of dorsal CA3 and CA1 hippocampal subregions. Learn. Mem. 2005, 12, 375–382, doi:10.1101/lm.81905. 16027176
- Barnes, J.; Bartlett, J.W.; van de Pol, L.A.; Loy, C.T.; Scahill, R.I.; Frost, C.; Thompson, P.; Fox, N.C. A meta-analysis of hippocampal atrophy rates in Alzheimer's disease. Neurobiol. Aging 2008, 4, 313.
- Hyman, B.T.; Van Hoesen, G.W.; Damasio, A.R.; Barnes, C.L. Alzheimer's disease: cell-specific pathology isolates the hippocampal formation. Science 1984, 225, 1168–1170, doi:10.1126/science.6474172. 6474172
- Paxinos, G.; Watson, C. The rat brain in stereotaxic coordinates; Academic Press: San Diego, California, USA, 1986.
- Frantz, K.; Harte, M.; Ungerstedt, U.; O'Connor, W.T. A dual probe characterization of dialysate amino acid levels in the medial prefrontal cortex and ventral tegmental area of the awake freely moving rat. J. Neurosci. Methods 2002, 119, 109–119, doi:10.1016/S0165-0270(02)00169-3. 12323414
- Calò, G.; Sbrenna, S.; Bianchi, C.; Beani, L. Immediate and delayed effects of in vitro ischemia on glutamate efflux from guinea-pig cerebral cortex slices. Brain Res. 1997, 751, 300–306, doi:10.1016/S0006-8993(96)01425-4. 9099819
- Kehr, J.; Ungerstedt, U. Fast HPLC estimation of gamma-aminobutyric acid in microdialysis perfusates: effect of nipecotic and 3-mercaptopropionic acids. J. Neurochem. 1988, 51, 1308–1310, doi:10.1111/j.1471-4159.1988.tb03101.x. 3418350
- Falkenberg, T.; Lindefors, N.; O'Connor, W.T.; Zachrisson, O.; Camilli, F.; Ungerstedt, U. GABA release and GAD67 mRNA expression in rat hippocampus following entorhinal cortex activation. Brain Res. Mol. Brain Res. 1997, 48, 413–6, doi:10.1016/S0169-328X(97)00185-X. 9332739
- Brady, A.T.; De Souza, I.E.J.; McCabe, O.M.; Moran, M.P.; O'Shea, S.D.; O'Connor, W.T. Effect of NMDA receptor activation in the lateral entorhinal area on the left dorsal hippocampal glutamate, and aspartate release in two animal models of schizophrenia. Brit. Neurosci. Assn. Abstr. 2007, 19, 26.
- Ballini, C.; Corte, L.D.; Pazzagli, M.; Colivicchi, M.A.; Pepeu, G.; Tipton, K.F.; Giovannini, M.G. Extracellular levels of brain aspartate, glutamate and GABA during an inhibitory avoidance response in the rat. J. Neurochem. 2008, 106, 1035–1043, doi:10.1111/j.1471-4159.2008.05452.x. 18466328
- Nicniocaill, B.; Haraldsson, B.; Hansson, O.; O'Connor, W.T.; Brundin, P. Altered striatal amino acid neurotransmitter release monitored using microdialysis in R6/1 Huntington transgenic mice. Eur. J. Neurosci. 2001, 13, 206–210, doi:10.1046/j.0953-816X.2000.01379.x. 11135020
- Rothman, S.M.; Olney, J.W. Excitotoxicity and the NMDA receptor-still lethal after eight years. Trends Neurosci. 1995, 18, 57–58, doi:10.1016/0166-2236(95)93869-Y. 7537407
|Table 1. Basal dialysate glutamate, aspartate and GABA levels (absolute levels) in dorsal hippocampus measured prior to ipsilateral icv injection of either the Aβ monomer or oligomer. Each value represents the mean ± standard error of the mean (SEM) of three consecutive 20 min dialysate fractions (60min) collected prior to ipsilateral icv Aβ injection (n= 5-7 animals per group).|
|Glutamate (μM)||Aspartate (μM)||GABA (nM)|
|Aβ-monomer||1.07 ± 0.19||0.07 ± 0.01||6.22 ± 1.10|
|Aβ-oligomer||1.25 ± 0.52||0.05 ± 0.01||9.09 ± 2.41|
|Table 2. Dorsal hippocampal dialysate glutamate, aspartate and GABA levels following ipsilateral icv injection of either the Aβ monomer or oligomer expressed as percent change from basal (calculated as the mean of the two 20 min dialysate samples prior to icv Aβ injection). Each value represents the mean ± standard error of the mean (SEM) of thirteen 20 min dialysate fractions (260 min) collected following Aβ injection. See Table 1 for absolute basal levels. (n= 5-7 animals per group). ***=P<0.0001 vs. monomer-injected control (ANOVA).|
|Aβ-monomer||− 19 ± 28||- 10 ± 20||+ 11 ± 11|
|Aβ-oligomer||+ 55 ± 45 ***||+ 6 ± 20||- 6 ± 11|
