Sensors 2008, 8(11), 7241-7258; doi:10.3390/s8117241
Article

Microwave Imaging of Cotton Bales

1 United States Department of Agriculture, Agricultural Research Services, Cotton Production and Processing Research Unit, Lubbock, TX. USA 2 Cotton Incorporated, Director Agricultural Research, Cary, NC, USA
* Author to whom correspondence should be addressed.
Received: 22 August 2008; in revised form: 6 November 2008 / Accepted: 13 November 2008 / Published: 14 November 2008
(This article belongs to the Special Issue Sensor Algorithms)
PDF Full-text Download PDF Full-Text [323 KB, uploaded 14 November 2008 10:49 CET]

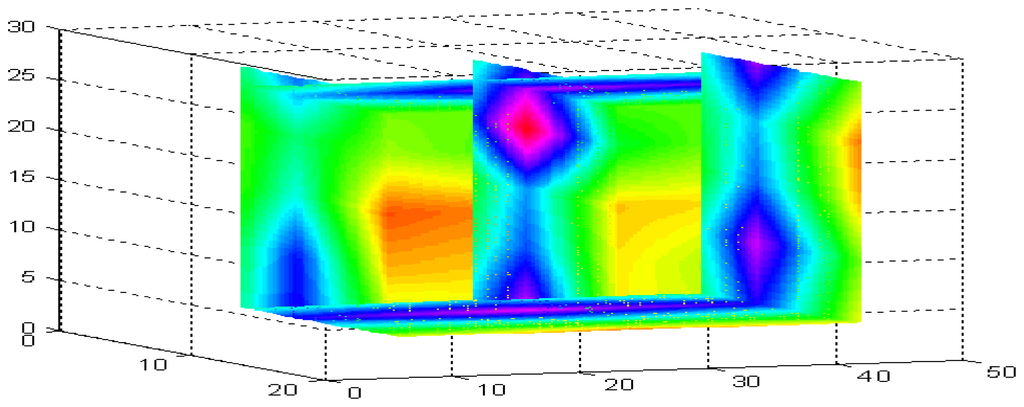

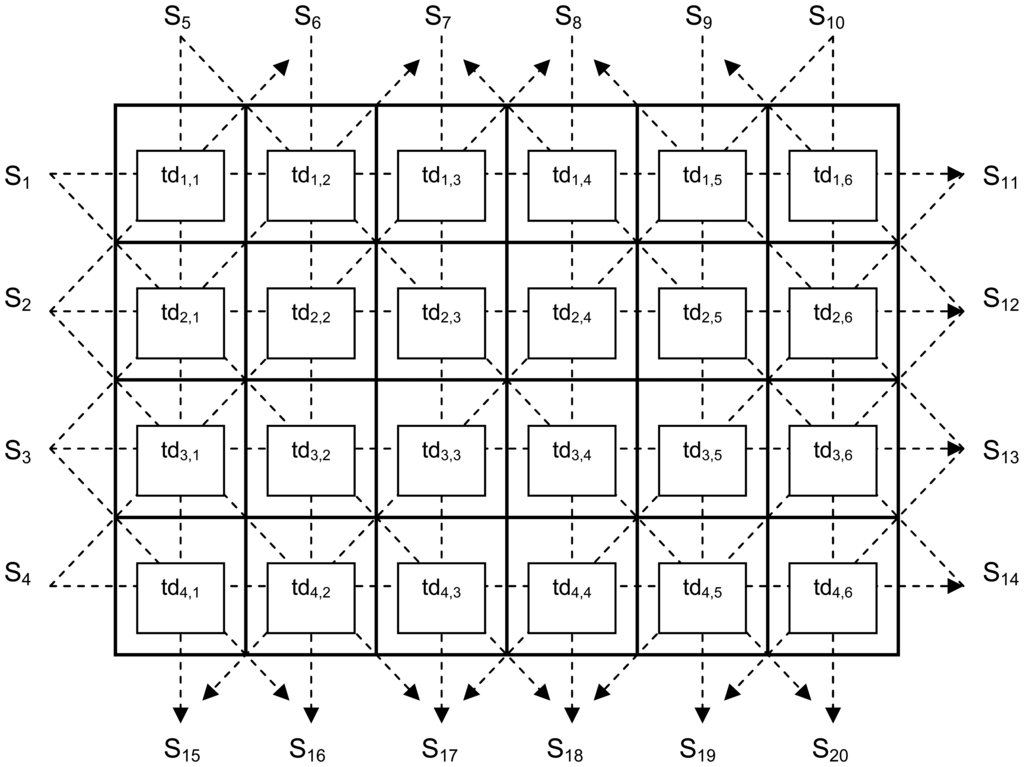

Abstract: Modern moisture restoration systems are increasingly capable of adding water to cotton bales. However, research has identified large variations in internal moisture within bales that are not readily monitored by current systems. While microwave moisture sensing systems can measure average bale moisture, this can be deceptive where water is unevenly distributed. In some cases, localized internal moisture levels exceed 7.5%, the upper safe limit for cotton bale storage, as determined by the USDA, as above this level, bales degrade and lose value. A high proportion of stored bales containing excess moisture have been discovered throughout the US in increasing numbers over the past several seasons, making the detection and prevention of this occurrence a critical goal. Previous research by the authors resulted in the development of microwave moisture-sensing technology. The current study examines an extension to this technology to allow for detailed cotton bale moisture imaging. The new technique incorporates a narrow beam imaging antenna coupled to a tomographic imaging algorithm. The imaging technique was able to resolve small (< 1 cm) high-permittivity structures against a low permittivity background. Moreover, the system was able to identify structures of known permittivity with high accuracy (coefficient of determination (r2) > 0.99). In preliminary testing on a wet commercial UD bale, the technique was able to accurately image and resolve the location of the pre-placed internal wet layer.
Keywords: Cotton; Moisture; Sensing; Tomography; Inverse Solution; Image processing; Machine vision

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Pelletier, M.G.; Barnes, E.M. Microwave Imaging of Cotton Bales. Sensors 2008, 8, 7241-7258.

AMA Style

Pelletier MG, Barnes EM. Microwave Imaging of Cotton Bales. Sensors. 2008; 8(11):7241-7258.

Chicago/Turabian Style

Pelletier, Mathew G.; Barnes, Edward M. 2008. "Microwave Imaging of Cotton Bales." Sensors 8, no. 11: 7241-7258.
