Methods for Solving Gas Damping Problems in Perforated Microstructures Using a 2D Finite-Element Solver
Timo Veijola 1,* and Peter Råback 2
1
Helsinki University of Technology, P.O. Box 3000, FIN-02015 TKK, Finland, E-mail: timo.veijola@tkk.fi
2
CSC – Scientific Computing Ltd., P.O. Box 405, FIN-02101 Espoo, Finland. E-mail: raback@csc.fi
*
Author to whom correspondence should be addressed.
Received: 18 May 2007 / Accepted: 27 June 2007 / Published: 28 June 2007

Abstract

: We present a straightforward method to solve gas damping problems for perforated structures in two dimensions (2D) utilising a Perforation Profile Reynolds (PPR) solver. The PPR equation is an extended Reynolds equation that includes additional terms modelling the leakage flow through the perforations, and variable diffusivity and compressibility profiles. The solution method consists of two phases: 1) determination of the specific admittance profile and relative diffusivity (and relative compressibility) profiles due to the perforation, and 2) solution of the PPR equation with a FEM solver in 2D. Rarefied gas corrections in the slip-flow region are also included. Analytic profiles for circular and square holes with slip conditions are presented in the paper. To verify the method, square perforated dampers with 16–64 holes were simulated with a three-dimensional (3D) Navier-Stokes solver, a homogenised extended Reynolds solver, and a 2D PPR solver. Cases for both translational (in normal to the surfaces) and torsional motion were simulated. The presented method extends the region of accurate simulation of perforated structures to cases where the homogenisation method is inaccurate and the full 3D Navier-Stokes simulation is too time-consuming.
Keywords:
damping; perforation; gas damper; rarefied gas; Reynolds equation

1. Introduction

Perforations are used in oscillating microelectromechanical (MEM) sensors and actuators to control damping due to gas for desired frequency-domain operation. Practical MEM devices using perforations include microphones [1], capacitive switches [2, 3], and resonators [4].

The perforations reduce damping in a squeeze-film structure considerably: the characteristic dimensions are reduced from the outer dimensions of the surface to the separation of the perforations. Also, the cut-off frequency (when the spring and damping forces are equal) rises considerably due to the perforations. Often this cut-off frequency in perforated structures is much higher than the operating frequencies of interest, which simplifies the design of such devices since only the damping forces need to be considered in the device design.

3D flow simulations are needed in solving perforation problems generally. However, accurate 3D simulation of the Navier-Stokes (N-S) equation is, in practice, impossible due to the huge number of elements needed, especially in cases where the number of perforations is relatively large. The number of perforations may vary from a few holes to a grid of thousands of holes. Moreover, the N-S equations are limited to the region of a slightly rarefied gas (slip-flow region). Accurate modelling of these structures requires the consideration of rarefied gas flow in tiny flow channels and around the structure.

Different methods that reduce the 3D flow problem into 2D are available, depending on the boundary conditions, number of perforations, the relative hole size s0/h (s0 is the hole diameter and h is the height of the air gap) and the perforation ratio (ratio of the perforated area and the surface area). If the s0/h-ratio is large, the flow resistance of the perforation is insignificant (unless the perforations are relatively long). In the case of a few relatively large perforations, the problem reduces to a 2D problem that can be solved from the Reynolds equation by considering the holes as additional boundary conditions [5, 6]. Open edge corrections [7] might need to be considered in this case. On the other hand, if the number of holes is large, and the perforation ratio is not small, the horizontal flow from the damper borders is insignificant (also caused by closed damper borders), and the pressure patterns around each perforation are identical. In this case, the damping can be determined solely from a single perforation and its surroundings, called a perforation cell. A simple analytic model for such a cell by Skvor [8] has been used in modelling perforations in a microphone's backplate. When the s0/h-ratio cannot be considered large, the flow resistance of the perforations must be included in the model. Homentcovschi and Miles [9], have derived such an analytic model considering the compressibility and inertial effects. Perforation cell models over a wide range of perforation ratios and hole lengths well below the cut-off frequency are given in [10, 11].

If the s0/h ratio and the perforation ratio are not large, such that the flow from the damper borders is considerable, a more complicated model is required. In the case of a regular grid of perforations, the flow resistance of the perforation cell can be solved and homogenised over the damper surface. This flow problem can be modelled with the extended Reynolds equation that contains an additional pressure leakage term [1216]. This homogenisation method is usable, but it has its limitations, especially if the number of perforations is small. A mixed-level approach has also been published [17], and a hybrid method combining N-S and Reynolds equations has been presented by da Silva et al. [18]. Flow resistances of perforations with different shapes were studied by Homentcovschi and Miles [19]. A compact analytic model for rectangular dampers having an uniform perforation was given in [10]. The model was verified with FEM simulations at frequencies well below the cut-off frequency.

The models referenced above assume motion normal to the surfaces, and the squeezing force in the air gap makes the gas flow. A different problem where the perforated surface moves tangentially to the surfaces has been discussed in [20].

We have presented a Perforation Profile Reynolds (PPR) method [21] for damping problems where the homogenisation method is not accurate. These are characterized by, e.g., a moderate number of perforations, complex shaped perforations, and non-uniform distribution and sizes of perforations.

In this paper, we present improvements to this method. Flow admittance profiles that vary across the perforations are used instead of constant profiles. Also, an improved perforation cell model [10] has been used instead of a simple theoretical long-channel model with theoretical end corrections. Besides translational motion, the verifications include also torsional motion. This paper also shows how the perforation cell model [10] can be utilised in a homogenisation method with a FEM solver.

The method was verified with 3D FEM simulations using a N-S solver. Simulations of a parallel-plate damper with 16 to 64 square perforations were performed for various perforation ratios. Only incompressible flow is considered here, since time-harmonic reference N-S simulation with sufficient accuracy is not realistic.

2. Methods

2.1. PPR equation

Figure 1 shows the general geometry of a perforated gas damper. A perforated surface above the ground surface moves normal to the surfaces (in the direction of the z-axis).

Gas lubrication and damping problems in small air gaps are traditionally modelled with the Reynolds equation [22]. The modified and linearised Reynolds equation in the time-harmonic form is

( h 3 Q ch 12 η p ) j ω hp P A = v z ,
where h is the static air gap height, η is the viscosity coefficient, Qch is the relative flow rate, PA is the ambient pressure, vz(x, y)ejωt is the surface velocity in the z-direction and p(x, y)ejωt is the pressure variation to be solved from the equation. This form allows the static displacement h(x, y) to be a function of x and y. In this case, the spatial dependency of Qch(x, y) must be considered, too. Isothermal conditions have been assumed.

We extend the Reynolds equation by adding a term that models an additional flow component through the perforations similarly as in [12]. Here, two additional coefficients are included to model the effect of the perforations on the diffusivity and compressibility.

( D h h 3 Q ch 12 η p ) C h j ω hp P A Y h p = v z ,
where Dh(x, y), Ch(x, y), and Yh(x, y) are the relative diffusivity, relative compressibility, and perforation admittance profiles, respectively. Equation (2) is called here the Perforation Profile Reynolds (PPR) equation.

The perforation admittance Yh is specified as an inverse of the specific acoustic impedance ZS:

Y h = 1 Z S = v h p h ,
where ph and vh are the gas pressure and velocity in the z-direction at the opening of the perforation. Equation (3) is valid also for the quantities averaged across the cross-section of the perforation, denoted as h, S, h, and h.

The approximation for the relative flow rate due to the rarefied gas effects is [23]

Q ch = 1 + 9.638 K n , ch 1.159 ,
where Kn,ch= λ/h is the Knudsen number of the air gap and λ is the mean free path of the gas (depends on PA). The relative accuracy is valid for Kn,ch < 880 and its maximum relative error is less than 5%. When the slip correction is considered, as in this paper,
Q ch = 1 + 6 K n , ch .
The slip correction is valid only for Kn,ch < 0.1, whereas the approximation in Eq.(4) is valid for much larger Knudsen numbers. The slip correction is used in this paper, since for us the validation with a 3D FEM solver is only possible in the slip-flow region.

2.2. PPR method

The PPR method consists of two phases. First, diffusivity, compressibility, and perforation admittance profiles in Eq. (2) are determined. Then, the PPR solver is used to solve Eq. (2). In PPR, the specific admittance profile Yh(x, y) varies spatially at the locations of the perforations, whereas in the homogenisation method Yh includes the flow resistance of the perforation cell, that is, the flow in the air gap and the perforations.

In [21], we used a constant average admittance profile for each perforation. This admittance was calculated from the flow resistance of the perforation. In this work, we consider a varying admittance profile across the perforation utilising the velocity profile in the perforation:

Y h ( x , y ) = { v h ( x , y ) p h , inside the perforation 0 , outside ,
where vh is the velocity profile and ph is the pressure.

The diffusivity of the air gap also effectively changes at the perforation. For the flow passing in the air gap below the perforation, the frictional surface area will be reduced, effectively increasing the diffusivity coefficient. On the other hand, the flow profile is changed due to the perforations, effectively decreasing the diffusivity coefficient Dh. The compressibility coefficient Ch is zero at the perforations and unity elsewhere. Figure 2 illustrates the perforation profiles in the case of a one-dimensional damper.

2.3. Perforation Admittance Profiles

There are two alternate ways to determine the flow admittance profiles for perforations: 3D FEM (or other discretising methods) simulations and analytic (approximate) equations. Usually, the perforations are relatively short and the analytic model for long channels are not applicable. Here, flow resistances extracted from FEM simulations of the perforation cells are used [10, 11].

The flow fields above the perforated surface are coupled, especially when the perforation ratio is large. In [10] an elongation model considering the coupling in circular perforations is derived from FEM simulations. The model assumes that the conditions for neighbouring perforations are identical. In principle, these conditions are met if the perforation ratio is large and the velocity distribution vz(x, y) of the damper surface is constant. However, in practice the coupling is negligible for small perforation ratios, and there are no abrupt changes in the damper surface velocity for neighbouring perforations.

Next, analytic expressions for two typical perforations, circular and square, are given (See Fig. 3).

2.4. Circular Cross-section

For the flow resistance of the perforation we utilise the perforation cell model [10]. Here, the flow resistances modelling the perforation only are needed, since the PPR solver calculates the flow in the air gap. The (average) specific admittance of a channel (of length hc) with a circular cross-section (with a radius of r0) in the slip-flow region is [10]

Y ¯ ci = π r 0 2 R IC + R C + R E ,
where the flow resistances RIC, RC and RE are given in Appendix. RC is the mechanical resistance of a long channel with a circular cross-section. In the slip-flow region, the relative flow rate of a channel with a circular cross-section Qtb is
Q tb = 1 + 4 K n , tb ,
where Kn,tb is the Knudsen number of the capillary
K n , tb = λ / r 0 .

The normalised velocity profile (average velocity is 1) in a long circular capillary is a function of r only [24]:

v s ( r ) = 2 ( r r 0 ) 2 + 1 + 2 K n , tb Q tb .

The specific admittance profile resulting from Eqs. (7) and (10) is

Y ci ( r ) = v s ( r ) Y ¯ ci .

2.5. Square Cross-section

Mechanical flow resistance of a long square channel is [25,26]

R sq = 28.454 η h c Q sq ,
where Qsq is the flow rate coefficient and hc is the length of the channel. Next, the short-channel effects are added to Rsq using the elongation model for a circular channel [10]. In that model, an effective radius r0 is needed. It is specified such that the acoustic resistances (hydraulic resistances) of the square and circular long channels are equal. That is
R C ( π r 0 2 ) 2 = R sq s 0 4 .
This results in an expression for r0:
r 0 = ( 128 Q sq 28.454 π Q tb ) 1 4 s 0 2 1.096 s 0 2 .
Since Qtb is a function of r0, the accurate solution of Eq. (14) needs to be iterated. The dependency of r0 on the Knudsen number is small, and the simple approximation in Eq. (14) is accurate within 0.3% for Kn,sl < 0.14.

2.6. Homogenisation method

In the homogenisation method, the flow admittane Yh caused by the perforations is assumed to be smoothly distributed over the whole surface. In the actual 2D FEM simulation, the holes are excluded from the simulated structure and their flow admittance is included in the extended Reynolds equation. In the case of uniform perforation, this flow admittance is constant over the whole surface. Damping models using the homogenization approach have been published, but not properly verified [12-16].

The PPR Equation (2) is applicable also in the homogenisation method, but there is a considerable difference in the interpretation of term Yh. In addition to the flow admittance of the perforations itself, Yh should now include the flow component in the air gap.

In deriving the model for Yh, the concept of a “perforation cell” is applied here. Relative simple analytic models for a cylindrical and square perforation is derived in [10] and [11], respectively, based on compact models derived from FEM simulations. The mechanical resistance of each perforation cell consists of mechanical resistances of several flow regions [10]:

R p = R S + R IS + R IB + r x 4 r 0 4 ( R IC + R C + R E ) ,
where rx and r0 are the outer and inner radii of the cylindrical perforation cell, respectively. RS is the flow resistance in the air gap and RC is the flow resistance of the perforation. All other resistances model the flow in the intermediate region under and above the perforation. Values for these resistances are given in Appendix.

Radius rx isThe perforation pitch is selected such that the bottom areas of circular and square cells match. This results in

r x = s x π .

In the case of uniform perforation and translational motion, the specific impedance spread all over the surface is

Y h = a eff 2 N R p ,
where aeff = a + 1.3h(1 + 3.3Kn,ch) is the effective dimension of the surface.

3. Verification

Several perforated dampers in perpendicular and rotating motion are simulated both with the 3D N-S solver with slip conditions and with the time-harmonic PPR solver. Both solvers are implemented in the multiphysical simulation software Elmer [27].

The surface is a square, and it consists of N square holes. The distance between the edges of two adjacent holes is s1, as is the distance from the edges of the holes to the edges of the damper s2 = s1. The perforation pitch is sx = s0 + s1. A comparison is made well below the cut-off frequency, that is, the compressibility of the gas is ignored (Ch = 0). The simplifies the N-S simulations, since response to a constant velocity is calculated. The dimensions are summarised in Table 1 and one of the four structures is shown in Fig. 4.

3.1. 3D simulations

First, full 3D N-S simulations of the structure are performed to generate reference data for the methods presented in this paper. The simulations can be performed relatively reliably, thanks to the small number of holes and the symmetry of the structure. Slip boundary conditions are used for the surfaces. The simulated gas volume is extended around the damper: free space around and above the damper are 6h and 2s0, respectively. A mesh of 450 000 elements is used. Both translational and torsional motion cases were simulated.

The number of elements (450 000) in the 3D N-S simulations was in practice the maximum that could be performed considering the computing time and the memory consumption. The computer used was Sun Fire 25K. Simulating each (of 432) topology took between one and two hours and 6 Gb of memory.

To estimate the accuracy of the results, simulations with 250 000 elements were made, too. Comparative results are discussed later in this paper.

3.2. PPR solver

The PPR Equation (2) is solved with a time-harmonic PPR solver. For each square hole, the specific admittance for a circular hole specified in Eq. (11) with an effective radius of r0 is used. The PPR solver also includes the compressibility of the gas in the air gap. The compressibility of the perforations can also be included specifying a complex-valued specific admittance. This is essential in modelling, e.g., closed perforations. Compressibility profile is not needed here, since steady flow calculations are made.

We use Dh = 1 since there is no model available for the diffusivity profile. The friction surface for the flow under the hole is reduced by half, and this could justify setting Dh = 2. However, the changes in the flow profile will introduce additional losses that justify decreasing the diffusivity.

Considering the edge effects at the outer borders of the structure is essential for accurate results. Each border of the structure is extended by an amount 0.65h(1 +3.3Kn,ch), as suggested in [7]. The borders of the perforations are not modified in this method, since the diffusivity profile at the perforation effectively builds an “edge effect”: the flow admittance at the border of the perforation is small, forcing gas to flow horizontally in a viscous channel close to the border.

Both translational and torsional motion cases are simulated. Each of the simulations with the Reynolds solver with 20 000 elements took about 10 seconds.

3.3. PPR method

First, the structure is set into translational motion with a velocity of vz = 1 m/s. The mechanical resistance, or the damping coefficient is Zm = F/vz, where F is the force acting on the ground surface. A mesh of 20 000 elements is used.

The damping coefficients are compared with the ones from the N-S simulations as a function of the perforation ratio

q = N s 0 2 a 2 . 100 %
The maximum relative errors in the damping coefficient are shown in Table 2, and Fig. 5 shows the damping coefficients as a function of the perforation ratio q for air gaps of 1 μm and 2 μm. In Fig. 6, the simulated pressure profiles are compared.

Next, the structure is set into torsional motion about the y-axis with a velocity of vz= 1 m/s at x = a/2. The torsional resistance, or the torsional damping coefficient is Zt = τ/ωz, where τ is the twisting moment acting on the ground surface and ωz = vz/(a/2) is angular velocity. A mesh of 20000 elements is used. The maximum relative errors in the torsional motion are shown in Table 3.

Figure 7 shows the torsional damping coefficients as a function of the perforation ratio for air gaps of 1 μm and 2 μm.

3.4. Homogenisation method

The extended Reynolds equation is solved for perpendicularly moving rectangular surfaces. The perforation cell admittance calculated from Eq. (17) is used in the simulation. The diffusivity coefficient Dh = 1 is used. Each damper border is extended by 0.65h(1 + 3.3Kn,ch). The quarter of the rectangular surface is meshed having 5000 elements. Table 4 shows the maximum relative errors of the homogenisation method.

4. Discussion

4.1. Comparison between methods

Table 2 shows the errors of the PPR method compared with the 3D FEM simulations for translational motion. The maximum relative error in the damping force in translational motion is below 10%, except for the case of strong perforation (q ≥ 49%). The PPR model generally underestimates the damping. This is probably due to the fact that additional drag forces acting on the sidewalls and on the top surface are ignored in the model. These forces contribute most when the surface is the thickest (hc = 5 μm) and the surface area is the smallest (N = 16).

In the case of torsional motion, Table 3, the accuracy of the model is approximately the same as for translational motion for N = 64. The contribution of the drag forces can be seen in the results of smaller surfaces in Fig. 7. In the torsional motion the drag forces acting on the sidewalls are relatively stronger. For small q, the change in the height of the surface changes the damping force for N = 16 in the N-S simulations, see Fig. 7b). The surface height clearly changes the damping coefficient (N-S simulations) even for very small perforation ratios. This change cannot be explained by the change in the perforation length, since the damping due to perforations is negligible for very small perforation ratios.

To analyse the importance of the varying pressure profile at the perforations, a set of PPR simulations was performed using a constant specific admittance ci of the perforations. The results are summarised in Table 5. Comparison with results in Table 2 reveals that errors of both models are approximately the same for small perforation ratios, but the error of the constant specific admittance model is considerably larger if q > 16%.

The maximum relative errors of the homogenisation method (Table 4) are also approximately below 10% for N ≥ 16 and q < 49 %, but the PPR results are much better for small perforation ratios. However, the homogenisation method gives better results when N ≥ 16 for q ≥ 50%. This was an expected result. For an inhomogeneous perforation, where the distribution and sizes of the perforations vary, the determination of the perforation cell might be difficult. In such a case, the generation of the variable perforation admittance profile is not a trivial task. On the other hand, if the number of perforations is large (hundreds or thousands of holes) the element sizes in the PPR method will grow intolerably. In this case, the homogenisation method is superior since the required element count is independent of the number of perforations.

4.2. Rarefied gas effects

The verification in this paper is limited to the slip-flow region just to make the comparison with 3D solutions possible. The PPR method itself is valid for arbitrary gas rarefaction as long as the model for Yh is valid. The comparison is made in the region where the validity of the slip conditions is questionable (Kn,sl < 0.14, Kn,ch < 0.14). In spite of the small additional error in the results, the comparison is justified since slip flow models are used in both cases. The consideration of the slip correction is essential for accurate results for the micromechanical structures simulated. If the rarefied gas effects are ignored (Kn,sl = Kn,ch = 0), the error in the damping force would increase by about 40 % and 15 % for air gaps of 1 μm and 2 μm, respectively.

4.3. Maximum frequency of the model

In squeeze-film dampers, the compressibility of the gas will change the damping coefficient at higher frequencies. The cut-off frequency specifies a frequency when the viscous and compressibility (spring-) forces are equal. For perforated dampers, the small-frequency assumption made in this paper is generally a valid, since the perforation increases the cut-off frequency considerably.

The cut-off frequency due to compressibility can be estimated by calculating the ratio between the viscous and compressibility forces in a perforation cell [10]. This is quite straightforward after assuming that the perforation ratio is high enough that all gas flows through perforations (not from the damper borders). However, the cut-off frequency might be so high that the inertial effects should also be considered. In estimating the validity the complex flow resistance due to inertia should be considered. In [10] the maximum frequency for a perforation cell is estimated.

There is no limitation in the method that prevents compressibility from being accounted for. In this case, a complex-valued specific admittance profile and compressibility profile Ch are both needed for the PPR solver. For verifying this case a 3D linearised time-harmonic N-S solver may be used.

4.4. Accuracy of 3D N-S simulations

The 3D simulations were very challenging. A lot of computing resources were used to have the data, still the results are not perfect. To estimate the error in the simulations with 450 000 elements, a comparison is made to simulations with 250 000 elements. The results are shown in Table 6.

When the perforation ratio is large, the relative difference is the largest. This indicates that the selection of the meshing was not very good for large perforations.

The comparison shows that damping coefficients with 250 000 elements are generally larger than with 450 000 elements. It is then expected that the damping coefficients become smaller when the element count is increased. When considering such fictitious simulations and studying the maximum relative errors of the PPR method in Table 2, the magnitudes of the relative errors become generally smaller.

5. Conclusions

A straightforward method solving perforation problems with a 2D PPR solver was presented. Damping coefficients of a large number of perforated dampers were solved with the PPR method and they were compared with 3D N-S simulation results with very good agreement. Compared to direct N-S simulations, the PPR method offers orders of magnitudes faster simulation times and less memory consumption. The maximum relative errors for translational motion for N ≥ 16 were about 10 % and 20 % for perforation ratios 1%…36% and 1%…81%, respectively.

Perforations were modelled with their specific admittance profile. Both, constant and spatially varying admittance profiles at the perforations were used. It was shown that the errors were smaller when a varying admittance profile was used. Uniform diffusivity profile (Dh = 1) was assumed. A further study is needed to resolve if a non-trivial profile could be extracted form FEM simulations, and if the utilization of this profile would improve the accuracy of the model.

The PPR method was also compared with the homogenisation method. The results were almost as good (maximum relative error about 10%) for N ≥ 16 for small perforation ratios (q < 36%).

The square perforations were approximated with a model for a cylindrical perforation cell. It is expected that a model for a square cell [11] could improve the accuracy of PPR and homogenisation methods, especially at high perforation ratios.

The fringe flow effects due to the sidewalls and the upper surface clearly contributed the damping coefficient for small s0/h ratios. This was seen in the results for dampers with a small number of holes, since in these cases the surface area was also relatively small.

Incompressible flow was assumed. For a squeeze-film damper this sounds like a very limiting assumption. But due to the perforations, the cut-off frequency is significantly higher than in the non-perforated case. Thus the valid frequency range of the incompressible damper model is relatively wide. Further increase of the frequency range is not trivial, since, besides the compressibility effects, the inertia of the gas should be considered. Also, the thermal aspects should be considered since isothermal assumptions will not be sufficient due to the high cut-off frequencies.

The method needs to be verified in cases where the gas compressibility and inertia are considered. However, this is not easy, since the time-harmonic analysis of the 3D structure with a sufficient accuracy will be very challenging. Extraction and usage of non-uniform perforation profiles and coupling between perforations will be studied in the future.

Appendix

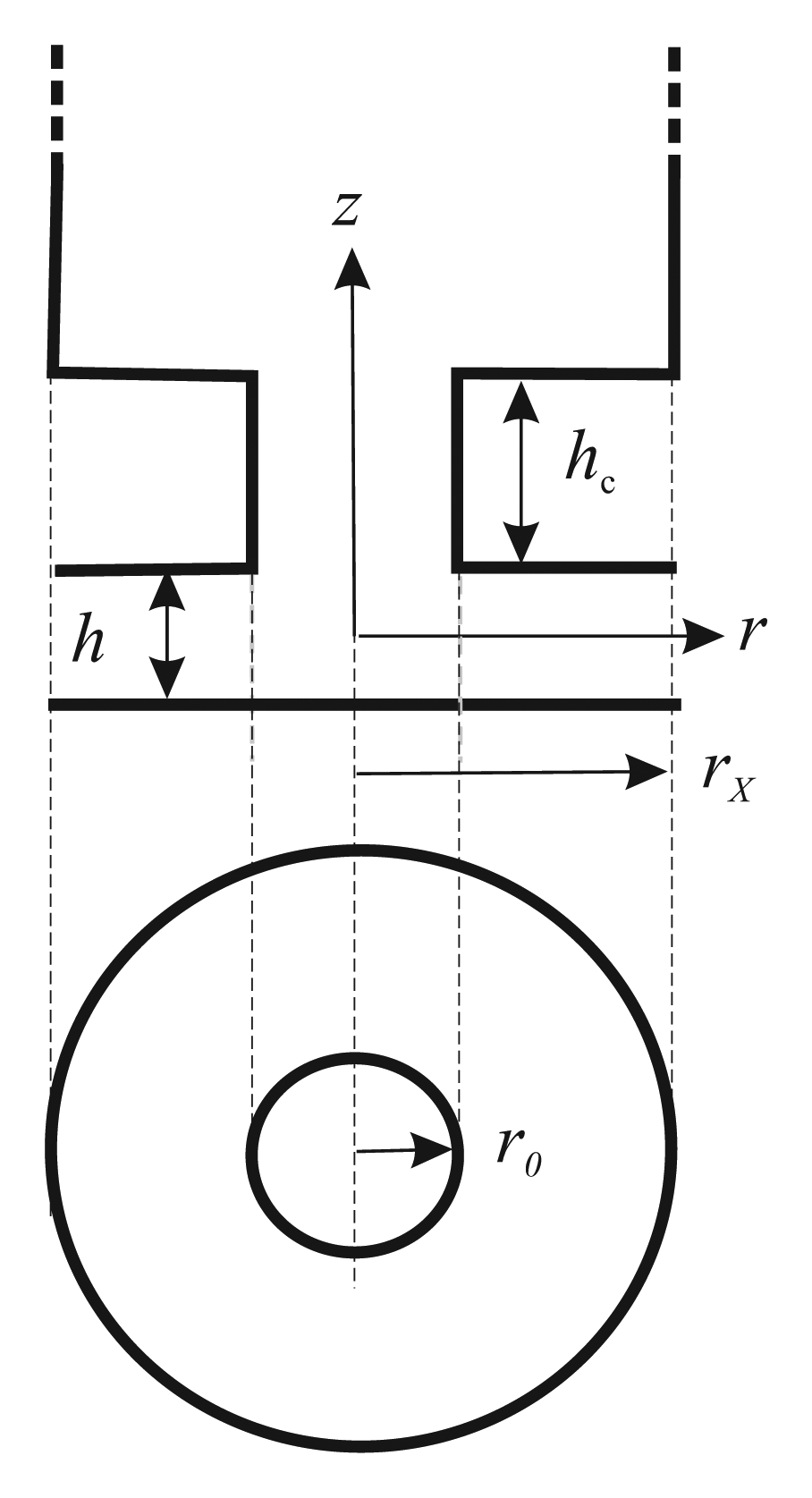

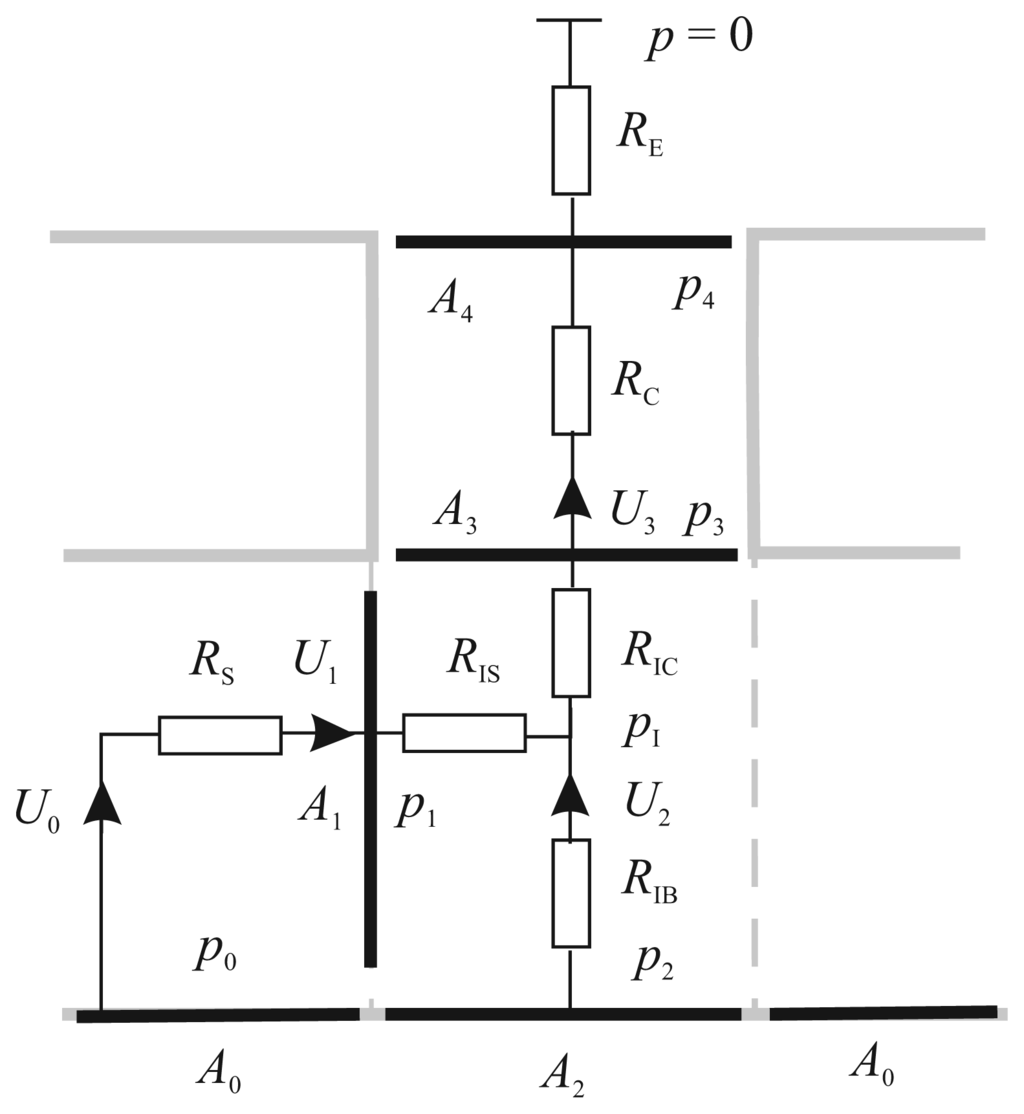

Figure 8 shows the topology of the cylindrical perforation cell, and Fig. 9 shows the lumped mechanical resistances used in modelling the flow resistance of the cell. The flow resistance Rp of the perforation cell consists of lumped flow resistances and their effective elongations. The equations have been derived partly analytically and partly by fitting the model to FEM simulations by varying the coefficients in heuristic equations [10].

The mechanical resistance of the perforation cell is [11]

R p = R S + R IS + R IB + r x 4 r 0 4 ( R IC + R C + R E ) ,
where rx and r0 are the outer and inner radii of the cylindrical perforation cell, respectively.

The lumped resistances are

R S = 12 π η r x 4 Q ch h 3 ( 1 2 ln r x r 0 3 8 + r 0 2 2 r x 2 r 0 4 8 r x 4 , )
R IS = 6 π η ( r x 2 r 0 2 ) 2 r 0 h 2 Δ S ,
R IB = 8 π η r 0 Δ B ,
R IC = 8 π η r 0 Δ C ,
R C = 8 π η h C Q tb ,
and
R E = 8 π η r 0 Δ E

The effective elongations in the previous equations are:

Δ S = 0.56 0.32 r 0 r x + 0.86 r 0 2 r x 2 1 + 2.5 K n , ch ,
Δ B = 1.33 ( 1 0.812 r 0 2 r x 2 ) 1 + 0.732 K n , tb 1 + K n , ch f B ( r 0 h , h c h ) ,
where
f B ( α , β ) = 1 + α 4 β 3 7.11 ( 43 β 3 + 1 ) ,
Δ C = ( 1 + 0.6 K n , tb ) ( 0.66 0.41 r 0 r x 0.25 r 0 2 r x 2 ) ,
and
Δ E = 0.944 3 π ( 1 + 0.216 K n , tb ) 16 ( 1 + 0.2 r 0 2 r x 2 0.754 r 0 4 r x 4 ) f E ( r 0 h ) ,
where
f E ( α ) = 1 + α 3.5 178 ( 1 + 17.5 K n , ch ) .

References

  1. Pedersen, M.; Olthuis, W.; Bergveld, P. A silicon condenser microphone with polyamide diaphragm and backplate. Sensors and Actuators A 1997, 63, 97–104.
  2. Goldsmith, C. L.; Malczewski, A.; Yao, Z. J.; Chen, S.; Ehmke, J.; Hindel, D. H. RF MEMs variable capacitors for tuneable filters. Int J RF and Microwave CAE 1999, 9, 362–374.
  3. Dec, A.; Suyama, K. Micromachined electro-mechanically tuneable capacitors and their application to RF ICs. IEEE Transactions on Microwave Theory and Techniques 1998, 46(12), 2587–2596.
  4. Mattila, T.; Häkkinen, P.; Jaakkola, O.; Kiihamäki, J.; Kyynäräinen, J.; Oja, A.; Seppä, H.; Seppälä, P.; Sillanpää, T. Air damping in resonant micromechanical capacitive sensors. 14th European Conference on Solid-State Transducers, EUROSENSORS XIV, Copenhagen; 2000; pp. 221–224.
  5. Starr, J. B. Squeeze-film damping in solid state accelerometers. Solid-State Sensor and Actuator Workshop, IEEE, Hilton Head Island; 1990; pp. 44–47.
  6. Kim, E.-S.; Cho, Y.-H.; Kim, M.-U. Effect of holes and edges on the squeeze film damping of perforated micromechanical structures. Proc. of IEEE Micro Electro Mechanical Systems Conf. 1999; pp. 296–301.
  7. Veijola, T.; Pursula, A.; Råback, P. Extending the validity of existing squeezed-film damper models with elongations of surface dimensions. Journal of Micromechanics and Microengineering 2005, 15, 1624–1636.
  8. Skvor, Z. On the acoustical resistance due to viscous losses in the air gap of electrostatic transducers. Acustica 1967, 19, 295–299.
  9. Homentcovschi, D.; Miles, R. N. Viscous damping of perforated planar micromechanical structures. Sensors and Actuators A 2005, 119, 544–552.
  10. Veijola, T. Analytic damping model for an MEM perforation cell. Microfluidics and Nanofluidics 2006, 2(3), 249–260.
  11. Veijola, T. Analytic damping model for a square perforation cell. Proceedings of the 9th International Conference on Modeling and Simulation of Microsystems, Boston; 2006; volume 3, pp. 554–557.
  12. Veijola, T.; Mattila, T. Compact squeezed-film damping model for perforated surface. Proceedings of Transducers'01, Munich, Germany; 2001; pp. 1506–1509.
  13. Yang, Y.-J.; Yu, C.-J. Macromodel extraction of gas damping effects for perforated surfaces with arbitrarily-shaped geometries. Proceedings of the 5th International Conference on Modeling and Simulation of Microsystems, San Juan, PR; 2002; pp. 178–181.
  14. Bao, M.; Yang, H.; Sun, Y.; French, P. J. Modified Reynolds equation and analytical analysis of squeeze-film air damping of perforated structures. Journal of Micromechanics and Microengineering 2003, 13, 795–800.
  15. Bao, M.; Yang, H.; Sun, Y.; Wang, Y. Squeeze-film air damping of thick hole-plate. Sensors and Actuators A 2003, 108, 212–217.
  16. Råback, P.; Pursula, A.; Junttila, V.; Veijola, T. Hierarchical finite element simulation of perforated plates with arbitrary hole geometry. Proceedings of the 6th International Conference on Modeling and Simulation of Microsystems, San Francisco; 2003; volume 1, pp. 194–197.
  17. Sattler, R.; Wachutka, G. Analytical compact models for squeezed-film damping. Symposium on Design, Test, Integration and Packaging ofMEMS/MOEMS, DTIP 2004, Montreux; 2004; pp. 377–382.
  18. da Silva, M. G.; Deshpande, M.; Greiner, K.; Gilbert, J. R. Gas damping and spring effects on MEMS devices with multiple perforations and multiple gaps. Proceedings of Transducers'99, Sendai; 1999; volume 2, pp. 1148–1151.
  19. Homentcovschi, D.; Miles, R. N. Modeling of viscous damping of perforated planar microstructures, applications in acoustics. Journal of the Acoustical Society of America 2004, 116, 2939–2947.
  20. Kwok, P. Y.; Weinberg, M. S.; Breuer, K. S. Fluid effects in vibrating micromachined structures. Journal of Microelectromechanical Systems 2005, 14(4), 770–781.
  21. Veijola, T.; Råback, P. A method for solving arbitrary MEMS perforation problems with rare gas effects. Proceedings of the 8th International Conference on Modeling and Simulation of Microsystems, Anaheim; 2005; volume 3, pp. 561–564.
  22. Gross, W. A. Gas Film Lubrication.; Wiley: New York, 1962.
  23. Veijola, T.; Kuisma, H.; Lahdenperä, J.; Ryhanen, T. Equivalent circuit model of the squeezed gas film in a silicon accelerometer. Sensors and Actuators A 1995, 48, 239–248.
  24. Karniadakis, G. E.; Beskok, A. Micro Flows, Fundamentals and Simulation.; Springer: Heidelberg, 2002.
  25. Ebert, W A.; Sparrow, E. M. Slip flow in rectangular and annular ducts. Journal of Basic Engineering, Trans. ASME 1965, 87, 1018–1024.
  26. Mortensen, N. A.; Okkels, F.; Bruus, H. Reexamination of Hagen-Poiseuille flow: Shape-dependence of the hydraulic resistance in microchannels. Phys. Rev. E 2005, 71, 057301.
  27. Elmer. Elmer – finite element solver for multiphysical problems. 2006. http://www.csc.fi/elmer.
Sensors 07 01069f1 200

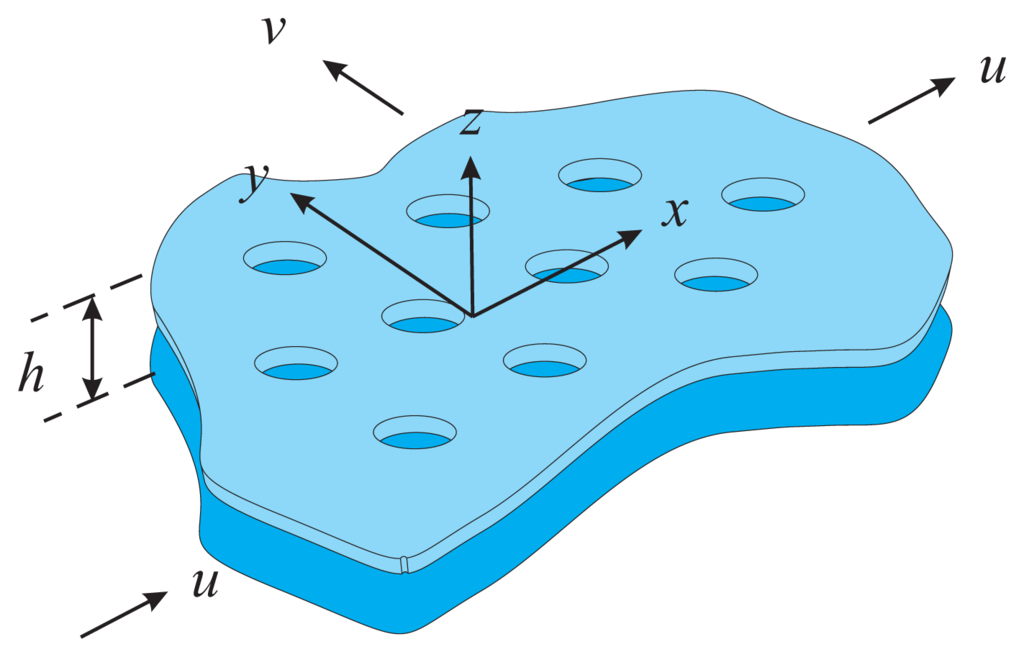

Figure 1. General geometry of a perforated gas damper.

Click here to enlarge figure

Figure 1. General geometry of a perforated gas damper.
Sensors 07 01069f1 1024
Sensors 07 01069f2 200

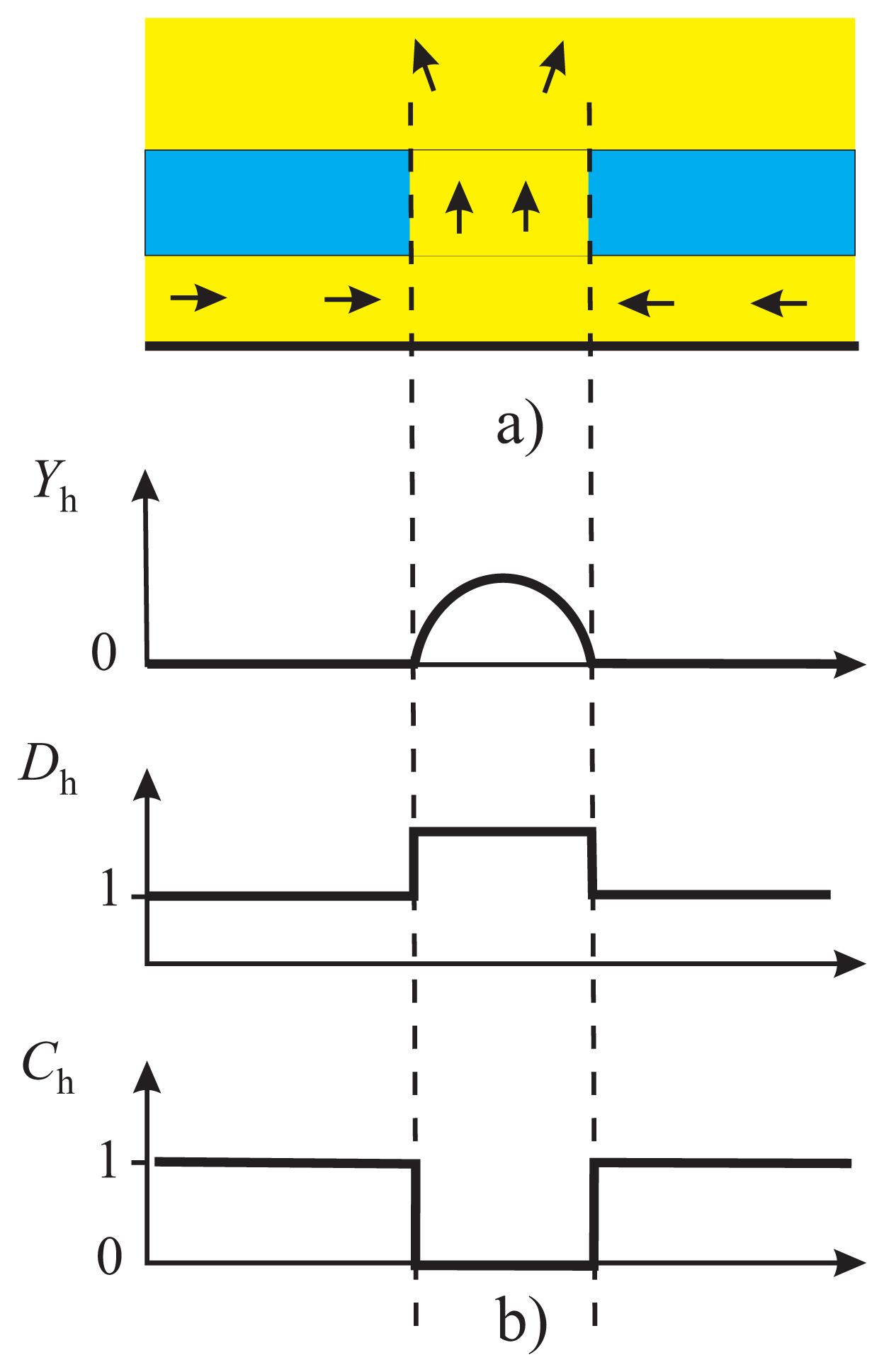

Figure 2. a) Topology of a single perforation in 2D and b) reduced profiles in 1D for Eq. (2).

Click here to enlarge figure

Figure 2. a) Topology of a single perforation in 2D and b) reduced profiles in 1D for Eq. (2).
Sensors 07 01069f2 1024
Sensors 07 01069f3 200

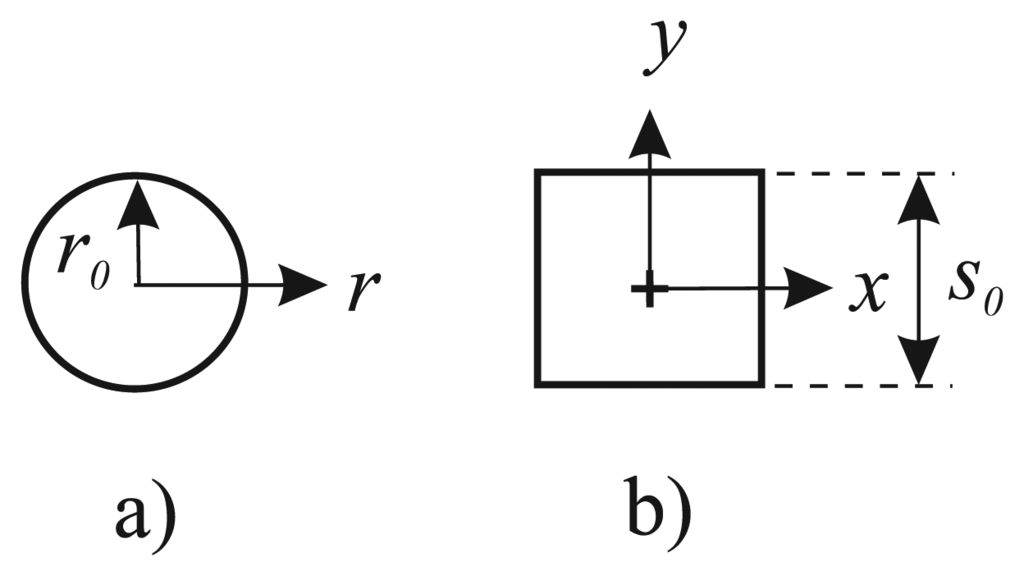

Figure 3. Cross-sections and dimensions of a) circular and b) square perforations.

Click here to enlarge figure

Figure 3. Cross-sections and dimensions of a) circular and b) square perforations.
Sensors 07 01069f3 1024
Sensors 07 01069f4 200

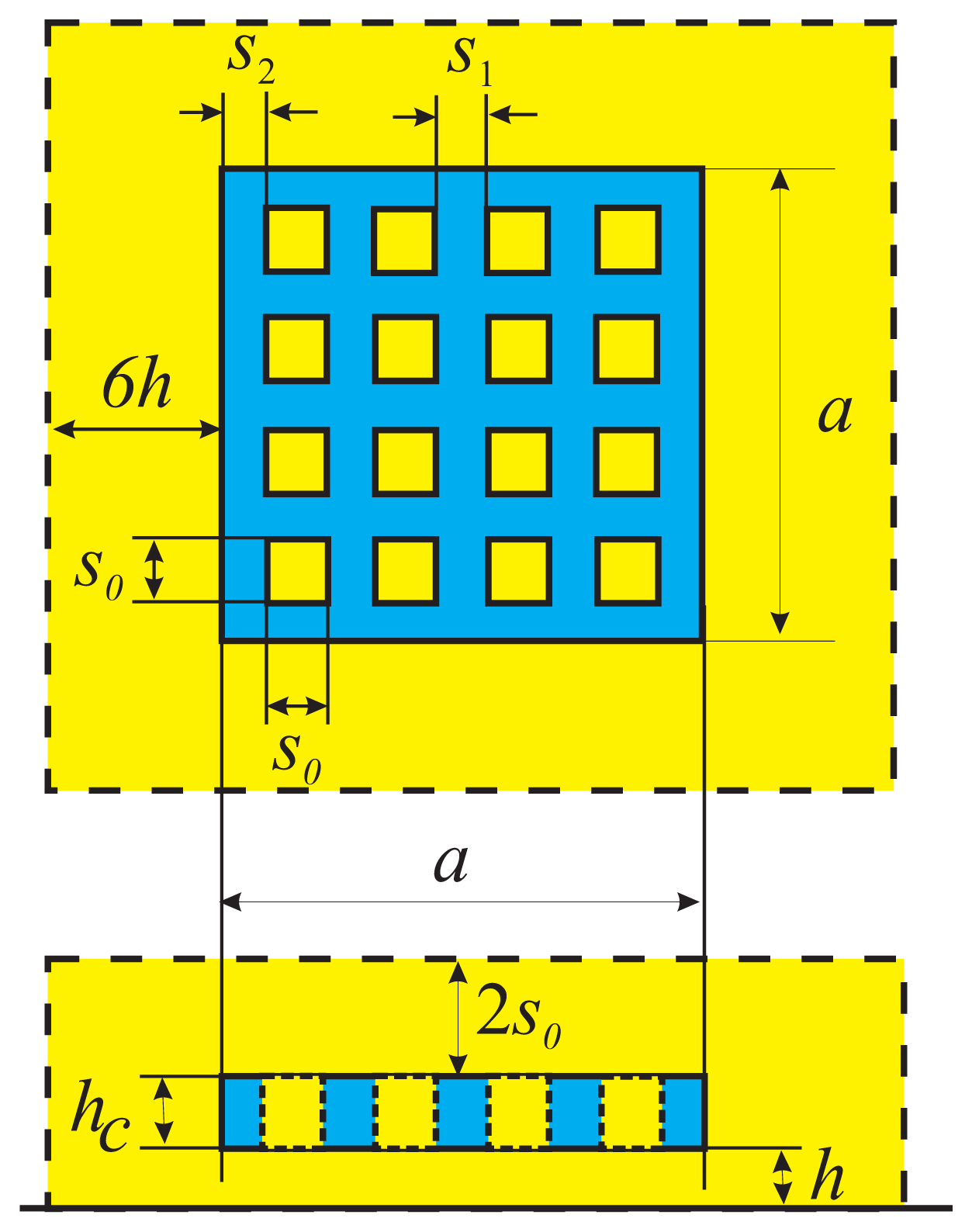

Figure 4. Structure of simulated dampers. Topology with N = 16 holes is shown. The figure also illustrates the simulation space around the structure in 3D N-S simulations. Here the width of the outer frame s2 is set equal to the separation of holes s1.

Click here to enlarge figure

Figure 4. Structure of simulated dampers. Topology with N = 16 holes is shown. The figure also illustrates the simulation space around the structure in 3D N-S simulations. Here the width of the outer frame s2 is set equal to the separation of holes s1.
Sensors 07 01069f4 1024
Sensors 07 01069f5 200

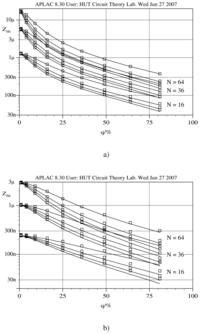

Figure 5. Damping coefficients of the perforated dampers in translational motion simulated with the full 3D N-S solver (□) and with the PPR solver (——) as a function of the perforation ratio. N is 16, 36, and 64, and the damper height hc is 0.5 μm, 1 μm, 2 μm, and 5 μm. The air gap height is a) 1 μm and b) 2 μm.

Click here to enlarge figure

Figure 5. Damping coefficients of the perforated dampers in translational motion simulated with the full 3D N-S solver (□) and with the PPR solver (——) as a function of the perforation ratio. N is 16, 36, and 64, and the damper height hc is 0.5 μm, 1 μm, 2 μm, and 5 μm. The air gap height is a) 1 μm and b) 2 μm.
Sensors 07 01069f5 1024
Sensors 07 01069f6 200

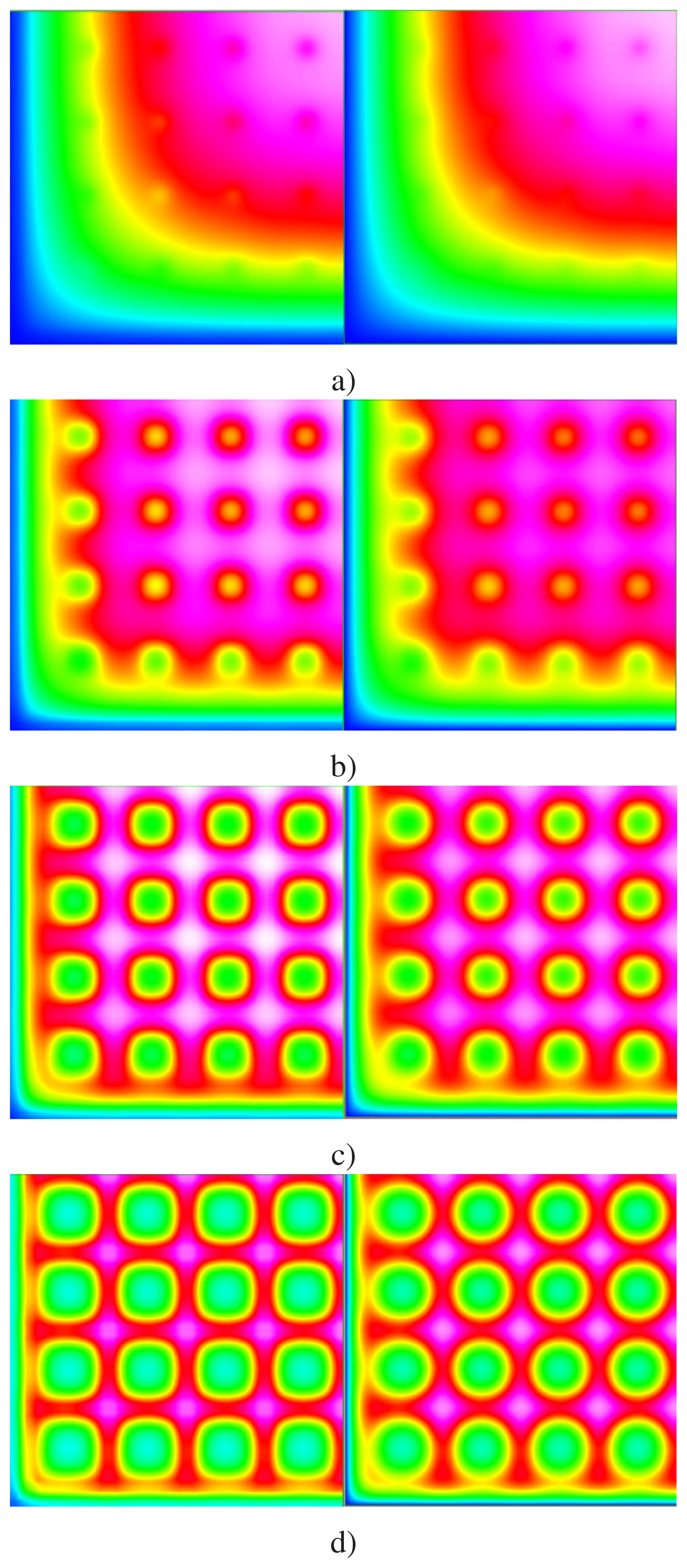

Figure 6. Pressure profiles on the bottom surface simulated with the full 3D N-S solver (left) and with the PPR solver (right) for translational movement. The hole diameters are: a) 1 μm, b) 2 μm c) 3 μm, and d) 4 μm. The number of perforations N = 64, the air gap height is h = 1 μm, and the surface height hc = 1 μm. Simulated quarters of bottom surfaces are shown.

Click here to enlarge figure

Figure 6. Pressure profiles on the bottom surface simulated with the full 3D N-S solver (left) and with the PPR solver (right) for translational movement. The hole diameters are: a) 1 μm, b) 2 μm c) 3 μm, and d) 4 μm. The number of perforations N = 64, the air gap height is h = 1 μm, and the surface height hc = 1 μm. Simulated quarters of bottom surfaces are shown.
Sensors 07 01069f6 1024
Sensors 07 01069f7 200

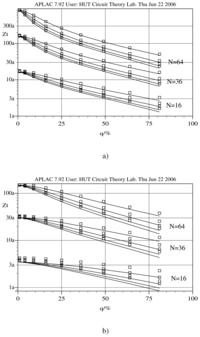

Figure 7. Damping coefficients of the perforated dampers in torsional motion simulated with the full 3D N-S solver (□) and with the PPR solver (——) as a function of the perforation ratio. N is 16, 36, and 64, and the damper height hc is 0.5 μm, 1μm, 2 μm, and 5 μm. The air gap height is a) 1 μm and b) 2 μm

Click here to enlarge figure

Figure 7. Damping coefficients of the perforated dampers in torsional motion simulated with the full 3D N-S solver (□) and with the PPR solver (——) as a function of the perforation ratio. N is 16, 36, and 64, and the damper height hc is 0.5 μm, 1μm, 2 μm, and 5 μm. The air gap height is a) 1 μm and b) 2 μm
Sensors 07 01069f7 1024
Sensors 07 01069f8 200
Figure 8. Topology and dimensions of the axisymmetric perforation cell.

Click here to enlarge figure

Figure 8. Topology and dimensions of the axisymmetric perforation cell.
Sensors 07 01069f8 1024
Sensors 07 01069f9 200
Figure 9. Mechanical resistances used in modelling the flow in different regions of a perforation cell.

Click here to enlarge figure

Figure 9. Mechanical resistances used in modelling the flow in different regions of a perforation cell.
Sensors 07 01069f9 1024
Table Table 1. Parameters for the simulated dampers. Altogether, 504 different topologies were generated and simulated.

Click here to display table

Table 1. Parameters for the simulated dampers. Altogether, 504 different topologies were generated and simulated.
DescriptionValuesUnit
Number of holes N16, 36, 64
Surface length a20, 30, 4010−6 m
Hole diameter s00.5, 1.0,…, 4.510−6 m
Thickness hc0.5, 1, 2, 510−6 m
Air gap height h1, 210−6 m
Viscosity coefficient η2010−6 Ns/m2
Mean free path λ6910−9 m
Table Table 2. Maximum relative errors in the translational motion damping coefficient Zm simulated with the PPR method. Each row includes cases for d = 1 μm or 2 μm and hc = 0.5 μm … 5 μm Comparison is made against the 3D simulations with the N-S solver.

Click here to display table

Table 2. Maximum relative errors in the translational motion damping coefficient Zm simulated with the PPR method. Each row includes cases for d = 1 μm or 2 μm and hc = 0.5 μm … 5 μm Comparison is made against the 3D simulations with the N-S solver.
s0
μm
q
%
Max. relative error [%]

N =16N =36N =64
0.51-4.8-2.3-1.4
1.04-4.9-2.3-3.4
1.59-4.8-2.3-1.8
2.016-4.8-2.8-3.4
2.525-5.7-4.9-5.0
3.036-8.3-7.7-7.7
3.549-11.6-11.2-10.9
4.064-15.6-15.1-15.1
4.581-19.8-19.3-19.3
Table Table 3. Maximum relative errors in the torsional motion damping coefficient Zt simulated with the PPR method. Each row includes cases for d = 1 μm or 2 μm and hc = 0.5 μm … 5μm. Comparison is made against the 3D simulations with the N-S solver.

Click here to display table

Table 3. Maximum relative errors in the torsional motion damping coefficient Zt simulated with the PPR method. Each row includes cases for d = 1 μm or 2 μm and hc = 0.5 μm … 5μm. Comparison is made against the 3D simulations with the N-S solver.
s0
μm
q
%
Max. relative error [%]

N =16N =36N =64
0.51-18.0-8.0-4.4
1.04-18.4-8.3-4.6
1.59-18.7-8.4-4.6
2.016-19.0-8.5-4.8
2.525-19.6-8.8-7.2
3.036-20.4-11.3-9.7
3.549-21.9-15.1-13.7
4.064-24.3-19.5-18.0
4.581-28.5-24.3-22.9
Table Table 4. Maximum relative errors in the translational motion damping coefficient Zm simulated with the homogenisation method. Each row includes cases for d = 1 μm or 2 μm and hc= 0.5 μm … 5 μm. Comparison is made against the 3D simulations with the N-S solver.

Click here to display table

Table 4. Maximum relative errors in the translational motion damping coefficient Zm simulated with the homogenisation method. Each row includes cases for d = 1 μm or 2 μm and hc= 0.5 μm … 5 μm. Comparison is made against the 3D simulations with the N-S solver.
s0
μm
q
%
Max. relative error [%]

N =16N =36N =64
0.51-4.9-2.31.9
1.04-5.06.46.0
1.598.810.69.7
2.0169.49.68.7
2.5257.67.56.6
3.036-8.25.25.0
3.549-11.3-6.6-4.3
4.064-15.1-9.4-6.6
4.581-19.6-13.0-9.3
Table Table 5. Maximum relative errors in the translational motion damping coefficient Zm simulated with the PPR method. Average specific admittances are used for the perforation and Dh = 1. All other simulation parameters are the same as in the simulations in Table 2.

Click here to display table

Table 5. Maximum relative errors in the translational motion damping coefficient Zm simulated with the PPR method. Average specific admittances are used for the perforation and Dh = 1. All other simulation parameters are the same as in the simulations in Table 2.
s0
μm
q
%
Max. relative error [%]

N =16N =36N =64
0.51-4.8-2.31.6
1.04-4.9-2.3-7.8
1.59-4.7-2.5-4.2
2.016-6.9-5.5-7.0
2.525-10.8-10.5-12.6
3.036-16.0-15.8-15.2
3.549-21.2-20.8-21.0
4.064-25.7-25.2-24.8
4.581-29.5-27.2-28.6
Table Table 6. Maximum relative differences in the translational motion damping coefficient Zm simulated with 3D N-S solver with 250 000 and 450 000 elements.

Click here to display table

Table 6. Maximum relative differences in the translational motion damping coefficient Zm simulated with 3D N-S solver with 250 000 and 450 000 elements.
s0
μm
q
%
Maximum difference [%]

N =16N =36N =64
0.510.21.01.0
1.040.20.51.9
1.590.50.81.8
2.0160.31.01.1
2.5250.50.62.4
3.0360.40.41.8
3.5490.60.71.5
4.0640.4-1.81.2
4.5810.42.12.0
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
