Article

Improvement of Flame-made ZnO Nanoparticulate Thick Film Morphology for Ethanol Sensing

1
Department of Physics, Faculty of Science, Chiang Mai University, Chiang Mai 50200, Thailand
2
Nanoscience Research Laboratory, Department of Chemistry, Faculty of Science, Chiang Mai University, Chiang Mai, Thailand 50200
*
Author to whom correspondence should be addressed.
Sensors 2007, 7(5), 650-675; https://doi.org/10.3390/s7050650
Submission received: 19 April 2007 / Accepted: 11 May 2007 / Published: 15 May 2007

Abstract

:
ZnO nanoparticles were produced by flame spray pyrolysis using zinc naphthenate as a precursor dissolved in toluene/acetonitrile (80/20 vol%). The particles properties were analyzed by XRD, BET. The ZnO particle size and morphology was observed by SEM and HR-TEM revealing spheroidal, hexagonal, and rod-like morphologies. The crystallite sizes of ZnO spheroidal and hexagonal particles ranged from 10-20 nm. ZnO nanorods were ranged from 10-20 nm in width and 20-50 nm in length. Sensing films were produced by mixing the nanoparticles into an organic paste composed of terpineol and ethyl cellulose as a vehicle binder. The paste was doctor-bladed onto Al2O3 substrates interdigitated with Au electrodes. The morphology of the sensing films was analyzed by optical microscopy and SEM analysis. Cracking of the sensing films during annealing process was improved by varying the heating conditions. The gas sensing of ethanol (25-250 ppm) was studied at 400 °C in dry air containing SiC as the fluidized particles. The oxidation of ethanol on the surface of the semiconductor was confirmed by mass spectroscopy (MS). The effect of micro-cracks was quantitatively accounted for as a provider of extra exposed edges. The sensitivity decreased notably with increasing crack of sensing films. It can be observed that crack widths were reduced with decreasing heating rates. Crack-free of thick (5 μm) ZnO films evidently showed higher sensor signal and faster response times (within seconds) than cracked sensor. The sensor signal increased and the response time decreased with increasing ethanol concentration.

1. Introduction

In the field of gas sensors, it is well known that ethanol vapor is one of the most exhaustively studied gases. Metal oxide semiconductor, usually representing a property that the electrical conductivity varies with the composition of the gas atmosphere surrounding it is a popular and useful sensing material for ethanol vapor sensing. Many researchers have developed ethanol vapor sensors based on semiconductor metal oxide. Several oxide materials commonly used as ethanol gas sensors including pure and metal-doped e.g. SnO2 [1-11], In2O3 [12, 13], TiO2 [8, 14-19], ZrO2 [8], WO3[7, 18], MoO3[18], Cu2O [20], and ZnO [21-54], especially ZnO is known to be one of the earliest discovered and the most widely applied oxide gas sensing material.
Zinc oxide (ZnO) is an n-type semiconductor of wurtzite structure, with a direct large-band gap of about 3.37 eV at low temperature and 3.30 eV at room temperature [54-56]. It is sensitive to many sorts of gases at moderate temperature, especially for ethanol vapor [21-54]. ZnO is one of the most widely applied oxide-gas sensor. ZnO gas sensing materials owe to their high chemical stability, low cost, and good flexibility in fabrication. ZnO sensor elements have been fabricated in various forms including single crystal [21, 24, 25, 53], sinter pellet [27, 30, 31], thin film [23, 34, 38-40, 44, 45, 47], and thick film [22, 46, 49, 54]. The gas sensing mechanism involves chemisorptions of oxygen on the oxide surface followed by charge transfer during the reaction between chemisorbed oxygen reducing and target gas molecules. However, the physical and sensing properties of semiconductor gas sensors are directly related to their preparation e.g. particle size, sensing film morphology, and film thickness [57-66] as well as sensing film characteristics.
Flame aerosol technology is the key process for large-scale production of nano-structured materials such as carbon blacks, fumed SiO2 and TiO2 and to a lesser extent, for specialty chemicals such as Al2O3 and ZnO powders. Flame aerosol synthesis is a cost-effective and versatile process for controlled production of nanoparticles. Flame spray pyrolysis (FSP) process was systematically investigated using an external-mixing gas-assisted atomizer supported by premixed methane and oxygen flamelets [67, 68]. In flame reactors, the energy of flame is used to drive chemical reactions of precursors resulting in clusters which further grow to nanoparticles by surface growth and/or coagulation and coalescence at high temperature [69]. The advantage of FSP include the ability to dissolve the precursor directly in the fuel, simplicity of introduction of the precursor into the hot reaction zone (e.g. a flame), and flexibility in using the high-velocity spray jet for rapid quenching of aerosol formation. In general, a flame is used to force chemical reactions of precursor compounds, finally resulting in the formation of clusters, which increase their size to a range of some nanometers by coagulation and sintering. Finally, the nanostructured powders are collected on a filter [70, 71]. Moreover, at low oxidant flow rates, the specific surface area increased with increasing oxidant flow rate as the spray flame length was reduced, leading to shorter residence time and allowing less time for particle growth. Using oxygen as oxidant the droplets burn much faster than in air, thus, product particles experience longer residence times at higher temperature [70, 72]. The effect of solution feed rate on particles specific surface area and crystalline size was also investigated [73]. The solution feed rate increased the flame height, and therefore coalescence was enhanced, resulting in large primary particles [73]. Furthermore, the flame conditions can be used to control the morphology of particles. ZnO nanorods formation were produced by FSP, which was described by XRD lattice aspect ratio [74, 75].
Many researchers reported that pure ZnO [21-27] and metal-doped ZnO [28-36] were widely used to detect ethanol vapor. For examples, ZnO thin films were produced by spray pyrolysis [23]. Film layers of 20 μm in thickness showed sensor signal in terms of rather high ethanol concentration (1000-5000 ppm) at 150-350°C. At high operating temperature, they did not depend on the concentration of ethanol [23]. An ethanol sensor based on ZnO nanorods prepared by hydrothermal method [24] showed high sensitivity to ethanol concentration ranging from 10 to 2000 ppm at 330°C, with good response and recovery time. Furthermore, ZnO nanowire ethanol gas sensor showed high sensor signal and fast response to ethanol gas at concentration up to 200 ppm with operating temperature of 300°C [25]. In addition, pure ZnO nanorods and nano-needles produced by hybrid induction and laser heating (HILH) technique also showed capability to produce sensors with good sensor signal at a maximum temperature around 400°C for a concentration of 100 ppm of volatile organic compounds (VOCs) including acetone, toluene, and ethanol. 4.58 at% In/ZnO showed highest sensor signal compared to pure ZnO [29]. Also Al/ZnO thin films were prepared by RF magnetron sputtering on Si substrate using Pt as interdigitated electrodes. The gas sensing results showed that the sensor signal for detection 400 ppm ethanol vapor was about 20 at an operating temperature of 250 °C [38]. Therefore it is interesting to apply FSP for production of ZnO nanoparticles [72-73] as used in gas sensor of ethanol vapor.
Many researchers mentioned a variety of techniques used to prepare the sensing films, i.e. plasma enhanced chemical vapor deposition (PECVD) [39], spray pyrolysis [23, 39], screen printing [49, 62], dip-coating [14, 40], and doctor-blade [54, 76, 77]. Particularly, doctor-blade technique has several advantages in producing the sensing thick films suitable for the gas sensor including relatively homogeneous composition, regularities in the film thickness, and easy control of film thickness. Therefore, it is important to investigate the most suitable thickness and sensing surface for the ethanol sensor based on flame-made ZnO nanoparticles.
Cracking formation phenomenon is one of the most serious problems when physical properties changes; film thickness [54, 65, 66, 78] were formed on substrate with different thermal expansion coefficient from the film [79-82]. The heating rates were too fast to form the cracks in the thick film [83]. Annealing of films is also of relevance to the general problem of constrained annealing [84]. Damage during constrained annealing typically begins in the early stages of densification and near preexisting defects. It can be in the form of macroscopic cracks, diffuse damage, or a combination of the two. Therefore, crack-free thin film sensing layer should show a good sensing behavior of sensor materials based on flame-made ZnO nanoparticles.

2. Experimental

2.1. Flame-made ZnO Nanoparticles

Precursor solutions (0.5 M) were prepared by dissolving appropriate amounts of zinc naphtenate (Strem, 10 wt% Zn) in toluene (Riedel deHaen, 99.5%)/acetonitrile (Fluka, 99.5%) mixtures with ratio of 80/20 vol%. In a typical run, the as-prepared precursor mixture was fed into a nozzle at a constant feed rate of 5 ml/min using a syringe pump (Inotech). At the end of the nozzle the precursor solution was dispersed by 5 ml/min oxygen forming a spray with a pressure drop at the capillary tip kept constant at 1.5 bars by adjusting the orifice gap area. This flame conditions will be depicted as 5/5 flame. The spray was ignited by supporting flamelets fed with oxygen (2.4 l/min) and methane (1.13 l/min) which are positioned in a ring around the nozzle outlet. The flame height was 10 cm and showed a yellowish-orange flame appearance as shown in the inset. After evaporation and combustion of precursor droplets, particles are formed by nucleation, condensation, coagulation and coalescence. Finally, the nanoparticles were collected on a glass microfibre filters (Whatmann GF/A, 25.7 cm in diameter) with the aid of a vacuum pump. The flame made (5/5) ZnO as-prepared nanopowders were designated as P0.

2.2. Particle Characterization

X-ray diffraction (XRD) patterns of the powder as-prepared and sensing film were obtained with a Bruker AXS D8 Advance diffractometer (40 kV, 40 mA, Karlsruhe, Germany) operating with CuKα radiation at 2θ = 20-80° with a step size of 0.06° and a scanning speed of 0.72°/minute. The fundamental parameter approach and the Rietveld method [85] were applied to determine the hexagonal phase and the crystallite size of nanopowder. The phase and the corresponding sizes were calculated using the software TOPAS-3. The specific surface areas of ZnO nanoparticles was determined with the 5-point nitrogen adsorption measurement applying the Bruneauer-Emmett-Teller (BET) method [86] at 77 K (Micromeritics Tristar 3000). All samples were degassed at 150°C for 1 h prior to analysis. The diameter of particles can be calculated by dBET = 6 / SSABET * ρsample, where SSABET is the specific surface area (m2/g) and ρsamples is the density of ZnO (ρZnO = 5.61 * 103 kg/m3) [73]. The morphologies of nanoparticles of sample P0 were observed by the scanning electron microscopy (SEM) (JSM-6335F, JEOL) and high-resolution transmission electron microscopy (HR-TEM) using the Tecanai 30F microscope (Philips; field emission cathode, operated at 300 kV) and JSM-2010, JEOL. The HR-TEM bright-field images were obtained using a slow-scan CCD camera.

2.3. Preparation of Sensor

2.3.1 Paste Preparation

An Al2O3 substrate interdigitated with Au electrodes (Au/Al2O3; 10 × 10 × 0.1 mm; Electronics Design Center, MicroFabrication Lab, Case Western Reserve University) was used as a sensor substrates designated as A0. An appropriate quantity of 0.28 ml homogeneous mixed solution was prepared by stirring of ethyl cellulose (Fluka, 30-60 mPa.s) as the temporary binder and terpineol (Aldrich, 90%) as a solvent with a mixing ratio of 480 mg to 18 g. The viscous mixture was combined with 70 mg of samples P0 and mixed to form a paste for 30 min prior to doctor-blade.

2.3.2 Cracking Improvement and Sensing Surface Characterizations

Fig. 1 and Table 1 show the heating conditions (HC), which varied to improve crack formation and crack width. With the influence of HC, all sensor substrates samples were doctor-bladed and annealed continuously at 50, 75, 100°C with the rate varied to 0.5, 1, 2, 5, 10, 20°C/min for 1 h, and kept constant at 400°C with the rate of 2°C/min for 2 h by annealing the appropriate temperature for complete binder removal [62, 87-90], and then subsequently cooled down to 20°C with the rate of 5°C/min. The various HC were designated as HC1, HC2, HC3, HC4, HC5, and HC6, respectively. Finally, an optical surface analysis in terms of a surface morphology and cracking phenomenon was performed using a microscope with an UV-source (Zeiss Axioplan 2@; Carl Zeiss, Germany). Images were processed using Zeiss Axio version and applicable AxioCam MRc.

2.3.3 Doctor-bladed Thick Film Preparation

A schematic of doctor-blade processing used to fabricate the sensor which involves smearing the paste across the template, removing the resist and annealing the paste, was shown in Fig. 2. The resulting paste doctor-bladed on the Al2O3 substrates interdigitated with Au electrodes were prepared [76, 77]. All substrates were taped (Scotch Magic™ tape; Art. Nr.11110300, Ethilux,Germany) upon the edges for 1 tape which control the film thickness to be approximately 5 μm prior to doctor-blade. We believe that the tape plays an important role in controlling the thick films layer by providing a template for film thickness formation (1 tape can control thickness approximately 5 μm). The resulting substrates were heated in an oven in the same conditions of HC1 and HC6 prior to sensing test. The crack-free and the most crack sensor were obtained. Finally, the gold bonding was fabricated using pure gold wires (Alfa Aesar, 0.2 mm (0.008in) dia, 99.9% (metal basis)) that were put through the tiny holes of gold electrodes by soldering.

2.4. Characterization of Gas Sensing Properties and Mass Spectrometry Measurements

The sensor measurement has been performed to monitor the response to ethanol (25-250 ppm) in dry air N2/O2 atmosphere. The pulse time of the gas at each concentration was usually 180 s. A schematic of the sensor experimental set up was shown in Fig. 3. The sensor samples were placed in the center of quartz tube (3 cm diameter and 60 cm length) containing SiC as the fluidized particles (1/2 of quartz tube length), which in turn was introduced into a tubular oven (Nabertherm Controller P320, Germany). The vibrating fluidized bed (VFB) has been applied commercially to various processes, such as heat exchange, particle processing and chemical reaction, etc. The mechanical vibration imposed on a fluidized bed can significantly improve gas-solid contact and gas transport characteristics [91, 92]. Gold wires were soldered to the sensor Au electrodes externally connected with a digital multimeter (KEITHLEY model 2700 DMM, Germany) to record the sensor resistance. The furnace was heated to 400 °C and kept at this temperature during the sensor test. The total gas flow rate of 2 l/min was passed through the quartz tube and controlled by mass flow controllers (Bronkhorst HITEC, Germany). By monitoring the output voltage across the sensor, as the operating temperature increased up to 400°C, the resistances of the sensor in dry air and in test gas were alternately increased and decreased. The analyte ethanol gas adsorbs on the ZnO sensing layer and causes a change in resistance depending on the gas concentration. This is monitored by a digital multimeter connected to the sensor substrate with Au wires. The measurement was done in 21% accompanying O2 and 0% H2O with 79% N2. The sensors were allowed to stabilize for at least 1 h at the operating temperature (400 °C) and N2/O2 flow. The sensor signal, S is defined in the following as the resistance ratio Ra/Rg for the reducing gas (ethanol) [24, 29], where Ra is the resistance in dry air, and Rg is the resistance in test gas. The response time, Tres is defined as the time required until 90 % of the response signal is reached. The recovery times, Trec denotes the time needed until 90 % of the original baseline signal is recovered. Moreover, the sensor experimental set up was applicably connected with mass spectrometer (MS) for ethanol sensing interaction with oxygen on the surface of semiconductor material measurement. After annealing and sensing test of sensors fabricated using samples P0 with controlled the sensing film thickness and sensing layer morphology using the HC1 and HC6, they were designated as S1 and S6, respectively. Finally, all sensing layers morphologies were analyzed by SEM analysis.

3. Results and Discussion

3.1. Particles Properties

Fig. 4 shows the XRD patterns of samples as-prepared (P0), Au/Al2O3 substrate (A0), crack-free (S1) and the most cracked sensors (S6) after annealing and sensing test at 400°C. The samples P0 were highly crystalline, and all peaks can be confirmed to be a hexagonal structure of ZnO (Inorganic Crystal Structure Database [ICSD] Coll. Code: 067454 [93]), which matches well with the model by Abrahams et al. [94]. The diffraction peaks were slightly sharp for sensor samples S1 and S6 as compared to sample P0, suggesting relatively larger particles during the resistance stabilization and sensing test. The diffraction patterns of Al2O3 (modified structural parameters of ICSD Coll. Code: No. 085137 [95]) (filled diamonds) and Au (modified structural parameters of ICSD Coll. CAS No. 7440-57-5 [96]) (filled rectangular) from the substrates are also visible in the A0, S1 and S6, especially, the sensors S1 and S6 showed ZnO peaks (filled circles), which confirm the ZnO thick film sensing layer doctor-bladed on Au/Al2O3 substrates. Also the Au (111) peak showed the strongest peak in terms of intensity. The average crystal sizes (dXRD ave.) were calculated by the fundamental parameter approach Rietveld method [85] based on the half-maximum widths of Sherrer's equation [97] to compare with the average BET-equivalent particle diameter (dBET). The diffraction peaks were slightly sharp for sensor S1 and S6 after sensing test at 400°C as compared to sample P0 (P0, SSA=63.8 m2/g, dBET=16.8 nm, dXRD ave.=18.3 nm). Nevertheless, accurate particles size, the morphology of nanoparticles, and elemental compositions can be confirmed by TEM bright-field images and EDS analyses.
Fig. 5 shows SEM images of highly crystalline flame-made (5/5) ZnO nanoparticles at low magnification. The flame-made ZnO nanoparticles showed rather dispersion of particles, with diameters ranging from 10–20 nm. While the SEM images provide 3-D morphology and estimated particle sizes, TEM images can reveal internal structure and a more accurate measurement of particle size and morphology.
Fig. 6 (a) and (b) show the bright-field TEM images of samples P0 observed at the different magnifications. The corresponding diffraction patterns are shown in the insets. The diffraction patterns illustrating spot patterns of the hexagonal structure of ZnO indicated that the ZnO nanoparticles are highly crystalline, which is in good agreement with the XRD data. The flame-made ZnO nanoparticles can be observed as particles having the clear rod-like, hexagonal, and spheroidal shapes. Fig. 6 (a) and 6 (b) shows the morphologies of flame made (5/5) ZnO nanoparticle containing mainly spheroidal particles typically with diameters ranging from 10-20 nm with occasional hexagonal and rod-like particles. The crystalline sizes of ZnO hexagonal particles were in the range of 10-20 nm, and nanorod-like particles were in the range of 10-20 nm in width, 20-50 nm in length. This is consistent with Tani et al. [73] and Height et al. [74, 75]. Fig. 6 (c), and (d) gave the EDS elemental compositions signals associated with regions as indicated. EDS 1 and EDS 2 emphasized the signals for Fig. 6 (a) and (b) corresponding to Zn and O, while Cu and C caused by the contamination from the copper grid coated with carbon.

3.2. Cracking thick film sensing layer improvement

3.2.1. Influence of heating rate

Many factors can affect crack formation including binder removal, heating rate, temperature, and time. Cracks formation usually results from inhomogeneities in the green body. Often, cracks that appear in annealing are carried over from shaping operations but are enlarged during annealing. Even in this simple case the annealing shrinkage depends on several factors: green density, particle sizes, mixture composition, and mixture homogeneity. For mixed-powder systems, the homogeneity of the powders is a major factor. The distribution of the additive improves as its particle size decreases, and mixing prior to compaction is often beneficial. Moreover, for the powder formed by binder-assisted technique, when it was heat up to the burnt out temperature, the binder removal could be performed. The stresses associated with compact shrinkage during annealing often are near the annealing stress. When the annealing stress and flaw join together, a critical condition can arise where the stress concentration at the flaw exceeds the compact strength. This leads to flaw growth, just as a crack formation easily through any material. Crack in the green body enlarge during annealing. The annealing process is an important aspect to heating. The compact exterior of particles caused by heating, initial melting at the surface, the circumferential shrinkage stresses, and binder removal lead to the cracking of the component if the heating rate is too rapid [83, 84, 98]. Once a melt was formed at the compact surface, it flows into the interparticle pores and subsequently can penetrate the grain boundaries in the particles. Thus, the heating rate is an essential part in controlling the microstructure evaluation in the annealing process. The influence of heating rate can be clearly seen in Fig. 7 (a-f). It was found that sample annealed using a HC1 showed crack-free formation and regular surface. Crack width evidently increased with increasing the HC as seen in HC2 to HC6. Several cracking phenomena were proposed such as the large polycrystalline grains were formed by necking and merging of small grains during the annealing process. The cracks between large grains were formed when the small grains become closer and agglomerated during the heating process and shrinkage occurred during the cooling process. When the heating rate was very slow (0.5°C/min) the crack-free film was formed and showed significant difference compared to different heating rates. On the other hand, when the heating rate was very fast (20°C/min) crack formation were formed.
Cracks increased with increasing the heating rate during annealing process because large grains or crack gaps caused the decreasing in the surface area, connectivity of films and deteriorating film properties of the electronic materials. Fig. 8 shows how the morphology changes with increasing the heating rate as the same film thickness. Cracks showed up when the films shrank as a result of grain growth in the annealing process. It is suspected that the cracks do not penetrate through the film down to the bottom. Crack formation can be formed with the difference in the thermal expansion coefficient mismatch between substrate, materials. The heating rates causing these cracks were related directly to tensile stress. It has been found that the sample annealed using very fast heating rates showed more cracks than slower heating rates [83, 84].

3.3. Gas Sensing Properties

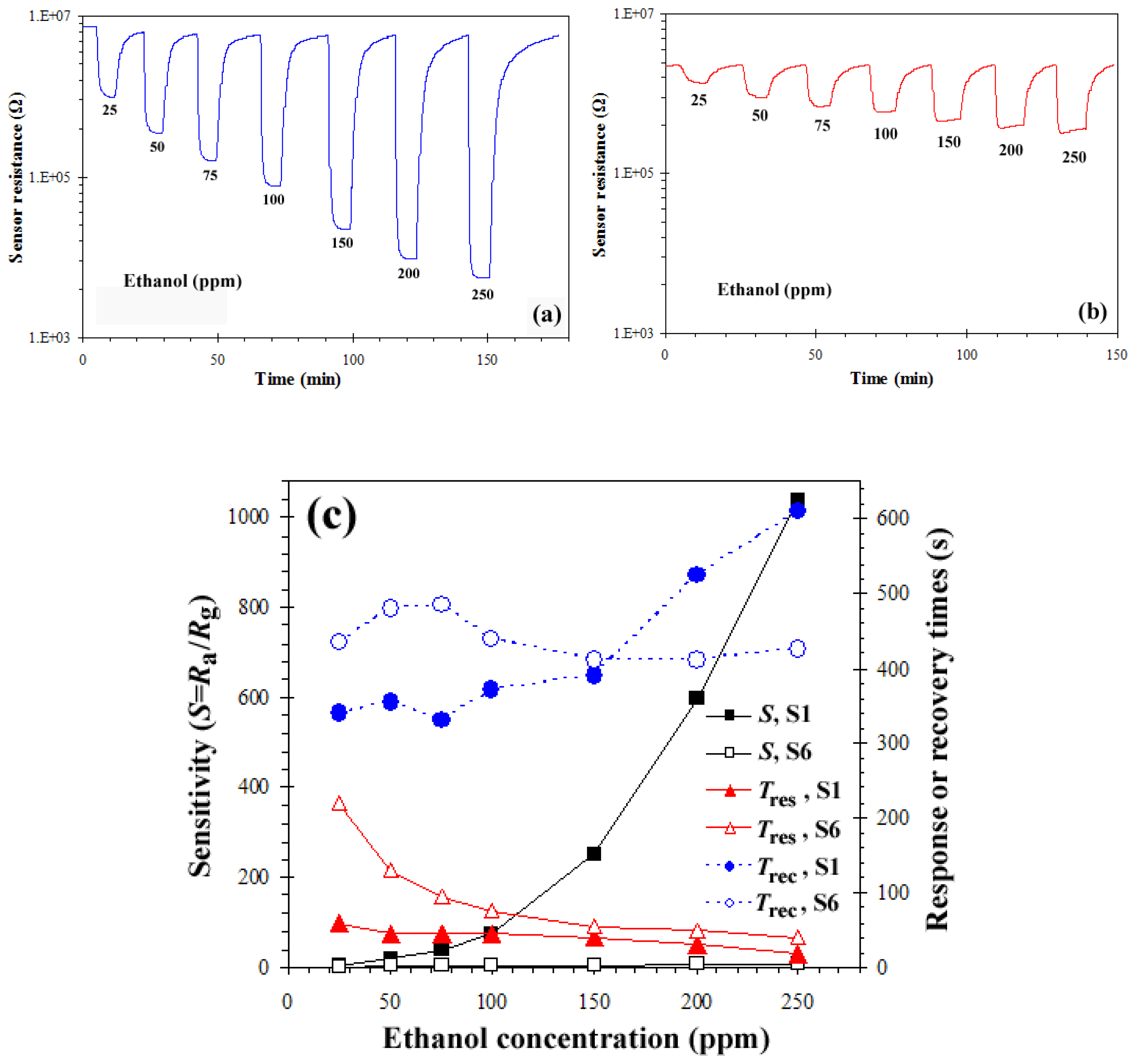

Fig. 9 illustrates the sensor behaviors versus the ethanol concentrations ranging from 25-250 ppm plot for the crack-free (S1) and the most cracked (S6) sensor based on an as-prepared flame-made (5/5) ZnO nanoparticles towards reducing gas ethanol at sensing operating temperature 400 °C. Zhu et al. [9] reported that the sensor signal of ZnO showed a maximum around 400 °C for all organic vapors such as acetone, benzene, ethyl alcohol etc. Better response should be expected for larger concentration of reducing gas adsorbed, because the reaction between the adsorbed reducing gas and oxygen species becomes more favorable. From this data, as the crack increases (sensor S6), it can be clearly noticed that the crack-free sensor (S1) can improve the sensor behaviors in terms of sensor signal and response times, evidently better than S6. Fig. 9 (a) shows the change in resistance of crack-free sensor S1 under exposure to ethanol at 25-250 ppm during a forward cycle. The resistance decreased drastically during the gas exposure, a typical behavior for ZnO as an n-type semiconductor [25]. The sensor S1 showed the crack-free morphology on sensing surface corresponding to the high performance and sensing behaviors in terms of sensor signal, response and recovery times. The high sensor signal of sensor S1 to 250 ppm ethanol concentration was 1038. On the other hands, the change in resistance of the most crack sensor S6 under exposure to ethanol at 25-250 ppm during a forward cycle was shown in Fig. 9 (b). The sensor signal was very low compared with sensor S1 as the same ethanol concentrations (to 250 ppm, S=6.9). The Tres was slightly sluggish. This is because the serious crack widths caused the decreasing in the surface area, connectivity of films, and deteriorating a gas sensing properties. It can be assumed that the decreasing of the sensing film surface areas (serious crack) affected to decrease the depletion layer at the surface, thus the reaction of reducing ethanol gas with the charged oxygen species destroyed the electron localization process drastically reduced and a change in conductivity was decreased. Thus, the most crack should be shown the lower sensing performance than the crack-free sensor. Fig. 9 (c) showed the plot of sensor signal of sensor S1 (filled rectangles, left axis) and S6 (open rectangles, left axis) during the forward cycle of the ethanol sensor test in Fig. 9 (a) and 9 (b). The sensor signal consistently increased with increasing ethanol concentration. The response (solid line, right axis) times of sensor S1 (fill triangles) and S6 (open triangles) and recovery time (dashed line, right axis) times of sensor S1 (fill circles) and S6 (open circles) during the forward cycle were also included in Fig. 9 (c). The response time, Tres, was within seconds, it slightly decreased at increasing ethanol concentrations (in the order of 10 s). Tres was 60 and 20 s for sensor S1 at 25 and 250 ppm, respectively. Tres was 220 and 40 s for sensor S6 at 25 and 250 ppm, respectively. The trend of Trec was so long within minutes. Compared with the same material references reported by Liu et al. [21], these sensors produced from flame-made ZnO nanoparticles have higher sensor signal and shorter response times than those made from ZnO single crystal flakes with different sizes and morphology of particles (to 300 ppm, S=14.3, Tres=62 s). Also Zhu et al. [29] reported that ZnO nanorods and needle-shaped had a sensor response to 100 ppm of ethanol at 420°C of 12. Moreover, Choopun et al. [42] reported that ZnO nanobelts RF-sputtered onto a copper tube. The sensor tested at operating temperatures ranging from 200-290°C with ethanol concentration levels of 50-2000 ppm, e.g. at 220°C, when the ethanol concentration increased from 50 to 1000 ppm, the sensor signal increased from 7.3 to 23.2. In addition, Lv et al. [43] reported that the sensor fabricated from ZnO nanorods with average diameter about 95 nm and tested at operating temperatures ranging from 150-450°C under exposure of ethanol gas. It showed the highest sensing performance (to 100 ppm, S=120) at 450°C. The sensor signal to 1000 ppm ethanol gas enhanced with the increasing of operating temperature from 293 to 450°C. For comparison with doping material, Zhu et al. [28] reported that the highest sensing behaviors to ethanol was at 370°C of pure ZnO (to 100 ppm, S=15) and ZnO incorporated with 10 wt%TiO2 (to 100 ppm, S=50, and to 200 ppm, S= 80) sensor. Also Chou et al. [38] reported the ethanol sensing of ZnO doped with Al thin films prepared by RF magnetron sputtering on Si substrate interdigitated with Pt electrodes. The gas sensing results showed the sensor signal for detecting 400 ppm ethanol vapor was about 20 at 250°C. The response and recovery times were about 2-4 min, with good reproducibility. Comparing with different materials, Teleki et al. [14] reported the flame-made TiO2 spherical particles film about 30 μm thick prepared by drop-coating of heptanol suspension of these powders, and the sensing test at 500°C with ethanol at concentration ranging from 10-75 ppm. A sensor showed the highest sensor signal at 75 ppm (S=30) in ethanol concentration. It can be clearly seen that the crack-free sensor based on high purity of flame-made ZnO nanoparticles showed very high sensor signal and also faster response time than the most cracked sensor at the highest ethanol concentration.
The interaction between the reducing gas ethanol and lattice oxygen O o x in a metal oxide such as ZnO can be described in general by the following defect reaction (in Kröger-Vink notation) [21]:
6 O o x + C 2 H 5 OH ( g ) 2 CO 2 ( g ) + 3 H 2 O ( g ) + 6 V ⋅⋅ o + 12 e
Similarly, the interactions between reducing gas ethanol and surface-adsorbed oxygen species [21, 31, 99] such as superoxide ion O 2 and peroxide ion O 2 2 can be described as
3O 2 + C 2 H 5 OH ( g ) 3 H 2 O ( g ) + 2 CO 2 ( g ) + 3 e
3O 2 2 + C 2 H 5 OH ( g ) 3 H 2 O ( g ) + 2 CO 2 ( g ) + 6 e
These reactions produce more electrons and thus increase the conductivity of n-type semiconductor (ZnO) upon exposure to ethanol. When ZnO sensor is maintained at equilibrium at the appropriate operating temperature, oxygen in the form of oxide species like O-, O2-, O2-, localize mobile electrons from the n-type semiconducting oxide in air, creating a depletion layer at the surface of the individual particles. Thereafter, the reaction of reducing gas ethanol with the charged oxygen species destroys the electron localization process and is observed as a change in conductivity. These interactions corresponded well with the sensing reaction. Fig. 10 illustrates the characteristic MS peak intensities of interactions between reducing gas ethanol and surface-adsorbed oxygen species of ZnO sensing layer (sensor S1) including C2H5OH ((c) mass=46) with those of its oxidation products (CO2 ((a) mass=44) and H2O ((b) mass=18)) versus times at the sensing operating temperature was 400 °C. The ion intensities were shown rather strong peaks of CO2 because CO2 was the major product oxidized with oxygen on the surface of semiconductor materials, which clearly related with the equations 1-3 with different oxygen species.

3.4. SEM-Cracking Sensing Layer

SEM micrographs of both the sensor S1 and S6 surface and the fracture edge were shown in Fig. 11 (a) and 11 (b). These show the crack-free and crack sensing surface of the ZnO thick film. The crack phenomenon can be described as follows. Firstly, the thermal expansion coefficients of the alumina substrate (∼ 7 × 10-6 K-1) [80] and the ZnO (∼ 4.75 × 10-6 K-1) [81] thick film were difference. Yamada et al. [79] mentioned that the difference in the thermal expansion of the substrate and material film was one of the most important factors responsible for the cracking phenomena. Also Deesirapipat et al. [81] reported the thermal expansion coefficient mismatch between material and substrate indicating a differential expansion coefficient probably causing these cracks. Secondly, the ZnO thick films were annealed at different annealing temperatures using very fast heating rates and cooling rates to room temperature causing a tensile stress and probably of the crack formation. This was consistent with Kono et al. [83] who reported the influence of heating rate of a gypsum investment related to cracking formation using too fast heating rate (40°C/min) compared to slower rate of 20 °C/min. Fig. 11 (a) shows SEM images of sensor S1. It showed the crack-free of surface after annealing and sensing test. The images showed the selected regions of ZnO sensing layer indicated the size and morphology of flame-made ZnO nanoparticle. The particle sizes slightly changed after the sensing test. Surface morphology of sensor S6 investigated by SEM was shown in Fig. 11 (b). They were many large cracks on a sensing surface, and the connection between the ZnO grains layer was rather poor. The crack widths were found to be in the range of 2-5 μm.

3.5. Film Thickness Sensing Layer

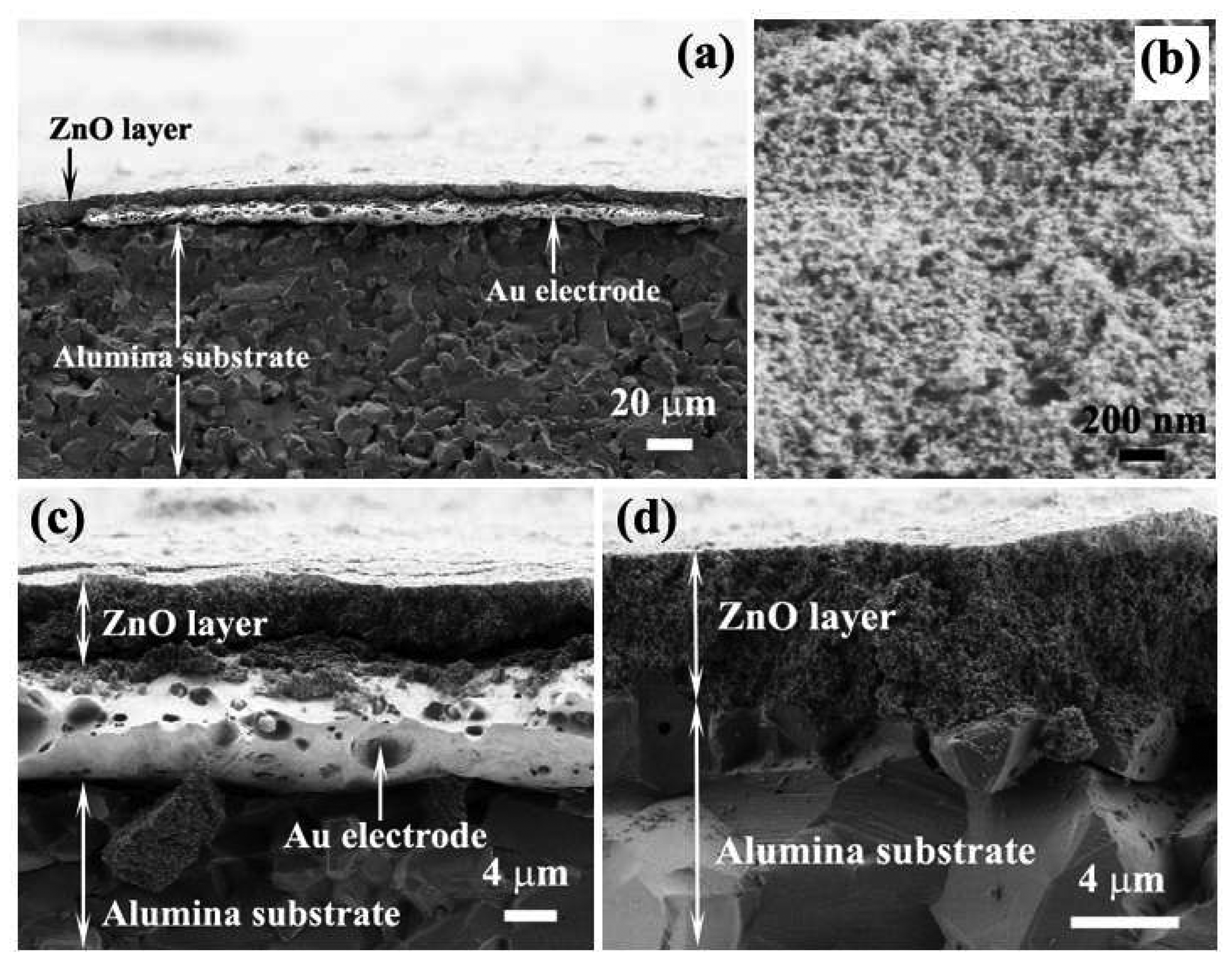

The cross-section, film thickness, and surface morphology of the sensing film layer (S1) after annealing and sensing test at 400°C were observed using SEM analysis with different magnifications as shown in Fig. 12. The film thickness of sensing film was approximately 5 μm (side view) as shown in Fig. 12 (a), (c), and (d), which benefited tremendously to ethanol gas sensing properties. Regularities in the film thickness (top view) stem from the doctor-blade technique. The sensing film of sensor S1 has a crack-free and a porous structure was formed after annealing process as shown in Fig. 12(b). The high density Al2O3 substrate interdigitated with Au electrodes was also visible.

4. Conclusions

The hexagonal phase of ZnO nanoparticles were made by flame spray pyrolysis of zinc naphthenate in toluene and acetonitrile. The morphologies of ZnO nanoparticles was observed to be mainly spheroidal particles typically with diameters ranging from 10-20 nm with occasional hexagonal and rod-like particles. The crystalline sizes of ZnO hexagonal particles were found to be in the range of 10-20 nm, and nanorod-like particles were found to be ranging from 10-20 nm in width and 20-50 nm in length. Sensing films about 5 μm thick were doctor-bladed onto Al2O3 substrate interdigitated with Au electrodes used as the ethanol gas sensors. The gas sensing performances of films were mainly investigated for ppm levels (25-250 ppm) of ethanol with the operating temperature at 400°C. The cracking phenomenon in sensing layer could be improved by varying the heating conditions in terms of the annealing temperature and heating rate. It has been found that the sensor samples annealed using very fast heating rates showed serious cracks than slower heating rates. The sensors had n-type response to these vapors with response and recovery times within seconds or minutes, respectively. The crack-free sensor showed higher sensor signal and shorter response time (sensor S1, to 250 ppm, S=1038, Tres = 20 s) than the most cracked sensor (sensor S6, to 250 ppm, S=6.9, Tres = 40 s). The recovery times of both types of sensing films (sensor S1 and S6) exhibited quite long within minutes. The sensor characteristics to reducing ethanol gas showed significantly dependence on the heating rates. This is because the heating conditions during annealing process increased and the difference of a thermal expansion coefficient between substrate and material sensing films with increasing crack width which decrease the surface area and connectivity of films and deteriorate film properties of electronic materials. The sensor signal and response time drastically increased and decreased with decreasing crack on sensing layer.

Acknowledgments

The authors gratefully acknowledge the financial support from the Commission on Higher Education, Ministry of Education; the Graduate School, and Nanoscience Research Laboratory (NRL), Department of Chemistry, Faculty of Science, Chiang Mai University, Thailand, and the Particles Technology Laboratory (PTL), Department of Mechanical and Process Engineering, ETH Zentrum, Switzerland for experimental facilities.

References

  1. Sahm, T.; Mädler, L.; Gurlo, A.; Barsan, N.; Pratsinis, S.E.; Weimar, U. Flame spray synthesis of tin dioxide nanoparticles for gas sensing. Sens. Actuators B 2004, 98, 148–153. [Google Scholar]
  2. Neri, G.; Bonavita, A.; Micali, G.; Donato, N.; Deorsola, F.A.; Mossino, P.; Amato, I.; Benedetti, B.D. Ethanol sensors based on Pt-doped tin oxide nanopowders synthesised by gel-combustion. Sens. Actuators B 2006, 117, 196–204. [Google Scholar]
  3. Li, F.; Xu, J.; Yu, X.; Chen, L.; Zhu, J.; Yang, Z.; Xin, X. One-step solid-state reaction synthesis and gas sensing property of tin oxide nanoparticles. Sens. Actuators B 2002, 81, 165–169. [Google Scholar]
  4. Rella, R.; Serra, A.; Siciliano, P.; Vasanelli, L.; De, G.; Licciulli, A.; Quirini, A. Tin oxide-based gas sensors prepared by the sol-gel process. Sens. Actuators B 1997, 44, 462–467. [Google Scholar]
  5. Maekawa, T.; Tamaki, J.; Miura, N.; Yamazoe, N. Development of SnO2-based ethanol gas sensor. Sens. Actuators B 1992, 9, 63–69. [Google Scholar]
  6. Gautheron, B.; Labeau, M.; Delabouglise, G.; Schmatz, U. Undoped and Pd-doped SnO2thin films for gas sensors. Sens. Actuators B 1993, 15-16, 357–362. [Google Scholar]
  7. Ivanov, P.; Hubalek, J.; Prášek, K.; Vilanova, X.; Llobet, E.; Correig, X. A route toward more selective and less humidity sensitive screen-printed SnO2 and WO3 gas sensitive layers. Sens. Actuators B 2004, 100, 221–227. [Google Scholar]
  8. Tan, O.K.; Cao, W.; Zhu, W.; Chai, J.W.; Pan, J.S. Ethanol sensors based on nano-sized α-Fe2O3 with SnO2, ZrO2, TiO2 solid solutions. Sens. Actuators B 2003, 93, 396–401. [Google Scholar]
  9. Mädler, L.; Roessler, A.; Pratsinis, S.E.; Sahm, T.; Gurlo, A.; Barsan, N.; Weimar, U. Direct formation of highly porous gas-sensing films by in situ thermophoretic deposition of flame-made Pt/SnO2 nanoparticles. Sens. Actuators B 2005, 114(1), 283–295. [Google Scholar]
  10. Park, S.S.; Zheng, H.; Mackenzie, J.D. Ethanol gas sensing properties of SnO2-based thin-film sensors prepared by the sol-gel process. Mater. Lett. 1993, 17, 346–352. [Google Scholar]
  11. Ge, J.P.; Wang, J.; Zhang, H.X.; Wang, X.; Peng, Q.; Li, Y.D. High ethanol sensitive SnO2 microspheres. Sens. Actuators B 2006, 113, 937–943. [Google Scholar]
  12. Xiangfeng, C.; Caihong, W.; Dongli, J.; Chenmou, Z. Ethanol sensor based on indium oxide nanowires prepared by carbothermal reduction reaction. Chem. Phys. Lett. 2004, 399, 461–464. [Google Scholar]
  13. Makhija, K.K.; Ray, A.; Patel, R.M.; Trivedi, U.B.; Kapse, H.N. Indium oxide thin film based ammonia gas and ethanol vapour sensor. Bull. Mater. Sci. 2005, 28, 9–17. [Google Scholar]
  14. Teleki, A.; Pratsinis, S.E.; Kalyanasundaram, K.; Gouma, P.I. Sensing of organic vapors by flamemade TiO2 nanoparticles. Sens. Actuators B 2006, 119, 683–690. [Google Scholar]
  15. Sberveglieri, G.; Comini, E.; Faglia, G.; Atashbar, M.Z.; Wlodarski, W. Titanium dioxide thin films prepared for alcohol microsensor applications. Sens. Actuators B 2000, 66, 139–141. [Google Scholar]
  16. Mabrook, M.; Hawkins, P. A rapidly-responding sensor for benzene, methanol and ethanol vapours based on films of titanium dioxide dispersed in a polymer operating at room temperature. Sens. Actuators B 2001, 75, 197–202. [Google Scholar]
  17. Ruiz, A.M.; Cornet, A.; Morante, J.R. Performances of La-TiO2nanoparticles as gas sensing material. Sens. Actuators B 2005, 111-112, 7–12. [Google Scholar]
  18. Galatsis, K.; Li, Y.X.; Wlodarski, W.; Comini, E.; Sberveglieri, G.; Cantalini, C.; Santucci, S.; Passacantando, M. Comparison of single and binary oxide MoO3, TiO2 and WO3 sol-gel gas sensors. Sens. Actuators B 2002, 83, 276–280. [Google Scholar]
  19. Ferroni, M.; Guidi, V.; Martinelli, G.; Roncarati, G.; Comini, E.; Sberveglieri, G.; Vomiero, A.; Della Mea, G. Coalescence inhibition in nanosized titania films and related effects on chemoresistive properties towards ethanol. J. Vac. Sci. Technol. B 2002, 20(2), 523–530. [Google Scholar]
  20. Zhang, J.; Liu, J.; Peng, Q.; Wang, X.; Li, Y. Nearly monodisperse Cu2O and CuO nanospheres: Preparation and applications for sensitive gas sensors. Chem. Mater. 2006, 18, 867–871. [Google Scholar]
  21. Liu, Y.; Dong, J.; Hesketh, P.J.; Liu, M. Synthesis and gas sensing properties of ZnO single crystal flakes. J. Mater. Chem. 2005, 15, 2316–2320. [Google Scholar]
  22. Xiangfeng, C.; Dongli, J.; Djurišic, A.B.; Leung, Y.H. Gas-sensing properties of thick film based on ZnO nano-tetrapods. Chem. Phys. Lett. 2005, 401, 426–429. [Google Scholar]
  23. Sahay, P.P.; Tewari, S.; Jha, S.; Shamsuddin, M. Sprayed ZnO thin films for ethanol sensor. J. Mater. Sci. 2005, 40, 4791–4793. [Google Scholar]
  24. Xu, J.; Chen, Y.; Li, Y.; Shen, J. Gas sensing properties of ZnO nanorods prepared by hydrothermal method. J. Mater. Sci. 2005, 40, 2919–2921. [Google Scholar]
  25. Wan, Q.; Li, Q.H.; Chen, Y.J.; He, X.L.; Li, J.P.; Lin, C.L.; Wang, T.H. Fabrication and ethanol sensing characteristics of ZnO nanowire gas sensors. Appl. Phys. Lett. 2004, 84, 3654–3656. [Google Scholar]
  26. Xu, J.; Pan, Q.; Shun, Y.; Tian, Z. Grain size control and gas sensing properties of ZnO gas sensor. Sens. Actuators B 2000, 66, 277–279. [Google Scholar]
  27. Xu, H.; Liu, X.; Cui, D.; Li, M.; Jiang, M. A novel method for improving the performance of ZnO gas sensors. Sens. Actuators B 2006, 114, 301–307. [Google Scholar]
  28. Zhu, B.L.; Xie, C.S.; Wang, W.Y.; Huang, K.J.; Hu, J.H. Improvement in gas sensitivity of ZnO thick film to volatile organic compounds (VOCs) by adding TiO2. Mater. Lett. 2004, 58, 624–629. [Google Scholar]
  29. Zhu, B.L.; Zeng, D.W.; Wu, J.; Song, W.L.; Xie, C.S. Synthesis and gas sensitivity of In-doped ZnO nanoparticles. J. Mater. Sci. - Mater. Electron. 2003, 14, 521–526. [Google Scholar]
  30. Rao, B.B. Zinc oxide ceramic semi-conductor gas sensor for ethanol vapour. Mater. Chem. Phys. 2000, 64, 62–65. [Google Scholar]
  31. Baruwati, B.; Kumar, D.K.; Manorama, S.V. Hydrothermal synthesis of highly crystalline ZnO nanoparticles: A competitive sensor for LPG and EtOH. Sens. Actuators B 2006, 119, 676–682. [Google Scholar]
  32. Stambolova, I.; Konstantinov, K.; Vassilev, S.; Peshev, P.; Tsacheva, Ts. Lanthanum doped SnO2 and ZnO thin films sensitive to ethanol and humidity. Mater. Chem. Phys. 2000, 63, 104–108. [Google Scholar]
  33. Rout, C.S.; Krishna, S.H.; Vivekchand, S.R.C.; Govindaraj, A.; Rao, C.N.R. Hydrogen and ethanol sensors based on ZnO nanorods, nanowires and nanotubes. Chem. Phys. Lett. 2005, 418, 582–586. [Google Scholar]
  34. Paraguay, F.D.; Yoshida, M.M.; Morales, J.; Solis, J.; Estrada, W.L. Influence of Al, In, Cu, Fe and Sn dopants on the response of thin films ZnO gas sensor to ethanol vapour. Thin Solid Films 2000, 373, 137–140. [Google Scholar]
  35. Raju, A.R.; Rao, C.N.R. Gas-sensing characteristics of ZnO and copper-impregnated ZnO. Sens. Actuators B 1991, 3, 305–310. [Google Scholar]
  36. Shen, W.; Zhao, Y.; Zhang, C. The preparation of ZnO based gas-sensing thin films by ink-jet printing method. Thin Solid Films 2005, 483, 382–387. [Google Scholar]
  37. Xu, J.; Chen, Y.; Chen, D.; Shen, J. Hydrothermal synthesis and gas sensing characters of ZnO nanorods. Sens. Actuators B 2006, 113, 526–531. [Google Scholar]
  38. Chou, S.M.; Teoh, L.G.; Lai, W.H.; Su, Y.H.; Hon, M.H. ZnO:Al thin film gas sensor for detection of ethanol vapor. Sensor 2006, 6, 1420–1427. [Google Scholar]
  39. Cheng, X.L.; Zhao, H.; Huo, L.H.; Gao, S.; Zhao, J.G. ZnO nanoparticulate thin film: preparation, characterization and gas-sensing property. Sens. Actuators B 2004, 102, 248–252. [Google Scholar]
  40. Ge, C.; Xie, C.; Cai, S. Preparationand gas-sensing properties of Ce-doped ZnO thin film sensors by dip-coating. Mater. Sci. Eng. B 2007, 137, 53–58. [Google Scholar]
  41. Tang, H.; Li, Y.; Zheng, C.; Ye, J.; Hou, X.; Lv, Y. An ethanol sensor based on cataluminescence on ZnO nanoparticles. Talanta 2007, in press. [Google Scholar]
  42. Choopun, S.; Hongsith, N.; Mangkorntong, P.; Mangkornthong, N. Zinc oxide nanobelts by RF sputtering for ethanol sensor. Physica E 2007, in press. [Google Scholar]
  43. Lv, Y.; Guo, L.; Xu, H.; Chu, X. Gas-sensing properties of well-crystalline ZnO nanorods grown by a simple route. Physica E 2007, 36, 102–105. [Google Scholar]
  44. Zhou, X.; Jiang, T.; Zhang, J.; Wang, X.; Zhu, Z. Humidity sensor based on quartz tuning fork coated with sol-gel-derived nanocrystalline zince oxide thin film. Sens. Actuators B 2006, in press. [Google Scholar]
  45. Kim, K.W.; Cho, P.S.; Kim, S.J.; Lee, J.H.; Kang, C.Y.; Kim, J.S.; Yoon, S.J. The selective detection of C2H5OH using SnO2-ZnO thin film gas sensors prepared by combinatorial solution deposition. Sens. Actuators B 2006, in press. [Google Scholar]
  46. Arshak, K.; Gaidan, I. Development of a novel gas sensor based on oxide thick films. Mater. Sci. Eng. B 2005, 118, 44–49. [Google Scholar]
  47. Lim, H.J.; Lee, D.Y.; Oh, Y.J. Gas-sensing properties of ZnO thin films prepared by microcontact printing. Sens. Actuators A 2006, 125, 405–410. [Google Scholar]
  48. Lim, H.J.; Lee, D.Y.; Oh, Y.J. Gas-sensing properties of ZnO thin films prepared by microcontact printing. Sens. Actuators A 2006, 125, 405–410. [Google Scholar]
  49. Arshak, K.; Gaidan, I. Gas sensing properties of ZnFe2O4/ZnO screen-printed thick films. Sens. Actuators B 2005, 111-112, 58–62. [Google Scholar]
  50. Gao, T.; Wang, T.H. Synthesis and properties of multipod-shaped ZnO nanorods for gas-sensor applications. Appl. Phys. A 2005, 80, 1451–1454. [Google Scholar]
  51. Feng, X.; Li, Z.J.; Wang, P.; Zhou, Y. Preparation and gas-sensitivity of ultra-fine zinc-oxide powders from roasted zinc-blended. J. Mater. Sci. 2005, 40, 6597–6600. [Google Scholar]
  52. Gao, T.; Li, Q.; Wang, T. Sonochemical synthesis, optical properties, and electrical properties of core/shell-type ZnO nanorod/CdS nanoparticle composites. Chem. Mater. 2005, 17, 887–892. [Google Scholar]
  53. Feng, P.; Wan, Q.; Wang, T.H. Contact-controlled sensing properties of flowerlike ZnO nanostructure. Appl. Phys. Lett. 87, 213111–213113. [Google Scholar]
  54. Liewhiran, C.; Phanichphant, S. Influence of thickness on ethanol sensing characteristics of doctor-bladed thick film from flame-made ZnO nanoparticles. Sensors 2007, 7, 185–201. [Google Scholar]
  55. Liewhiran, C.; Seraphin, S.; Phanichphant, S. Synthesis of nano-sized ZnO powders by thermal decomposition of zinc acetate using Broussonetia papyrifera (L.) Vent pulp as a dispersant. Curr. Appl. Phys. 2006, 6, 499–502. [Google Scholar]
  56. Purica, M.; Budianu, E.; Rusu, E.; Danila, M.; Gavrila, R. Optical and structural investigation of ZnO thin films prepared by chemical vapor deposition (CVD). Thin Solid Films 2002, 403-404, 485–488. [Google Scholar]
  57. Dayan, N.J.; Karekar, R.N.; Aiyer, R.C.; Sainkar, S.R. Effect of film thickness and curing temperature on the sensitivity of ZnO:Sb thick-film hydrogen sensor. J. Mater. Sci. - Mater. Electron. 1997, 8, 277–279. [Google Scholar]
  58. Zheng, L.; Xu, T.; Li, G.; Yin, Q. Influence of thickness on oxygen-sensing properties of TiO2 thin films on Al2O3. Jpn. J. Appl. Phys. Part 1 2002, 41, 4655–4658. [Google Scholar]
  59. Lee, Y.L.; Sheu, C.Y.; Hsiao, R.H. Gas sensing characteristics of copper phthalocyanine films; effects of film thickness and sensing temperature. Sens. Actuators B 2004, 99, 281–287. [Google Scholar]
  60. Hossein-Babari, F.; Orvatinia, M. Analysis of thickness dependence of the sensitivity in thin film resistive gas sensors. Sens. Actuators B 2003, 89, 256–261. [Google Scholar]
  61. Geistlinger, H. Electron theory of thin-film gas sensors. Sens. Actuators B 1993, 17, 47–60. [Google Scholar]
  62. López, M.A.R.; Peiteado, M.; Fernández, J.F.; Caballero, A.C.; Holc, J.; Drnovsek, S.; Kuscer, D.; Macek, S.; Kosec, M. Thick film ZnO based varistors prepared by screen printing. J. Eur. Ceram. Soc. 2006, 26, 2985–2989. [Google Scholar]
  63. Chang, J.F.; Kuo, H.H.; Leu, I.C.; Hon, M.H. The effects of thickness and operation temperature on ZnO:Al thin film CO gas sensor. Sens. Actuators B 2002, 84, 258–264. [Google Scholar]
  64. Christoulakis, S.; Suchea, M.; Koudoumas, E.; Katharakis, M.; Katsarakis, N.; Kiriakidis, G. Thickness influence on surface morphology and ozone sensing properties of nanostructured ZnO transparent thin films grown by PLD. Appl. Surf. Sci. 2006, 252, 5351–5354. [Google Scholar]
  65. Sakai, G.; Baik, N.S.; Miura, N.; Yamazoe, N. Gas sensing properties of tin oxide thin films fabricated from hydrothermally treated nanoparticles dependence of CO and H2 response on film thickness. Sens. Actuators B 2001, 77, 116–121. [Google Scholar]
  66. Na, D.M.; Satyanarayana, L.; Choi, G.P.; Shin, Y.J.; Park, J.S. Surface morphology and sensing property of NiO-WO3 thin films prepared by thermal evaporation. Sensors 2005, 5, 519–528. [Google Scholar]
  67. Mueller, R.; Mädler, L.; Pratsinis, S.E. Nanoparticle synthesis at high production rates by flame spray pyrolysis. Chem. Eng. Sci. 2003, 58, 1969–1976. [Google Scholar]
  68. Mädler, L. Liquid-fed aerosol reactors for one-step synthesis of nano-structured particles. KONA 2004, 22, 107–120. [Google Scholar]
  69. Wegner, K.; Stark, W.J.; Pratsinis, S.E. Flame-nozzle synthesis of nanoparticles with closely controlled size, mor[hology and crystallinity. Mater. Lett. 2002, 55, 318–321. [Google Scholar]
  70. Mädler, L.; Kammler, H.K.; Mueller, R.; Pratsinis, S.E. Controlled synthesis of nanostructured particles by flame spray pyrolysis. J. Aeros. Sci. 2002, 33, 369–389. [Google Scholar]
  71. Kammler, H.K.; Mädler, L.; Pratsinis, S.E. Flame synthesis of nanoparticles. Chem. Eng. Tech. 2001, 24, 583–596. [Google Scholar]
  72. Mädler, L.; Stark, W.J.; Pratsinis, S.E. Rapid synthesis of stable ZnO quantum dots. J. Appl. Phys. 2002, 92, 6537–6540. [Google Scholar]
  73. Tani, T.; Mädler, L.; Pratsinis, S.E. Homogeneous ZnO nanoparticles by flame spray pyrolysis. J. Nanopart. Res. 2002, 4, 337–343. [Google Scholar]
  74. Height, M.J.; Mädler, L.; Krumeich, F.; Pratsinis, S.E. Nanorods of ZnO made by flame spray pyrolysis. Chem. Mater. 2006, 18, 572–578. [Google Scholar]
  75. Height, M.J.; Pratsinis, S.E.; Mekasuwandumrong, O.; Praserthdam, P. Ag-ZnO catalysts for UV-photodegradation of methylene blue. Appl. Catal. B 2005, 63, 305–312. [Google Scholar]
  76. Kaelin, M.; Zogg, H.; Tiwari, A.N.; Wilhelm, O.; Pratsinis, S.E.; Meyer, T.; Meyer, A. Electrosprayed and selenized Cu/In metal particles films. Thin Solid Films 2004, 457, 391–396. [Google Scholar]
  77. Kaelin, M.; Rudmann, D.; Tiwari, A.N. Low cost processing of CIGS thin film solar cells. Sol. Energy 2004, 77, 749–756. [Google Scholar]
  78. Fortunato, E.; Nunes, P.; Marques, A.; Costa, D.; Águas, H.; Ferreira, I.; Costa, M.E.V.; Godinho, M.H.; Almeida, P.L.; Borges, J.P.; Martins, R. Transparent, conductive ZnO:Al thin film deposited on polymer substrates by RF magnetron sputtering. Surf. Coat. Technol. 2002, 151-152, 247–251. [Google Scholar]
  79. Yamada, Y.; Kawashima, J.; Wen, J.G.; Niiori, Y.; Hirabayashi, I. Evaluation of thermal expansion coefficient of twinned YBa2Cu3O7-δ film for prediction of crack formation on various substrates. Jpn. J. Appl. Phys. 2000, 39, 1111–1115. [Google Scholar]
  80. Gopaul, J.; Maskell., W.C.; Pitt, K.E. Plana oxygen sensor Part I: Effect of crazing of a zirconia thick film on an alumina substrate. J. Appl. Electrochem. 1999, 29, 93–100. [Google Scholar]
  81. Deesirapipat, Y.; Fujita, M.; Sasajima, M.; Suzuki, R.; Antarasena, C.; Horikoshi, Y. Effect of MgO-buffer layer on the structural and optical properties of polycrystalline ZnO films grown on glass substrate. Jpn. J. Appl. Phys. 2005, 44, 5150–5155. [Google Scholar]
  82. Kawashima, J.; Yamada, Y.; Hirabayashi, I. Critical thickness and effective thermal expansion coefficient of YBCO crystalline film. Physica C 1998, 306, 114–118. [Google Scholar]
  83. Kono, A.; Hosoda, H.; Fusayama, T. Heating rate pg a gypsum investment related to crack formation. Shofu Cristobalite Investment B 1965, 650, 1419–1423. [Google Scholar]
  84. Bordia, R.K.; Jagota, A. Crack growth and damage in constrained sintering films. J. Am. Ceram. Soc. 1993, 76(10), 2475–2485. [Google Scholar]
  85. Cheary, R.W.; Coelho, A.A. Axial divergence in a conventional X-ray powder diffractometer. I. Theoretical foundations. J. Appl. Crystallogr. 1998, 31, 851–861. [Google Scholar]
  86. Brunauer, S.; Emmett, P.; Teller, P.H. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar]
  87. Liu, Z.; Chung, D.D.L. Burnout of the organic vehicle in an electrically conductive thick-film paste. J. Elec. Mater. 2004, 33, 1316–1325. [Google Scholar]
  88. Krishnan, B.; Nampoori, V.P.N. Screen printed nanosized ZnO thick film. Bull. Mater. Sci. 2005, 28, 239–242. [Google Scholar]
  89. Kim, C.J.; Kim, K.B.; Kuk, I.H.; Hong, G.W.; Park, S.D.; Yang, S.W.; Shin, H.S. Fabrication and properties of YBa2Cu3O7-δ-Ag composite superconducting wires by plastic extrusion technique. J. Mater. Sci. 1997, 32, 5233–5242. [Google Scholar]
  90. Kim, K.B.; Song, Y.H.; Hwang, C.S.; Chung, C.H.; Lee, J.H.; Choi, I.S.; Park, J.H. Efficient electron emissions from printed carbon nanotubes by surface treatments. J. Vac. Sci. Technol. B 2004, 22, 1331–1334. [Google Scholar]
  91. Li, J.; Nakazato, T.; Kato, K. Effect of cohesive powders on the elutriation of particles from a fluid bed. Chem. Eng. Sci. 2004, 59, 2777–2782. [Google Scholar]
  92. Wang, T.J.; Jin, Y.; Tsutsumi, A.; Wang, Z.; Cui, Z. Energy transfer mechanism in a vibrating fluidized bed. Chem. Eng. J. 2000, 78, 115–123. [Google Scholar]
  93. Kisi, E.H.; Elcombe, M.M. u Parameters for the wurtzite structure of ZnS and ZnO using powder neutron diffraction. Acta Crystallogr., Sect. C: Cryst. Struct. Commun. 1989, 45, 1867–1870. [Google Scholar]
  94. Abrahams, S.C.; Bernstein, J.L. Remeasurement of the structure of hexagonal ZnO. Acta Crystallogr., Sect. B: Struct. Sci. 1969, 25, 1233–1236. [Google Scholar]
  95. Liu, R.S.; Shi, W.C.; Cheng, Y.C.; Huang, C.Y. Crystal structures and peculiar magnetic properties of alpha- and gamma-(Al2O3) powders. Mod. Phys. Lett. B 1997, 11, 1169–1174. [Google Scholar]
  96. Swanson, H.E.; Tatge, E. Standard X-ray diffraction powder patterns. National Bureau of Standards 1953, 359, 1–1. [Google Scholar]Zeitschrift fuer Angewandte Physik; 1956; Volume 8, pp. 202–205.
  97. Cullity, B.D. Structure of polycrystalline aggregates; Elements of X-ray diffraction; Addison-Wesley: Massachusetts, 1978; Vol. 2, Chapter 9; p. 284. [Google Scholar]
  98. Garman, R.M. Sintering Theory and Practice; A Wiley-Interscience: John Wily & Sons, Inc.: New York, 1996; Chapter 6; p. 261. [Google Scholar]
  99. Schierbaum, K.D. Application of organic supramolecular and polymeric compounds for chemical sensors. Sens. Actuators B 1994, 18-19, 71–76. [Google Scholar]

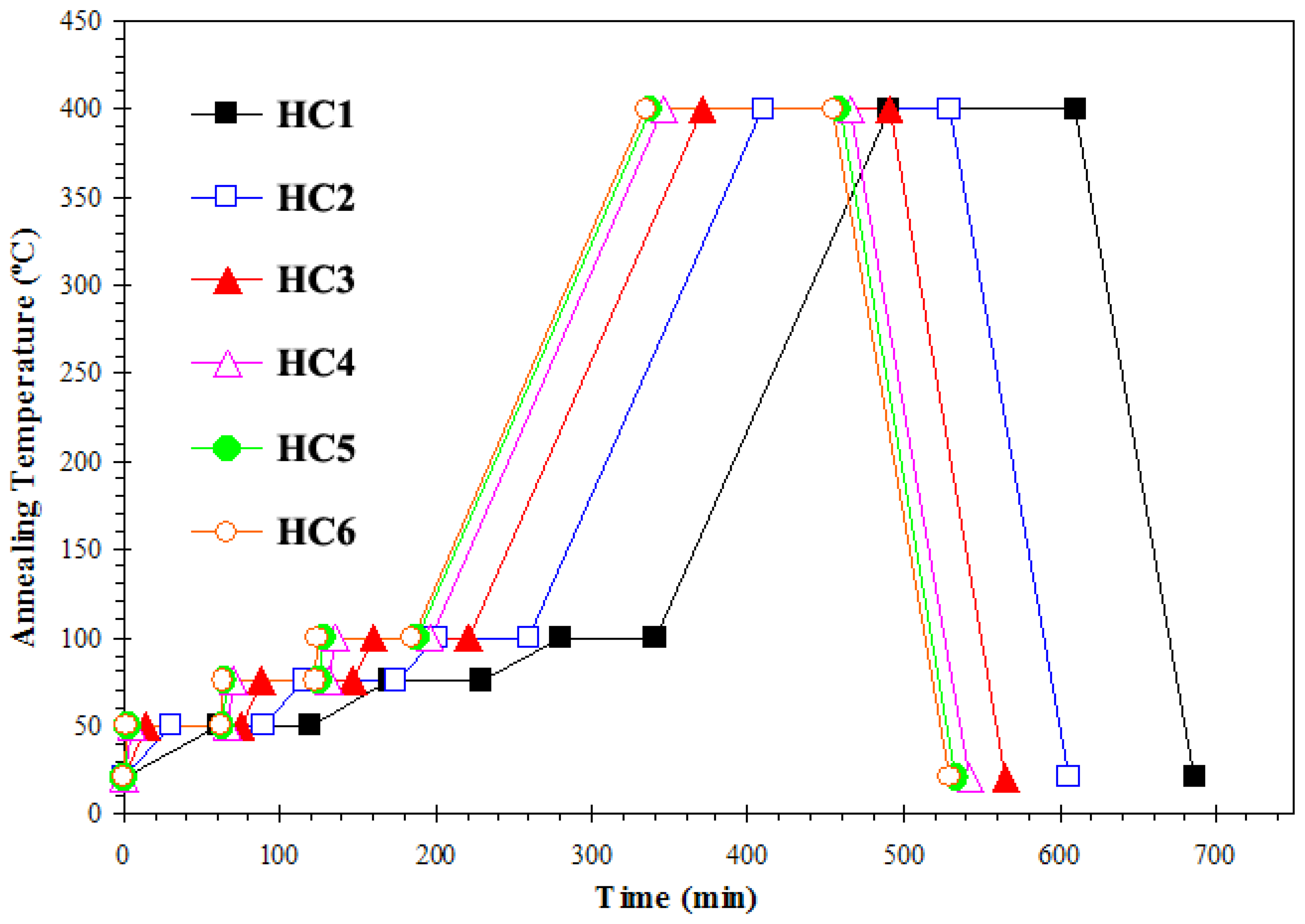

Figure 1. Diagram of heating conditions (HC) during film preparation for improvement of cracking.
Figure 1. Diagram of heating conditions (HC) during film preparation for improvement of cracking.
Sensors 07 00650f1

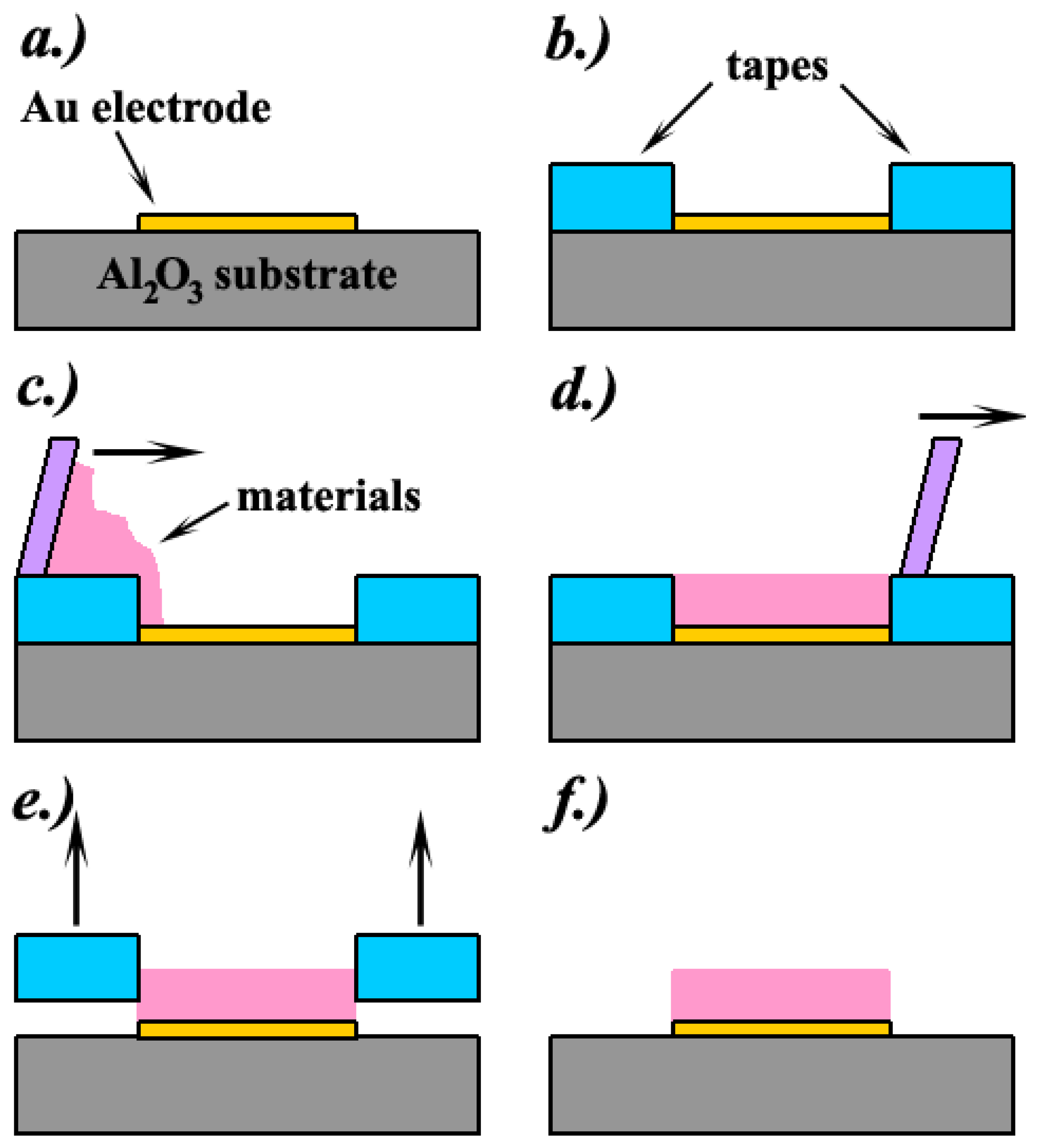

Figure 2. Doctor-blade process of sample onto the template. (a) Au/Al2O3 substrate, (b) tape with patterned templates, (c) doctor-blade sample paste across template, (d) patterned features, (e) removing the tapes, and (f) annealing the paste.
Figure 2. Doctor-blade process of sample onto the template. (a) Au/Al2O3 substrate, (b) tape with patterned templates, (c) doctor-blade sample paste across template, (d) patterned features, (e) removing the tapes, and (f) annealing the paste.
Sensors 07 00650f2

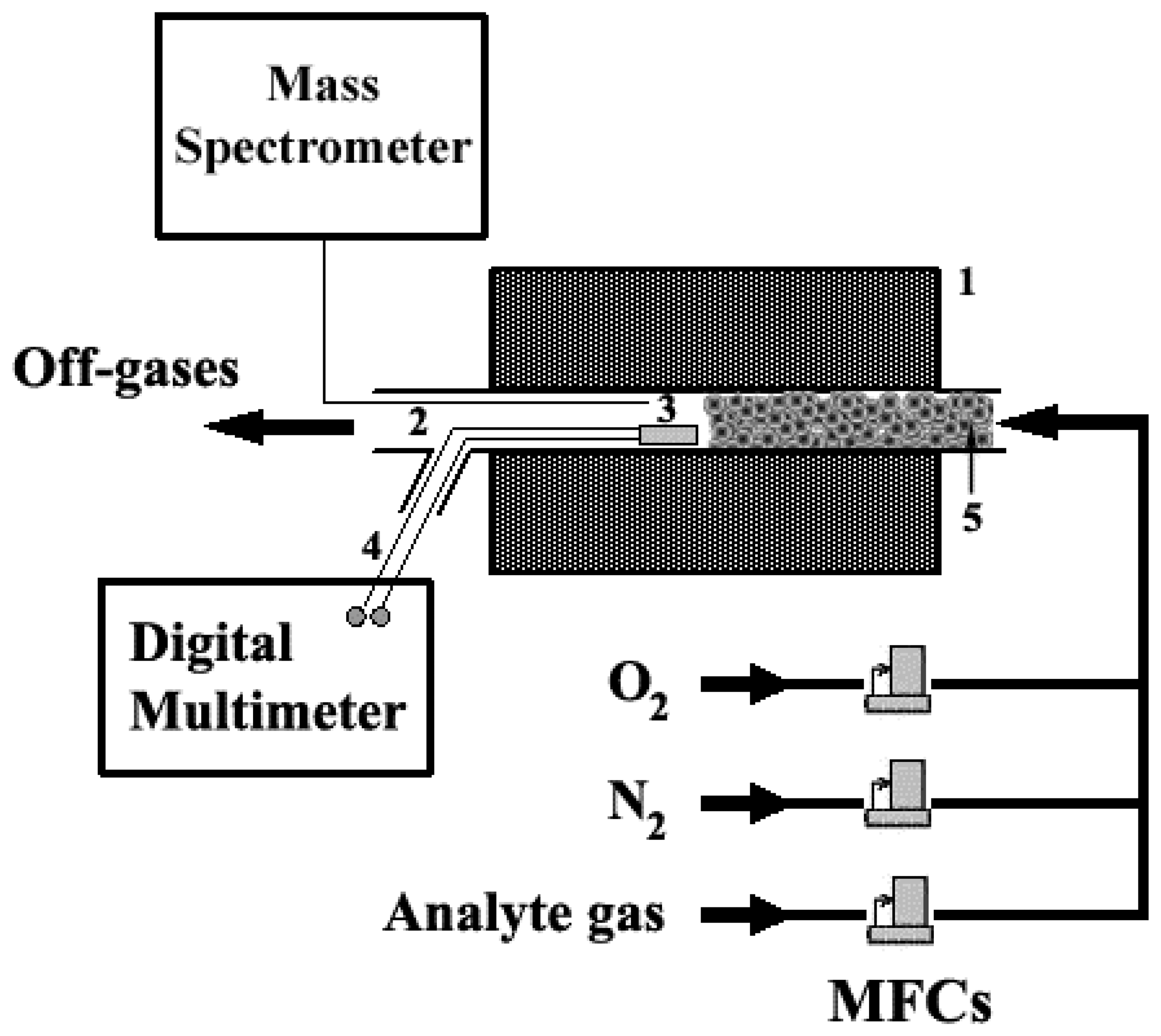

Figure 3. Schematic of the experimental set up for sensor evaluation with the tube furnace (1), the quartz tube (2), the sensor (3), the gold wiring (4), and the fluidized SiC particles (5).
Figure 3. Schematic of the experimental set up for sensor evaluation with the tube furnace (1), the quartz tube (2), the sensor (3), the gold wiring (4), and the fluidized SiC particles (5).
Sensors 07 00650f3

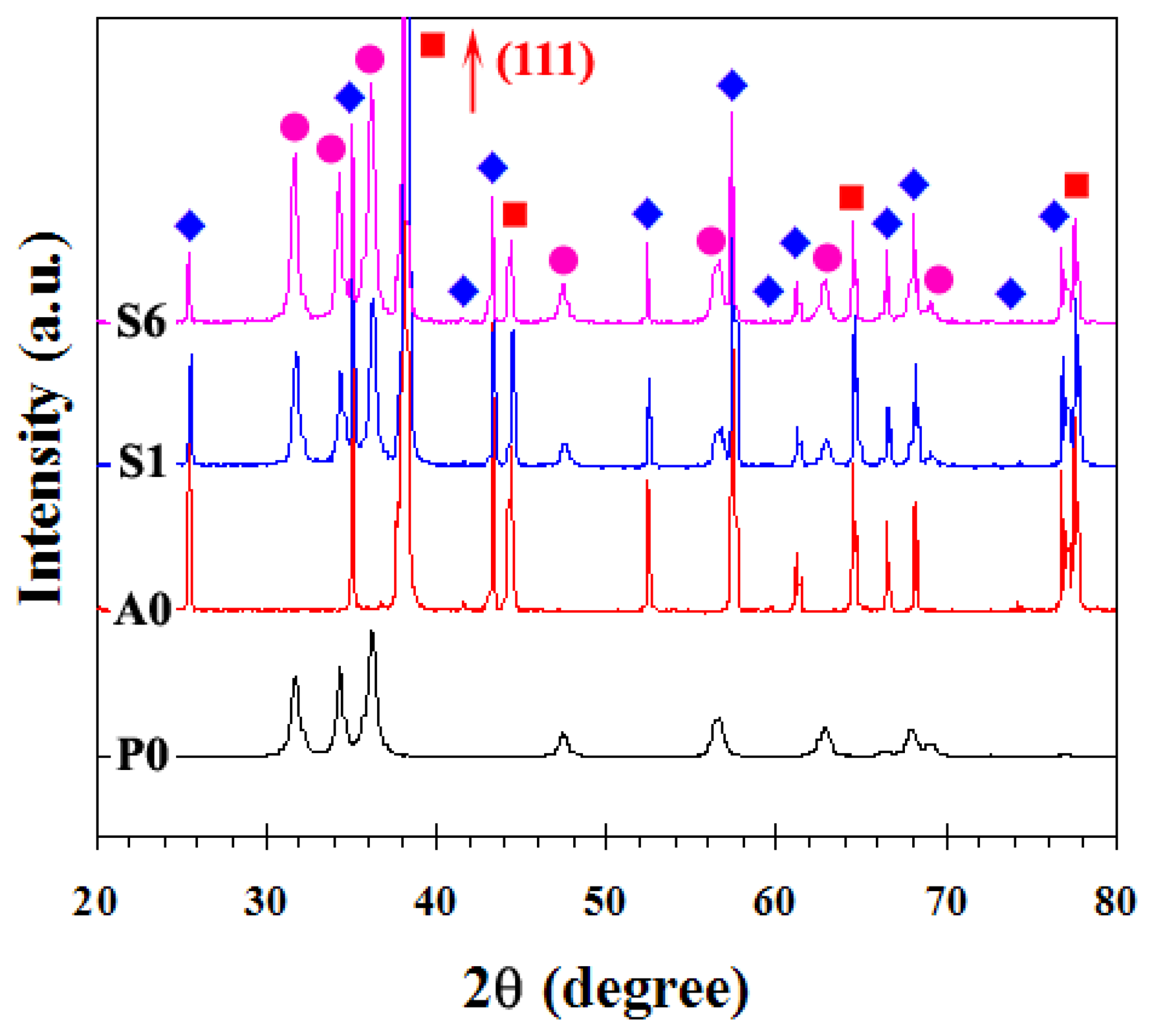

Figure 4. XRD patterns of flame-made (5/5) ZnO as-prepared (P0), Al2O3 substrate interdigitated with Au electrodes (A0), crack-free (S1) and the most crack sensor (S6) after annealing and sensing test at 400°C (( Sensors 07 00650i1) ZnO; ( Sensors 07 00650i2) Au; ( Sensors 07 00650i3) Al2O3;.
Figure 4. XRD patterns of flame-made (5/5) ZnO as-prepared (P0), Al2O3 substrate interdigitated with Au electrodes (A0), crack-free (S1) and the most crack sensor (S6) after annealing and sensing test at 400°C (( Sensors 07 00650i1) ZnO; ( Sensors 07 00650i2) Au; ( Sensors 07 00650i3) Al2O3;.
Sensors 07 00650f4

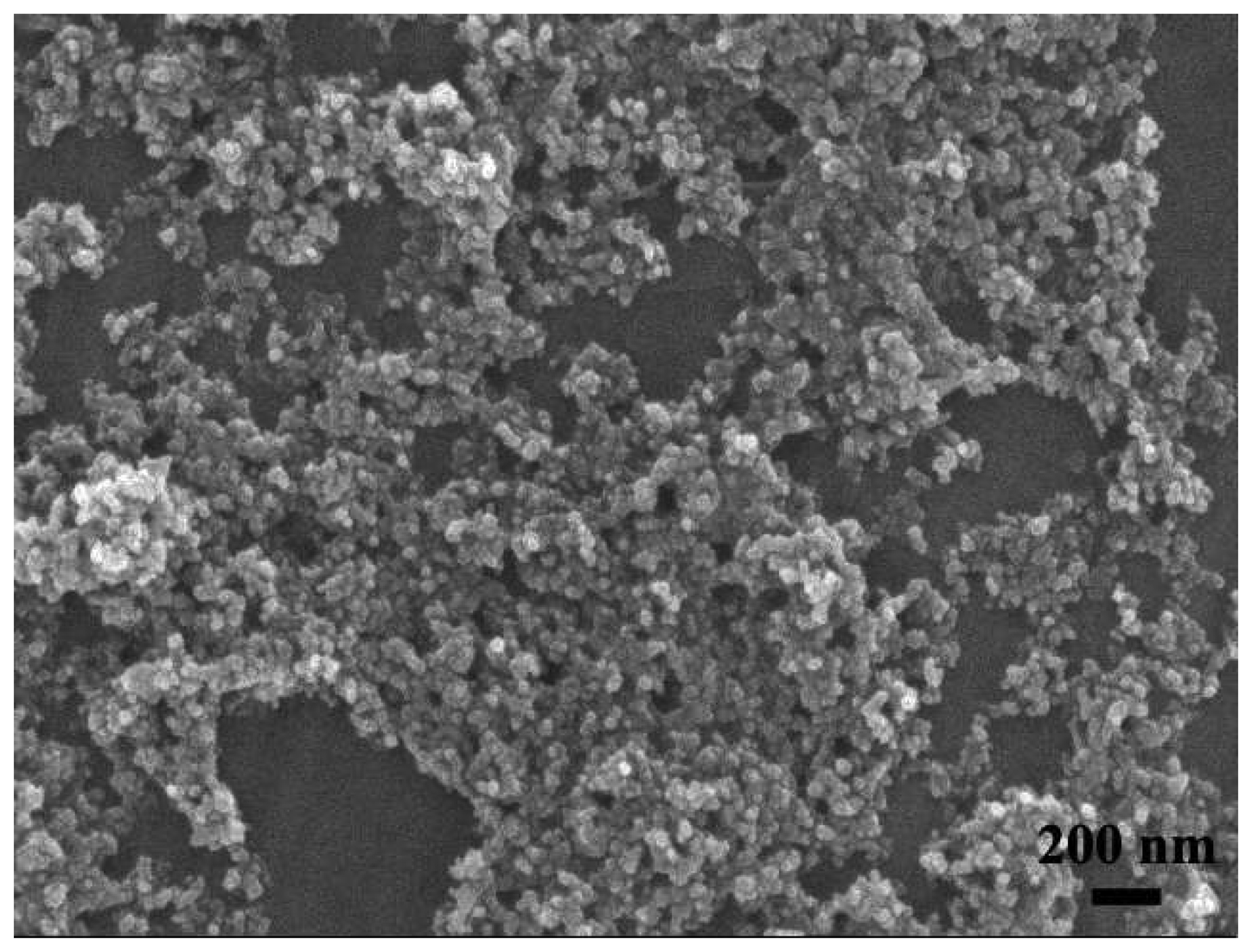

Figure 5. SEM image of highly crystalline flame-made (5/5) ZnO nanoparticles.
Figure 5. SEM image of highly crystalline flame-made (5/5) ZnO nanoparticles.
Sensors 07 00650f5

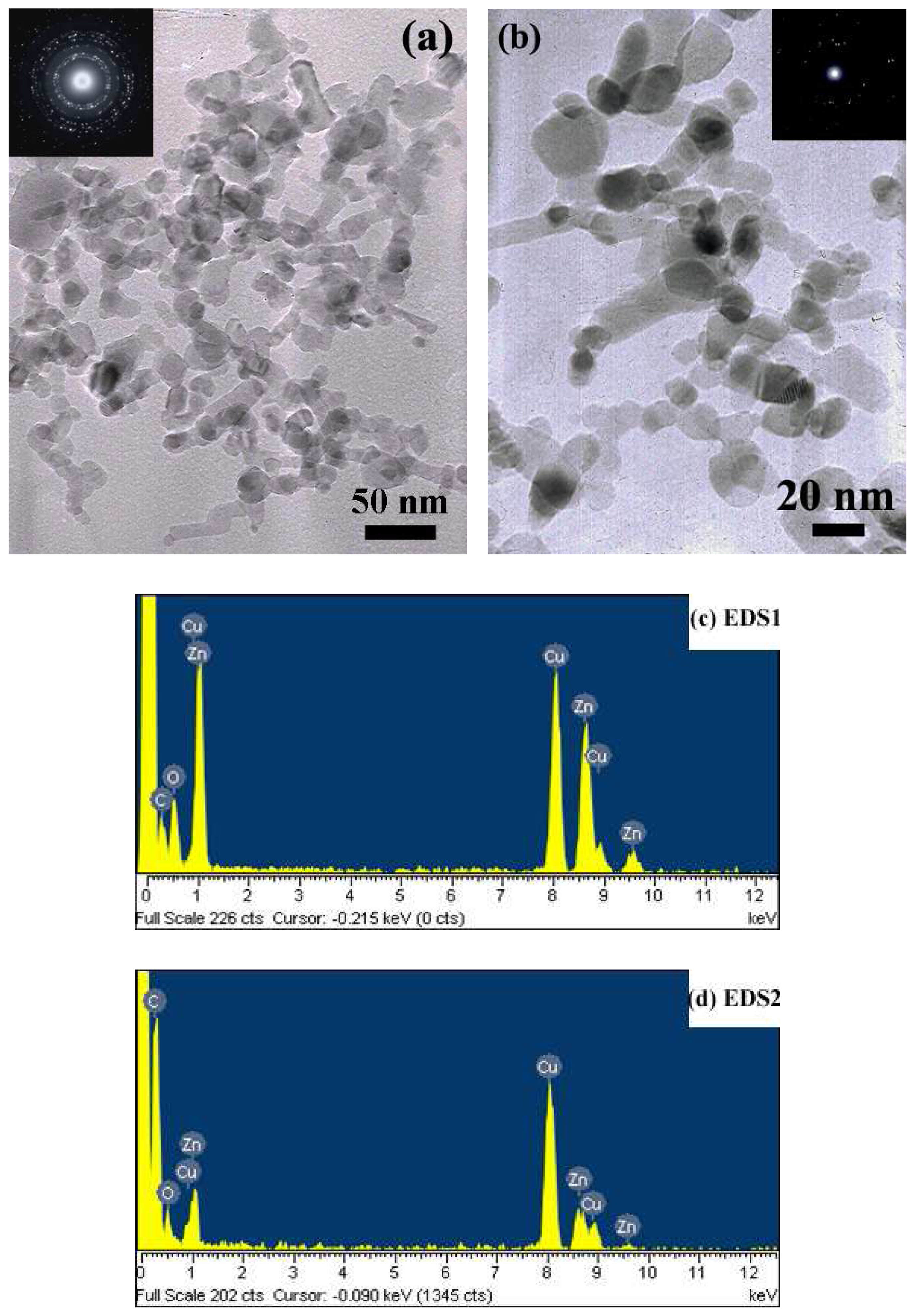

Figure 6. (a, b) HR-TEM bright-fields image of highly crystalline flame-made (5/5) ZnO nanoparticles with different magnifications. The morphologies can be observed (a, b) mainly spheroidal particles typically with occasional hexagonal and rod-like particles. Insets show the corresponding diffraction patterns of the particles. (c, d) EDS spectra for Fig. 6 (a) and (b) corresponding to Zn and O, while Cu and C caused by the contamination from the copper grid coated with carbon.
Figure 6. (a, b) HR-TEM bright-fields image of highly crystalline flame-made (5/5) ZnO nanoparticles with different magnifications. The morphologies can be observed (a, b) mainly spheroidal particles typically with occasional hexagonal and rod-like particles. Insets show the corresponding diffraction patterns of the particles. (c, d) EDS spectra for Fig. 6 (a) and (b) corresponding to Zn and O, while Cu and C caused by the contamination from the copper grid coated with carbon.
Sensors 07 00650f6

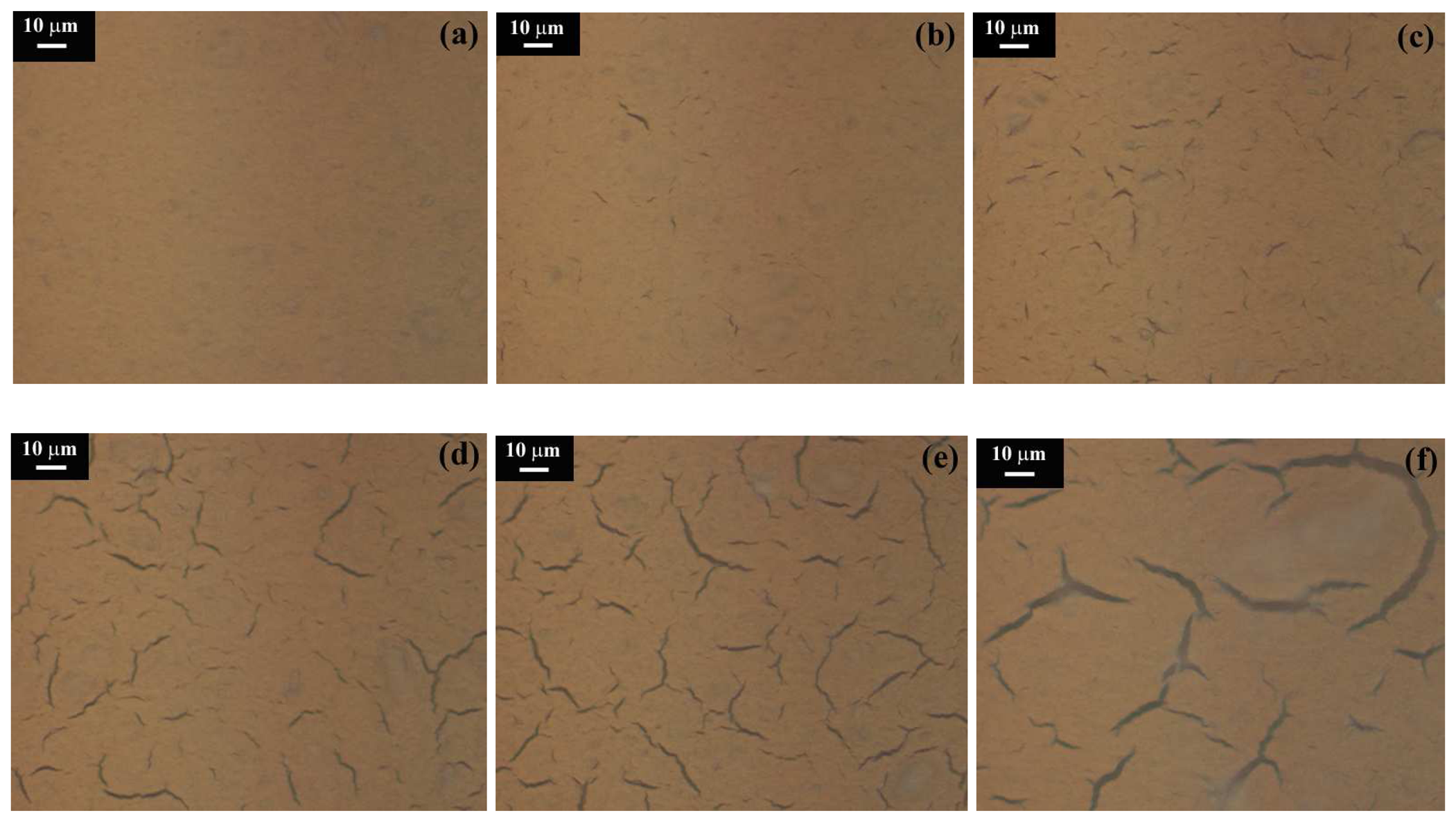

Figure 7. (magnification 50x) Crack formation in thick film sensing layers of flame-made ZnO nanoparticles treated with different heating conditions in terms of heating rates, time, and annealing temperatures (HC1-HC6 ; compared to Table 1).
Figure 7. (magnification 50x) Crack formation in thick film sensing layers of flame-made ZnO nanoparticles treated with different heating conditions in terms of heating rates, time, and annealing temperatures (HC1-HC6 ; compared to Table 1).
Sensors 07 00650f7

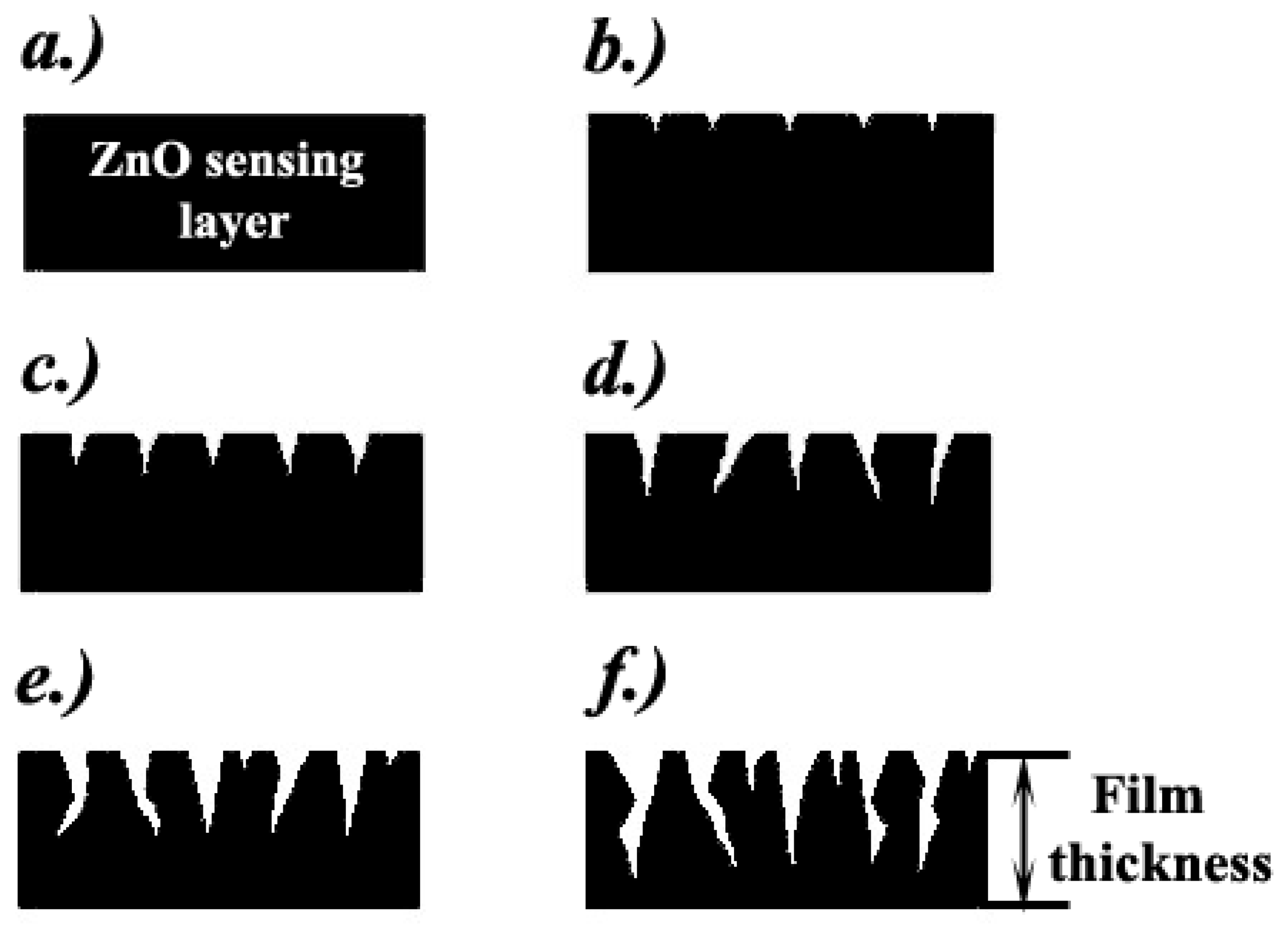

Figure 8. Model for the influence of heating condition (a) HC1, (b) HC2, (c) HC3, (d) HC4, (e) HC5, (f) HC6 in terms of annealing temperature and heating rate on sensing film morphology.
Figure 8. Model for the influence of heating condition (a) HC1, (b) HC2, (c) HC3, (d) HC4, (e) HC5, (f) HC6 in terms of annealing temperature and heating rate on sensing film morphology.
Sensors 07 00650f8
Figure 9. Change in resistance of (a) crack-free sensor S1 and (b) the most cracked sensor S6 under exposure to reducing gas ethanol during forward cycle, and (c) the plot of sensor signal of S1 and S6 (left axis) dependence on ethanol concentration and cracking phenomenon in dry air (O2/N2) at 400°C. The response times (Tres, solid line, right axis) were within seconds, recovery times within minutes (Trec, dashed line, right axis).
Figure 9. Change in resistance of (a) crack-free sensor S1 and (b) the most cracked sensor S6 under exposure to reducing gas ethanol during forward cycle, and (c) the plot of sensor signal of S1 and S6 (left axis) dependence on ethanol concentration and cracking phenomenon in dry air (O2/N2) at 400°C. The response times (Tres, solid line, right axis) were within seconds, recovery times within minutes (Trec, dashed line, right axis).
Sensors 07 00650f9

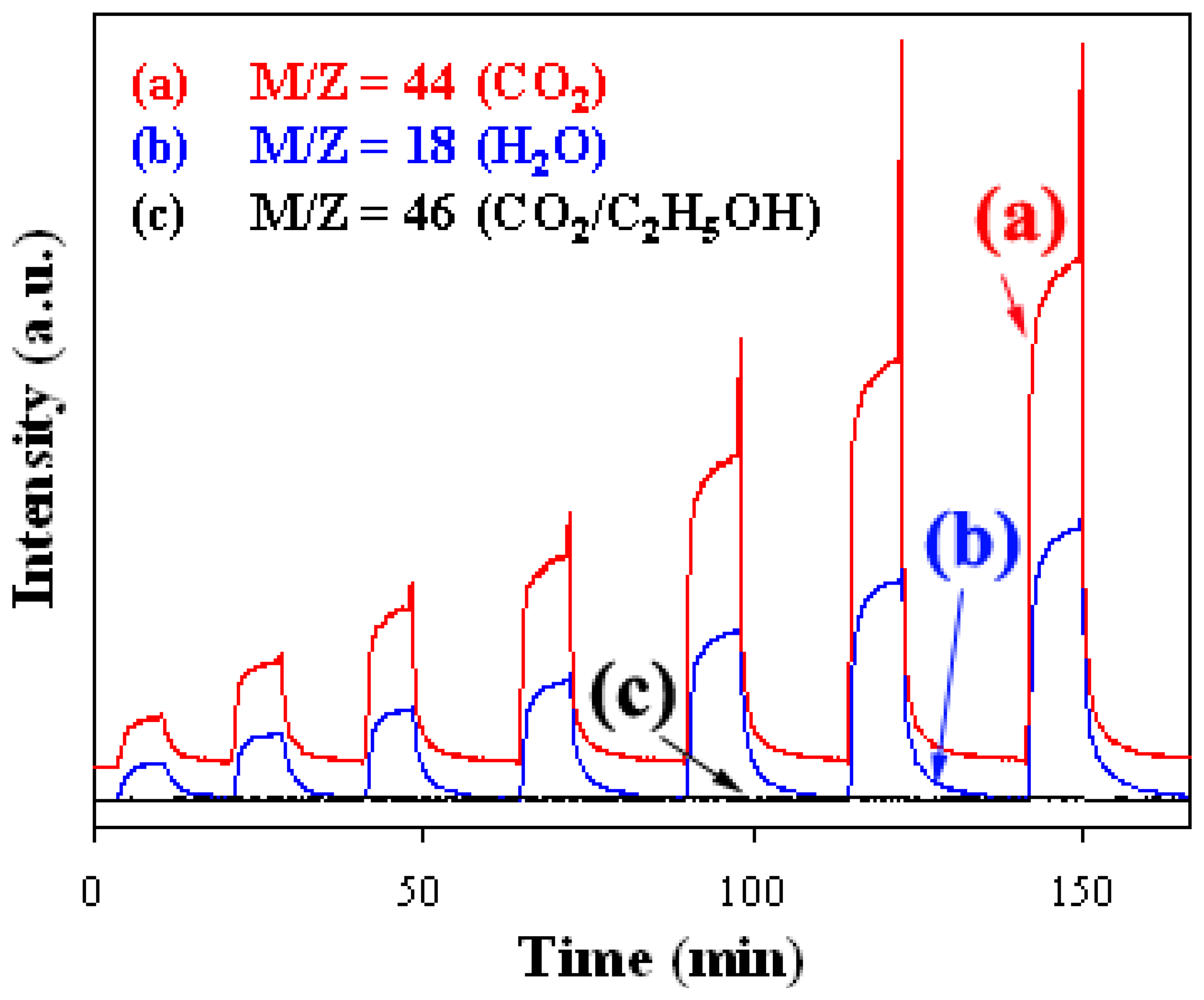

Figure 10. MS ion intensity as a function of time during ethanol oxidation in dry air at 400 °C (25-250 ppm) over a ZnO sensing film.
Figure 10. MS ion intensity as a function of time during ethanol oxidation in dry air at 400 °C (25-250 ppm) over a ZnO sensing film.
Sensors 07 00650f10

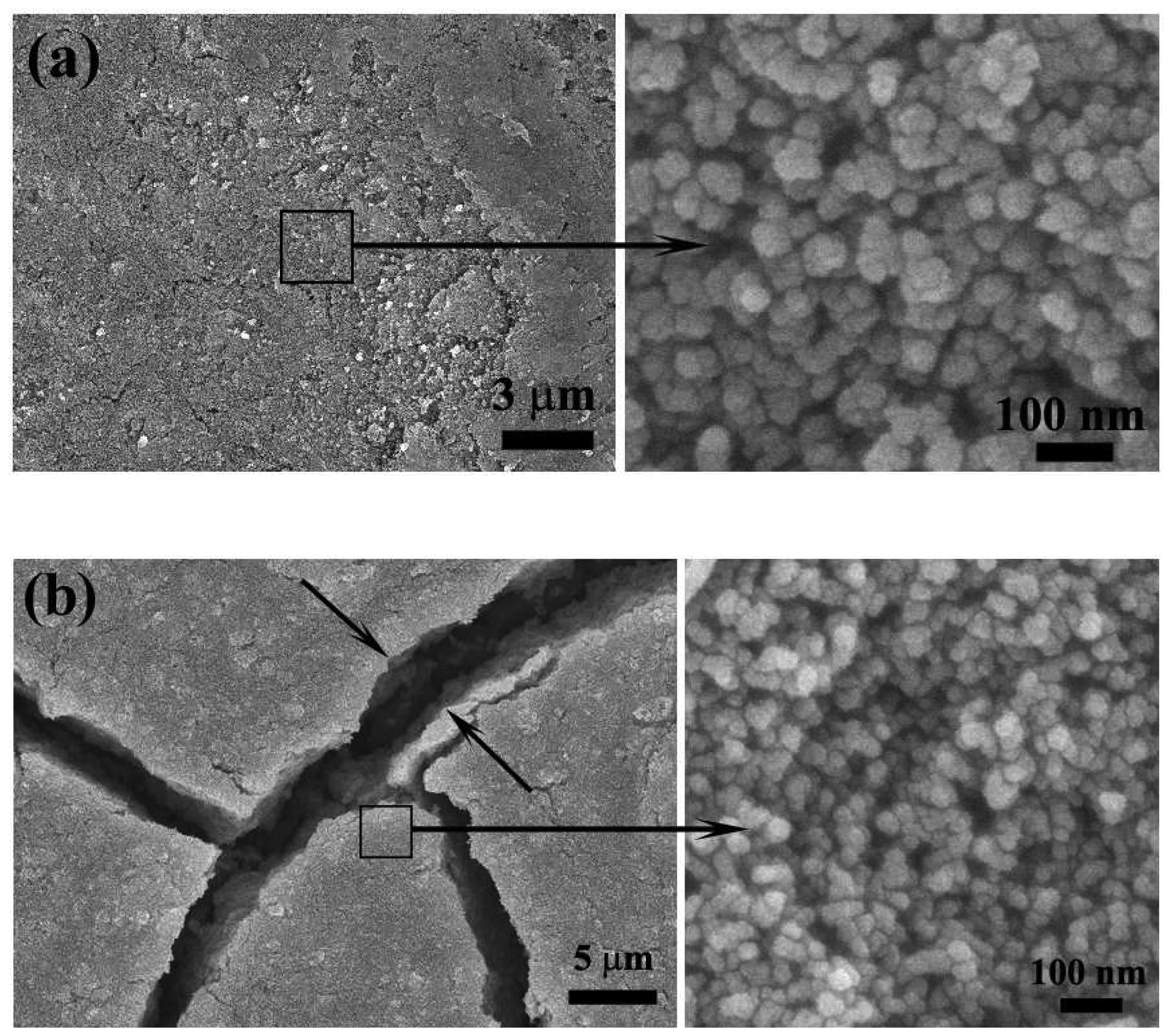

Figure 11. SEM micrographs of ZnO crack-free ((a) sensor S1) and the most cracked ((b) sensor S6) sensing films after annealing and sensing test at 400 C. The squares emphasized the selected regions investigated the size and morphology of particles with the different magnifications.
Figure 11. SEM micrographs of ZnO crack-free ((a) sensor S1) and the most cracked ((b) sensor S6) sensing films after annealing and sensing test at 400 C. The squares emphasized the selected regions investigated the size and morphology of particles with the different magnifications.
Sensors 07 00650f11
Figure 12. SEM micrographs of flame-made ZnO thick films as a sensor S1 at a different magnifications (side view: a, c, and d) on an Al2O3 substrate interdigitated with Au electrodes after annealing and sensing test at 400°C in dry air. The film thickness was approximately 5 μm. (top view: b) Regularities in the film thickness and porous sensing film had a crack free.
Figure 12. SEM micrographs of flame-made ZnO thick films as a sensor S1 at a different magnifications (side view: a, c, and d) on an Al2O3 substrate interdigitated with Au electrodes after annealing and sensing test at 400°C in dry air. The film thickness was approximately 5 μm. (top view: b) Regularities in the film thickness and porous sensing film had a crack free.
Sensors 07 00650f12
Table 1. Cracking sensing layer improvement heating conditions.
Table 1. Cracking sensing layer improvement heating conditions.
SamplesHeating Conditions (HC)

Annealing temperatures&Heating rates

50°C75°C100°C400°C

rate
(°C/min)
time
(min)
rate
(°C/min)
time
(min)
rate
(°C/min)
time
(min)
rate
(°C/min)
time
(min)

HC10.5600.5600.5602.0120
HC21.0601.0601.0602.0120
HC32.0602.0602.0602.0120
HC45.0605.0605.0602.0120
HC510.06010.06010.0602.0120
HC620.06020.06020.0602.0120

Share and Cite

MDPI and ACS Style

Liewhiran, C.; Phanichphant, S. Improvement of Flame-made ZnO Nanoparticulate Thick Film Morphology for Ethanol Sensing. Sensors 2007, 7, 650-675. https://doi.org/10.3390/s7050650

AMA Style

Liewhiran C, Phanichphant S. Improvement of Flame-made ZnO Nanoparticulate Thick Film Morphology for Ethanol Sensing. Sensors. 2007; 7(5):650-675. https://doi.org/10.3390/s7050650

Chicago/Turabian Style

Liewhiran, Chaikarn, and Sukon Phanichphant. 2007. "Improvement of Flame-made ZnO Nanoparticulate Thick Film Morphology for Ethanol Sensing" Sensors 7, no. 5: 650-675. https://doi.org/10.3390/s7050650

Article Metrics

Back to TopTop
