Flow Injection Analysis Coupled with Carbon Electrodes as the Tool for Analysis of Naphthoquinones with Respect to Their Content and Functions in Biological Samples

1
Department of Natural Drugs, University of Veterinary and Pharmaceutical Sciences, Palackeho 1-3, CZ-612 42 Brno, Czech Republic
2
Department of Chemistry and Biochemistry, Faculty of Agronomy, Mendel University of Agriculture and Forestry, Zemedelska 1, CZ-613 00 Brno, Czec Republic
3
Department of Microelectronics, Technical University of Brno, Udolni 53, CZ-602 00 Brno, Czech Republic
4
Department of Plant Biology, Faculty of Agronomy, Mendel University of Agriculture and Forestry, Zemedelska 1, CZ-613 00 Brno, Czec Republic
5
Department of Food Engineering and Chemistry, Faculty of Technology, Tomas Bata University, CZ-762 72 Zlin, Czech Republic
6
Department of Veterinary Ecology and Environmental Protection, University of Veterinary and Pharmaceutical Sciences, Palackeho 1-3, CZ-612 42 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Sensors 2006, 6(11), 1466-1482; https://doi.org/10.3390/s6111466
Submission received: 16 October 2006 / Accepted: 27 October 2006 / Published: 6 November 2006
(This article belongs to the Special Issue Sensors in Flow Analysis)

Abstract

:
Naphthoquinones are one of the groups of secondary metabolites widespread in nature, where they mostly appear as chromatic pigments. They embody broad-range of biological actions from phytotoxic to fungicidal. An anticancer effect of naphthoquinones stimulates an interest in determination and characterization of single derivatives of 1,2- and 1,4-quinones in biological samples. The main aim of this work was to suggest a technique suitable to determine lawsone, juglone and/or plumbagin in biological samples and to study of their influence on BY-2 tobacco cells. The BY-2 tobacco cells were cultivated in the presence of the naphthoquinones of interest (500 μg.l-1) for 24 h and then the morphological changes were observed. We found out that naphthoquinones triggered the programmed cell death at BY-2 cells, which can be confirmed by the apoptotic bodies in nucleus. After that we suggested and optimized different electrochemical techniques such differential pulse voltammetry (DPV) coupled with hanging mercury drop (HMDE) and carbon paste electrode, micro flow device coupled with carbon screen printed electrodes and flow injection analysis coupled with Coulochem III detector to determine them. The detection limits of naphthoquinones of interest were expressed as 3S/N and varied from units to hundreds of ng per millilitres according to methods used. Moreover, we utilized DPV coupled with HMDE and micro flow device to determine content of juglone in leaves Persian walnut (Juglans regia). We determined that the leaves contained juglone tenths of g per 100 g of fresh weight. The results obtained show the convincing possibilities of using of these methods in analysis of plant secondary metabolites.

1. Introduction

Naphthoquinones belong to group of allelopathic metabolites widespread in nature. They have been found in higher plants such as Plumbaginaceae, Juglandaceae, etc. [1-4], fungi (Marasmius gramium and Verticillium dahliae) [5] and microorganisms (Streptomyces and Fusarium) [6]. Juglone, lawsone and plumbagin are ones of their mostly investigated representatives. Juglone (5-hydroxy-1,4-naphthoquinone) is the characteristic compound of Juglans spp., which is reported to occur in fresh walnut leaves [7,8]. Nevertheless, because of polymerization phenomena, juglone is reported to occur in the drug (dry leaves) only in vestigial amounts, which means that the compound is not suitable for use in the quality control of the dry plant [8].
Plumbagin (5-hydroxy-2-methyl-1,4-naphthoquinone) is a naturally occurring yellow pigment derivative from the herb Plumbago zeylanica L., a semi-climbing subshrub distributed in thickets or grassland. The whole plant and its root have been used as a folk medicine for the treatment of rheumatic pain, menostasis, carbuncle, and injury due to bumping [9]. Plumbagin has been shown to have anticancer, anti-leishmanial, anti-bacterial and anti-fungal properties [10-12], as well as a contraceptive effect [9]. Moreover plumbagin suppresses NF-kappa B activation and NF-kappa B-regulated gene products through modulation of p65 and I kappa B alpha kinase activation, leading to potentiation of apoptosis induced by cytokine and chemotherapeutic agents [13].
The active dye ingredient, lawsone (2-hydroxy-1,4-naphthoquinone), which constitutes about 1% of the dry weight of the leaves of Lawsonia alba, has been implicated in the causation of henna-induced hemolytic anemia because of its structural similarity to other ortho-substituted 1,4-naphthoquinones, such as menadione (2-methyl-1,4-naphthoquinone), that are known to induce oxidative injury within red cells [14]. 1,4-Naphthoquinones are thought to induce oxidative damage as a consequence of their ability to undergo redox cycling [15], with the generation of reactive oxygen species.
High performance liquid chromatography with spectrometric detection and electrochemical techniques are the most commonly used method for these purposes [9,16-21]. On the other, electrochemical sensor has not been suggested yet for determination of the lawsone, juglone and/or plumbagin. The main aim of this work was to suggest a technique suitable to determine lawsone, juglone and/or plumbagin in biological samples. For these purposes, we optimized both stationary and flow electrochemical techniques using carbon electrodes as sensors. Most of all, we aimed on using of carbon screen printed electrodes. Besides that we investigated the influence of the compounds of interest on BY-2 tobacco cells and determined their content in Persian walnut (Juglans regia).

2. Materials and methods

2.1. Chemicals

Naphthoquinones (lawsone, juglone and plumbagin) were purchased from Sigma Aldrich Chemical Corp. (St. Louis, USA). Methanol for HPLC and other analytical reagents of ACS purity were also purchased from Sigma Aldrich. Solutions were prepared using deionised ACS water (Sigma). The stock standard solutions of naphthoquinones at (100 μg.ml-1) were prepared in ACS methanol and stored in the dark at 4°C. The working standard solutions were prepared daily by dilution of the stock solutions. All solutions were filtered through a 0.45 μm Teflon membrane filter (MetaChem, Torrance, USA) prior to FIA analysis. The pH value was measured using WTW inoLab Level 3 (MultiLab Pilot; Weilheim, Germany) controlled by a personal computer program (MultiLab Pilot).

2.2. Electrochemical measurements

Differential pulse voltammetry (DPV)

The electrochemical analysis of naphthoquinones were performed with AUTOLAB Analyser (EcoChemie, Netherlands) connected to VA-Stand 663 (Metrohm, Switzerland), using a standard cell with three electrodes. The working electrodes were a hanging mercury drop electrode (HMDE) with a drop area of 0.4 mm2 and/or carbon paste electrode. The reference electrode was an Ag/AgCl/3M KCl electrode and the auxiliary electrode was a graphite electrode. For smoothing and baseline correction the software GPES 4.4 supplied by EcoChemie was employed. Phosphate buffer (0.2 M) was used as supporting electrolyte. The measurement was carried out in potential range from –0.6 to 0 V with potential step 5 mV.s-1 and pulse amplitude of 25 mV. The phosphate buffer (0.2 M) was deoxygenated prior the measurement. Prior to analysis of naphthoquinones on carbon paste electrode DPV parameters were used as follows: potential range from 0 to 1.2 V with potential step 5 mV.s-1 and pulse amplitude 25 mV. All measurements were performed at room temperature.

Preparation of carbon-paste electrode

The carbon paste (about 0.5 g) was made of graphite powder (Aldrich) and mineral oil (Sigma; free of DNase, RNase, and protease). The ratio of the graphite powder and mineral oil was 70/30 (w/w). This paste was housed in a Teflon body having a 2.5-mm-diameter disk surface. Prior to measurements, the electrode surface was renewed by polishing with a soft filter paper. Then, the surface was ready for measurement of a sample volume of 5 μl [22,23].

Micro Flow system

The one channel peristaltic pump PP10 consists of miniature motor with planetary gear and stainless body of peristaltic pump (BVT technologies, Brno). The flow was regulated by PC software (BVT technologies, Brno). The measurement was carried out in flow cells FC2 (BVT Technologies, Brno). The measuring electrodes were home made at Technical University of Brno, particularly carbon working electrode, silver electrode as auxiliary and Ag/AgCl as reference ones. The flow system was connected with AUTOLAB Analyser (EcoChemie). All measurements were performed at room temperature.

2.3. Flow injection analysis with amperometric detection

An FIA-amperometric system consisted of solvent delivery pump operating in range of 0.001-9.999 ml.min-1 (Model 583 ESA Inc., Chelmsford, MA, USA), a guard cell (Model 5020 ESA, USA), a reaction coil (1 m) and an electrochemical detector. The electrochemical detector (ED) includes one low volume flow-through analytical cells (Model 5040, ESA, USA), which is consisted of glassy carbon working electrode, palladium electrode as reference electrode and auxiliary carbon electrode, and Coulochem III as a control module. The sample (5 μl) was injected manually. The obtained data were treated by CSW 32 software. The experiments were carried out at room temperature. Guard cell potential was 0 V. A glassy carbon electrode was polished mechanically by 0.1 μm of alumina (ESA Inc., USA) and sonicated at the room temperature for 5 min using a Sonorex Digital 10 P Sonicator (Bandelin, Berlin, Germany) at 40 W.

2.4. Plant materials

BY-2 tobacco cell suspension

A suspension culture of Nicotiana tabacum BY-2 line was grown in liquid Murashige and Skoog medium supplemented with sucrose (30 g.l-1), KH2PO4 (0.2 g.l-1), thiamine (1 mg. l-1) and 2,4-dichlorophenoxyaetic acid (0.2 mg.l-1), according to Nagata [24]. The suspension cultures (20 ml) were grown in 50 ml Erlenmeyer flasks at 27°C with shaking at 135 rpm (Kühner Shaker, type: LT-W, Adolf Kühner AG, Switzerland). Subcultivation was performed after 3 or 4 days by transferring 2 or 1 ml, respectively, of suspension culture into a fresh medium (total volume 20 ml).

Juglans regia

The leaves of Persian walnut (Juglans regia) were harvested in Botanic garden of Mendel University of Agriculture and Forestry in Brno, October 2005 and July 2006. The harvested leaves (0.10 g ± 5 mg), were lyophilized at –51°C for 48 h (CHRIST-Alpha 1-2). Then the lyophilized samples were homogenized by an Ika A11 basic grinder (IKA Werke GmbH and Co., Staufen, KG, Germany). The homogenized samples (0.02 – 0.10 g) were dissolved in 5 ml of 99.999% methanol and sonicated at the laboratory temperature for 30 min using a K5 Sonicator (Czech Republic) at 150 W, 38 kHz. The samples were filtered through a 0.45 μm Teflon membrane filter (MetaChem) prior to injection into the FIA system and 100 times diluted with ACS water.

2.5. Cytological analysis

The sample of tobacco cell suspension was mixed with PEM buffer (100 mM PIPES, 10 mM EGTA, 10 mM MgCl2, pH 6.9) containing 4 % of formaldehyde in ratio 1:1. After the incubation (30 min., 25°C) the fixed cells were three times washed with PEM buffer and resuspended in PEM buffer with 0.1 % Triton X100 and 1 μg.ml-1 Hoechst 22385. The nucleus morphology was observed by the fluorescent microscope (Olympus AX 70) using the broad band UV excitation (cube U-MWU).

2.6. Statistical analysis

STATGRAPHICS® (Statistical Graphics Corp®, USA) was used for statistical analyses. Results are expressed as mean ± S.D. unless noted otherwise. Value of p < 0.05 was considered significant.

3. Results and discussion

Although naphthoquinones have been intensively studying for more then forty years [25], their biochemical mechanism of action is still unclear. It is a common knowledge that they can enter and influence a cell cycle [10,26-32]. Due to this their effects on tumour cell lines like such as P 338, BG-1 and HL-60 have been investigated [33]. Here we aimed on suggesting of a sensor for determination of certain naphthoquinones (lawsone, plumbagin and juglone, see in Fig. 1A) and on investigating of their effects on BY-2 tobacco cells. The effects of these substances on whole plants have been described but their influence on plant cell suspension is not clear yet, whereas BY-2 tobacco cells are very suitable for these purposes.

3.1. Morphological changes of BY-2 tobacco cells caused by naphthoquinones

The BY-2 tobacco cells were cultivated in the presence of the naphthoquinones of interest (500 μg.l-1) for 24 h and then the morphological changes were observed. The cell nuclei of non-treated BY-2 tobacco cells were well observable and their cytoplasm fluoresced weakly greenly (Fig. 1B). On the other hand the treated BY-2 cells embodied a number of morphological changes. The cell cytoplasm fluoresced intensively in comparison with non-treated ones (Fig. 1C-G), which is probably associated to the increase of activity of intracellular esterases [34-36]. The marked changes of chromatin of treated BY-2 cells were observed. As we observed in the microphotography, the nucleus pre-apoptotic changes, particularly, the strong initiation condensation of chromatin on nuclear periphery was observed (Fig. 1D, G). In addition, we found out that naphthoquinones triggered the programmed cell death at BY-2 cells, which can be confirmed by the apoptotic bodies in nucleus (Fig. 1E,F) [37,38]. This effect could be explained by the ability of naphthoquinones to generate the reactive oxygen species, the potential depletion on mitochondrial membranes and the inhibition of topoisomerases I and II [5,10,39]. Moreover, plumbagin is a potent inhibitor of the NF-kappa B activation pathway that leads to suppression of NF-kappa B-regulated gene products [13]. Thanks to properties of the naphthoquinones, the interest suggesting and optimizing of easy-to-use and sensitive determination of them increases.

3.2. Electrochemical determination of naphthoquinones

The higher attention was given to chromatographic methods of naphthoquinones determination [18,40-45]. The electrochemical techniques have been utilizing mainly to study of naphthoquinones chemical interaction [46-48], but their utilizing to naphthoquinone determination in biological samples has not been published yet. Here, we focused primarily to study of lawsone, plumbagin and juglone behaviour on mercury drop electrode measured in the presence of phosphate buffer (pH 6.0). We obtained the characteristic voltammograms with electrochemical signals corresponds to electrochemical changing of compounds of interest. Due to electroanalytical purposes, the characteristic signals at potential of -0.37 V for lawsone, of -0.23 V for plumbagin and of -0.04 V for juglone were chosen. Moreover, we were able to determine the naphthoquinones of interest simultaneously (Fig. 2A). During simultaneous determination the slight potential shift of single naphthoquinones signals was observed (± 5%).
It clearly follows from the results obtained that the naphthoquinones can interact strongly with the surface of HMDE. Particularly, we observed increase in the height of juglone and plumbagin signal with increasing time of accumulation up to tA of 120 s and then the signal decreased. As for lawsone, its signal increased more than 60 % at tA of 300 s in comparison with the signal measured at tA of 0 s and then the signal increased slowly (Fig. 2B). It clearly follows from the results that the time of accumulation of 120 s was the most suitable for simultaneous determination of the naphthoquinones (Fig. 2B). It is a common knowledge that the pH of the supporting electrolyte influences markedly the height of a signal. It clearly follows from the results obtained that the highest signals of the naphthoquinones of interest were observed at pH 5.5. The electrochemical signals decreased at higher pH values, mostly at the plumbagin and at the least at lawsone (Fig. 2C). After the optimizing step, measuring the dependence of the naphthoquinone electrochemical signal on its concentration followed (Fig. 2D). The calibration curves obtained were linear within the tested concentration range from 0.1 to 5 μg.ml-1. The detection limits were expressed as 3S/N and varied from 5 to 100 ng.ml-1 with relative standard deviations about 3% (Table 1).
Consequently, the suggested method was utilized to study the naphthoquinones content directly in plant material. The leaves of Persian walnut (Juglans regia) was chosen as plant material analysed [16]. This tree was chosen not only because it's multilateral usage, but also for the high naphthoquinones level, especially juglone and plumbagin. We determined that the leaves contained plumbagin at 320 μg.ml-1 and juglone at 290 μg.ml-1, which corresponds to the naphthoquinone content of 0.3 and 0.2 g per 100 g of fresh weight.
Even despite the number of interfering compounds like carboxylic acids (linolic, linolenic and caffeic acid), terpens (germakren D), vitamins (provitamin A, some vitamins B, vitamin C and E) and not least tannins and their derivatives (galic and egalic acid) the naphthoquinones were easily detectable by the suggested technique in the leaves of Persian walnut.

3.3. Electrochemical analysis of naphthoquinones using a carbon paste electrode

The mercury electrode can not be utilized for the analysis in flow arrangement, thus we used the solid electrodes (carbon, gold, etc.) for these purposes. The oxidation signals of naphthoquinones of interest can be observed on voltammograms obtained. These signals after baseline correcting are shown in Fig. 3A [49,50]. The signals of lawsone were observed at the potential of 0.68 ± 0.03 V (n = 5), of juglone at 1.00 ± 0.02 V (n = 5) and of plumbagin at 0.98 ± 0.02 V (n = 5). The peak height of single naphthoquinone was proportional to its concentration within the range from 1 to 50 μg.ml-1 with the detection limit below 1 μg.ml-1. The details will be published elsewhere.

3.4. The electrochemical analysis of naphthoquinones using the micro flow system

Due to needs of routine analysis, it is very useful to connect sensitive detection technique with flow instrument [51-54]. For these purposes, the instrument built up from miniaturized peristaltic pump, flow cell and control printed circuit board was used (Fig. 4). The printed electrodes, whose construction is shown in Fig. 4, are placed in the flow cell. Particularly, the working electrode is placed in the middle, around the working electrode is placed the referent (Ag/AgCl) and auxiliary ones. The electrodes is inserted into the slit of cell and tightened by closing of the door. The cell assures the wall-jet flow around the working electrode. The cell contains also the contact and output cable. The micro pump was controlled by software REV (BVT technologies, Brno) and the electrochemical responses were recorded by potentiostat/galvanostat AUTOLAB using the GPES 4.9 software (Eco Chemie).
It is a common knowledge that the flow rate influences the electrochemical response markedly, especially in voltammetric, but also in amperometric analysis [55-59]. Due to this the experimental method of naphthoquinones analysis in flow system was designed. Primarily the supporting electrolyte (phosphate buffer pH 5.5) was pumped into the miniaturized electrochemical system by the micro pump (140 s, 5 000 rpm), which leads to filling of the electrochemical cell in very small volume of 25 μl. Then, the sample was pumping for 30 s (5 000 rpm). After that the voltammetric analysis followed. Moreover, the electrode can be reused for other analysis after the soft cleaning of its surface with ACS water. In this experimental design, it was possible to run five analyses with the 5-10% decrease of the signal of compound of interest, but the reproducibility of the measurement was still very good. During the analysis very well developed and characteristic oxidative signals of single naphthoquinones were obtained and are shown in Fig 3B. After the application of the baseline correction we were able to distinguish the signals of lawsone at the potential of 0.58 ± 0.02 V (n = 5), juglone at 0.85 ± 0.0 V (n = 5) and plumbagin at 0.78 ± 0.03 V (n = 5) see in Fig. 3C. The shifting of the signals into the positive potential of about 100 mV was observed in comparison with the measurement on carbon paste electrode. These shifts could be associated with the designed electrode system and, above all, with different construction of the referent electrode. In addition, we studied the dependence of the electrochemical signal observed on the concentration of naphthoquinone. The obtained calibration curves were linear within concentration range from 1 to 25 μg.ml-1 (Fig. 3D). The detection limits were expressed as 3S/N and were from 0.15 to 0.35 μg.ml-1 with relative standard deviation of the determination about 4.5 % (Table 2).

3.5. Determination of juglone in leaves of Persian walnut

Similarly to the naphthoquinones determination in real sample by using the classical electrochemical methods, likewise we analyzed the extract from Persian walnut (Juglans regia) by the abovementioned technique (Fig. 3E). Walnut (Juglans regia L.) leaf has been widely used in folk medicine for treatment of venous insufficiency and haemorrhoidal symptomatology, and for its antidiarrheic, antihelmintic, depurative and astringent properties [8]. Keratolytic, antifungal, hypoglycaemic, hypotensive, anti-scrofulous and sedative activities have also been described [7].
As for analysis of the leaves, we determined the concentration of plumbagin and juglone by flow analysis on carbon printed electrode (Fig. 4) and found out that the results were 502 ng.ml-1 and 458 ng.ml-1, respectively. This corresponds to plumbagin and juglone concentration about 0.5 and 0.4 g per 100 g of fresh weight, respectively. The naphthoquinones content determined in leaves of Persian walnut by flow electrochemical techniques slightly differs from stationary ones. The observed differences could be associated with plant phenophasis (time of collecting of single samples; October 2005 for DPV HMDE analysis and July 2006 for micro flow device).
At the end of our work, we attempted to utilize the results obtained from stationary and micro flow analysis of naphthoquinones for suggesting their detection by robust flow injection analysis coupled with Coulochem III electrochemical detector. The FIA-ED record of analysis of juglone, lawsone and plumbagin standards is shown in Fig. 5. It clearly follows from the results obtained that we can successfully utilize the results obtained from micro flow device during analysis by more robust technique.

Conclusion

The electrochemical methods are suitable for simultaneous determination of the compounds of interest not only in a biological sample without separation step but also directly in the biological sample [60-62]. Here, certain naphthoquinones (lawsone, plumbagin and juglone) were sensitively analyzed by using the differential pulse voltammetry coupled with hanging mercury drop and carbon paste electrodes and by injection analysis coupled with carbon printed electrode. The results obtained show the convincing possibilities of using of these methods in analysis of plant secondary metabolites. Thus, the electrochemical methods are convenient for the construction and design of the miniaturized sensors and biosensors [63-67].

Acknowledgments

This work was supported by grants: IGA MZ 1A/8666-3, GACR No. 525/04/P132, MSMT M06030 and MSMT 6215712402.

References

  1. Zhong, S.M.; Waterman, P.G.; Jeffreys, J.A.D. Naphthoquinones and triterpenes from african Diospyros species. Phytochemistry 1984, 23, 1067–1072. [Google Scholar]
  2. Zakaria, M.B.; Jeffreys, J.A.D.; Waterman, P.G.; Zhong, S.M. Naphthoquinones and triterpenes from some asian Diospyros species. Phytochemistry 1984, 23, 1481–1484. [Google Scholar]
  3. Dinda, B.; Das, S.K.; Hajra, A.K. Chemical constituents of Plumbago indica roots. Indian J. Chem. Sect. B. 1998, 37, 672–675. [Google Scholar]
  4. Binder, R.G.; E., B.M.; Flath, R.A. Eight 1,4-naphthoquinones from juglans. Phytochemistry 1989, 28, 2799–2801. [Google Scholar]
  5. Medentsev, A.G.; Akimenko, V.K. Naphthoquinone metabolites of the fungi. Phytochemistry 1998, 47, 935–959. [Google Scholar]
  6. Moore, S.B.; Hopke, N.J. Discovery of New Bacterial Polyketide Biosynthetic Pathway. Chem. Biochem. 2001, 2, 35–38. [Google Scholar]
  7. Girzu, M.; Carnat, A.; Privat, A.M.; Fialip, J.; Carnat, A.P.; Lamaison, J.L. Sedative effect of walnut leaf extract and juglone, an isolated constituent. Pharm. Biol. 1998, 36, 280–286. [Google Scholar]
  8. Amaral, J.S.; Seabra, R.M.; Andrade, P.B.; Valentao, P.; Pereira, J.A.; Ferreres, F. Phenolic profile in the quality control of walnut (Juglans regia L.) leaves. Food Chem. 2004, 88, 373–379. [Google Scholar]
  9. Hsieh, Y.J.; Lin, L.C.; Tsai, T.H. Determination and identification of plumbagin from the roots of Plumbago zeylanica L. by liquid chromatography with tandem mass spectrometry. J. Chromatogr. A 2005, 1083, 141–145. [Google Scholar]
  10. Ding, Y.X.; Chen, Z.J.; Liu, S.G.; Che, D.N.; Vetter, M.; Chang, C.H. Inhibition of Nox-4 activity by plumbagin, a plant-derived bioactive naphthoquinone. J. Pharm. Pharmacol. 2005, 57, 111–116. [Google Scholar]
  11. Didry, N.; Dubreuil, L.; Trotin, F.; Pinkas, M. Antimicrobial activity of aerial parts of Drosera peltata Smith on oral bacteria. J. Ethnopharmacol. 1998, 60, 91–96. [Google Scholar]
  12. Hazra, B.; Sarkar, R.; Bhattacharyya, S.; Ghosh, P.K.; Chel, G.; Dinda, B. Synthesis of plumbagin derivatives and their inhibitory activities against Ehrlich ascites carcinoma in vivo and Leishmania donovani promastigotes in vitro. Phytother. Res. 2002, 16, 133–137. [Google Scholar]
  13. Sandur, S.K.; Ichikawa, H.; Sethi, G.; Ahn, K.S.; Aggarwal, B.B. Plumbagin (5-hydroxy-2-methyl-1,4-naphthoquinone) suppresses NF-kappa B activation and NF-kappa B-regulated gene products through modulation of p65 and I kappa B alpha kinase activation, leading to potentiation of apoptosis induced by cytokine and chemotherapeutic agents. J. Biol. Chem. 2006, 281, 17023–17033. [Google Scholar]
  14. McMillan, D.C.; Sarvate, S.D.; Oatis, J.E.; Jollow, D.J. Role of oxidant stress in lawsone-induced hemolytic anemia. Toxicol. Sci. 2004, 82, 647–655. [Google Scholar]
  15. Munday, R.; Fowke, E.A.; Smith, B.L.; Munday, C.M. Comparative Toxicity of Alkyl-1,4-Naphthoquinones in Rats - Relationship to Free-Radical Production in-Vitro. Free Radic. Biol. Med. 1994, 16, 725–731. [Google Scholar]
  16. Girzu, M.; Fraisse, D.; Carnat, A.P.; Carnat, A.; Lamaison, J.L. High-performance liquid chromatographic method for the determination of juglone in fresh walnut leaves. J. Chromatogr. A 1998, 805, 315–318. [Google Scholar]
  17. Gupta, M.M.; Verma, R.K.; Uniyal, G.C.; Jain, S.P. Determination of plumbagin by normal phase high-perfprmance liquid chromatography. J. Chromatogr. 1993, 637, 209–212. [Google Scholar]
  18. Babula, P.; Mikelova, R.; Adam, V.; Potesil, D.; Zehnalek, J.; Kizek, R.; Havel, L.; Sladky, Z. Chromatographic analysis of naphthoquinones in plants. Chem. Listy 2006, 100, 271–276. [Google Scholar]
  19. Rodrigues, S.V.; Viana, L.M.; Baumann, W. UV/Vis spectra and solubility of some naphthoquinones, and the extraction behavior of plumbagin from Plumbago scandens roots in supercritical CO2. Anal. Bioanal. Chem. 2006, 385, 895–900. [Google Scholar]
  20. Wang, Y.C.; Huang, T.L. High-performance liquid chromatography for quantification of plumbagin, an anti-Helicobacter pylori compound of Plumbago zeylanica L. J. Chromatogr. A 2005, 1094, 99–104. [Google Scholar]
  21. Babula, P.; Mikelova, R.; Adam, V.; Kizek, R.; Havel, L.; Sladky, Z. Using of liquid chromatography coupled with diode array detector for determination of naphthoquinones in plants and for investigation of influence of pH of cultivation medium on content of plumbagin in Dionaea muscipula. J. Chromatogr. B 2006, 842, 28–35. [Google Scholar]
  22. Kizek, R.; Masarik, M.; Kramer, K.J.; Potesil, D.; Bailey, M.; Howard, J.A.; Klejdus, B.; Mikelova, R.; Adam, V.; Trnkova, L.; Jelen, F. An analysis of avidin, biotin and their interaction at attomole levels by voltammetric and chromatographic techniques. Anal. Bioanal. Chem. 2005, 381, 1167–1178. [Google Scholar]
  23. Masarik, M.; Kizek, R.; Kramer, K.J.; Billova, S.; Brazdova, M.; Vacek, J.; Bailey, M.; Jelen, F.; Howard, J.A. Application of avidin-biotin technology and adsorptive transfer stripping square-wave voltammetry for detection of DNA hybridization and avidin in transgenic avidin maize. Anal. Chem. 2003, 75, 2663–2669. [Google Scholar]
  24. Nagata, T.; Nemoto, Y.; Hasezawa, S. Tobacco BY-2 cell line as the “HeLa” cell line in the cell biology of higher plants. Int Rev Cytol 1992, 132, 1–30. [Google Scholar]
  25. Premakumari, P.; Rathinam, K.; Santhakumari, G. Antifertility activity of plumbagin. Ind. J. Med. Res. 1977, 65, 829–838. [Google Scholar]
  26. de Abreu, F.C.; Ferraz, P.A.D.; Goulart, M.O.F. Some applications of electrochemistry in biomedical chemistry. Emphasis on the correlation of electrochemical and bioactive properties. J. Braz. Chem. Soc. 2002, 13, 19–35. [Google Scholar]
  27. Klejdus, B.; Kuban, V. Plant phenolic compounds in allelopathy. Chem. Listy 1999, 93, 243–248. [Google Scholar]
  28. Obrien, P.J. Molecular mechanisms of quinone cytotoxicity. Chem. Biol. Interact. 1991, 80, 1–41. [Google Scholar]
  29. Oliveira-Brett, A.M.; Goulart, M.O.F.; Abreu, F.C. Reduction of lapachones and their reaction with L-cysteine and mercaptoethanol on glassy carbon electrodes. Bioelectrochemistry 2002, 56, 53–55. [Google Scholar]
  30. Srinivas, G.; Annab, L.A.; Gopinath, G.; Banerji, A.; Srinivas, P. Antisense blocking of BRCA1 enhances sensitivity to plumbagin but not tamoxifen in BG-1 ovarian cancer cells. Mol. Carcinogen. 2004, 39, 15–25. [Google Scholar]
  31. Lall, N.; Meyer, J.J.M.; Taylor, M.B. Anti-HSV-1 activity of Euclea natalensis. S. Afr. J. Bot. 2005, 71, 444–446. [Google Scholar]
  32. Medina, L.F.C.; Stefani, V.; Brandelli, A. Use of 1,4-naphthoquinones for control of Erwinia carotovora. Can. J. Microbiol. 2004, 50, 951–956. [Google Scholar]
  33. Inbaraj, J.J.; Chignell, C.F. Cytotoxic action of juglone and plumbagin: A mechanistic study using HaCaT keratinocytes. Chem. Res. Toxicol. 2004, 17, 55–62. [Google Scholar]
  34. Petrek, J.; Vitecek, J.; Vlasinova, H.; Kizek, R.; Kramer, K.J.; Adam, V.; Klejdus, B.; Havel, L. Application of computer imaging, stripping voltammetry and mass spectrometry to study the effect of lead (Pb-EDTA) on the growth and viability of early somatic embryos of Norway spruce (Picea abies/L./Karst.). Anal. Bioanal. Chem. 2005, 383, 576–586. [Google Scholar]
  35. Vitecek, J.; Adam, V.; Petrek, J.; Babula, P.; Novotna, P.; Kizek, R.; Havel, L. Application of fluorimetric determination of esterases in plant material. Chem. Listy 2005, 99, 496–501. [Google Scholar]
  36. Vitecek, J.; Adam, V.; Petrek, J.; Vacek, J.; Kizek, R.; Havel, L. Esterases as a marker for growth of BY-2 tobacco cells and early somatic embryos of the Norway spruce. Plant Cell Tiss. Org. Cult. 2004, 79, 195–201. [Google Scholar]
  37. Havel, L.; Durzan, D.J. Apoptosis in plants. Bot. Acta 1996, 109, 268–277. [Google Scholar]
  38. Havel, L.; Durzan, D.J. Apoptosis during diploid parthenogenesis and early somatic embryogenesis of Norway spruce. Int. J. Plant Sci. 1996, 157, 8–16. [Google Scholar]
  39. Hazra, B.; Sarkar, R.; Bhattacharyya, S.; Ghosh, P.K.; Chel, G.; Dinda, B. Synthesis of plumbagin derivatives and their inhibitory activities against Ehrlich ascites carcinoma in vivo and Leishmania donovani promastigotes in vitro. Phytoter. Res. 2002, 16, 133–137. [Google Scholar]
  40. Babula, P.; Mikelova, R.; Potesil, D.; Adam, V.; Kizek, R.; Havel, L.; Sladky, Z. Simultaneous determination of 1,4-naphthoquinone, lawsone, juglone and plumbagin by liquid chromatography with UV detection. Biomed. Papers 2005, 149, 25–28. [Google Scholar]
  41. Budzianowski, J. Naphthoquinones of Drosera spathulata from in vitro cultures. Phytochemistry 1995, 40, 1145–1148. [Google Scholar]
  42. Crouch, I.J.; Finnie, J.F.; Vanstadien, J. Studies on the isolation of plumbagin from in vitro and in vivo grown Drosera species. Plant Cell Tiss. Org. Cult. 1990, 21, 79–82. [Google Scholar]
  43. Marston, A.; Hostettmann, K. High-performance liquid chromatography of some naturally occurring naphthoquinones. J. Chromatogr. 1984, 295, 526–529. [Google Scholar]
  44. Michelitsch, A.; Wurglics, M.; Schubert-Zsilavecz, M.; Likussar, W. Determination of 5-hydroxynaphthoquinones in phytotherapeutic Drosera preparations by differential pulse polarography. Phytochem. Anal. 1999, 10, 64–68. [Google Scholar]
  45. Babula, P.; Mikelova, R.; Adam, V.; Kizek, R.; Havel, L.; Sladky, Z. An influence of cultivation conditions on content of plumbagin in Dionaea Muscipula revealed by liquid chromatography coupled with diode array detector. J. Chrom. B 2006. [Google Scholar]
  46. Abreu, F.C.; Goulart, M.O.F.; Brett, A.M.O. Reduction of lapachones in aqueous media at a glassy carbon electrode. Electroanalysis 2002, 14, 29–34. [Google Scholar]
  47. Ferraz, P.A.L.; de Abreu, F.C.; Pinto, A.V.; Glezer, V.; Tonholo, J.; Goulart, M.O.F. Electrochemical aspects of the reduction of biologically active 2-hydroxy-3-alkyl-1,4-naphthoquinones. J. Electroanal. Chem. 2001, 507, 275–286. [Google Scholar]
  48. Zalis, S.; Fiedler, J.; Pospisil, L.; Fanelli, N.; Lanza, C.; Lampugnani, L. Electron transfer in donor-acceptor molecules of substituted naphthoquinones: Spectral and redox properties of internal charge transfer complexes. Microchem. J. 1996, 54, 478–486. [Google Scholar]
  49. Bromba, M.U.A.; Ziegler, H. Application Hints for Savitzky-Golay Digital Smoothing Filters. Anal. Chem. 1981, 53, 1583–1586. [Google Scholar]
  50. Bromba, M.U.A.; Ziegler, H. Digital Smoothing of Noisy Spectra. Anal. Chem. 1983, 55, 648–653. [Google Scholar]
  51. Rolka, D.; Poghossian, A.; Schoning, M.J. Integration of a capacitive EIS sensor into a FIA system for pH and penicillin determination. Sensors 2004, 4, 84–94. [Google Scholar]
  52. De Oliveira, M.F.; Saczk, A.A.; Neto, J.A.G.; Roldan, P.S.; Stradiotto, N.R. Flow injection amperometric determination of persulfate in cosmetic products using a Prussian Blue film-modified electrode. Sensors 2003, 3, 371–380. [Google Scholar]
  53. Prasek, J.; Adamek, M.; Hubalek, J.; Adam, V.; Trnkova, L.; Kizek, R. New Hydrodynamic Electrochemical Arrangement for Heavy Metals Detection Using Thick-Film Chemical Sensor Electrodes. Sensors 2006, 6, 1498–1512. [Google Scholar]
  54. Supalkova, V.; Petrek, J.; Havel, L.; Krizkova, S.; Petrlova, J.; Adam, V.; Potesil, D.; Babula, P.; Beklova, M.; Horna, A.; Kizek, R. Electrochemical Sensors for Detection of Acetylsalicylic Acid. Sensors 2006, 6, 1483–1497. [Google Scholar]
  55. Potesil, D.; Mikelova, R.; Adam, V.; Kizek, R.; Prusa, R. Change of the protein p53 electrochemical signal according to its structural form - Quick and sensitive distinguishing of native, denatured, and aggregated form of the “guardian of the genome”. Protein J. 2006, 25, 23–32. [Google Scholar]
  56. Potesil, D.; Petrlova, J.; Adam, V.; Vacek, J.; Klejdus, B.; Zehnalek, J.; Trnkova, L.; Havel, L.; Kizek, R. Simultaneous femtomole determination of cysteine, reduced and oxidized glutathione, and phytochelatin in maize (Zea mays L.) kernels using highe-performance liquid chromatography with electrochemical detection. J. Chromatogr. A 2005, 1084, 134–144. [Google Scholar]
  57. Petrlova, J.; Mikelova, R.; Stejskal, K.; Kleckerova, A.; Zitka, O.; Petrek, J.; Havel, L.; Zehnalek, J.; Adam, V.; Trnkova, L.; Kizek, R. Simultaneous determination of eight biologically active thiol compounds using gradient elution-liquid chromatography with Coul-Array detection. J. Sep. Sci. 2006, 29, 1166–1173. [Google Scholar]
  58. Prusa, R.; Potesil, D.; Masarik, M.; Adam, V.; Kizek, R.; Jelen, F. Fast and sensitive electrochemical detection of native, denatured, and aggregated forms of tumor suppressor protein p53. Mol. Biol. Cell 2004, 15, 249A–249A. [Google Scholar]
  59. Klejdus, B.; Vacek, J.; Adam, V.; Zehnalek, J.; Kizek, R.; Trnkova, L.; Kuban, V. Determination of isoflavones in soybean food anal human urine using liquid chromatography with electrochemical detection. J. Chromatogr. B 2004, 806, 101–111. [Google Scholar]
  60. Vitecek, J.; Petrlova, J.; Petrek, J.; Adam, V.; Potesil, D.; Havel, J.; Mikelova, R.; Trnkova, L.; Kizek, R. Electrochemical study of S nitrosoglutathione and nitric oxide by carbon fibre NO sensor and cyclic voltammetry - possible way of monitoring of nitric oxide. Electrochim. Acta 2006, 51, 5087–5094. [Google Scholar]
  61. Trnkova, L.; Kizek, R.; Vacek, J. Square wave and elimination voltammetric analysis of azidothymidine in the presence of oligonucleotides and chromosomal DNA. Bioelectrochemistry 2004, 63, 31–36. [Google Scholar]
  62. Billova, S.; Kizek, R.; Jelen, F.; Novotna, P. Square-wave voltammetric determination of cefoperazone in a bacterial culture, pharmaceutical drug, milk, and urine. Anal. Bioanal. Chem. 2003, 377, 362–369. [Google Scholar]
  63. Trnkova, L.; Jelen, F.; Petrlova, J.; Adam, V.; Potesil, D.; Kizek, R. Elimination voltammetry with linear scan as a new detection method for DNA sensors. Sensors 2005, 5, 448–464. [Google Scholar]
  64. Adam, V.; Petrlova, J.; Potesil, D.; Zehnalek, J.; Sures, B.; Trnkova, L.; Jelen, F.; Kizek, R. Study of metallothionein modified electrode surface behavior in the presence of heavy metal ions-biosensor. Electroanalysis 2005, 17, 1649–1657. [Google Scholar]
  65. Adam, V.; Petrlova, J.; Potesil, D.; Lubal, P.; Zehnalek, J.; Sures, B.; Kizek, R. New electrochemical biosensor to determine platinum cytostatics to DNA structure. Chem. Listy 2005, 99, 353–393. [Google Scholar]
  66. Adam, V.; Zehnalek, J.; Petrlova, J.; Potesil, D.; Sures, B.; Trnkova, L.; Jelen, F.; Vitecek, J.; Kizek, R. Phytochelatin modified electrode surface as a sensitive heavy-metal ion biosensor. Sensors 2005, 5, 70–84. [Google Scholar]
  67. Petrlova, J.; Potesil, D.; Zehnalek, J.; Sures, B.; Adam, V.; Trnkova, L.; Kizek, R. Cisplatin electrochemical biosensor. Electrochim. Acta 2006, 51, 5169–5173. [Google Scholar]

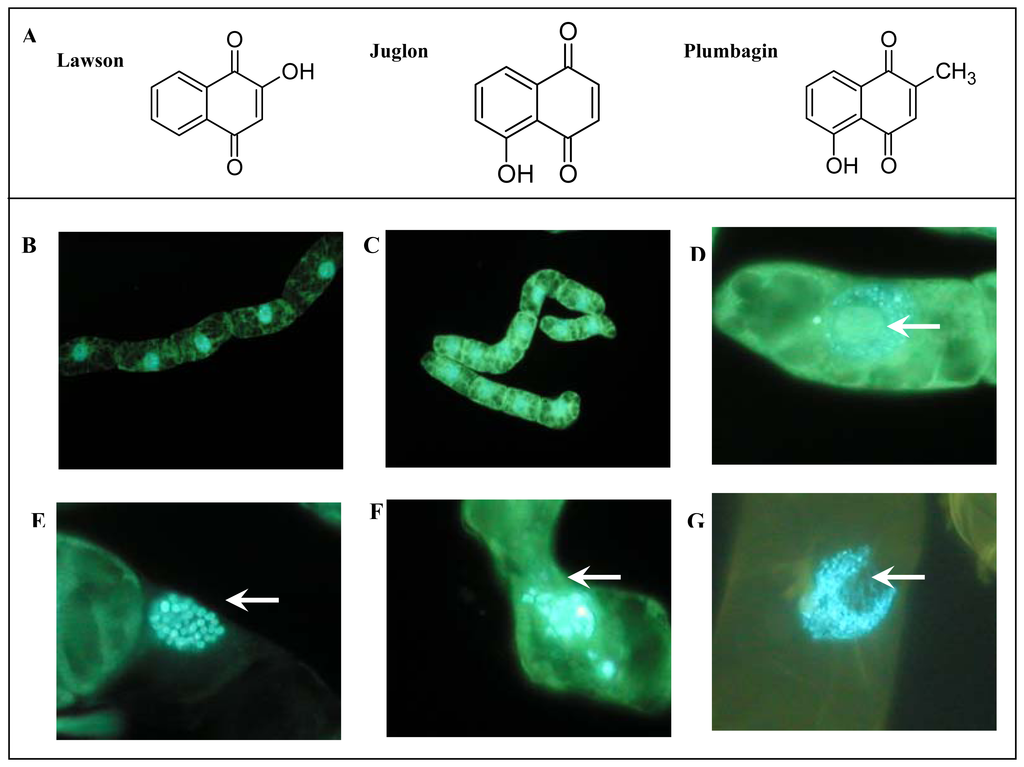

Figure 1. (A) Chemical structures of lawsone, juglone and plumbagin. The morphological changes of BY-2 cells induced by the naphthoquinones juglone and plumbagin. The tobacco cells were fixed and dyed with fluorescent dye Hoechst 33258 and observed by epifluorescent microscopy. (B) Control, non-treated BY-2 cells. (C-G) The tobacco cells treated by plumbagin and juglone (500 μg.l-1) for 24 hours; (C) overall insight; (D) beginning chromatin condensation on the nuclear periphery – pre-apoptotic nucleus; (E) apoptotic nucleus – plumbagin; (F) apoptotic nucleus – juglone; (G) – nucleus with strong chromatin condensation. The arrows show on described phenomenon. Magnification of the figures: (B-C) × 400 and (D-F) × 1000.
Figure 1. (A) Chemical structures of lawsone, juglone and plumbagin. The morphological changes of BY-2 cells induced by the naphthoquinones juglone and plumbagin. The tobacco cells were fixed and dyed with fluorescent dye Hoechst 33258 and observed by epifluorescent microscopy. (B) Control, non-treated BY-2 cells. (C-G) The tobacco cells treated by plumbagin and juglone (500 μg.l-1) for 24 hours; (C) overall insight; (D) beginning chromatin condensation on the nuclear periphery – pre-apoptotic nucleus; (E) apoptotic nucleus – plumbagin; (F) apoptotic nucleus – juglone; (G) – nucleus with strong chromatin condensation. The arrows show on described phenomenon. Magnification of the figures: (B-C) × 400 and (D-F) × 1000.
Sensors 06 01466f1

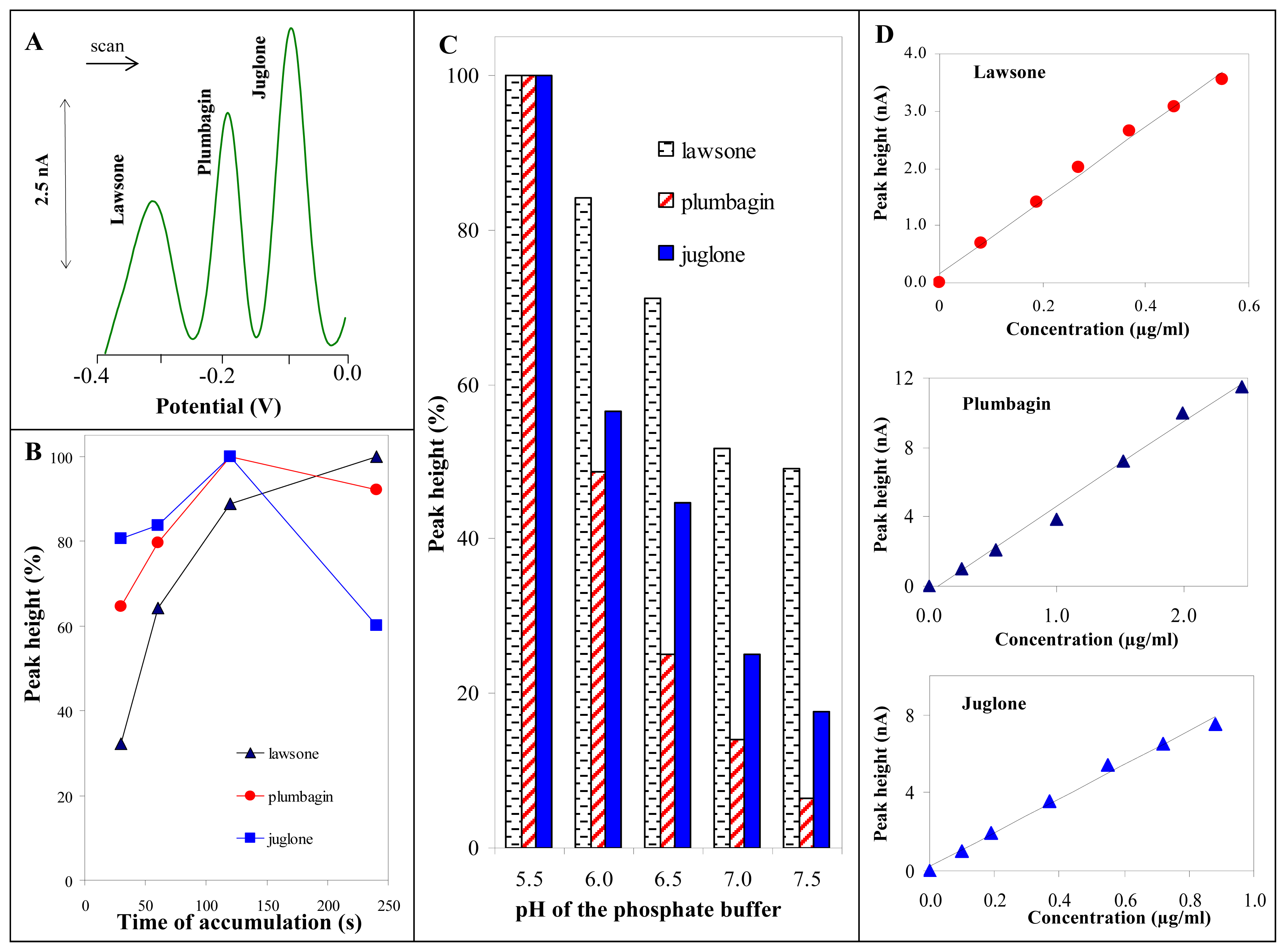

Figure 2. Naphthoquinone analysis by stationary electrochemical method. (A) The DP voltammogram of lawsone, juglone and plubagin (1 μg.ml-1) simultaneously determined on the surface of HMDE. The change of signal height of the naphthoquinones with increasing (B) time of accumulation and (C) pH of phosphate buffer – supporting electrolyte. Signal heights of 7 nA for lawsone, of 4 nA for plumbagin and of 8 nA for juglone correspond to the 100 %. (D) The dependence of naphthoquinone peak height on its concentration. The naphthoquinones were measured in the presence phosphate buffer (0.2 M) in potential range from –0.6 to 0 V with potential step 5 mV.s-1 and pulse amplitude 25 mV. For other details see “Materials and Methods” section.
Figure 2. Naphthoquinone analysis by stationary electrochemical method. (A) The DP voltammogram of lawsone, juglone and plubagin (1 μg.ml-1) simultaneously determined on the surface of HMDE. The change of signal height of the naphthoquinones with increasing (B) time of accumulation and (C) pH of phosphate buffer – supporting electrolyte. Signal heights of 7 nA for lawsone, of 4 nA for plumbagin and of 8 nA for juglone correspond to the 100 %. (D) The dependence of naphthoquinone peak height on its concentration. The naphthoquinones were measured in the presence phosphate buffer (0.2 M) in potential range from –0.6 to 0 V with potential step 5 mV.s-1 and pulse amplitude 25 mV. For other details see “Materials and Methods” section.
Sensors 06 01466f2

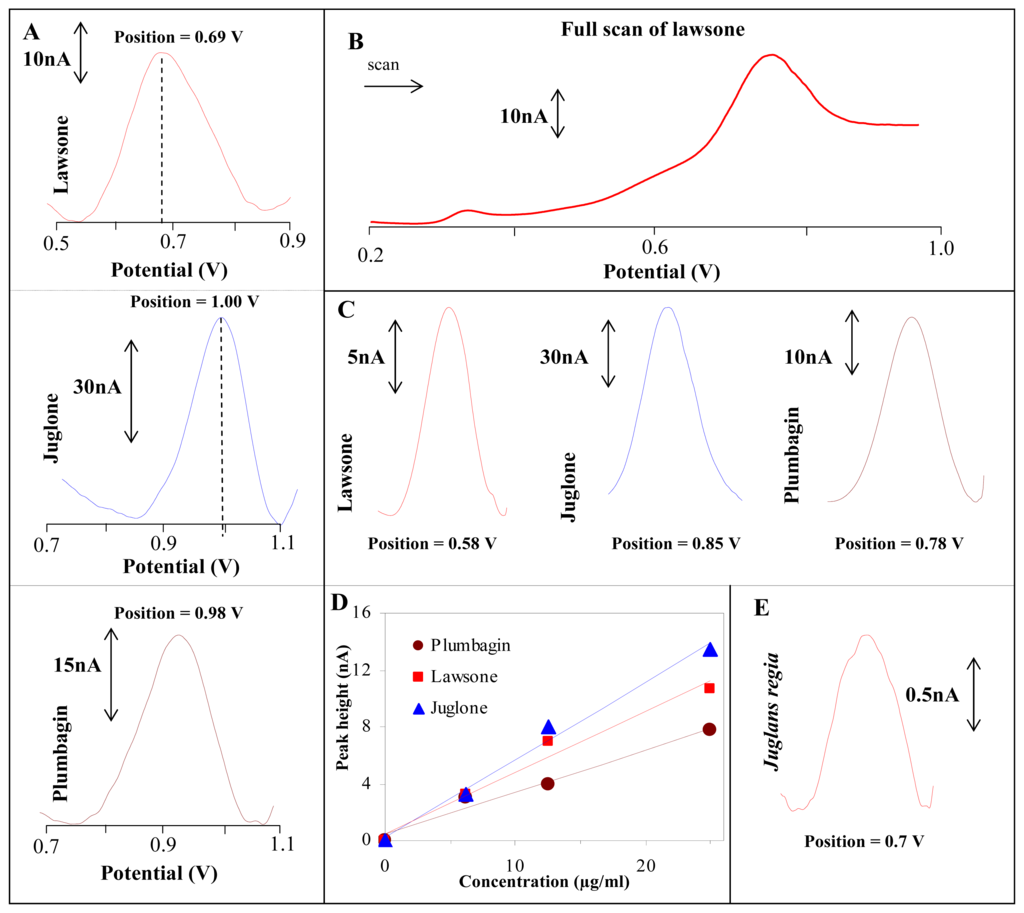

Figure 3. Carbon paste electrode. (A) Baseline corrected DP voltammograms of lawsone, juglone and plumbagin (1 μg.ml-1) measured on the surface of carbon paste electrode. DPV parameters were used as follows: potential range from 0 to 1.2 V with potential step 5 mV.s-1 and pulse amplitude 25 mV. Carbon screen printed electrode. (B) Full scan of Lawsone measured on carbon screen printed electrode using micro flow device. (C) Baseline corrected voltammograms of lawsone, juglone and plumbagin (1 μg.ml-1) on measured on the surface of carbon screen printed electrodes. (D) Dependence of signal height on the concentration of single naphthoquinone. (E) Voltammogram of the real sample of walnut leave 100 times diluted. Pumping of the supporting electrolyte (0.2 M phosphate buffer, pH 5.5) by using the micro pump (140 s, 5 000 rpm), the samples were injected each 30 s from stock tube (5 000 rpm). For other details see “Materials and Methods” section.
Figure 3. Carbon paste electrode. (A) Baseline corrected DP voltammograms of lawsone, juglone and plumbagin (1 μg.ml-1) measured on the surface of carbon paste electrode. DPV parameters were used as follows: potential range from 0 to 1.2 V with potential step 5 mV.s-1 and pulse amplitude 25 mV. Carbon screen printed electrode. (B) Full scan of Lawsone measured on carbon screen printed electrode using micro flow device. (C) Baseline corrected voltammograms of lawsone, juglone and plumbagin (1 μg.ml-1) on measured on the surface of carbon screen printed electrodes. (D) Dependence of signal height on the concentration of single naphthoquinone. (E) Voltammogram of the real sample of walnut leave 100 times diluted. Pumping of the supporting electrolyte (0.2 M phosphate buffer, pH 5.5) by using the micro pump (140 s, 5 000 rpm), the samples were injected each 30 s from stock tube (5 000 rpm). For other details see “Materials and Methods” section.
Sensors 06 01466f3

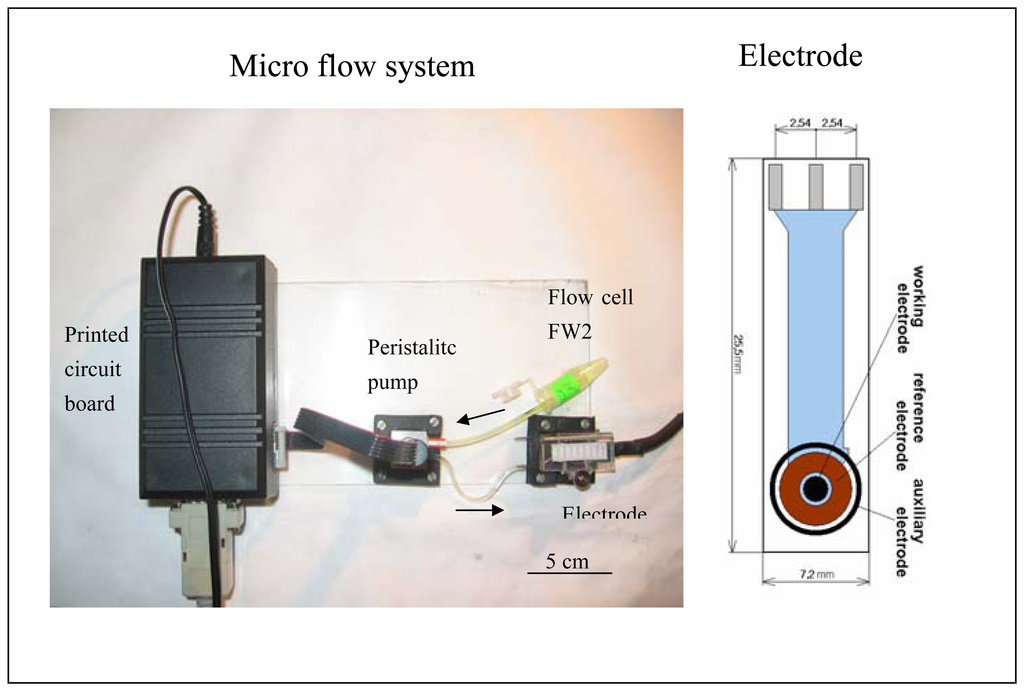

Figure 4. The photography of the micro flow system built from the micro pump, flow cell and printed circuit board. The scheme of the designed printed electrodes (working carbon, auxiliary carbon and referent Ag/AgCl electrode).
Figure 4. The photography of the micro flow system built from the micro pump, flow cell and printed circuit board. The scheme of the designed printed electrodes (working carbon, auxiliary carbon and referent Ag/AgCl electrode).
Sensors 06 01466f4

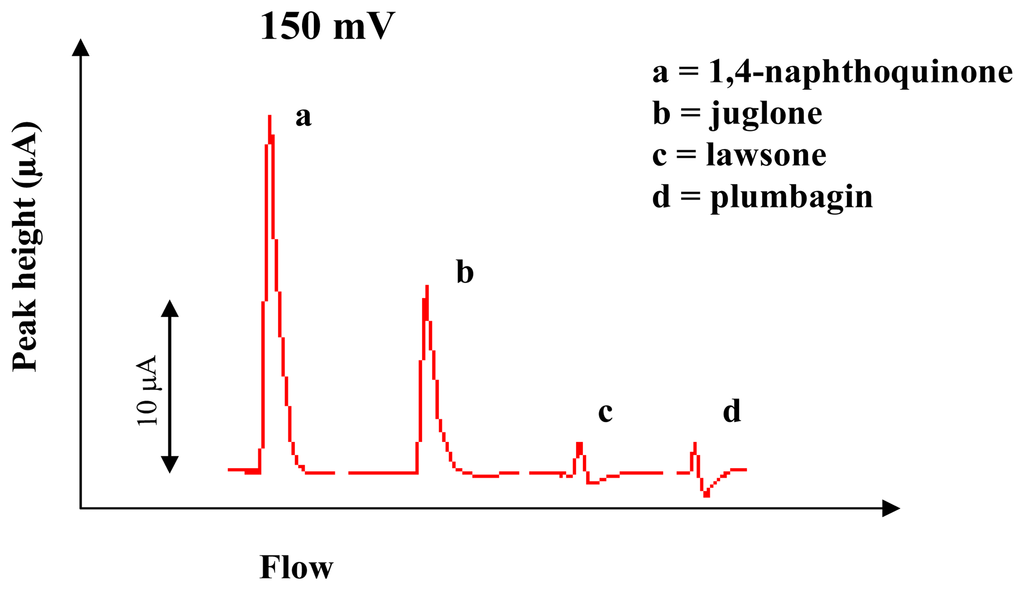

Figure 5. A FIA-amperometric record of the naphthoquinones (1 μg.ml-1) at the potential of 150 mV. The flow rate of the electrolyte (0.2 M phosphate buffer, pH 5.5) was 0.5 ml.min-1. The sample (5 μl) was injected manually. The working electrode was made from glassy carbon, auxiliary carbon electrode and referent hydrogen palladium electrode. For other details see “Materials and Methods” section.
Figure 5. A FIA-amperometric record of the naphthoquinones (1 μg.ml-1) at the potential of 150 mV. The flow rate of the electrolyte (0.2 M phosphate buffer, pH 5.5) was 0.5 ml.min-1. The sample (5 μl) was injected manually. The working electrode was made from glassy carbon, auxiliary carbon electrode and referent hydrogen palladium electrode. For other details see “Materials and Methods” section.
Sensors 06 01466f5
Table 1. Differential pulse voltammetric characteristics of the naphthoquinones of interest (n = 5).
Table 1. Differential pulse voltammetric characteristics of the naphthoquinones of interest (n = 5).
NaphthoquinoneEquationaR2LOD (nM)cLOQ (nM)dR.S.D. (%)e
Lawsoney = 6.4353x + 0.1462b0.9921b5163.5
Plumbaginy = 4.8977x - 0.3042b0.9922b1003332.8
Jugloney = 8.7097x + 0.2237b0.9921b18602.9
a… The concentration range was from 0.1 to 5 μM of the compound of interest.
b… The equation was derived from the dependence of the peak height on the naphthoquinone concentration.
c… Limit of detection is expressed as 3 S/N.
d… Limit of quantification is expressed as 10 S/N.
e… Relative standard deviation.
Table 2. Analysis of the naphthoquinones by micro flow analysis (n = 5).
Table 2. Analysis of the naphthoquinones by micro flow analysis (n = 5).
NaphthoquinoneEquationaR2LOD (μg.ml-1) bLOQ (μg.ml-1) bR.S.D. (%)b
Lawsoney = 0.597x - 0.600b0.9999b0.280.934.5
Plumbaginy = 0.262x + 0.567b0.9952b0.351.174.8
Jugloney = 0.567x + 0.038b0.9972b0.150.505.1
a… The concentration range was from 1 to 25 μg.ml-1.
b… The equation was derived from the dependence of the peak height on the naphthoquinone concentration.
c… Limit of detection is expressed as 3 S/N.
d… Limit of quantification is expressed as 10 S/N.
e… Relative standard deviation.
