Strategies of Miniaturised Reference Electrodes Integrated in a Silicon Based “one chip” pH Sensor

Anette Simonis ^1,2, Hans Lüth ², Joseph Wang ³ and J. Schöning ^1,2^,*

¹ University of Applied Sciences Aachen, Ginsterweg 1, 52428 Jülich, Germany ² Institute of Thin Films and Interfaces, Research Centre Jülich GmbH, 52425 Jülich, Germany ³ New Mexico State University, Las Cruces, NM 88003-8001, USA

* Author to whom correspondence should be addressed.

Received: 7 April 2003 / Accepted: 15 July 2003 / Published: 11 September 2003

Download PDF Full-Text [719 KB, uploaded 1 October 2008 09:01 CET]

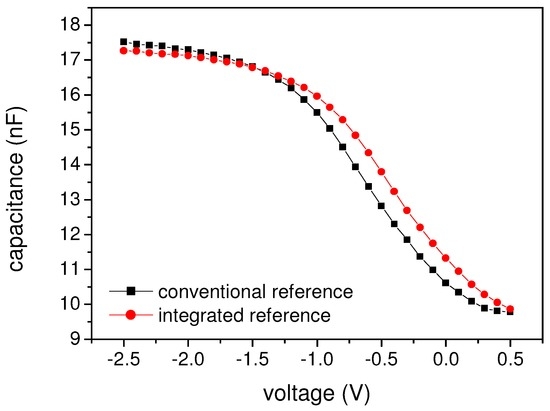

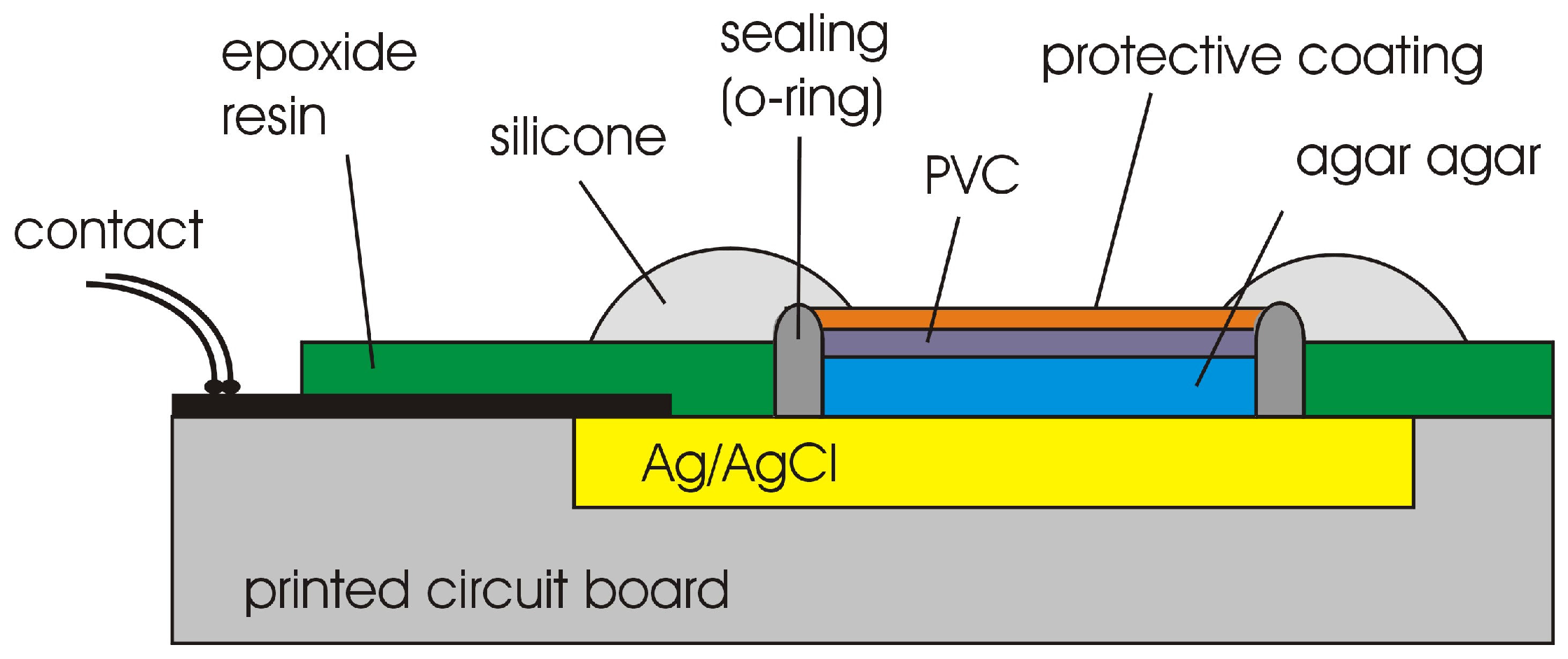

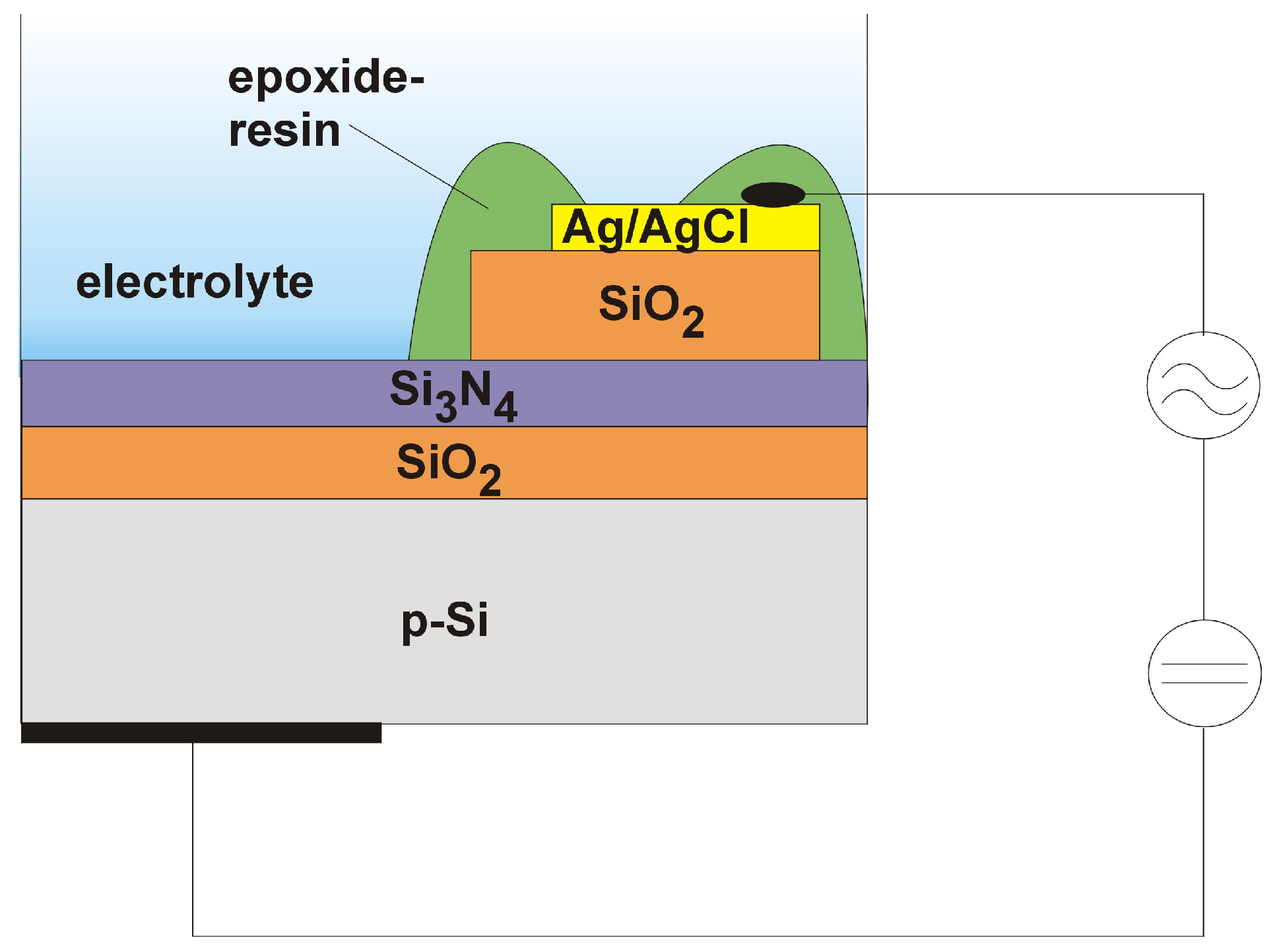

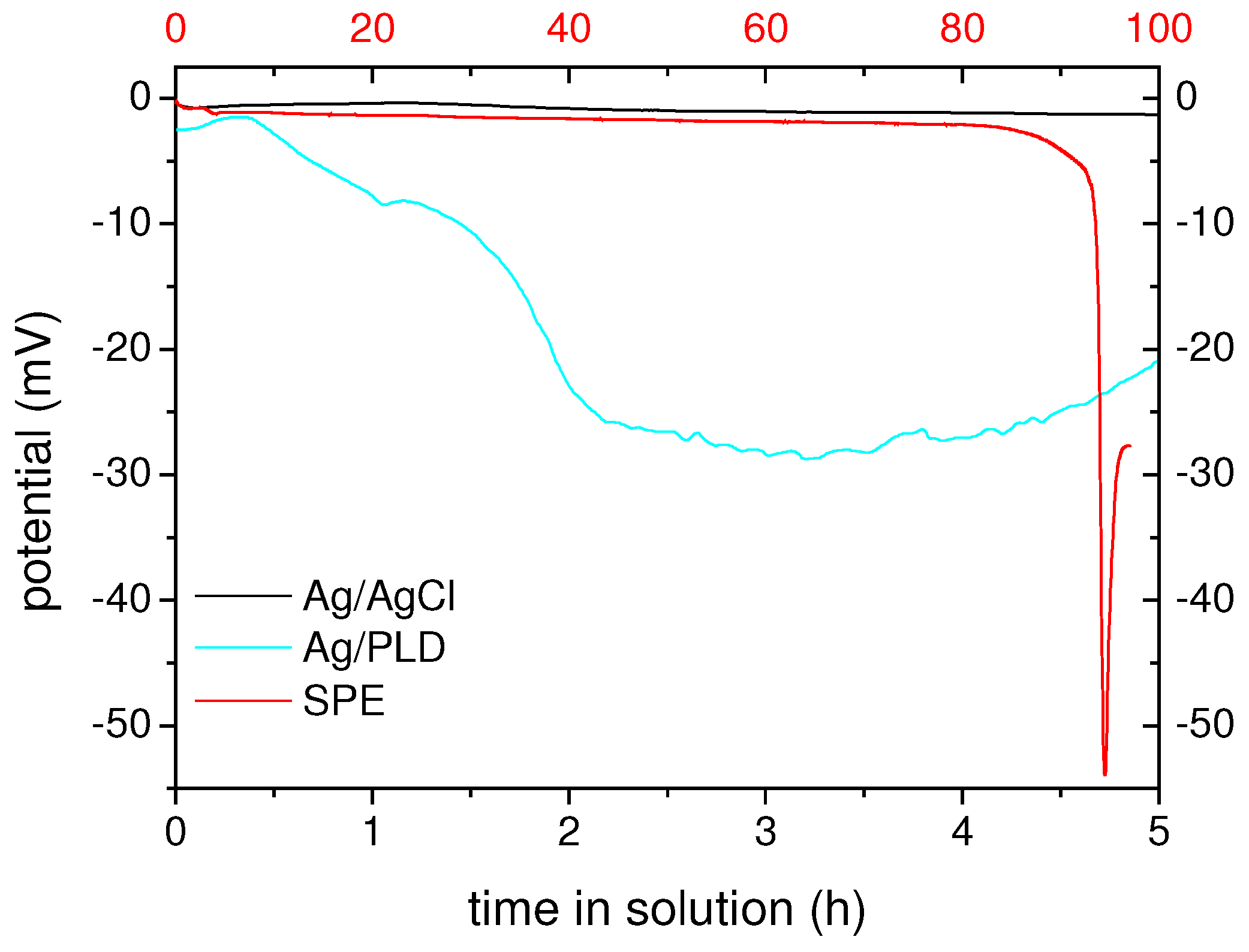

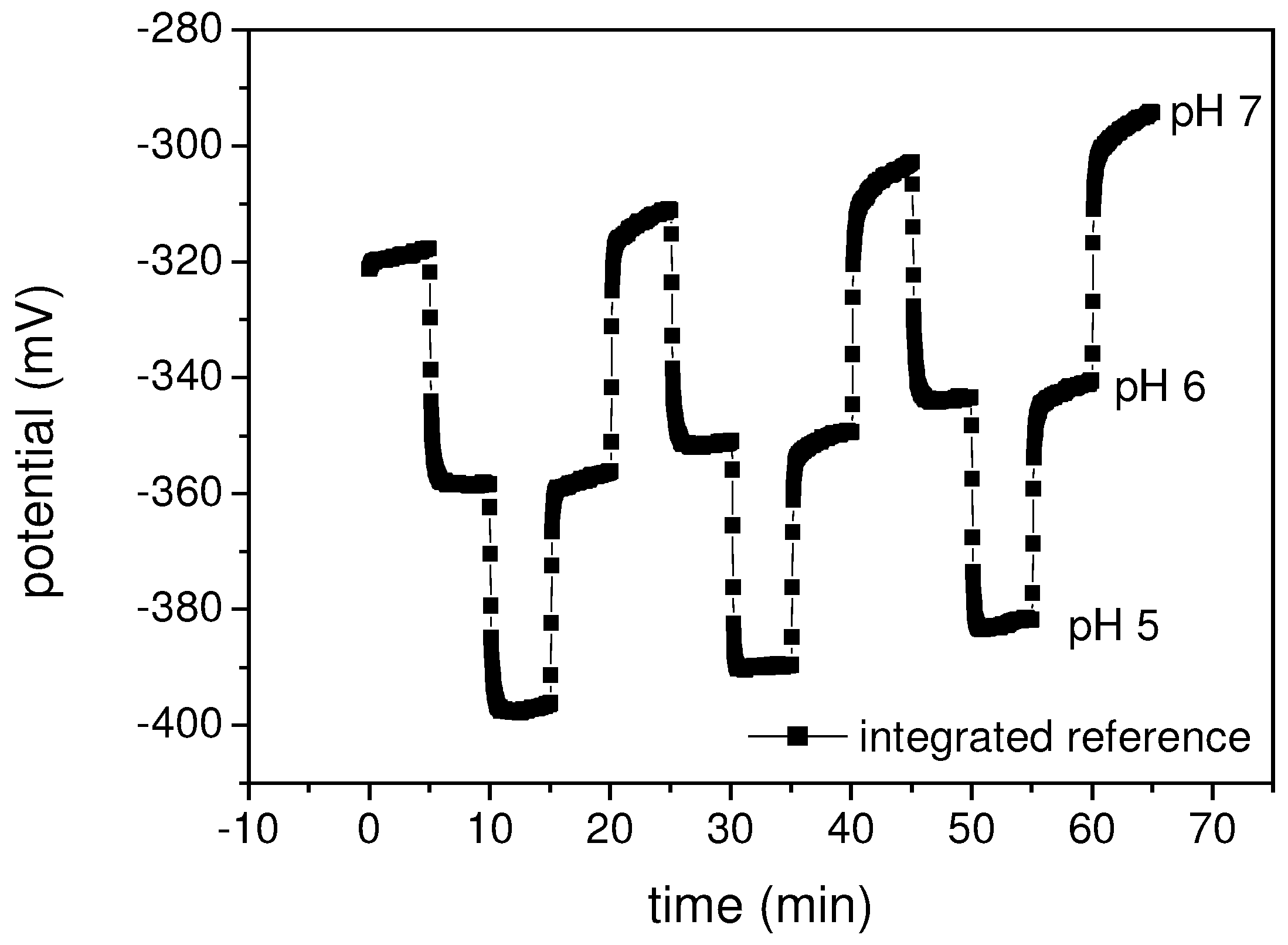

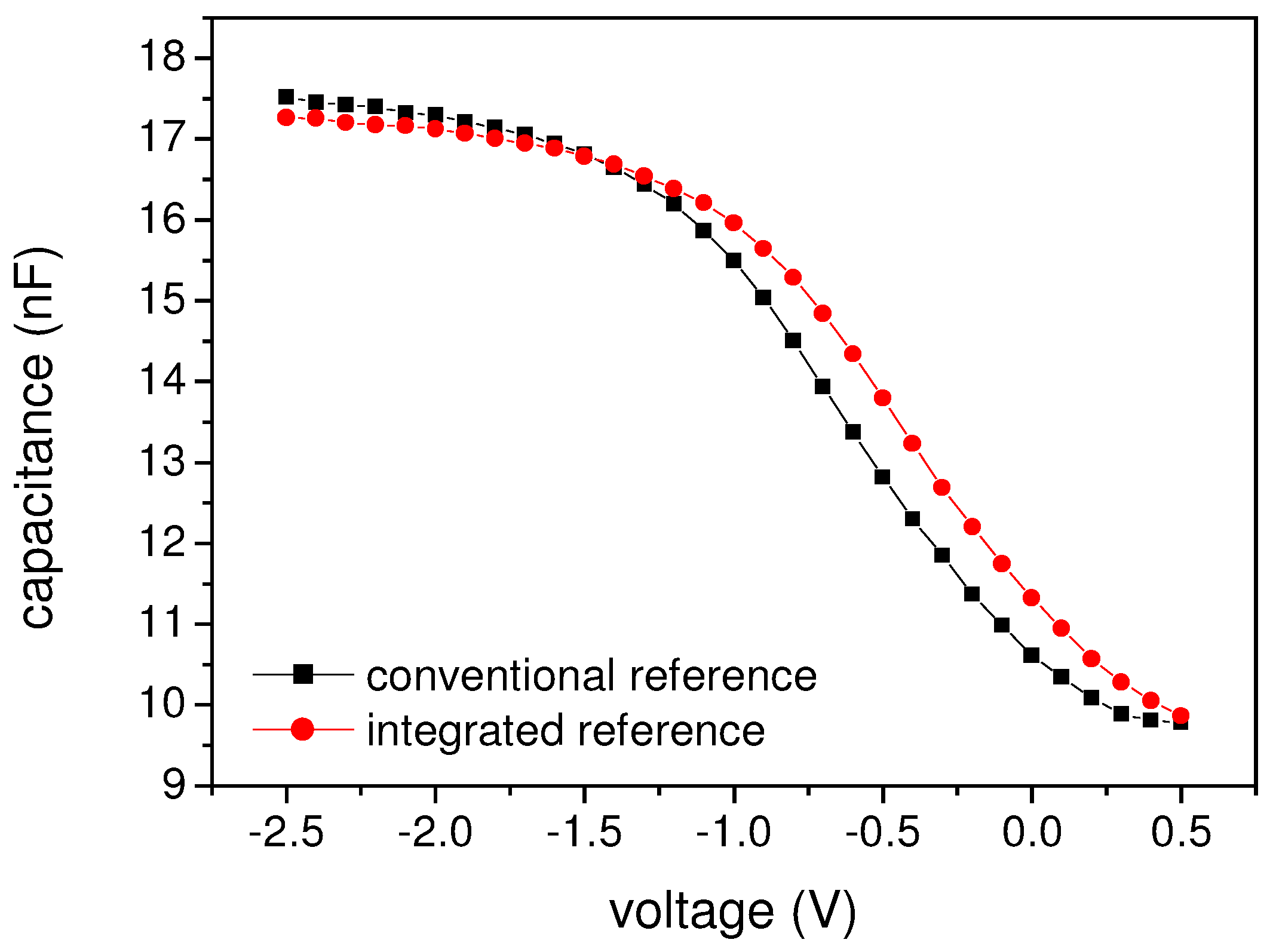

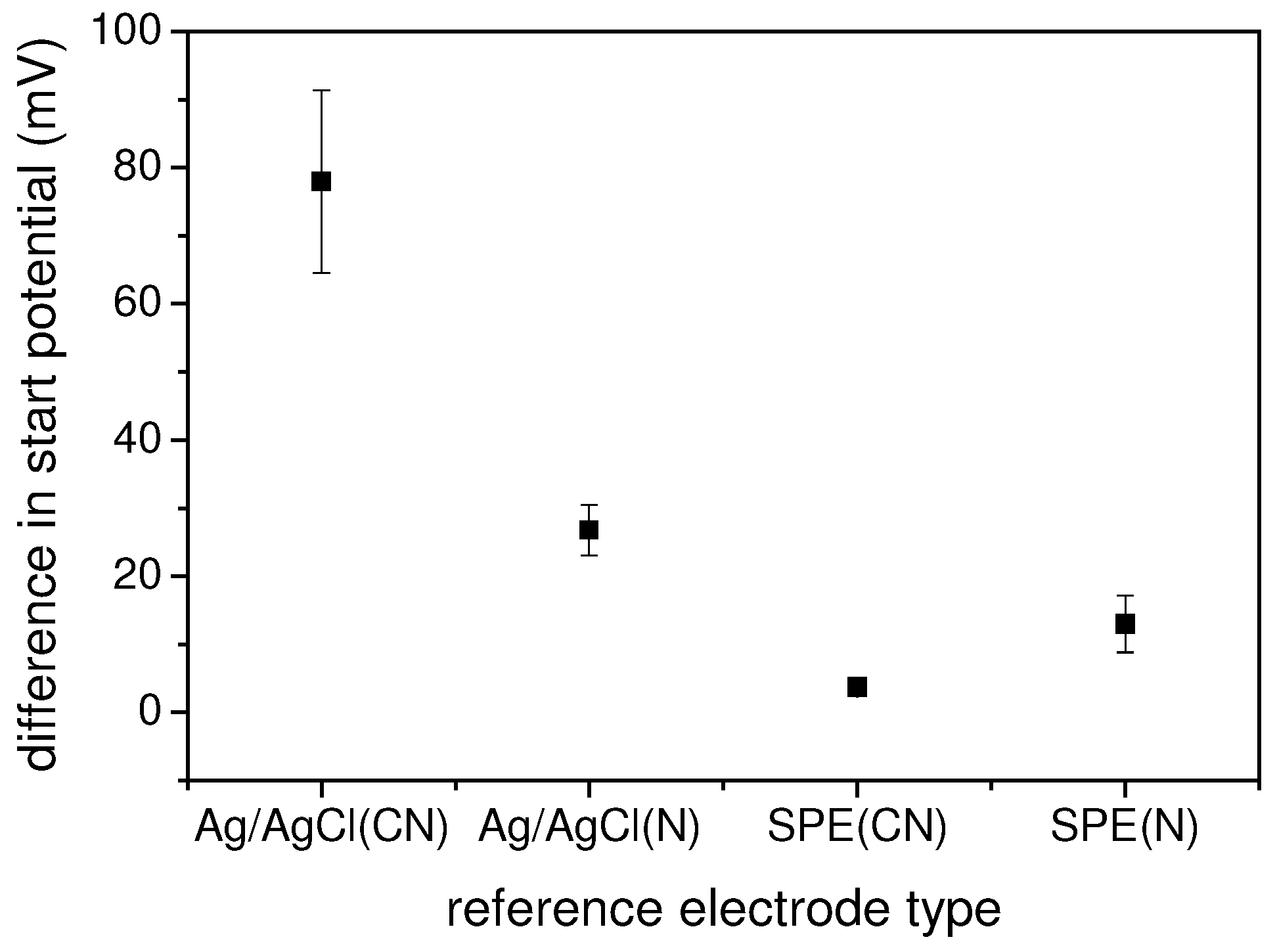

Abstract: Different types of Ag/AgCl reference electrodes have been realised by means of thin- and thick-film technique. For inner electrolyte, KCl-containing membranes have been deposited and different coatings have been used to protect the reference electrode from a fast leaching out of KCl. The stability of the potential of the reference electrodes without KClcontaining membranes in 3 M KCl was about 7 hours for thin-film electrodes and up to 90 hours for thick-film electrodes. The reference electrodes with membrane were stable for more than two months. The thick-film reference electrode was integrated with a thin-film pH sensor onto one chip and the system pH sensor/reference electrode was investigated by means of capacitance/voltage (C/V) and constant capacitance (ConCap) mode.

Keywords: reference electrode; thin-film technique; thick-film technique; “one chip” sensor; pH sensor
