Article

Enhanced Hydrogen Detection in ppb-Level by Electrospun SnO2-Loaded ZnO Nanofibers

by
Jae-Hyoung Lee
,
Jin-Young Kim
,
Jae-Hun Kim
and
Sang Sub Kim
*
Department of Materials Science and Engineering, Inha University, Incheon 22212, Korea
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(3), 726; https://doi.org/10.3390/s19030726
Submission received: 2 January 2019 / Revised: 1 February 2019 / Accepted: 8 February 2019 / Published: 11 February 2019
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
High-performance hydrogen sensors are important in many industries to effectively address safety concerns related to the production, delivering, storage and use of H2 gas. Herein, we present a highly sensitive hydrogen gas sensor based on SnO2-loaded ZnO nanofibers (NFs). The xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO NFs were fabricated using an electrospinning technique followed by calcination at high temperature. Microscopic analyses demonstrated the formation of NFs with expected morphology and chemical composition. Hydrogen sensing studies were performed at various temperatures and the optimal working temperature was selected as 300 °C. The optimal gas sensor (0.1 SnO2 loaded ZnO NFs) not only showed a high response to 50 ppb hydrogen gas, but also showed an excellent selectivity to hydrogen gas. The excellent performance of the gas sensor to hydrogen gas was mainly related to the formation of SnO2-ZnO heterojunctions and the metallization effect of ZnO.

1. Introduction

Hydrogen gas (H2) is a highly clean and renewable source of energy [1]. Nevertheless, it is flammable and explosive in the concentration ranges of 4–75 vol.% in air [2]. Due to the small size of hydrogen gas during its transportation, storage and usages, leakage of hydrogen is likely and can cause catastrophic damage [3]. Unfortunately, hydrogen is a colorless, odorless and tasteless gas and it is impossible to be detected by human senses [4]. Therefore, detection of hydrogen gas by high-performance electronic devices is very important for further industrial use of this gas.
So far, many hydrogen gas sensors, such as surface acoustic wave [5], optical [6], gasochromic [7], thermoelectric [8] and metal oxide-based sensors [9] have been developed. Among them, metal oxide-based gas sensors are widely used for the detection of different toxic gases and volatile organic compounds, thanks to their low price, simple fabrication, good sensitivity and high stability [10,11,12]. To date, many types of metal oxides, including binary metal oxides [13] and ternary metal oxides [14], have been reported for detection of hydrogen gas. Among them, ZnO-based gas sensors are highly attentive due to having high sensitivity, high stability, easy synthesis methods and a low-cost [15]. In particular, one-dimensional (1D) morphologies of ZnO, like nanorods [16], nanowires [17], and nanofibers (NFs) [18], have gained special attention, mostly due to their simple synthesis methods and larger surface area relative to thin and thick film counterparts. ZnO NFs are among the simplest morphology of ZnO. ZnO NFs can be easily synthesized by the electrospinning technique, which is a facile and low-cost synthesis method with possibility of large-scale mass production for industrialization [19,20,21]. Accordingly, many researchers have reported gas sensors using ZnO NFs [22,23].
Doping can increase the structural defect within the ZnO, acting as potential adsorption sites for target gases [24]. Accordingly, doping with different dopants is also a promising strategy to improve the gas sensing characteristics of 1D ZnO gas sensors [25,26,27]. Another promising strategy is loading of n-type [28] or p-type [29] metal oxides in the matrix of the ZnO nanomaterials. Loaded metal oxides can form heterojunctions with ZnO, acting as a strong source of resistance modulation in the gas sensor.
So far, less attention has been paid to SnO2 loading on ZnO NFs. Accordingly, in this research, we have fabricated xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO NFs for hydrogen gas sensing investigations. They were synthesized by the electrospinning method, followed by calcination. The hydrogen gas sensing properties showed that the gas sensor with 0.1 SnO2 loading had the best sensing properties at 300 °C. The sensing mechanism was explained due to the formation of n-n SnO2-ZnO heterojunctions and the metallization effect of ZnO in the presence of hydrogen gas.

2. Experimental Procedure

2.1. Synthesis of SnO2-Loaded ZnO NFs

For synthesis of xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO NFs: Polyvinyl alcohol (PVA, MW = 80,000), zinc chloride dihydrate (ZnCl2·2H2O) and tin (II) chloride dihydrate (SnCl2·2H2O) were provided by Sigma-Aldrich. First, the PVA was dissolved in deionized (DI) water and stirred at 80 °C for 3 h to prepare a 10 wt.% PVA solution. Then, 1 g of ZnCl2·2H2O and desired amounts (x = 0.05, 0.1 and 0.15) of tin precursor were added drop-wise (0.05 mL/h) to the above solution and vigorously stirred for 12 h at 80 °C. Then final solutions with an approximate viscosity of 280 mPa·s were prepared. The electrospinning solution was loaded into a syringe with a metallic needle. A large positive voltage (+15 kV) and large negative voltage (−10 kV) were applied to the needle and Al collector, respectively. During the process, both the distance between the tip of the needle and collector (20 cm) and the feed rate (0.01 mL/h) were fixed. It should be noted that the electrospinning of NFs was performed in a chamber with dimensions of 100 × 60 × 60 cm3, which was specially designed for the electrospinning machine. After synthesis of the SnO2-loaded ZnO NFs, they were annealed at 600 °C for 2 h to enhance the crystallinity and remove the remaining organic species and water. Figure 1a shows the schematic of electrospinning for the preparation of SnO2-loaded ZnO NFs.

2.2. Device for Material Characterization

The morphology of the synthesized NFs were obtained by using field-emission scanning electron microscopy (FE-SEM, Hitachi, S-4200, Tokyo, Japan) and transmission electron microscopy (TEM, JEOL, Ltd., JEM-3010, Tokyo, Japan) incorporated with energy-dispersive X-ray spectroscopy (EDS, JEOL, Ltd., JEM-3010, Tokyo, Japan) for chemical analysis of the NFs.

2.3. Gas Sensing Test

Details of the sensing test methods are presented in our previous papers [18,30]. First, Ti (∼50 nm thick) and Pt (∼100 nm thick) bilayer electrodes were sputter-deposited onto SiO2-coated Si substrates and then NFs were drop casted (3 droplets, followed by drying at 80 °C) onto the substrate (Figure 1b). Second, for the sensing tests, the sensors were put into a tube furnace, equipped with a gas chamber that can control the temperature. Gas concentrations were controlled exactly, by varying the ratios of the desired gases to dry air using mass flow controllers. After recording the resistance in air (Ra) and the resistance in the presence of the target gas (Rg) by means of a Keithly source meter, the sensor response (R) was calculated as R = Ra/Rg (for H2 and CO gases) and R = Rg/Ra (for NO2 gas) [31,32,33,34,35,36,37,38,39]. The response time and the recovery time were defined as the time needed for the resistance to reach 90% of its final value upon exposure to target gas and air, respectively [40].

3. Results and Discussion

3.1. Morphological and Microstructural Study

An FE-SEM micrograph of the as-electrospun 0.1 SnO2-loaded ZnO NFs is provided in Figure 2a. As shown, long and continuous ZnO NFs have been successfully synthesized. However, since they were not yet calcined, their surface morphology was quite smooth. The FE-SEM micrographs of the calcined SnO2-loaded ZnO NFs are shown in Figure 2b,c for 0.05, 0.1 and 0.15 SnO2-loaded ZnO NFs, respectively. The calcined individual NFs were still long and continuous, but showed a grainy morphology, which indicated evaporation of water and the removal of organic species from the as-electrospun samples. Apparently after calcination, the diameter of the calcined ZnO NFs decreased relative to the as-electrospun NFs. The insets show higher magnification FE-SEM images, which demonstrated the presence of nano-sized grains.
TEM observation was performed to further characterize the microstructure of the NFs. A representative TEM image taken from the 0.1 SnO2-loaded ZnO NFs is presented in Figure 2e. This clearly demonstrated the formation of a NF of an approximate diameter of 100 nm with rugged surface morphology. To gain an insight into the crystallinity of calcined 0.1 SnO2-loaded ZnO NFs, a high-resolution TEM micrograph was obtained as shown in Figure 2f. Parallel fringes with spacings of 0.336 nm and 0.250 nm can be attributed to the crystalline planes of (110) of SnO2 and (101) of ZnO, respectively [41,42]. This indicated the formation of crystalline ZnO and SnO2 phases after calcination. EDS mapping analysis results, shown in Figure 2(g-1,g-2,g-3) taken from Figure 2e, demonstrated the existence of O, Zn and Sn elements in the NF.
Figure 3 shows a representative XRD pattern of the 0.1 SnO2-loaded ZnO NFs. The obtained pattern matches well with both ZnO and SnO2 phases. It shows the existence of both hexagonal ZnO (JCPDS Card No. 88-0511) and tetragonal SnO2 (JCPDS Card No. 88-0287) crystal structures.

3.2. Gas Sensing Study

Adsorption phenomena are strongly dependent on the sensing temperature of the gas sensor and generally, there is an optimal sensing temperature, where the maximum response occurs. As a first step, a 0.15 SnO2-loaded ZnO NFs gas sensor was exposed to different concentrations of hydrogen gas at temperature range of 250–400 °C and corresponding transient resistance plots are shown in Figure 4a. As shown, upon injection of hydrogen gas, the resistance of the gas sensor decreased, revealing a n-type nature of gas sensor, which originated from the n-type semiconducting characteristics of ZnO and SnO2 materials. To see the response of the gas sensor to various concentrations of hydrogen gas, the corresponding calibration plots are depicted in Figure 4b. At 300 °C for all concentrations of hydrogen gas, a maximum response was observed and the gas sensor even could detect as low as 50 ppb hydrogen gas. At the optimal sensing temperature (300 °C), the responses of the gas sensor to 50 ppb, 100 ppb, 1 ppm, and 5 ppm were 50.1, 79.4, 83.62, and 91, respectively. This demonstrated a very high response of the gas sensor to hydrogen gas.
In the next step, different contents of SnO2-loaded gas sensors were exposed to various concentrations of hydrogen gas at 300 °C and corresponding transient curves are provided in Figure 5a. The sensor responses are summarized in Figure 5b,c which shows the following order in the sensor response to hydrogen gas: 0.1 > 0.15 > 0.05 SnO2-loaded ZnO NFs gas sensor. For example, for 50 ppb hydrogen gas, the responses of 0.05, 0.1 and 0.15 molar ratio of SnO2-loaded ZnO gas sensors were 41, 48 and 50.1, respectively. Accordingly, the 0.1 SnO2-loaded ZnO NFs gas sensor was selected as the optimal gas sensor. The responses of all gas were higher than that of the pristine ZnO NFs gas sensor [43].
Since selectivity of the gas sensor is of importance for practical usages, the optimized gas sensor was exposed to different concentrations of NO2 and CO gases, which are typical oxidizing and reducing gases, respectively. Figure 6 shows the response time and recovery time of xSnO2 (x = 0, 0.05, 0.1 and 0.15) loaded ZnO NF gas sensors to 5 ppm H2 gas at 300 °C. The response and recovery times significantly decreased with increasing “x”. Also the 0.1 SnO2-loaded ZnO NFs gas sensor showed the shortest response and recovery times, compared to the sensors of other compositions.
The corresponding sensing transient curves at 300 °C were compared with that of hydrogen gas in Figure 7a. It should be noted that due to the oxidizing nature of NO2 gas, upon injection of NO2 gas, the resistance of the gas sensor increased, which was in contrast with the trend observed for reducing gases such as H2 and CO gases. Figure 7b shows the selectivity pattern of the 0.1 SnO2-loaded ZnO NFs gas sensor to H2, NO2 and CO gases. The response of the gas sensor to 50 ppb H2, NO2 and CO gases was 50, 2.62 and 1.57, respectively, which demonstrated the exceptionally high response of gas sensor to hydrogen gas.
Table 1 [44,45,46,47,48,49,50,51,52,53,54] compares the response of some ZnO-based and SnO2-based gas sensors to hydrogen gas with the present 0.1 SnO2-loaded ZnO NFs gas sensor. Based on the data provided in this table, the present sensor had a much higher response to hydrogen gas than other reported hydrogen gas sensors and easily could detect ppb-levels of hydrogen gas.
In real applications, there is always some humidity in the environment. Accordingly, we tested the response of the 0.1 SnO2-loaded ZnO NFs gas sensor to 5 ppm H2 gas in the presence of different levels of relative humidity (RH%) as shown in Figure 8a. As summarized in Figure 8b, with increasing of the RH%, the response decreases continuously. This was due to the fact that water molecules are likely to be adsorbed on the surfaces of the NFs and thus prevent the chemisorption of target gas species. Therefore, the number of the available sites for adsorption of H2 gas decreased, leading to a lower response of gas sensor in the presence of humidity.
Figure 9a,b shows the transient resistance curves and the calibration plots of a fresh and a six months aged 0.1 SnO2-loaded ZnO NFs sensor towards 50 ppb to 5 ppm of H2 gas, respectively. As can be seen, almost no drift was observed and the response of gas sensor, even after six months, was not changed. This demonstrated its high stability over time, which is important for long-term applications.
To explore the experimental detection limit of the 0.1 SnO2-loaded ZnO NFs gas sensor, it was exposed to various concentrations (20 ppb to 100 ppm) of H2 gas and the corresponding dynamic resistance curves are displayed in Figure 10a. The response is summarized in Figure 10b. As evidently shown, the sensor could even detect extremely low concentrations (20 ppb) of H2 gas. Also, the response of the gas sensor to 50 ppm and 100 ppm H2 gas were almost the same, which indicated saturation of gas sensor in this concentration was attained.

3.3. Sensing Mechanism

The sensing mechanism for resistive-based gas sensors is based on the variations of sensor’s resistance in the presence of target gases. Initially, in air, oxygen molecules will be adsorbed on the surface of gas sensor according to the following reactions [55]:
O 2 ( g ) → O 2 ( a d s )
O 2 + e − → O 2 − ( a d s )
O 2 − ( a d s ) + e − → 2 O − ( a d s )
O − ( a d s ) + e − → O 2 − ( a d s )
Due to adsorption of oxygen gas on the surface of gas sensor, electrons are extracted by adsorbed oxygen molecules and an ultra-thin, so-called electron-depletion layer (EDL), is formed on the surfaces of gas sensor. Therefore, for the SnO2-loaded ZnO gas sensors used in this study, EDLs will be formed on the bare surfaces of ZnO and SnO2, which are exposed to air. Upon injection of hydrogen gas, hydrogen can react with already adsorbed oxygen gas according to the following reaction:
H 2 + O − → H 2 O + e
Thus, the generated electrons will come back to the surface of gas sensor and contract the width of EDLs, resulting in a significant decrease of the sensor’s resistance. Accordingly, a response due to variation of the width of the EDLs in exposed grains of ZnO and SnO2 will be result. As shown in Figure 2e, the NFs were composed of individual grains of ZnO and SnO2. Accordingly, in contact areas between ZnO-ZnO and SnO2-SnO2 homojunctions, potential barriers will be formed. Upon exposure to hydrogen, the height of the potential barrier will decrease, resulting in the facile transport of electrons and the decrease of the sensor’s resistance. Schematic illustrations showing the sensing mechanisms in SnO2-loaded ZnO NFs are presented in Figure 11.
Therefore, the second source of the resistance change was due to the presence of homojunctions. It should be noted that due to much higher amounts of ZnO relative to SnO2, the number of ZnO-ZnO homojunctions were significantly larger than that of the SnO2-SnO2 homojunctions. Another source of the resistance modulation came from the heterojunctions between ZnO and SnO2 grains. In SnO2-loaded ZnO NFs gas sensors, due to difference between the work functions of ZnO (Φ = 5.2 eV) [56] and SnO2 (Φ = 4.55 eV) [57], n-n heterojunctions could be formed in air. Accordingly, in intimate contact between ZnO and SnO2, electrons would be transferred from SnO2 to ZnO to equate the Fermi levels. Therefore, at the SnO2-ZnO heterointerfaces, electron accumulation layers and EDLs will be generated on the ZnO and SnO2 sides, respectively. As a result, band bending occurs and potential barriers will be formed in the interfaces between ZnO and SnO2, as shown in Figure 11a for a vacuum condition. In air, the height of the potential barrier increases relative to a vacuum, due to adsorption of oxygen gas (Figure 11b). In NO2 (oxidizing gas) and CO (reducing gas) environments, the height of potential barriers will increase and decrease, respectively (Figure 11c,d). However, in both cases the variations of the resistance modulations are not so significant and a low response would appear.
After injection of hydrogen gas, due to the high reducing power of hydrogen gas and a relatively high sensing temperature, the H2 gas could reduce the surface of ZnO to metallic Zn with much lower resistivity than ZnO [48,49]. Without metallization effect, the variation of the potential barrier by the introduction of H2 gas would be almost similar to that of CO gas. Accordingly, upon exposure to H2 gas, ZnO would be converted to metallic Zn on the outer surfaces (Figure 11e) [43]. Accordingly, the ZnO-SnO2 heterojunctions were destroyed and electrons would be transferred from the metallic Zn (Φ = 4.33 eV) surface to ZnO. This semiconductor-to-metallic surface conversion in ZnO remarkably increased the modulation of resistance [58]. Upon injection of air, metallic Zn was converted back to ZnO, and its band structure would be recovered.
The gas sensor with optimal composition of 0.1 SnO2-loaded ZnO exhibited the highest response to hydrogen gas. In fact, when the amount of SnO2 increased, the number of SnO2-ZnO heterojunctions increased, so a higher response was observed. However, further increases in the amount of SnO2 resulted in a decreased response of the gas sensor, due to possible agglomeration of SnO2 grains and increase of SnO2-SnO2 homojunctions instead of SnO2-ZnO heterojunctions. Further studies are needed to find the possible reasons for the decrease of sensing response at higher amounts of SnO2.
Overall the excellent selectivity of the optimized gas sensor could be attributed to (i) the metallization effect of ZnO in the presence of hydrogen gas, (ii) the smaller kinetic diameter (2.89 Å) [59] of H2 molecules relative to CO and NO2 molecules, and (iii) the optimal sensing temperature for enhanced adsorption and reaction of H2 with ZnO. In addition, the bond energy in H2 (436.0 KJ/mol) was much lower than that of CO (1076.5 KJ/mol) [60] and H2 has higher reactivity compared with CO, leading to higher response of the gas sensor to hydrogen gas, relative to CO gas. Other researchers have also reported a higher response of SnO2-ZnO gas sensors to hydrogen, relative to CO gas [56].

4. Conclusions

In brief, we synthesized xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO NFs by a facile and low-cost electrospinning method, followed by high temperature calcination. FE-SEM and TEM characterization results demonstrated the formation of highly crystalline NFs with an approximate diameter of 100 nm with a desired chemical composition. The optimized gas sensor with composition of 0.1 SnO2-loaded ZnO NFs revealed the highest hydrogen response at an optimal temperature of 300 °C. The optimal gas sensor not only showed a high response to low concentrations of hydrogen gas, but also it showed an excellent selectivity to hydrogen gas. The gas sensing mechanism was related to the formation of SnO2-ZnO heterojunctions and the metallization effect of ZnO. The realized gas sensor in this study was able to detect ppb-levels of hydrogen in the atmosphere and could be used for practical applications.

Author Contributions

S.S.K. conceived and designed the experiments and completed the paper; J.-H.L., J.-Y.K. and J.-H.K. performed the experiments and analyzed the data.

Funding

This research received no external funding.

Acknowledgments

This study was supported by Inha University.

Conflicts of Interest

The authors declare no conflict of interest and the founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Kamal, T. High performance NiO decorated graphene as a potential H2 gas sensor. J. Alloys Compd. 2017, 729, 1058–1063. [Google Scholar] [CrossRef]
  2. Mourya, S.; Kumar, A.; Jaiswal, J.; Malik, G.; Kumar, B.; Chandra, R. Development of Pd-Pt functionalized high performance H2 gas sensor based on silicon carbide coated porous silicon for extreme environment applications. Sens. Actuators B 2019, 283, 373–383. [Google Scholar] [CrossRef]
  3. Samerjai, T.; Tamaekong, N.; Liewhiran, C.; Wisitsoraat, A.; Tuantranont, A.; Phanichphant, S. Selectivity towards H2 gas by flame-made Pt-loaded WO3 sensing films. Sens. Actuators B 2011, 157, 290–297. [Google Scholar] [CrossRef]
  4. Kumar, M.K.; Ramaprabhu, S. Palladium dispersed multiwalled carbon nanotube based hydrogen sensor for fuel cell applications. Int. J. Hydrogen Energy 2007, 32, 2518–2526. [Google Scholar]
  5. Yang, L.; Yin, C.; Zhang, Z.; Zhou, J.; Xu, H. The investigation of hydrogen gas sensing properties of SAW gas sensor based on palladium surface modified SnO2 thin film. Mater. Sci. Semicond. Process. 2017, 60, 16–28. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Peng, H.; Qian, X.; Zhang, Y.; An, G.; Zhao, Y. Recent advancements in optical fiber hydrogen sensors. Sens. Actuators B 2017, 244, 393–416. [Google Scholar] [CrossRef]
  7. Chen, M.; Zou, L.; Zhang, Z.; Shen, J.; Li, D.; Zong, Q.; Gao, G.; Wu, G.; Shen, J.; Zhang, Z. Tandem gasochromic-Pd-WO3/graphene/Si device for room-temperature high-performance optoelectronic hydrogen sensors. Carbon 2018, 130, 281–287. [Google Scholar] [CrossRef]
  8. Sawaguchi, N.; Shin, W.; Izu, N.; Matsubara, I.; Murayama, N. Enhanced hydrogen selectivity of thermoelectric gas sensor by modification of platinum catalyst surface. Mater. Lett. 2006, 60, 313–316. [Google Scholar] [CrossRef]
  9. Steinebach, H.; Kannan, S.; Rieth, L.; Solzbacher, F. H2 gas sensor performance of NiO at high temperatures in gas mixtures. Sens. Actuators B 2010, 151, 162–168. [Google Scholar] [CrossRef]
  10. Mirzaei, A.; Kim, J.-H.; Kim, H.W.; Kim, S.S. How shell thickness can affect the gas sensing properties of nanostructured materials: Survey of literature. Sens. Actuators B 2018, 258, 270–294. [Google Scholar] [CrossRef]
  11. Mirzaei, A.; Kim, S.S.; Kim, H.W. Resistance-based H2S gas sensors using metal oxide nanostructures: A review of recent advances. J. Hazard. Mater. 2018, 357, 314–331. [Google Scholar] [CrossRef] [PubMed]
  12. Mirzaei, A.; Kim, J.-H.; Kim, H.W.; Kim, S.S. Resistive-based gas sensors for detection of benzene toluene and xylene (BTX) gases: A review. J. Mater. Chem. C 2018, 6, 4342–4370. [Google Scholar] [CrossRef]
  13. Van Toan, N.; Chien, N.V.; Van Duy, N.; Hong, H.S.; Nguyen, H.; Hoa, N.D.; Van Hieu, N. Fabrication of highly sensitive and selective H2 gas sensor based on SnO2 thin film sensitized with microsized Pd islands. J. Hazard. Mater. 2016, 301, 433–442. [Google Scholar] [CrossRef] [PubMed]
  14. Falsafi, F.; Hashemi, B.; Mirzaei, A.; Fazio, E.; Neri, F.; Donato, N.; Leonardi, S.G.; Neri, G. Sm-doped cobalt ferrite nanoparticles: A novel sensing material for conductometric hydrogen leak sensor. Ceram. Int. 2017, 43, 1029–1037. [Google Scholar] [CrossRef]
  15. Zhu, L.; Zeng, W. Room-temperature gas sensing of ZnO-based gas sensor: A review. Sens. Actuators A 2017, 267, 242–261. [Google Scholar] [CrossRef]
  16. Kim, H.; Pak, Y.; Jeong, Y.; Kim, W.; Kim, J.; Jung, G.Y. Amorphous Pd-assisted H2 detection of ZnO nanorod gas sensor with enhanced sensitivity and stability. Sens. Actuators B 2018, 262, 460–468. [Google Scholar] [CrossRef]
  17. Tuscharoen, S.; Kulakeatmongkol, N.; Horprathum, M.; Aiampanakit, K.; Eiamchai, P.; Pattantsetakul, V.; Limwichean, S.; Chananonnawathorn, C.; Hendro; Kaewkhao, J. Low-temperature hydrothermal synthesis single-crystal ZnO nanowire for gas sensor application. Mater. Today Proc. 2018, 5, 15213–15217. [Google Scholar] [CrossRef]
  18. Abideen, Z.U.; Kim, J.-H.; Mirzaei, A.; Kim, H.W.; Kim, S.S. Sensing behavior to ppm-level gases and synergistic sensing mechanism in metal-functionalized rGO-loaded ZnO nanofibers. Sens. Actuators B 2018, 255, 1884–1896. [Google Scholar] [CrossRef]
  19. Zahmatkesh, S.; Zebarjad, S.M.; Bahrololoom, M.E.; Dabiri, E.; Arab, S.M. Synthesis of ZnO/In2O3 composite nanofibers by co-electrospinning: A comprehensive parametric investigating the process. Ceram. Int. 2019, 45, 2530–2541. [Google Scholar] [CrossRef]
  20. Liu, L.; Liu, Z.; Yang, Y.; Geng, M.; Zou, Y.; Shahzad, M.B.; Dai, Y.; Qi, Y. Photocatalytic properties of Fe-doped ZnO electrospun nanofibers. Ceram. Int. 2018, 44, 19998–20005. [Google Scholar] [CrossRef]
  21. Abideen, Z.U.; Kim, J.-H.; Lee, J.-H.; Kim, J.-Y.; Mirzaei, A.; Kim, H.-W.; Kim, S.S. Electrospun metal oxide composite nanofibers gas sensors: A review. J. Korean Ceram. Soc. 2017, 54, 366–379. [Google Scholar] [CrossRef]
  22. Boyadjiev, S.I.; Kéri, O.; Bárdos, P.; Firkala, T.; Gáber, F.; Nagy, Z.K.; Baji, Z.; Takács, M.; Szilágyi, I.M. TiO2/ZnO and ZnO/TiO2 core/shell nanofibers prepared by electrospinning and atomic layer deposition for photocatalysis and gas sensing. Appl. Surf. Sci. 2017, 424, 190–197. [Google Scholar] [CrossRef]
  23. Katoch, A.; Abideen, Z.U.; Kim, J.-H.; Kim, S.S. Influence of hollowness variation on the gas-sensing properties of ZnO hollow nanofibers. Sens. Actuators B 2016, 232, 698–704. [Google Scholar] [CrossRef]
  24. Cao, F.; Li, C.; Li, M.; Li, H.; Huang, X.; Yang, B. Direct growth of Al-doped ZnO ultrathin nanosheets on electrode for ethanol gas sensor application. Appl. Surf. Sci. 2018, 447, 173–181. [Google Scholar] [CrossRef]
  25. Hastir, A.; Kohli, N.; Singh, R.C. Ag doped ZnO nanowires as highly sensitive ethanol gas sensor. Mater. Today Proc. 2017, 4, 9476–9480. [Google Scholar] [CrossRef]
  26. Hsu, C.-L.; Jhang, B.-Y.; Kao, C.; Hsueh, T.-J. UV-illumination and Au-nanoparticles enhanced gas sensing of p-type Na-doped ZnO nanowires operating at room temperature. Sens. Actuators B 2018, 274, 565–574. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Liu, Y.; Zhou, L.; Liu, D.; Liu, F.; Liu, F.; Liang, X.; Yan, X.; Gao, Y.; Lu, G. The role of Ce doping in enhancing sensing performance of ZnO-based gas sensor by adjusting the proportion of oxygen species. Sens. Actuators B 2018, 273, 991–998. [Google Scholar] [CrossRef]
  28. Kudo, M.; Kosaka, T.; Takahashi, Y.; Kokusen, H.; Sotani, N.; Hasegawa, S. Sensing functions to NO and O2 of Nb2O5- or Ta2O5-loaded TiO2 and ZnO. Sens. Actuators B 2000, 69, 10–15. [Google Scholar] [CrossRef]
  29. Diao, K.; Xiao, J.; Zheng, Z.; Cui, X. Enhanced sensing performance and mechanism of CuO nanoparticle-loaded ZnO nanowires: Comparison with ZnO-CuO core-shell nanowires. Appl. Surf. Sci. 2018, 459, 630–638. [Google Scholar] [CrossRef]
  30. Kim, J.-H.; Lee, J.-H.; Mirzaei, A.; Kim, H.W.; Kim, S.S. SnO2 (n)-NiO (p) composite nanowebs: Gas sensing properties and sensing mechanisms. Sens. Actuators B 2018, 258, 204–214. [Google Scholar] [CrossRef]
  31. Han, C.; Li, X.; Shao, C.; Li, X.; Ma, J.; Zhang, X.; Liu, Y. Composition-controllable p-CuO/n-ZnO hollow nanofibers for highperformance H2S detection. Sens. Actuators B 2019, 285, 495–503. [Google Scholar] [CrossRef]
  32. Chen, Y.; Zhang, X.; Liu, Z.; Zeng, Z.; Zhao, H.; Wang, X.; Xu, J. Light enhanced room temperature resistive NO2 sensor based on a gold-loaded organic–inorganic hybrid perovskite incorporating tin dioxide. Microchim. Acta 2019, 186, 47. [Google Scholar] [CrossRef]
  33. Kaviyarasu, K.; Mola, G.T.; Oseni, S.O.; Kanimozhi, K.; Magdalane, C.M.; Kennedy, J.; Maaza, M. ZnO doped single wall carbon nanotube as an active medium for gas sensor and solar absorber. J. Mater. Sci. Mater. Electron. 2019, 30, 147–158. [Google Scholar] [CrossRef]
  34. Li, Y.; Zhou, X.; Luo, W.; Cheng, X.; Zhu, Y.; El-Toni, A.H.; Khan, A.; Deng, Y.; Zhao, D. Pore engineering of mesoporous tungsten oxides for ultrasensitive gas sensing. Adv. Mater. Interfaces 2019, 6, 1801269. [Google Scholar] [CrossRef]
  35. Wei, D.; Jiang, W.; Gao, H.; Chuai, X.; Liu, F.; Liu, F.; Sun, P.; Liang, X.; Gao, Y.; Yan, X.; et al. Facile synthesis of La-doped In2O3 hollow microspheres and enhanced hydrogen sulfide sensing characteristics. Sens. Actuators B 2018, 276, 413–420. [Google Scholar] [CrossRef]
  36. Mirzaei, A.; Kang, S.Y.; Choi, S.-W.; Kwon, Y.J.; Choi, M.S.; Bang, J.H.; Kim, S.S.; Kim, H.W. Fabrication and gas sensing properties of vertically aligned Si nanowires. Appl. Surf. Sci. 2018, 427, 215–226. [Google Scholar] [CrossRef]
  37. Bang, J.H.; Choi, M.S.; Mirzaei, A.; Kwon, Y.J.; Kim, S.S.; Kim, T.W.; Kim, H.W. Selective NO2 sensor based on Bi2O3 branched SnO2 nanowires. Sens. Actuators B 2018, 274, 356–369. [Google Scholar] [CrossRef]
  38. Lee, J.-H.; Kim, J.-Y.; Mirzaei, A.; Kim, H.W.; Kim, S.S. Significant enhancement of hydrogen-sensing properties of ZnO nanofibers through NiO loading. Nanomaterials 2018, 8, 902. [Google Scholar] [CrossRef]
  39. Wang, Z.; Wang, D.; Sun, J. Controlled synthesis of defect-rich ultrathin two-dimensional WO3 nanosheets for NO2 gas detection. Sens. Actuators B 2017, 245, 828–834. [Google Scholar] [CrossRef]
  40. Mirzaei, A.; Park, S.; Sun, G.J.; Kheel, H.; Lee, C. Fe2O3/Co3O4 composite nanoparticle ethanol sensor. J. Korean Phys. Soc. 2016, 69, 373–380. [Google Scholar] [CrossRef]
  41. Li, X.; Li, X.; Fan, L.; Yu, Z.; Yan, B.; Xiong, D.; Song, X.; Li, S.; Adair, K.R.; Li, D.; et al. Rational design of Sn/SnO2/porous carbon nanocomposites as anode materials for sodium-ion batteries. Appl. Surf. Sci. 2017, 412, 170–176. [Google Scholar] [CrossRef]
  42. Fang, J.; Fan, H.; Ma, Y.; Wang, Z.; Chang, Q. Surface defects control for ZnO nanorods synthesized by quenching and their anti-recombination in photocatalysis. Appl. Surf. Sci. 2015, 332, 47–54. [Google Scholar] [CrossRef]
  43. Katoch, A.; Choi, S.-W.; Kim, H.W.; Kim, S.S. Highly sensitive and selective H2 sensing by ZnO nanofibers and the underlying sensing mechanism. J. Hazard. Mater. 2015, 286, 229–235. [Google Scholar] [CrossRef] [PubMed]
  44. Park, S. Enhancement of hydrogen sensing response of ZnO nanowires for the decoration of WO3 nanoparticles. Mater. Lett. 2019, 234, 315–318. [Google Scholar] [CrossRef]
  45. Ab Kadir, R.; Li, Z.; Sadek, A.Z.; Abdul Rani, R.; Zoolfakar, A.S.; Field, M.R.; Ou, J.Z.; Chrimes, A.F.; Kalantar-zadeh, K. Electrospun granular hollow SnO2 nanofibers hydrogen gas sensors operating at low temperatures. J. Phys. Chem. C 2014, 118, 3129–3139. [Google Scholar] [CrossRef]
  46. Sun, Z.-P.; Liu, L.; Zhang, L.; Jia, D.-Z. Rapid synthesis of ZnO nano-rods by one-step, room-temperature, solid-state reaction and their gas-sensing properties. Nanotechnology 2006, 17, 2266. [Google Scholar] [CrossRef]
  47. Wang, J.X.; Sun, X.W.; Yang, Y.; Huang, H.; Lee, Y.C.; Tan, O.K.; Vayssieres, L. Hydrothermally grown oriented ZnO nanorod arrays for gas sensing applications. Nanotechnology 2006, 17, 4995. [Google Scholar] [CrossRef]
  48. Liu, Y.; Hang, T.; Xie, Y.; Bao, Z.; Song, J.; Zhang, H.; Xie, E. Effect of Mg doping on the hydrogen-sensing characteristics of ZnO thin films. Sens. Actuators B 2011, 160, 266–270. [Google Scholar] [CrossRef]
  49. Choi, K.-S.; Chang, S.-P. Effect of structure morphologies on hydrogen gas sensing by ZnO nanotubes. Mater. Lett. 2018, 230, 48–52. [Google Scholar] [CrossRef]
  50. Bhati, V.S.; Ranwa, S.; Fanetti, M.; Valant, M.; Kumar, M. Efficient hydrogen sensor based on Ni-doped ZnO nanostructures by RF sputtering. Sens. Actuators B 2018, 255, 588–597. [Google Scholar] [CrossRef]
  51. Li, Y.; Deng, D.; Chen, N.; Xing, X.; Liu, X.; Xiao, X.; Wang, Y. Pd nanoparticles composited SnO2 microspheres as sensing materials for gas sensors with enhanced hydrogen response performances. J. Alloys Compd. 2017, 710, 216–224. [Google Scholar] [CrossRef]
  52. Zhang, H.; Li, Z.; Liu, L.; Xu, X.; Wang, Z.; Wang, W.; Zheng, W.; Dong, B.; Wang, C. Enhancement of hydrogen monitoring properties based on Pd–SnO2 composite nanofibers. Sens. Actuators B 2010, 147, 111–115. [Google Scholar] [CrossRef]
  53. Xu, X.; Sun, J.; Zhang, H.; Wang, Z.; Dong, B.; Jiang, T.; Wang, W.; Li, Z.; Wang, C. Effects of Al doping on SnO2 nanofibers in hydrogen sensor. Sens. Actuators B 2011, 160, 858–863. [Google Scholar] [CrossRef]
  54. Wang, Z.; Liu, S.; Jiang, T.; Xu, X.; Zhang, J.; An, C.; Wang, C. N-type SnO2 nanosheets standing on p-type carbon nanofibers: A novel hierarchical nanostructures based hydrogen sensor. RSC Adv. 2015, 5, 64582–64587. [Google Scholar] [CrossRef]
  55. Yang, X.; Li, H.; Li, T.; Li, Z.; Wu, W.; Zhou, C.; Sun, P.; Liu, F.; Yan, X.; Gao, Y.; et al. Highly efficient ethanol gas sensor based on hierarchical SnO2/Zn2SnO4 porous spheres. Sens. Actuators B 2019, 282, 339–346. [Google Scholar] [CrossRef]
  56. Mondal, B.; Basumatari, B.; Das, J.; Roychaudhury, C.; Saha, H.; Mukherjee, N. ZnO–SnO2 based composite type gas sensor for selective hydrogen sensing. Sens. Actuators B 2014, 194, 389–396. [Google Scholar] [CrossRef]
  57. Katoch, A.; Abideen, Z.U.; Kim, H.W.; Kim, S.S. Grain size tuned highly H2-selective chemiresistive sensors based on ZnO–SnO2 composite nanofibers. ACS Appl. Mater. Interfaces 2016, 8, 2486–2494. [Google Scholar] [CrossRef]
  58. Katoch, A.; Kim, J.-H.; Kwon, Y.J.; Kim, H.W.; Kim, S.S. Bifunctional sensing mechanism of SnO2–ZnO composite nanofibers for drastically enhancing the sensing behavior in H2 gas. ACS Appl. Mater. Interfaces 2015, 7, 11351–11358. [Google Scholar] [CrossRef]
  59. Drobek, M.; Kim, J.-H.; Bechelany, M.; Vallicari, C.; Julbe, A.; Kim, S.S. MOF-based membrane encapsulated ZnO nanowires for enhanced gas sensor selectivity. ACS Appl. Mater. Interfaces 2016, 8, 8323–8328. [Google Scholar] [CrossRef]
  60. Shi, J.; Cheng, Z.; Gao, L.; Zhang, Y.; Xu, J.; Zhao, H. Facile synthesis of reduced graphene oxide/hexagonal WO3 nanosheets composites with enhanced H2S sensing properties. Sens. Actuators B 2016, 230, 736–745. [Google Scholar] [CrossRef]
Sensors 19 00726 g001 550

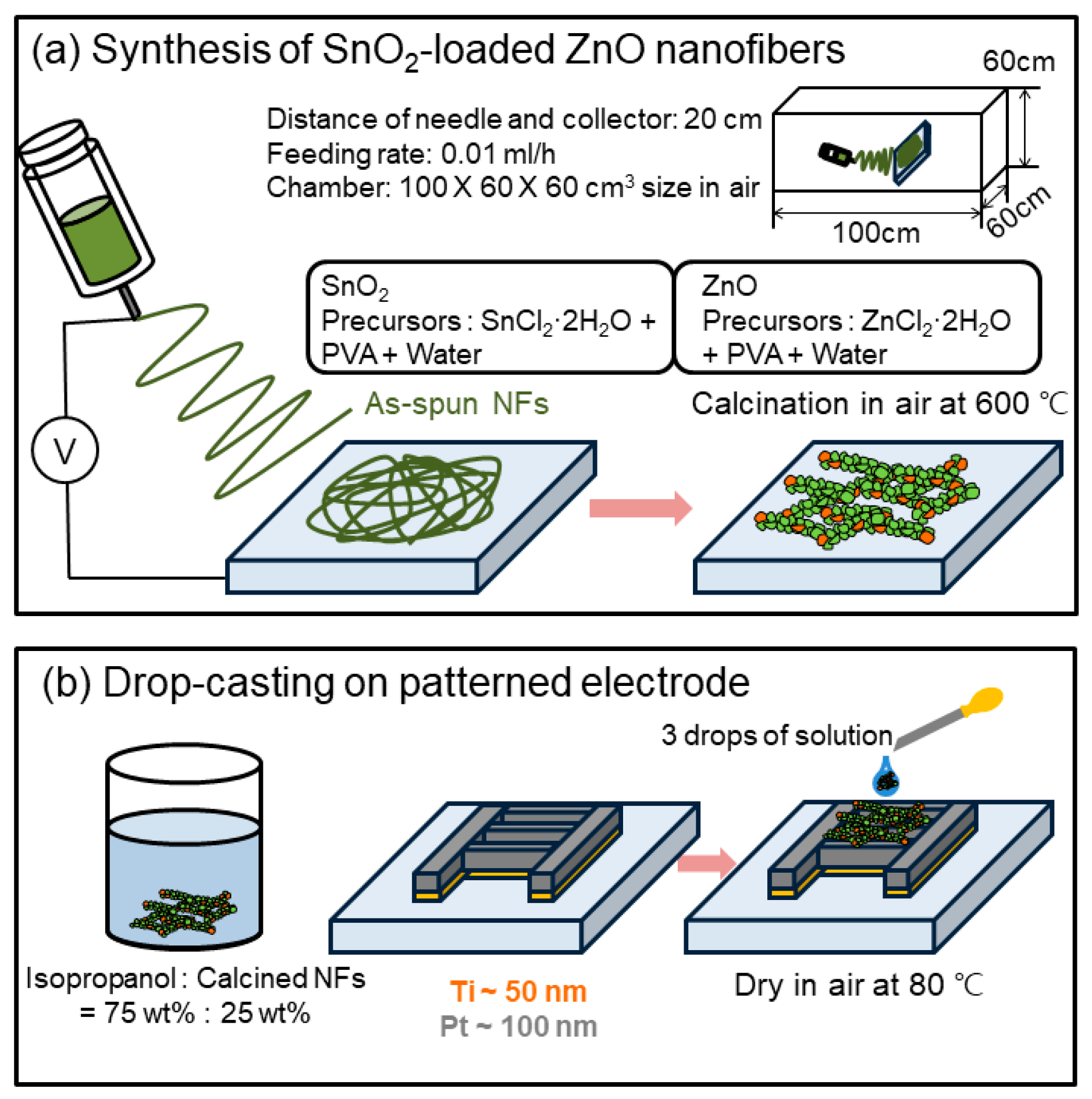

Figure 1. Illustrations of (a) the electrospinning method for the preparation of xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO nanofibers (NFs) and (b) drop casting of NFs onto the patterned electrode of the sensing substrate.
Figure 1. Illustrations of (a) the electrospinning method for the preparation of xSnO2-loaded (x = 0.05, 0.1 and 0.15) ZnO nanofibers (NFs) and (b) drop casting of NFs onto the patterned electrode of the sensing substrate.
Sensors 19 00726 g001
Sensors 19 00726 g002 550

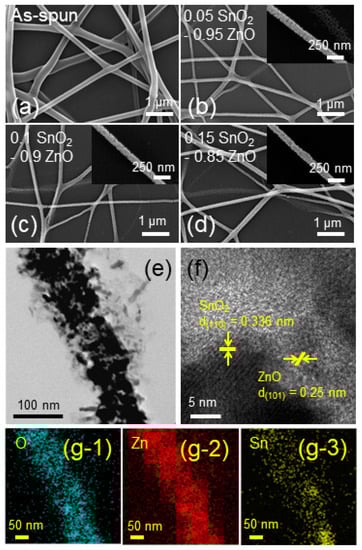

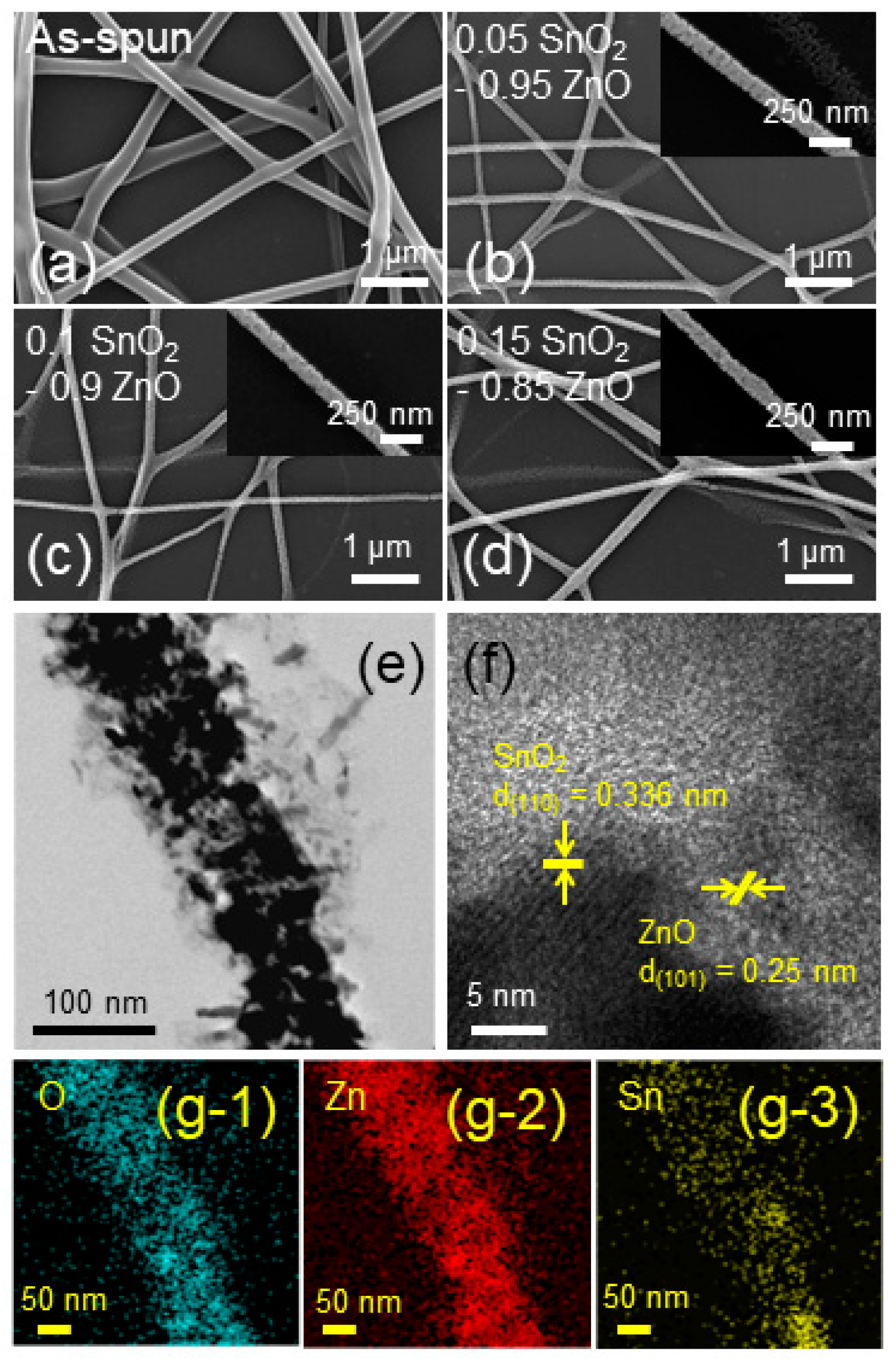

Figure 2. Field-emission scanning electron microscopy (FE-SEM) micrographs of (a) as-spun 0.1 SnO2-loaded ZnO NFs and calcined, (b) 0.05 SnO2-loaded ZnO NFs, (c) 0.1 SnO2-loaded ZnO NFs, and (d) 0.15 SnO2-loaded ZnO NFs. Insets in (b–d) show corresponding higher magnification FE-SEM images. (e) Low-magnification TEM image and (f) high-resolution TEM image of 0.1 SnO2-loaded ZnO NFs. (g-1), (g-2) and (g-3) energy-dispersive X-ray spectroscopy (EDS) O, Zn and Sn elemental mapping of 0.1 SnO2-loaded ZnO NFs taken from (e), respectively.
Figure 2. Field-emission scanning electron microscopy (FE-SEM) micrographs of (a) as-spun 0.1 SnO2-loaded ZnO NFs and calcined, (b) 0.05 SnO2-loaded ZnO NFs, (c) 0.1 SnO2-loaded ZnO NFs, and (d) 0.15 SnO2-loaded ZnO NFs. Insets in (b–d) show corresponding higher magnification FE-SEM images. (e) Low-magnification TEM image and (f) high-resolution TEM image of 0.1 SnO2-loaded ZnO NFs. (g-1), (g-2) and (g-3) energy-dispersive X-ray spectroscopy (EDS) O, Zn and Sn elemental mapping of 0.1 SnO2-loaded ZnO NFs taken from (e), respectively.
Sensors 19 00726 g002
Sensors 19 00726 g003 550

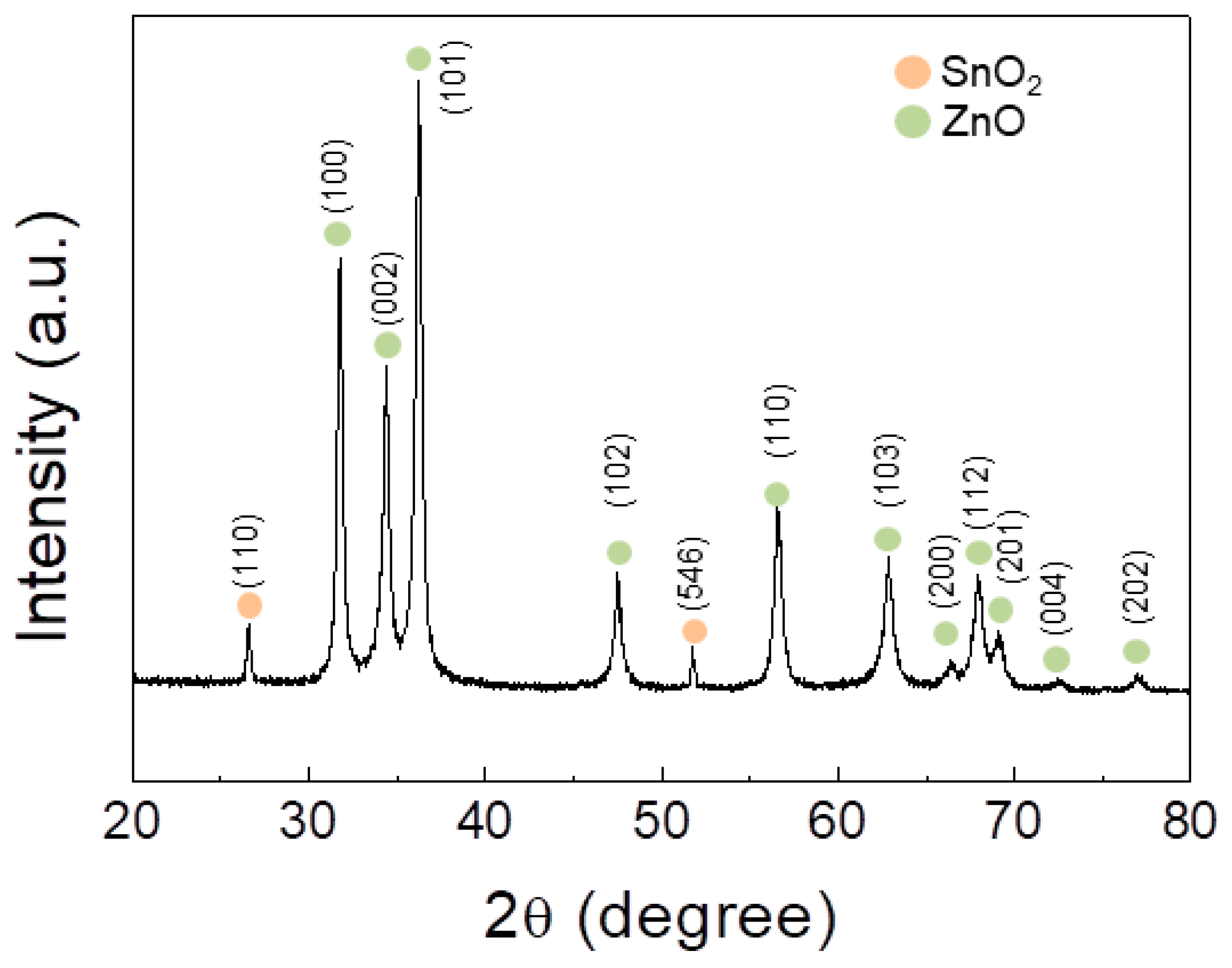

Figure 3. XRD pattern of the 0.1 SnO2-loaded ZnO NFs.
Figure 3. XRD pattern of the 0.1 SnO2-loaded ZnO NFs.
Sensors 19 00726 g003
Sensors 19 00726 g004 550

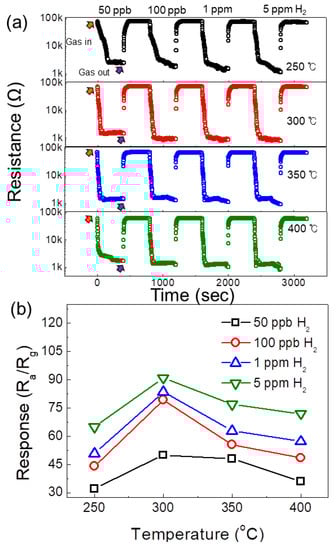

Figure 4. (a) Dynamic response curves of 0.1 SnO2-loaded ZnO NFs to 50 ppb, 100 ppb, 1 ppm and 5 ppm H2 gas at different temperatures. (b) Calculated hydrogen response as a function of operating temperature.
Figure 4. (a) Dynamic response curves of 0.1 SnO2-loaded ZnO NFs to 50 ppb, 100 ppb, 1 ppm and 5 ppm H2 gas at different temperatures. (b) Calculated hydrogen response as a function of operating temperature.
Sensors 19 00726 g004
Sensors 19 00726 g005 550

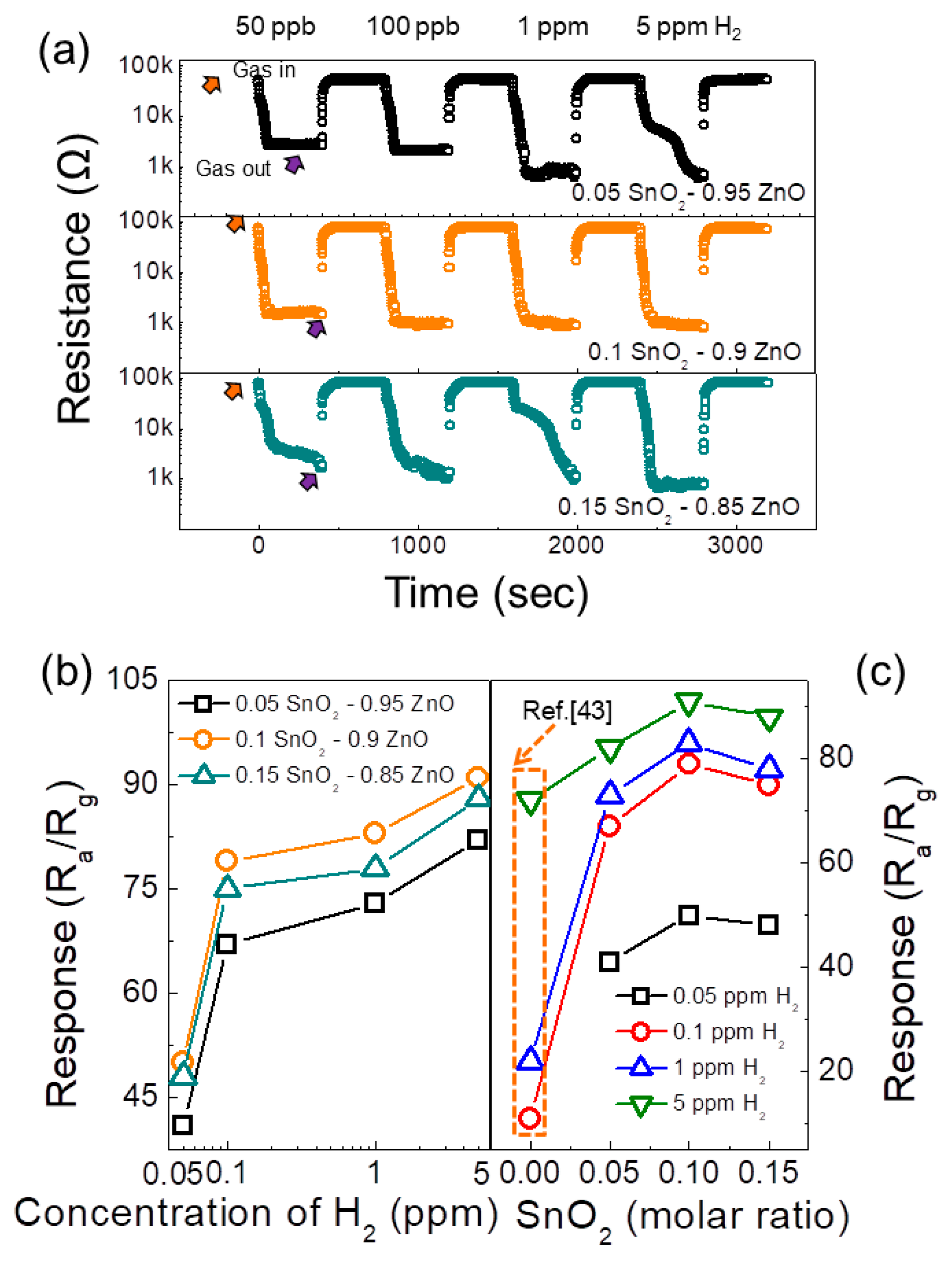

Figure 5. (a) Dynamic response curves of SnO2-loaded ZnO NFs gas sensors to 50 ppb, 100 ppb, 1 ppm and 5 ppm H2 gas at 300 °C. (b) Calculated hydrogen response as a function of hydrogen concentration. (c) Calculated hydrogen response as a function of SnO2 loading amount.
Figure 5. (a) Dynamic response curves of SnO2-loaded ZnO NFs gas sensors to 50 ppb, 100 ppb, 1 ppm and 5 ppm H2 gas at 300 °C. (b) Calculated hydrogen response as a function of hydrogen concentration. (c) Calculated hydrogen response as a function of SnO2 loading amount.
Sensors 19 00726 g005
Sensors 19 00726 g006 550

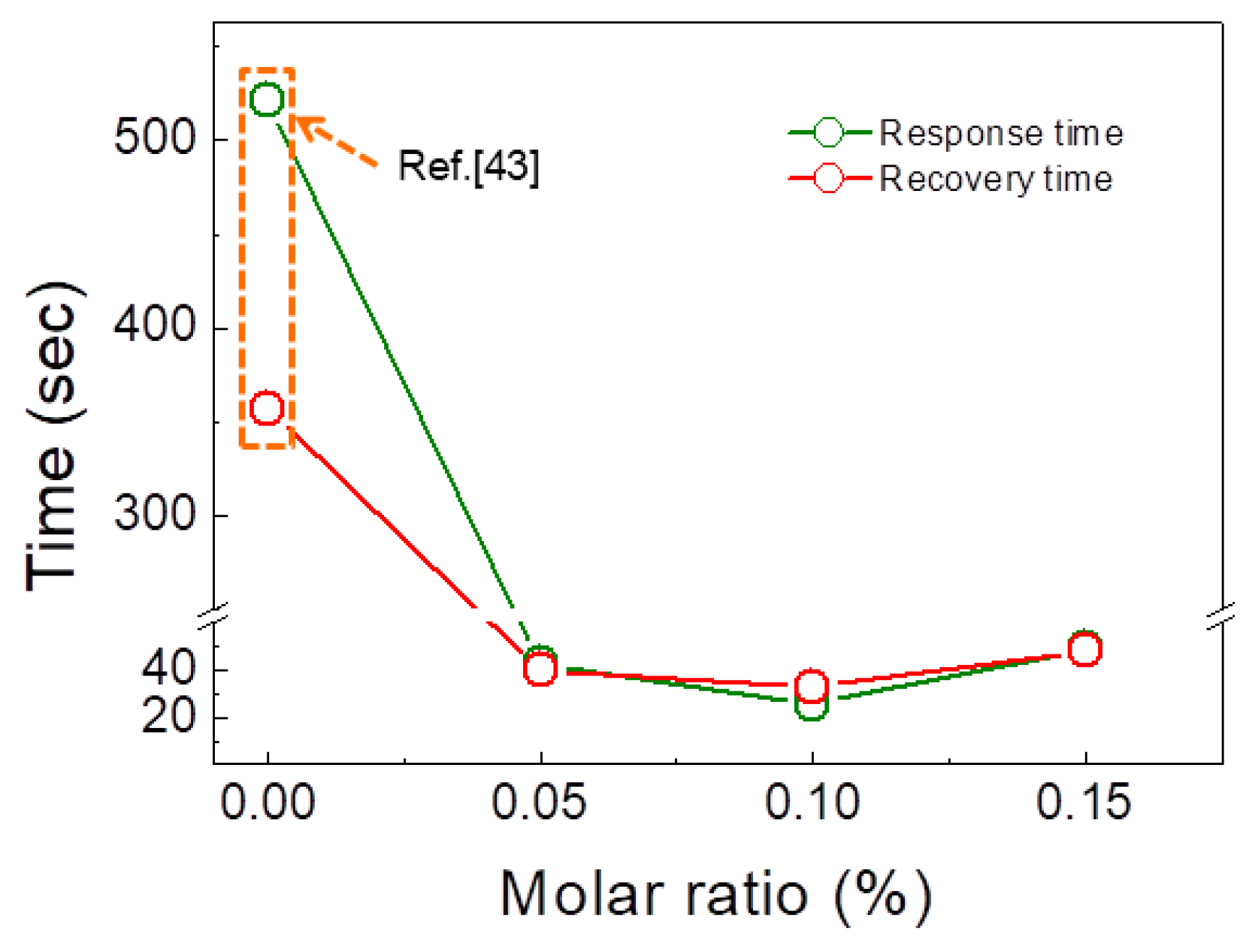

Figure 6. Response and recovery times of xSnO2 (x = 0, 0.05, 0.1 and 0.15) loaded ZnO NFs to 5 ppm H2 gas at 300 °C.
Figure 6. Response and recovery times of xSnO2 (x = 0, 0.05, 0.1 and 0.15) loaded ZnO NFs to 5 ppm H2 gas at 300 °C.
Sensors 19 00726 g006
Sensors 19 00726 g007 550

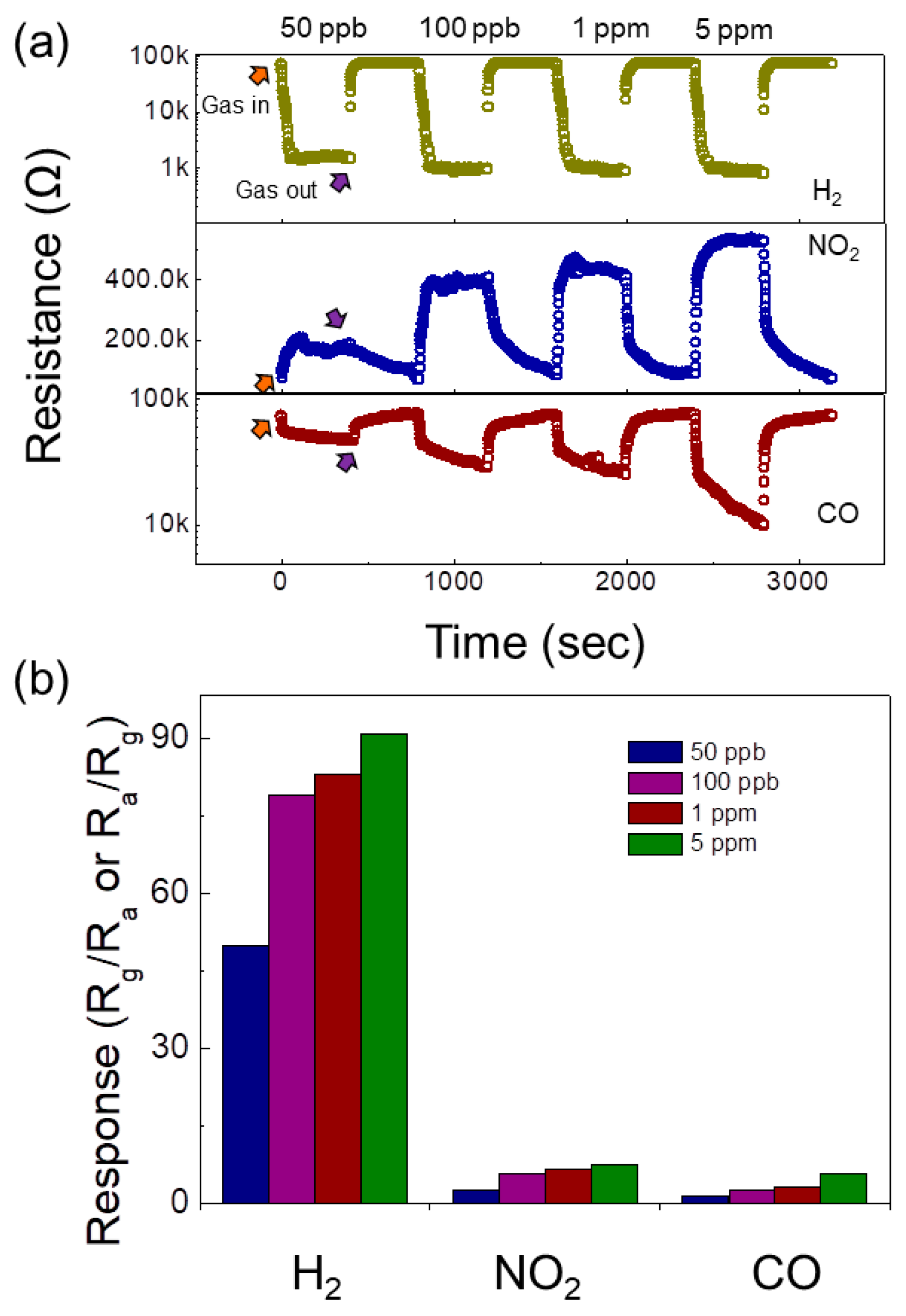

Figure 7. (a) Dynamic response curves of the 0.1 SnO2-loaded ZnO NFs gas sensor to H2, NO2 and CO gas at 300 °C. (b) Response histogram of the 0.1 SnO2-loaded ZnO NFs gas sensor at 300 °C.
Figure 7. (a) Dynamic response curves of the 0.1 SnO2-loaded ZnO NFs gas sensor to H2, NO2 and CO gas at 300 °C. (b) Response histogram of the 0.1 SnO2-loaded ZnO NFs gas sensor at 300 °C.
Sensors 19 00726 g007
Sensors 19 00726 g008 550

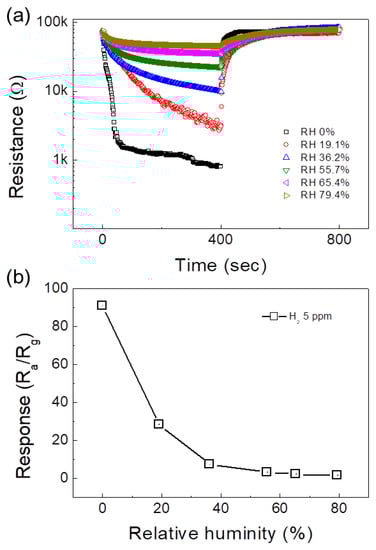

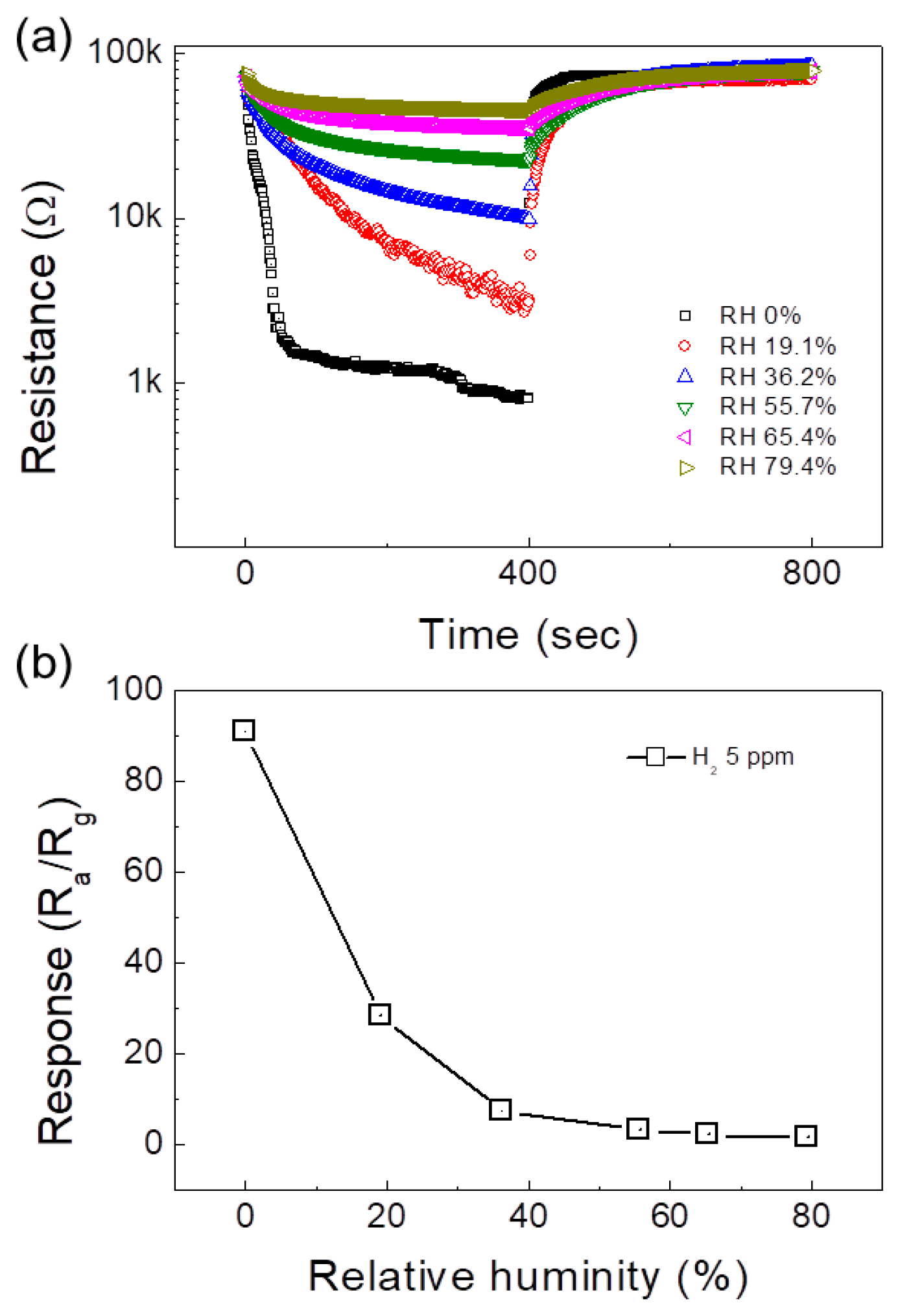

Figure 8. (a) Dynamic resistance curves of the 0.1 SnO2-loaded ZnO NF gas sensor to 5 ppm H2 gas in the presence of 0–79.4% relative humidity (RH). (b) Response to 5 ppm H2 versus RH%.
Figure 8. (a) Dynamic resistance curves of the 0.1 SnO2-loaded ZnO NF gas sensor to 5 ppm H2 gas in the presence of 0–79.4% relative humidity (RH). (b) Response to 5 ppm H2 versus RH%.
Sensors 19 00726 g008
Sensors 19 00726 g009 550

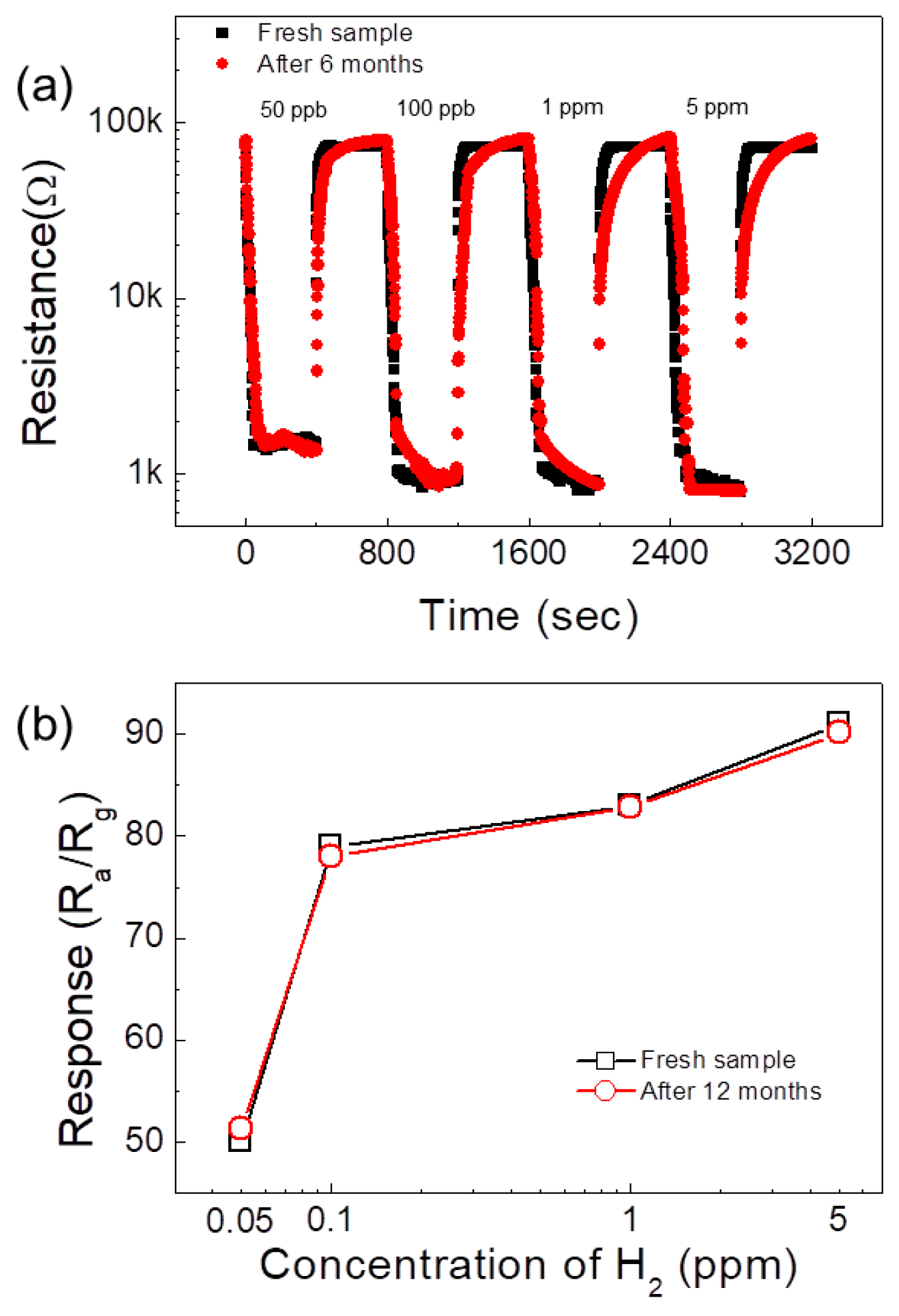

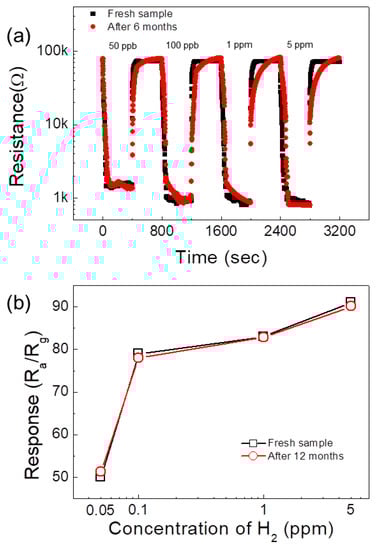

Figure 9. (a) Long-term stability curves of fresh and 6 months aged 0.1 SnO2-loaded ZnO NF gas sensor. (b) Response versus H2 gas concentration of fresh and 6 months aged 0.1 SnO2-loaded ZnO NF gas sensor.
Figure 9. (a) Long-term stability curves of fresh and 6 months aged 0.1 SnO2-loaded ZnO NF gas sensor. (b) Response versus H2 gas concentration of fresh and 6 months aged 0.1 SnO2-loaded ZnO NF gas sensor.
Sensors 19 00726 g009
Sensors 19 00726 g010 550

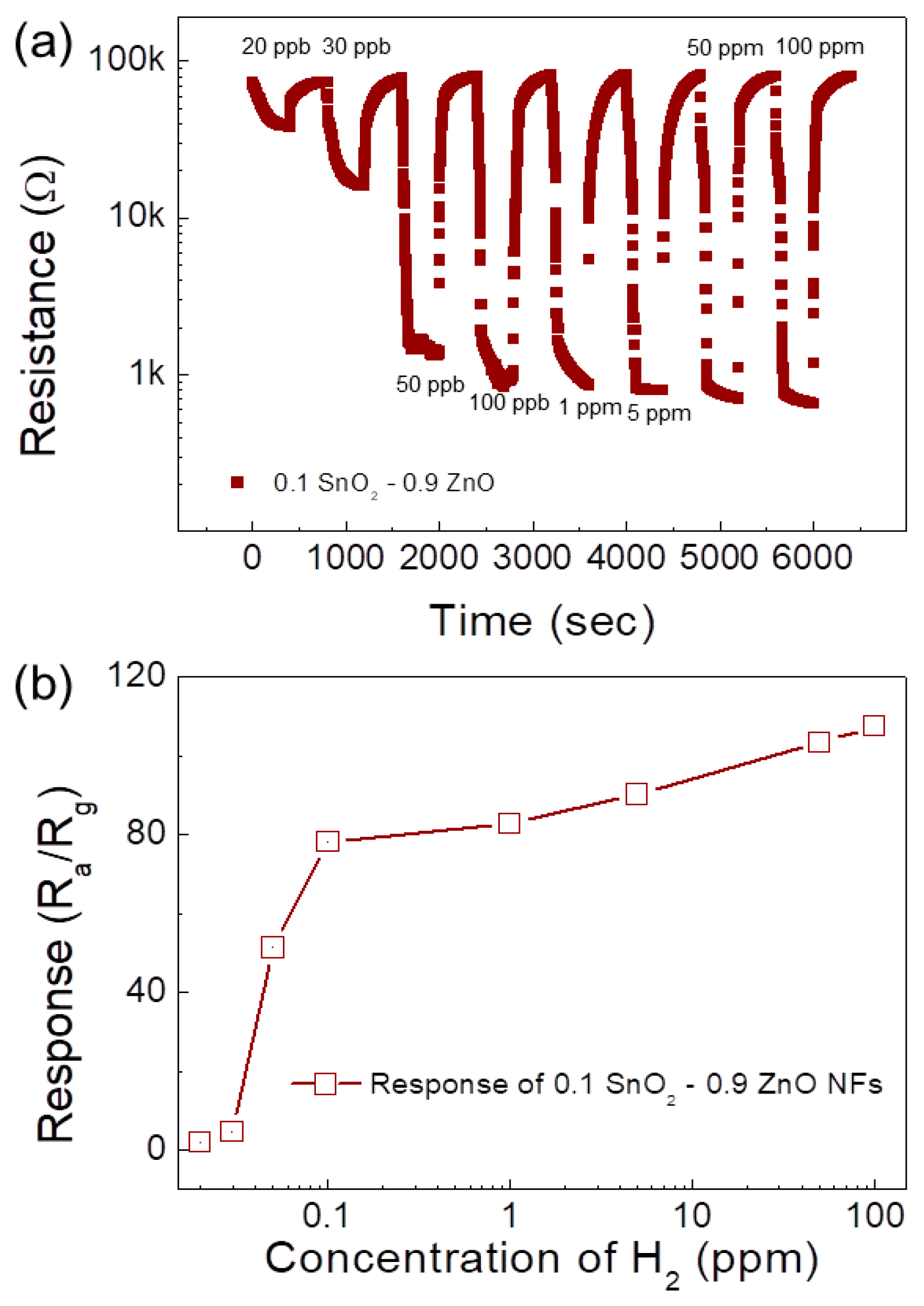

Figure 10. (a) Dynamic resistance curve of the 0.1 SnO2-loaded ZnO NF gas sensor towards 20 ppb to 100 ppm of H2 gas. (b) Response versus H2 gas concentration.
Figure 10. (a) Dynamic resistance curve of the 0.1 SnO2-loaded ZnO NF gas sensor towards 20 ppb to 100 ppm of H2 gas. (b) Response versus H2 gas concentration.
Sensors 19 00726 g010
Sensors 19 00726 g011 550

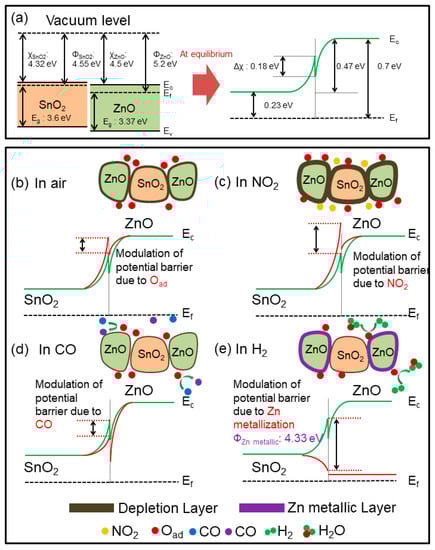

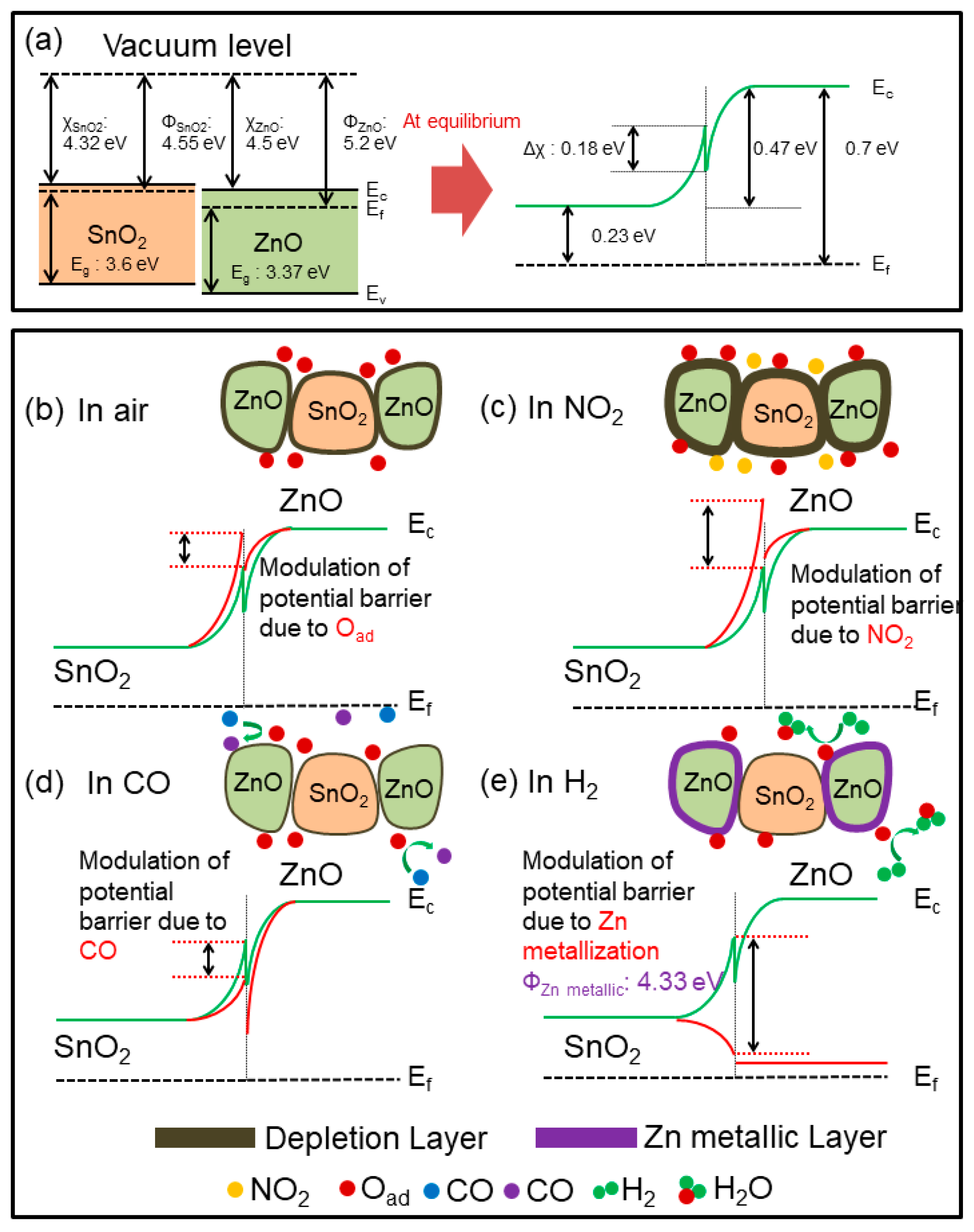

Figure 11. Schematics of sensing mechanism in the SnO2-loaded ZnO NFs gas sensor. (a) Energy-level diagram of ZnO-SnO2 in vacuum. The change of potential barriers in (b) air, (c) NO2, (d) CO, and (e) H2.
Figure 11. Schematics of sensing mechanism in the SnO2-loaded ZnO NFs gas sensor. (a) Energy-level diagram of ZnO-SnO2 in vacuum. The change of potential barriers in (b) air, (c) NO2, (d) CO, and (e) H2.
Sensors 19 00726 g011
Table
Table 1. Comparison between hydrogen gas sensing properties of the 0.1 SnO2-loaded ZnO NFs gas sensor with other ZnO-based or SnO2-based gas sensors reported in the literature.
Table 1. Comparison between hydrogen gas sensing properties of the 0.1 SnO2-loaded ZnO NFs gas sensor with other ZnO-based or SnO2-based gas sensors reported in the literature.
SensorConc. (ppm)T (°C)ResponseRef.
0.1 SnO2 loaded ZnO NFs0.0530050.1 aPresent work
WO3-ZnO200020013 a[44]
SnO2 NFs10001502.4 a[45]
ZnO Nanorods1003405 a[46]
ZnO Nanorods100025011 a[47]
Mg doped ZnO thin films500030050 a[48]
Porous ZnO nanotubes50002008 a[49]
Ni-doped ZnO10,00015043.4% b[50]
Pd-SnO2 composite microspheres10020016.7 a[51]
Pd-SnO2 NFs1002808.2 a[52]
Al-doped SnO2 NFs1003407.7 a[53]
SnO2 nanosheets/carbon NFs10020016.3 a[54]
Note: a = (Ra/Rg), b = (ΔR/Ra).

Share and Cite

MDPI and ACS Style

Lee, J.-H.; Kim, J.-Y.; Kim, J.-H.; Kim, S.S. Enhanced Hydrogen Detection in ppb-Level by Electrospun SnO2-Loaded ZnO Nanofibers. Sensors 2019, 19, 726. https://doi.org/10.3390/s19030726

AMA Style

Lee J-H, Kim J-Y, Kim J-H, Kim SS. Enhanced Hydrogen Detection in ppb-Level by Electrospun SnO2-Loaded ZnO Nanofibers. Sensors. 2019; 19(3):726. https://doi.org/10.3390/s19030726

Chicago/Turabian Style

Lee, Jae-Hyoung, Jin-Young Kim, Jae-Hun Kim, and Sang Sub Kim. 2019. "Enhanced Hydrogen Detection in ppb-Level by Electrospun SnO2-Loaded ZnO Nanofibers" Sensors 19, no. 3: 726. https://doi.org/10.3390/s19030726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
