A Comparison of ACQ, AIE and AEE-Based Polymers Loaded on Polyurethane Foams as Sensors for Explosives Detection

by
Zhiwei Chu
1,
Zhuxin Fan
1,
Xiang Zhang
1,
Xiaofeng Tan
2,
Dongxu Li
1,
Guohua Chen
1 and
Qinghua Zhao
1,*
1
College of Materials Science and Engineering, Huaqiao University, Xiamen 361021, China
2
Department of Polymer Chemistry and Technology, Kaunas University of Technology, K. Barsauskog. 59, 51423 Kaunas, Lithuania
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(5), 1565; https://doi.org/10.3390/s18051565
Submission received: 17 April 2018 / Revised: 9 May 2018 / Accepted: 9 May 2018 / Published: 15 May 2018
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
An aggregation-caused quenching (ACQ)-active polymer (PF), an aggregation-induced emission (AIE)-active polymer (PFTPE) and an aggregation-enhanced emission (AEE)-active polymer (PTTPE) were synthesized by tetraphenylethane (TPE), fluorene and thiophene moieties. Polyurethane (PU) foams modified by PF, PFTPE and PTTPE, namely PU-PF, PU-PFTPE and PU-PTTPE, using ultrasonication-assisted method have been prepared. A comparative study of PU-PF, PU-PFTPE and PU-PTTPE for detection explosives had been performed, and significant fluorescence quenching was observed with the introduction of PA solutions. The as-prepared PU-PF, PU-PFTPE and PU-PTTPE sensors exhibited a superior sensitivity for PA solutions with different concentrations. Remarkably, PU-PF gave a quenching efficiency of 96.2%, higher than 93.5% for PU-PFTPE and 86.7% for PU-PTTPE at a PA concentration of 180 µg·mL−1 in methanol, which was attributed to the effective energy transfer from the fluorophore (PF) to the nitro explosive (PA). This suggested that some ACQ polymers, applied to detect explosives, could afford better performances than AIE or AEE polymers through modification of structures and selection of adequate carriers. At the same time, these chemical sensors can be recycled many times.

Graphical Abstract

1. Introduction

Significant efforts have been employed to the exploration for detecting explosives [1,2,3,4,5]. Positively, the adverse effects of explosives on national defense security, ecological environment and human health have aroused widespread concern, such as PA (2,4,6-Trinitrophenol), TNT (2,4,6-Trinitrotoluene) and DNT (2,4-Dinitrotoluene). Quintessentially, fluorescence-based chemical sensors with conjugated polymers have appeared as new reliable approaches in recent years for sensing explosives because of their low cost, portability, high sensitivity, rapid response time; as well as, dual applicability in vapor, solid and solution media [6,7,8]. Photoinduced excited electronics transfer (PET) or fluorescence resonance energy transfer (FRET) from the electronic-rich polymers (donor) to electronic-defect nitroaromatic compounds (acceptor), and then fluorescence quenching systems are constructed [9,10,11]. Recently, polyfluorene (PF) and its derivatives have been used as chemosensors, owing to their high photoluminescence (PL) efficiencies [12,13,14]. However, PFs suffer from aggregating and forming excimers in solid states, which result in reducing efficiencies and fluorescence quenching, namely aggregation-caused quenching (ACQ) [4]. Thus, the ACQ-property of polymers urgently need to be changed.
Many approaches have been utilized to hamper these luminophore aggregations in order to inhibit the ACQ effect, through chemical, physical or engineering approaches and processes [15,16]. For example, branched chains or dendritic wedges have been covalently introduced to the structure to obstruct the formation of aggregates [16]. Among the approaches, the introduction of tetraphenylethene (TPE) into polymers is considered to be one of the most valid approaches. TPE is one of the most popular AIE molecules, which are characterized by aggregation-induced emission (AIE) resulted from the propeller-shaped structure. Since it can be easily prepared, large amounts of AIE or AEE materials, based on TPE, have been developed [17,18,19,20,21,22,23,24,25,26,27,28]. Typically, numerous TPE-based polymers, spread in good-poor pair solvents or spun coating films as probes for explosive analysis, have been widely studied [26,27,28]. For example, Li et al. [20] have synthesized a series of TPE-containing conjugated polymers with fluorene or carbazole moieties, and used them to probe an explosive with high sensitivity both in the nanoparticle and solid state. Consequently, some researchers believe that fluorescent polymers with ACQ property for detecting explosives have to suffer from the ACQ effect to cripple the detection results [29,30]. Meanwhile, it seems that AIE or AEE materials could afford better performance to detect explosives than ACQ materials. Unfortunately, there have been few reports focused on the comparison of ACQ, AIE and AEE polymers as probes to detect explosives under the same conditions. Maybe the AIE or AEE materials are better than the ACQ materials?
To the best of our knowledge, using nanoaggregates in solvents as probes was not enough to meet practical applications, while it would be more convenient to use the nanoaggregates or solid state loaded on suitable carriers. Polyurethane (PU) sponges were widely used in absorbing water, oils and organic solvents due to the 3D porous structure of PU and the facile attempts reported by literature [31,32,33,34]. In this work, we have synthesized an ACQ polymer (PF), an AIE polymer (PFTPE) and an AEE polymer (PTTPE) with fluorene, TPE, and thiophene moieties by Suzuki coupling reaction. Figure 1 illustrates the synthetic route to PF, PFTPE and PTTPE. Then PU foams modified by these three kinds of polymers, namely PU-PF, PU-PFTPE and PU-PTTPE, were prepared using ultrasonication method. In our previous work, we have reported that an AIE polymer was loaded on PU foams by ultrasonication approach to detect explosives and showed high sensitivity to the PA solution and DNT vapor [35]. The performances of PU-PF, PU-PFTPE and PU-PTTPE utilized to detect explosives have been investigated and compared.

2. Materials and Methods

2.1. Materials

9,9-Dioctyl-2,7-dibromofluorene, 9,9-Dioctylfluorene-2,7-diboronic acid, 2,5-Bis(tributylstannyl) thiophene and 2-(Tributylstannyl)thiophene were purchased from Sigma-Aldrich, TCI, or Acros Organics. Tetrahydrofuran (THF), bromobenzene and Pd(PPh3)4 were purchased from SunaTech Inc. 4-Bromobenzophenone, titanium tetrachloride and Zn were purchased from Energy Chemica. The nitro explosive analytes used in experiments were purchased from Aldrich and used as received. Other chemicals were used as received unless otherwise specified.

2.2. Measurements and Characterization

The 1H NMR and 13C NMR spectra were recorded with a Nuclear magnetic resonance spectrometer (Bruker AVANCE III 500 MHz). The thermal analyses were performed on Shimadzu DTG-60H thermogravimetric analyzer, in a nitrogen atmosphere at a rate of 10 °C/min. Differential scanning calorimetry (DSC) was conducted under nitrogen on TA DSC2910/SDT2960, and the sample was heated at a temperature of 20 °C/min from 30 °C to 250 °C. UV-vis absorption spectra and PL spectra were measured by Shimadzu UV-3100 spectrophotometer and Edinburgh FL/FS920 TCSPC luminescence spectrophotometer, respectively. Molecular weights and polydispersities of the copolymers were determined by gel permeation chromatography (GPC) analysis, with polystyrene standard calibration (waters high-pressure GPC assembly Model M515 pump, l-Styragel columns of HR4, HR4E, and HR5E with 500 and 100 Å, refractive index detectors, solvent THF). Cyclic voltammetry (CV) experiments were carried out using a PARSTAT 2273 electrochemical analyzer, with a three-electrode cell in a solution of Bu4NBF4 (0.1 M) in acetonitrile, at a scan rate of 100 mV/s. A Pt wire was used as the counter electrode, and an Ag/AgCl (0.1 M) electrode was used as the reference electrode. Prior to each series of measurements, the electrolytic cell was deoxygenated with nitrogen. The morphologies of modified PU foams were characterized by field emission scanning electron microscopy (FESEM, Hitachi SU70). Fluorescence microscope photos were taken by Zeiss Axio Imager A1.

2.3. Synthesis of PF, PFTPE and PTTPE

2.3.1. Synthesis of Poly(2,7-9,9′-dioctyl-9H-fluorene) (PF)

In a 2-necked, 50 mL flask, a stirred solution of 9,9-dioctyl-2,7-dibromofluorene (0.548 g, 1 mmol) and 9,9-dioctylfluorene-2,7-diboronic acid (0.574 g, 1.2 mmol) dissolved in THF (20 mL), then K2CO3 (2 M, 10 mL), Pd(PPh3)4 (0.035 g, 3 mmol%) were added. After being refluxed for 48 h, phenylboronic acid and bromobenzene were added for end capping. 10 h later, the reaction mixture was extracted for three times with CH2Cl2 and dried over MgSO4. Then precipitation was performed twice with dichloromethane/methanol, PF was obtained with a yield of 90%. 1H NMR (500 MHz, CDCl3, δ): 8.28–7.80 (2H, m), 7.82–7.59 (2H, m), 7.58–7.30 (2H, m), 2.41–1.90 (4H, m), 1.87–1.02 (24H, m), 1.01–0.58 (6H, m) (Supplementary Materials Figure S1). 13C NMR (125 MHz, CDCl3, δ): 152.46, 139.96, 130.08, 126.07, 121.53, 119.77, 55.39, 40.24, 31.84, 31.51, 29.78, 29.27, 23.69, 22.63, 14.13 (Supplementary Materials Figure S2). Mw = 1.22 × 104, Mw/Mn = 2.57.

2.3.2. Synthesis of Poly((E)-1,2-diphenyl-1,2-di-p-tolylethene-alt-9,9′-dioctyl-fluorene) (PFTPE)

Br-TPE-Br was synthesized according to the literature [36]. In a 2-necked, 50 mL flask, a stirred solution of Br-TPE-Br (0.49 g, 1 mmol) and 9,9-dioctylfluorene-2,7-diboronic acid (0.574 g, 1.2 mmol) dissolved in THF (20 mL), then K2CO3 (2 M, 10 mL), Pd(PPh3)4 (0.035 g, 3 mmol%) were added. After refluxed for 48 h, phenylboronic acid and bromobenzene were added for end capping. 10 h later, the reaction mixture was extracted for three times with CH2Cl2 and dried over MgSO4. Then precipitation was performed twice with dichloromethane/methanol, PFTPE was obtained. Yield: 88%. 1H NMR (500 MHz, CDCl3, δ): 7.85–7.75 (2H, m), 7.70–7.59 (4H, m), 7.60–7.46 (3H, m), 7.46–7.25 (6H, m), 7.25–7.13 (7H, m), 7.14–6.85 (2H, m), 2.23–1.80 (4H, m), 1.90–1.03 (24H, m), 1.02–0.56 (6H, m) (Supplementary Materials Figure S3). 13C NMR (125 MHz, CDCl3, δ): 156.08, 153.26, 151.72, 144.05, 143.44, 142.88, 141.29, 140.73, 140.28, 139.48, 133.15, 131.45, 129.45, 129.02, 128.60, 128.05, 127.51, 126.29, 125.92, 121.08, 120.05, 55.34, 40.57, 31.88, 30.14, 29.86, 29.33, 23.86, 22.71, 14.21 (Supplementary Materials Figure S4). Mw = 1.64 × 104, Mw/Mn = 3.80.

2.3.3. Synthesis of Poly((E)-1,2-diphenyl-1,2-di-p-tolylethene-alt-2,5-thiophene) (PTTPE)

Br-TPE-Br was synthesized according to the literature [36]. In a 2-necked 50 mL flask, a stirred solution of Br-TPE-Br (0.49 g, 1 mmol) and 2,5-Bis(tributylstannyl)thiophene (0.794 g, 1.2 mmol) dissolved in toluene (30 mL), then K2CO3 (2 M, 10 mL), Pd(PPh3)4 (0.035 g, 3 mmol%) were added. After refluxed for 72 h at 110 °C, bromobenzene and 2-(Tributylstannyl)thiophene were added for end capping. 10 h later, the reaction mixture was extracted for three times with CH2Cl2 and dried over MgSO4. Then precipitation was performed twice with dichloromethane/methanol, PFTPE was obtained. Yield: 63%. 1H NMR (500 MHz, CDCl3, δ): 7.48–7.29 (4H, m), 7.27–7.19 (2H, m), 7.19–7.10 (8H, m), 7.10–6.96 (6H, m) (Supplementary Materials Figure S5). 13C NMR (125 MHz, CDCl3) δ (ppm): 143.64, 143.54, 143.21, 143.00, 142.92, 140.62, 132.39, 132.24, 131.94, 131.46, 127.95, 127.75, 126.74, 126.61, 124.82, 124.64, 123.88 (Supplementary Materials Figure S6). Mw = 9.99 × 103, Mw/Mn = 2.79.

3. Results and Discussion

3.1. Optical Properties of PF, PFTPE and PTTPE

As mentioned above, materials with the performance of AIE or AEE could be obtained by introducing the TPE unit to fluorene and thiophene moieties. Thus, we investigated their PL behaviors of PF, PFTPE and PTTPE in solution and aggregate states. During the preparation of the different water concentrations of mixed solution, firstly, respectively divided the three polymer solutions (1000 µg in 10 mL THF) into ten equal parts in 10 mL bottles, then we added the distilled water and THF into their THF solutions to 10 mL under shaking evenly. The resultant mixtures were visually uniform and transparent, indicating that PF, PFTPE and PTTPE aggregates were nanometer-sized [21,37]. PF showed a strong fluorescence at 425 nm in pure THF as well as the fluorescence intensity gradually weakened with increasing water content; whereas, PF almost did express none fluorescence while containing no THF under the UV lamp (λ = 365 nm) (Figure 2a). Thus, these phenomena confirmed that PF possessed ACQ characteristic.
On the other hand, as shown in Figure 2b, PFTPE depicted a maximum emission peak at 515 nm, which was red-shifted than PF due to the more conjugated effect. In contrast, PFTPE was almost non-emissive while dissolving in pure THF under the UV lamp (λ = 365 nm). With the gradual addition of the distilled water into THF, the PL intensities of PFTPE were progressively enhanced and the PL peak invariably centered at 515 nm, indicating that the polymer exhibited a remarkable AIE feature due to the TPE residue. Obviously, aggregation of its chains should occur readily in THF/H2O mixtures with high water contents since it was insoluble in water.
Different from PF and PFTPE, PTTPE existed an obvious fluorescence emission peak at 525 nm in pure THF and transferred peaks to 563 nm with the distilled water gradually added to THF. During this process, the fluorescence intensity enhanced gradually. The specific changes were indicated in Figure 2c,d, which stating clearly that PTTPE exhibited a remarkable AEE property due to the TPE residue. It was AEE active because the emission of the polymer in pure THF was not completely quenched. The emission pictures of PTTPE under different water contents was shown in the Supplementary Materials Figure S7. Compared with the previous two polymers, the PTTPE had a red-shift evidently, which due to the increase of the conjugation length and the properties of thiophene.

3.2. Thermal Properties of PF, PFTPE and PTTPE

Thermal stability of the polymers was an important parameter with regard to real-world applications. Thus, the thermal stabilities of PF, PFTPE and PTTPE were recorded by thermogravimetric analysis (TGA) and differential scanning calorimeter (DSC) (Figure 3). The decomposition temperatures for a 5% weight loss (Td) of these three polymers severally were up to 235 °C, 250 °C and 356 °C. At the same time, the DSC curves of PF, PFTPE and PTTPE did not detect obvious peaks corresponding to glass transitions, which indicated their good thermal stability. Herein, compared these three polymers, PFTPE and PTTPE showed better thermal stability due to the increase of rigid aromatic rings.

3.3. Preparation of Functional Sensors

Ultrasonication-assisted manufacture is a common method in scientific research, which has been used in many fields such as crushing, rinsing, emulsification and activation of particles [37,38,39], due to providing a strong interaction between energy and matter. To understand more about the manufacture approach, our groups have tried to prepare PU foams modified by polymers through the ultrasonication method, as we have reported previously [35]. The advantages of ultrasonication-assisted method could be discovered by comparing with the immersing method because the nanoparticles could be firmly adhered onto the PU foam skeleton with high speed and energy under the treatment of ultrasonication [40,41,42]. Therefore, PU-PF, PU-PFTPE and PU-PTTPE were prepared with these three polymers’ nanoparticles at 100 µg·mL−1 in mixed solution (volume, THF/H2O = 1/9) through the ultrasonication method.
In order to evaluate the effect of nanoparticles on the PU foams, we observed the sponge skeleton through FESEM and fluorescence microscope. Remarkably, the pure PU foam possessed a smooth surface, which could be seen from the SEM images in Figure 4(A1–A3). However, in contrast to the photographs in Figure 4(B1,C1,D1), the modified PU foam surface was covered with polymer nanoparticles. In addition, the normal PU foams without anything polymer nanoparticles (Figure 4(A4)) were non-luminous, but they could turn green and blue sparkling completely after PF, PFTPE and PTTPE particles remained by ultrasonication treatment (Figure 4(B4–D4)) under the UV lamp (λ = 365 nm). Meanwhile, we could easily find that the foams skeleton decorated by PF, PFTPE and PTTPE, emitting bluish, bright grassy and yellowish green respectively under a fluorescence microscope in Figure 4(B3,C3,D3). As mentioned above, we can positively determine that the nanoparticles have been well loaded onto the sponge skeletons.

3.4. Comparison of Explosive Detection

The successful cases in the detection of explosives using fluorescent polymers or small molecules encourage us to explore the utility, as chemosensors, of these luminescent materials with different luminescence characteristics. With this in mind, we compared the detection effects of the ACQ, AIE and AEE polymers in the presence of PA. Picric acid (PA) was selected as an explosive pollutant not only due to its commercial availability but also because it was a strong explosive, as well as the pollution of PA in groundwater or soil caused severe health problems [43,44,45]. In general, the explosive molecules could be spread into the 3D reticular structure of PU foams as well as seized by the polymer nano-size particles when the sponges were put into PA solutions, and then the effective fluorescence quenching appeared. Figure 5 depicted the PL spectra of PU-PF (λem = 422 nm), PU-PFTPE (λem = 503 nm) and PU-PTTPE (λem = 554 nm) with the gradual addition of PA in methanol and the changes of the fluorescence intensity were recorded, meanwhile, the significant fluorescence quenching was observed in the PA solutions with different concentration. From the point of view, the comparative study to the practical application of the functionalized PU foams decorated by PF, PFTPE and PTTPE as chemosensors for explosive detection was performed.
As shown in Figure 5d, the chemical probes of these three polymers exhibited a very effective response to the nitro-aromatic explosive with different concentrations. PU-PF detected PA more effectively and sensitively than that of PU-PFTPE and PU-PTTPE at each of the same concentrations except 60 µg·mL−1, owing to the involvements of heterogeneous contact, self-absorption and/or energy transfer [46]. The fluorescence of PU-PF and PU-PFTPE could disappear completely at a PA concentration of 180 µg·mL−1, while PU-PTTPE still had a certain intensity of light yellow fluorescence. In addition, the quenching efficiencies of these three chemical probes were 96.2%, 93.5% and 86.7% at a PA concentration of 180 µg·mL−1, respectively. The photographs of functional foams at a PA concentration of 0 and 180 µg·mL−1, taken under the illumination of the UV lamp (365 nm) (Supplementary Materials Figure S8). With regard to Stern–Volmer formula (I0/I) = 1 + KSV [Q] [47], the quenching constant (KSV) of PU-PF, PU-PFTPE and PU-PTTPE were calculated to be 29,087, 11,450 and 8270 M−1, respectively. Moreover, PU-PF still retained greater than 60% of the fluorescence intensity after four times recycles (Figure 5d), and the other two functional foams also showed this nature, meaning that PU-PF, PU-PFTPE and PU-PTTPE could be utilized multiple times after being washed by ethanol and dried at 60 °C in a vacuum oven overnight. From the results above, we could distinctly see that PU-PF detected nitro-aromatic explosive more effectively than PU-PFTPE or PU-PTTPE, and the good practical application of these three chemosensors based on PU foams was proved.

3.5. The Detection Principle of Sensors System

To further shed light on the quenching mechanisms of PU-PF, PU-PFTPE and PU-PTTPE, the quenching mechanism of photo-induced electron transfer (PET) was firstly discussed. It is easy to transfer electrons from multi electron conjugated polymers because PA is a kind of electron deficient compound. As shown in Table 1, the LUMO levels of PF, PFTPE and PTTPE were much higher than that of PA, which facilitated excited electron transfer from these three polymers to PA. It meant that PU-PF, PU-PFTPE and PU-PTTPE could detect nitro-aromatic explosive PA. Furthermore, the LUMO levels of PFTPE or PTTPE were lower than that of PF and the quenching efficiency of PU-PFTPE or PU-PTTPE were likely to be better than that of PU-PF. However, as seen from the quenching efficiency-PA concentrations curve (Figure 5d), PU-PF gave a quenching efficiency of 96.2%, slightly higher than PU-PFTPE (93.5%) and PU-PTTPE (86.7%) at a PA concentration of 180 µg·mL−1, indicating that the PET was not a single mechanism governing the quenching behavior.
Secondly, another mechanism of fluorescence resonance energy transfer (FRET) was referred. As indicated in Figure 6b, there were overlaps between the UV absorption spectrum of an explosive (PA) and the emission spectra of the chemical sensors (PF, PFTPE and PTTPE). In contrast to that of PFTPE and PTTPE, the emission spectrum of PF was better overlapped with the absorption spectrum of PA, which was resulted from the effective energy transfer from the fluorophore (PF) to the nitro explosive (PA). This explanation was consistent with the previous experimental result. Consequently, two quenching mechanisms (PET and FRET) exist simultaneously, and the latter plays a more important role.

4. Conclusions

As mentioned previously, there have been few reports focus on a comparison of the ACQ, AIE and AEE polymers as probes to detect explosives under the same conditions. In general, we have successfully designed and synthesized three polymers with ACQ, AIE and AEE property, respectively, PF, PFTPE and PTTPE. Afterward, the functionalized PU foams decorated by these three polymers were prepared by ultrasonication method and utilized to detect explosives (PA). PU-PF, PU-PFTPE and PU-PTTPE exhibited higher quenching efficiencies, with 96.2% for PU-PF, 93.5% for PU-PFTPE and 86.7% for PU-PTTPE related to PA at 180 µg·mL−1. Interestingly, the quenching efficiency of ACQ-active PU-PF was higher than that of AIE-active PU-PFTPE or AEE-active PU-PTTPE by adopting this very common carrier (PU) and the preparation method (ultrasonication). At the same time, they can be recycled many times. Therefore, we believe that more optimized fabrication methods will improve sensing abilities of these fluorescent materials and it will further promote the development of fluorescent materials with high efficiencies.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/18/5/1565/s1, Figure S1: 1H NMR spectrum of PF in CDCl3. Figure S2: 13C NMR spectrum of PF in CDCl3. Figure S3: 1H NMR spectrum of PFTPE in CDCl3. Figure S4: 13C NMR spectrum of PFTPE in CDCl3. Figure S5: 1H NMR spectrum of PTTPE in CDCl3. Figure S6: 13C NMR spectrum of PTTPE in CDCl3. Figure S7: Photographs of PTTPE (100 µg·mL−1) in H2O/THF mixtures with different water fractions, taken under the illumination of the UV lamp (365 nm). Figure S8: The photographs of functional foams at a PA concentration of 0 and 180 µg·mL−1, taken under the illumination of the UV lamp (365 nm). Figure S9: UV-vis absorption in thin solid film.

Author Contributions

Z.C. operated the experiments and wrote the final manuscript; Z.F. did the data analysis and revised the paper; X.Z. did some supplementary experiments; X.T. did the relevant fluorescence characterization; G.C. supervised the work; D.L. provided suggestions for making charts and Q.Z. conceived the work and helped with the necessary corrections.

Funding

This work was supported by the National Natural Science Foundation of China (grant Nos. 51373059), the Natural Science Foundation of Fujian Province (grant No. 2016J01233), Graphene Powder & Composite Research Center of Fujian Province, 2017H2001) and Promotion Program for Young and Middle-aged Teacher in Science and Technology Research of Huaqiao University (ZQN-PY305).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Mäkinen, M.; Nousiainen, M.; Sillanpää, M. Ion spectrometric detection technologies for ultra-traces of explosives: A review. Mass Spectrom. Rev. 2011, 30, 940–973. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, C.; Shang, J.; Lan, Y.; Tian, T.; Wang, H.; Chen, X.; Gu, J.Y.; Liu, J.Z.; Wan, L.J.; Zhu, W.; et al. Metal-organic polyhedra cages immobilized on a plasmonic substrate for sensitive detection of trace explosives. Adv. Funct. Mater. 2015, 25, 6009–6017. [Google Scholar] [CrossRef]
  3. Grate, J.W. Hydrogen-bond acidic polymers for chemical vapor sensing. Chem. Rev. 2008, 39, 726–745. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, J. Electrochemical sensing of explosives. Electroanalysis 2007, 19, 415–423. [Google Scholar] [CrossRef]
  5. Popov, I.A.; Chen, H.; Kharybin, O.N.; Nikolaev, E.N.; Cooks, R.G. Detection of explosives on solid surfaces by thermal desorption and ambient ion/molecule reactions. Chem. Commun. 2005, 15, 1953–1955. [Google Scholar]
  6. Xu, B.; Xu, Y.; Wang, X.; Li, H.; Wu, X.; Tong, H.; Wang, L. Porous films based on a conjugated polymer gelator for fluorescent detection of explosive vapors. Polym. Chem. 2013, 4, 5056–5059. [Google Scholar] [CrossRef]
  7. Nguyen, H.H.; Li, X.; Wang, N.; Wang, Z.Y.; Ma, J.; Bock, W.J.; Ma, D. Fiber-optic detection of explosives using readily available fluorescent polymers. Macromolecules 2009, 42, 921–926. [Google Scholar] [CrossRef]
  8. Nie, H.; Sun, G.; Zhang, M.; Baumgarten, M.; Müllen, K. Fluorescent conjugated polycarbazoles for explosives detection: Side chain effects on TNT sensor sensitivity. J. Mater. Chem. 2012, 22, 2129–2132. [Google Scholar] [CrossRef]
  9. Nie, H.; Zhao, Y.; Zhang, M.; Ma, Y.; Baumgarten, M.; Müllen, K. Detection of TNT explosives with a new fluorescent conjugated polycarbazole polymer. Chem. Commun. 2011, 47, 1234–1236. [Google Scholar] [CrossRef] [PubMed]
  10. Yang, J.S.; Swager, T.M. Porous shape persistent fluorescent polymer films: An approach to TNT sensory materials. J. Am. Chem. Soc. 1998, 120, 5321–5322. [Google Scholar] [CrossRef]
  11. Yang, J.S.; Swager, T.M. Fluorescent porous polymer films as TNT chemosensors: Electronic and structural effects. J. Am. Chem. Soc. 1998, 120, 11864–11873. [Google Scholar] [CrossRef]
  12. Li, Z.A.; Lou, X.; Yu, H.; Li, Z.; Qin, J. An imidazole-functionalized polyfluorene derivative as sensitive fluorescent probe for metal ions and cyanide. Macromolecules 2008, 41, 7433–7439. [Google Scholar] [CrossRef]
  13. Li, Z.A.; Lou, X.; Li, Z.; Qin, J. A new approach to fluorescence “Turn-On” sensing of α-amino acids. ACS Appl. Mater. Interfaces 2009, 1, 232–234. [Google Scholar] [CrossRef] [PubMed]
  14. Zhao, Q.; Zhang, W.; Fan, Z.; Li, J.; Chen, X.; Luo, G.; Zhang, X. Synthesis and characterization of high triplet energy polyfluorene bearing m-tetraphenylsilane segment as a polymer host for green phosphorescent polymer light emitting diodes. Synth. Met. 2015, 204, 70–75. [Google Scholar] [CrossRef]
  15. Lim, S.F.; Friend, R.H.; Rees, I.D.; Li, J.; Ma, Y.; Robinson, K.; Holmes, A.B.; Hennebicq, E.; Beljonne, D.; Cacialli, F. Suppression of Green Emission in a New Class of Blue-Emitting Polyfluorene Copolymers with Twisted Biphenyl Moieties. Adv. Funct. Mater. 2005, 15, 981–988. [Google Scholar] [CrossRef]
  16. Lee, Y.T.; Chiang, C.L.; Chen, C.T. Solid-state highly fluorescent diphenylaminospirobifluorenyl- fumaronitrile red emitters for non-doped organic light-emitting diodes. Chem. Commun. 2007, 2, 217–219. [Google Scholar]
  17. Hu, Y.; Liu, J.; You, X.; Wang, C.; Li, Z.; Xie, W. A light-up probe for detection of adenosine in urine samples by a combination of an AIE molecule and an aptamer. Sensors 2017, 17, 2246. [Google Scholar] [CrossRef] [PubMed]
  18. Qin, A.; Lam, J.W.Y.; Tang, B.Z. Luminogenic polymers with aggregation-induced emission characteristics. Prog. Polym. Sci. 2012, 37, 182–209. [Google Scholar] [CrossRef]
  19. Liu, Y.; Qin, A.; Tang, B.Z. Polymerizations based on triple-bond building blocks. Prog. Polym. Sci. 2017, 78, 92–138. [Google Scholar] [CrossRef]
  20. Wang, H.; Zhao, E.; Lam, J.W.; Tang, B.Z. AIE luminogens: Emission brightened by aggregation. Mater. Today 2015, 18, 365–377. [Google Scholar] [CrossRef]
  21. Wu, W.; Ye, S.; Tang, R.; Huang, L.; Li, Q.; Yu, G.; Liu, Y.; Qin, J.; Li, Z. New tetraphenylethylene-containing conjugated polymers: Facile synthesis, aggregation-induced emission enhanced characteristics and application as explosive chemosensors and PLEDs. Polymer 2012, 53, 3163–3171. [Google Scholar] [CrossRef]
  22. Jana, D.; Ghorai, B.K. Synthesis and aggregation-induced emission properties of tetraphenyleth-ylene-based oligomers containing triphenylethylene moiety. Tetrahedron Lett. 2012, 53, 6838–6842. [Google Scholar] [CrossRef]
  23. Chua, M.H.; Zhou, H.; Lin, T.T.; Wu, J.; Xu, J.W. Aggregation-induced emission active 3,6-bis(1,2,2-triphen-ylvinyl)carbazole and bis(4-(1,2,2-triphenylvinyl)phenyl)amine-based poly(acrylates) for explosive detection. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 672–681. [Google Scholar] [CrossRef]
  24. Wang, Q.; Chen, M.; Yao, B.; Wang, J.; Mei, J.; Sun, J.Z.; Qin, A.; Tang, B.Z. A polytriazole synthesized by 1,3-dipolar polycycloaddition showing aggregation-enhanced emission and utility in explosive detection. Macromol. Rapid Commun. 2013, 34, 796–802. [Google Scholar] [CrossRef] [PubMed]
  25. Li, X.; Zhao, R.; Tang, X.; Shi, Y.; Li, C.; Wang, Y. One-pot click access to a cyclodextrin dimer-based novel aggregation induced emission sensor and monomer-based chiral stationary phase. Sensors 2016, 16, 1985. [Google Scholar] [CrossRef] [PubMed]
  26. Li, J.; Han, X.; Bai, Q.; Shan, T.; Lu, P.; Ma, Y. Electropolymerized AIE-active polymer film with high quantum efficiency and its application in OLED. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 707–715. [Google Scholar] [CrossRef]
  27. Zhou, H.; Ye, Q.; Neo, W.T.; Song, J.; Yan, H.; Zong, Y.; Tang, B.Z.; Hor, T.A.; Xu, J. Electrospun aggregation-induced emission active POSS-based porous copolymer films for detection of explosives. Chem. Commun. 2014, 50, 13785–13788. [Google Scholar] [CrossRef] [PubMed]
  28. Sun, S. Recent advances in hybrid Cu2O-based heterogeneous nanostructures. Nanoscale 2015, 7, 10850–10882. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, J.; Lam, J.W.; Tang, B.Z. Acetylenic polymers: Syntheses, structures, and functions. Chem. Rev. 2009, 109, 5799–5867. [Google Scholar] [CrossRef] [PubMed]
  30. Zhao, Z.; Jiang, T.; Guo, Y.; Ding, L.; He, B.; Chang, Z.; Lam, J.W.; Liu, J.; Chan, C.Y.; Lu, P.; et al. Silole-containing poly(silylenevinylene)s: Synthesis, characte-rization, aggregation enhanced emission, and explosive detection. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 2265–2274. [Google Scholar] [CrossRef]
  31. Wang, C.F.; Lin, S.J. Robust superhydrophobic/superoleophilic sponge for effective continuous absorption and expulsion of oil pollutants from water. ACS Appl. Mater. Interfaces 2013, 5, 8861–8864. [Google Scholar] [CrossRef] [PubMed]
  32. Zhu, Q.; Pan, Q. Mussel-inspired direct immobilization of nanoparticles and application for oil-water separation. ACS NANO 2014, 8, 1402–1409. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, W.; Li, S.; Chen, C.; Yan, L. Self-assembly and embedding of nanoparticles by in situ reduced graphene for preparation of a 3D graphene/nanoparticle aerogel. Adv. Mater. 2011, 23, 5679–5683. [Google Scholar] [CrossRef] [PubMed]
  34. Nguyen, D.D.; Tai, N.H.; Lee, S.B.; Kuo, W.S. Superhydrophobic and superoleophilic properties of graphene-based sponges fabricated using a facile dip coating method. Energy Environ. Sci. 2012, 5, 77908–77912. [Google Scholar] [CrossRef]
  35. Fan, Z.X.; Zhao, Q.H.; Wang, S.; Bai, Y.; Wang, P.P.; Li, J.J.; Chu, Z.W.; Chen, G.H. Polyurethane foam functionalized with an AIE-active polymer using an ultrasonication-assisted method: Preparation and application for the detection of explosives. RSC Adv. 2016, 6, 26950–26953. [Google Scholar] [CrossRef]
  36. Liu, Y.; Ma, J.; Wu, T.; Wang, X.; Huang, G.; Liu, Y.; Qiu, H.; Li, Y.; Wang, W.; Gao, J. Cost-effective reduced graphene oxide-coated polyurethane sponge as a highly efficient and reusable oil-absorbent. ACS Appl. Mater. Interfaces 2013, 5, 10018–10026. [Google Scholar] [CrossRef] [PubMed]
  37. Qin, A.; Jim, C.K.; Tang, Y.; Lam, J.W.; Liu, J.; Mahtab, F.; Gao, P.; Tang, B.Z. Aggregation-enhanced emissions of intramolecular excimers in disubstituted polyacetylenes. J. Phys. Chem. B 2008, 112, 9281–9288. [Google Scholar] [CrossRef] [PubMed]
  38. Doktycz, S.J.; Suslick, K.S. Interparticle collisions driven by ultrasound. Science 1990, 247, 1067–1069. [Google Scholar] [CrossRef] [PubMed]
  39. Xu, C.; Xu, B.; Gu, Y.; Xiong, Z.; Sun, J.; Zhao, X.S. Graphene-based electrodes for electrochemical energy storage. Energy Environ. Sci. 2013, 6, 1388–1414. [Google Scholar] [CrossRef]
  40. Gao, J.; Li, W.; Wong, J.S.; Hu, M.; Li, R.K. Controllable morphology and wettability of polymer microspheres prepared by nonsolvent assisted electrospraying. Polymer 2014, 55, 2913–2920. [Google Scholar] [CrossRef]
  41. Gao, J.; Li, W.; Shi, H.; Hu, M.; Li, R.K. Preparation, morphology, and mechanical properties of carbon nanotube anchored polymer nanofiber composite. Compos. Sci. Technol. 2014, 92, 95–102. [Google Scholar] [CrossRef]
  42. Zha, J.W.; Gao, Y.; Zhang, D.L.; Wen, Y.; Li, R.K.; Shi, C.Y.; Dang, Z.M. Flexible electrospun polyvinylidene fluoride nanofibrous composites with high electrical conductivity and good mechanical properties by employing ultrasonication induced dispersion of multiwalled carbon nanotubes. Compos. Sci. Technol. 2016, 128, 201–206. [Google Scholar] [CrossRef]
  43. Ye, J.; Zhao, L.; Bogale, R.F.; Gao, Y.; Wang, X.; Qian, X.; Guo, S.; Zhao, J.; Ning, G. Highly selective detection of 2,4,6-trinitrophenol and Cu2+ ions based on a fluorescent cadmium-pamoate metal-organic framework. Chemistry 2015, 21, 2029–2037. [Google Scholar] [CrossRef] [PubMed]
  44. Wollin, K.; Dieter, H.H. Toxicological guidelines for monocyclic nitro-, amino- and aminonitroa-romatics, nitramines, and nitrate esters in drinking water. Arch. Environ. Contam. Toxicol. 2005, 49, 18–26. [Google Scholar] [CrossRef] [PubMed]
  45. Hu, Y.; Ding, M.; Liu, X.Q.; Sun, L.B.; Jiang, H.L. Rational synthesis of an exceptionally stable Zn(II) metal-organic framework for the highly selective and sensitive detection of picric acid. Chem. Commun. 2016, 52, 5734–5737. [Google Scholar] [CrossRef] [PubMed]
  46. Rd, T.S.; Joly, G.D.; Swager, T.M. Chemical sensors based on amplifying fluorescent conjugated polymers. Chem. Rev. 2007, 107, 1339–1386. [Google Scholar]
  47. Lin, R.B.; Li, F.; Liu, S.Y.; Qi, X.L.; Zhang, J.P.; Chen, X.M. A noble-metal-free porous coordination framework with exceptional sensing efficiency for oxygen. Angew. Chem. Int. Ed. 2013, 52, 13429–13433. [Google Scholar] [CrossRef] [PubMed]
  48. Deng, Y.J.; Chen, N.J.; Li, Q.Y.; Wu, X.J.; Huang, X.L.; Lin, Z.H.; Zhao, Y.G. Highly fluorescent metal-organic Frameworks Based on benzene -cored tetraphenylethene derivative with the ability to detection of 2,4,6-trinitrophenol in water. Cryst. Growth Des. 2017, 17, 3170–3177. [Google Scholar] [CrossRef]
  49. Mostakim, S.K.; Biswas, S. A thiadiazole-functionalized Zr(IV)-based metal-organic framework as a highly fluorescent probe for the selective detection of picric acid. CrystEngComm 2016, 18, 3104–3113. [Google Scholar]
Sensors 18 01565 g001 550

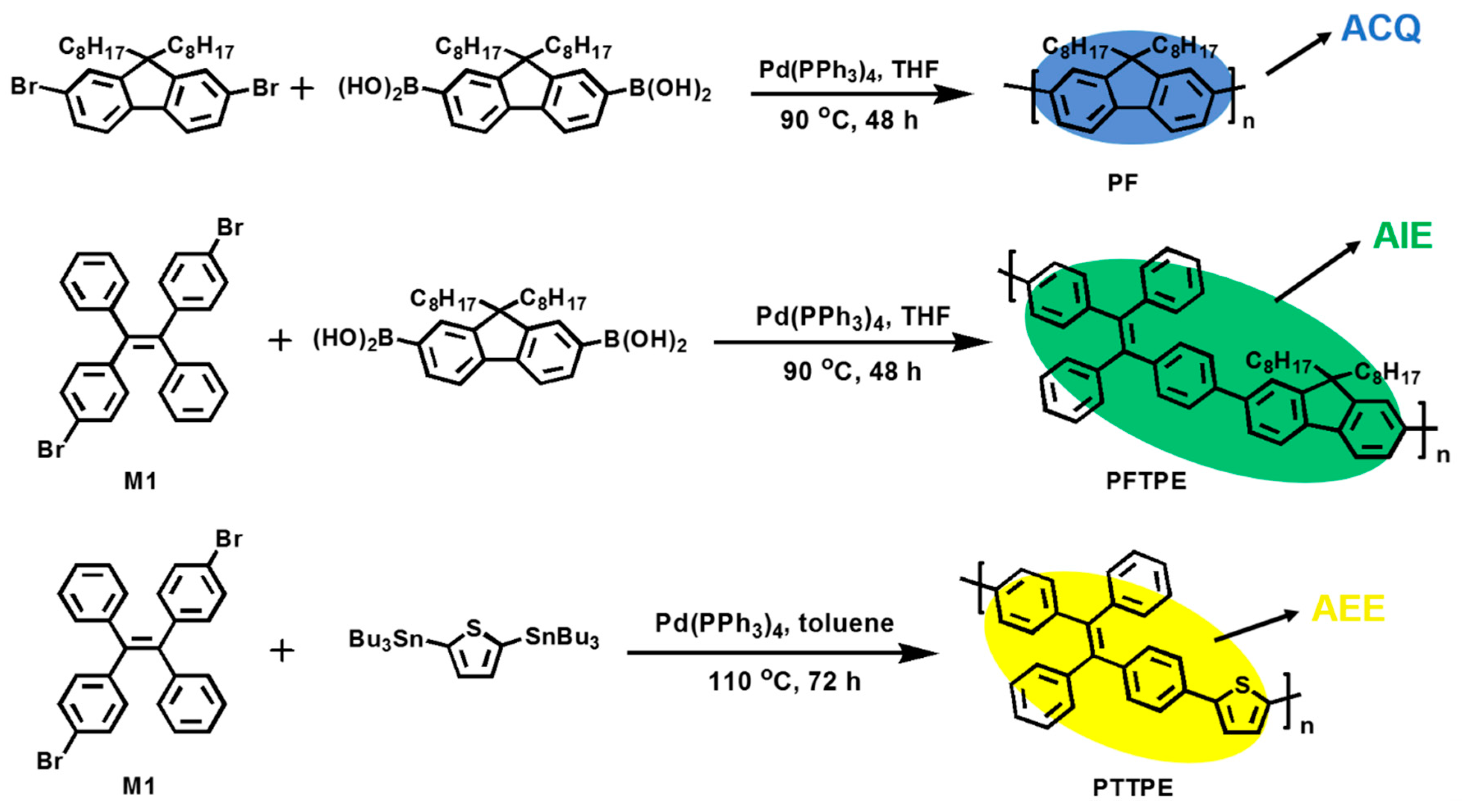

Figure 1. Synthetic routes of PF, PFTPE and PTTPE.
Figure 1. Synthetic routes of PF, PFTPE and PTTPE.
Sensors 18 01565 g001
Sensors 18 01565 g002 550

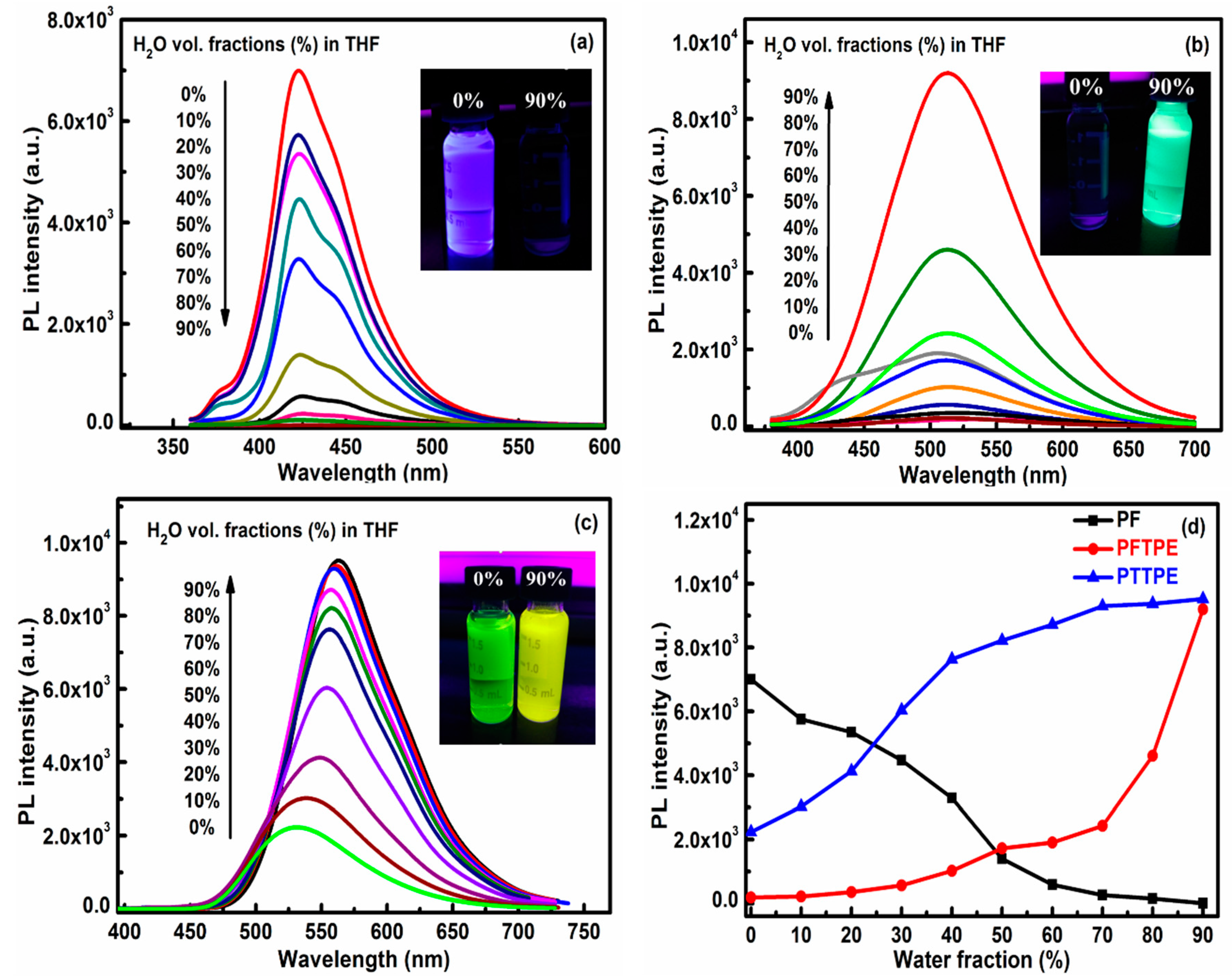

Figure 2. PL spectra of PF (a), PFTPE (b) and PTTPE (c) (100 µg·mL−1) in H2O/THF mixtures with different water fractions (fw), inserts: photographs of PF (a), PFTPE (b) and PTTPE (c) in H2O/THF (fw = 0 and 90 vol%), taken under the illumination of the UV lamp (λ = 365 nm); (d) PL spectra of PF, PFTPE and PTTPE (100 µg·mL−1) in H2O/THF mixtures with different water fractions (fw).
Figure 2. PL spectra of PF (a), PFTPE (b) and PTTPE (c) (100 µg·mL−1) in H2O/THF mixtures with different water fractions (fw), inserts: photographs of PF (a), PFTPE (b) and PTTPE (c) in H2O/THF (fw = 0 and 90 vol%), taken under the illumination of the UV lamp (λ = 365 nm); (d) PL spectra of PF, PFTPE and PTTPE (100 µg·mL−1) in H2O/THF mixtures with different water fractions (fw).
Sensors 18 01565 g002
Sensors 18 01565 g003 550
Figure 3. TGA (a) and DSC (b) curves of PF, PFTPE and PTTPE.
Figure 3. TGA (a) and DSC (b) curves of PF, PFTPE and PTTPE.
Sensors 18 01565 g003
Sensors 18 01565 g004 550
Figure 4. SEM images of pure foams (A1–A3) and loaded foams (B1,C1,D1); Fluorescence microscope photos of PU-PF (B2,B3), PU-PFTPE (C2,C3) and PU-PTTPE (D2,D3); Photo of pure foam (A4); Photos of PU-PF (B4), PU-PFTPE (C4) and PU-PTTPE (D4) under the UV lamp (λ = 365 nm).
Figure 4. SEM images of pure foams (A1–A3) and loaded foams (B1,C1,D1); Fluorescence microscope photos of PU-PF (B2,B3), PU-PFTPE (C2,C3) and PU-PTTPE (D2,D3); Photo of pure foam (A4); Photos of PU-PF (B4), PU-PFTPE (C4) and PU-PTTPE (D4) under the UV lamp (λ = 365 nm).
Sensors 18 01565 g004
Sensors 18 01565 g005 550

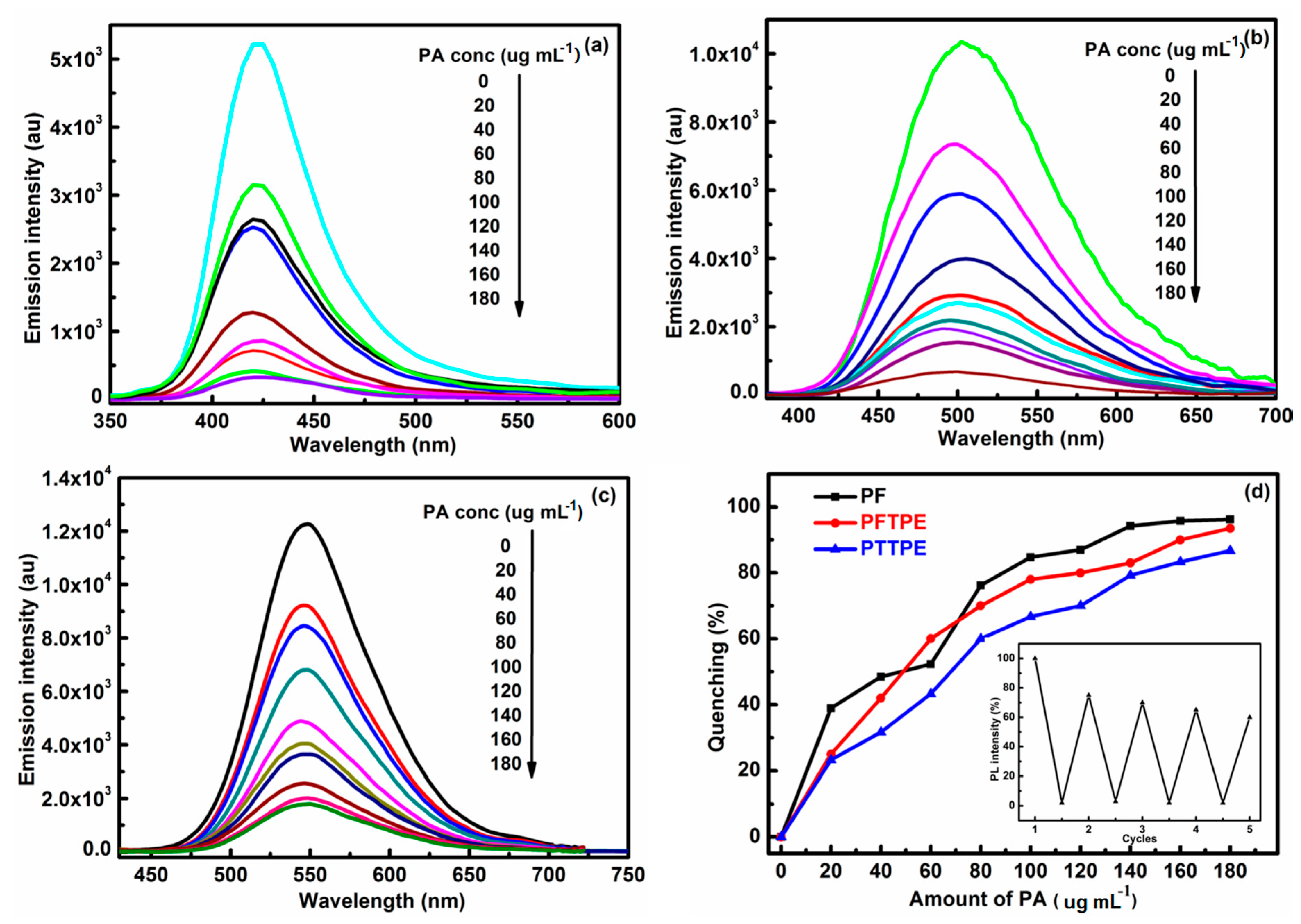

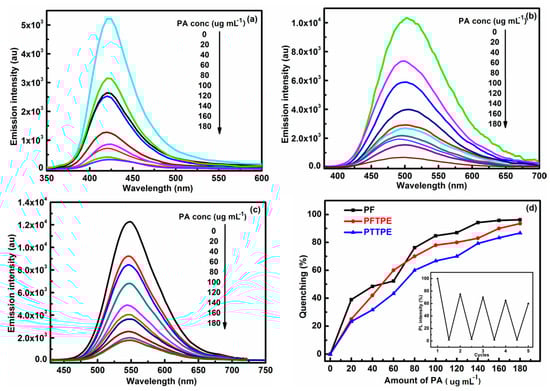

Figure 5. Fluorescence spectra of PU-PF (a), PU-PFTPE (b) and PU-PTTPE (c) in the presence of different PA concentrations (µg·mL−1); (d) Quenching efficiency-PA concentrations curve of PU-PF, PU-PFTPE and PU-PTTPE (µg·mL−1), inset: fluorescence recovery of used PU-PF after washed with ethanol.
Figure 5. Fluorescence spectra of PU-PF (a), PU-PFTPE (b) and PU-PTTPE (c) in the presence of different PA concentrations (µg·mL−1); (d) Quenching efficiency-PA concentrations curve of PU-PF, PU-PFTPE and PU-PTTPE (µg·mL−1), inset: fluorescence recovery of used PU-PF after washed with ethanol.
Sensors 18 01565 g005
Sensors 18 01565 g006 550

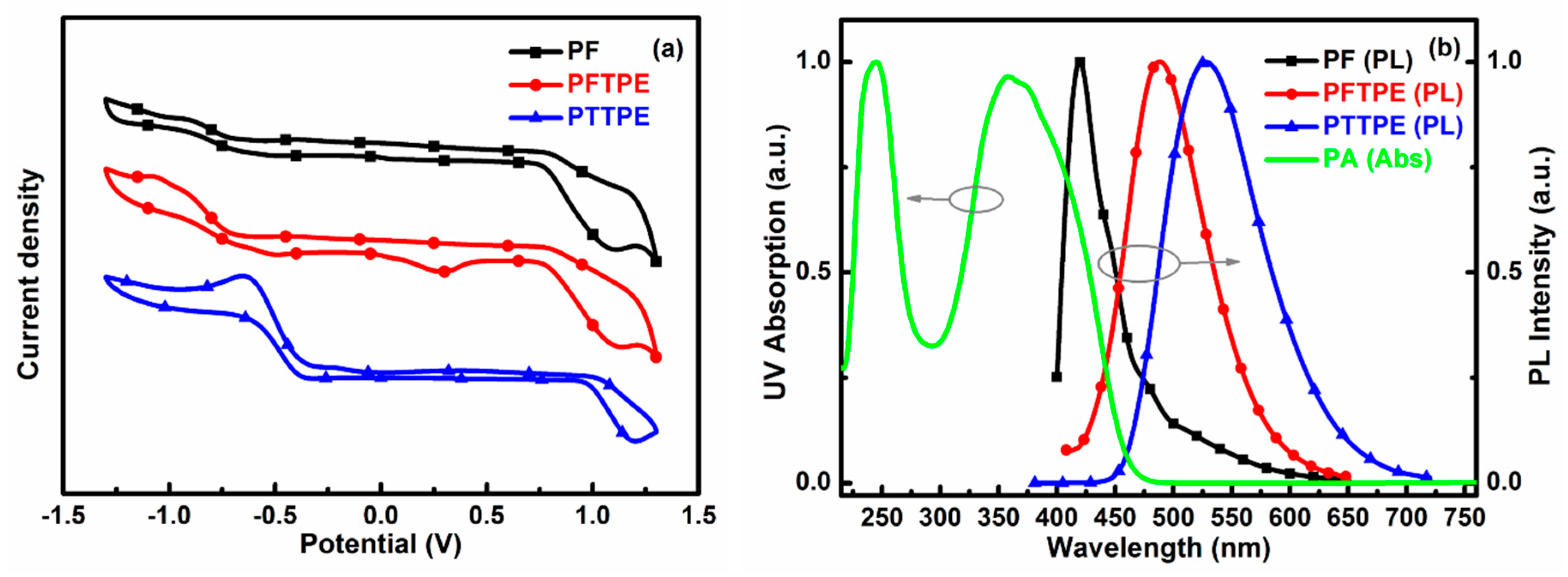

Figure 6. (a) Cyclic voltammetry curve and the energy levels of PF, PFTPE and PTTPE; (b) Absorption spectrum of PA, and the emission spectra of PF, PFTPE and PTTPE.
Figure 6. (a) Cyclic voltammetry curve and the energy levels of PF, PFTPE and PTTPE; (b) Absorption spectrum of PA, and the emission spectra of PF, PFTPE and PTTPE.
Sensors 18 01565 g006
Table
Table 1. The HOMO and LUMO levels of PA, PF, PFTPE and PTTPE.
Table 1. The HOMO and LUMO levels of PA, PF, PFTPE and PTTPE.
SubstanceHOMO (eV) 2LUMO (eV) 3Band Gap (eV) 4
PA 1−8.29−3.874.42
PF−5.49−2.542.95
PFTPE−5.52−2.592.93
PTTPE−5.71−3.142.57
1 The data of PA is based on reported literature [45,48,49]; 2 Calculated from the following formula: EHOMO = −(Eox + 4.8 − EFOC); 3 Obtained by subtracting the optical band gap from the HOMO energy level, ELUMO = EHOMO + Eg; 4 Optical band gap from the absorption onset wavelength. (Supplementary Materials Figure S9).
