Open AccessArticle
Sensors 2018, 18(5), 1549; https://doi.org/10.3390/s18051549

A Novel Strain Sensor with Large Measurement Range Based on All Fiber Mach-Zehnder Interferometer

State Key Laboratory of High Performance Complex Manufacturing, College of Mechanical and Electrical Engineering, Central South University, 932 South Lushan Street, Changsha 410083, China
*
Authors to whom correspondence should be addressed.
Received: 17 April 2018 / Revised: 8 May 2018 / Accepted: 9 May 2018 / Published: 14 May 2018
(This article belongs to the Special Issue Integrated Sensors)
View Full-Text   |   Download PDF [5830 KB, uploaded 14 May 2018]   |

Abstract

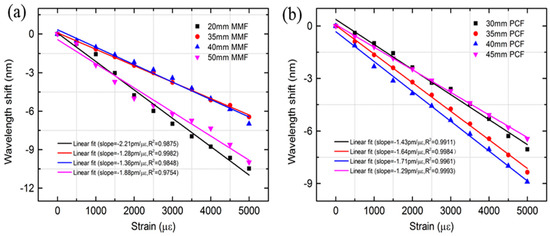

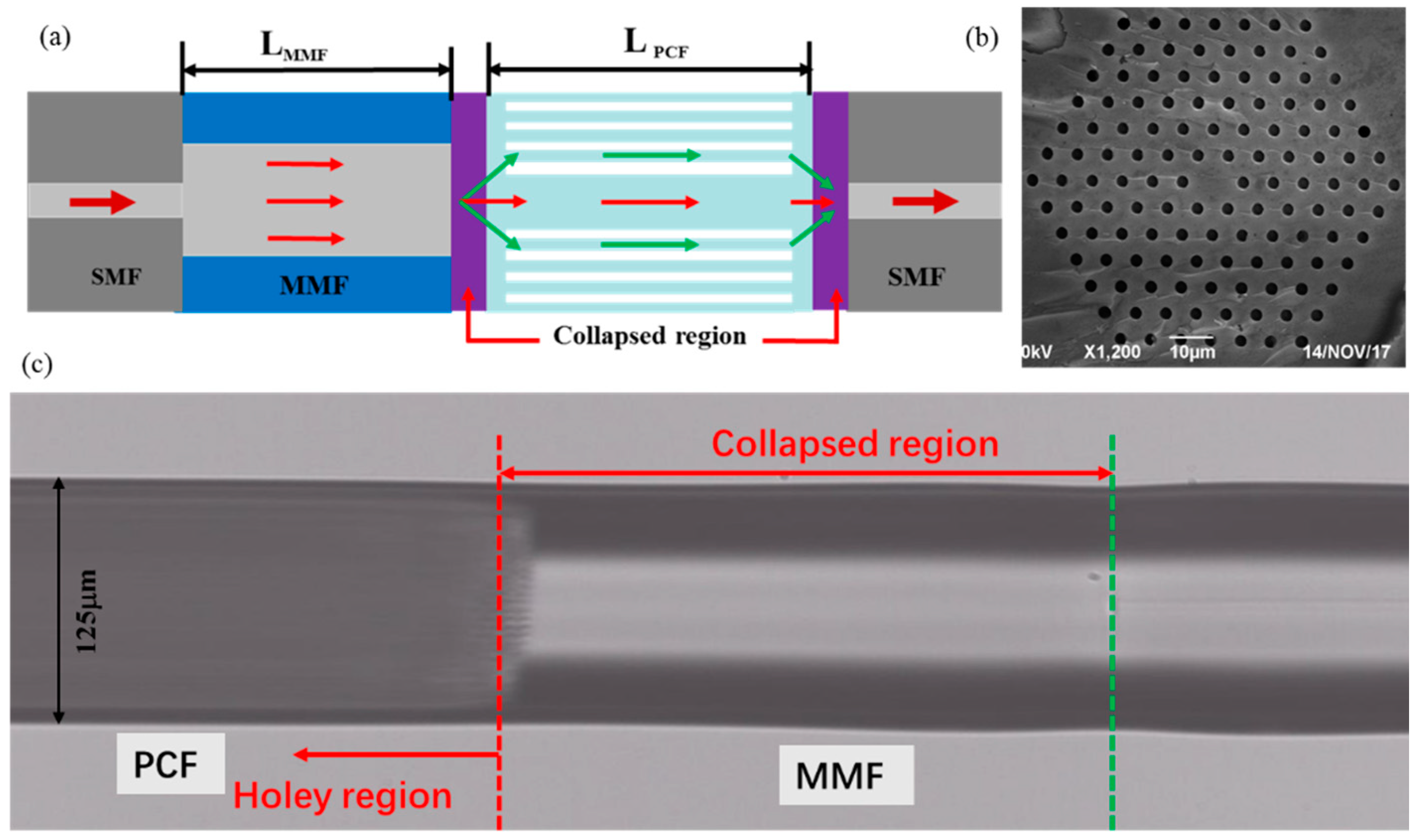

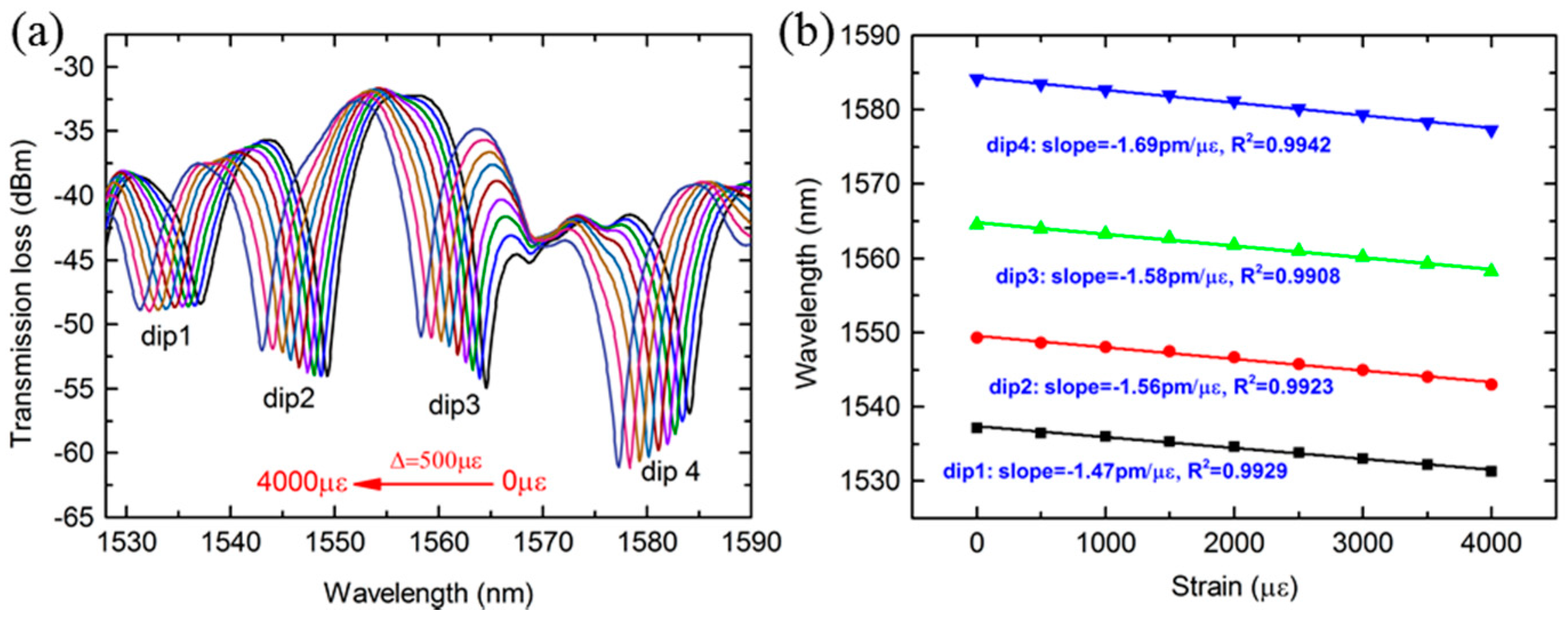

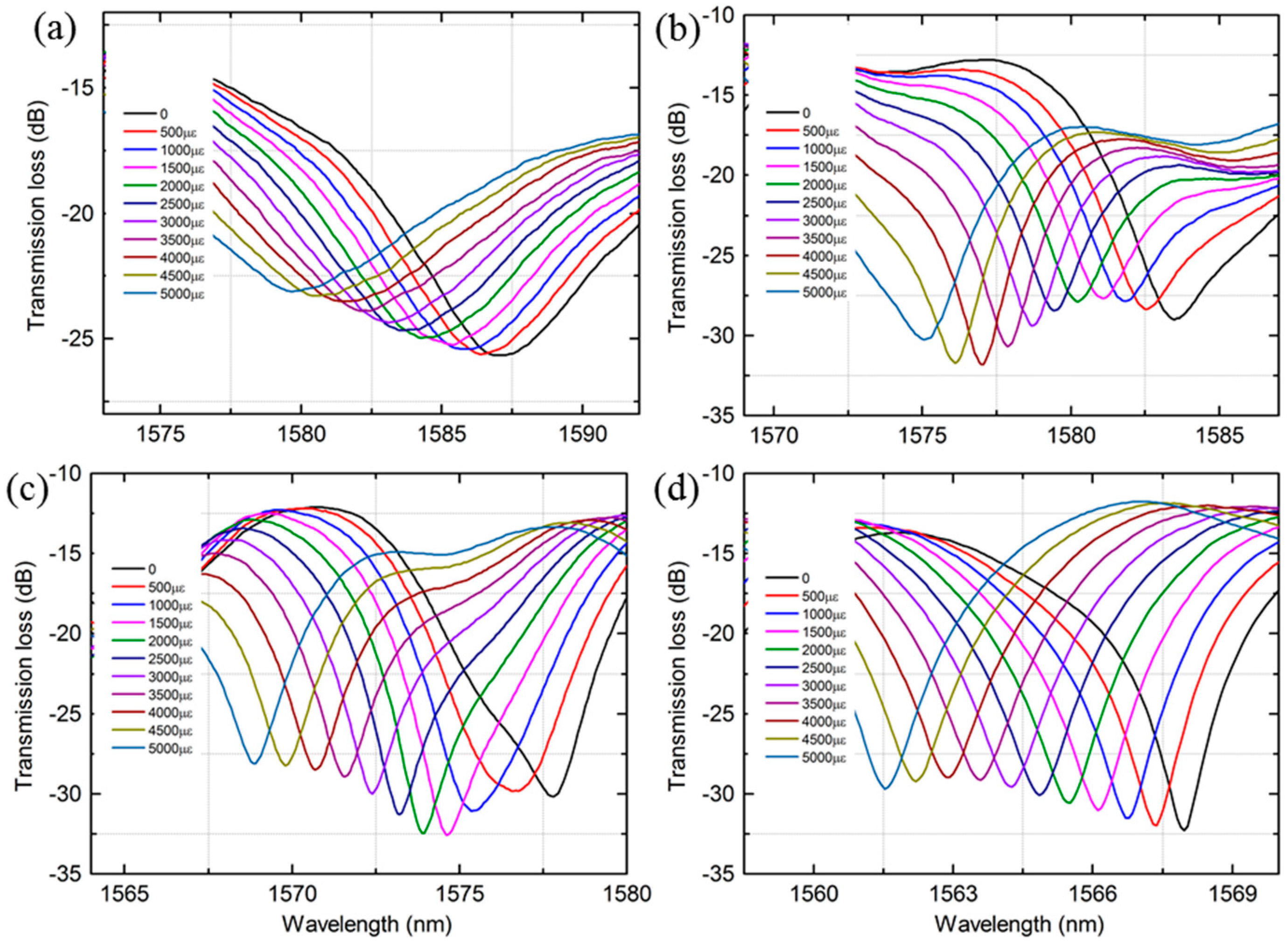

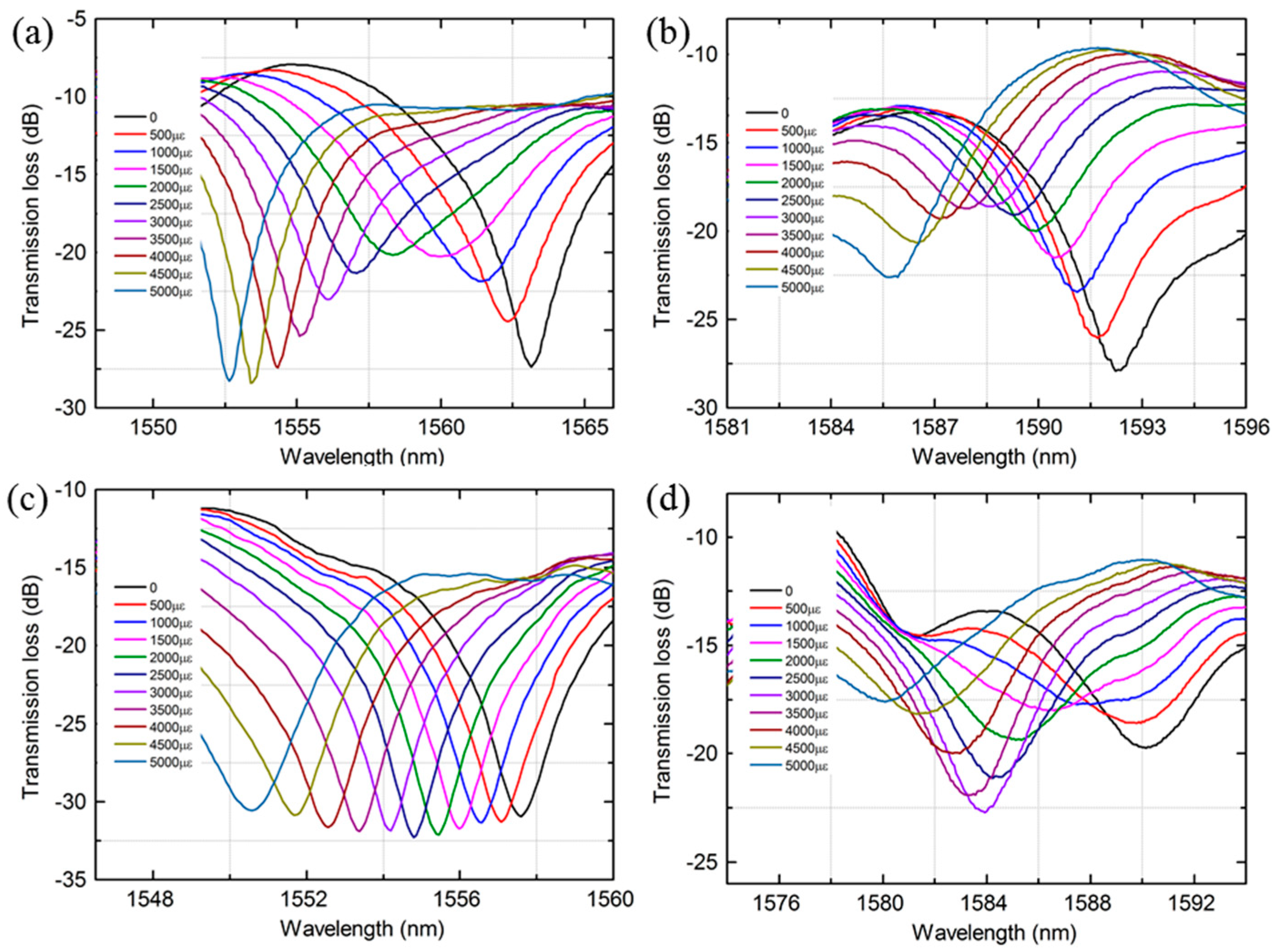

We have proposed a high sensitive photonic crystal fiber (PCF) strain sensor based on the Mach-Zehnder interferometer (MZI). The sensing head is formed by all-fiber in-line single mode-multimode-photonic-crystal-single mode fiber (SMPS) structure, using only the splicing method. Such a strain sensor exhibited a high sensitivity of −2.21 pm/με within a large measurement range of up to 5000 με and a large fringe visibility of up to 24 dB. Moreover, it was found that the strain sensitivity was weekly dependent of the length of PCF or MMF. In addition, the sensor exhibited the advantages of simplicity of fabrication, high sensitivity and larger fringe visibility. View Full-Text
Keywords: strain sensor; photonic crystal fiber; multimode fiber; Mach-Zehnder interferometer strain sensor; photonic crystal fiber; multimode fiber; Mach-Zehnder interferometer
Figures

Figure 1
