Open AccessArticle
Sensors 2018, 18(3), 779; https://doi.org/10.3390/s18030779

Development of a Novel Guided Wave Generation System Using a Giant Magnetostrictive Actuator for Nondestructive Evaluation

1
School of Electronics and Information, Yangtze University, Jingzhou 434023, China
2
Department of Mechanical Engineering, University of Houston, Houston, TX 77204, USA
3
Department of Engineering, Texas Southern University, Houston, TX 77004, USA
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Received: 13 January 2018 / Revised: 23 February 2018 / Accepted: 26 February 2018 / Published: 4 March 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [6247 KB, uploaded 5 March 2018]   |

Abstract

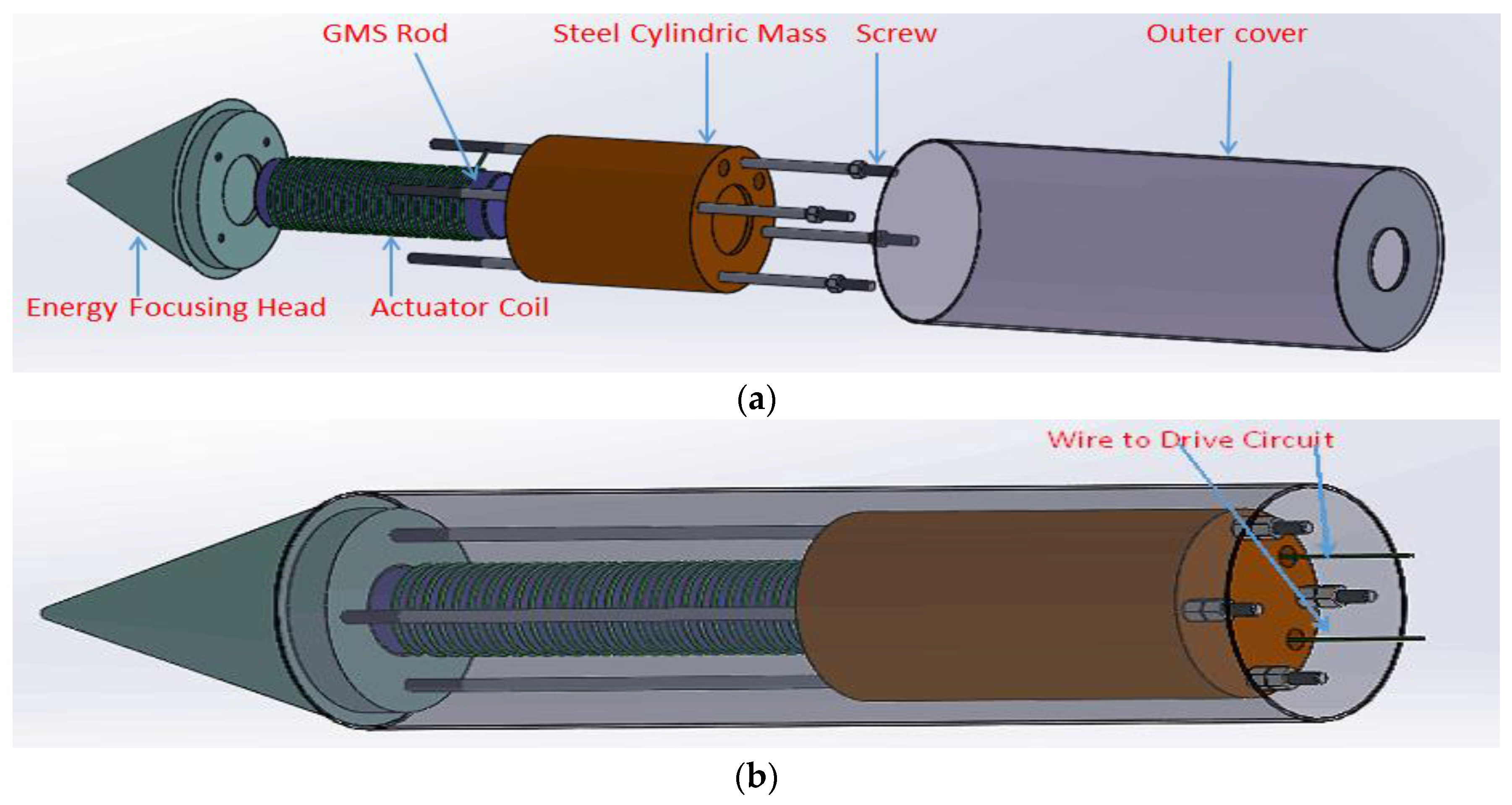

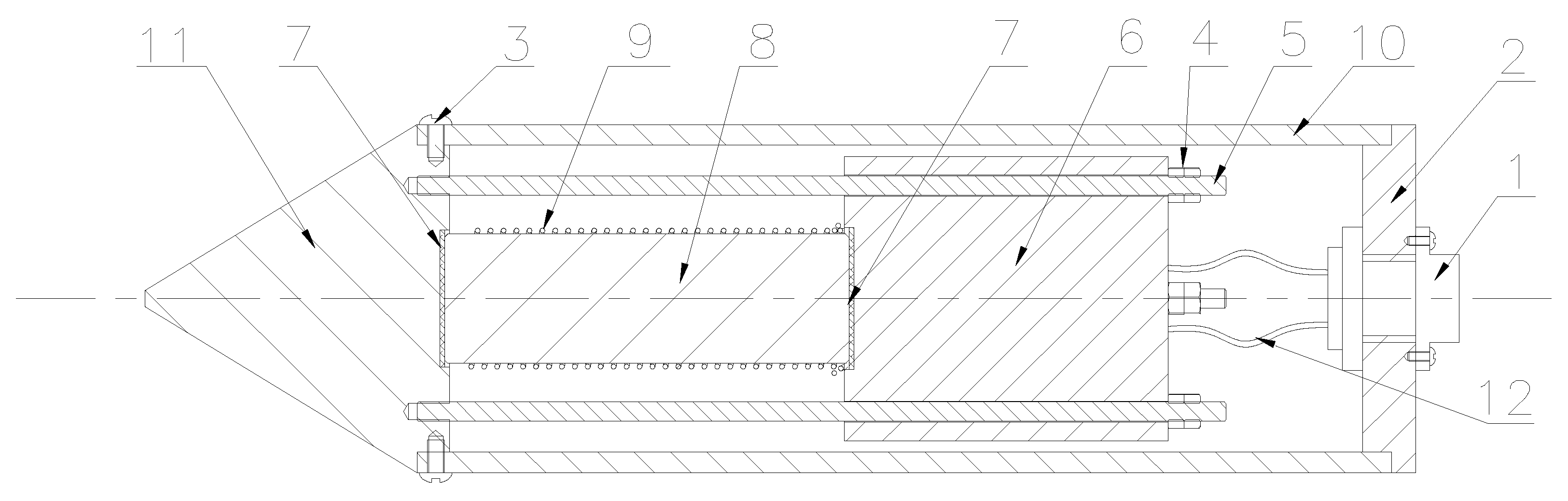

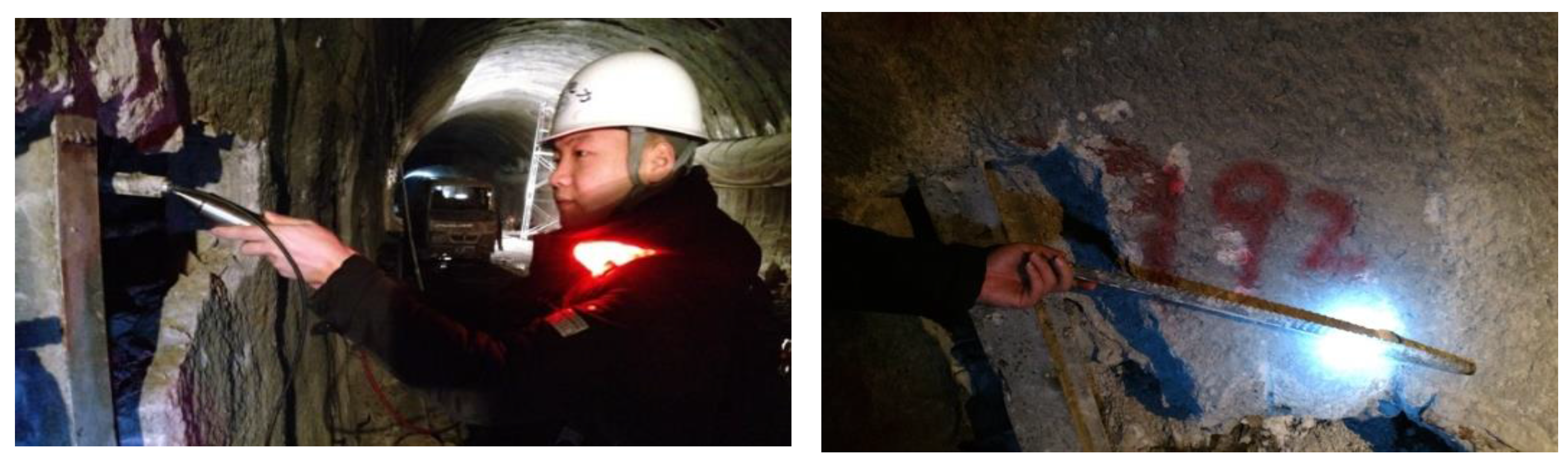

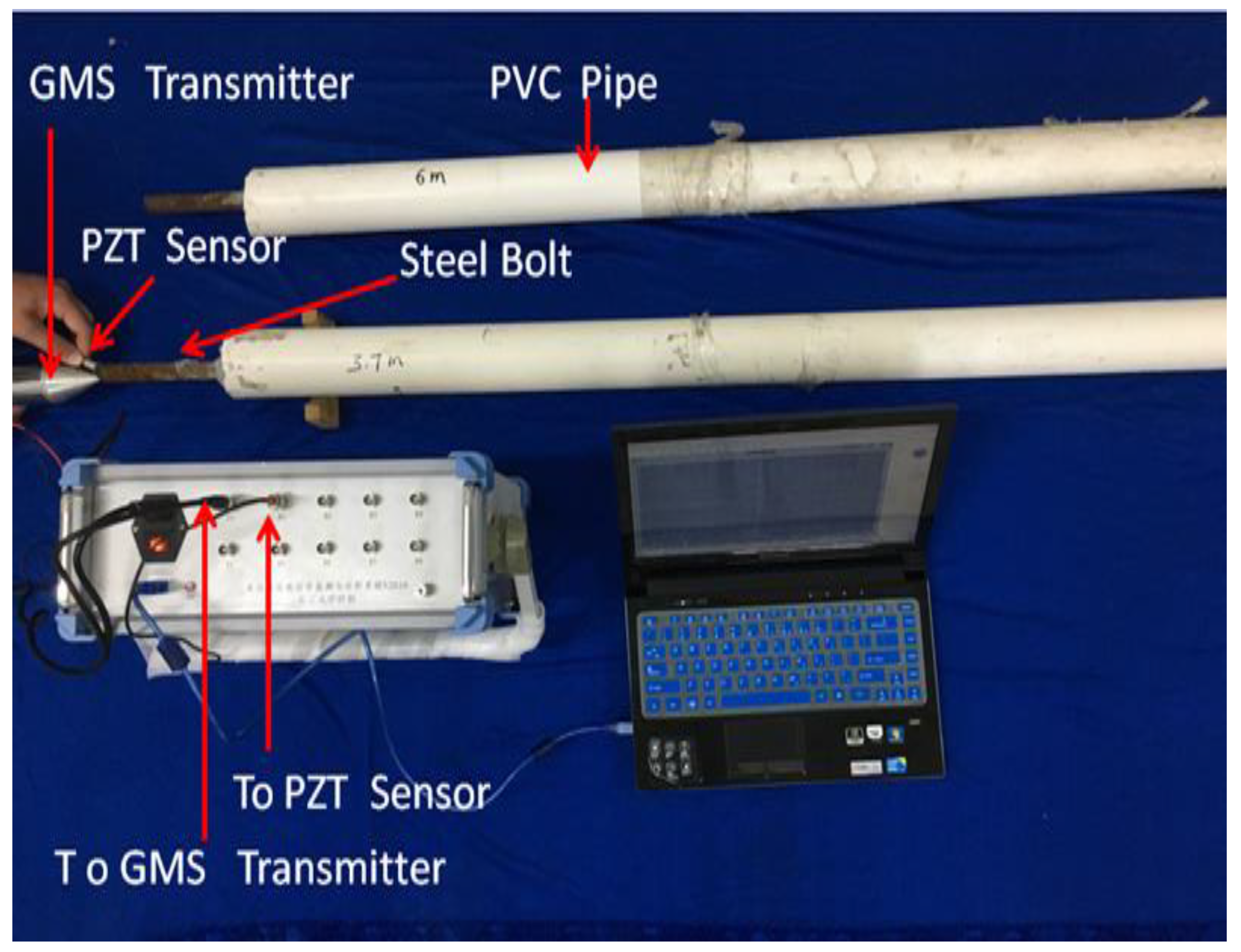

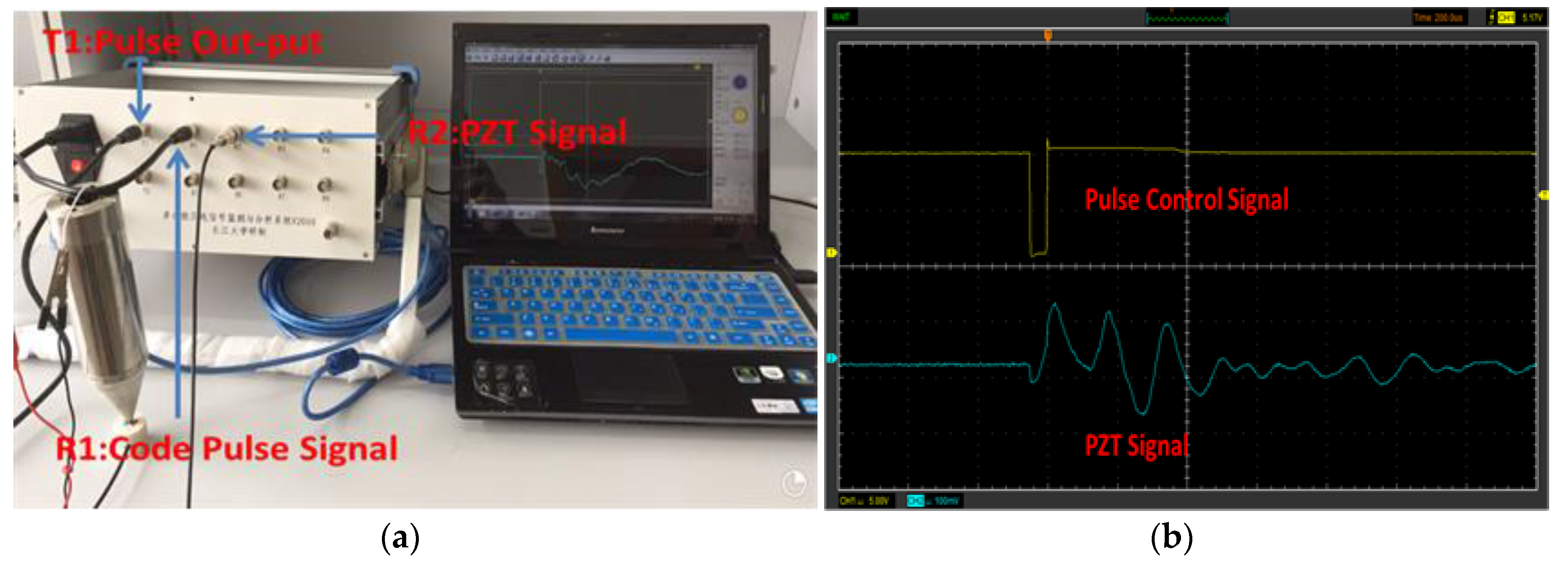

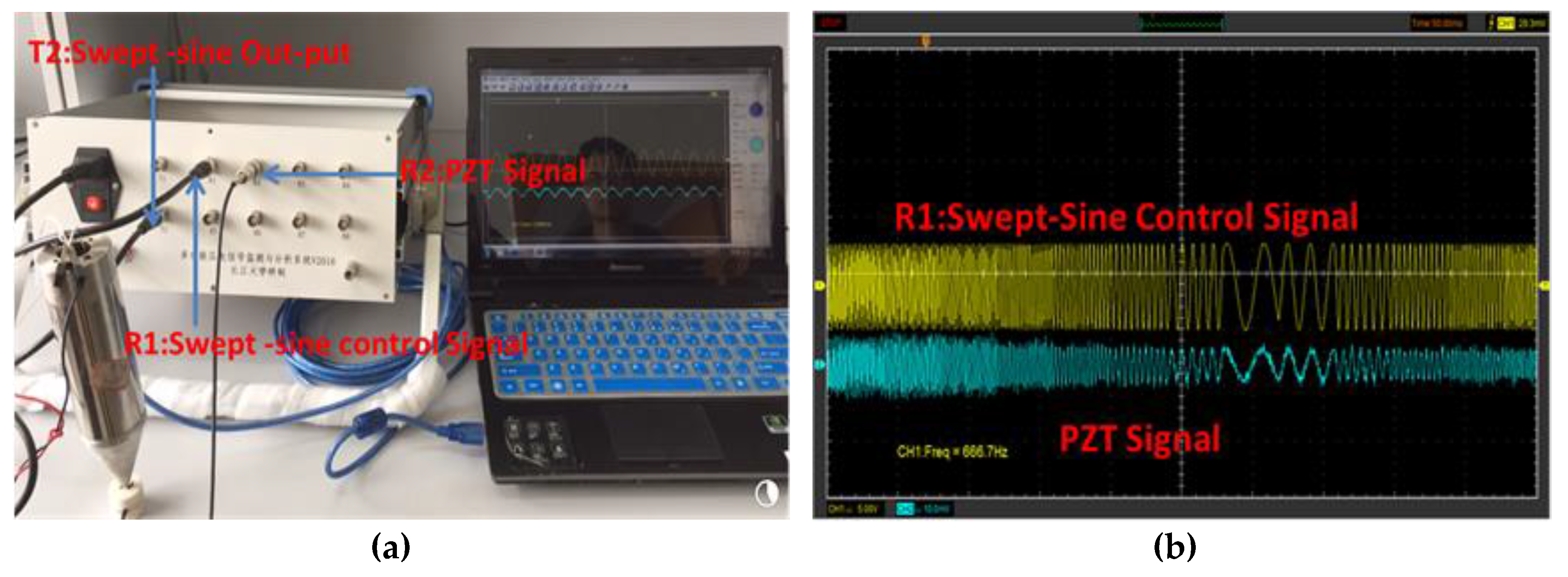

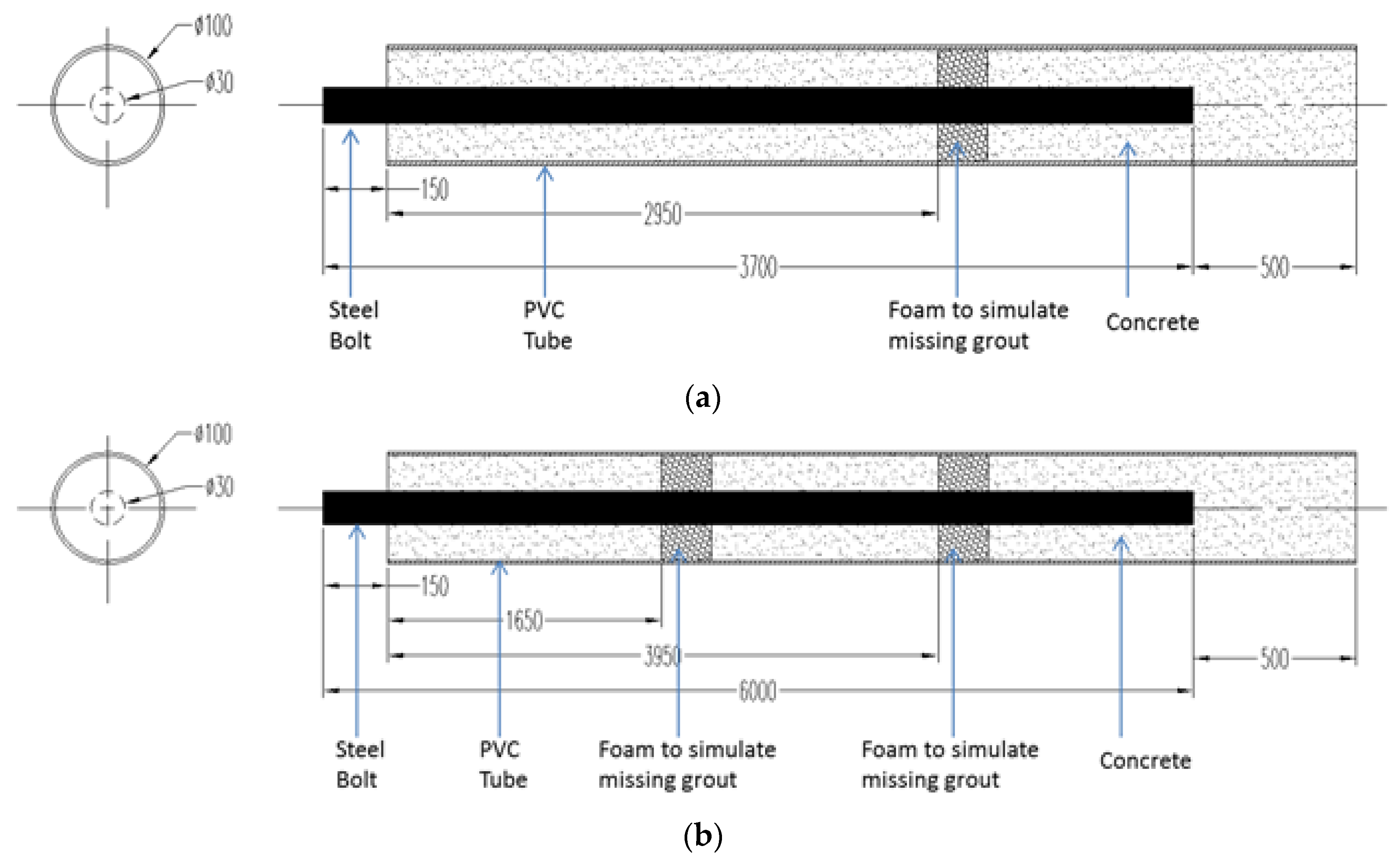

As a common approach to nondestructive testing and evaluation, guided wave-based methods have attracted much attention because of their wide detection range and high detection efficiency. It is highly desirable to develop a portable guided wave testing system with high actuating energy and variable frequency. In this paper, a novel giant magnetostrictive actuator with high actuation power is designed and implemented, based on the giant magnetostrictive (GMS) effect. The novel GMS actuator design involves a conical energy-focusing head that can focus the amplified mechanical energy generated by the GMS actuator. This design enables the generation of stress waves with high energy, and the focusing of the generated stress waves on the test object. The guided wave generation system enables two kinds of output modes: the coded pulse signal and the sweep signal. The functionality and the advantages of the developed system are validated through laboratory testing in the quality assessment of rock bolt-reinforced structures. In addition, the developed GMS actuator and the supporting system are successfully implemented and applied in field tests. The device can also be used in other nondestructive testing and evaluation applications that require high-power stress wave generation. View Full-Text
Keywords: giant magnetostrictive (GMS) actuator; ultrasonic guided waves; rock bolt monitoring; nondestructive evaluation giant magnetostrictive (GMS) actuator; ultrasonic guided waves; rock bolt monitoring; nondestructive evaluation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
