Sensors 2018, 18(3), 736; doi:10.3390/s18030736

A Manganin Thin Film Ultra-High Pressure Sensor for Microscale Detonation Pressure Measurement

State Key Laboratory for Manufacturing Systems Engineering, Xi’an Jiaotong University, Xi’an 710049, China
National Defense Key Laboratory of Pyrotechnical S&R Technology, The 213rd Research Institute of China Ordnance Industry, Xi’an 710061, China
Author to whom correspondence should be addressed.
Received: 9 February 2018 / Revised: 25 February 2018 / Accepted: 27 February 2018 / Published: 1 March 2018
(This article belongs to the Special Issue Sensors and Materials for Harsh Environments)
View Full-Text   |   Download PDF [10983 KB, uploaded 1 March 2018]   |

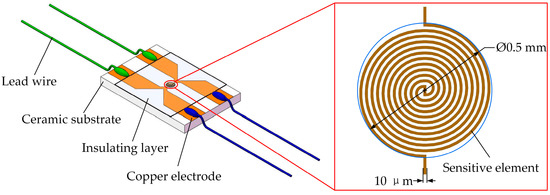

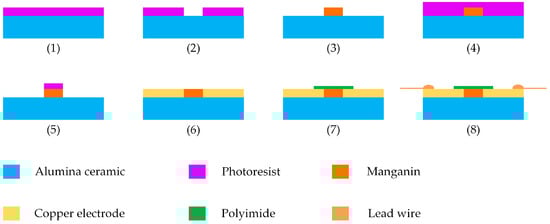

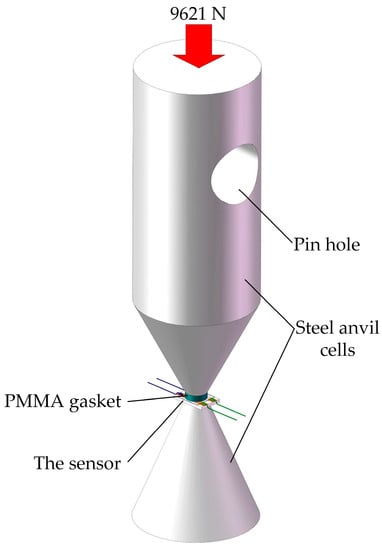

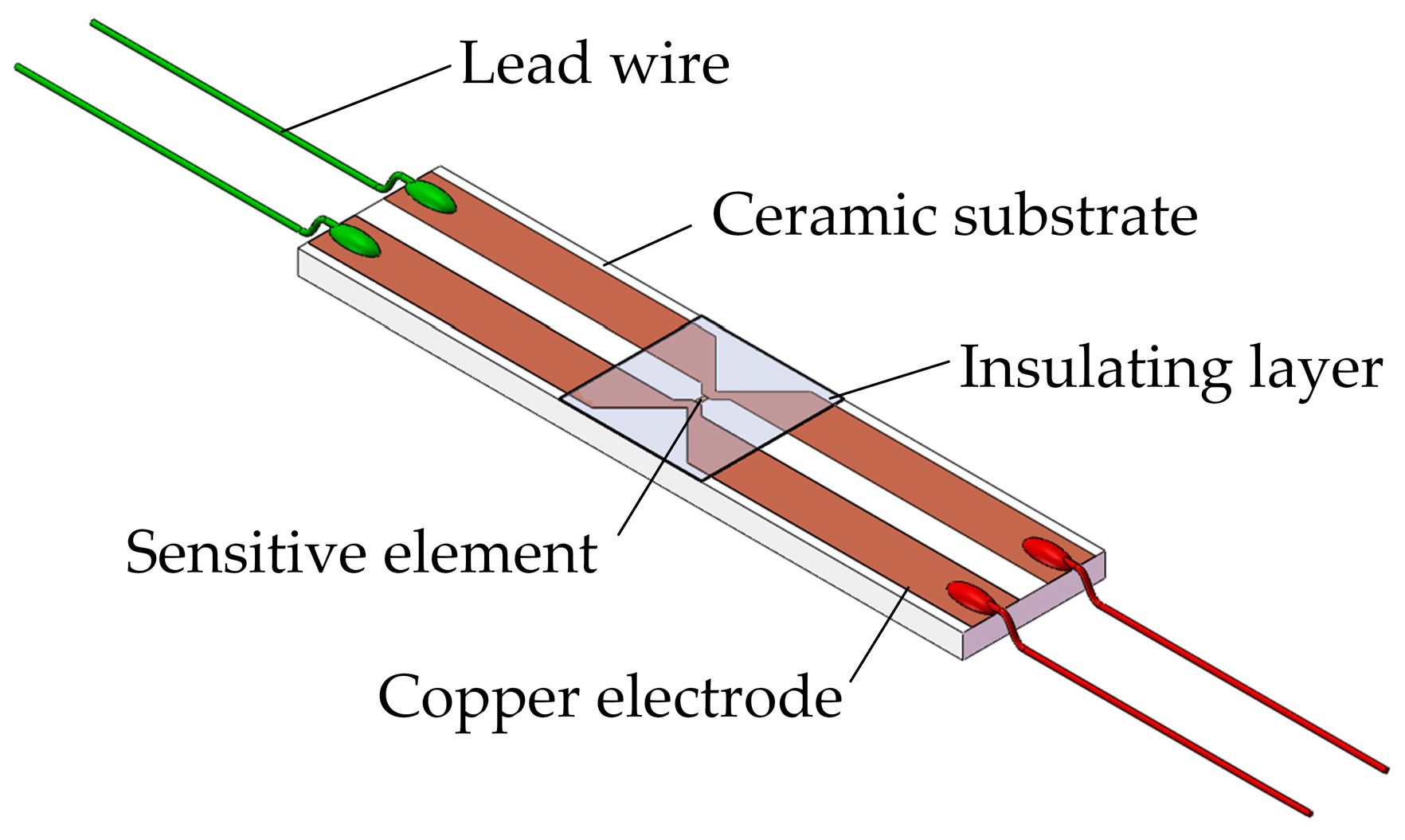

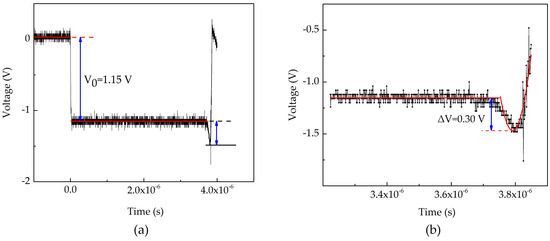

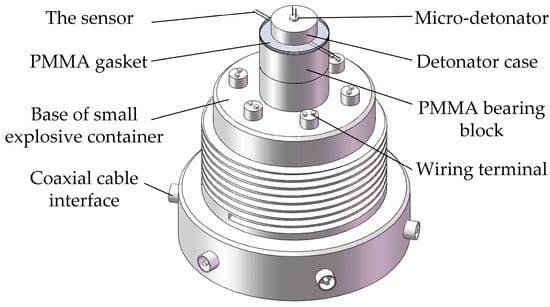

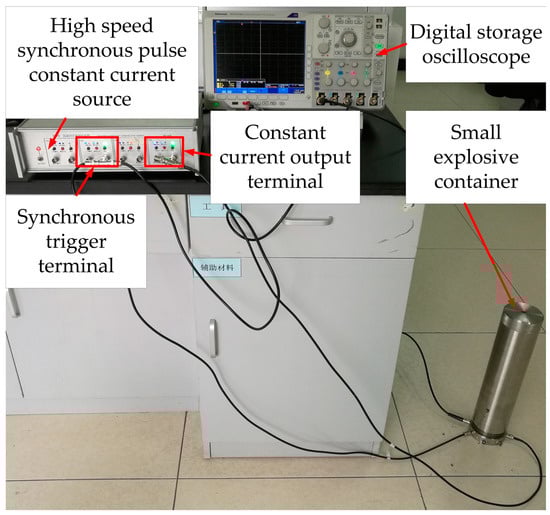

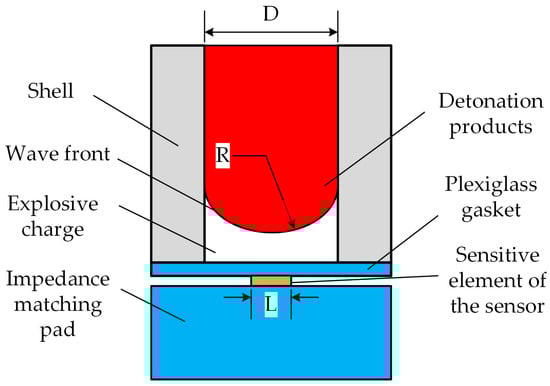

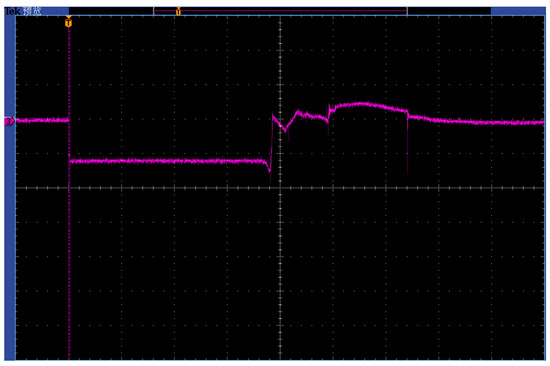

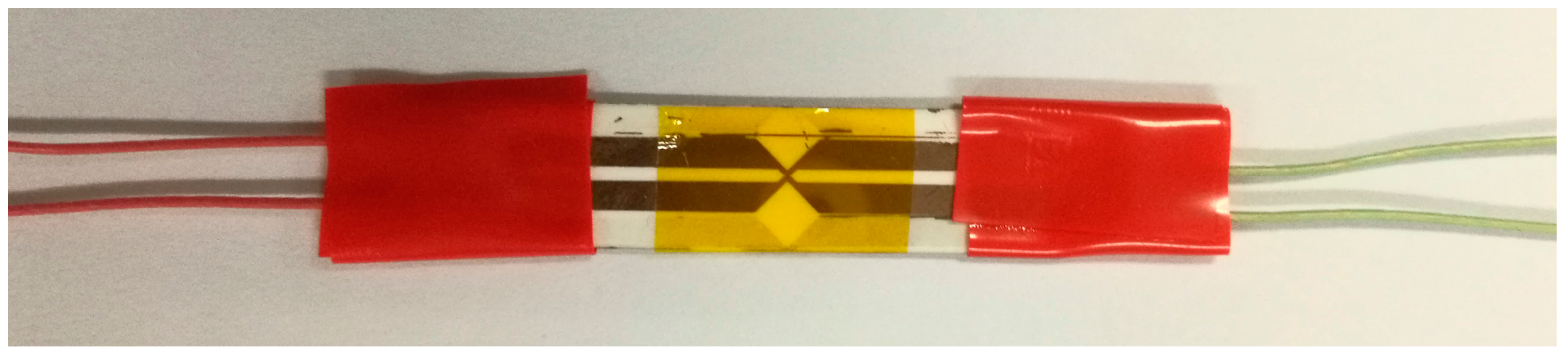

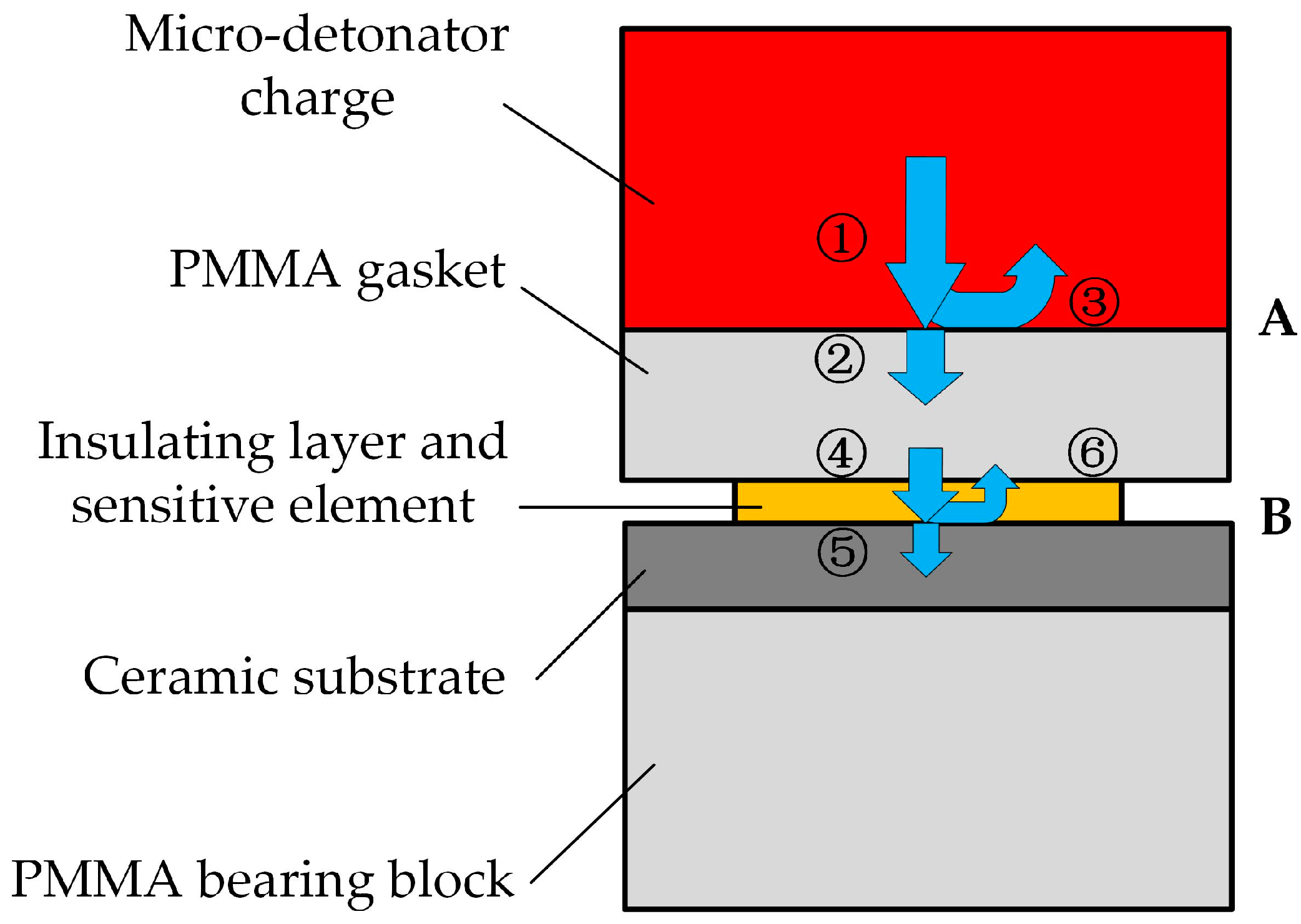

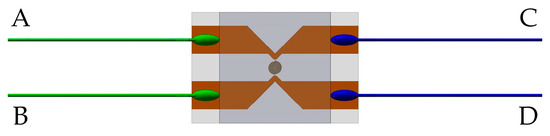

With the development of energetic materials (EMs) and microelectromechanical systems (MEMS) initiating explosive devices, the measurement of detonation pressure generated by EMs in the microscale has become a pressing need. This paper develops a manganin thin film ultra-high pressure sensor based on MEMS technology for measuring the output pressure from micro-detonator. A reliable coefficient is proposed for designing the sensor’s sensitive element better. The sensor employs sandwich structure: the substrate uses a 0.5 mm thick alumina ceramic, the manganin sensitive element with a size of 0.2 mm × 0.1 mm × 2 μm and copper electrodes of 2 μm thick are sputtered sequentially on the substrate, and a 25 μm thick insulating layer of polyimide is wrapped on the sensitive element. The static test shows that the piezoresistive coefficient of manganin thin film is 0.0125 GPa−1. The dynamic experiment indicates that the detonation pressure of micro-detonator is 12.66 GPa, and the response time of the sensor is 37 ns. In a word, the sensor developed in this study is suitable for measuring ultra-high pressure in microscale and has a shorter response time than that of foil-like manganin gauges. Simultaneously, this study could be beneficial to research on ultra-high-pressure sensors with smaller size. View Full-Text
Keywords: ultra-high pressure sensor; manganin thin film; MEMS technology; detonation pressure; microscale measurement ultra-high pressure sensor; manganin thin film; MEMS technology; detonation pressure; microscale measurement

Figure 1
