Sensors 2018, 18(2), 482; https://doi.org/10.3390/s18020482

Low-Pass Filter for HV Partial Discharge Testing

University of West Bohemia, Faculty of Electrical Engineering, Regional Innovation Centre for Electrical Engineering (RICE), Univerzitni 8, 301 00 Pilsen, Czech Republic
*
Author to whom correspondence should be addressed.
Received: 2 January 2018 / Revised: 1 February 2018 / Accepted: 2 February 2018 / Published: 6 February 2018
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [9578 KB, uploaded 6 February 2018]   |

Abstract

The most common cause of high voltage electric machine malfunction is an electrical failure of the insulation system due to extreme partial discharges activity. The paper discusses the methodology for the construction of a low-pass high voltage filter for partial discharge measurement. It focuses mainly on the shape optimization, using an analytical approach with subsequent verification using the finite element method. The experimental verification is given together with important conclusions. View Full-Text
Keywords: low-pass filter; partial discharge; design; magnetic field; finite element method low-pass filter; partial discharge; design; magnetic field; finite element method
Figures

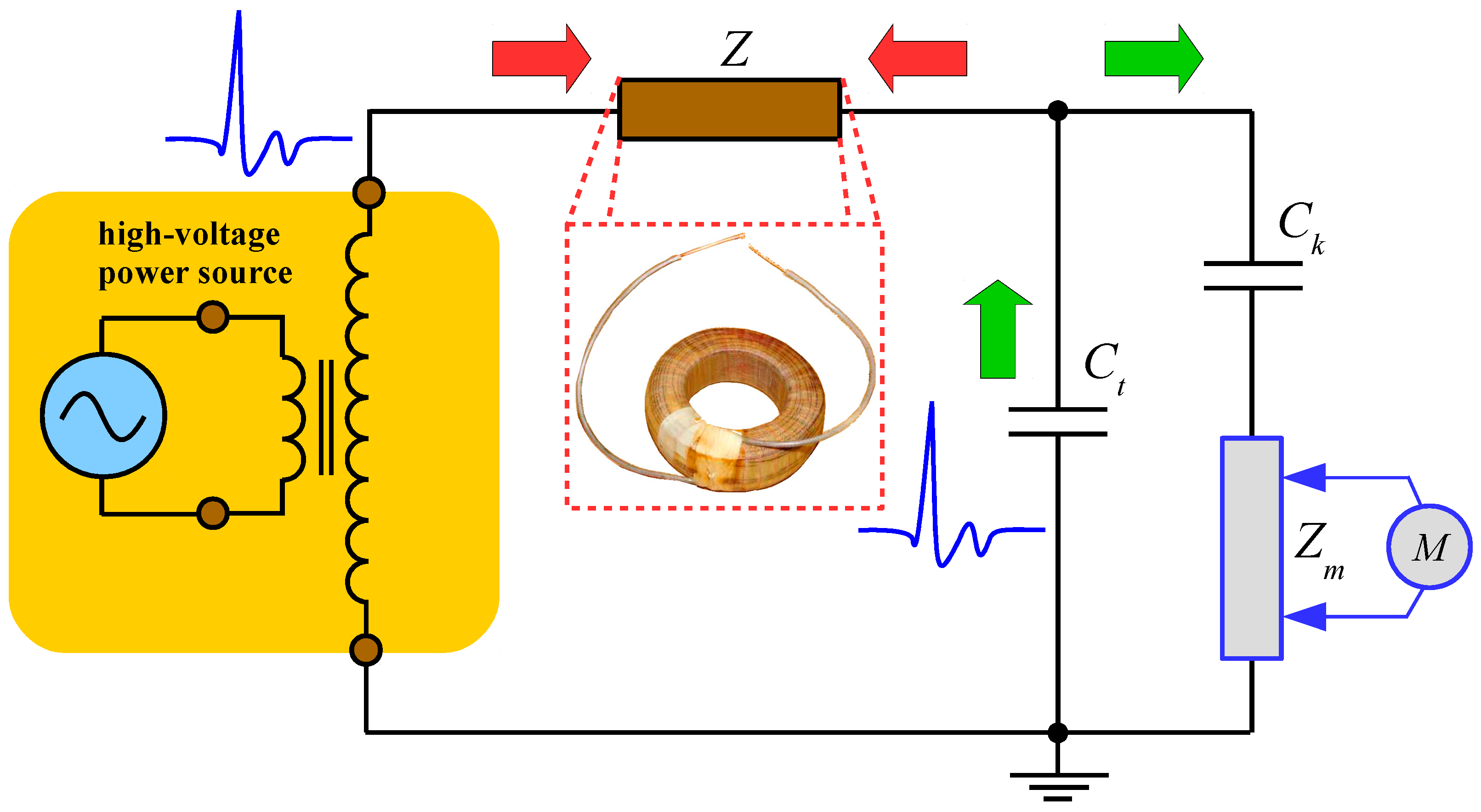

Figure 1
