Open AccessArticle
Sensors 2018, 18(2), 426; doi:10.3390/s18020426

Amyloid Beta Detection by Faradaic Electrochemical Impedance Spectroscopy Using Interdigitated Microelectrodes

1
Center for BioMicrosystems, Korea Institute of Science and Technology (KIST), Seoul 02792, Korea
2
Department of Clinical Pharmacology and Therapeutics, College of Medicine, Kyung Hee University, Seoul 02447, Korea
3
Department of Electrical Engineering, Korea University, Seoul 02841, Korea
4
Department of Medical Biotechnology, College of Life Science and Biotechnology, Dongguk University, Seoul 10326, Korea
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Received: 20 November 2017 / Revised: 13 January 2018 / Accepted: 24 January 2018 / Published: 1 February 2018
(This article belongs to the Special Issue Sensors for Health Monitoring and Disease Diagnosis)
View Full-Text   |   Download PDF [4002 KB, uploaded 1 February 2018]   |

Abstract

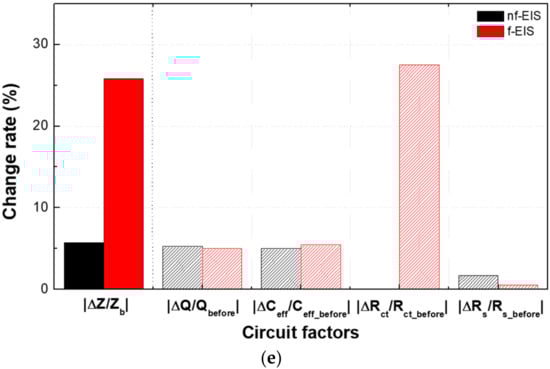

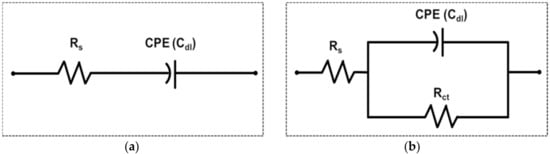

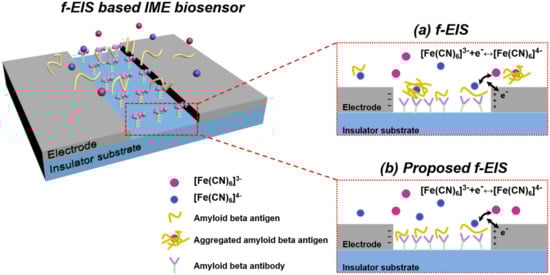

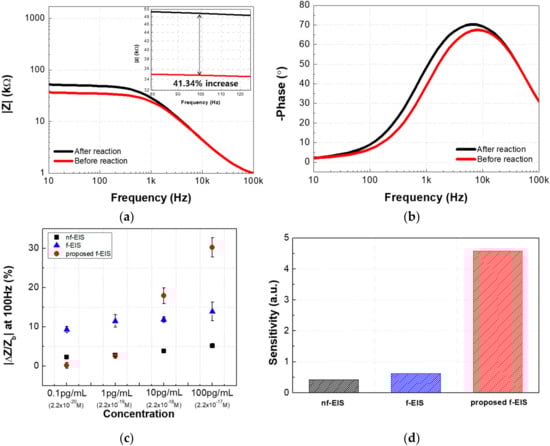

Faradaic electrochemical impedance spectroscopy (f-EIS) in the presence of redox reagent, e.g., [Fe(CN)6]3−/4−, is widely used in biosensors owing to its high sensitivity. However, in sensors detecting amyloid beta (Aβ), the redox reagent can cause the aggregation of Aβ, which is a disturbance factor in accurate detection. Here, we propose an interdigitated microelectrode (IME) based f-EIS technique that can alleviate the aggregation of Aβ and achieve high sensitivity by buffer control. The proposed method was verified by analyzing three different EIS-based sensors: non-faradaic EIS (nf-EIS), f-EIS, and the proposed f-EIS with buffer control. We analyzed the equivalent circuits of nf-EIS and f-EIS sensors. The dominant factors of sensitivity were analyzed, and the impedance change rates via Aβ reaction was compared. We measured the sensitivity of the IME sensors based on nf-EIS, f-EIS, and the proposed f-EIS. The results demonstrate that the proposed EIS-based IME sensor can detect Aβ with a sensitivity of 7.40-fold and 10.93-fold higher than the nf-EIS and the f-EIS sensors, respectively. View Full-Text
Keywords: amyloid beta; redox reagent; [Fe(CN)6]3−/4−; faradaic electrochemical impedance spectroscopy; biosensor; high sensitivity amyloid beta; redox reagent; [Fe(CN)6]3−/4−; faradaic electrochemical impedance spectroscopy; biosensor; high sensitivity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Park, J.S.; Kim, H.J.; Lee, J.-H.; Park, J.H.; Kim, J.; Hwang, K.S.; Lee, B.C. Amyloid Beta Detection by Faradaic Electrochemical Impedance Spectroscopy Using Interdigitated Microelectrodes. Sensors 2018, 18, 426.
