Optical Fiber Demodulation System with High Performance for Assessing Fretting Damage of Steam Generator Tubes

Abstract

In order to access the fretting damage of the steam generator tube (SGT), a fast fiber Fabry-Perot (F-P) non-scanning correlation demodulation system based on a super luminescent light emitting diode (SLED) was performed. By demodulating the light signal coming out from the F-P force sensor, the radial collision force between the SGT and the tube support plate (TSP) was interrogated. For higher demodulation accuracy, the effects of the center wavelength, bandwidth, and spectrum noise of SLED were discussed in detail. Specially, a piezoelectric ceramic transducer (PZT) modulation method was developed to get rid of the interference of mode coupling induced by different types of fiber optics in the demodulation system. The reflectivity of optical wedge and F-P sensor was optimized. Finally, the demodulation system worked well in a 1:1 steam generator test loop and successfully demodulated a force signal of 32 N with a collision time of 2 ms.

1. Introduction

The faults related to the steam generator tube (SGT) rupture accounts for 75% of all failure risks in pressurized water reactor nuclear power plants [1]. As the main cause of SGT rupture, fretting damage has been addressed as a worldwide problem in the safety of nuclear power plants for a long time [2,3,4,5,6]. The SGT is the boundary between the reactor cooling system and the secondary circuit and suffers from the fretting damage caused by fluid motion and thermal energy transmission (350 °C, 15 MPa, humid). After long-term running, its special working conditions can cause fatigue cracks and premature failure of the SGT. Therefore, a reasonable assessment of SGT fretting damage has an important value in the structure design, optimization, and service life prediction of the SGT.

The fretting work is an important parameter to assess the extent of fretting damage of the SGT. This parameter, W, was commonly used to relate the energy dissipation under sliding/impact fretting wear conditions to the volumetric wear losses, which is given by [5].

$$W=\frac{{\displaystyle {\int }_0^{\tau }|F(\tau )|D_s(\tau )d\tau }}{{\displaystyle {\int }_0^{\tau }d\tau }},$$

(1)

where |F| is the radial collision force, D_s is the distance of axial displacement, and τ is the time over which the work rate is averaged. The radial collision force, the impact time, and the axial displacement are important parameters to calculate the fretting work.

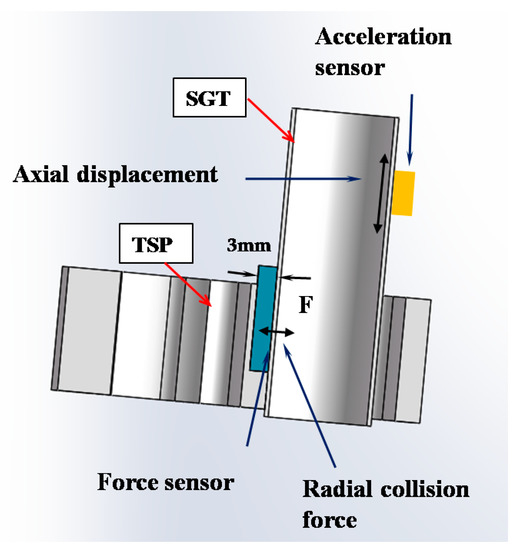

As shown in Figure 1, the narrow space in the contact position between the SGT and tube support plate (TSP) (about 4 mm) is not large enough to install the traditional electric force sensors. Compared with the electric force sensors, the fiber sensors have outstanding advantages due to their small size and anti-electromagnetic interference [7]. As for the high requirements of the radial collision force measurement, we have developed a novel optical Fabry-Perot (F-P) force sensor [8], with the advantages of small volume (17 × 5 × 3 mm³) and high performance in a humid, high pressure, and vibrating working environment. In our F-P force sensor, the F-P cavity length variation is proportional to the magnitude of the applied force.

In order to obtain the F-P cavity length (for calculating the radial collision force) and the collision time, a corresponding high-speed optical demodulation system is extremely necessary. The first question is how to demodulate the light signal coming from the F-P force sensor and to obtain the F-P cavity length variation. Due to the short impact time of radial collision force [6], the second question is how to achieve a fast demodulation speed (above 5 KHz). The third question is how to obtain a long demodulation range of F-P cavity length variation (0–25 μm, a corresponding force of 0–200 N).

The demodulation methods of fiber F-P cavity length can be divided into two types: the intensity demodulation method and the phase demodulation method [7]. Hu developed a novel fiber optic Fabry-Perot current sensor based on magnetic fluid as the medium in F-P interference cavity, and a demodulation method based on slanted fiber Bragg grating (FBG) wavelength measurement system [9]. Ge described a novel optical fiber sensor based on a Fabry-Perot interferometer and a phase demodulation method based on Fourier transformation [10]. Lu combined the subcarrier technology with a dual-wavelength demodulation method to track the cavity length variation of a micro fiber-optic F-P [11]. Ran developed a novel miniature fiber-optic F-P refractive-index sensor based on the intensity demodulation method [12]. These demodulation methods are insufficient to meet the requirements (range of 0–25 μm, demodulation speed above 5 KHz) at the same time. However, their counterpart, the non-scanning correlation demodulation method that lacks moving parts and an expensive laser as the light source, is capable of realizing large cavity length measurement [13].

In this paper, targeting the questions mentioned above, we developed a novel fast fiber optical F-P non-scanning correlation demodulation system based on the super luminescent light emitting diode (SLED). Its key parameter effects and optimized design are discussed theoretically and experimentally. The results meet the requirements of the cavity length variation range (0–25 μm) and a demodulation speed (5 KHz). Especially, our system, with high performance, was proved on the 1:1 steam generator test loop (which simulated a real steam generator with the same geometry and system design).

2. Theory and Simulation of the Modulation System

2.1. The Principle of the Non-Scanning Correlation Demodulation System

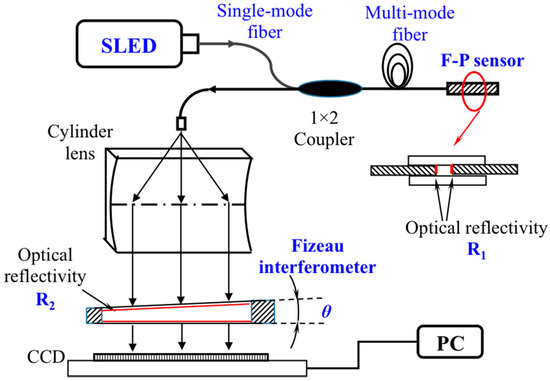

The whole sensing system is shown in Figure 2, consisting of a fast charge coupled device (CCD), an SLED light source (with high power density, for shorter CCD integration time and higher demodulation speed of up to 5–10 kHz), a single-mode (SM) fiber (for the SLED light source coupling), a 1 × 2 fiber coupler, an F-P force sensor built by a multi-mode (MM) fiber (for high collection efficiency of F-P cavity information), a cylinder lens (for radiating the light signal from fiber), a Fizeau interferometer (also called optical wedge), and a personal computer (PC). Note that, due to the small diameter of the SLED’s effective emission area (about 4~5 μm), a SM fiber with a core diameter of 4 μm is used for a high coupling efficiency. In the measuring process, the F-P force sensor is used to convert the applied force into a light signal that carries the information of the F-P cavity length. Then, the light signal is radiated on the upper surface of the optical wedge by the cylindrical lens and converted into an electric signal by the linear CCD.

The incident light on the CCD is the SLED spectrum modulated by the F-P sensor and the Fizeau interferometer, described by formula (2) [13].

$$I_{out}(x)={\displaystyle {\int }_{{\lambda }_{\min }}^{{\lambda }_{\max }}\frac{2R_1\left(1+\cos \frac{4\pi L}{\lambda }\right)}{1+R_1^2+2R_1\cos \frac{4\pi L}{\lambda }}}\times \frac{{(1-R_2)}^2}{1+R_2^2-2R_2\cos \left(\frac{4\pi x\tan \theta }{\lambda }\right)}{e}^{-\frac{{(\lambda -{\lambda }_p)}^2}{B_{\lambda }^2}}{I}_{0}d\lambda ,$$

(2)

where R₁ is the end face reflectivity of the fiber optic F-P sensor, R₂ is the reflectivity of the Fizeau interferometer, B_λ is the bandwidth of the SLED spectrum, λ_p is the central wavelength of the SLED spectrum, λ_min~λ_max is the wavelength range of SLED, θ is the optical wedge angle, L is the F-P cavity length, x is the optical wedge length and also the photoreceptor length of CCD, I₀ is the input light intensity from SLED, and $\exp (-{(\lambda -{\lambda }_p)}^2/B_{\lambda }^2)$ results from the Gaussian of SLED spectrum.

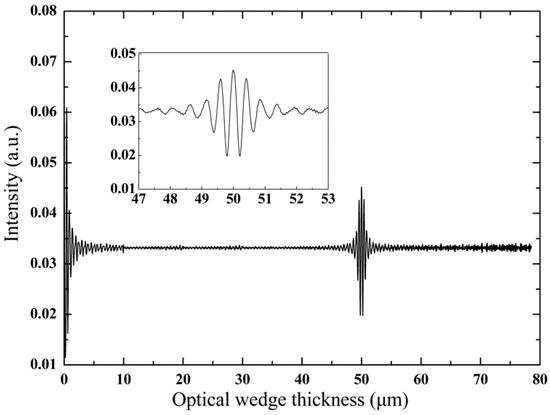

In order to see the intensity of the output light clearly, we present the simulation result in Figure 3, under the parameter conditions of R₁ = 0.2, R₂ = 0.5, L = 50 μm, θ = 0.05°, λ_p = 840 nm, and B_λ = 200 nm.

It can be seen that the maximum intensity of the correlation signal appears when the thickness of the optical wedge meets 50 μm, and this value equals to the F-P cavity length. Therefore, the F-P cavity length could be obtained by determining the CCD pixel position of the peak intensity signal.

As for this system, there are several points to be mentioned specially. (1) How does the characteristics of SLED affect the demodulation signal? (2) There are two interference devices, the F-P cavity (in force sensor) and the optical wedge. How to choose the right parameters of two devices to obtain a demodulation signal with high performance? (3) A single-mode fiber is used to collect the SLED light to gain high power density, while a multi-mode fiber is used to couple the F-P cavity information. How to eliminate the influence of mode-mode interference in the demodulation system? In Section 3, we will discuss them one by one.

2.2. The Principle of the F-P Force Sensor

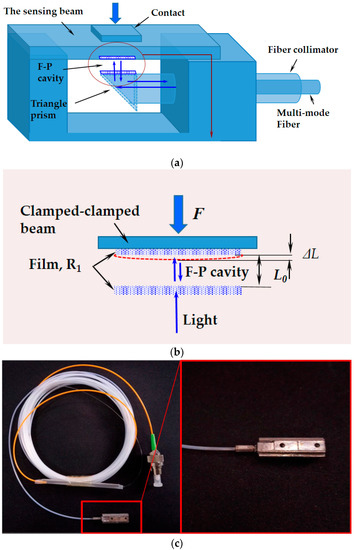

Due to the small gap at the contact position (less than 4 mm) between the SGT and the TSP, a 45° reflection prism, a fiber collimator, and clamped-clamped beam structure were utilized in the F-P force sensor. As shown in Figure 4a–c, the beam deflections of clamped-clamped beam equal to the change of the F-P cavity length. The F-P cavity length changes when a force is exerted on the force-sensitive element (sensing beam) [8].

The cavity length variation is related to the magnitude of the applied force F. The non-scanning correlation demodulation method is used to obtain the F-P cavity length variation induced by the force F. The relationship between the F-P cavity length variation and the applied force F in two different sensing structures is given by

$$F_1=\Delta L\frac{{16Ebh}^3}{l^3}=(L_0-{L_0}^{\prime })\frac{{16Ebh}^3}{l^3}$$

(3)

where F₁ is the force exerted on the clamped-clamped beam, l is the beam length, h is the beam thickness, b is the beam width, L₀ is the original F-P cavity length, L₀′ is the F-P cavity length induced by the force, ΔL is the F-P cavity length variation, and R₁ is the reflective index.

Therefore, in the F-P force sensor, the F-P cavity length variation caused by the radial collision force of SGT can be obtained by the demodulation system.

3. The Parameters Calculation of Non-Scanning Demodulation System

3.1. Effects of Light Source

3.1.1. Effects of Wavelength Width

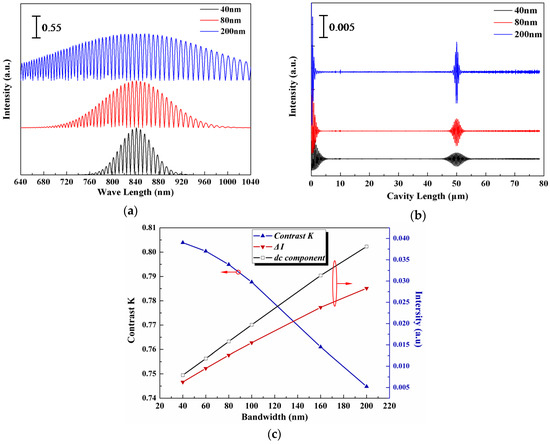

The output of the F-P cavity is influenced by the bandwidth of SLED. The simulation result is shown in Figure 5a, under the simulation conditions of R₁ = 0.2, R₂ = 0.5, L = 50 μm, θ = 0.05°, and λ_p = 840 nm. The corresponding intensity of the light coming from the optical wedge is shown in Figure 5b. As shown in Figure 5c, three parameters are used to evaluate the demodulation quality, ΔI is the difference of the maximum intensity I_max and the minimum intensity I_min, dc component is the averaged value of the intensity I_out, and the signal contrast K is the ratio of F-P cavity length signal intensity (I_max−I_min) and dc component. We can discuss as follows.

(1) With the increase of SLED bandwidth, the spectrum of the F-P cavity was widened.

(2) At the demodulation position (~50 μm), with the increase of SLED bandwidth, the dc value increased, the signal contrast K reduced, and the demodulation signal width from the optical wedge became narrower.

(3) A signal with larger signal strength and higher contrast is preferable in CCD detection and subsequent circuit processing. Therefore, a SLED with a larger bandwidth has a better performance in the demodulation system.

3.1.2. Effects of Central Wavelength

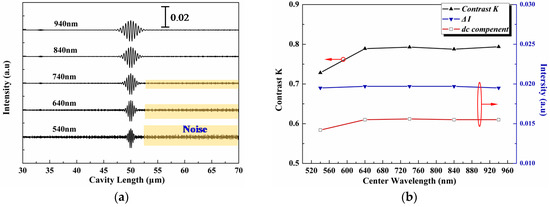

With the same simulation method, the simulation result of different central wavelength at the same bandwidth 200 nm is shown in Figure 6a,b. We analyzed as follows.

(1) The correlation demodulation signals became sharper and narrower with the blue shift of SLED center wavelength of the SLED, while there was no obvious change of the parameters of ΔI, dc component, and the contrast K.

(2) When the center wavelength was short than 740 nm, the strong noise appeared at the position of optical wedge thickness over 60 μm. This noise signal would gradually superimpose on the effective correlated demodulation signal, leading to a deterioration of the demodulation accuracy.

(3) Taking a comprehensive consideration on the theoretical analyses and commercial SLED products, a SLED with the center wavelength of 840 nm and the bandwidth of 50 nm was employed in the demodulation system.

3.2. Reflectivity of F-P Sensor and Optical Wedge

The light signal is modulated by two interference devices, the F-P cavity (in the force sensor) and the optical wedge. The reflectivity of the two fiber end faces of the F-P cavity and the two surfaces of the optical wedge should be considered in our design.

(1) In order to gain an F-P interference signal with high quality, the reflectivity of the two ends of F-P cavity should be equivalent. Similarly, an equivalent reflectivity of the two inner faces of the optical wedge is adopted.

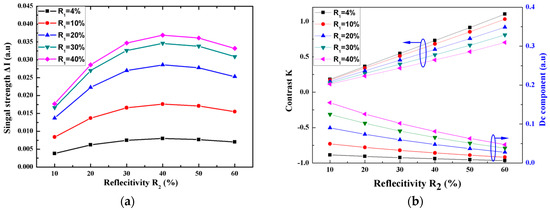

(2) We simulated the signal strength ΔI from the optical wedge using the different reflectivity of the F-P cavity (R₁) and optical wedge (R₂), shown in Figure 7a. The dc component and contrast K of corresponding signal is shown in Figure 7b.

(3) When the reflectivity R₁ was fixed, ΔI first increased and then decreased using the increase of reflectivity R₂. When R₂ was set to 40%, ΔI had the largest value. The dc component of the signal reduced with the increase of R₁ for a fixed value of R₂. The contrast K increased with the increase of R₂. Therefore, CCD detection and processing circuit, the reflectivity of R₁ and R₂ was selected as 20% and 40%, respectively.

3.3. Effects of Mode-Mode Interference

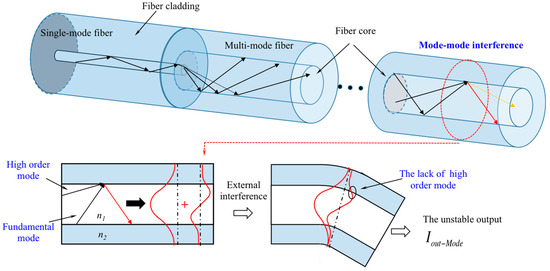

As we mentioned in Section 2, the mode-mode interference occurred because of the fiber mode mismatch, shown in Figure 8 [14]. When the light energy coming out from a SM fiber is coupled into a MM fiber, higher-order modes of MM fiber are excited and interfered with each other.

The spectral distribution of SLED output affected by the mode-mode interference is given by

$$I_{out-Mode}={\displaystyle {\int }_{{\lambda }_{\min }}^{{\lambda }_{\max }}\left[{\displaystyle \sum _{i=1}^N{\eta }_i^2+{\displaystyle \sum _{i\ne j=1}^N{\eta }_i{\eta }_j\Delta p \cos \left[({\beta }_i-{\beta }_j)L\right]}}\right]}\times I_0{e}^{-\frac{{(\lambda -{\lambda }_p)}^2}{B_{\lambda }^2}},$$

(4)

where η_i is the intensity coefficients assigned to each mode, L is the light transmission distance, β_i is the longitudinal propagation constant of each mode that is related to the equivalent refractive index n_eff of each mode, Δp is external random perturbation to each mode, and N is the number of modes.

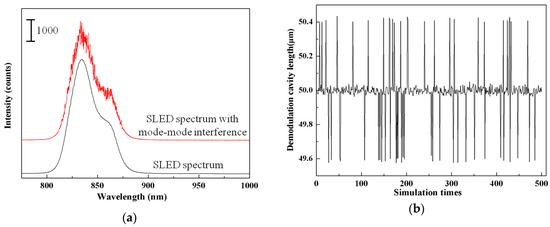

The output spectra of the SLED with SM fiber coupling and with SM-MM fiber coupling are shown in Figure 9a, where the random glitches on the spectrum of SM-MM coupled SLED are caused by the unstable interference field. Meanwhile, the cavity length was demodulated 500 times with a random mode-mode interference in the simulation, shown in Figure 9b. A random error of 0.4 μm of F-P cavity length is induced by mode-mode interference, which leads to the reduction of the demodulation precision. Therefore, in order to reduce the random demodulation errors of the F-P cavity, the fluctuation of SLED spectrum caused by mode-mode interference compared should be as small as possible. We will solve this problem in Section 4.1.

4. Experiment and Calibration

4.1. Solution to Fiber Mode-Mode Interference

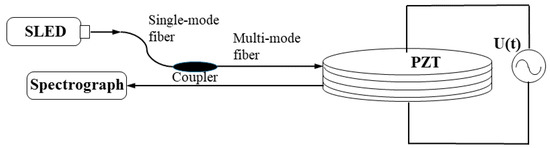

We adopted a random phase modulation method, using a piezoelectric ceramic transducer to induce a phase difference on the MM fiber [15]. The schematic figure is shown in Figure 10.

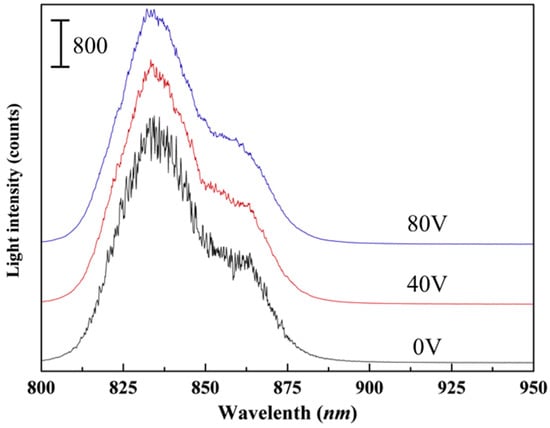

According to a number of experiments, a rectangular wave voltage with the frequency of 29 kHz was applied to the piezoelectric ceramic transducer (PZT). The experimental output spectrum was shown in Figure 11, with PZT driven voltage of 0 V, 40 V, and 80 V, respectively. The SLED spectrum with Gaussian distribution became more stable with the increase of the driven voltage.

Here, a parameter root mean squared error (RMSE) is calculated to evaluate the stability of output, which is given by

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle \sum _{n=1}^N{(X_{obs,n}-X_{\mathrm{mod}el,n})}^2}},$$

(5)

where N is the number of measurement points in the spectrum, X_obs,n is the light intensity demodulated by PZT, and X_model,n is the light intensity of the SLED spectrum.

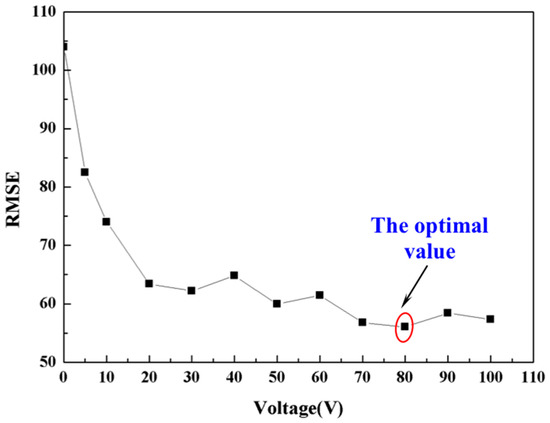

The RMSE value tended to decrease with the increase of the driven voltage, and the smallest RMSE value was obtained at the voltage of 80 V, shown in Figure 12. Meanwhile, taking consideration of a driven circuit, 80 V is chosen as the PZT driven voltage in our non-scanning correlation demodulation system.

4.2. Calibration of Optical System

As mentioned in Section 2, the pixel position of the peak-intensity in the CCD is used to determine the corresponding thickness of the optical wedge, thus to interrogate the cavity length of the F-P sensor. In fact, the thickness of optical wedge varies linearly with its length, meanwhile the corresponding pixel N of CCD is also linear. Therefore, the demodulation cavity value should be linear with the CCD pixel theoretically. The correspondence between the thickness of optical wedge and the pixel position of peak-intensity in CCD was calibrated.

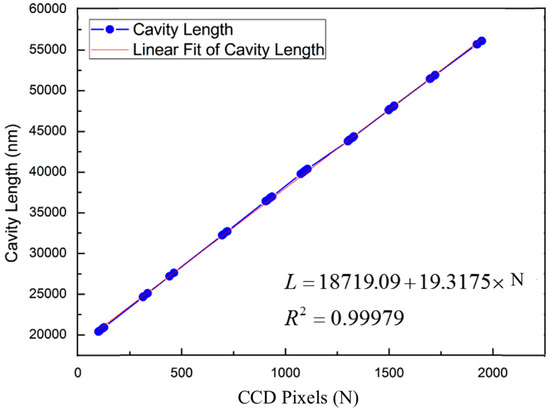

In the experiment, F-P cavity etalons with standard cavity length (from 20 μm to 55 μm) were demodulated. The corresponding maximum intensity position of CCD pixel was calibrated with the standard F-P cavity length. The result was given in Figure 13, and a very good linearity between CCD pixel position and cavity length was found.

4.3. Experiments of the Demodulation System

4.3.1. Dynamic Test of the Demodulation System

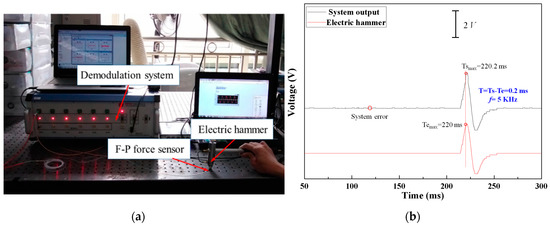

In the experiment, an electric hammer was used to generated a force hitting the F-P force sensor (Figure 14a). In order to investigate the response speed of our demodulation system, the waveform outputs of the electric hammer and the demodulation system were recorded by a high accuracy digital oscilloscope at the exact same time. The demodulation speed of the demodulation system was 5 KHz, according to the analysis of the rising edge (in Figure 14b).

4.3.2. Experiments in the 1:1 Steam Generator Test Loop

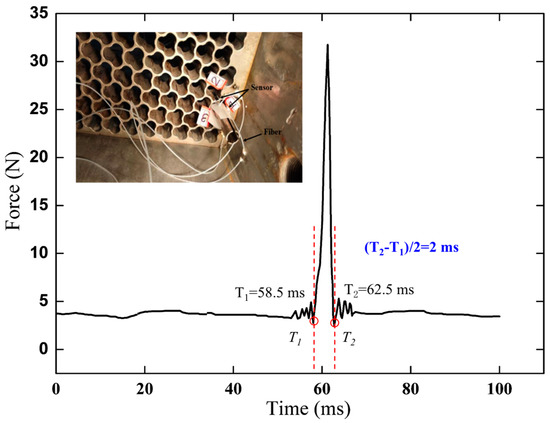

With the assistance of our collaborators, the whole demodulation system and force sensor were exploited in a 1:1 steam generator test loop (with the same size, structure, and working conditions as a real steam generator). The fiber F-P force sensors were installed in the contact position between the SGT and TSP, shown in Figure 15 (inset image). The demodulated force data from the SGT were given in Figure 14, manifesting that the collision force is 32 N and the collision time is 2 ms.

5. Conclusions

A non-scanning correlation demodulation system was accomplished, capable of processing F-P cavity signal with a demodulation speed of 5 KHz. A clear force signal of about 32 N with the collision time of 2 ms was obtained in a 1:1 steam generator test loop. For the real-time measurement of the radial collision force of SGT, our future work will be in two aspects. First, the stability of our demodulation system will be investigated. Second, a demodulation system with higher demodulation speed and higher accuracy will be studied.
