Sensors 2017, 17(9), 2099; https://doi.org/10.3390/s17092099

Chlordetect: Commercial Calcium Aluminate Based Conductimetric Sensor for Chloride Presence Detection

1
CAPACITÉS, SAS. 26 Boulevard Vincent Gâche, 44200 Nantes, France
2
CMUA, Department of Electrical and Electronics Engineering, Universidad de los Andes, Carrera 1E N, 19A-40 Edificio ML, Piso 7. 111711 Bogotá, Colombia
3
Department of Civil and Environmental Engineering, Universidad de los Andes, Carrera 1E N, 19A-40 Edificio ML, Piso 6. 111711 Bogotá, Colombia
4
Institute for Research in Civil and Mechanical Engineering (GeM, CNRS UMR 6183), Sea and Littoral Research Institute (IUML, CNRS FR 3473), Université de Nantes, Centrale Nantes, 2 rue de la Houssinière BP 92208, 44322 Nantes, France
*
Author to whom correspondence should be addressed.
Received: 16 June 2017 / Revised: 8 September 2017 / Accepted: 9 September 2017 / Published: 13 September 2017
(This article belongs to the Special Issue Chemiresistive Sensors: Status and the Future)
View Full-Text   |   Download PDF [8132 KB, uploaded 13 September 2017]   |

Abstract

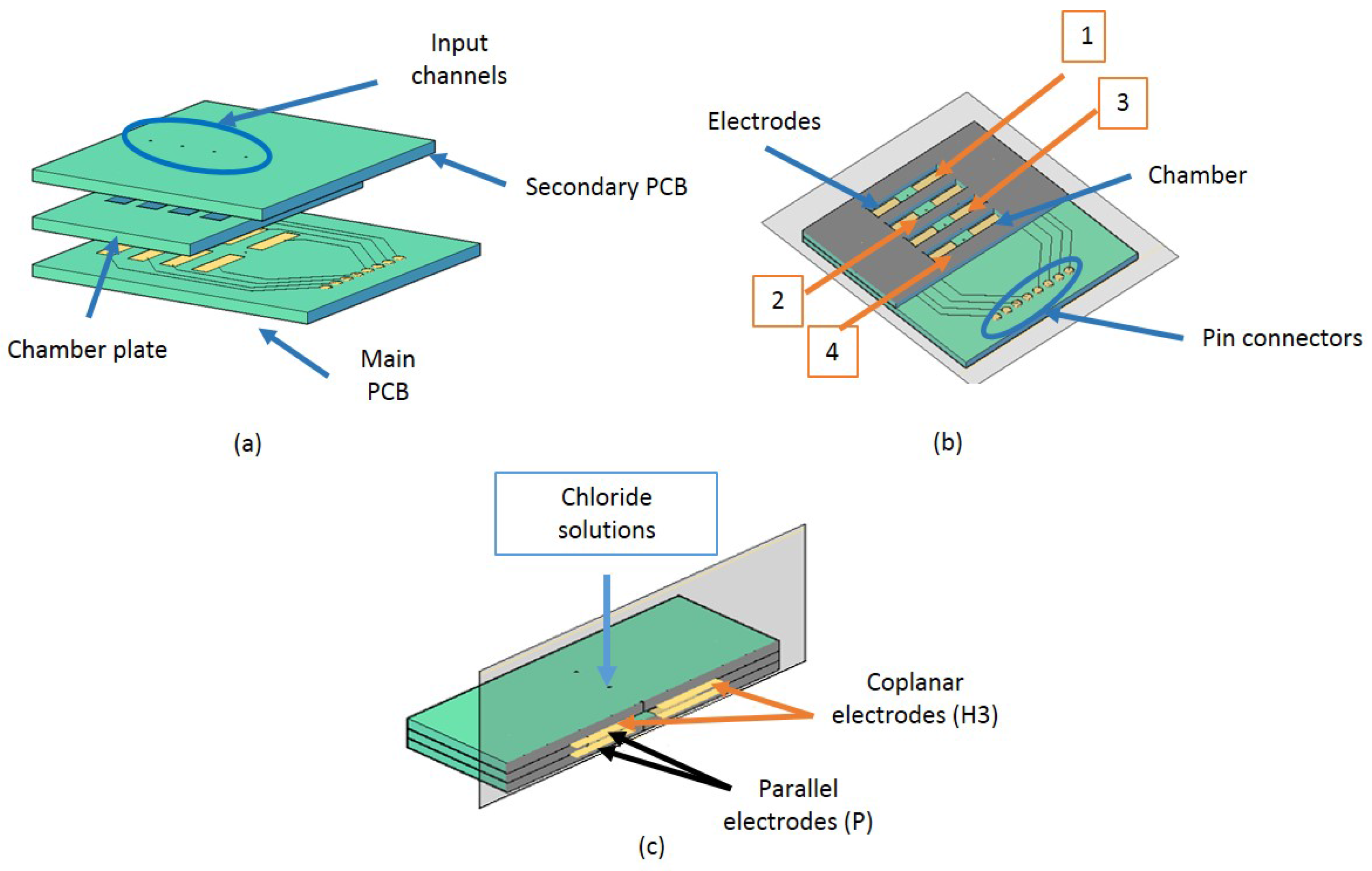

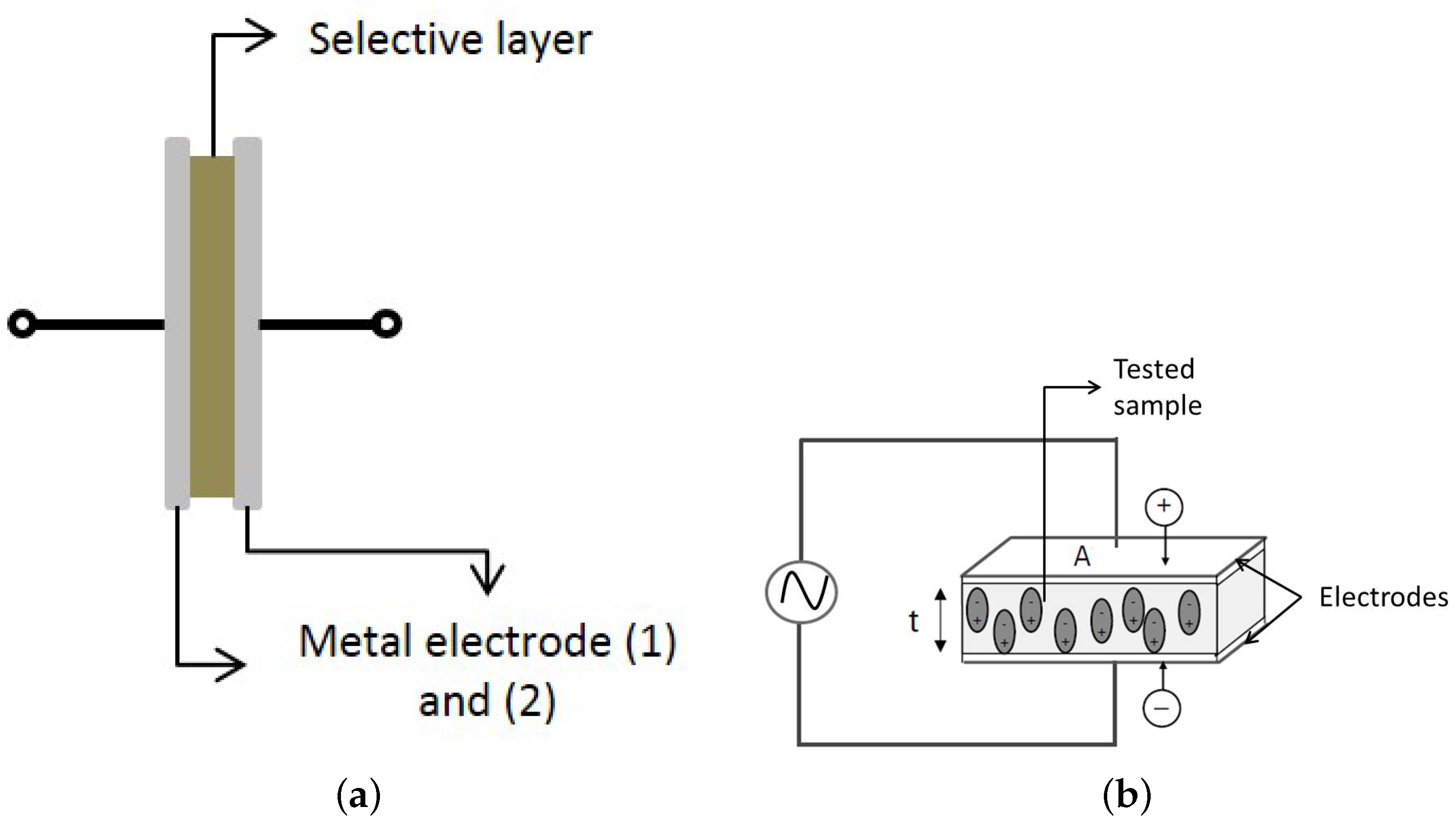

Chloride presence affects different environments (soil, water, concrete) decreasing their qualities. In order to assess chloride concentration this paper proposes a novel sensor for detecting and measuring it. This sensor is based on electric changes of commercial monocalcium aluminate (CA) when it interacts with chloride aqueous solutions. CA is used as a dielectric material between two coplanar capacitors. The geometry proposed for this sensor allows to assess the chloride content profile, or to make four times the same measurement. Besides, the experimental design gives us the possibility of study not just the chloride effect, but also the time and some geometric effects due to the sensor design. As a result, this sensor shows a limit of detection, sensitivity, and response time: 0.01 wt % Cl and 0.06 wt % Cl, and 2 min, respectively, comparable with other non invasive techniques as optical fibre sensors. View Full-Text
Keywords: chloride concentration; chloride sensors; monocalcium aluminate; dielectric spectroscopy; corrosion; dielectric materials chloride concentration; chloride sensors; monocalcium aluminate; dielectric spectroscopy; corrosion; dielectric materials
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
