Open AccessArticle
Sensors 2017, 17(8), 1768; doi:10.3390/s17081768

A Magnetic-Balanced Inductive Link for the Simultaneous Uplink Data and Power Telemetry

Institute of Application Specific Instruction-Set Processors, Beijing Institute of Technology, 5 South Zhongguancun Street, Haidian District, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Received: 12 July 2017 / Revised: 30 July 2017 / Accepted: 30 July 2017 / Published: 2 August 2017
View Full-Text   |   Download PDF [2487 KB, uploaded 2 August 2017]   |

Abstract

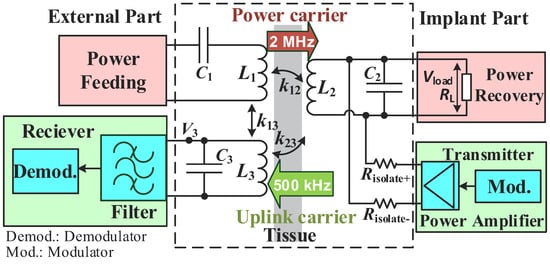

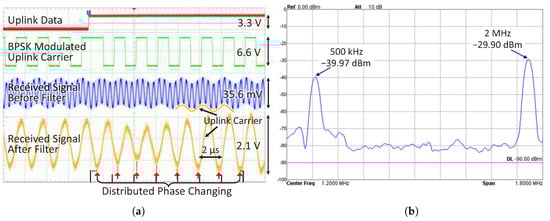

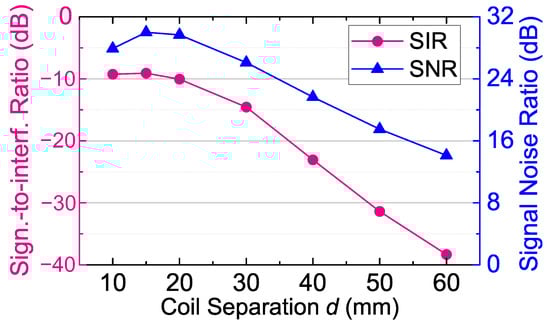

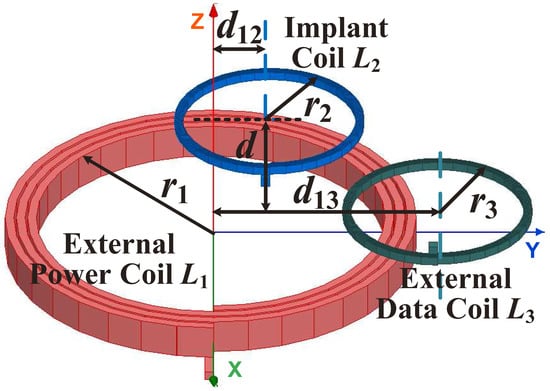

When using the conventional two-coil inductive link for the simultaneous wireless power and data transmissions in implantable biomedical sensor devices, the strong power carrier could overwhelm the uplink data signal and even saturate the external uplink receiver. To address this problem, we propose a new magnetic-balanced inductive link for our implantable glaucoma treatment device. In this inductive link, an extra coil is specially added for the uplink receiving. The strong power carrier interference is minimized to approach zero by balanced canceling of the magnetic field of the external power coil. The implant coil is shared by the wireless power harvesting and the uplink data transmitting. Two carriers (i.e., 2-MHz power carrier and 500-kHz uplink carrier) are used for the wireless power transmission and the uplink data transmission separately. In the experiments, the prototype of this link achieves as high as 65.72 dB improvement of the signal-to-interference ratio (SIR) compared with the conventional two-coil inductive link. Benefiting from the significant improvement of SIR, the implant transmitter costs only 0.2 mW of power carrying 50 kbps of binary phase shift keying data and gets a bit error rate of 1 × 10 7 , even though the coupling coefficient is as low as 0.005. At the same time, 5 mW is delivered to the load with maximum power transfer efficiency of 58.8%. This magnetic-balanced inductive link is useful for small-sized biomedical sensor devices, which require transmitting data and power simultaneously under ultra-weak coupling. View Full-Text
Keywords: biomedical telemetry; inductive link; simultaneous data and power transmissions; implantable biomedical sensors; intraocular sensors biomedical telemetry; inductive link; simultaneous data and power transmissions; implantable biomedical sensors; intraocular sensors

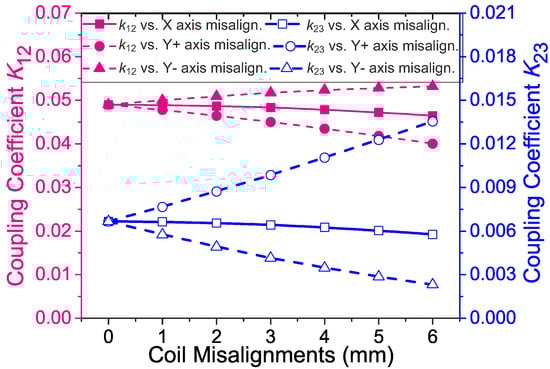

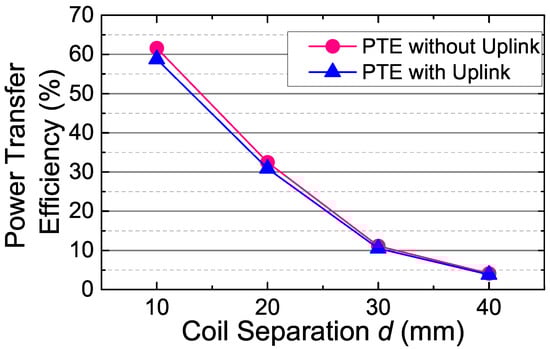

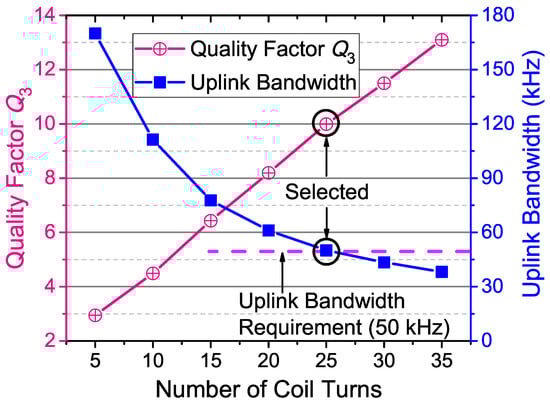

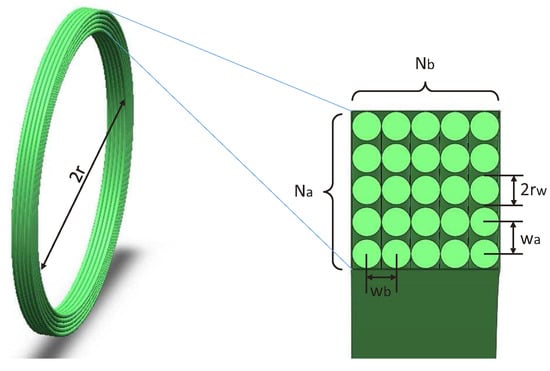

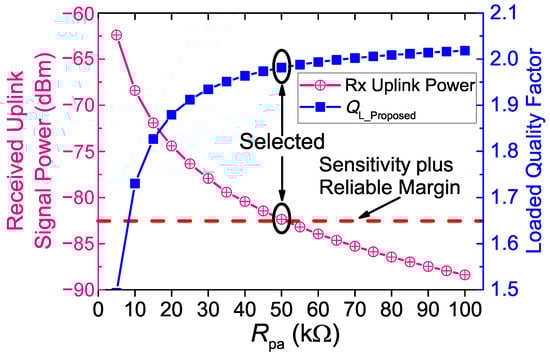

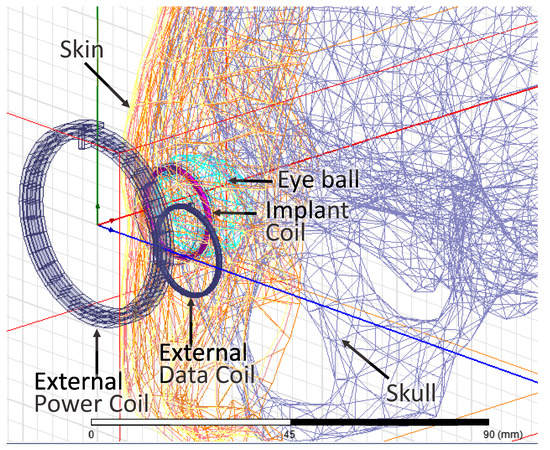

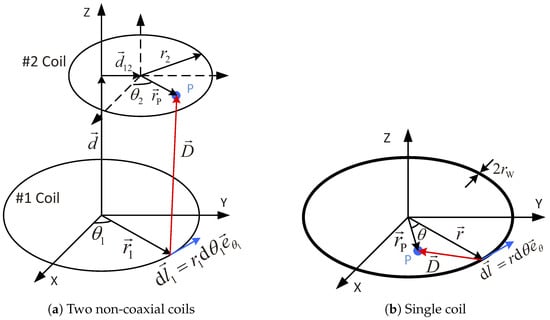

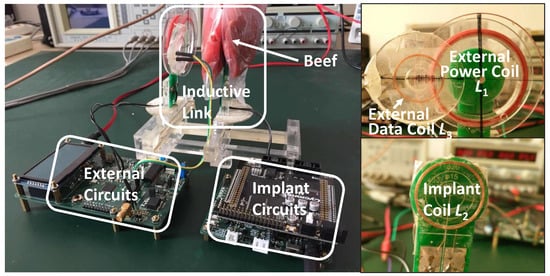

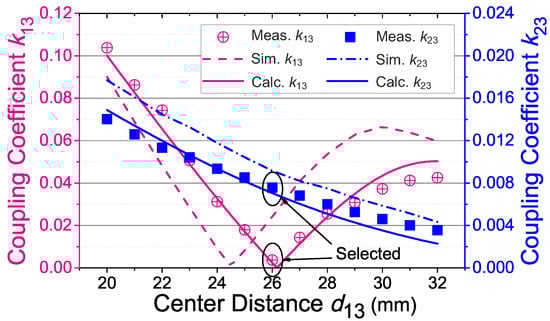

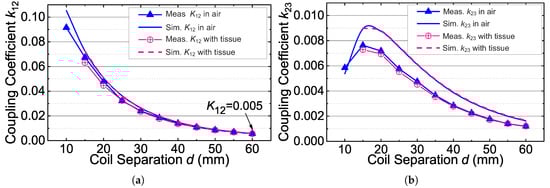

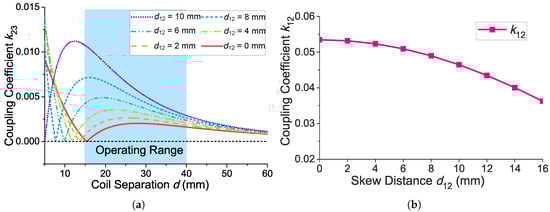

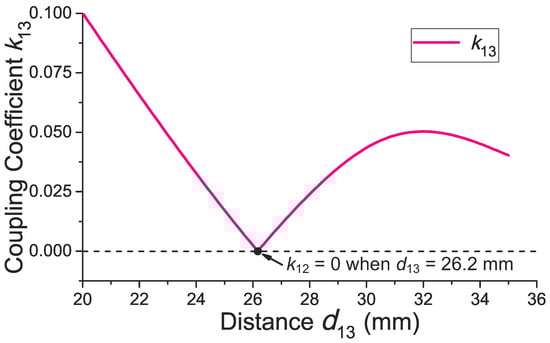

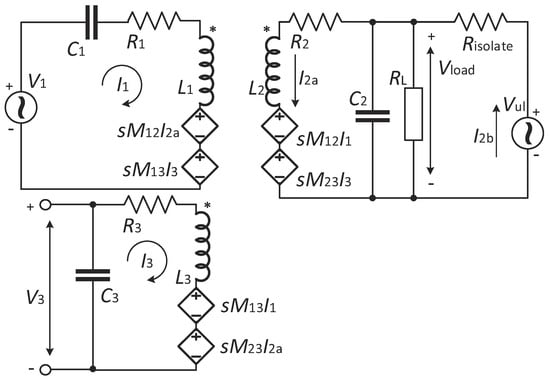

Figures

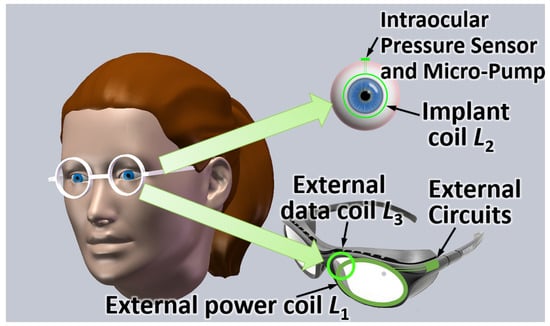

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
