Sensors 2017, 17(7), 1643; https://doi.org/10.3390/s17071643

Vibration Measurement Method of a String in Transversal Motion by Using a PSD

Graduate Institute of Manufacturing Technology, National Taipei University of Technology, Taipei 10608, Taiwan
*
Author to whom correspondence should be addressed.
Received: 11 May 2017 / Revised: 3 July 2017 / Accepted: 14 July 2017 / Published: 17 July 2017
View Full-Text   |   Download PDF [3982 KB, uploaded 18 July 2017]   |

Abstract

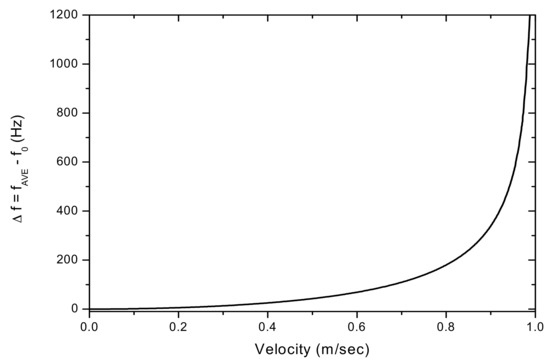

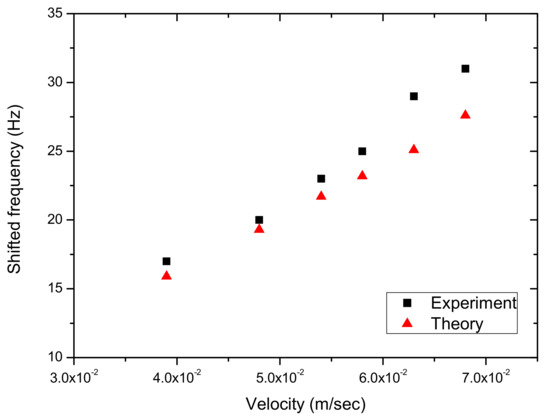

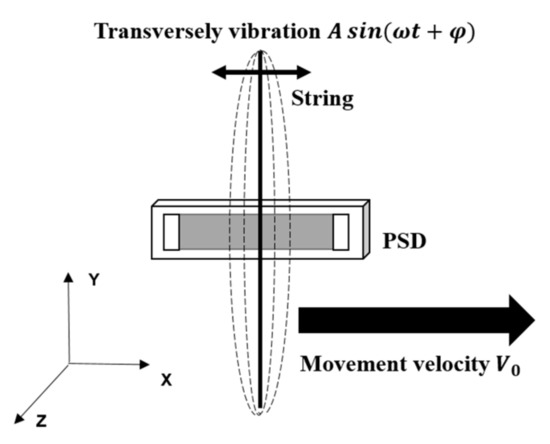

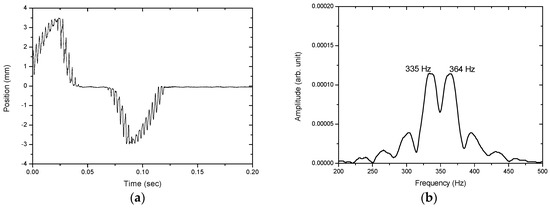

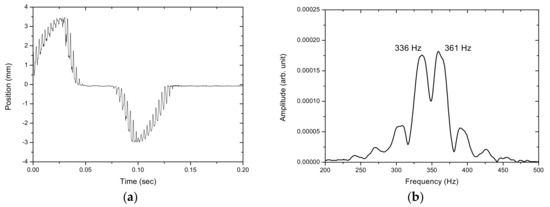

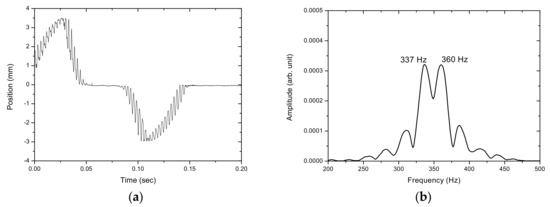

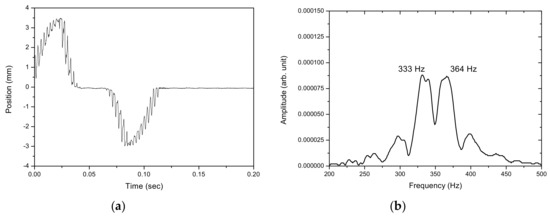

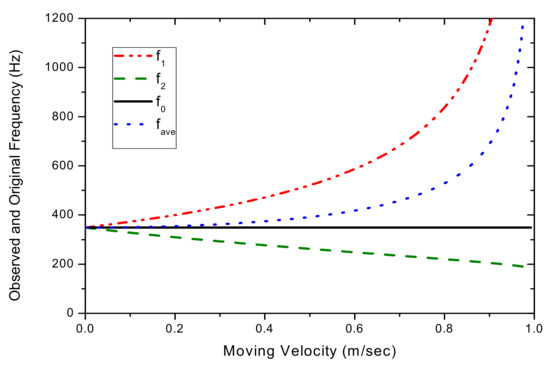

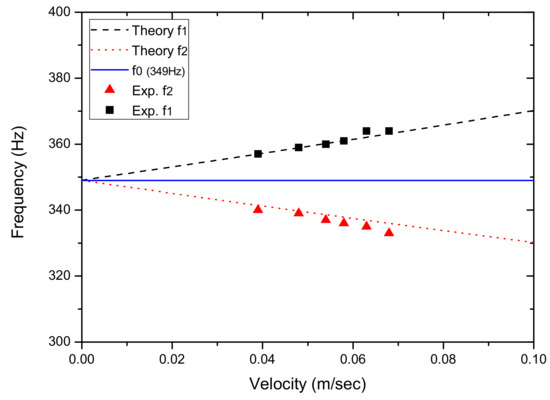

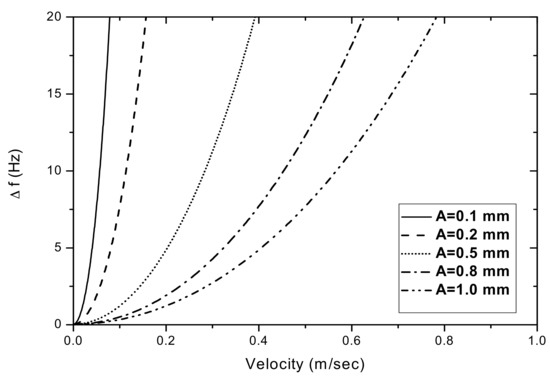

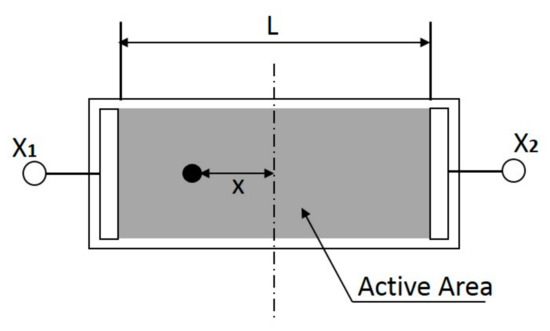

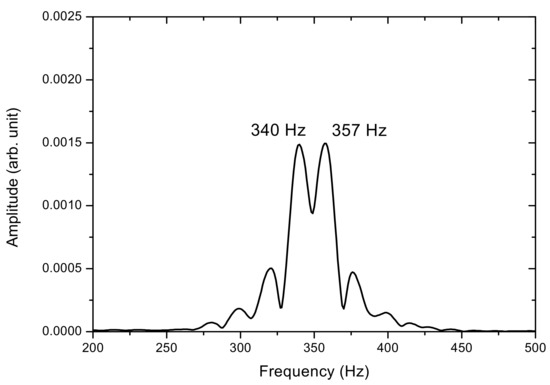

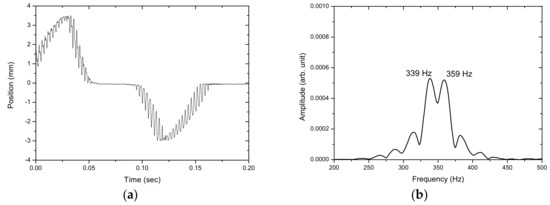

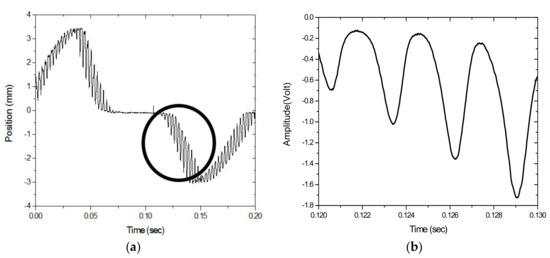

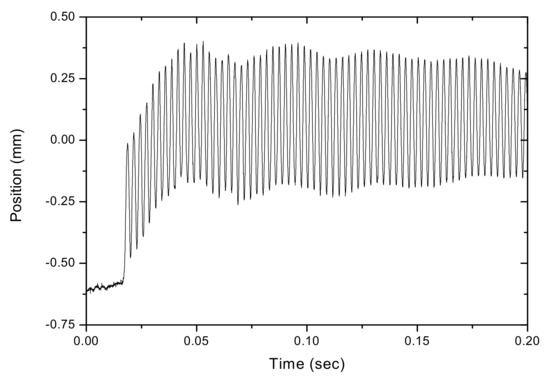

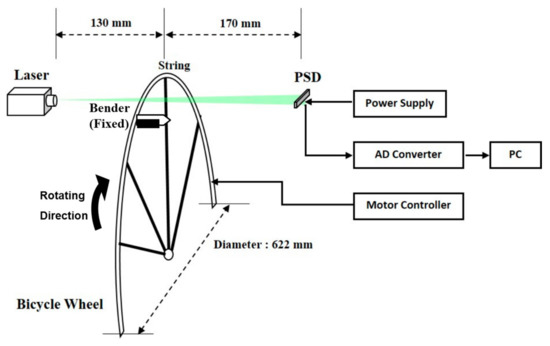

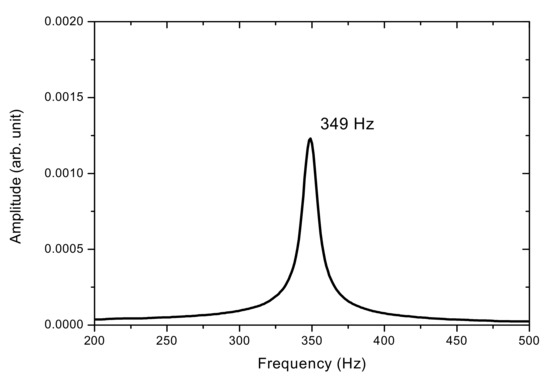

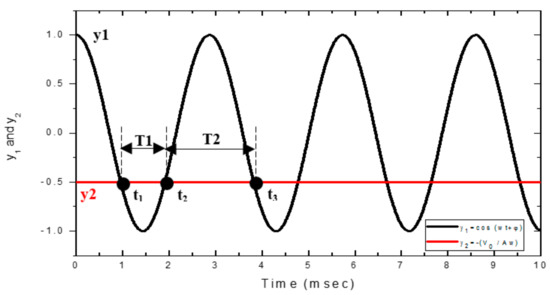

A position sensitive detector (PSD) is frequently used for the measurement of a one-dimensional position along a line or a two-dimensional position on a plane, but is more often used for measuring static or quasi-static positions. Along with its quick response when measuring short time-spans in the micro-second realm, a PSD is also capable of detecting the dynamic positions of moving objects. In this paper, theoretical modeling and experiments are conducted to explore the frequency characteristics of a vibrating string while moving transversely across a one-dimensional PSD. The theoretical predictions are supported by the experiments. When the string vibrates at its natural frequency while moving transversely, the PSD will detect two frequencies near this natural frequency; one frequency is higher than the natural frequency and the other is lower. Deviations in these two frequencies, which differ from the string’s natural frequency, increase while the speed of motion increases. View Full-Text
Keywords: position sensitive detector (PSD); dynamic natural frequency measurement; vibration analyze position sensitive detector (PSD); dynamic natural frequency measurement; vibration analyze
