Open AccessArticle
Sensors 2017, 17(7), 1634; https://doi.org/10.3390/s17071634

Development of Three-Dimensional Dental Scanning Apparatus Using Structured Illumination

1
Medical Photonics Research Center, Korea Photonics Technology Institute (KOPTI), Gwangju 61007, Korea
2
Department of Biomedical Science and Engineering, Gwangju Institute of Science and Technology (GIST), Gwangju 61005, Korea
3
School of Information and Communications, Gwangju Institute of Science and Technology (GIST), Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Received: 19 June 2017 / Revised: 10 July 2017 / Accepted: 12 July 2017 / Published: 15 July 2017
(This article belongs to the Special Issue Imaging Depth Sensors—Sensors, Algorithms and Applications)
View Full-Text   |   Download PDF [2654 KB, uploaded 17 July 2017]   |

Abstract

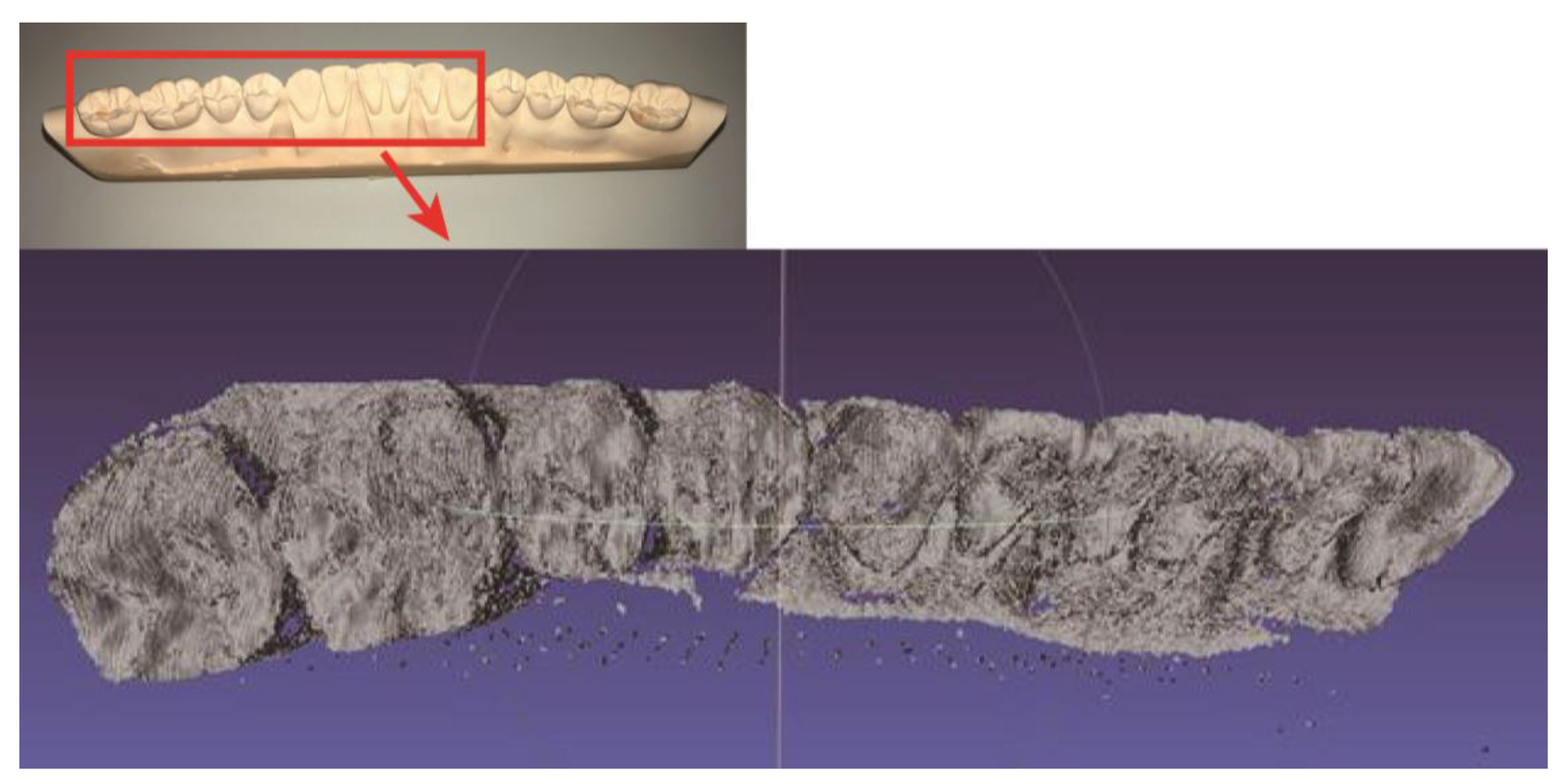

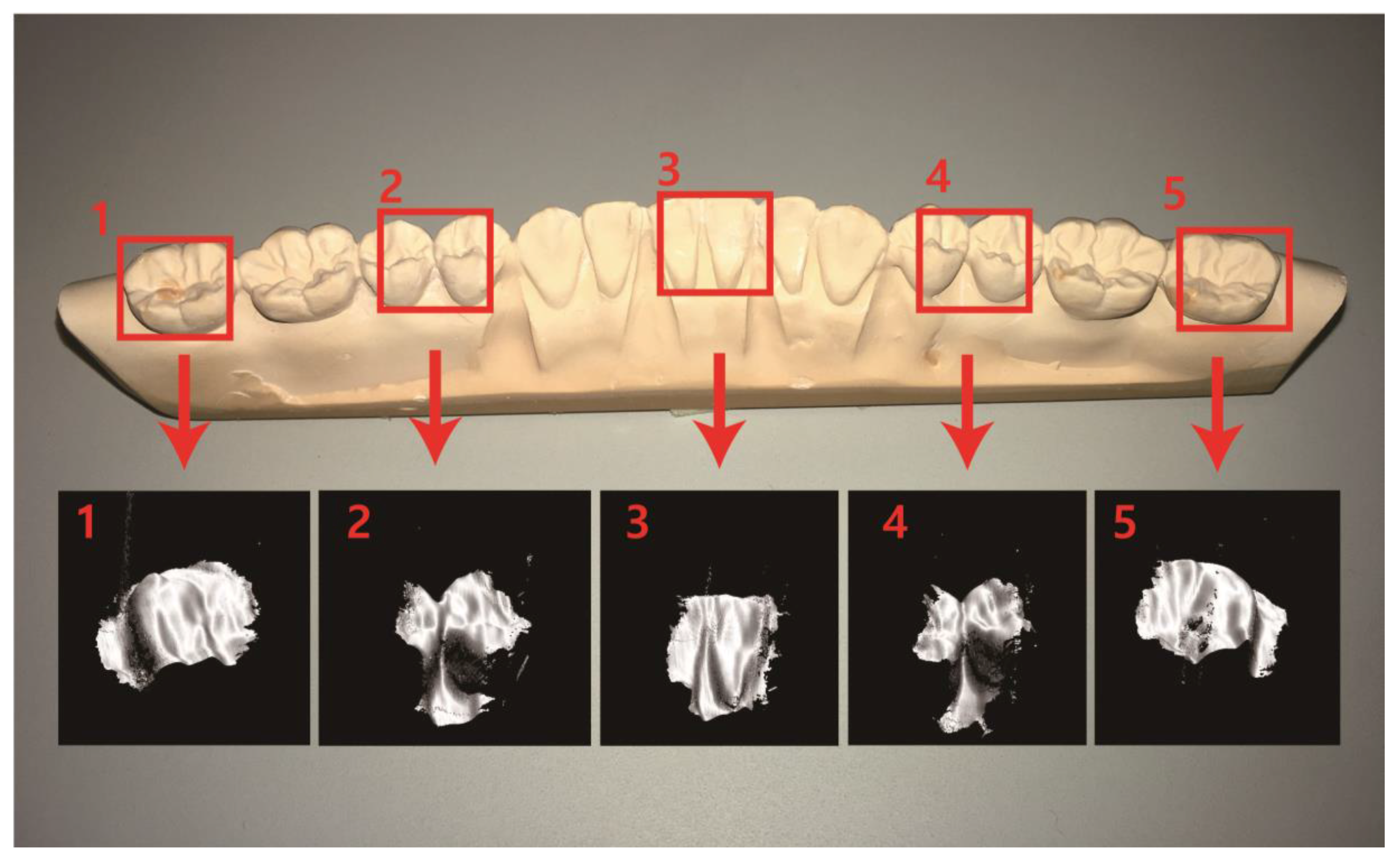

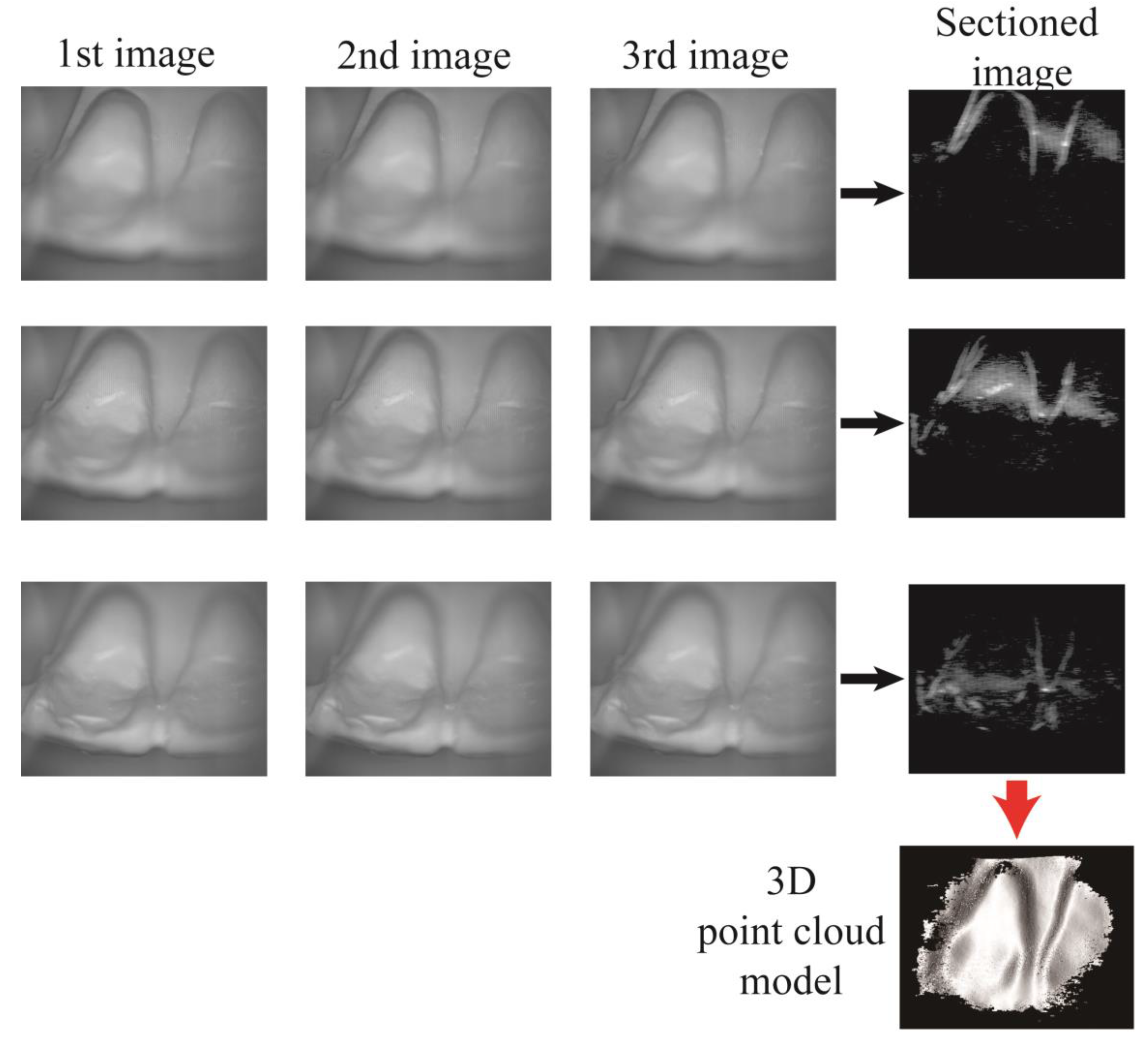

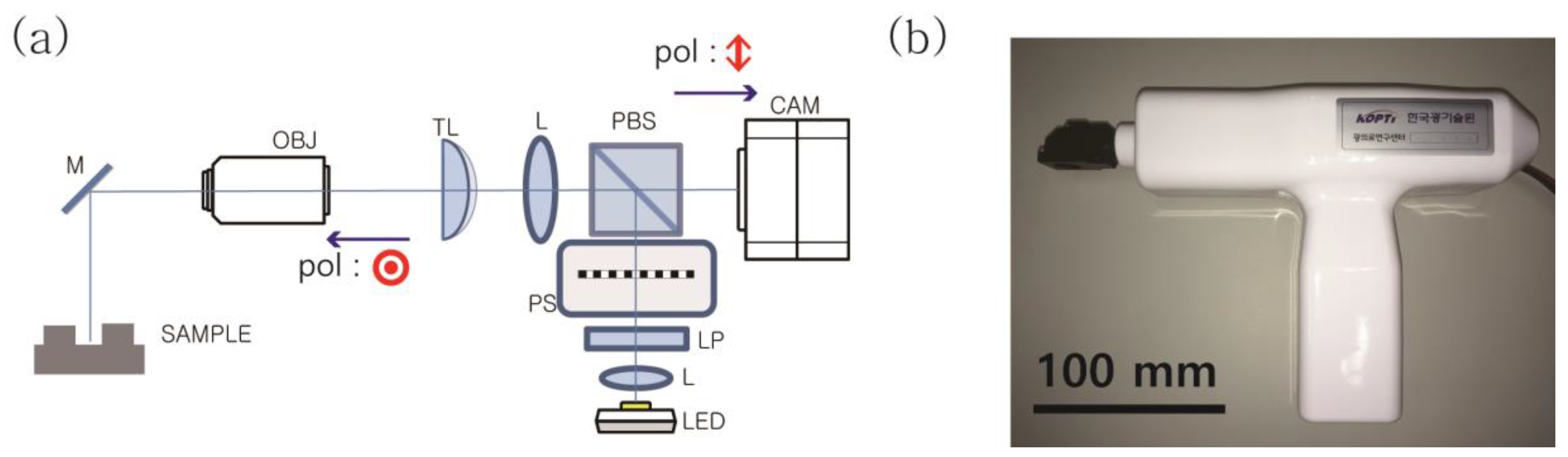

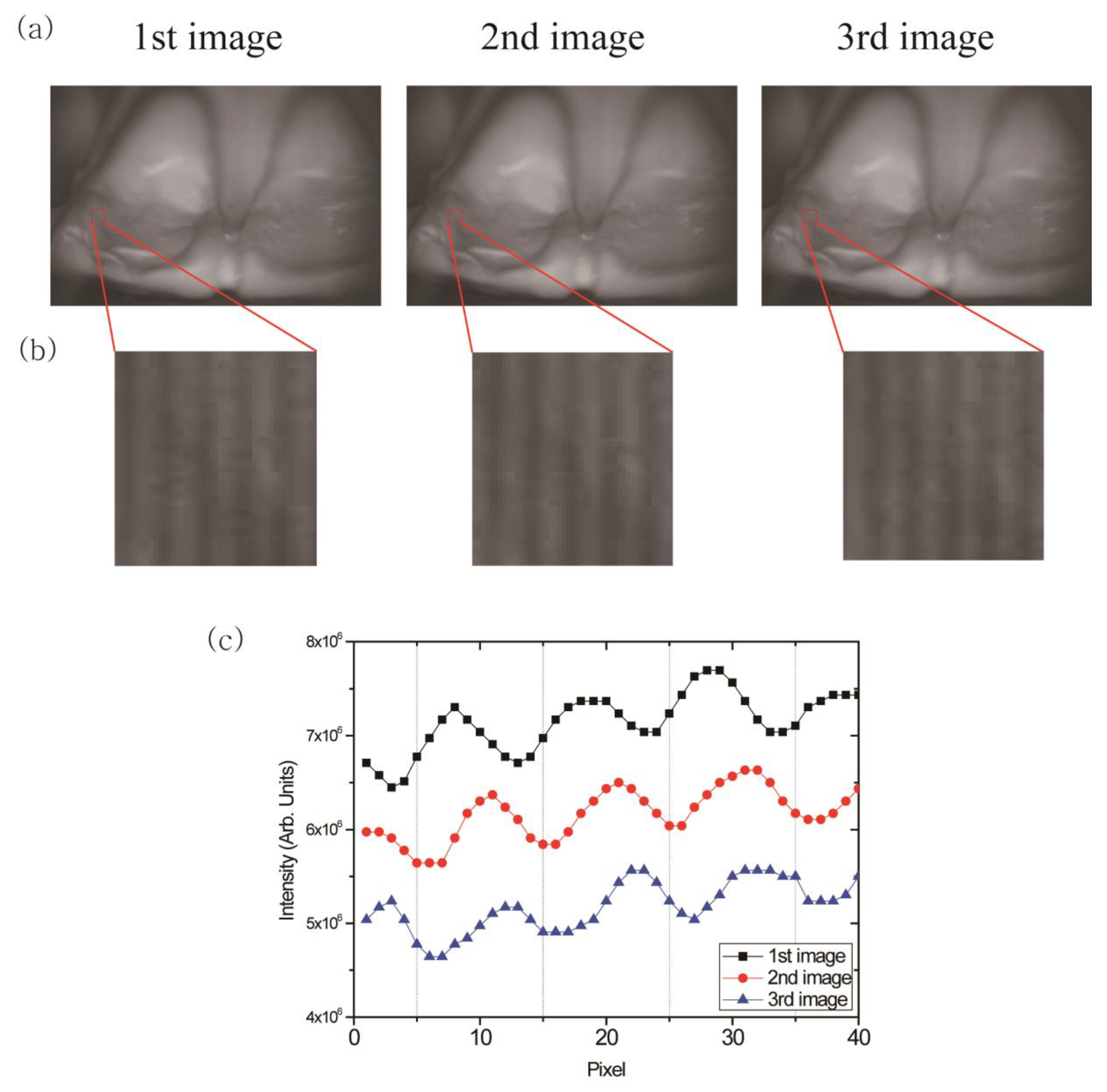

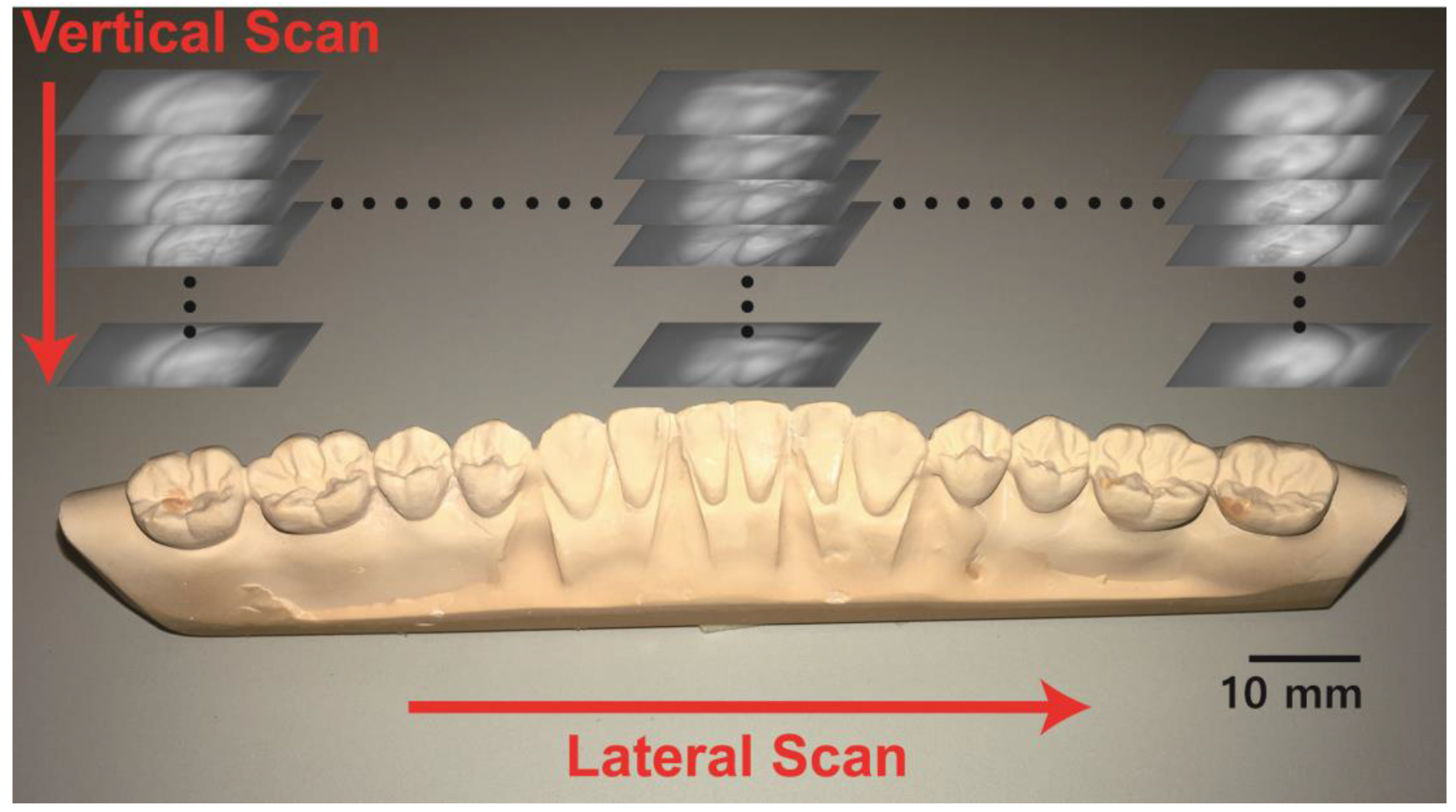

We demonstrated a three-dimensional (3D) dental scanning apparatus based on structured illumination. A liquid lens was used for tuning focus and a piezomotor stage was used for the shift of structured light. A simple algorithm, which detects intensity modulation, was used to perform optical sectioning with structured illumination. We reconstructed a 3D point cloud, which represents the 3D coordinates of the digitized surface of a dental gypsum cast by piling up sectioned images. We performed 3D registration of an individual 3D point cloud, which includes alignment and merging the 3D point clouds to exhibit a 3D model of the dental cast. View Full-Text
Keywords: 3D intraoral scanner; structured illumination; liquid lens; 3D point cloud 3D intraoral scanner; structured illumination; liquid lens; 3D point cloud
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
