Open AccessReview
Sensors 2017, 17(5), 1077; doi:10.3390/s17051077

Development of Conductivity Sensors for Multi-Phase Flow Local Measurements at the Polytechnic University of Valencia (UPV) and University Jaume I of Castellon (UJI)

1
Instituto de Ingeniería Energética, Universitat Politècnica de València, 46022 Valencia, Spain
2
Unidad de Mecánica de Fluidos, Universitat Jaume I, 12071 Castellón, Spain
3
Faculty of Electric and Mechanical Engineering, Universidad Autónoma de Nueva León, Monterrey 66451, Mexico
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 26 January 2017 / Revised: 1 May 2017 / Accepted: 3 May 2017 / Published: 10 May 2017
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2016)

Abstract

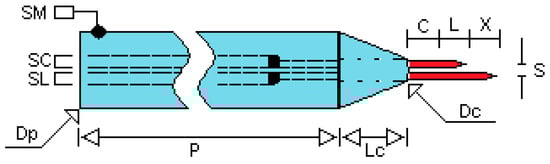

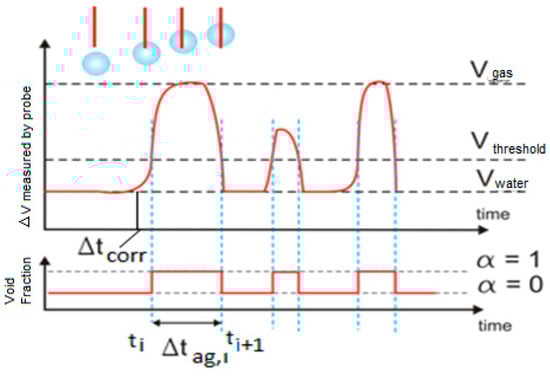

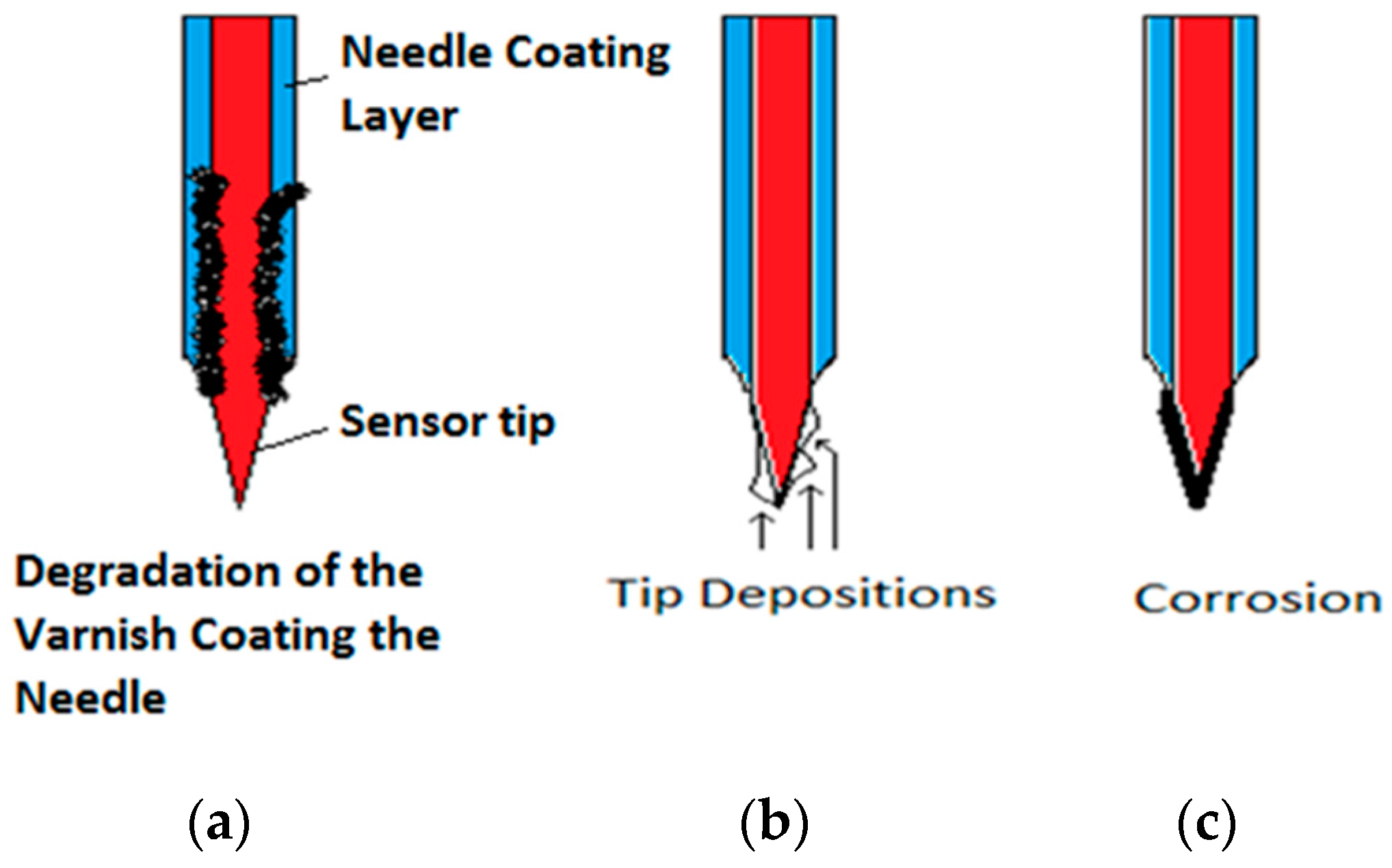

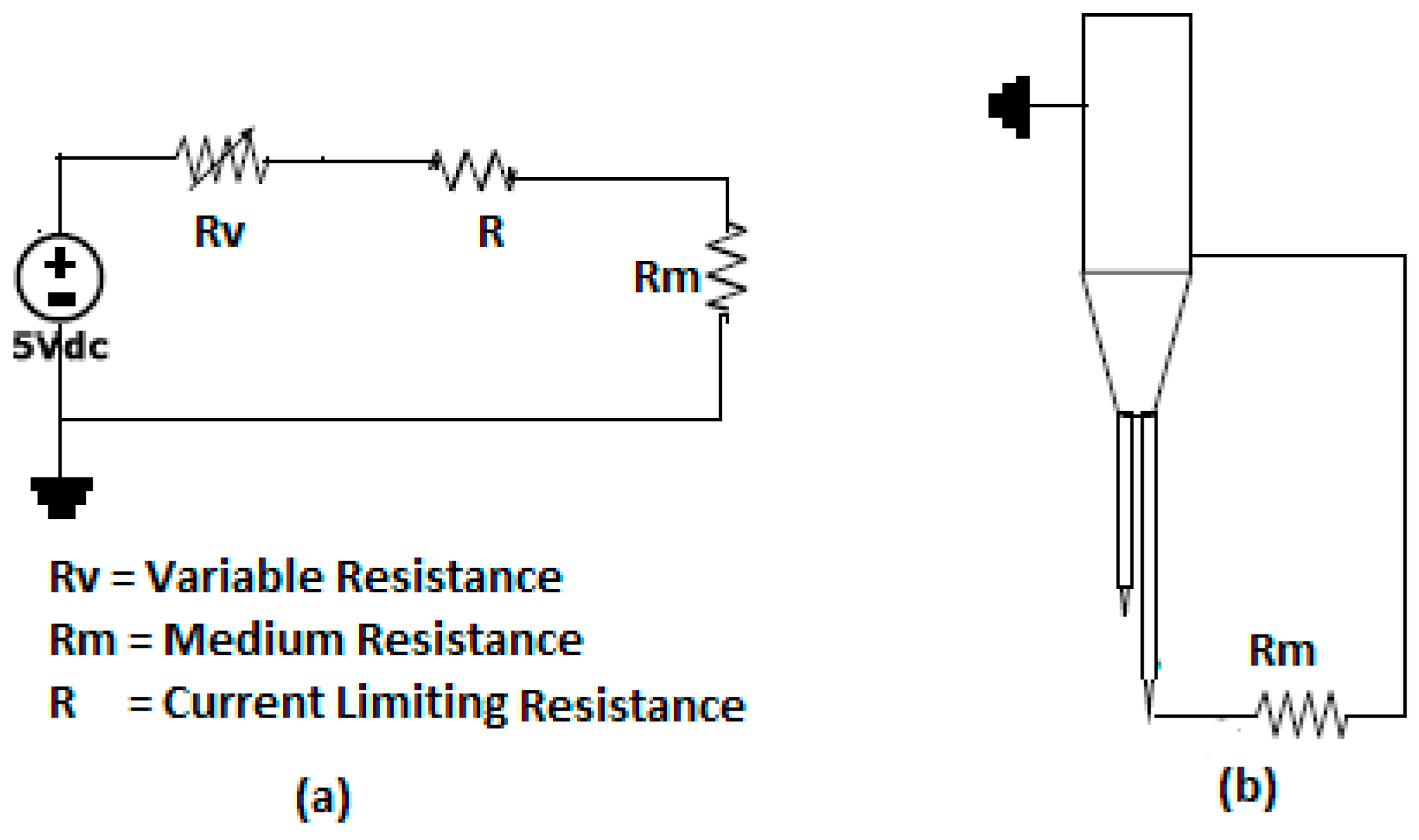

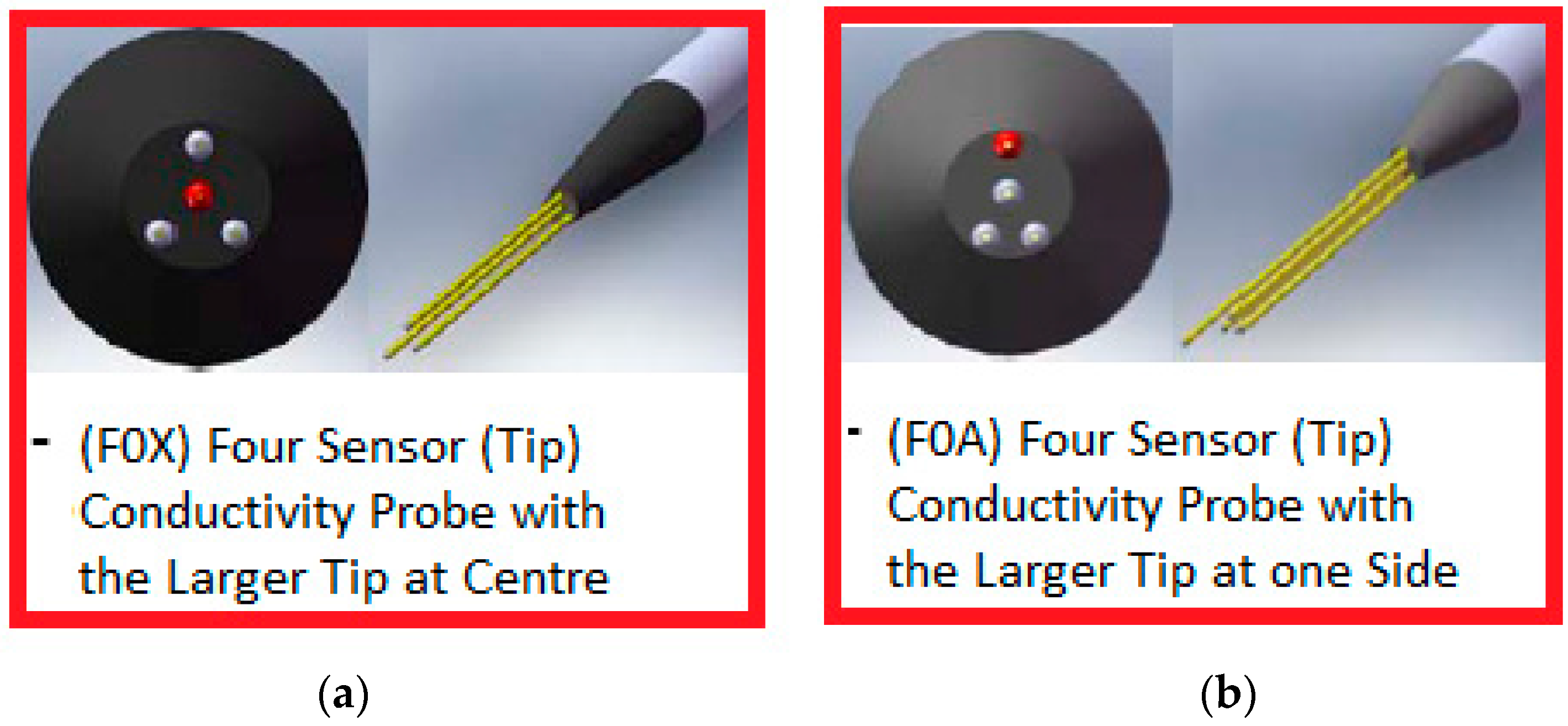

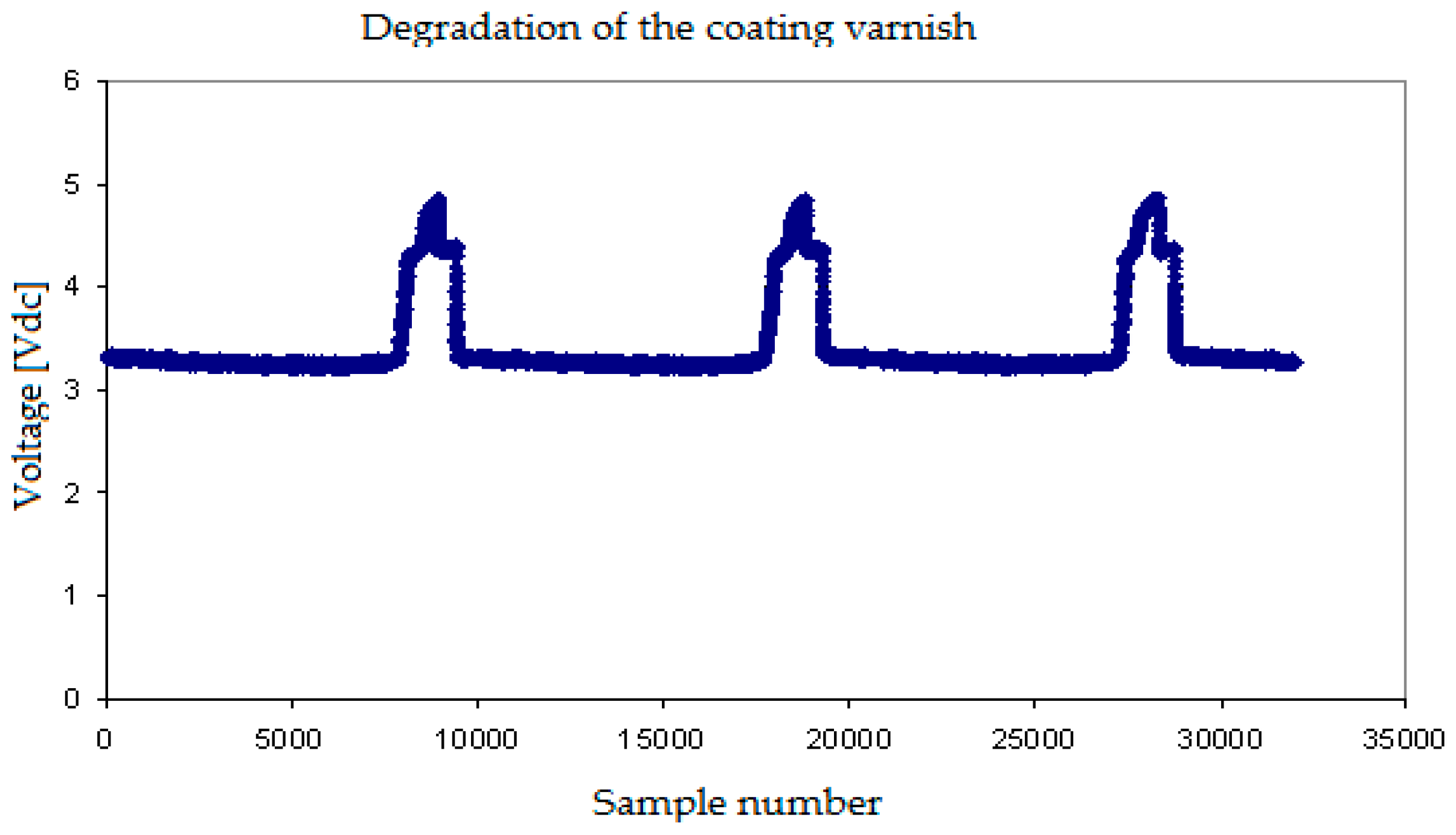

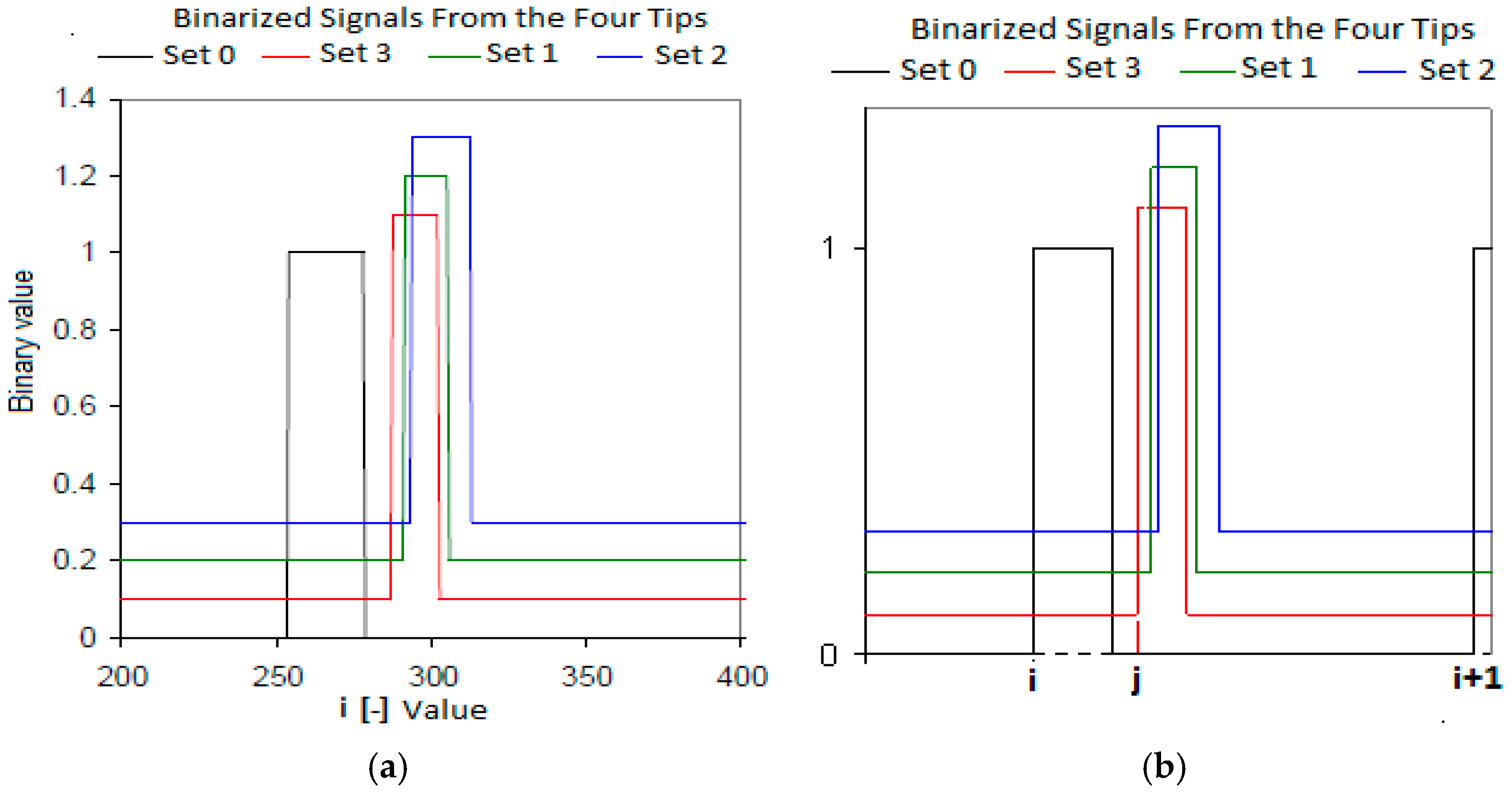

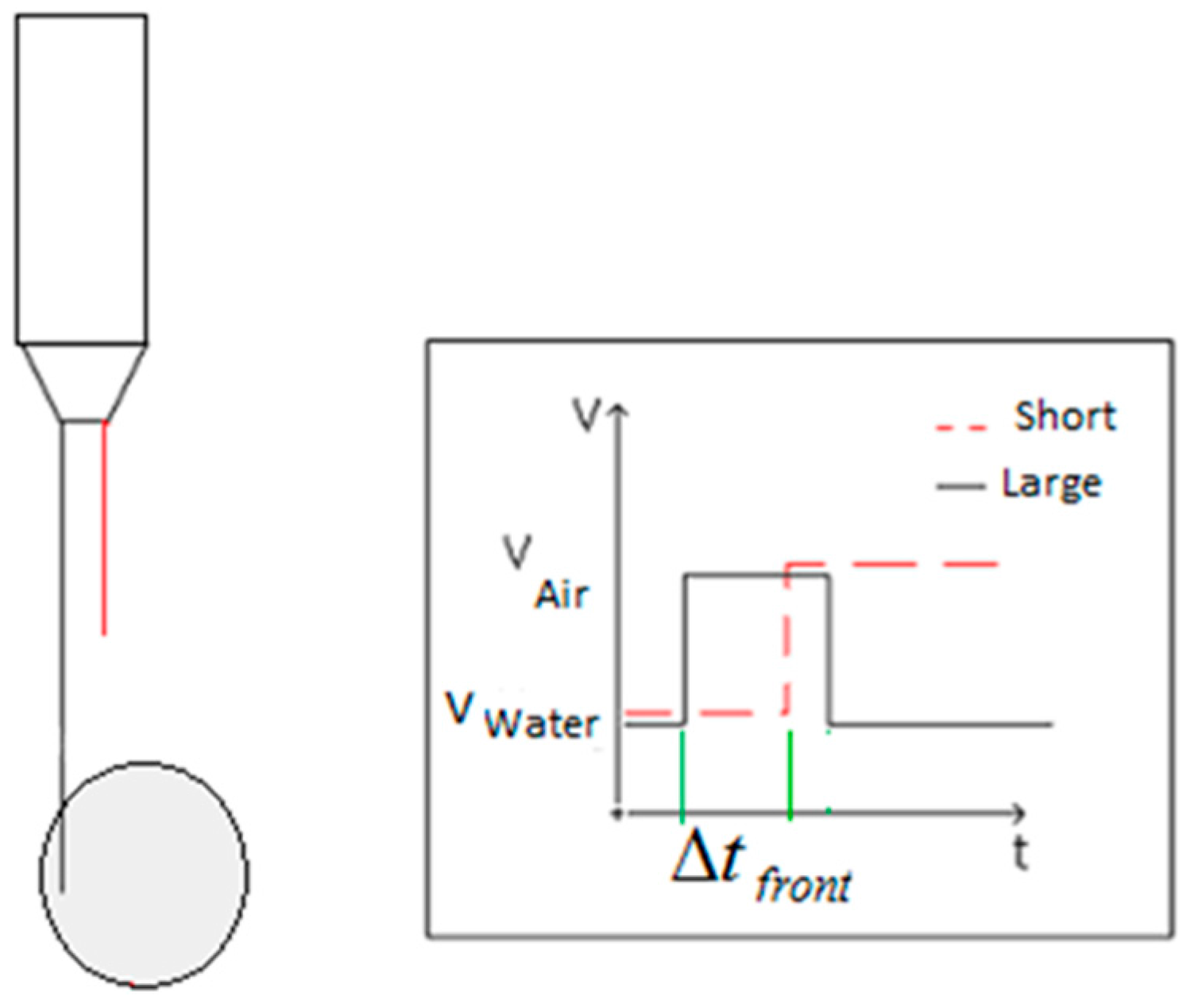

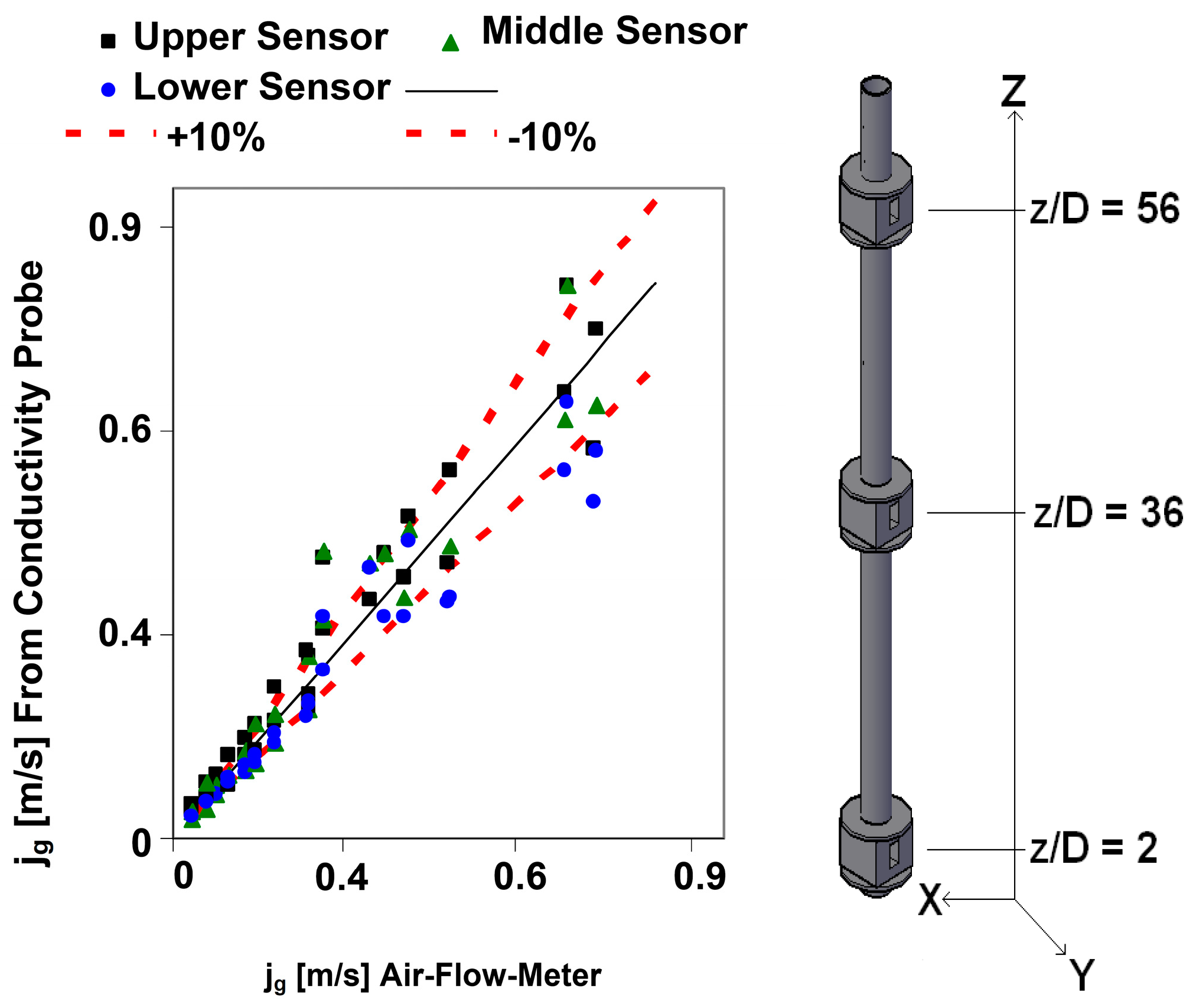

This paper describes all the procedures and methods currently used at UPV (Universitat Politécnica de Valencia) and UJI (University Jaume I) for the development and use of sensors for multi-phase flow analysis in vertical pipes. This paper also describes the methods that we use to obtain the values of the two-phase flow magnitudes from the sensor signals and the validation and cross-verification methods developed to check the consistency of the results obtained for these magnitudes with the sensors. First, we provide information about the procedures used to build the multi-sensor conductivity probes and some of the tests performed with different materials to avoid sensor degradation issues. In addition, we provide information about the characteristics of the electric circuits that feed the sensors. Then the data acquisition of the conductivity probe, the signal conditioning and the data processing including the device that have been designed to automatize all the measurement process of moving the sensors inside the channels by means of stepper electric motors controlled by computer are shown in operation. Then, we explain the methods used for bubble identification and categorization. Finally, we describe the methodology used to obtain the two-phase flow information from the sensor signals. This includes the following items: void fraction, gas velocity, Sauter mean diameter and interfacial area concentration. The last part of this paper is devoted to the conductance probes developed for the annular flow analysis, which includes the analysis of the interfacial waves produced in annular flow and that requires a different type of sensor. View Full-Text
Keywords: multi-sensor conductivity probe; conductance sensors; sensors for two-phase flow multi-sensor conductivity probe; conductance sensors; sensors for two-phase flow
Figures

Figure 1
