Sensors 2017, 17(4), 699; doi:10.3390/s17040699

Frequency-Switchable Microfluidic CSRR-Loaded QMSIW Band-Pass Filter Using a Liquid Metal Alloy

School of Electrical and Electronics Engineering, College of Engineering, Chung-Ang University, 84 Heukseok-ro, Dongjak-gu, Seoul 156-756, Korea
*
Author to whom correspondence should be addressed.
Academic Editors: Amine Miled and Jesse Greener
Received: 11 January 2017 / Revised: 27 March 2017 / Accepted: 27 March 2017 / Published: 28 March 2017
(This article belongs to the Special Issue Microfluidics-Based Microsystem Integration Research)
View Full-Text   |   Download PDF [4702 KB, uploaded 28 March 2017]   |

Abstract

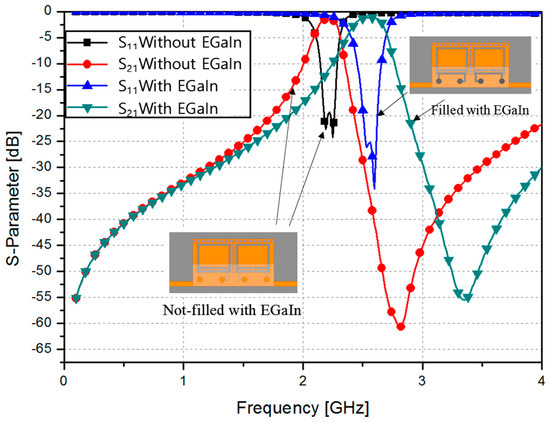

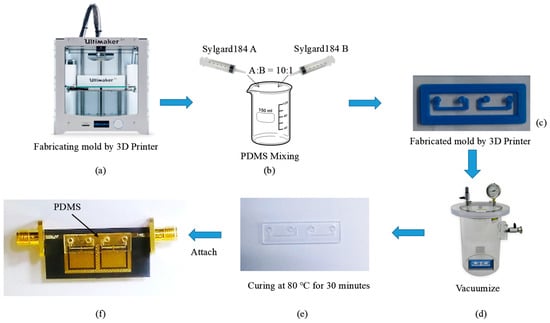

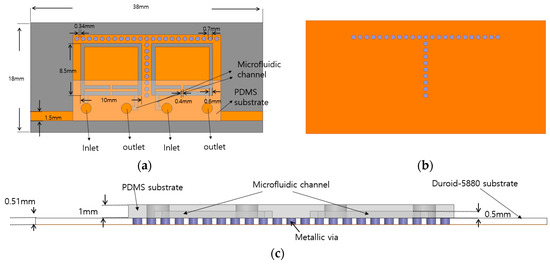

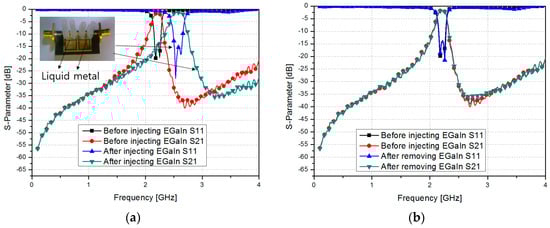

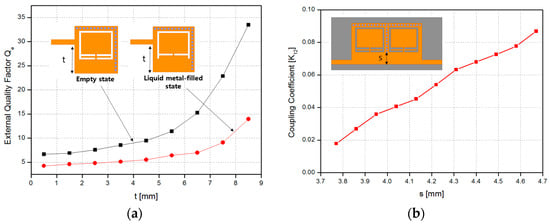

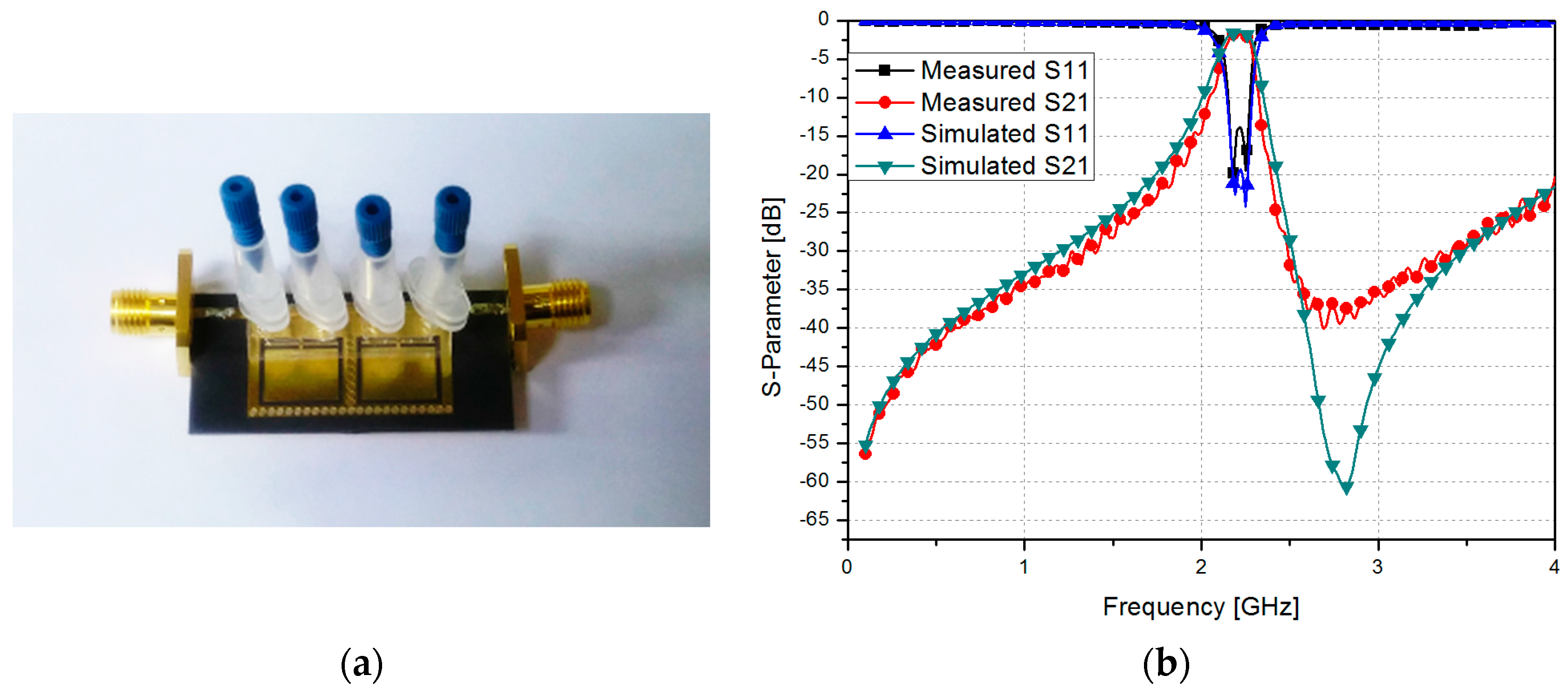

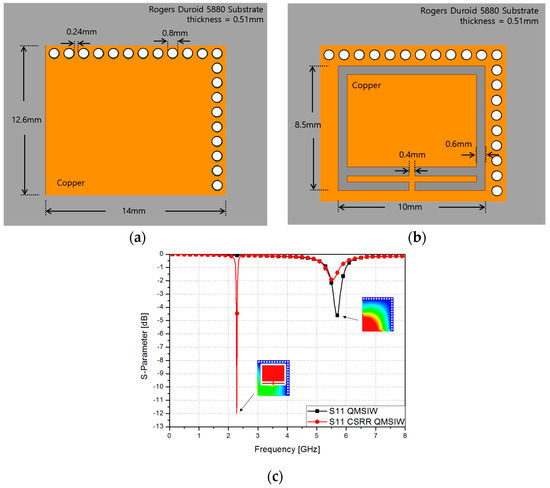

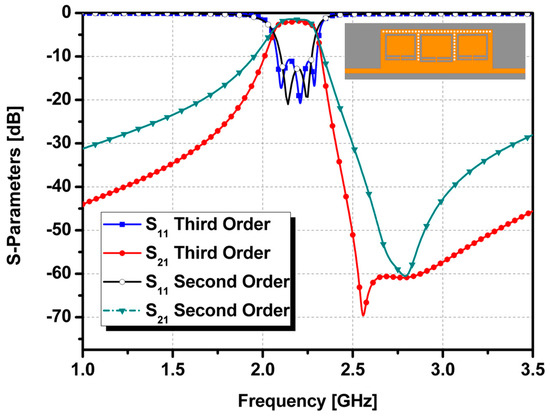

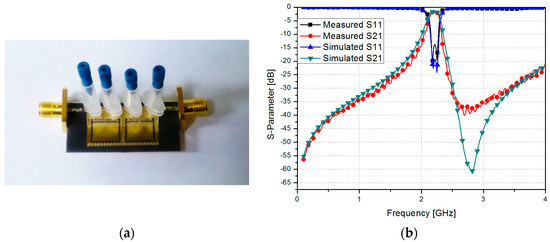

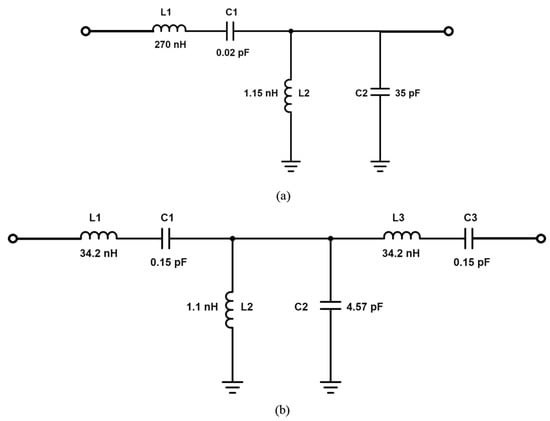

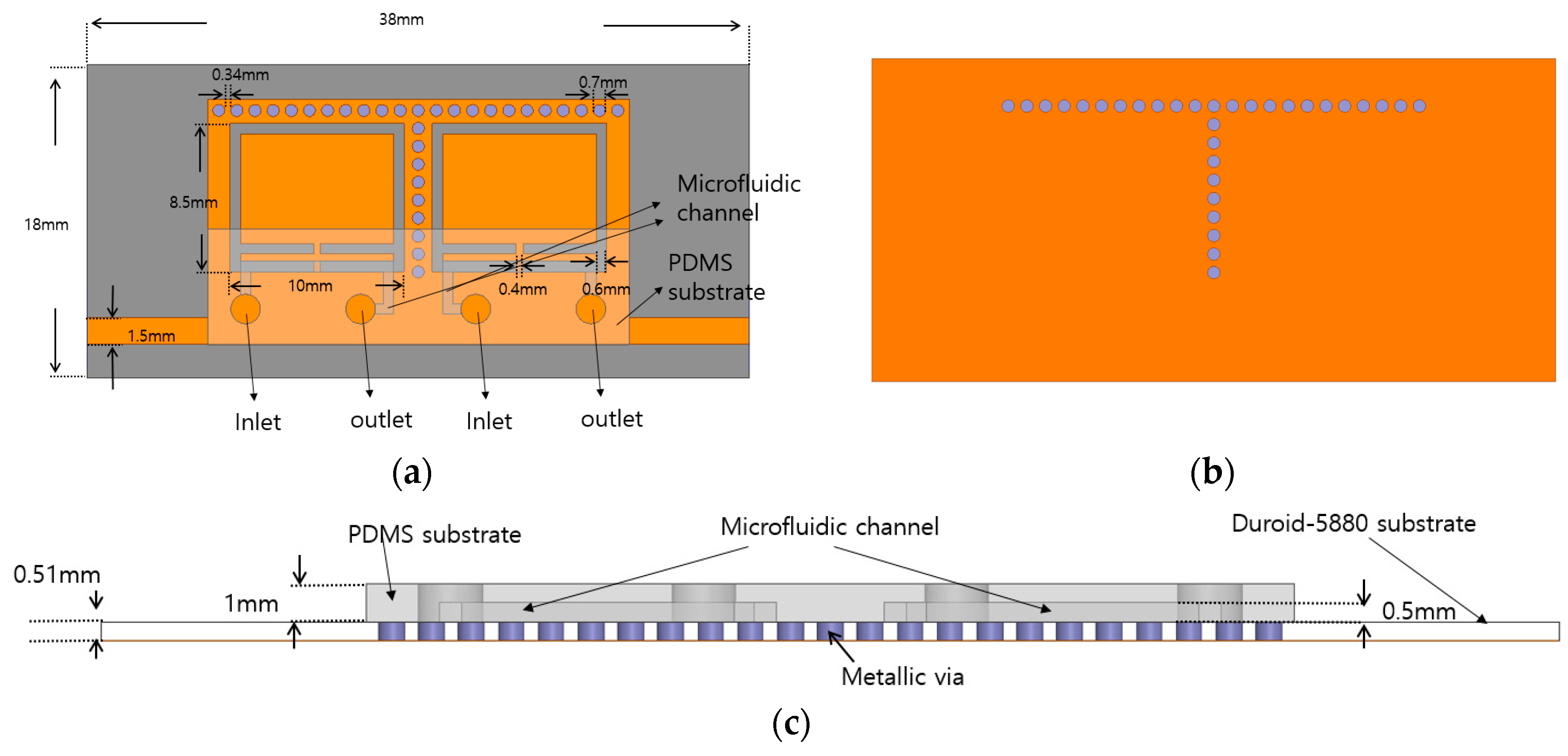

In this paper, we have proposed a frequency-switchable complementary split-ring resonator (CSRR)-loaded quarter-mode substrate-integrated-waveguide (QMSIW) band-pass filter. For frequency switching, a microfluidic channel and liquid metal are used. The liquid metal used is eutectic gallium-indium (EGaIn), consisting of 24.5% indium and 75.5% gallium. The microfluidic channels are built using the elastomer polydimethylsiloxane (PDMS) and three-dimensional-printed microfluidic channel frames. The CSRR-loaded QMSIW band-pass filter is designed to have two states. Before the injection of the liquid metal, the measured center frequency and fractional bandwidths are 2.205 GHz and 6.80%, respectively. After injection, the center frequency shifts from 2.205 GHz to 2.56 GHz. Although the coupling coefficient is practically unchanged, the fractional bandwidth changes from 6.8% to 9.38%, as the CSRR shape changes and the external quality factor decreases. After the removal of the liquid metal, the measured values are similar to the values recorded before the liquid metal was injected. The repeatability of the frequency-switchable mechanism is, therefore, verified. View Full-Text
Keywords: band-pass filter; QMSIW; 3D printing; microfluidic channel; CSRR; EGaIn; frequency-switchable band-pass filter; QMSIW; 3D printing; microfluidic channel; CSRR; EGaIn; frequency-switchable
Figures

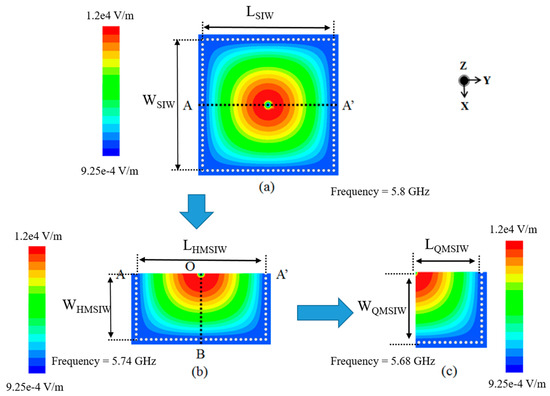

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
