Open AccessArticle
Sensors 2017, 17(4), 684; doi:10.3390/s17040684

Rapid and Low-Cost CRP Measurement by Integrating a Paper-Based Microfluidic Immunoassay with Smartphone (CRP-Chip)

1
Institute of Applied Technology, Hefei Institutes of Physical Science, Chinese Academy of Sciences, Hefei 230031, China
2
Department of Physics and Astronomy, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
3
Seven Oaks General Hospital, Winnipeg, MB R2V 3M3, Canada
4
Department of Biosystems Engineering, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
5
Department of Immunology, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
6
Department of Biological Sciences, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
*
Authors to whom correspondence should be addressed.
Academic Editors: Stephane Evoy and Baris Fidan
Received: 7 February 2017 / Revised: 14 March 2017 / Accepted: 23 March 2017 / Published: 26 March 2017
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Canada 2017)
View Full-Text   |   Download PDF [3584 KB, uploaded 26 March 2017]   |

Abstract

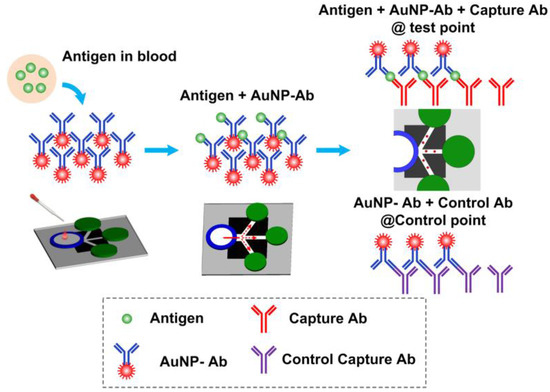

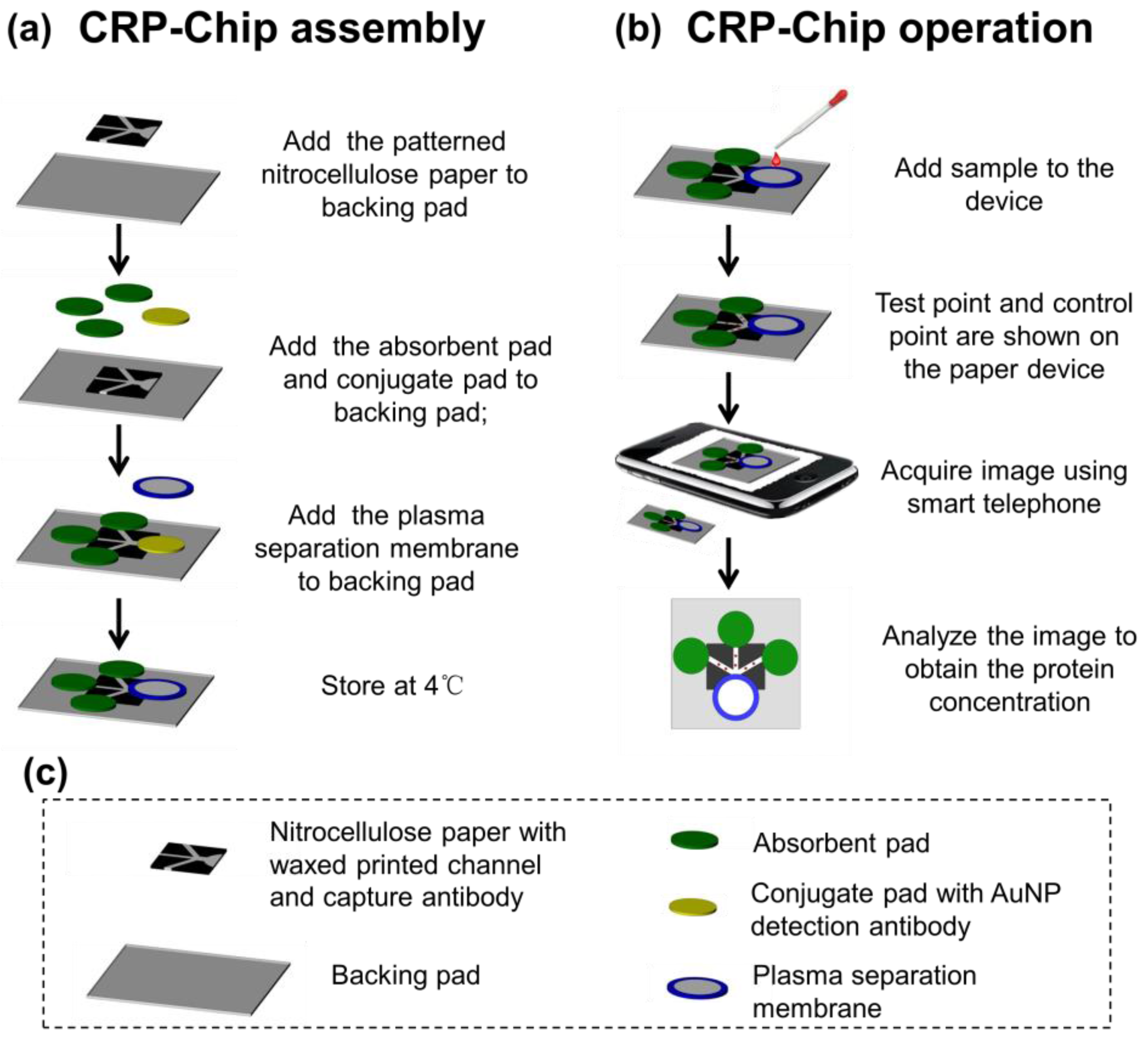

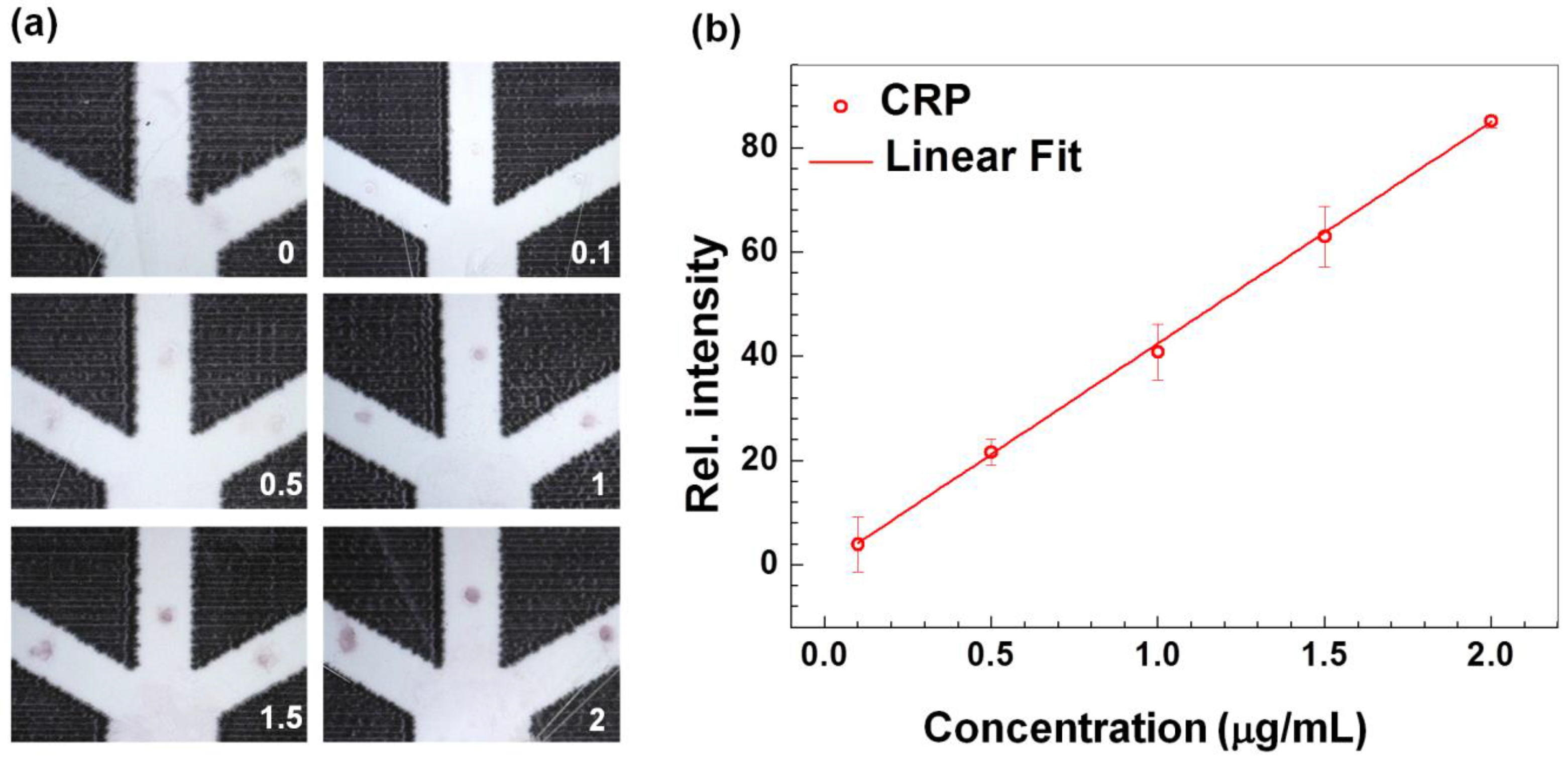

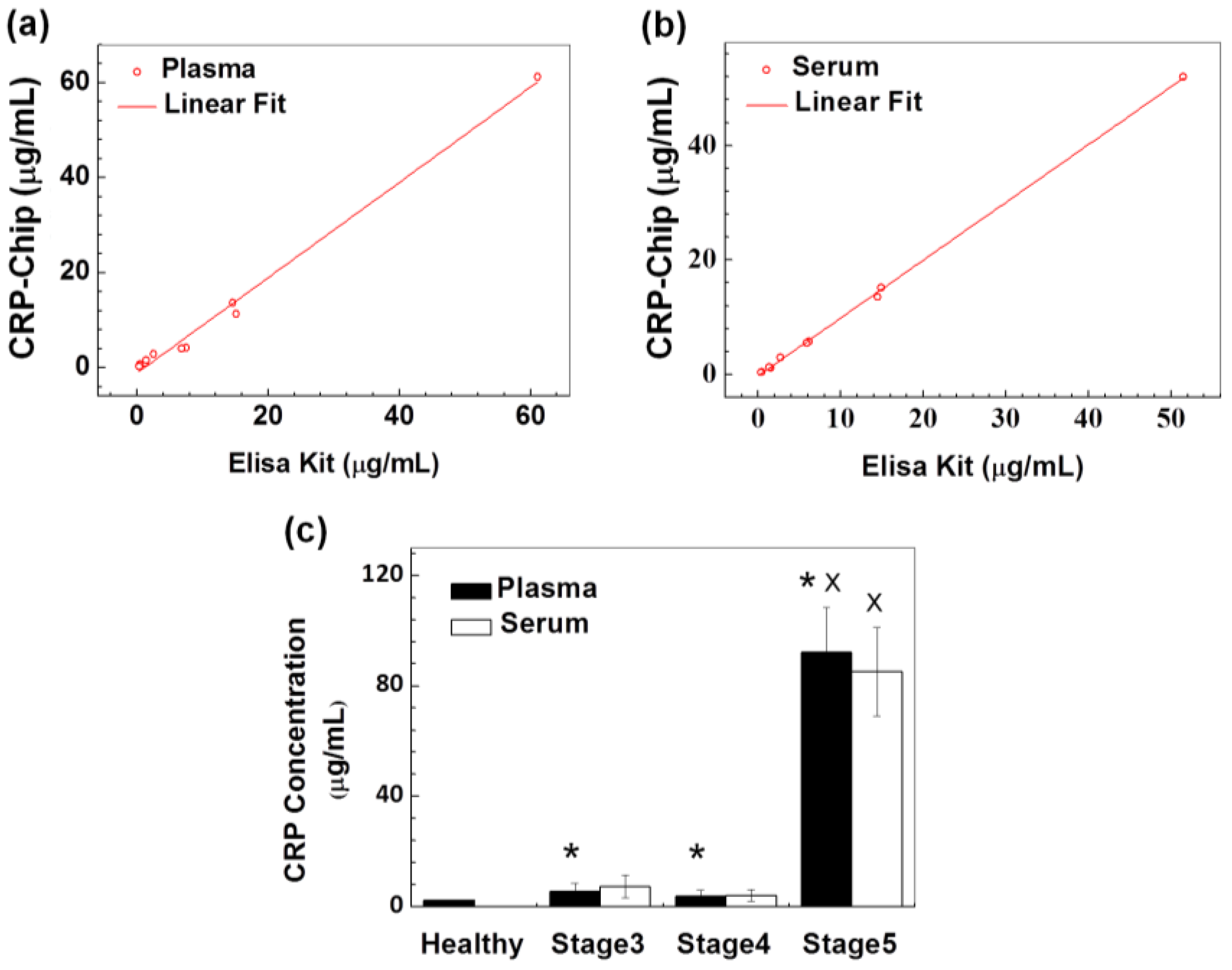

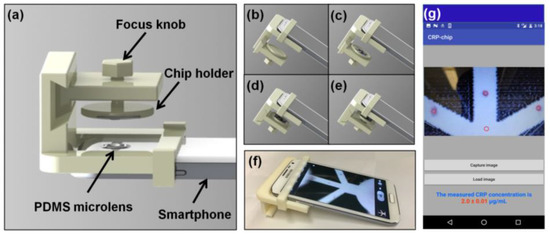

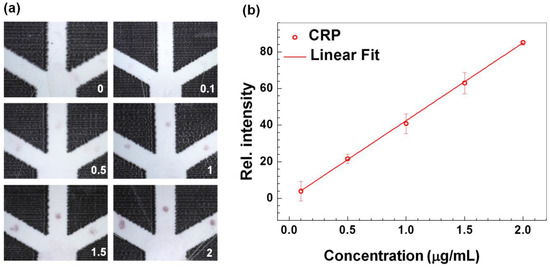

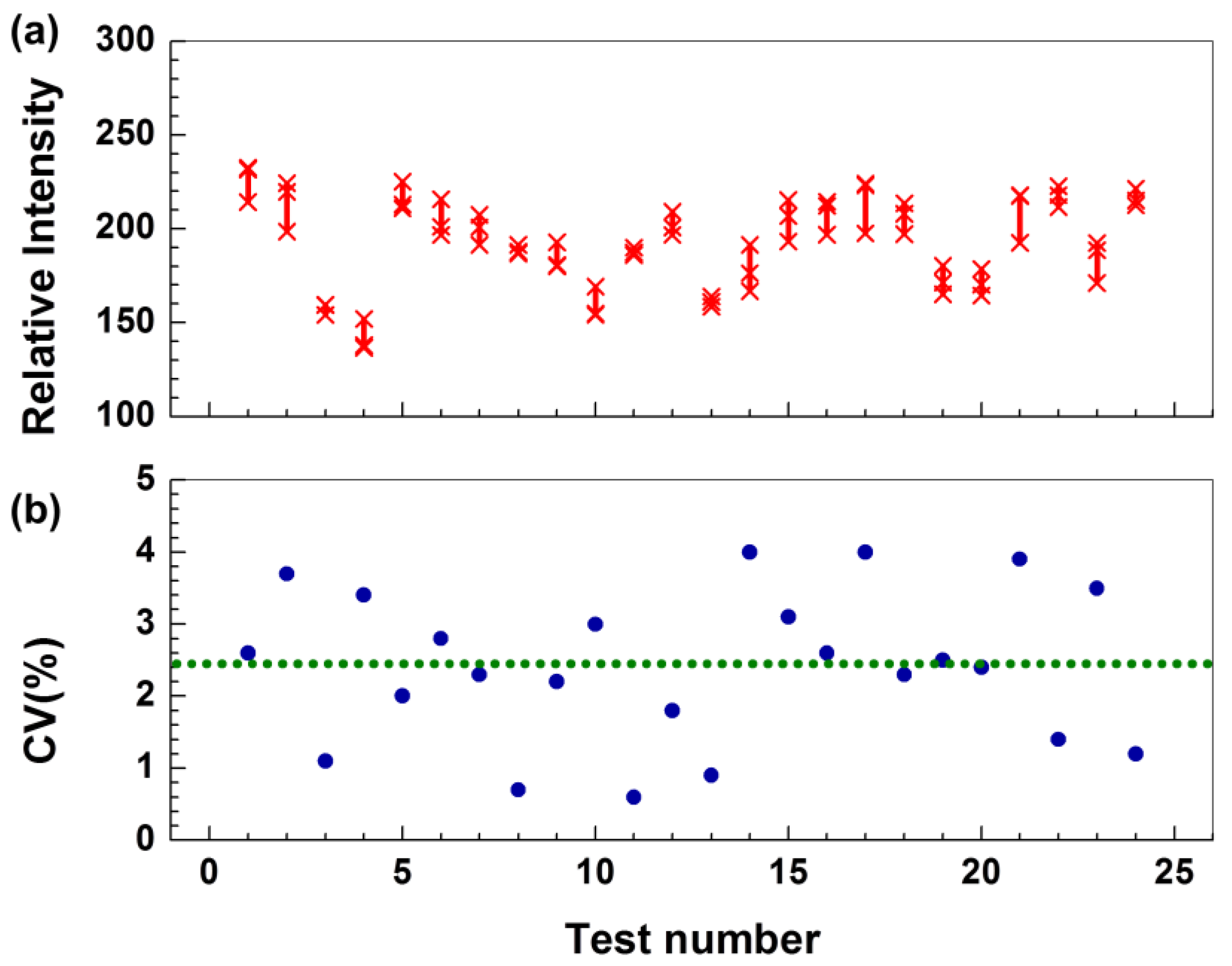

Traditional diagnostic tests for chronic diseases are expensive and require a specialized laboratory, therefore limiting their use for point-of-care (PoC) testing. To address this gap, we developed a method for rapid and low-cost C-reactive protein (CRP) detection from blood by integrating a paper-based microfluidic immunoassay with a smartphone (CRP-Chip). We chose CRP for this initial development because it is a strong biomarker of prognosis in chronic heart and kidney disease. The microfluidic immunoassay is realized by lateral flow and gold nanoparticle-based colorimetric detection of the target protein. The test image signal is acquired and analyzed using a commercial smartphone with an attached microlens and a 3D-printed chip–phone interface. The CRP-Chip was validated for detecting CRP in blood samples from chronic kidney disease patients and healthy subjects. The linear detection range of the CRP-Chip is up to 2 μg/mL and the detection limit is 54 ng/mL. The CRP-Chip test result yields high reproducibility and is consistent with the standard ELISA kit. A single CRP-Chip can perform the test in triplicate on a single chip within 15 min for less than 50 US cents of material cost. This CRP-Chip with attractive features of low-cost, fast test speed, and integrated easy operation with smartphones has the potential to enable future clinical PoC chronic disease diagnosis and risk stratification by parallel measurements of a panel of protein biomarkers. View Full-Text
Keywords: C-reactive protein; protein biomarkers; chronic disease diagnosis; microfluidic device; smartphone; low-cost C-reactive protein; protein biomarkers; chronic disease diagnosis; microfluidic device; smartphone; low-cost
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
