Sensors 2017, 17(2), 254; doi:10.3390/s17020254

A New, Adaptable, Optical High-Resolution 3-Axis Sensor

Institute for Health Care Engineering, Graz University of Technology, Stremayrgasse 16, 8010 Graz, Austria
*
Authors to whom correspondence should be addressed.
Received: 13 December 2016 / Accepted: 23 January 2017 / Published: 27 January 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [6420 KB, uploaded 4 February 2017]   |

Abstract

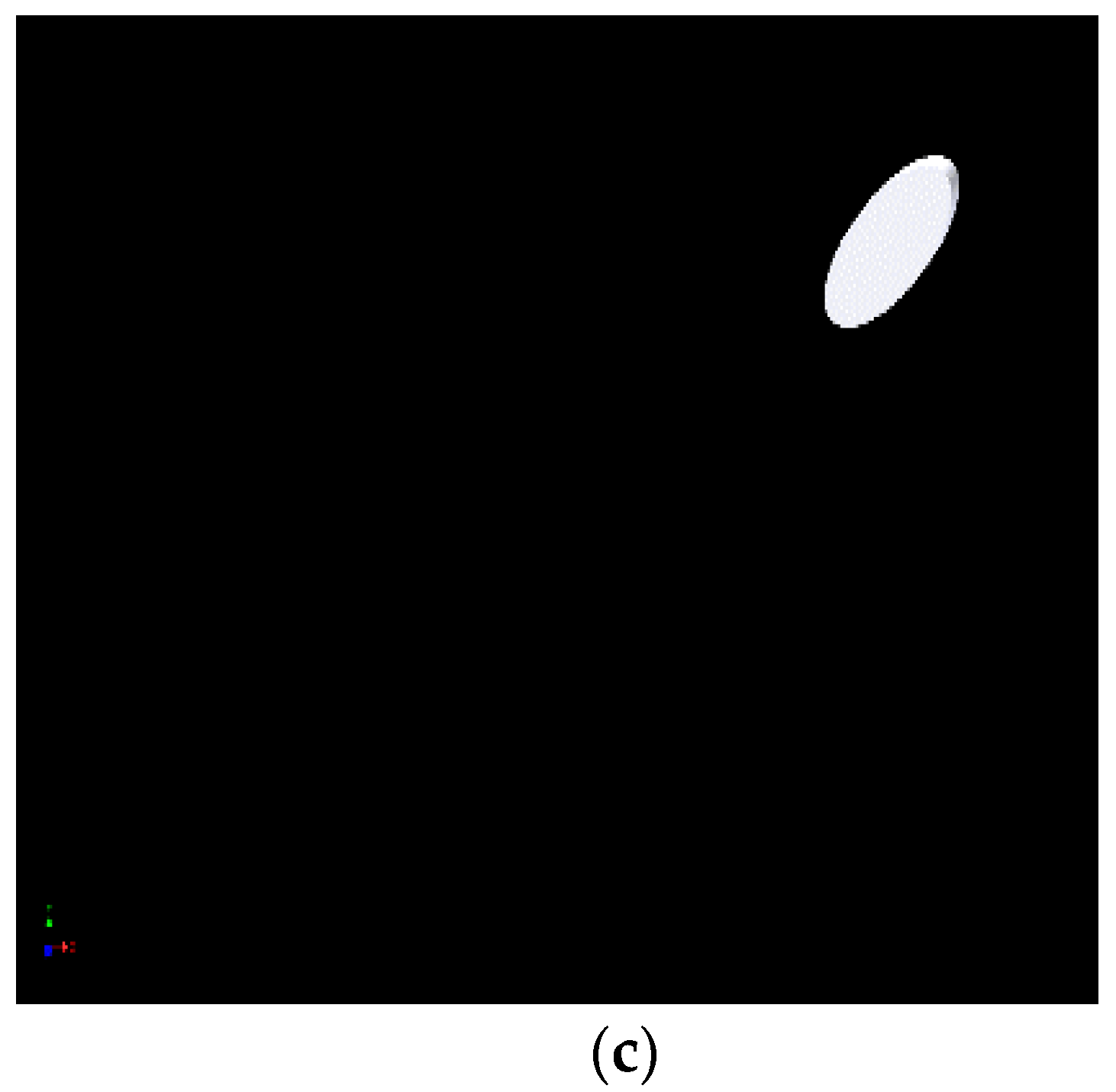

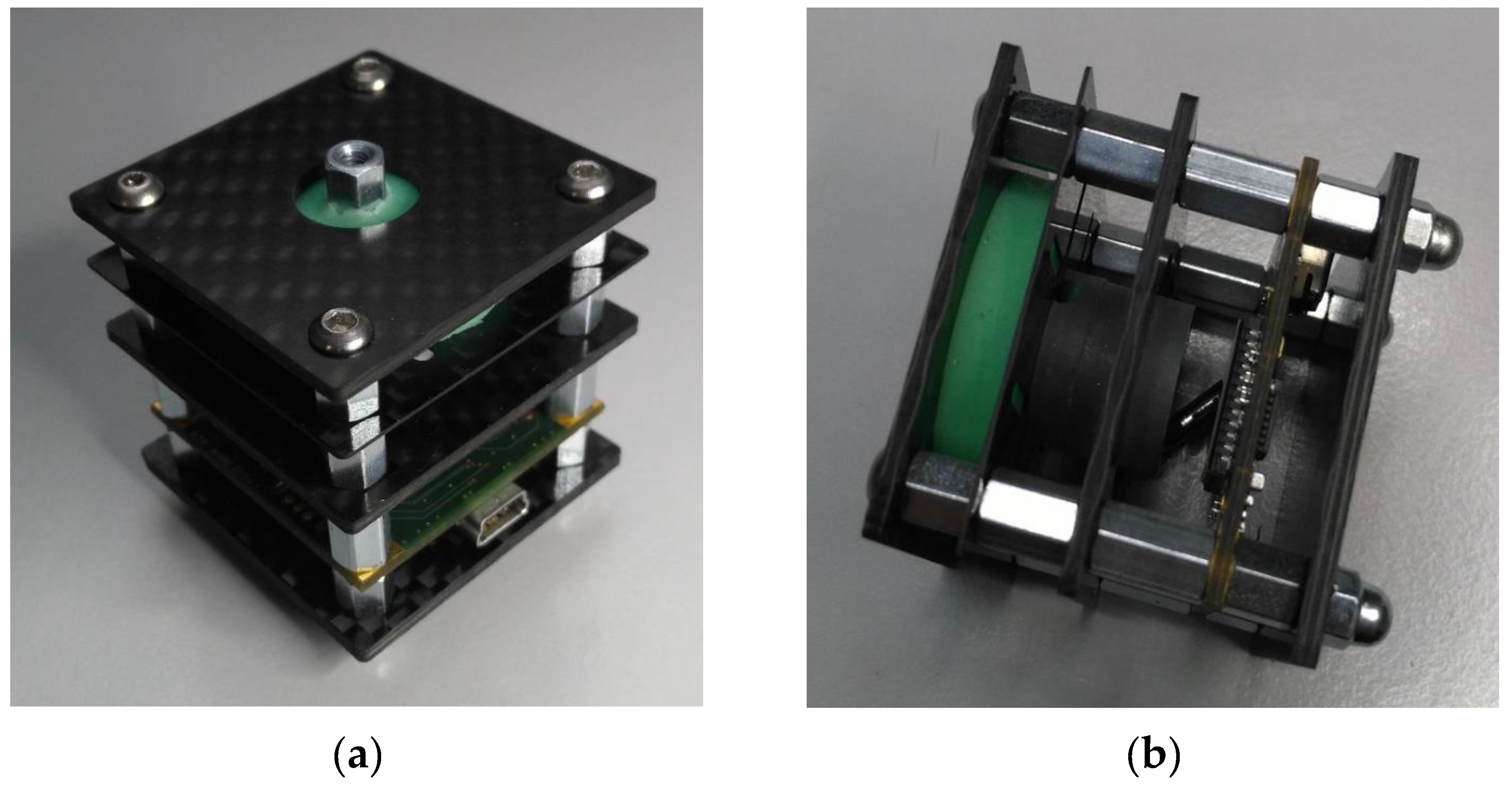

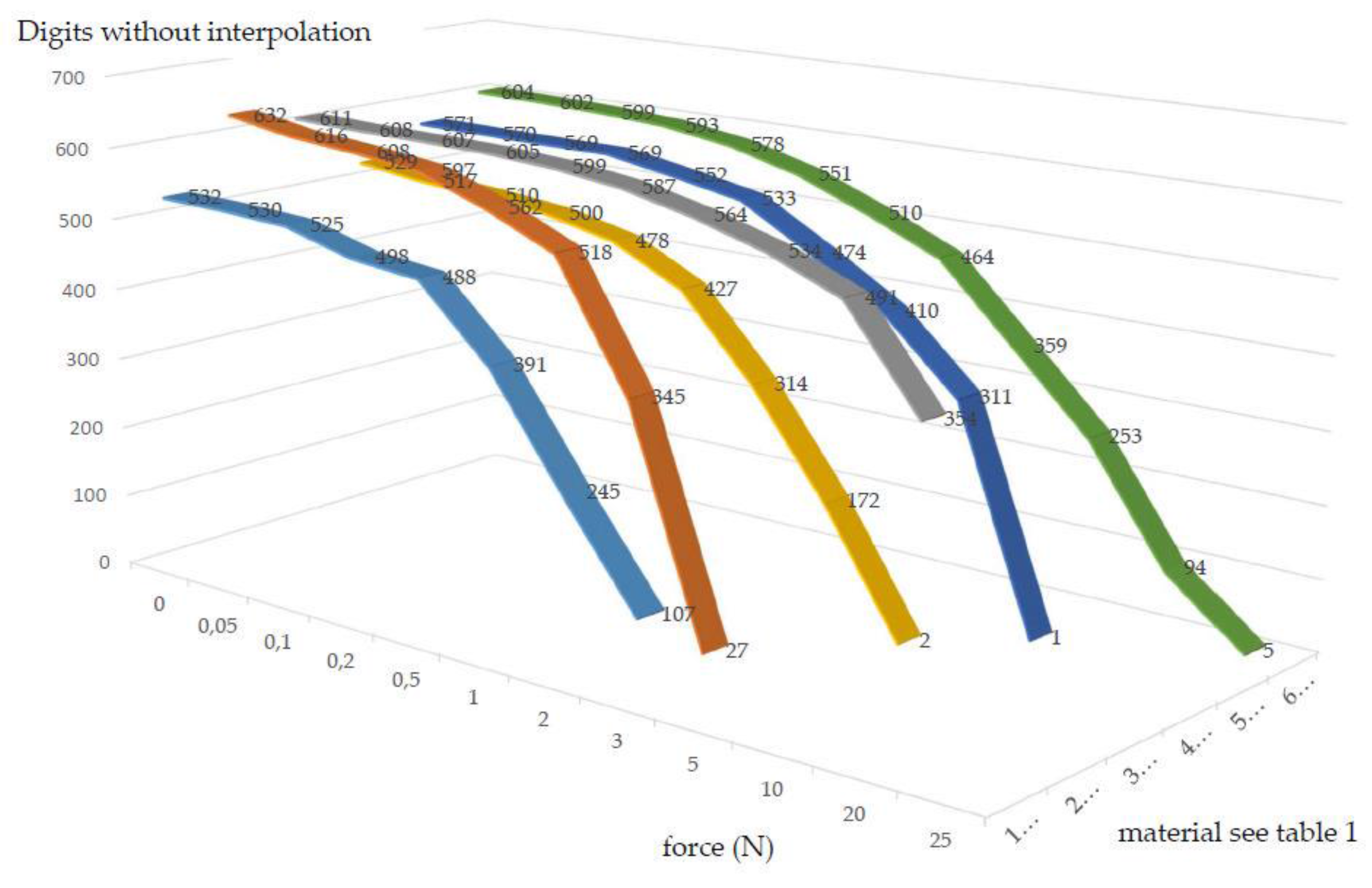

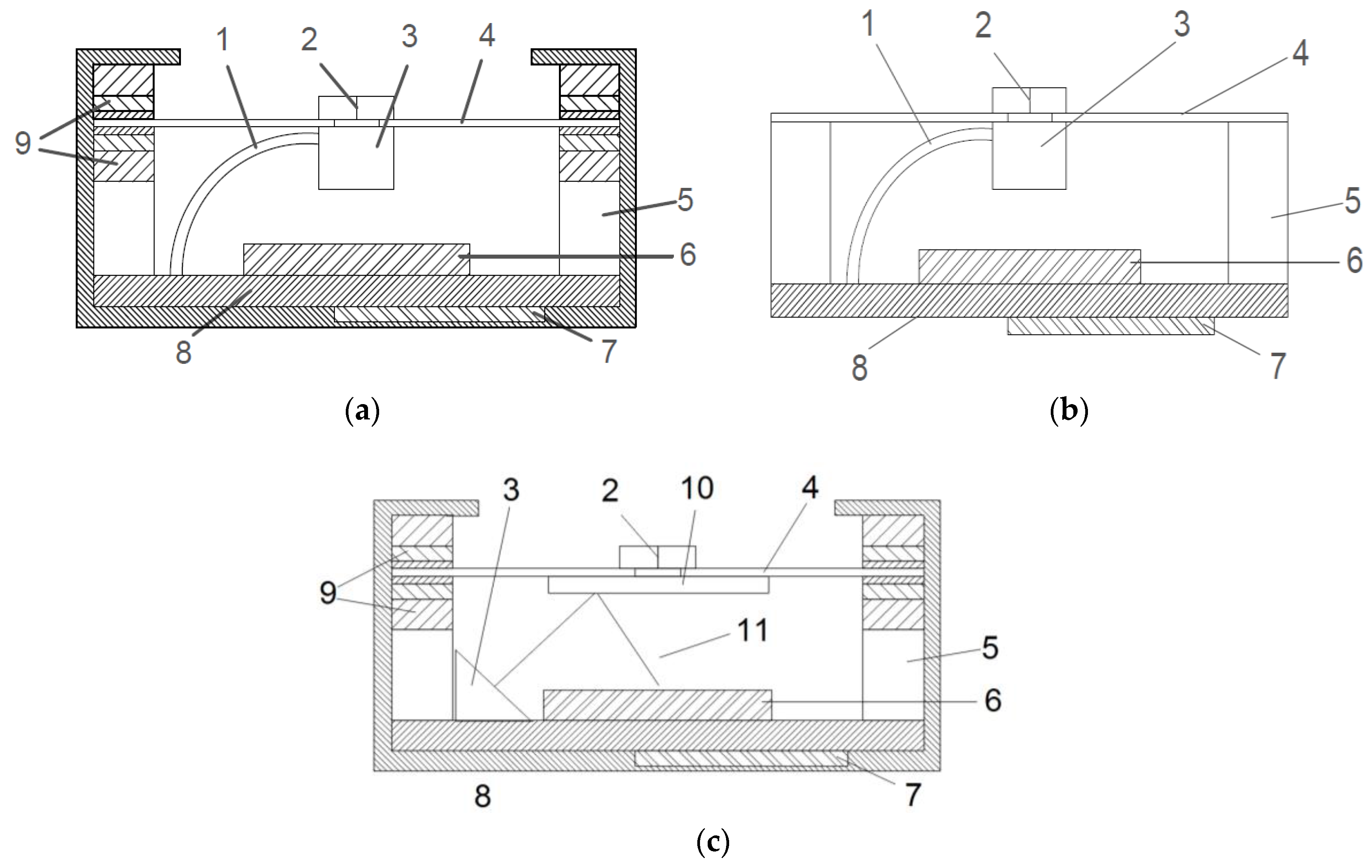

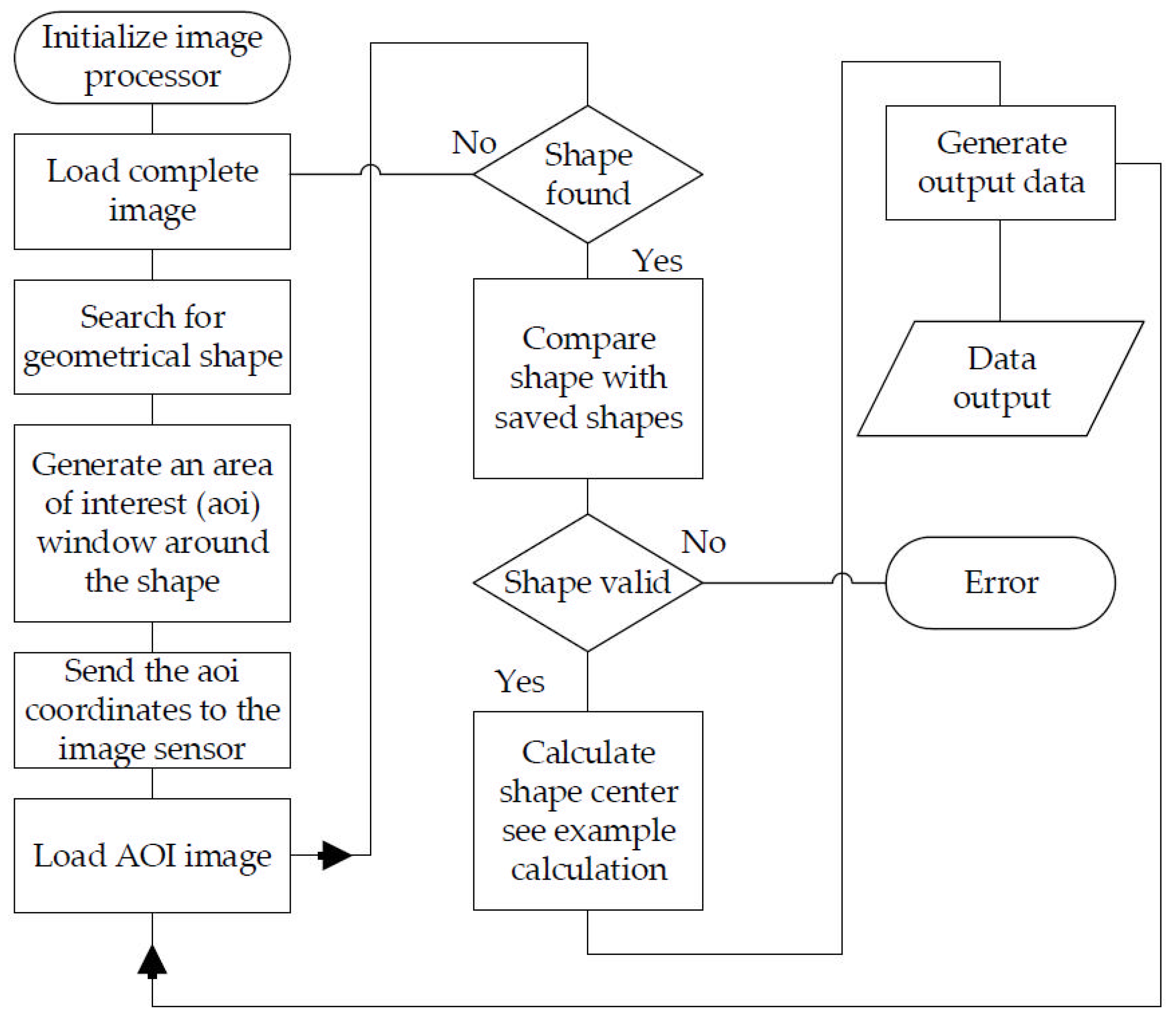

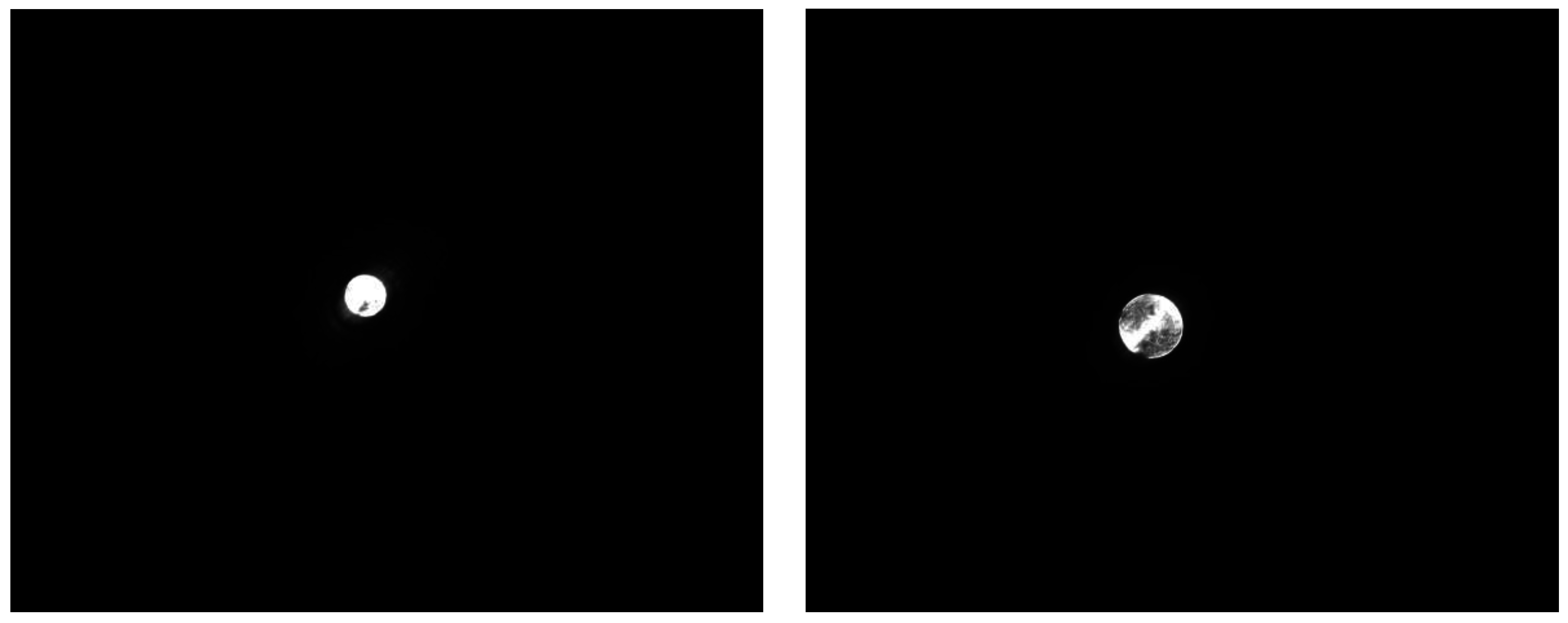

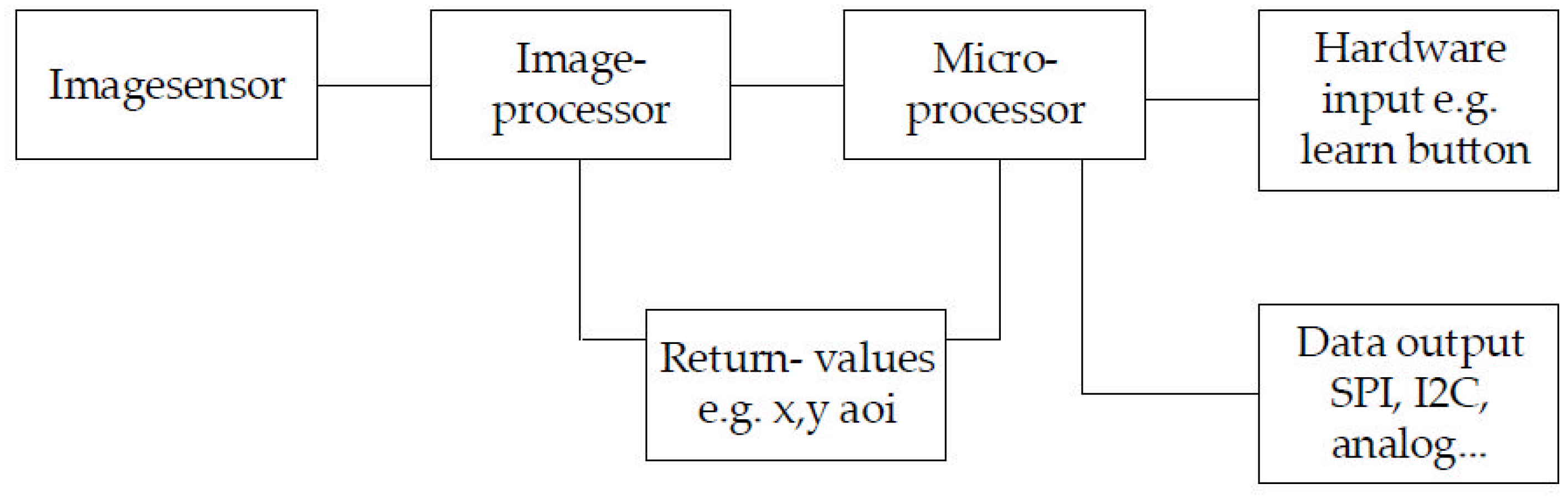

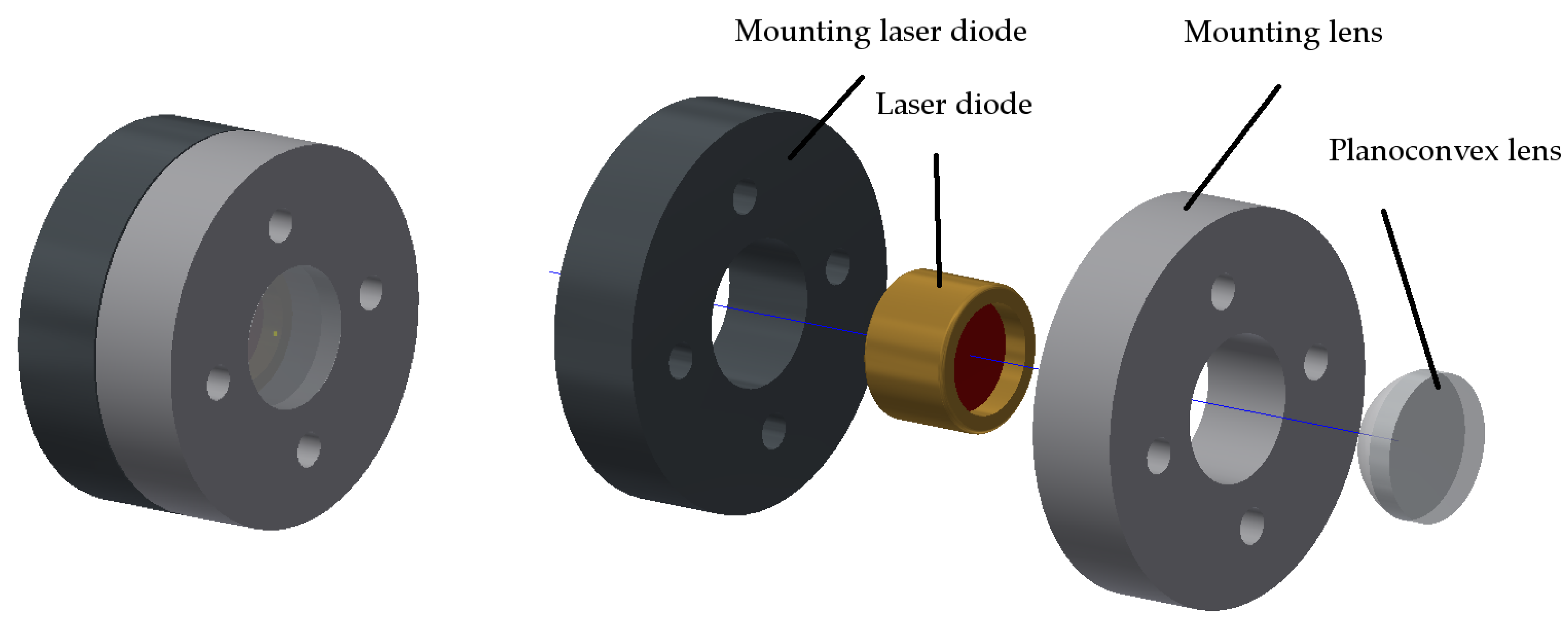

This article presents a new optical, multi-functional, high-resolution 3-axis sensor which serves to navigate and can, for example, replace standard joysticks in medical devices such as electric wheelchairs, surgical robots or medical diagnosis devices. A light source, e.g., a laser diode, is affixed to a movable axis and projects a random geometric shape on an image sensor (CMOS or CCD). The downstream microcontroller’s software identifies the geometric shape’s center, distortion and size, and then calculates x, y, and z coordinates, which can be processed in attached devices. Depending on the image sensor in use (e.g., 6.41 megapixels), the 3-axis sensor features a resolution of 1544 digits from right to left and 1038 digits up and down. Through interpolation, these values rise by a factor of 100. A unique feature is the exact reproducibility (deflection to coordinates) and its precise ability to return to its neutral position. Moreover, optical signal processing provides a high level of protection against electromagnetic and radio frequency interference. The sensor is adaptive and adjustable to fit a user’s range of motion (stroke and force). This recommendation aims to optimize sensor systems such as joysticks in medical devices in terms of safety, ease of use, and adaptability. View Full-Text
Keywords: tactile sensors; assistive technologies; power wheelchair; medical systems; robotic; joystick; optical sensor tactile sensors; assistive technologies; power wheelchair; medical systems; robotic; joystick; optical sensor
