Open AccessArticle
Sensors 2017, 17(12), 2866; https://doi.org/10.3390/s17122866

Position Tracking During Human Walking Using an Integrated Wearable Sensing System

School of Mechanical, Aerospace and Civil Engineering, University of Manchester, Manchester M13 9PL, UK
Current address: Imperial College London, London SW7 2AZ, UK.
*
Author to whom correspondence should be addressed.
Received: 10 November 2017 / Revised: 3 December 2017 / Accepted: 8 December 2017 / Published: 10 December 2017
View Full-Text   |   Download PDF [3844 KB, uploaded 10 December 2017]   |

Abstract

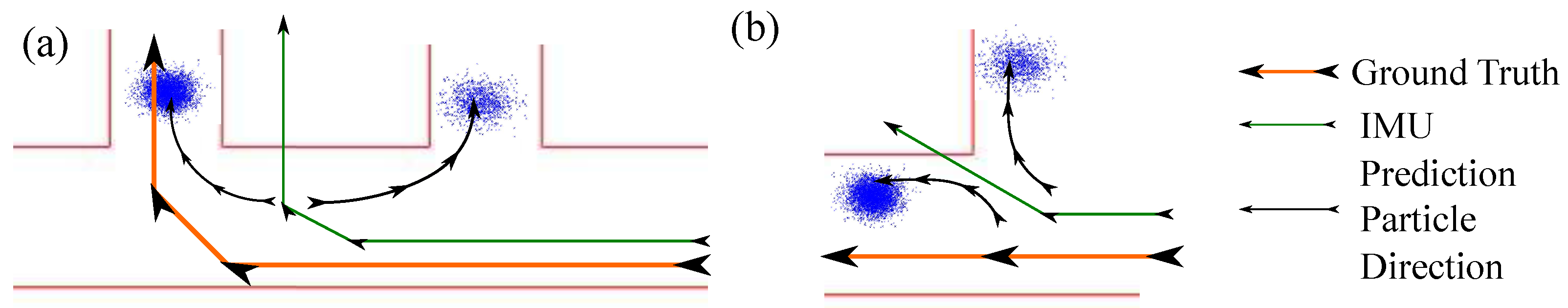

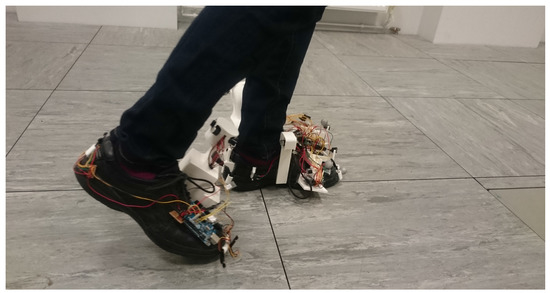

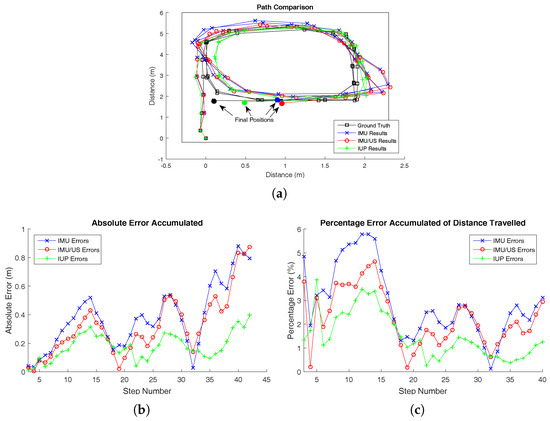

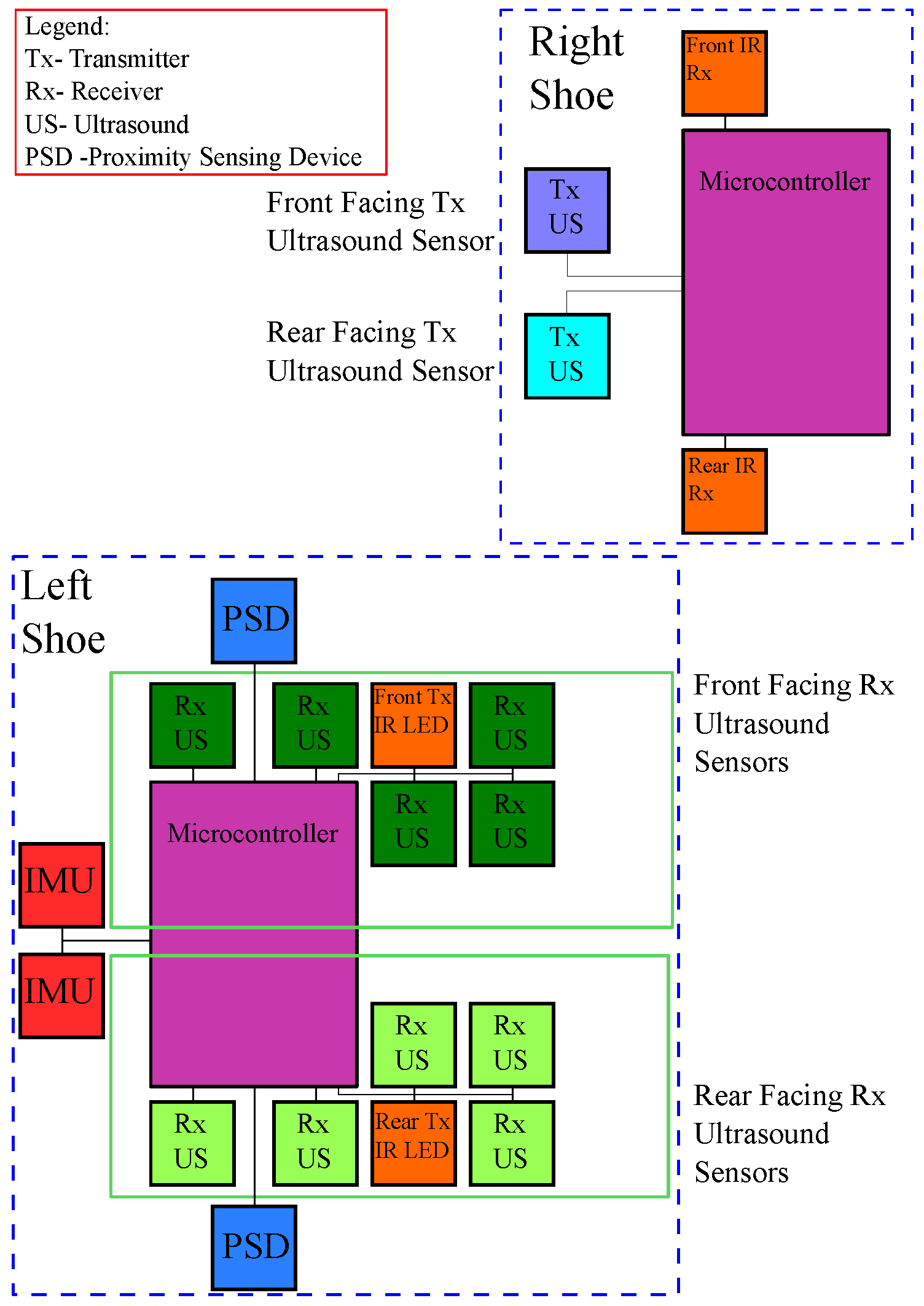

Progress has been made enabling expensive, high-end inertial measurement units (IMUs) to be used as tracking sensors. However, the cost of these IMUs is prohibitive to their widespread use, and hence the potential of low-cost IMUs is investigated in this study. A wearable low-cost sensing system consisting of IMUs and ultrasound sensors was developed. Core to this system is an extended Kalman filter (EKF), which provides both zero-velocity updates (ZUPTs) and Heuristic Drift Reduction (HDR). The IMU data was combined with ultrasound range measurements to improve accuracy. When a map of the environment was available, a particle filter was used to impose constraints on the possible user motions. The system was therefore composed of three subsystems: IMUs, ultrasound sensors, and a particle filter. A Vicon motion capture system was used to provide ground truth information, enabling validation of the sensing system. Using only the IMU, the system showed loop misclosure errors of 1% with a maximum error of 4–5% during walking. The addition of the ultrasound sensors resulted in a 15% reduction in the total accumulated error. Lastly, the particle filter was capable of providing noticeable corrections, which could keep the tracking error below 2% after the first few steps. View Full-Text
Keywords: Kalman filter; pedestrian dead reckoning; wearable sensors; IMU navigation Kalman filter; pedestrian dead reckoning; wearable sensors; IMU navigation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
