Open AccessArticle
Sensors 2017, 17(11), 2643; https://doi.org/10.3390/s17112643

How Well Can We Extract the Permanent Displacement from Low-Cost MEMS Accelerometers?

1
Department of Earth Sciences, National Central University, Jhongli 320, Taiwan
2
Institute of Earth Sciences, Academia Sinica, Taipei 11529, Taiwan
3
Department of Civil Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
4
Department of Geosciences, National Taiwan University, Taipei 10617, Taiwan
*
Author to whom correspondence should be addressed.
Received: 5 October 2017 / Revised: 14 November 2017 / Accepted: 15 November 2017 / Published: 16 November 2017
View Full-Text   |   Download PDF [2776 KB, uploaded 16 November 2017]   |

Abstract

Following the recent establishment of a high-density seismic network equipped with low-cost micro-electro-mechanical system (MEMS) P-wave-alert-device (P-Alert) by the earthquake early warning (EEW) research group at the National Taiwan University, a large quantity of strong-motion records from moderate-magnitude earthquakes (ML > 6) around Taiwan has been accumulated. Using a data preprocessing scheme to recover the dynamic average embedded within the P-Alert data, we adopted an automatic baseline correction approach for the P-Alert accelerograms to determine the coseismic deformation (Cd). Comparisons between the Cd values determined using global positioning system (GPS) data, strong-motion records from the P-Alert network, and data from the Taiwan Strong Motion Instrumentation Program (TSMIP) demonstrates that the near-real-time determination of Cd values (>2 cm), which provide crucial information for seismic hazard mitigation, is possible using records from low-cost MEMS accelerometers. View Full-Text
Keywords: low-cost MEMS accelerometers; earthquake permanent displacement; seismic hazard mitigation; P-Alert low-cost MEMS accelerometers; earthquake permanent displacement; seismic hazard mitigation; P-Alert
Figures

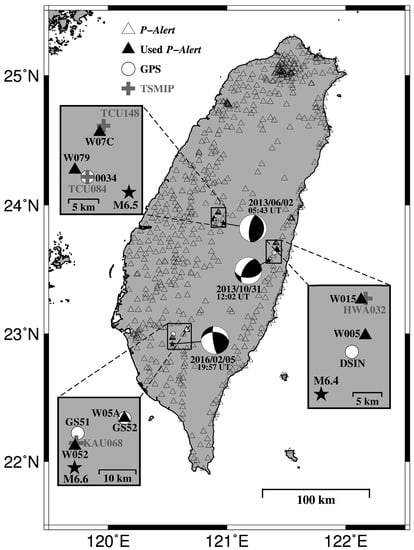

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jan, J.C.; Chao, W.-A.; Wu, Y.-M.; Chen, C.-C.; Lin, C.-H. How Well Can We Extract the Permanent Displacement from Low-Cost MEMS Accelerometers? Sensors 2017, 17, 2643.
