Open AccessArticle
Sensors 2017, 17(11), 2505; doi:10.3390/s17112505

Design, Fabrication, and Modeling of a Novel Dual-Axis Control Input PZT Gyroscope

Department of Mechanical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
*
Author to whom correspondence should be addressed.
Received: 23 August 2017 / Revised: 10 October 2017 / Accepted: 26 October 2017 / Published: 31 October 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [6160 KB, uploaded 1 November 2017]   |

Abstract

Conventional gyroscopes are equipped with a single-axis control input, limiting their performance. Although researchers have proposed control algorithms with dual-axis control inputs to improve gyroscope performance, most have verified the control algorithms through numerical simulations because they lacked practical devices with dual-axis control inputs. The aim of this study was to design a piezoelectric gyroscope equipped with a dual-axis control input so that researchers may experimentally verify those control algorithms in future. Designing a piezoelectric gyroscope with a dual-axis control input is more difficult than designing a conventional gyroscope because the control input must be effective over a broad frequency range to compensate for imperfections, and the multiple mode shapes in flexural deformations complicate the relation between flexural deformation and the proof mass position. This study solved these problems by using a lead zirconate titanate (PZT) material, introducing additional electrodes for shielding, developing an optimal electrode pattern, and performing calibrations of undesired couplings. The results indicated that the fabricated device could be operated at 5.5±1 kHz to perform dual-axis actuations and position measurements. The calibration of the fabricated device was completed by system identifications of a new dynamic model including gyroscopic motions, electromechanical coupling, mechanical coupling, electrostatic coupling, and capacitive output impedance. Finally, without the assistance of control algorithms, the “open loop sensitivity” of the fabricated gyroscope was 1.82 μV/deg/s with a nonlinearity of 9.5% full-scale output. This sensitivity is comparable with those of other PZT gyroscopes with single-axis control inputs. View Full-Text
Keywords: cross-axis coupling; dual-axis control input; electrical feedthrough; piezoelectric actuation; piezoelectric gyroscope; piezoelectric position sensing; quadrature error cross-axis coupling; dual-axis control input; electrical feedthrough; piezoelectric actuation; piezoelectric gyroscope; piezoelectric position sensing; quadrature error
Figures

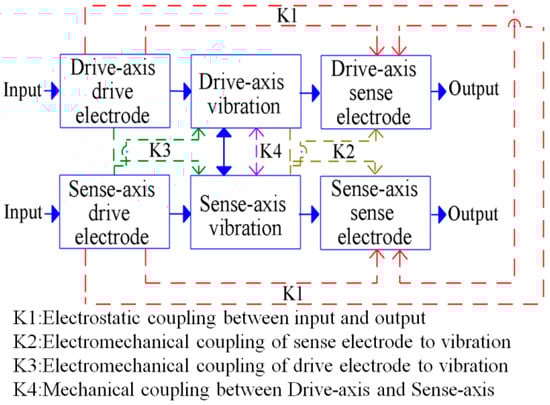

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
