Sensors 2017, 17(1), 47; doi:10.3390/s17010047

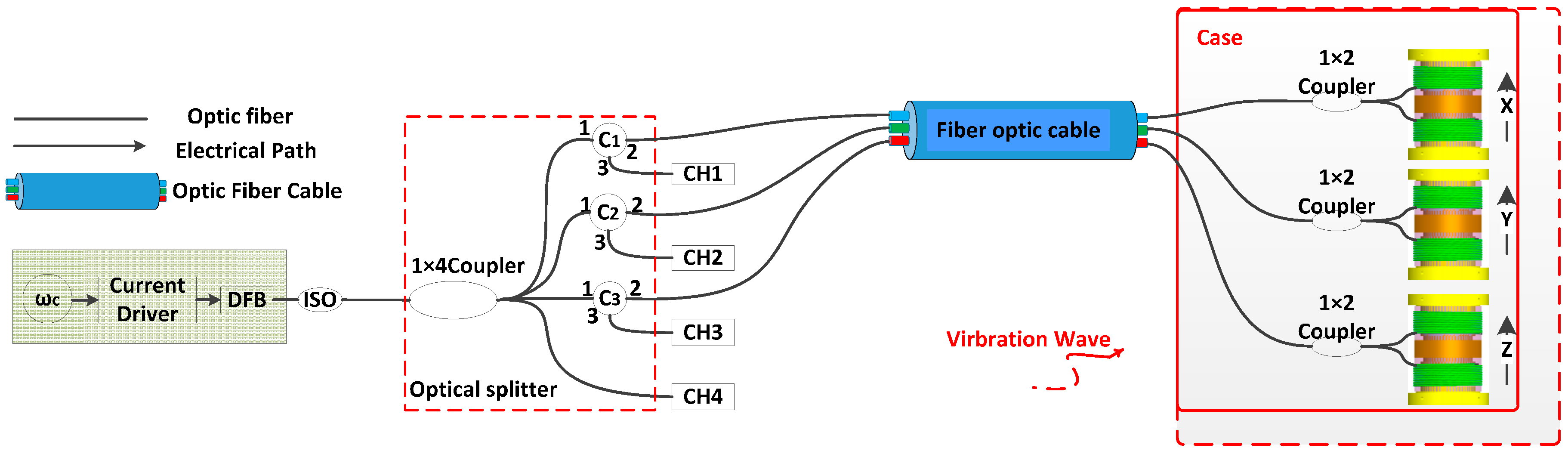

A Fiber-Optic Interferometric Tri-Component Geophone for Ocean Floor Seismic Monitoring

1
College of Instrumentation & Electrical Engineering, Jilin University, Changchun 130061, China
2
Institute of Automation, Shandong Academy of Sciences, Jinan 250014, China
*
Author to whom correspondence should be addressed.
Academic Editors: Manuel Lopez-Amo, Jose Miguel Lopez-Higuera and Jose Luis Santos
Received: 22 October 2016 / Revised: 7 December 2016 / Accepted: 23 December 2016 / Published: 28 December 2016
(This article belongs to the Special Issue Optical Fiber Sensors 2016)
View Full-Text   |   Download PDF [3318 KB, uploaded 28 December 2016]   |

Abstract

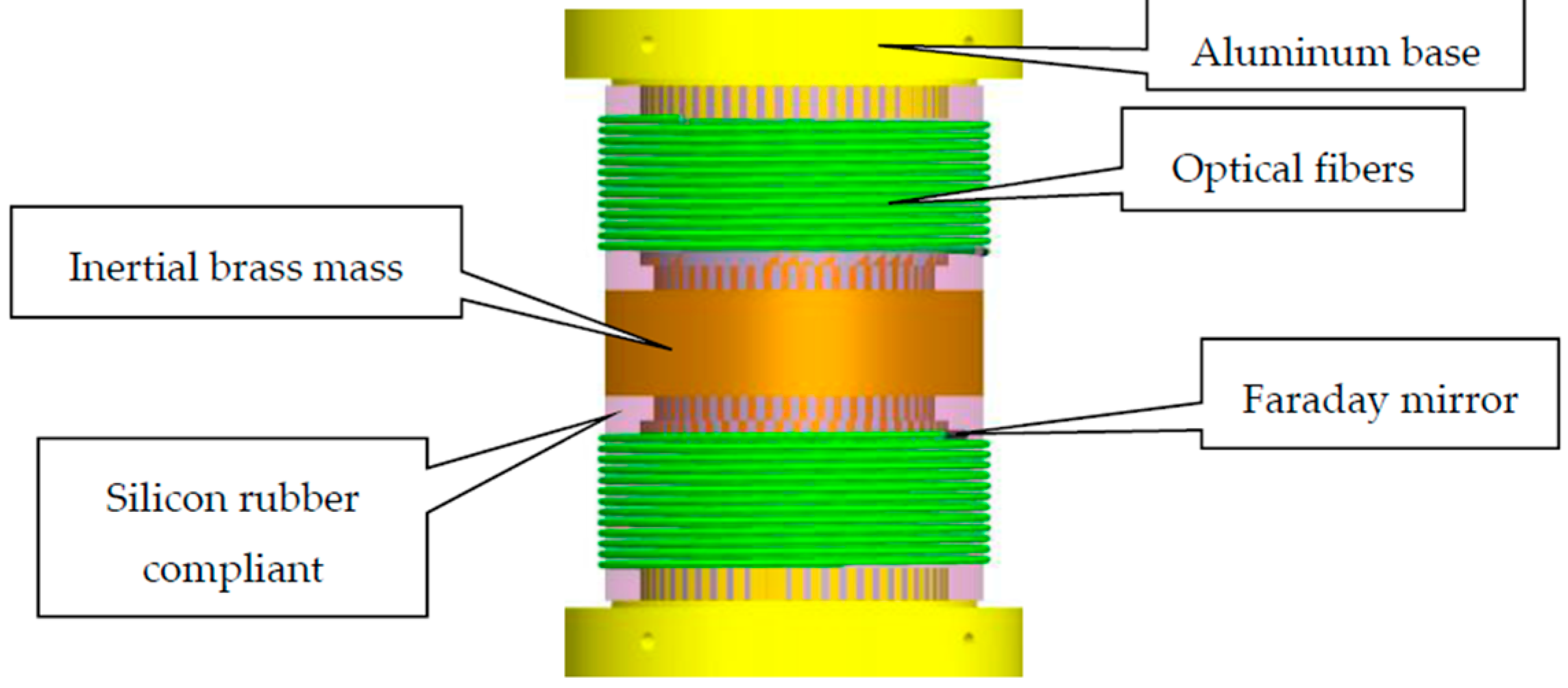

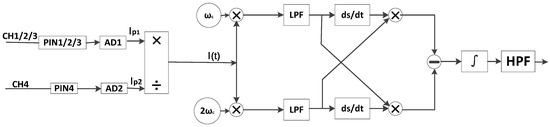

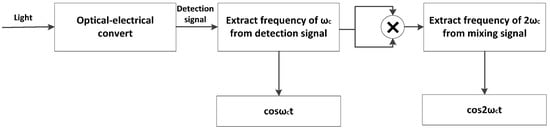

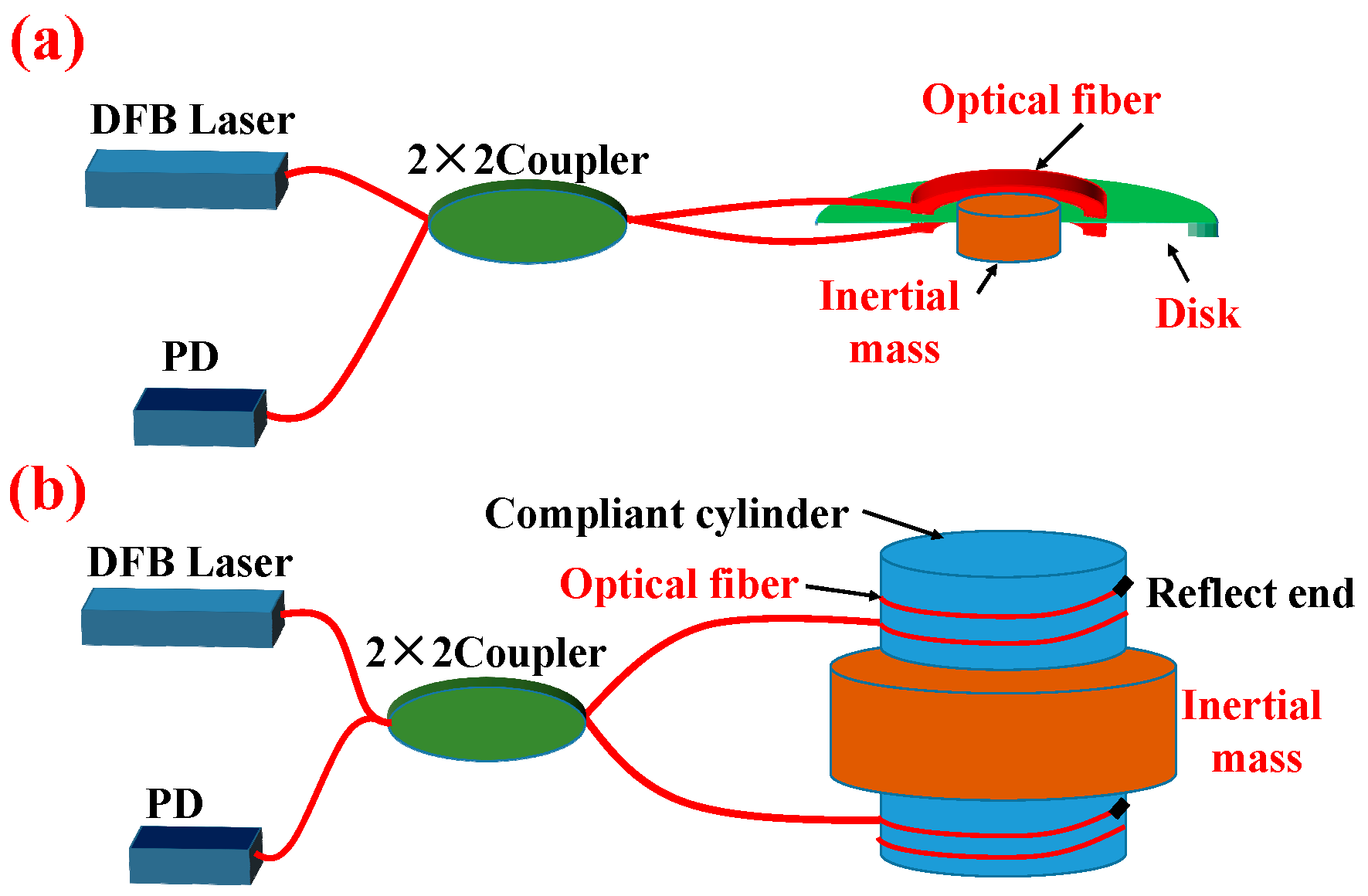

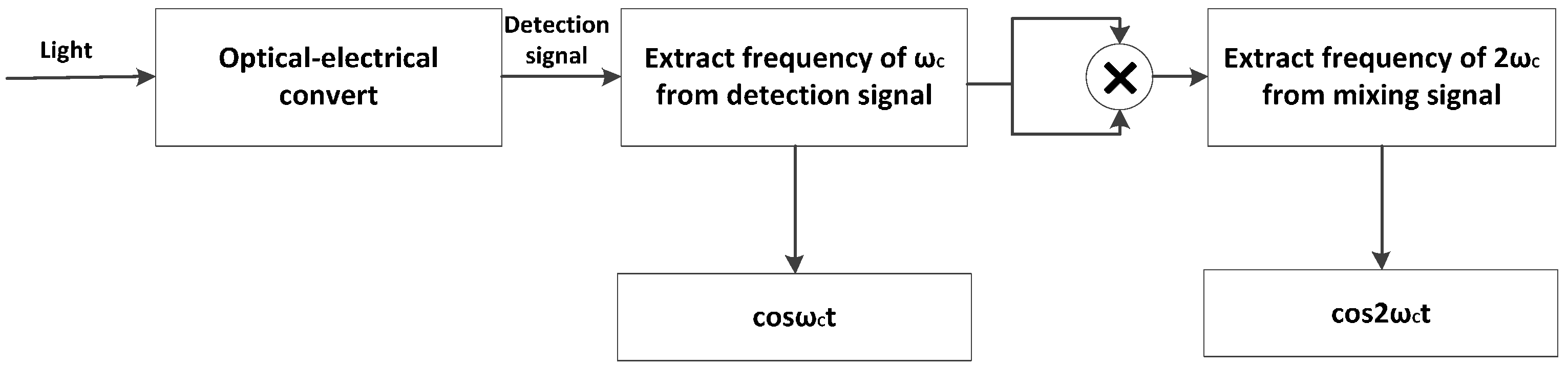

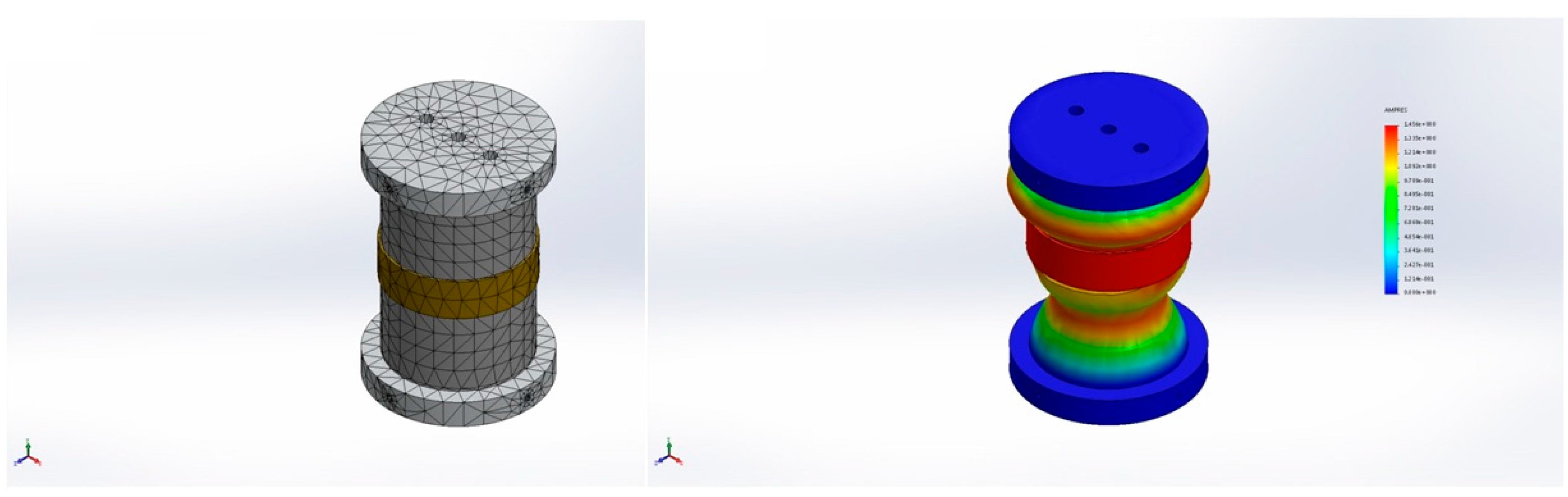

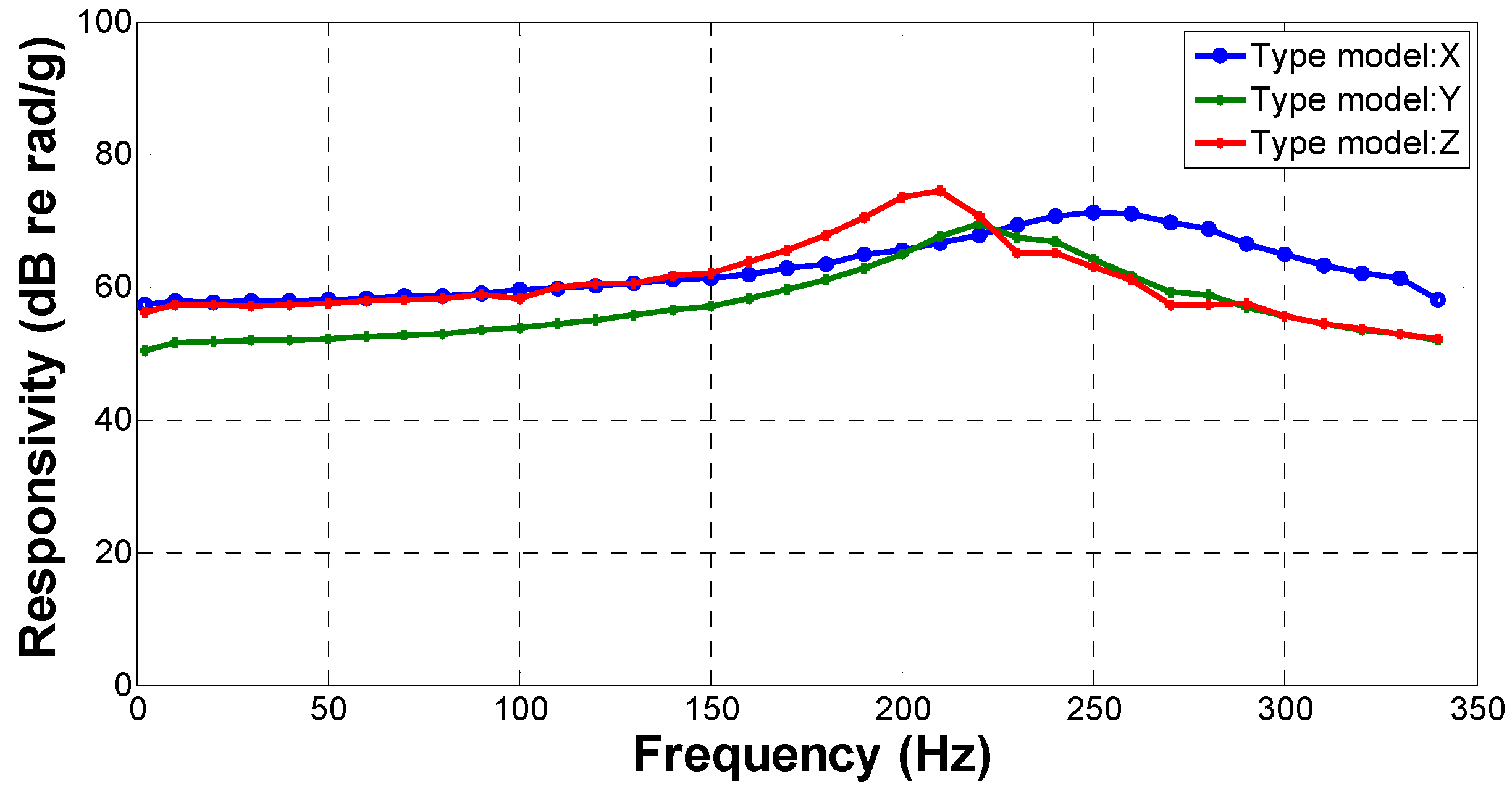

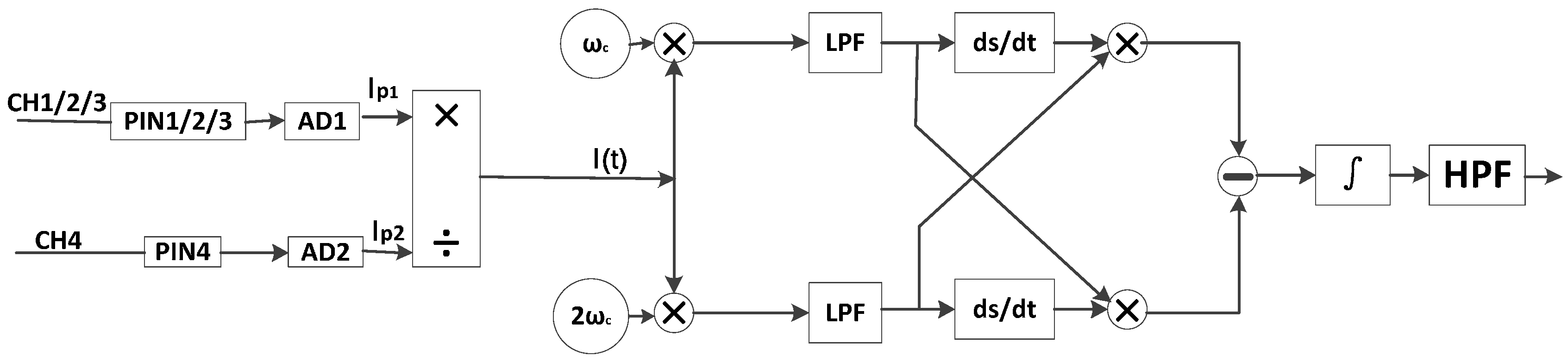

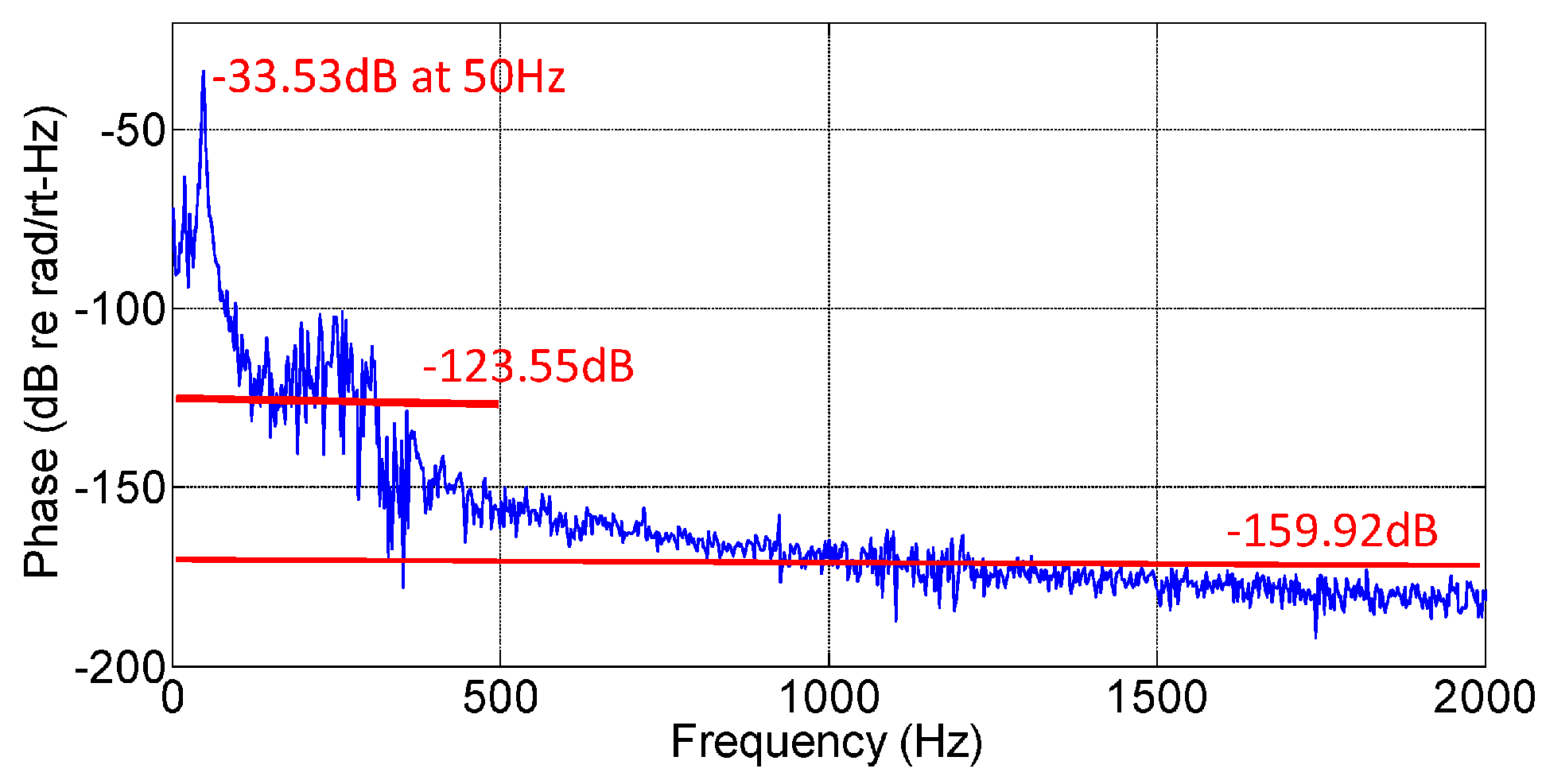

For the implementation of an all fiber observation network for submarine seismic monitoring, a tri-component geophone based on Michelson interferometry is proposed and tested. A compliant cylinder-based sensor head is analyzed with finite element method and tested. The operation frequency ranges from 2 Hz to 150 Hz for acceleration detection, employing a phase generated carrier demodulation scheme, with a responsivity above 50 dB re rad/g for the whole frequency range. The transverse suppression ratio is about 30 dB. The system noise at low frequency originated mainly from the 1/f fluctuation, with an average system noise level −123.55 dB re rad / Hz ranging from 0 Hz to 500 Hz. The minimum detectable acceleration is about 2 ng / Hz , and the dynamic range is above 116 dB. View Full-Text
Keywords: fiber optic Michelson interferometer; vibration sensor; phase generated carrier; geophone fiber optic Michelson interferometer; vibration sensor; phase generated carrier; geophone
