Sensors 2016, 16(9), 1486; doi:10.3390/s16091486

Automated As-Built Model Generation of Subway Tunnels from Mobile LiDAR Data

Department of Geomatics Engineering, University of Calgary, 2500 University Drive NW, Calgary, AB T2N 1N4, Canada
Academic Editor: Changshan Wu
Received: 10 August 2016 / Revised: 8 September 2016 / Accepted: 10 September 2016 / Published: 13 September 2016
View Full-Text   |   Download PDF [4154 KB, uploaded 13 September 2016]   |

Abstract

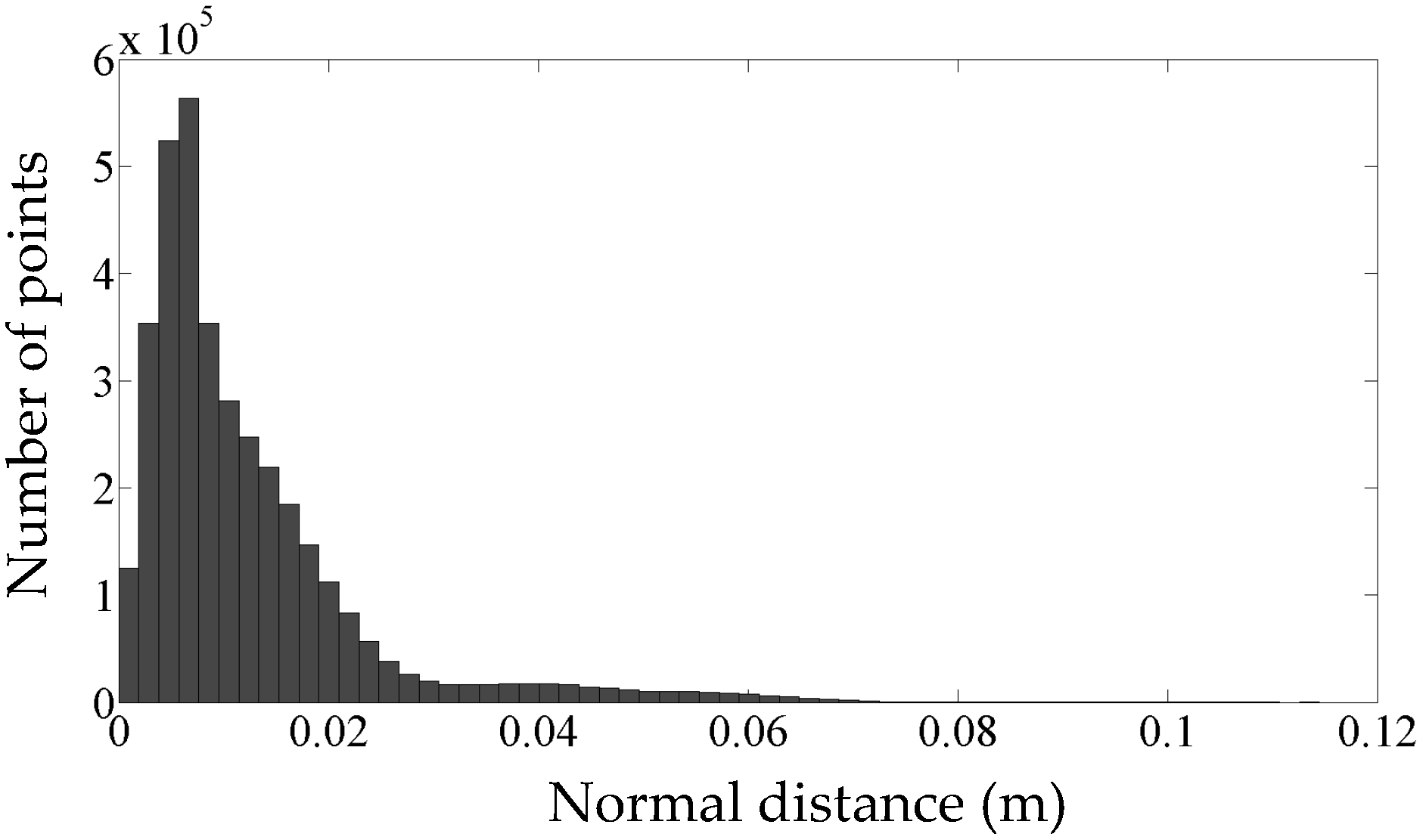

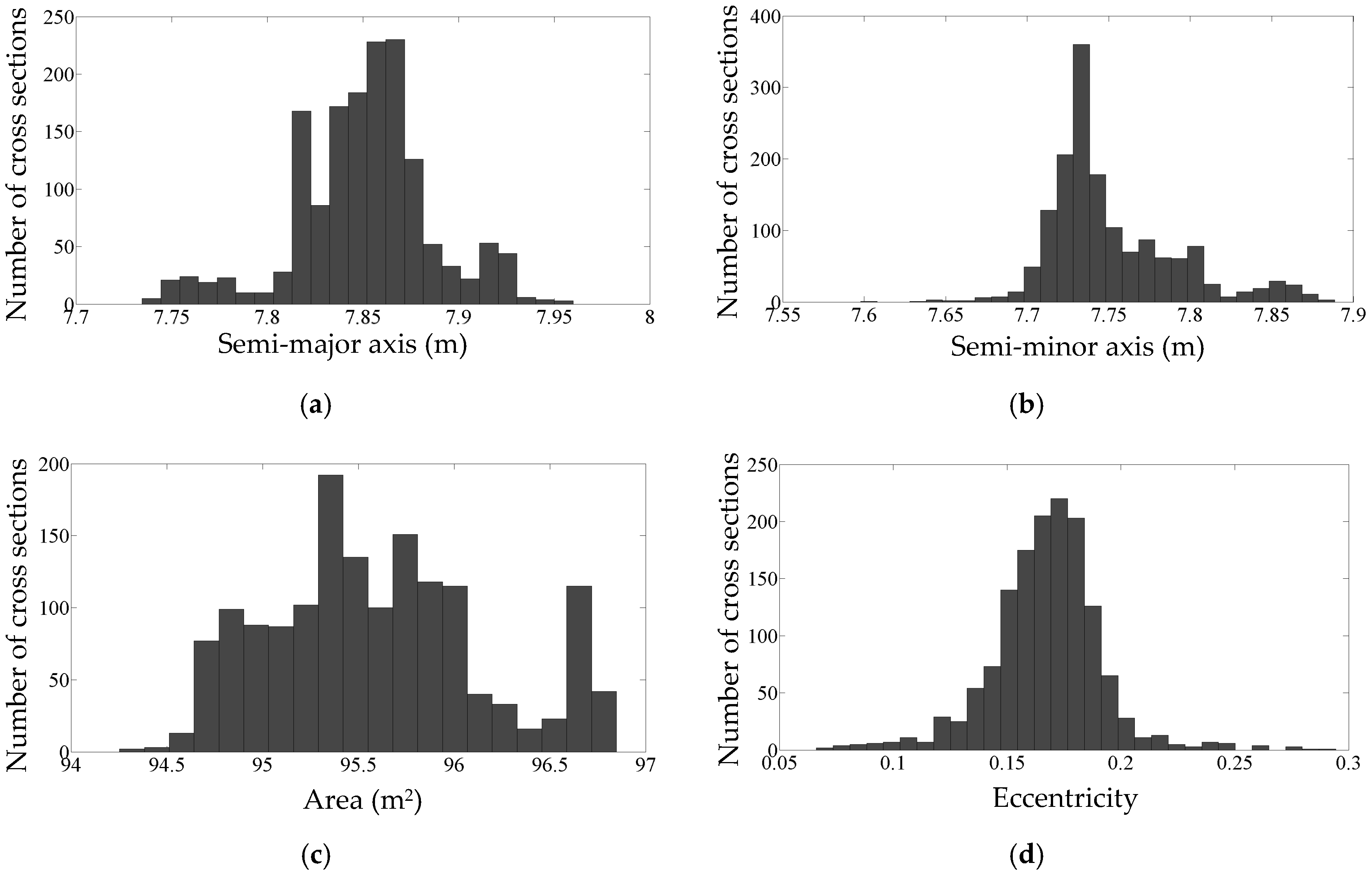

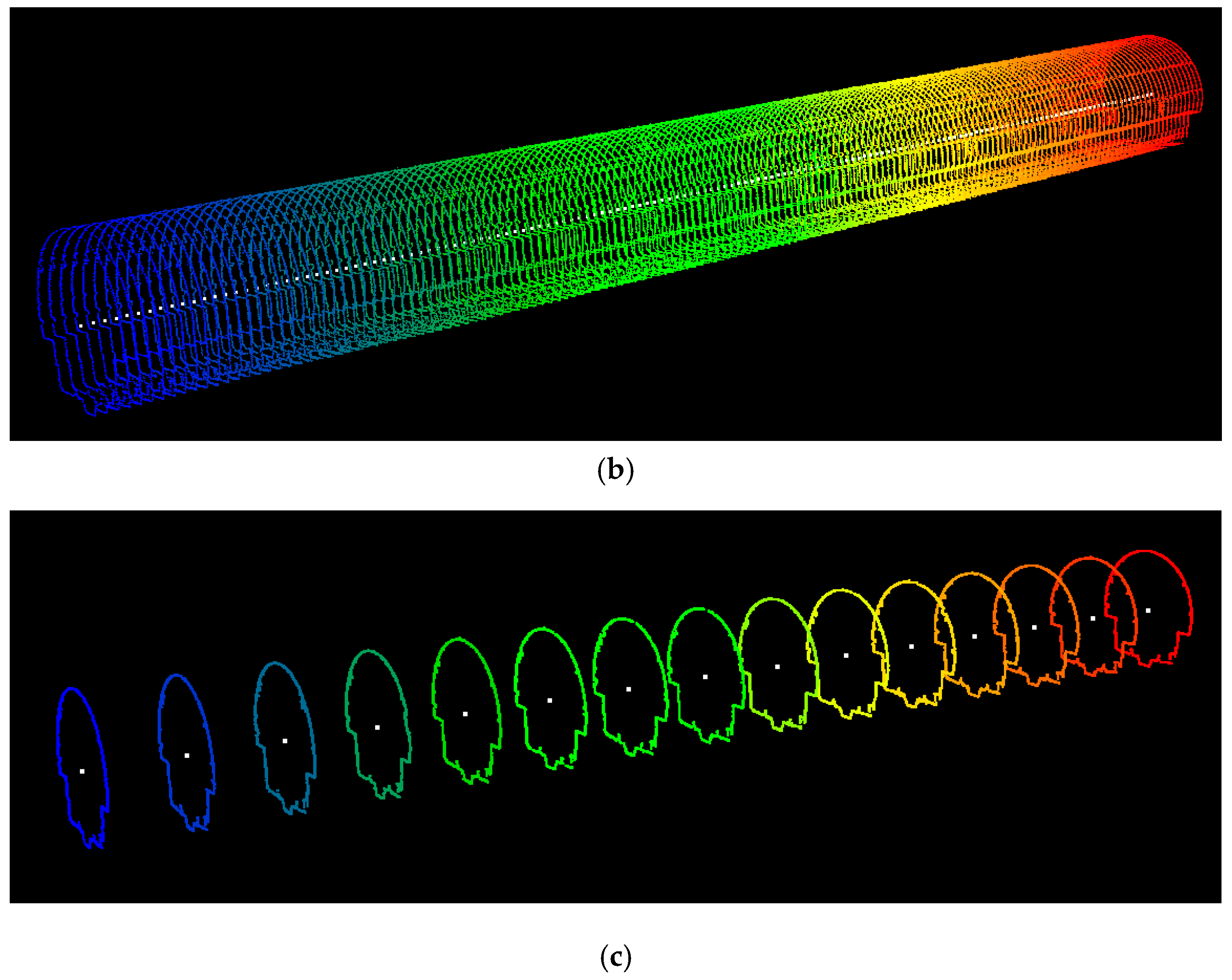

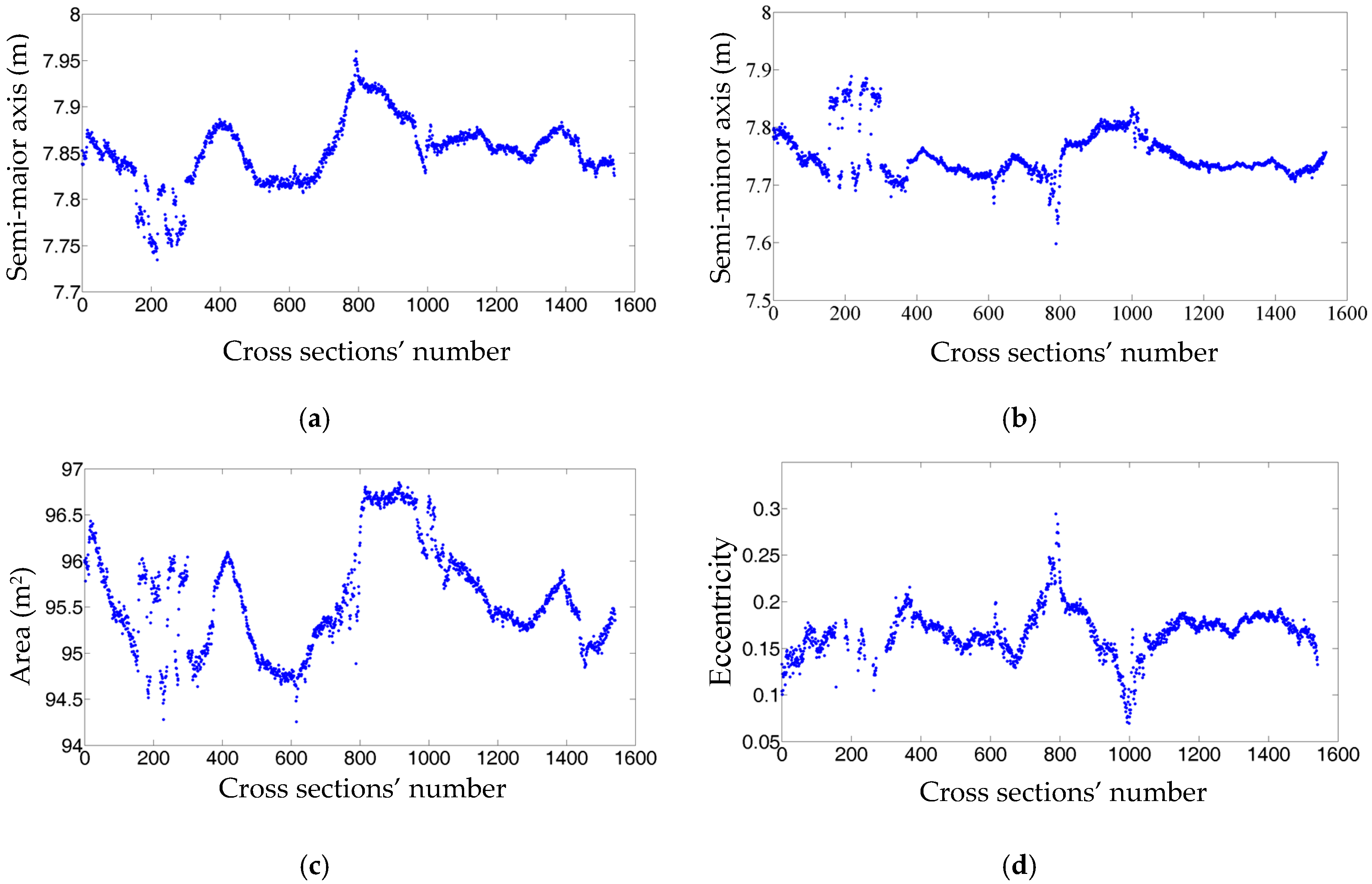

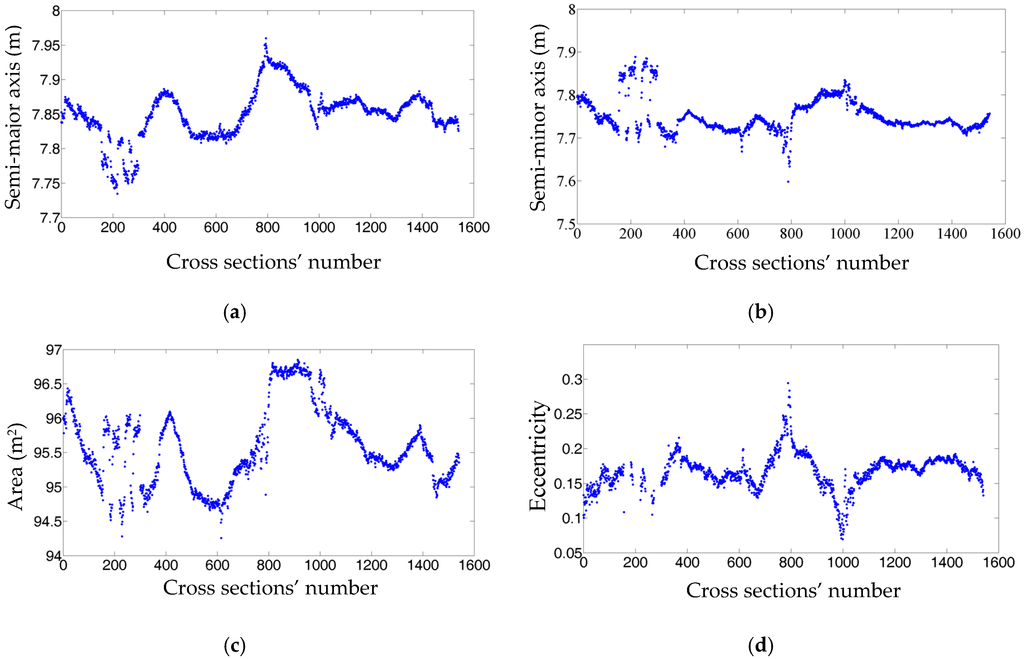

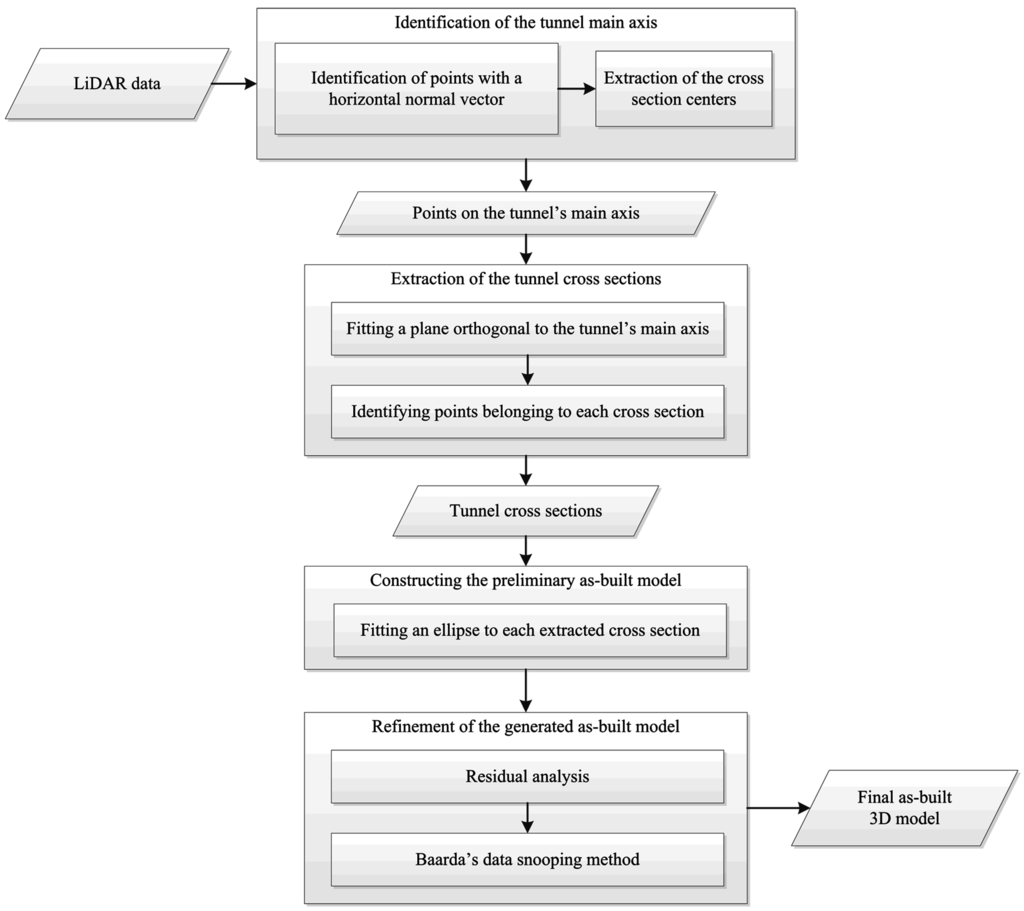

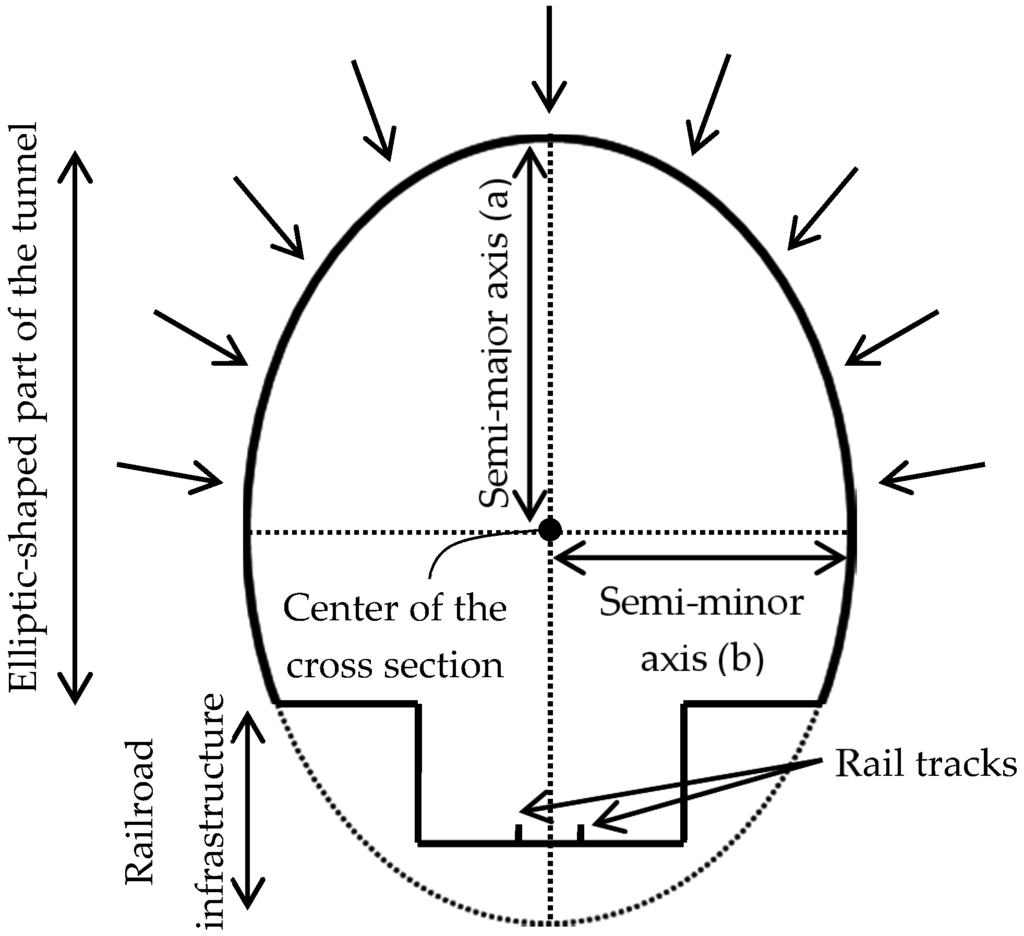

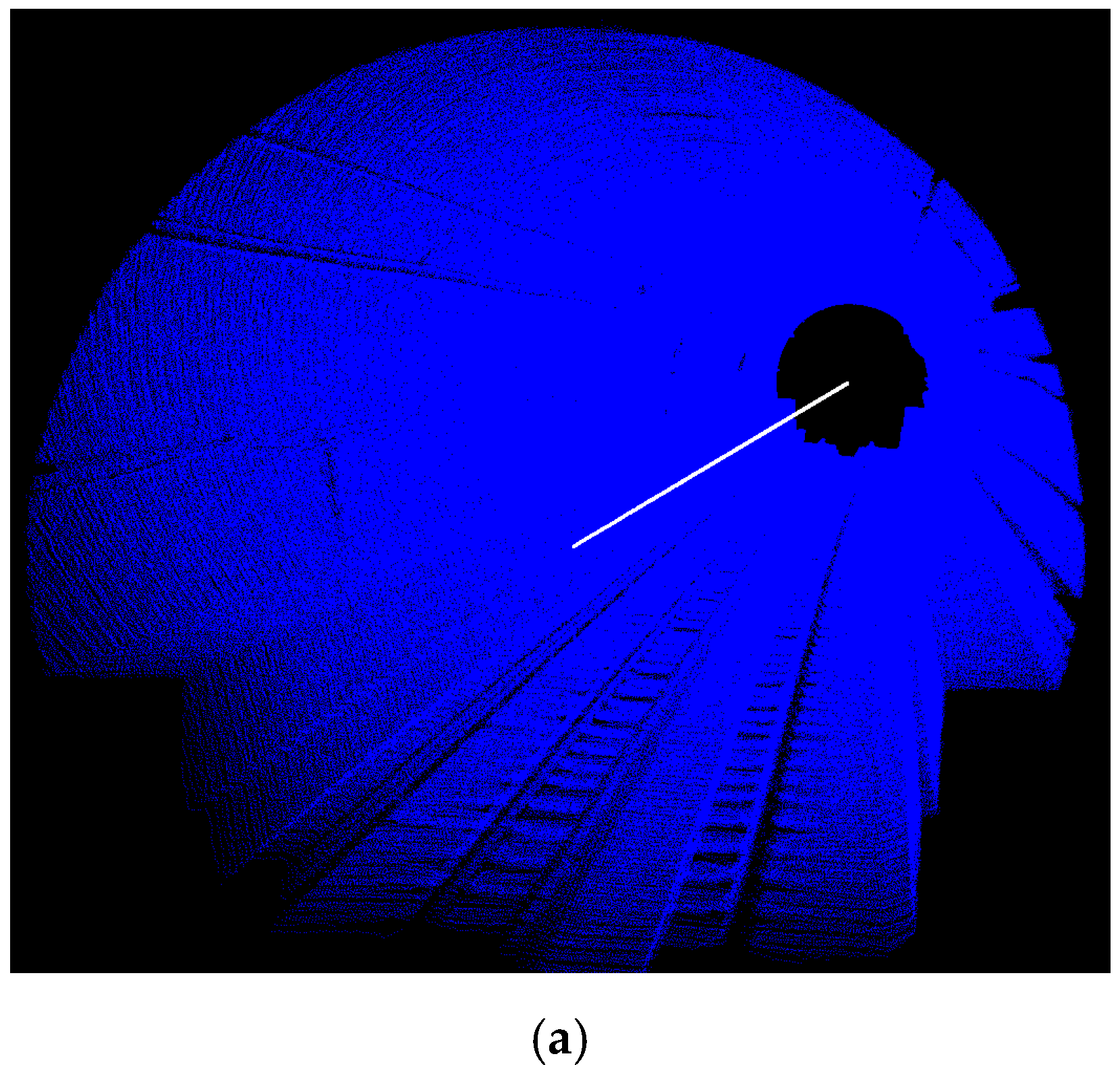

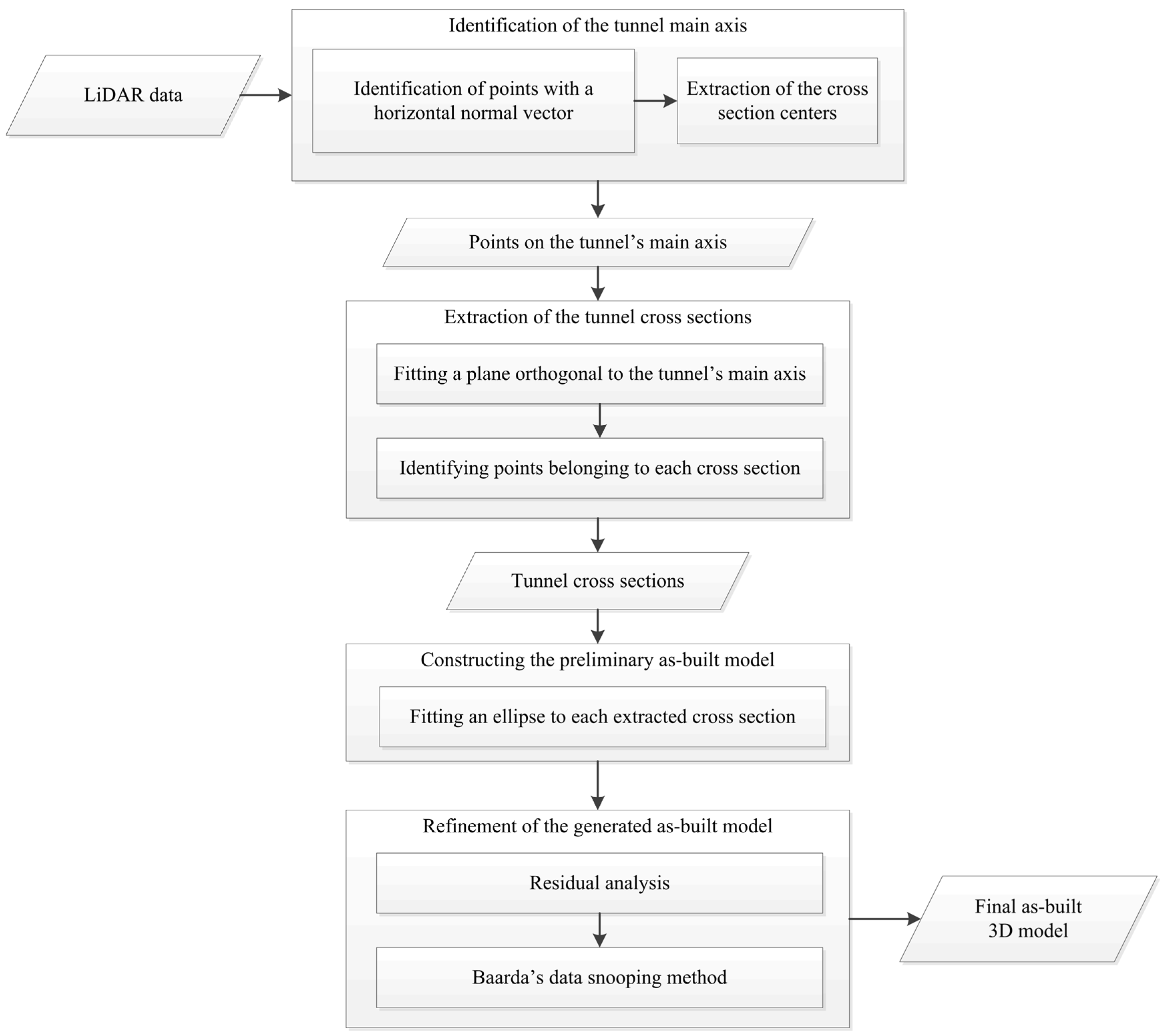

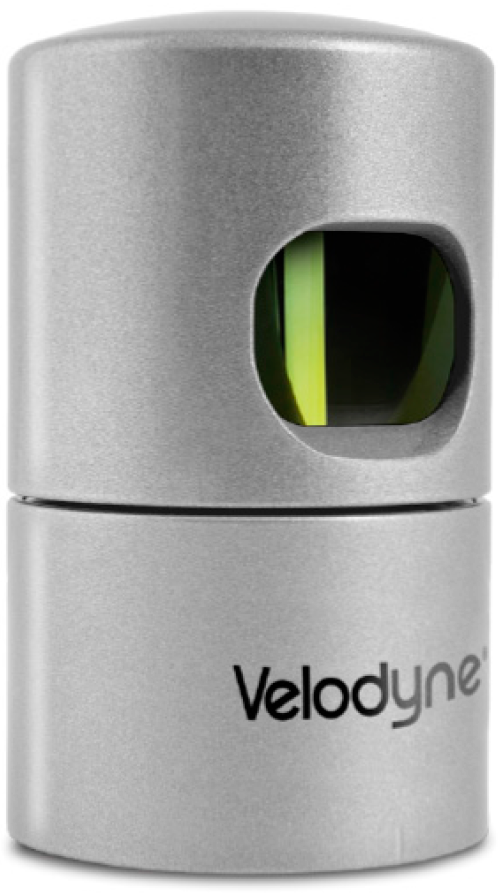

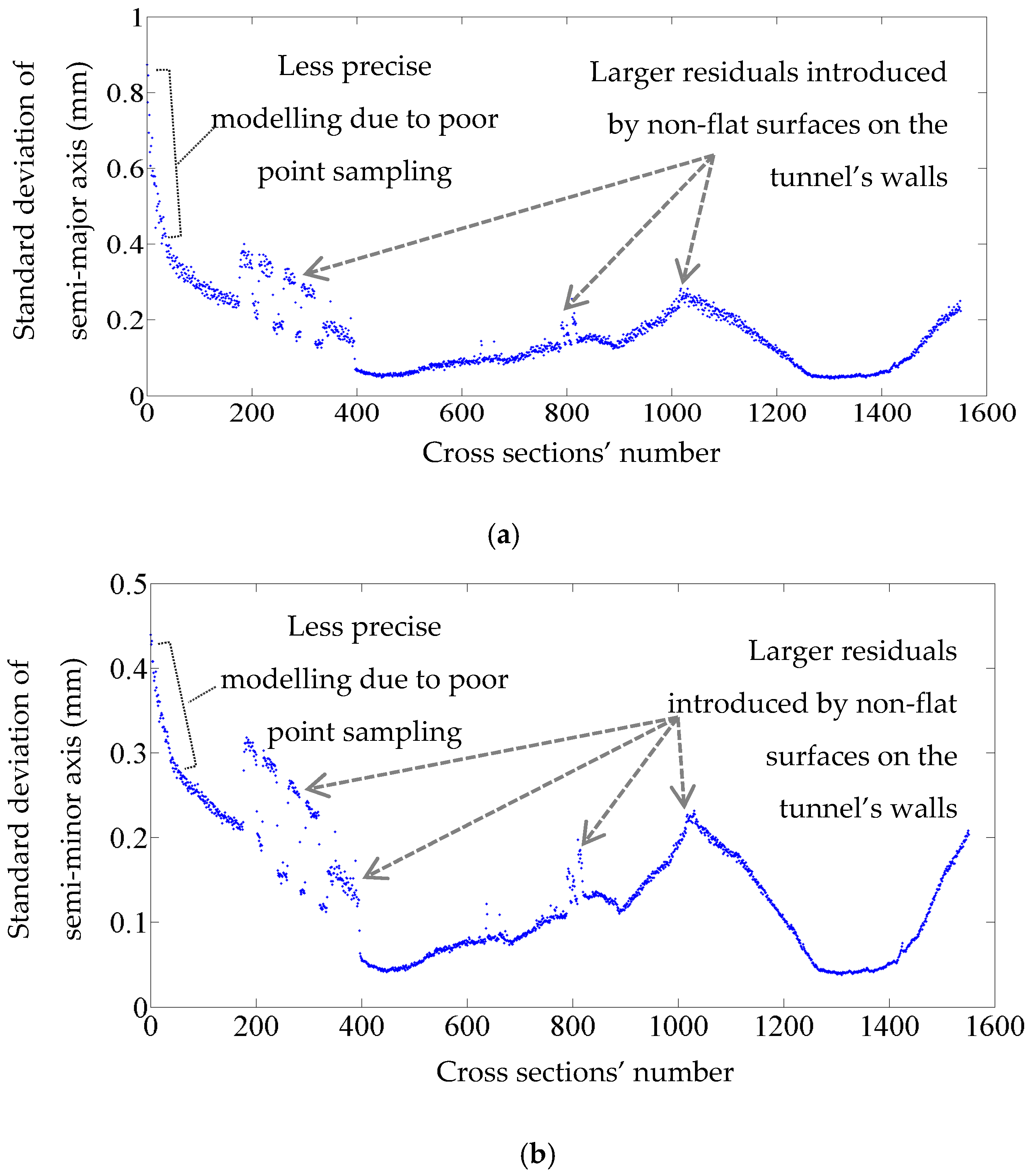

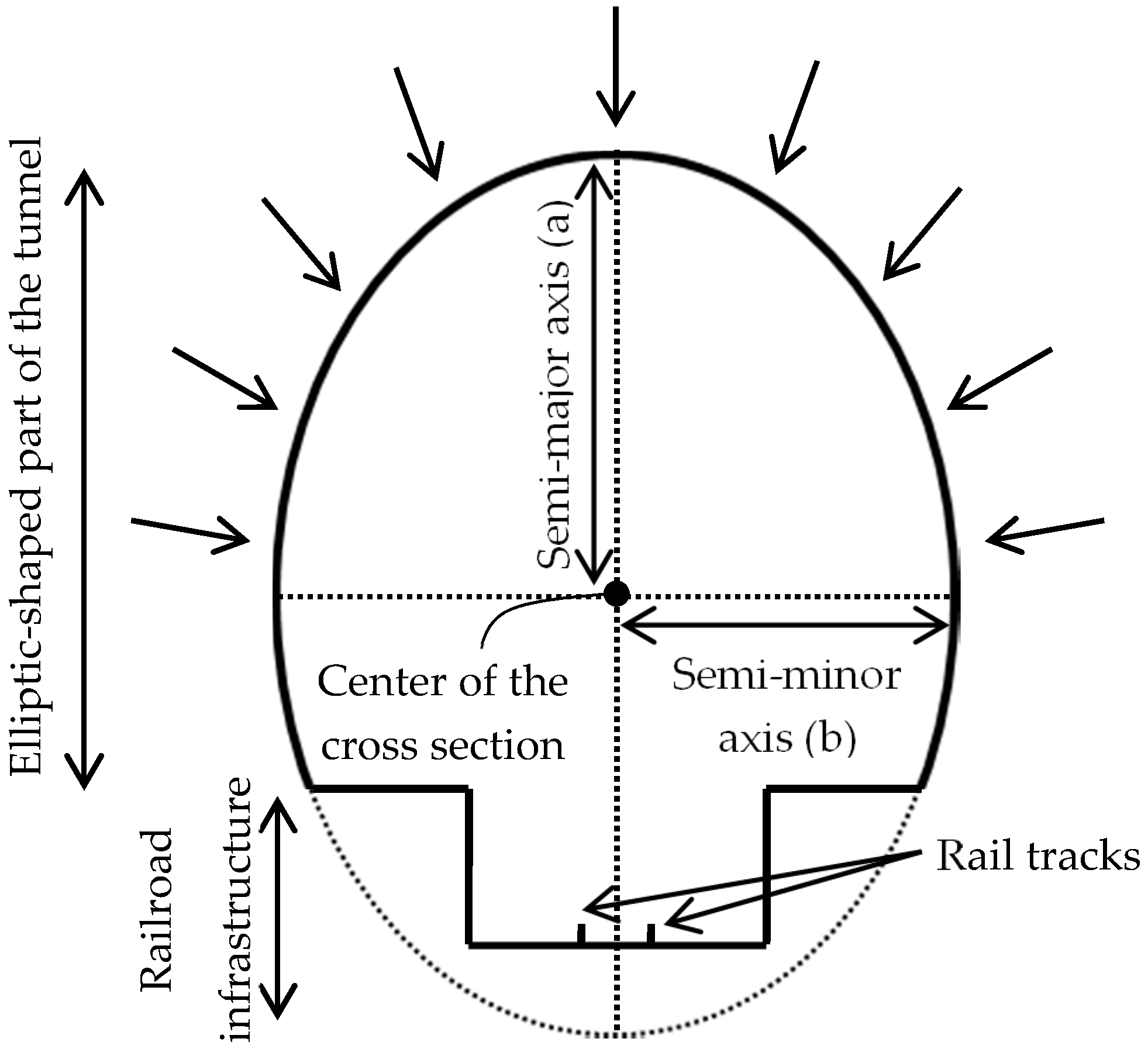

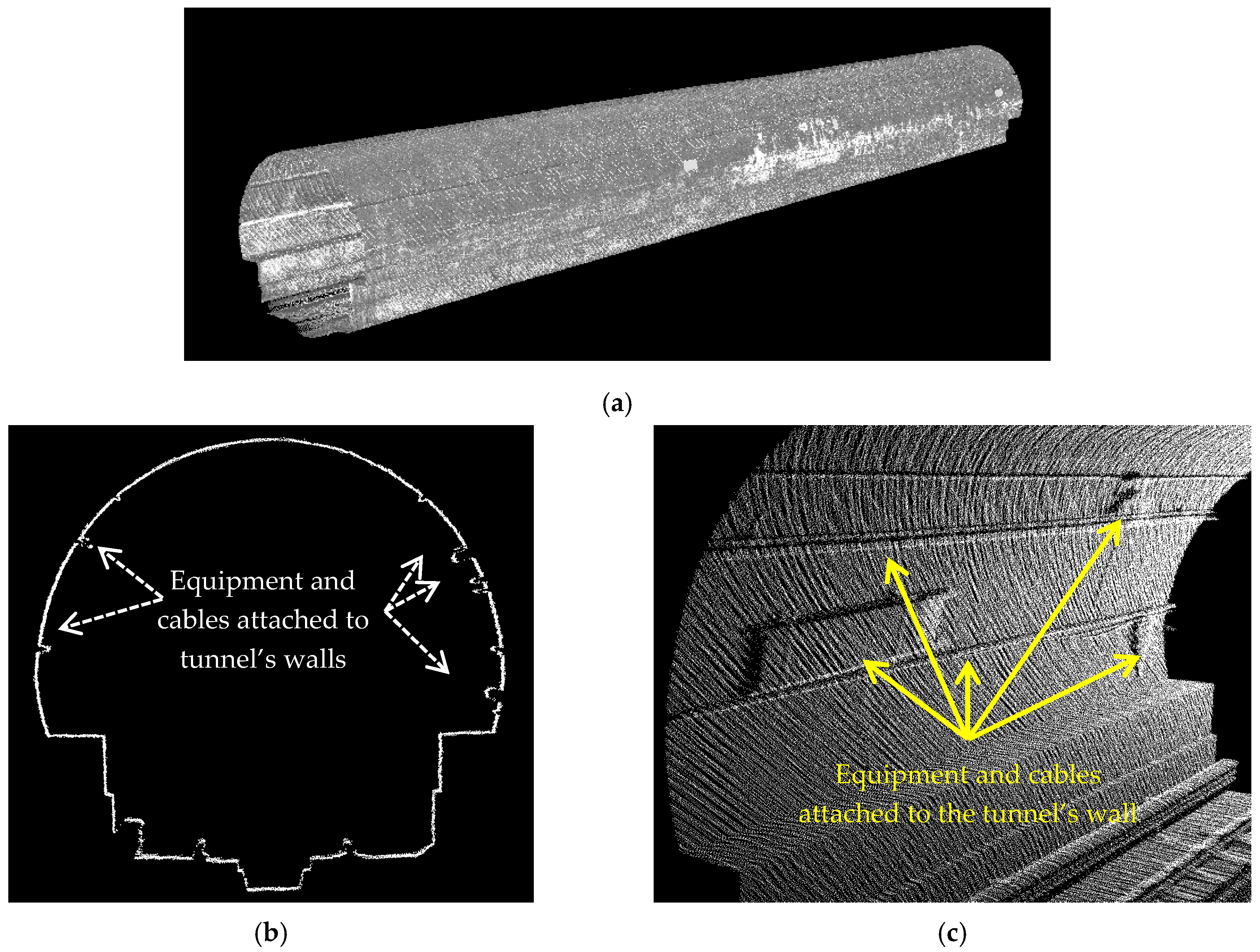

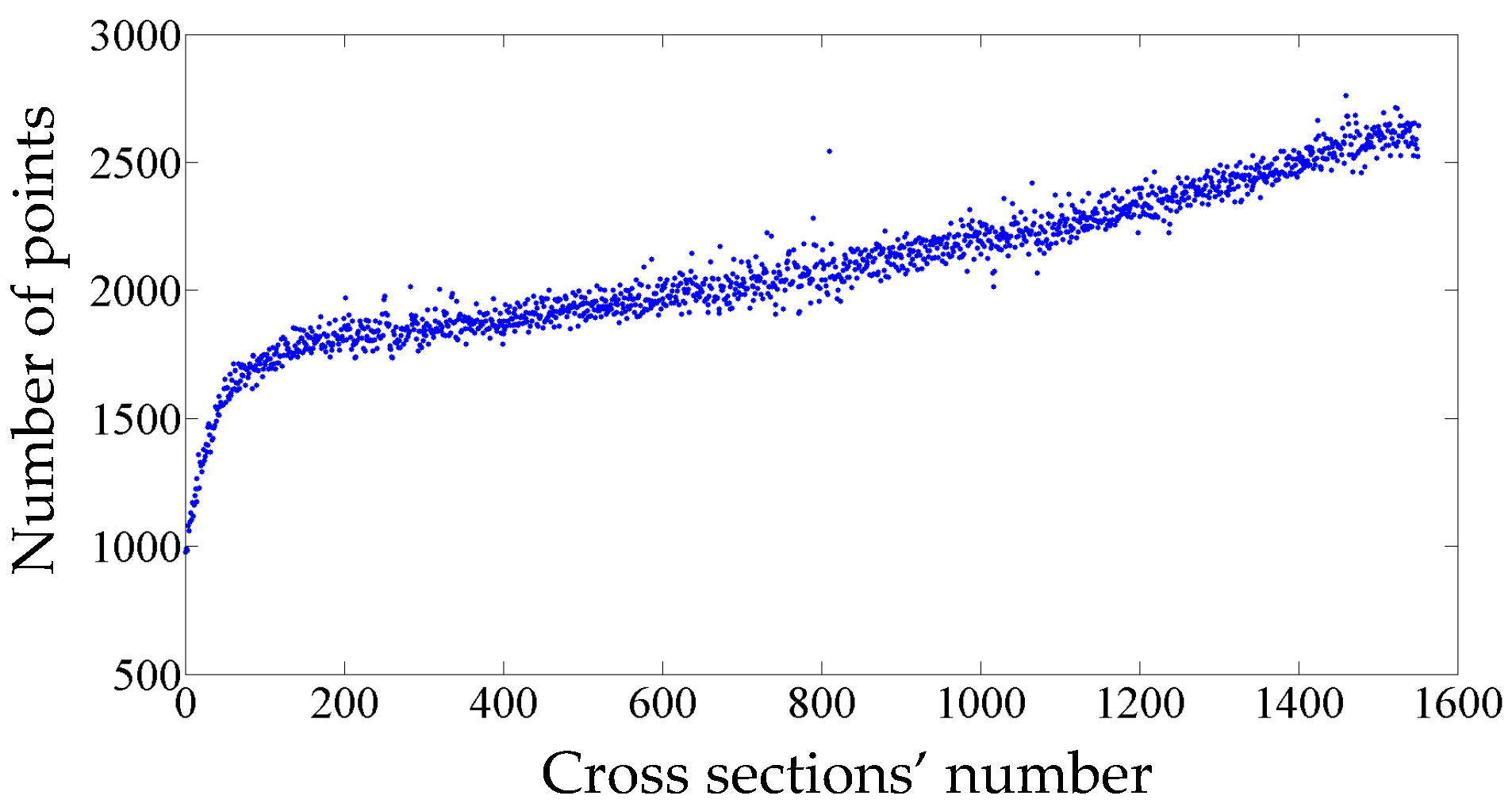

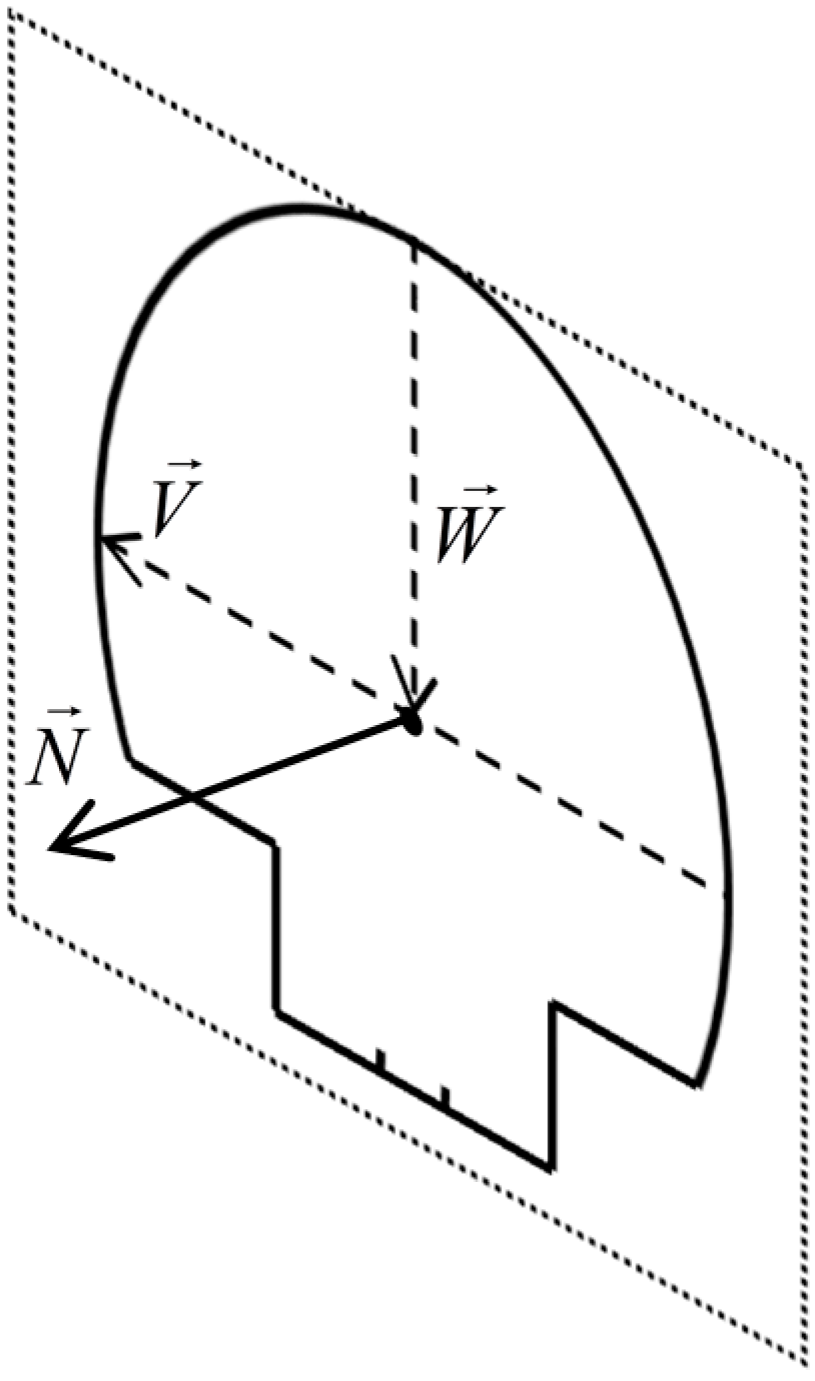

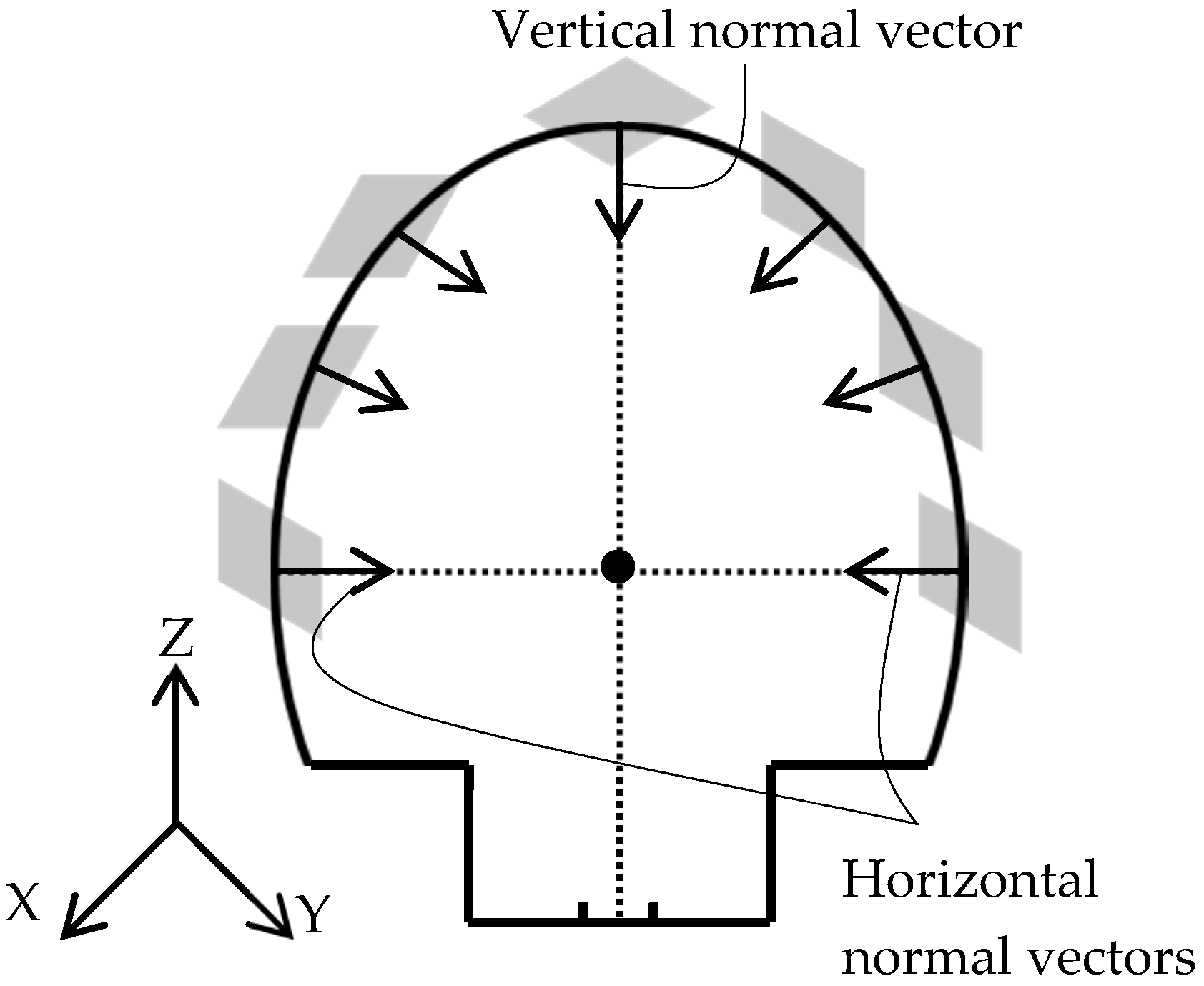

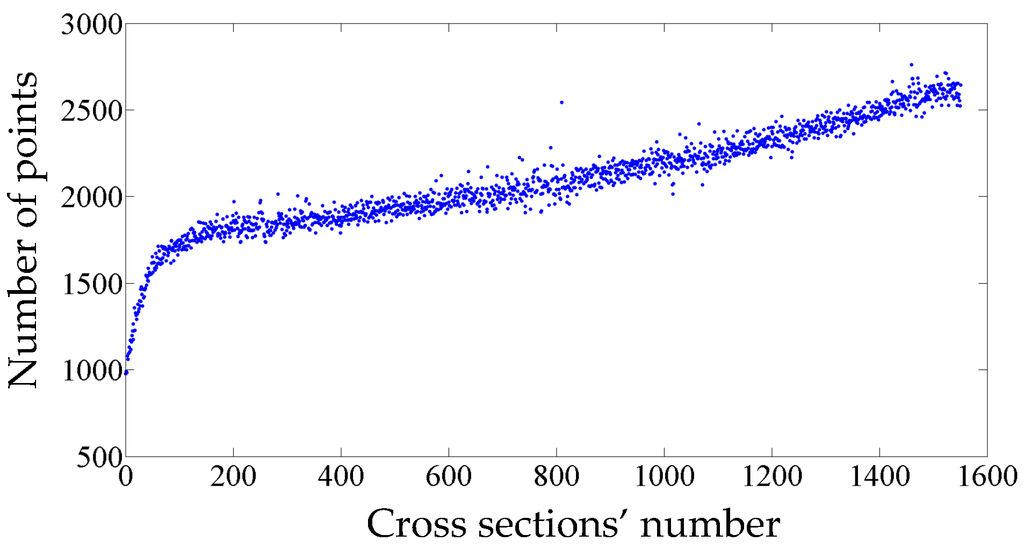

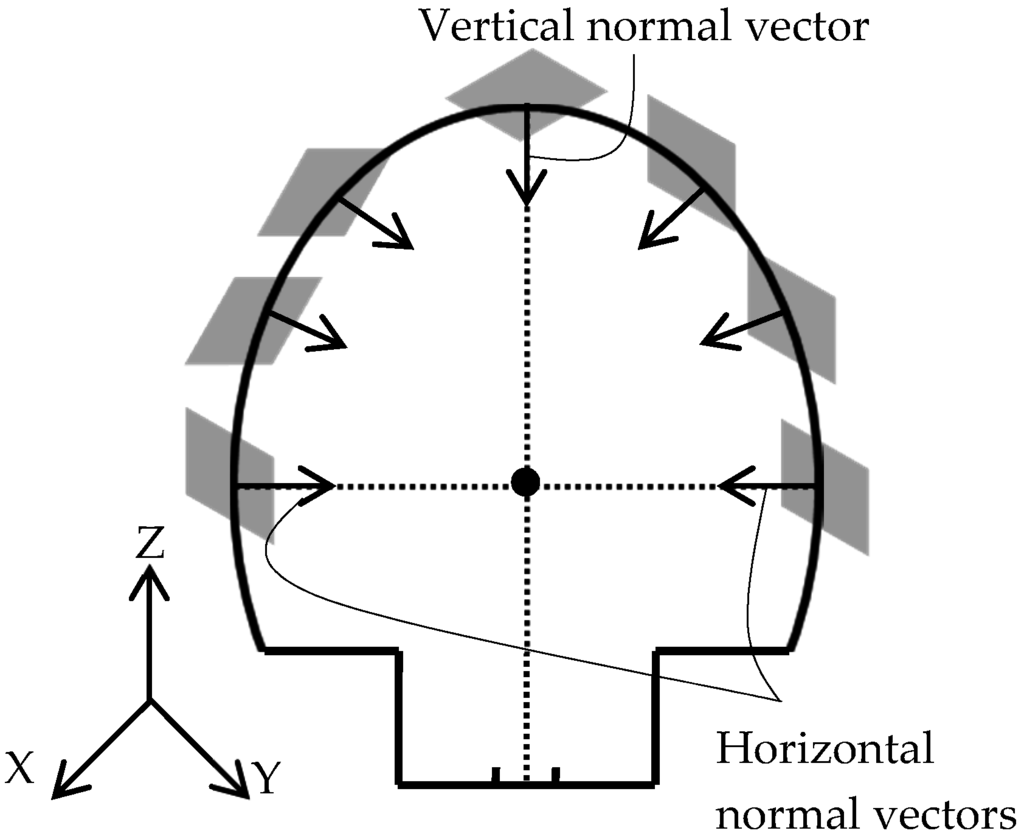

This study proposes fully-automated methods for as-built model generation of subway tunnels employing mobile Light Detection and Ranging (LiDAR) data. The employed dataset is acquired by a Velodyne HDL 32E and covers 155 m of a subway tunnel containing six million points. First, the tunnel’s main axis and cross sections are extracted. Next, a preliminary model is created by fitting an ellipse to each extracted cross section. The model is refined by employing residual analysis and Baarda’s data snooping method to eliminate outliers. The final model is then generated by applying least squares adjustment to outlier-free data. The obtained results indicate that the tunnel’s main axis and 1551 cross sections at 0.1 m intervals are successfully extracted. Cross sections have an average semi-major axis of 7.8508 m with a standard deviation of 0.2 mm and semi-minor axis of 7.7509 m with a standard deviation of 0.1 mm. The average normal distance of points from the constructed model (average absolute error) is also 0.012 m. The developed algorithm is applicable to tunnels with any horizontal orientation and degree of curvature since it makes no assumptions, nor does it use any a priori knowledge regarding the tunnel’s curvature and horizontal orientation. View Full-Text
Keywords: LiDAR; modeling; tunnel; laser scanning; mobile mapping LiDAR; modeling; tunnel; laser scanning; mobile mapping
