Sensors 2016, 16(9), 1473; doi:10.3390/s16091473

Orientation-Dependent Displacement Sensor Using an Inner Cladding Fiber Bragg Grating

Physics Department, Northwest University, Xi’an 710069, China
*
Authors to whom correspondence should be addressed.
Received: 18 July 2016 / Accepted: 8 September 2016 / Published: 11 September 2016
View Full-Text   |   Download PDF [2691 KB, uploaded 13 September 2016]   |

Abstract

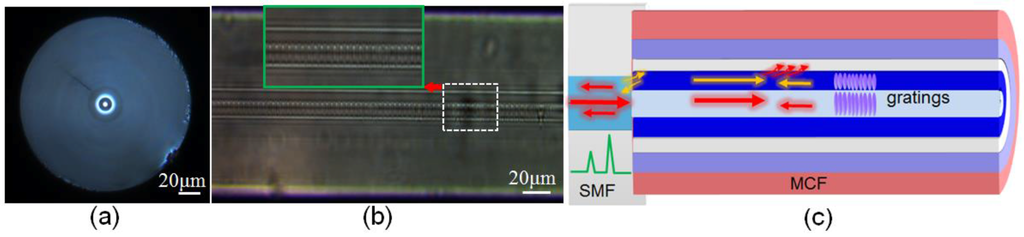

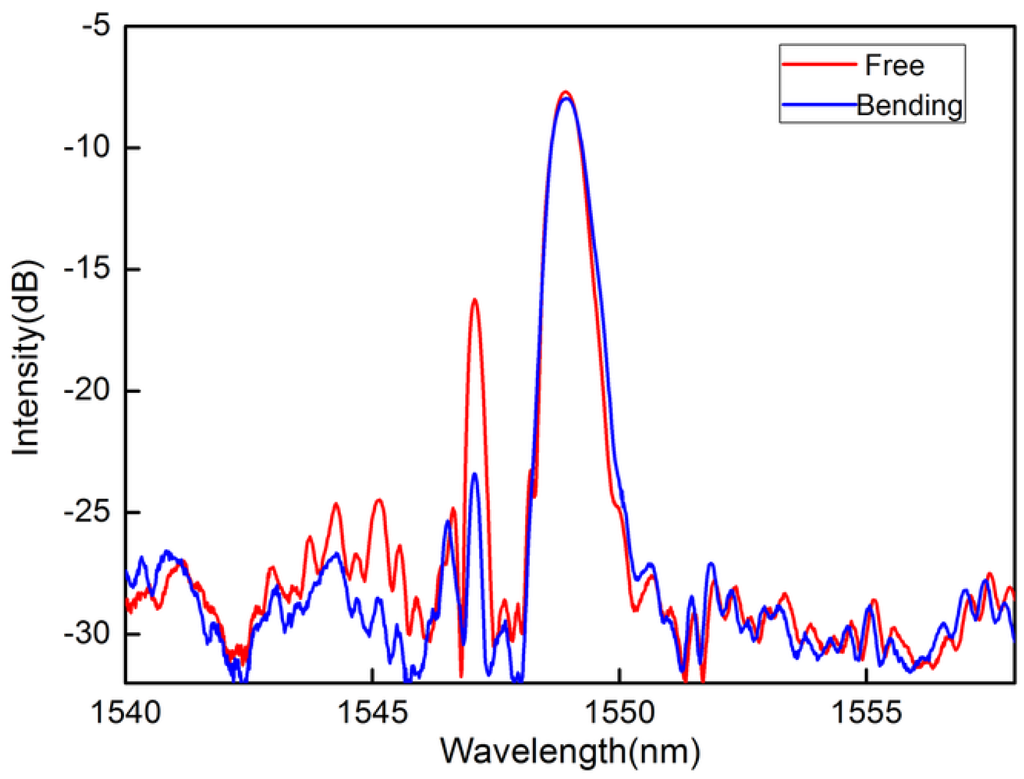

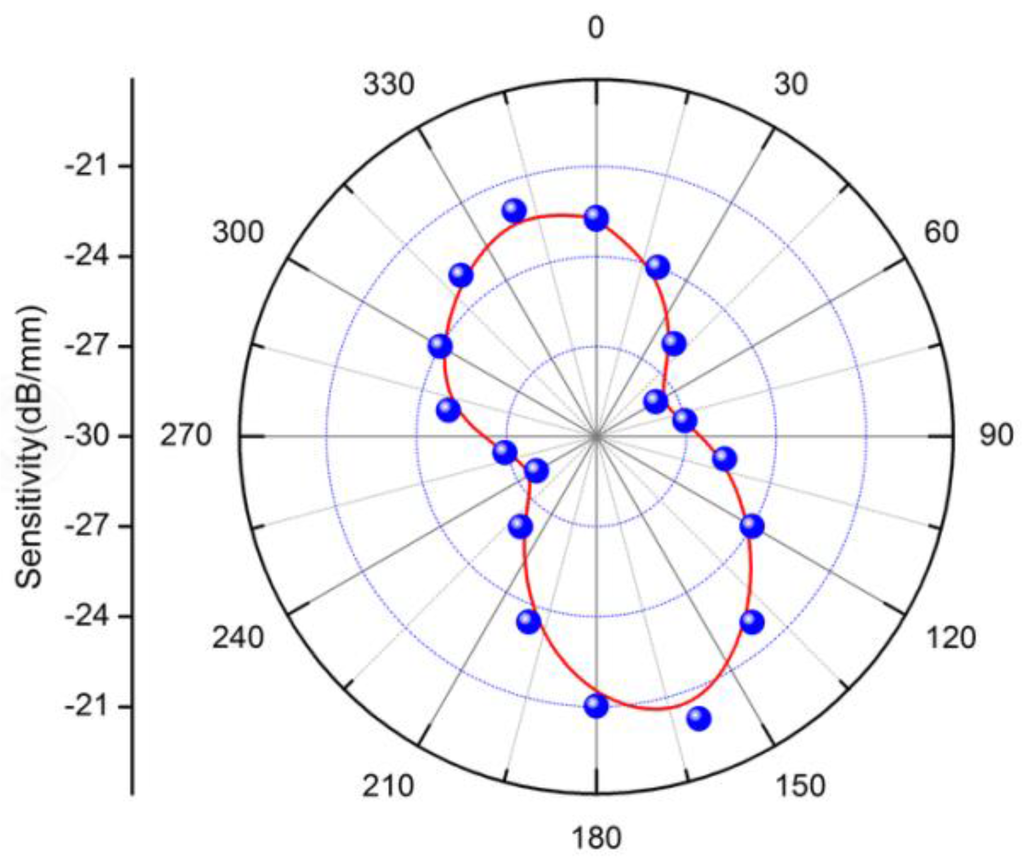

An orientation-dependent displacement sensor based on grating inscription over a fiber core and inner cladding has been demonstrated. The device comprises a short piece of multi-cladding fiber sandwiched between two standard single-mode fibers (SMFs). The grating structure is fabricated by a femtosecond laser side-illumination technique. Two well-defined resonances are achieved by the downstream both core and cladding fiber Bragg gratings (FBGs). The cladding resonance presents fiber bending dependence, together with a strong orientation dependence because of asymmetrical distribution of the “cladding” FBG along the fiber cross-section. View Full-Text
Keywords: inner cladding-FBG inscription; femtosecond laser; orientation bending inner cladding-FBG inscription; femtosecond laser; orientation bending
Figures

Figure 1
