Sensors 2016, 16(7), 997; doi:10.3390/s16070997

Microcantilever Displacement Measurement Using a Mechanically Modulated Optical Feedback Interferometer

Centre for Sensors, Instruments and Systems Development (CD6)-UPC BarcelonaTech, Rambla St. Nebridi 10, Terrassa E-08222, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Galina Nemova
Received: 28 April 2016 / Revised: 23 June 2016 / Accepted: 24 June 2016 / Published: 29 June 2016
(This article belongs to the Special Issue SPR, WGM & Nano-Sensors: Advantages and Prospects)
View Full-Text   |   Download PDF [8676 KB, uploaded 29 June 2016]   |

Abstract

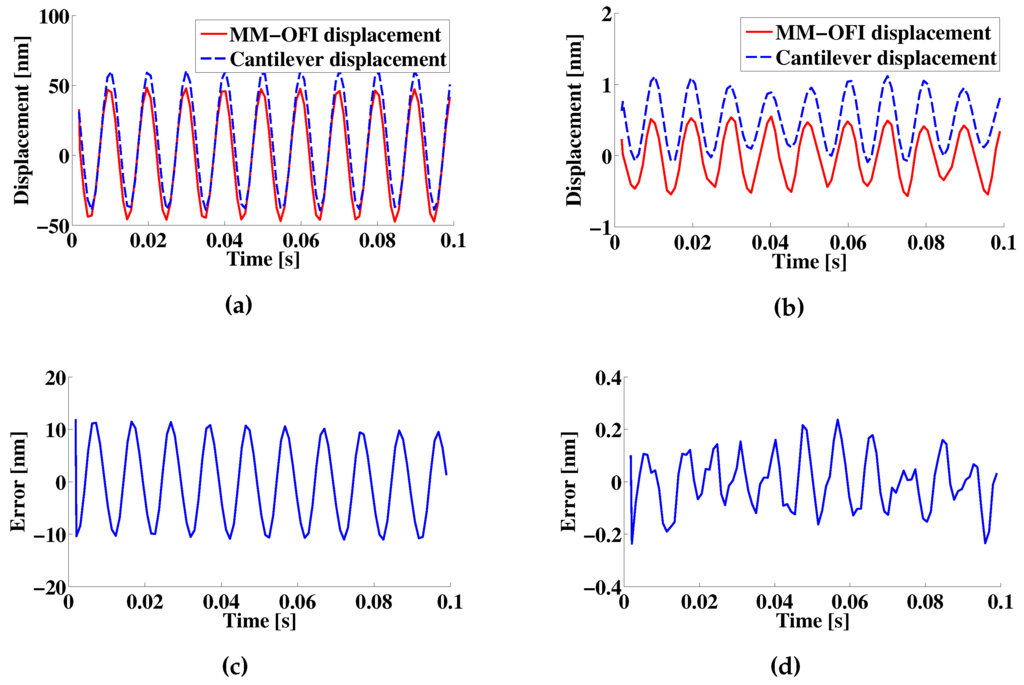

Microcantilever motion detection is a useful tool for the characterization of the physical, chemical and biological properties of materials. In the past, different approaches have been proposed and tested to enhance the behavior, size and simplicity of microcantilever motion detectors. In this paper, a new approach to measure microcantilever motion with nanometric resolution is presented. The proposed approach is based on the concept of mechanically-modulated optical feedback interferometry, a technique that has shown displacement measurement capabilities well within the nanometric scale and that, due to its size, compactness and low cost, may be a suitable choice for measuring nanometric motions in cantilever-like sensors. It will be shown that the sensor, in its current state of development, is capable of following a cantilever sinusoidal trajectory at different sets of frequencies ranging up to 200 Hz and peak to peak amplitudes up to λ / 2 with experimental resolutions in the λ / 100 range. View Full-Text
Keywords: optical feedback interferometry; displacement measurement; nanometric resolution; atomic force microscopy optical feedback interferometry; displacement measurement; nanometric resolution; atomic force microscopy
Figures

Figure 1
