Sensors 2016, 16(5), 752; doi:10.3390/s16050752

An Improved Measurement Method for the Strength of Radiation of Reflective Beam in an Industrial Optical Sensor Based on Laser Displacement Meter

Department of Electrical and Semiconductor Engineering, Chonnam National University, Daehak-ro 50 Yeosu, Jeonnam 59626, Korea
Academic Editors: Suk-Seung Hwang, Euntai Kim, Sungshin Kim and Keon Myung Lee
Received: 18 April 2016 / Revised: 12 May 2016 / Accepted: 17 May 2016 / Published: 23 May 2016
View Full-Text   |   Download PDF [2357 KB, uploaded 23 May 2016]   |

Abstract

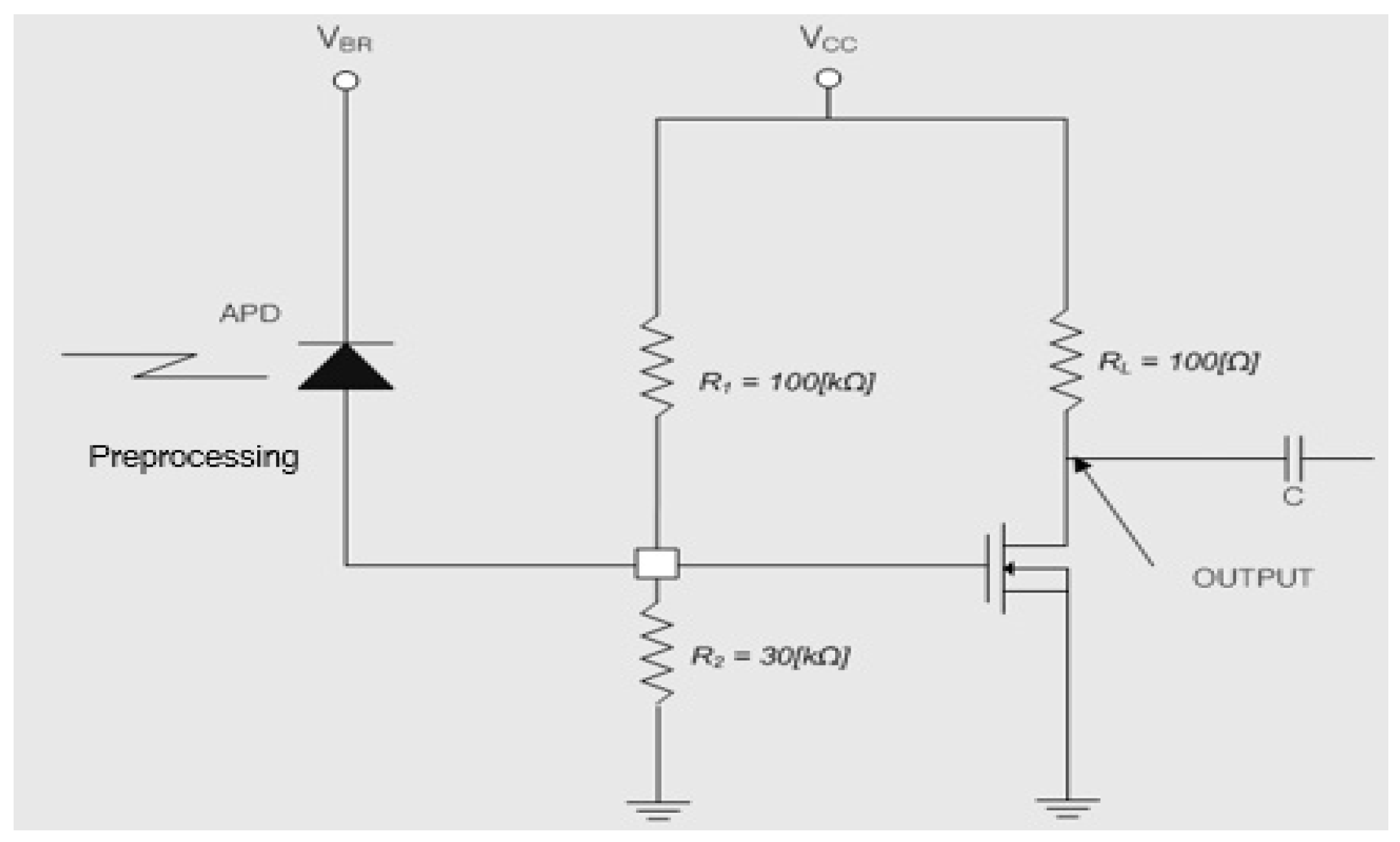

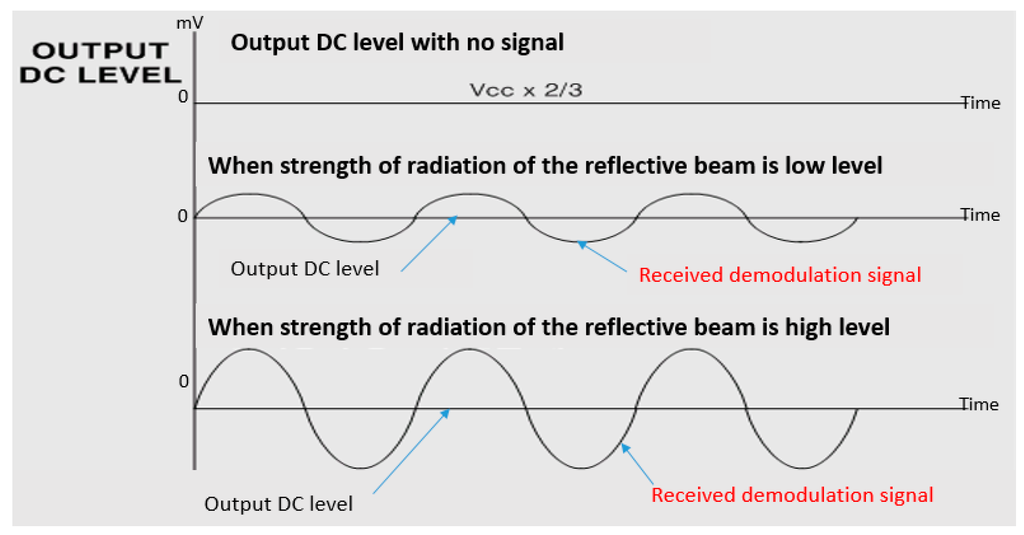

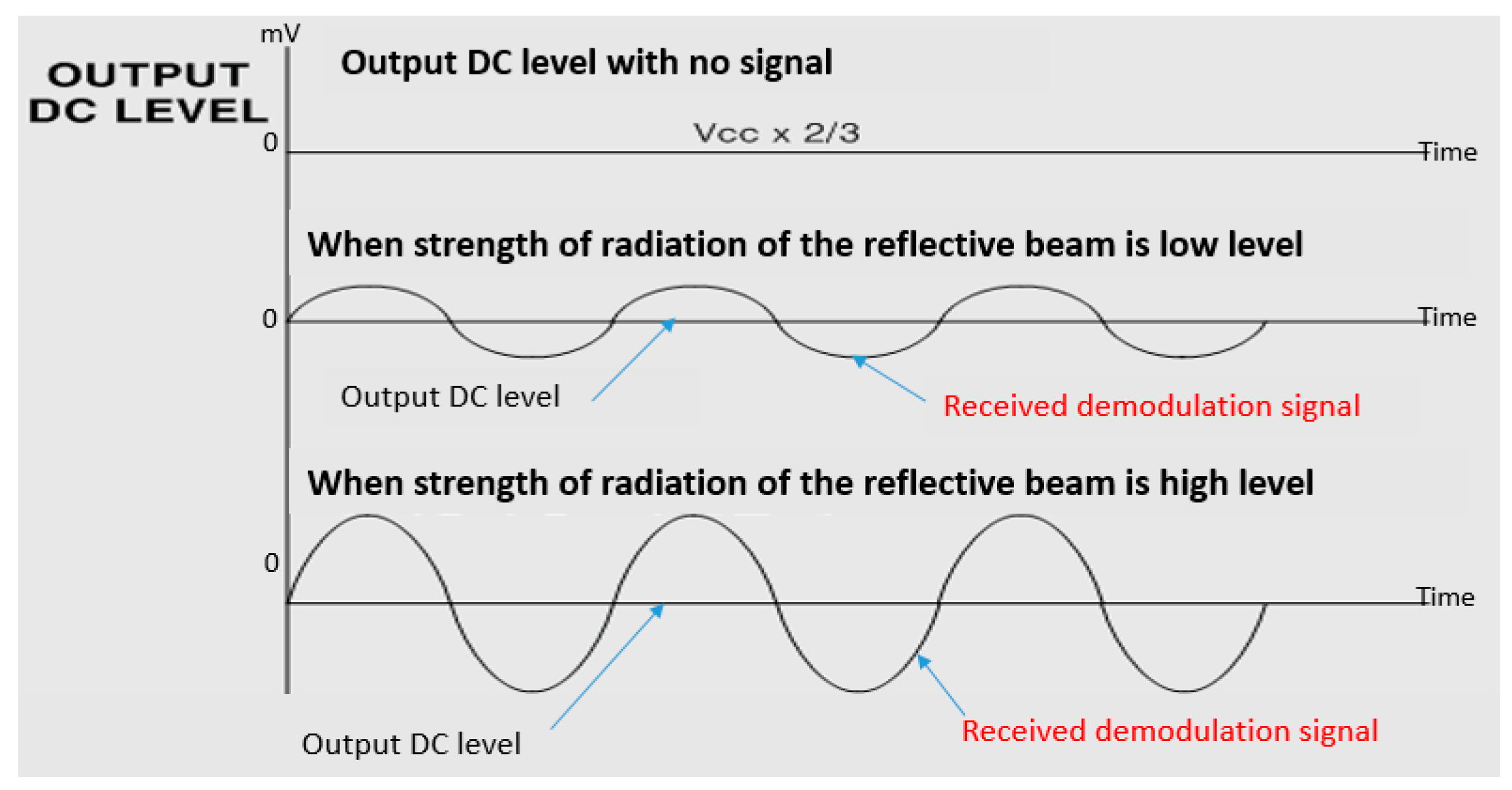

An optical sensor such as a laser range finder (LRF) or laser displacement meter (LDM) uses reflected and returned laser beam from a target. The optical sensor has been mainly used to measure the distance between a launch position and the target. However, optical sensor based LRF and LDM have numerous and various errors such as statistical errors, drift errors, cyclic errors, alignment errors and slope errors. Among these errors, an alignment error that contains measurement error for the strength of radiation of returned laser beam from the target is the most serious error in industrial optical sensors. It is caused by the dependence of the measurement offset upon the strength of radiation of returned beam incident upon the focusing lens from the target. In this paper, in order to solve these problems, we propose a novel method for the measurement of the output of direct current (DC) voltage that is proportional to the strength of radiation of returned laser beam in the received avalanche photo diode (APD) circuit. We implemented a measuring circuit that is able to provide an exact measurement of reflected laser beam. By using the proposed method, we can measure the intensity or strength of radiation of laser beam in real time and with a high degree of precision. View Full-Text
Keywords: laser ranger finder; optical sensor; reflect signal; return signal; radiation intensity; phase delay; strength of radiation laser ranger finder; optical sensor; reflect signal; return signal; radiation intensity; phase delay; strength of radiation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
