Open AccessArticle
Sensors 2016, 16(5), 603; doi:10.3390/s16050603

Prediction of the Strain Response of Poly-AlN/(100)Si Surface Acoustic Wave Resonator and Experimental Analysis

1,2
and
1,2,*
1
Department of Precision Instrument, Tsinghua University, Beijing 100084, China
2
State Key Laboratory of Precision Measurement Technology and Instruments, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Academic Editor: Stephane Evoy
Received: 2 March 2016 / Revised: 21 April 2016 / Accepted: 22 April 2016 / Published: 27 April 2016
(This article belongs to the Special Issue Resonator Sensors)
View Full-Text   |   Download PDF [4170 KB, uploaded 11 May 2016]   |

Abstract

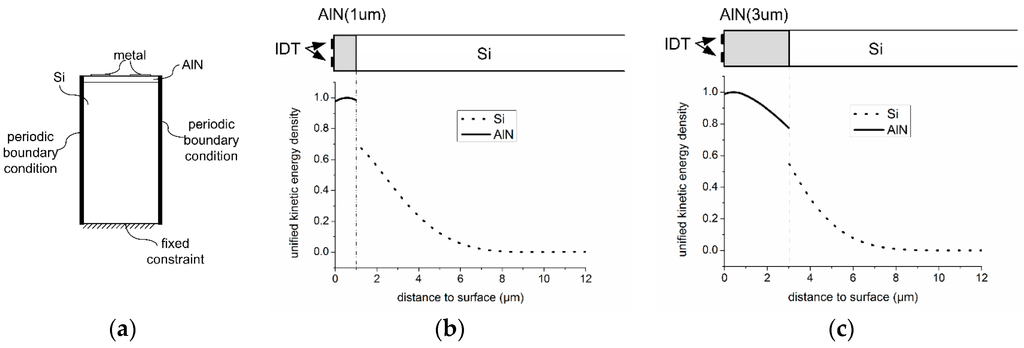

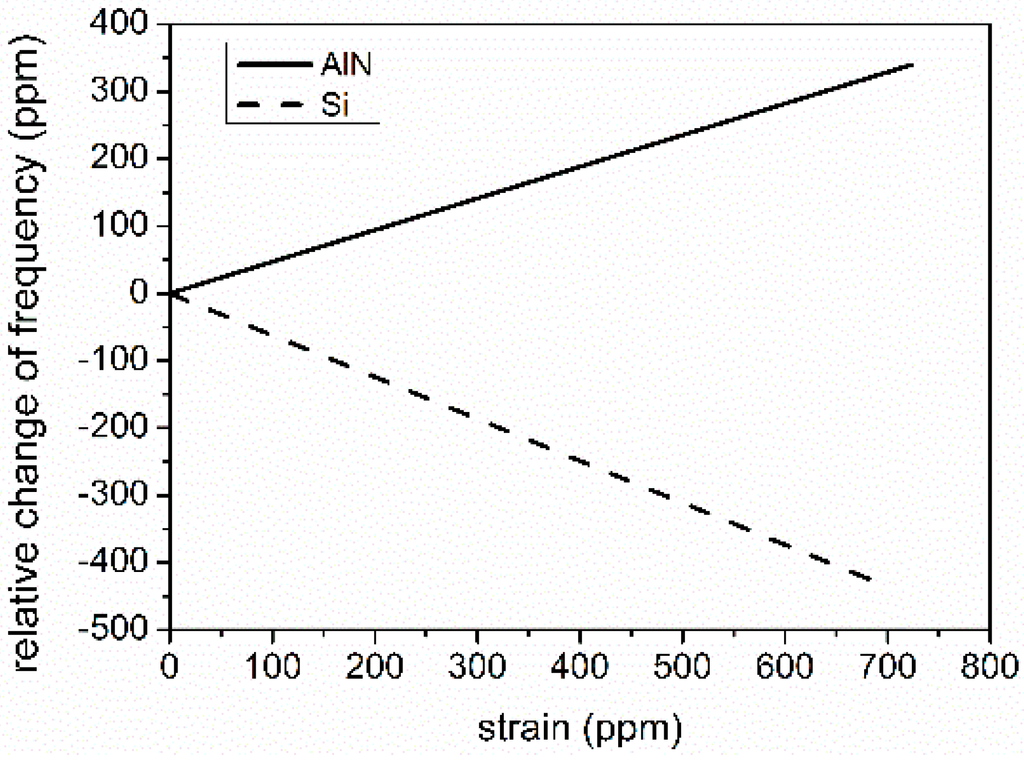

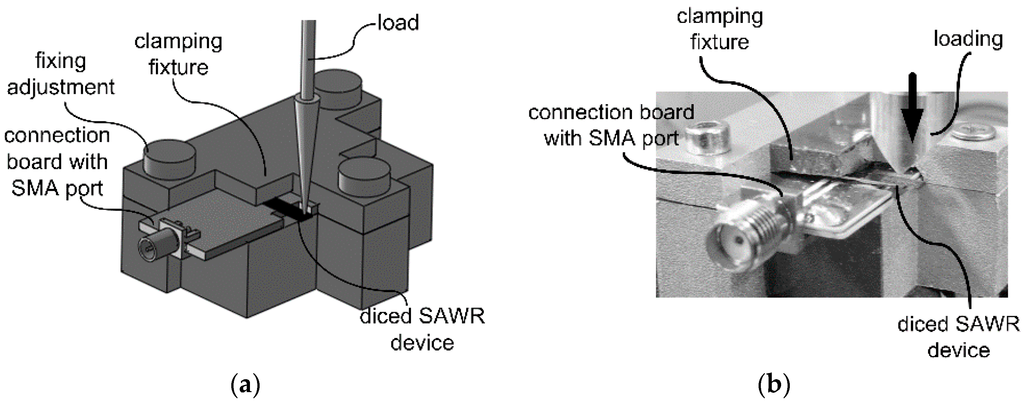

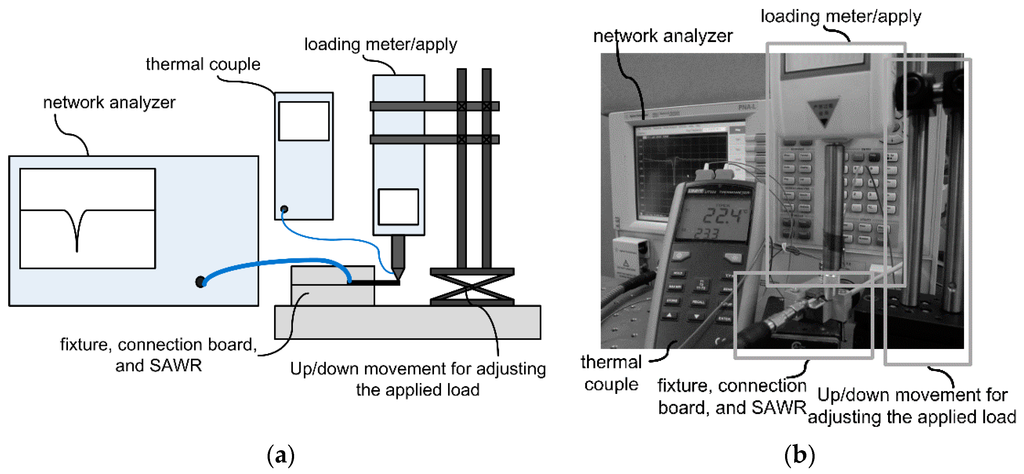

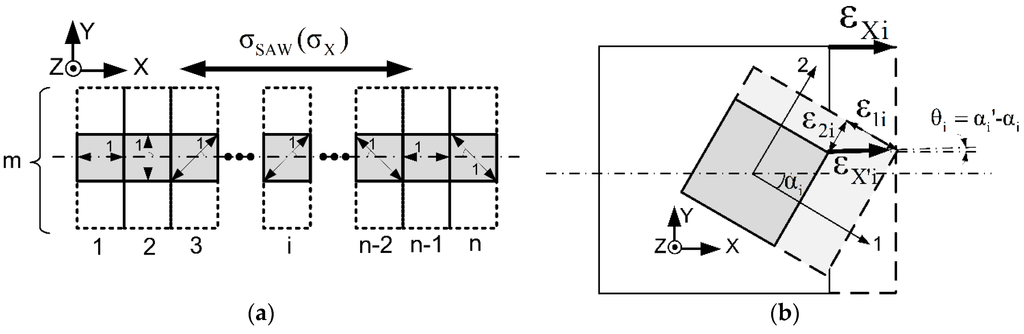

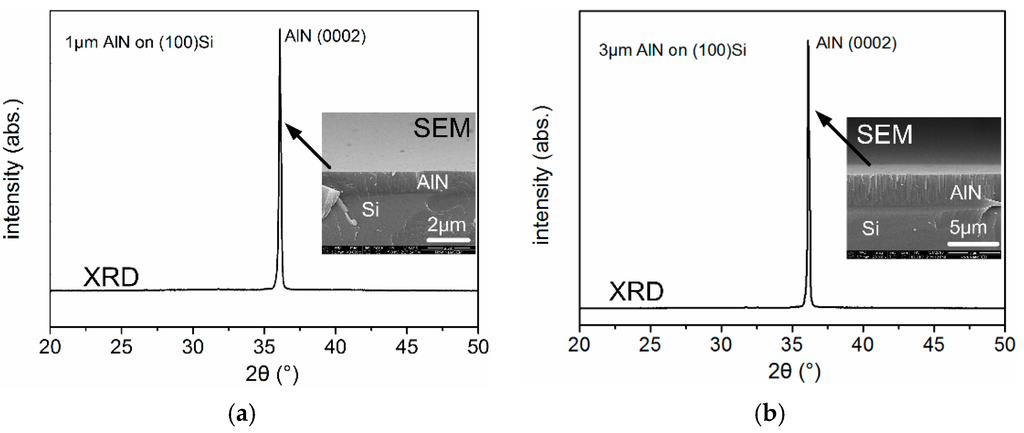

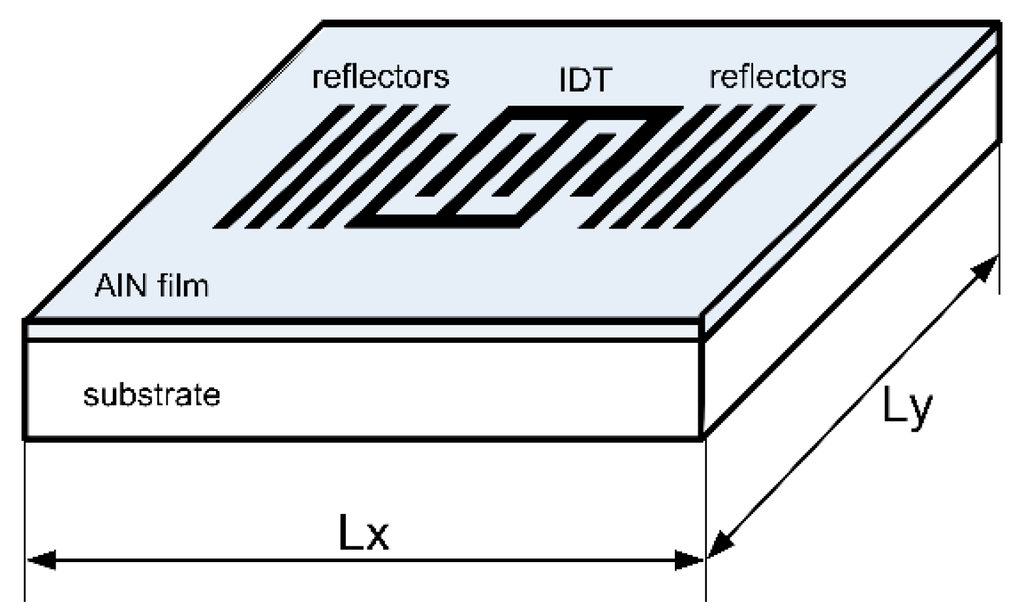

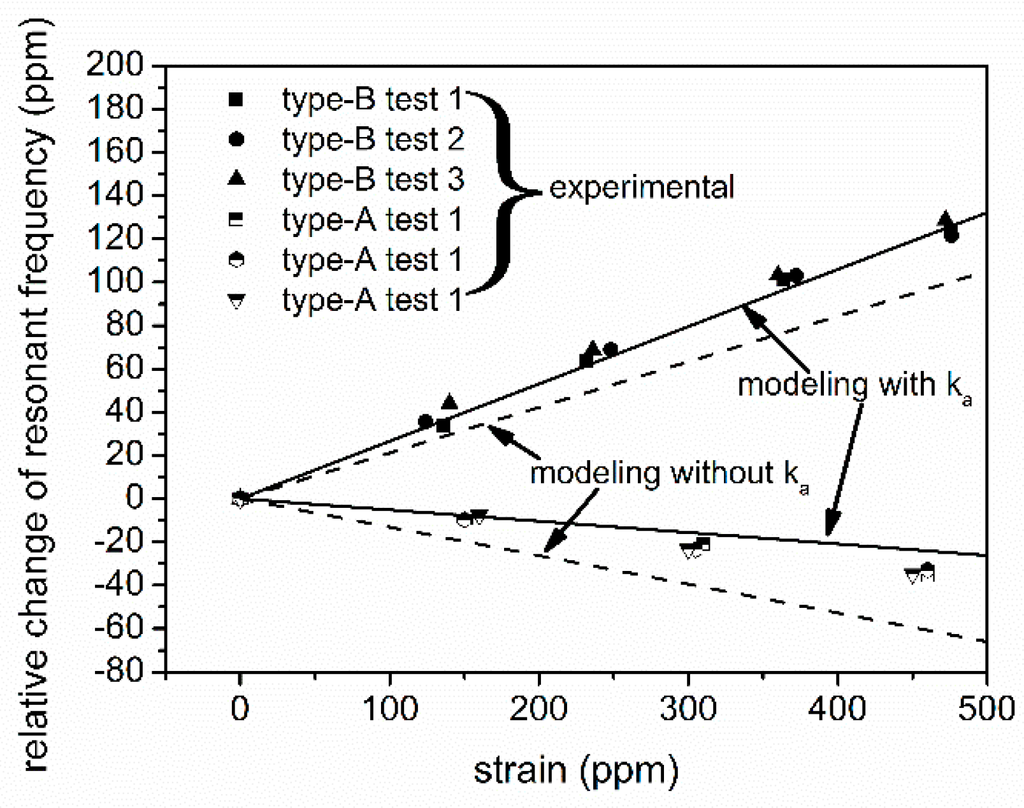

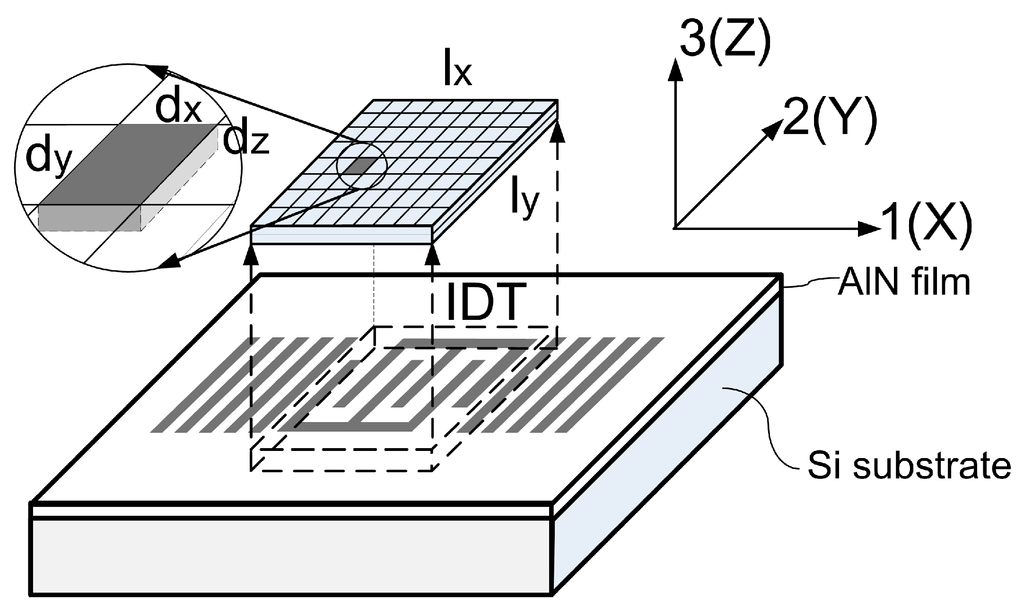

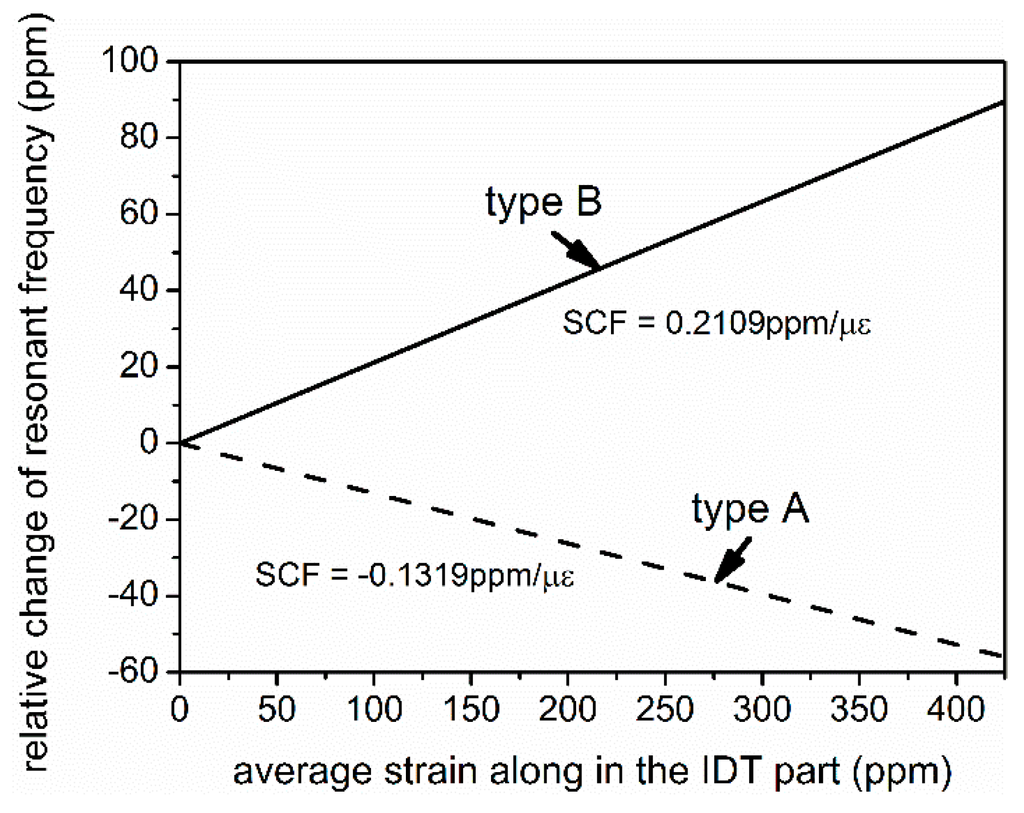

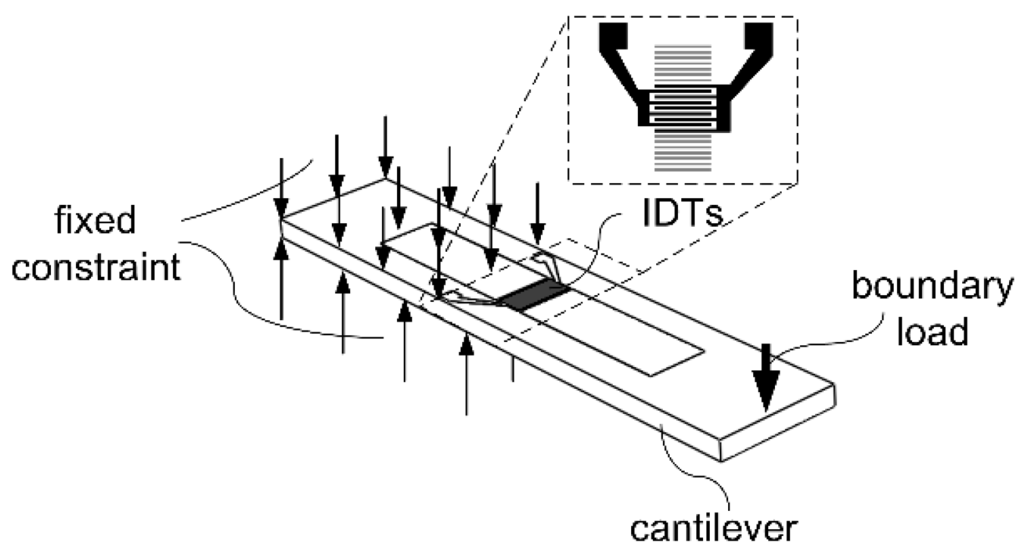

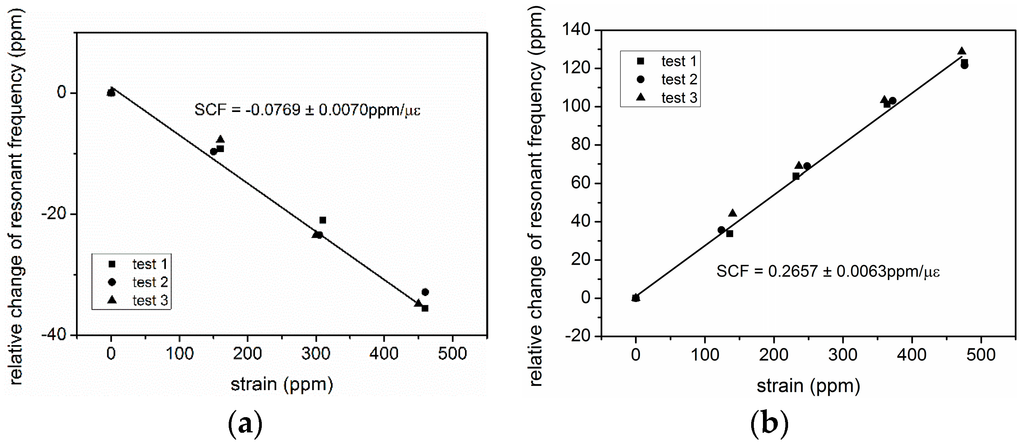

The strain sensitivity of the Aluminum Nitride (AlN)/Silicon (Si) surface acoustic wave resonator (SAWR) is predicted based on a modeling method introduced in this work, and further compared with experimental results. The strain influence on both the period of the inter-digital transducer (IDT) and the sound velocity is taken into consideration when modeling the strain response. From the modeling results, AlN and Si have opposite responses to strain; hence, for the AlN/Si-based SAWR, both a positive and a negative strain coefficient factor can be achieved by changing the thickness of the AlN layer, which is confirmed by strain response testing based on a silicon cantilever structure with two AlN configurations (1 μm and 3 μm in thickness, respectively). View Full-Text
Keywords: surface acoustic wave resonator; aluminum nitride; strain coefficient factor surface acoustic wave resonator; aluminum nitride; strain coefficient factor
