Sensors 2016, 16(12), 2131; doi:10.3390/s16122131

Flexible Pressure Sensor with Ag Wrinkled Electrodes Based on PDMS Substrate

Science and Technology on Electronic Test & Measurement Laboratory, North University of China, Taiyuan 030051, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Stefano Mariani
Received: 7 November 2016 / Revised: 6 December 2016 / Accepted: 12 December 2016 / Published: 14 December 2016
(This article belongs to the Collection Modeling, Testing and Reliability Issues in MEMS Engineering)
View Full-Text   |   Download PDF [2648 KB, uploaded 14 December 2016]   |

Abstract

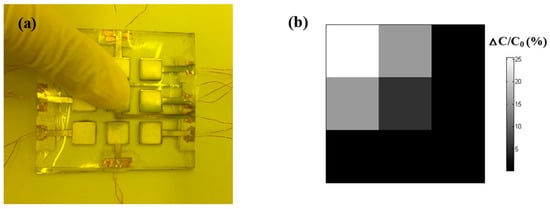

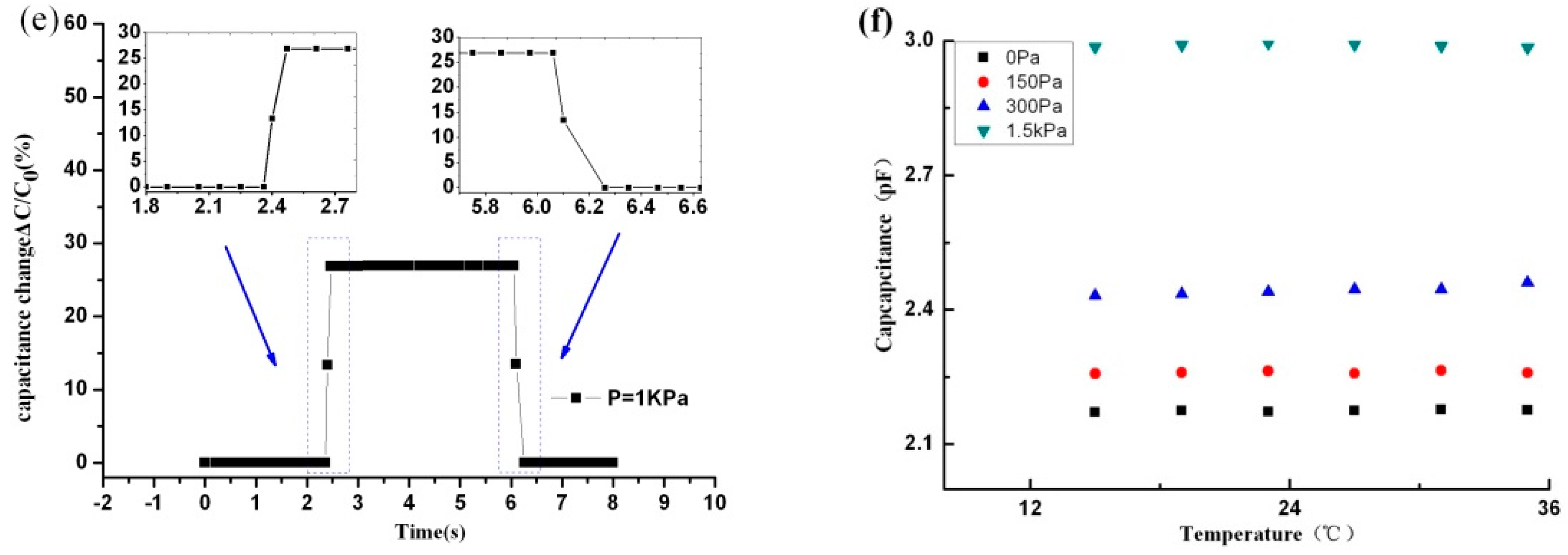

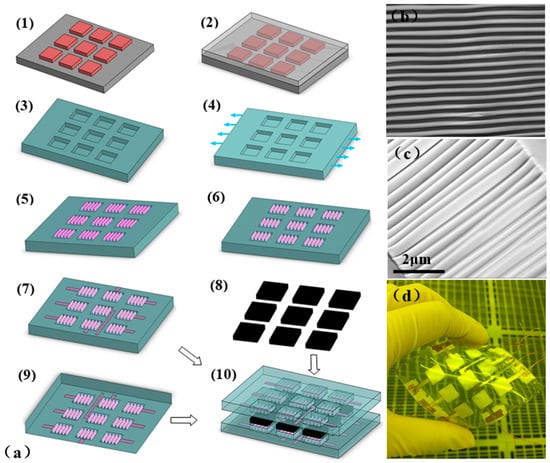

Flexible pressure sensors are essential components of electronic skins for future attractive applications ranging from human healthcare monitoring to biomedical diagnostics, robotic skins, and prosthetic limbs. Here we report a new kind of flexible pressure sensor. The sensors are capacitive, and composed of two Ag wrinkled electrodes separated by a carbon nanotubes (CNTs)/polydimethylsiloxane (PDMS) composite deformable dielectric layer. Ag wrinkled electrodes were formed by vacuum deposition on top of pre-strained and relaxed PDMS substrates which were treated using an O2 plasma, a surface functionalization process, and a magnetron sputtering process. Ultimately, the developed sensor exhibits a maximum sensitivity of 19.80% kPa−1 to capacitance, great durability over 500 cycles, and rapid mechanical responses (<200 ms). We also demonstrate that our sensor can be used to effectively detect the location and distribution of finger pressure. View Full-Text
Keywords: pressure sensor; flexible sensor; Ag wrinkled electrodes; carbon nanotube pressure sensor; flexible sensor; Ag wrinkled electrodes; carbon nanotube
Figures

Figure 1
