Sensors 2016, 16(12), 2129; doi:10.3390/s16122129

Novel Resistance Measurement Method: Analysis of Accuracy and Thermal Dependence with Applications in Fiber Materials

Department Electronic Engineering, ETSE, Universitat de Valencia, Burjassot 46100, Valencia, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 29 September 2016 / Revised: 8 December 2016 / Accepted: 9 December 2016 / Published: 14 December 2016
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2016)
View Full-Text   |   Download PDF [1150 KB, uploaded 14 December 2016]   |

Abstract

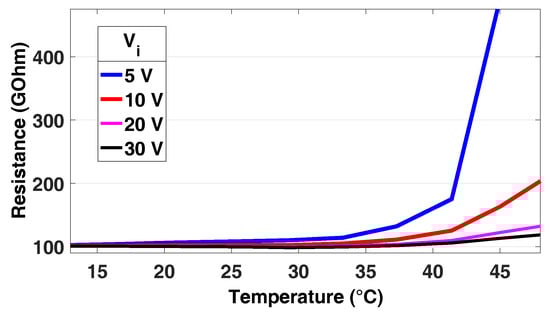

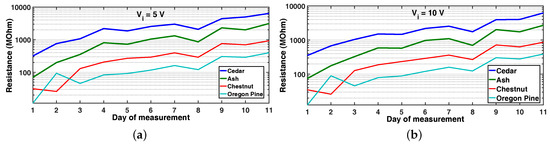

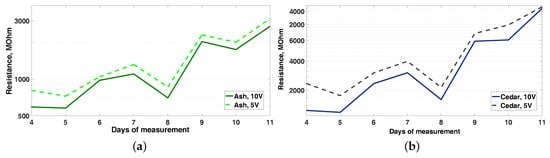

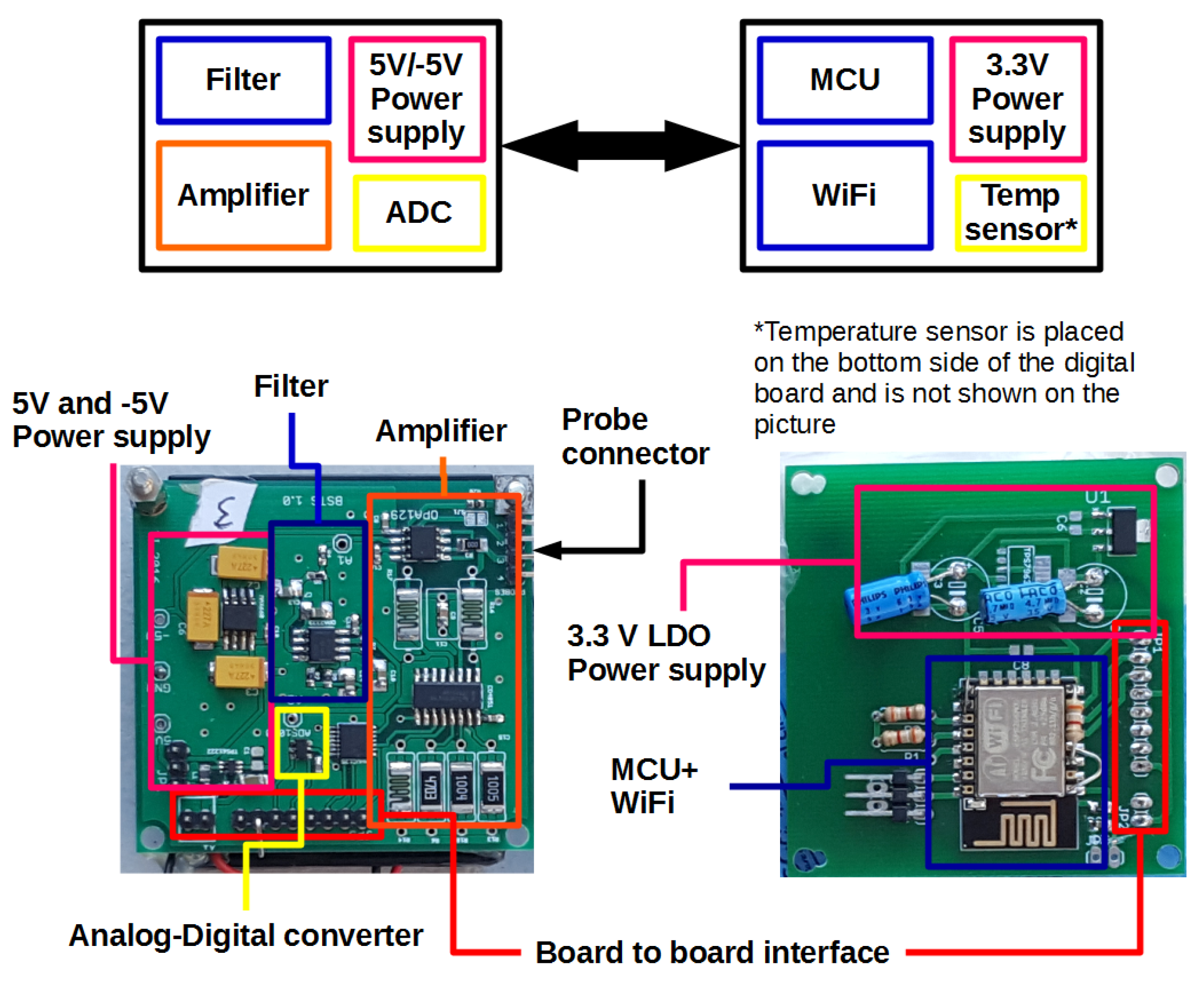

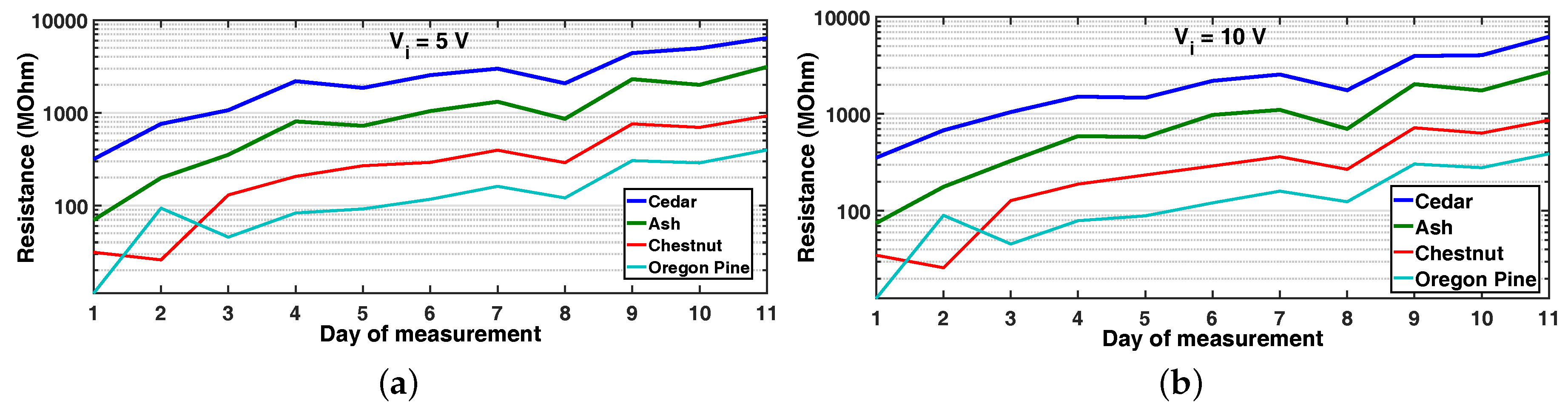

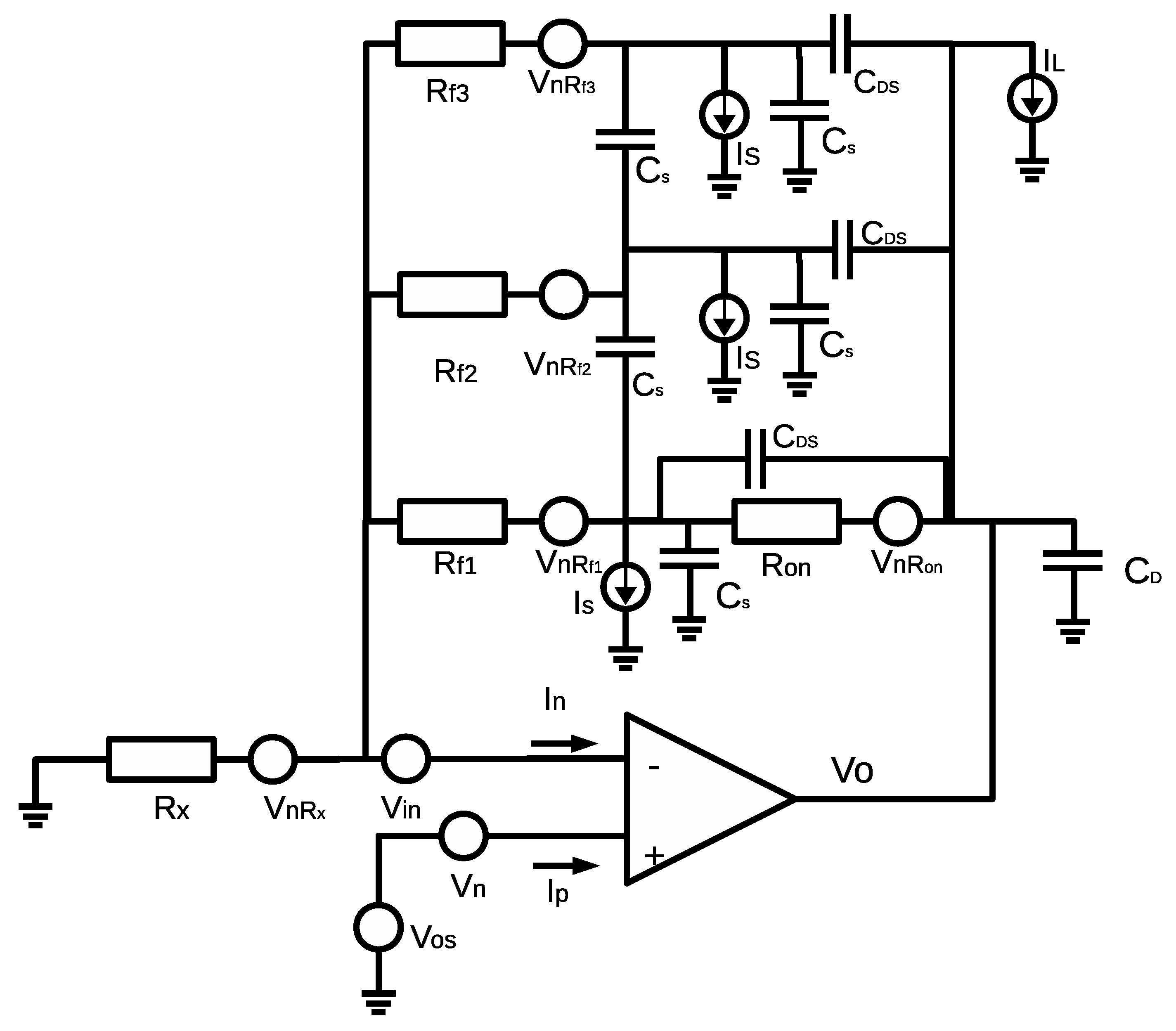

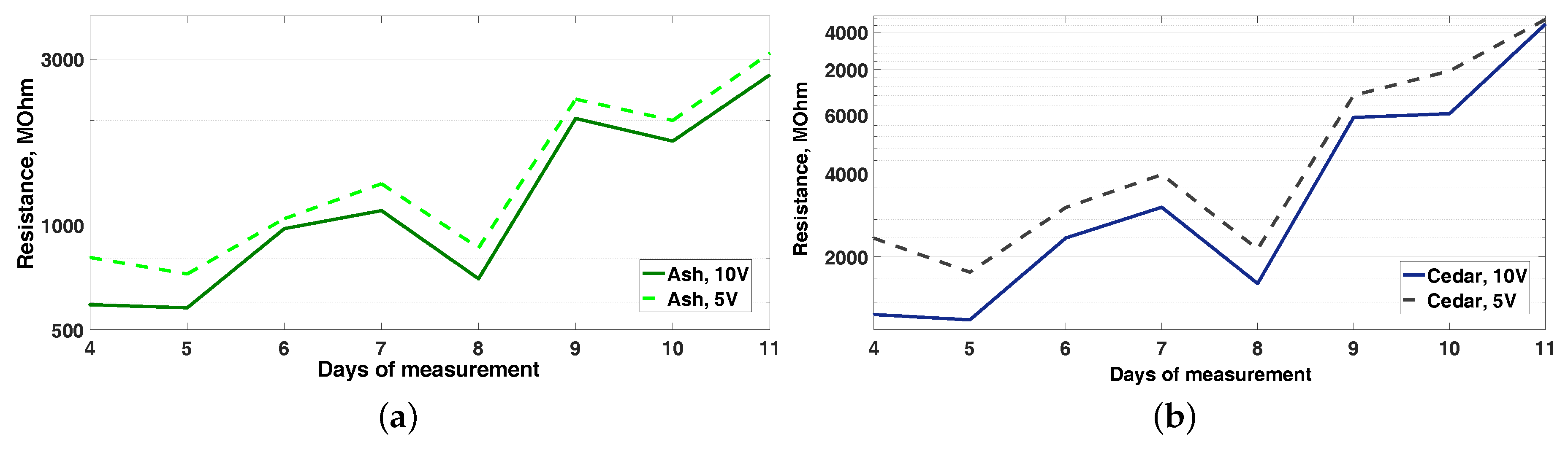

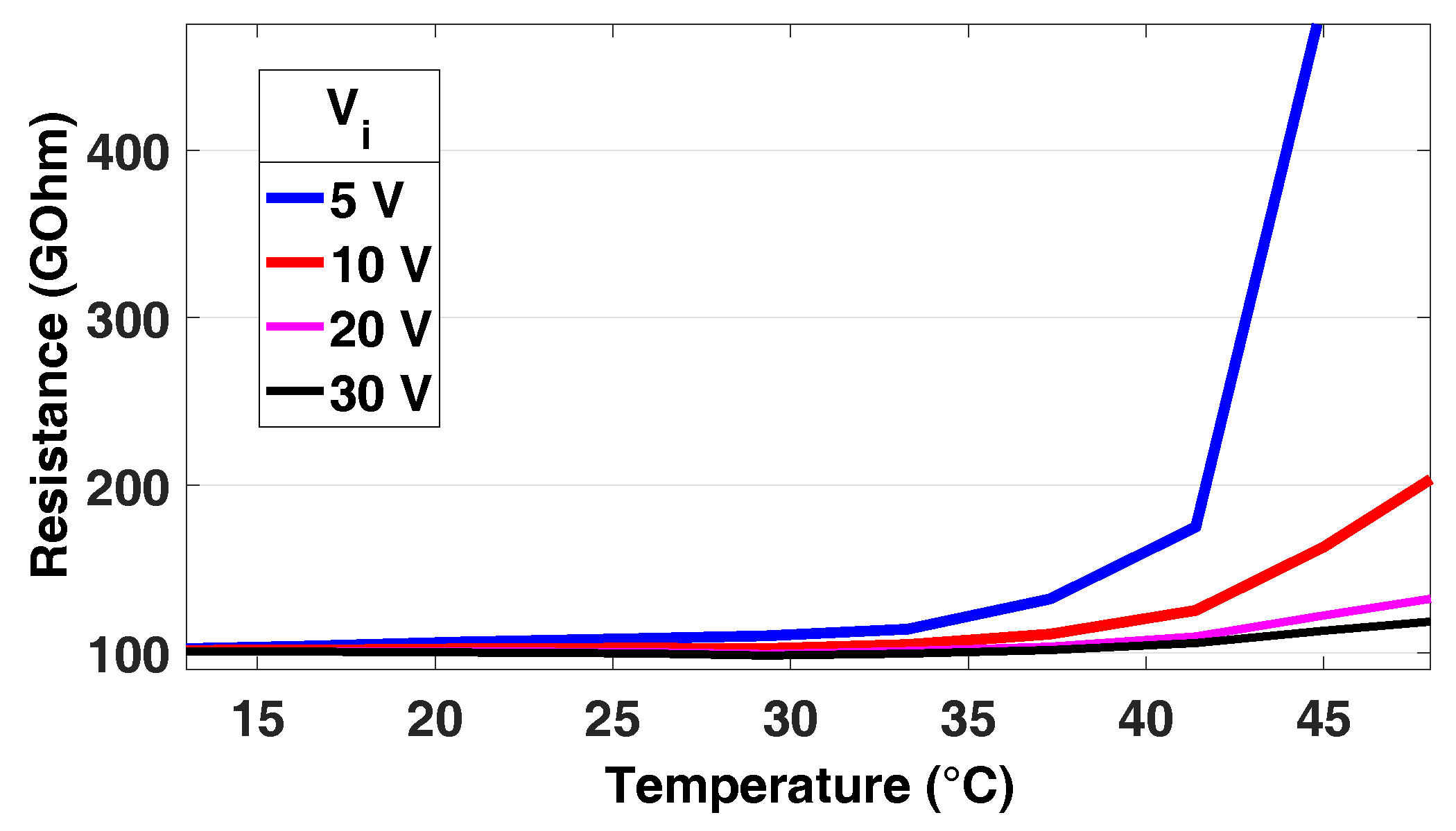

Material resistance is important since different physicochemical properties can be extracted from it. This work describes a novel resistance measurement method valid for a wide range of resistance values up to 100 GΩ at a low powered, small sized, digitally controlled and wireless communicated device. The analog and digital circuits of the design are described, analysing the main error sources affecting the accuracy. Accuracy and extended uncertainty are obtained for a pattern decade box, showing a maximum of 1 % accuracy for temperatures below 30 C in the range from 1 MΩ to 100 GΩ. Thermal analysis showed stability up to 50 C for values below 10 GΩ and systematic deviations for higher values. Power supply V i applied to the measurement probes is also analysed, showing no differences in case of the pattern decade box, except for resistance values above 10 GΩ and temperatures above 35 C. To evaluate the circuit behaviour under fiber materials, an 11-day drying process in timber from four species (Oregon pine-Pseudotsuga menziesii, cedar-Cedrus atlantica, ash-Fraxinus excelsior, chestnut-Castanea sativa) was monitored. Results show that the circuit, as expected, provides different resistance values (they need individual conversion curves) for different species and the same ambient conditions. Additionally, it was found that, contrary to the decade box analysis, V i affects the resistance value due to material properties. In summary, the proposed circuit is able to accurately measure material resistance that can be further related to material properties. View Full-Text
Keywords: ultra wide range resistance measurement; circuit characterization; moisture content estimation ultra wide range resistance measurement; circuit characterization; moisture content estimation
Figures

Figure 1
