Sensors 2016, 16(12), 2026; doi:10.3390/s16122026

A Fiber-Optic Sensor for Acoustic Emission Detection in a High Voltage Cable System

Key Laboratory of Specialty Fiber Optics and Optical Access Networks, Shanghai University, 149 Yanchang Road, Shanghai 200072, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 23 September 2016 / Revised: 20 November 2016 / Accepted: 25 November 2016 / Published: 30 November 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [5335 KB, uploaded 30 November 2016]   |

Abstract

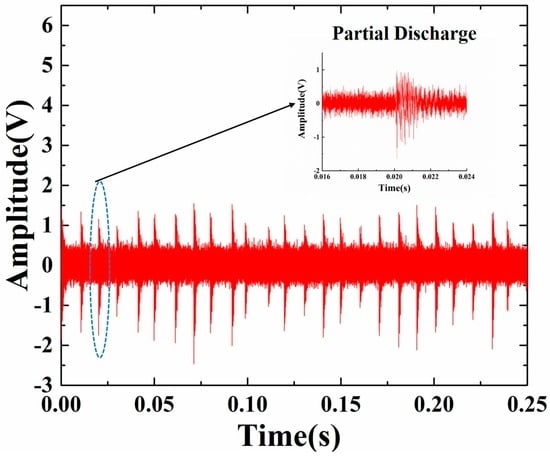

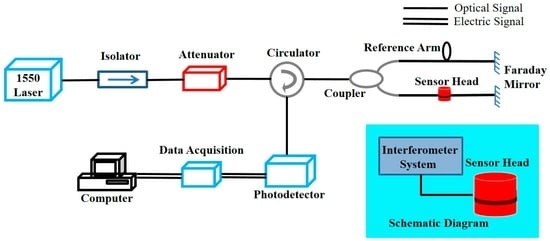

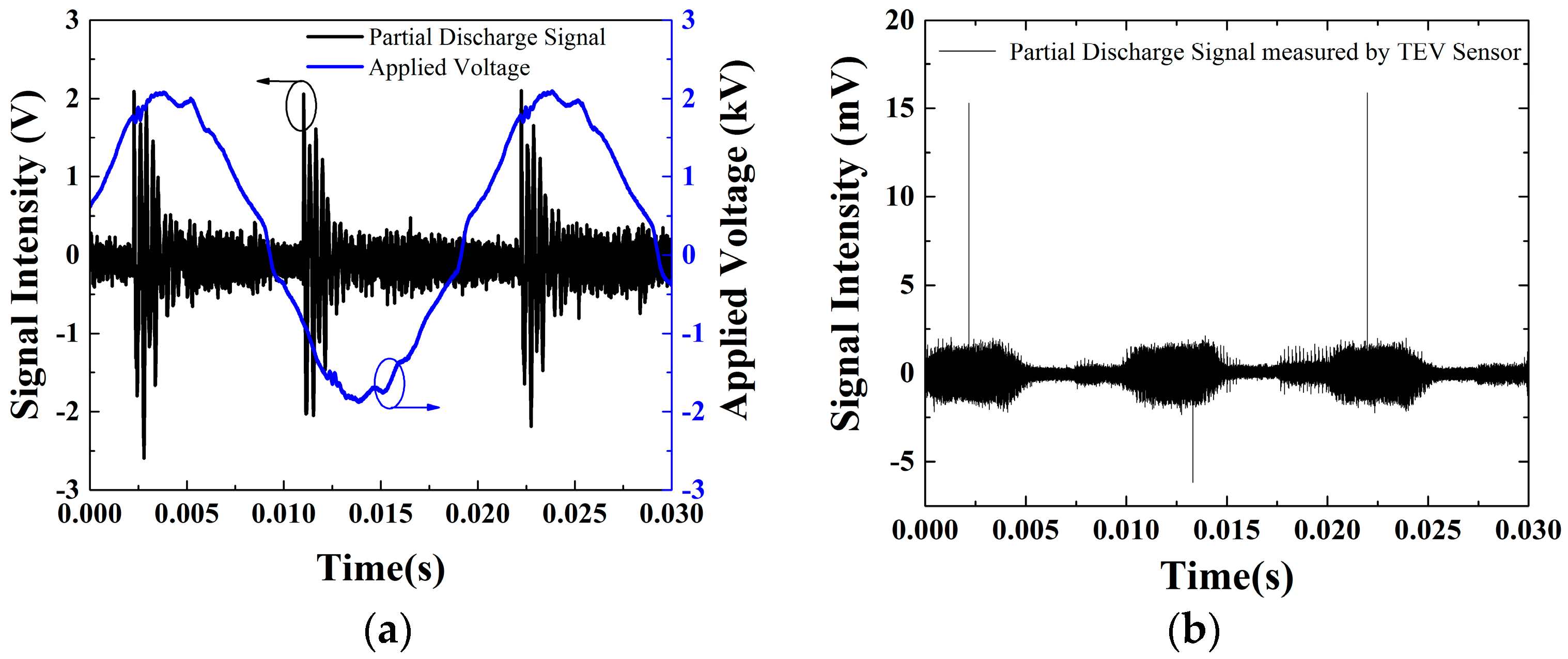

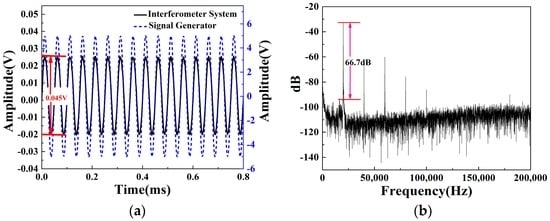

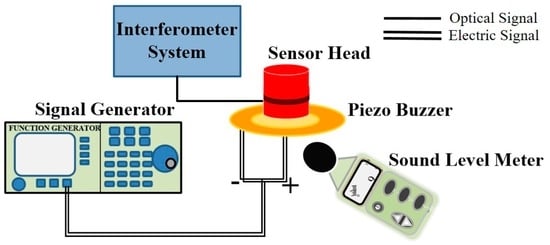

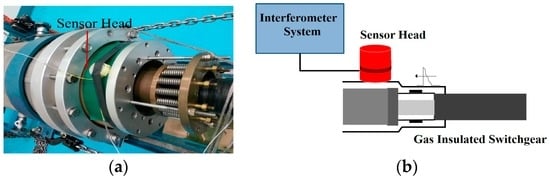

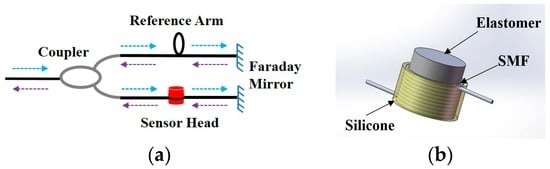

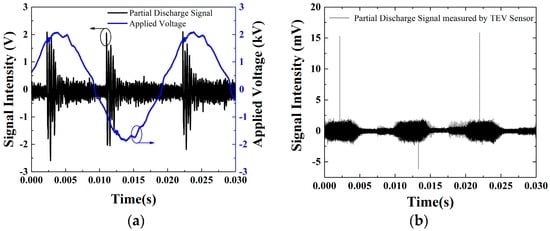

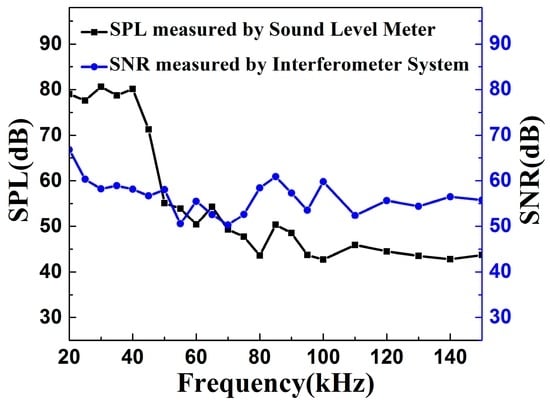

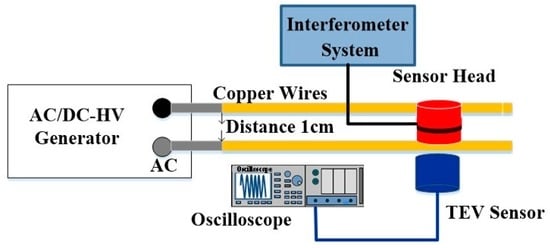

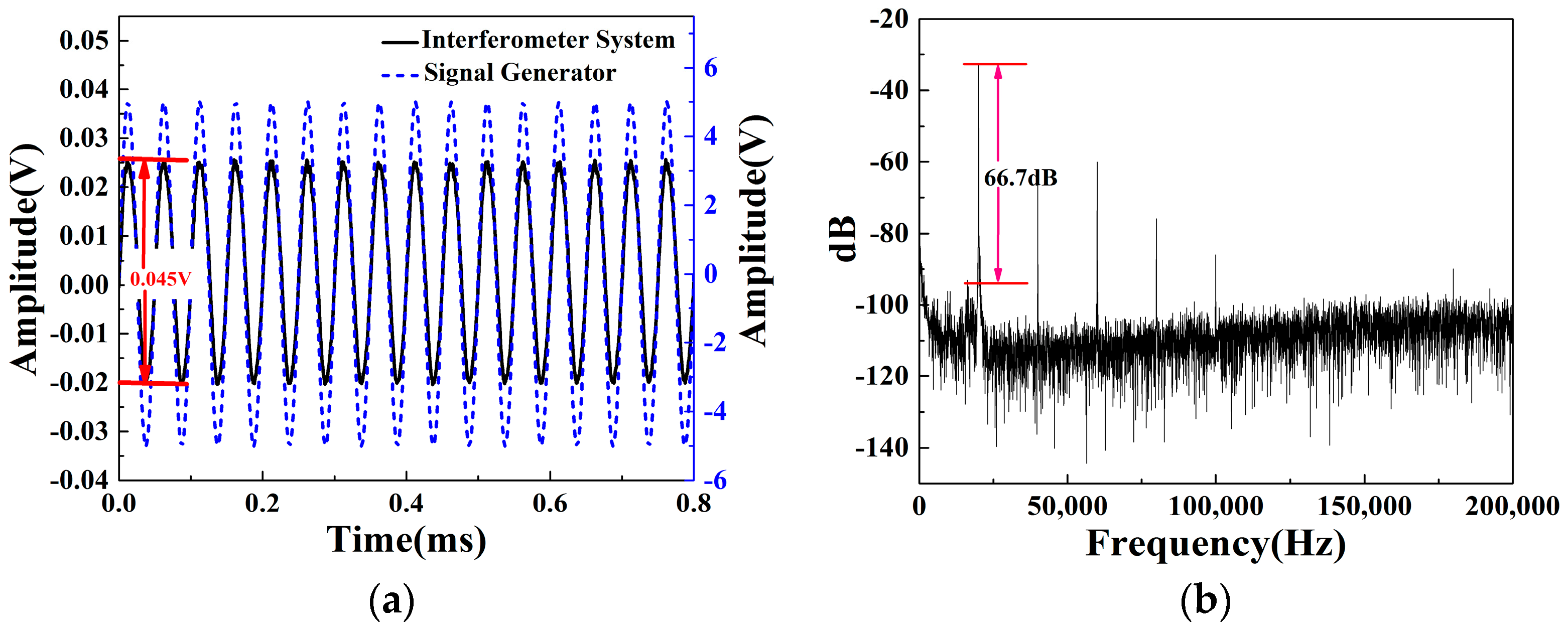

We have proposed and demonstrated a Michelson interferometer-based fiber sensor for detecting acoustic emission generated from the partial discharge (PD) of the accessories of a high-voltage cable system. The developed sensor head is integrated with a compact and relatively high sensitivity cylindrical elastomer. Such a sensor has a broadband frequency response and a relatively high sensitivity in a harsh environment under a high-voltage electric field. The design and fabrication of the sensor head integrated with the cylindrical elastomer is described, and a series of experiments was conducted to evaluate the sensing performance. The experimental results demonstrate that the sensitivity of our developed sensor for acoustic detection of partial discharges is 1.7 rad / ( m Pa ) . A high frequency response up to 150 kHz is achieved. Moreover, the relatively high sensitivity for the detection of PD is verified in both the laboratory environment and gas insulated switchgear. The obtained results show the great potential application of a Michelson interferometer-based fiber sensor integrated with a cylindrical elastomer for in-situ monitoring high-voltage cable accessories for safety work. View Full-Text
Keywords: fiber-optic sensors; interferometry; acoustic emission; partial discharge; GIS fiber-optic sensors; interferometry; acoustic emission; partial discharge; GIS
