Sensors 2016, 16(12), 2014; doi:10.3390/s16122014

Measurement of M2-Curve for Asymmetric Beams by Self-Referencing Interferometer Wavefront Sensor

1
College of Engineering, Huaqiao University, Quanzhou 362021, China
2
Fujian Provincial Academic Engineering Research Centre in Industrial Intelligent Techniques and Systems, Huaqiao University, Quanzhou 362021, China
Academic Editor: Vittorio M. N. Passaro
Received: 17 October 2016 / Revised: 15 November 2016 / Accepted: 23 November 2016 / Published: 29 November 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [4706 KB, uploaded 29 November 2016]   |

Abstract

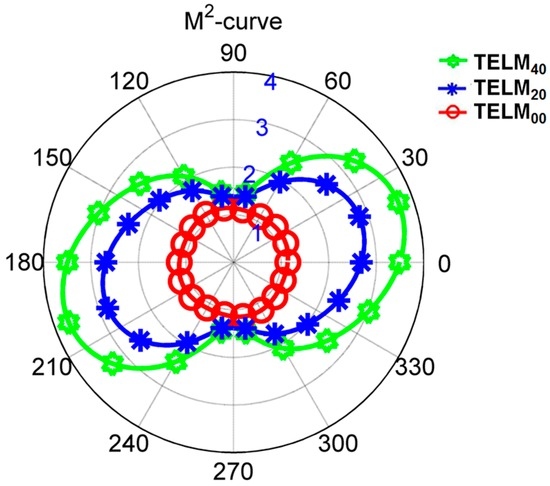

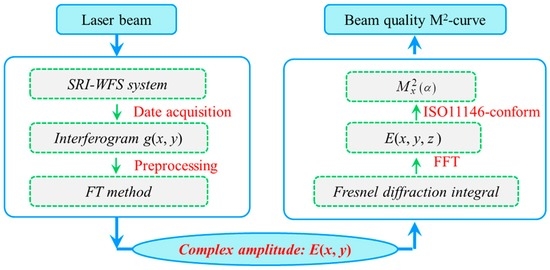

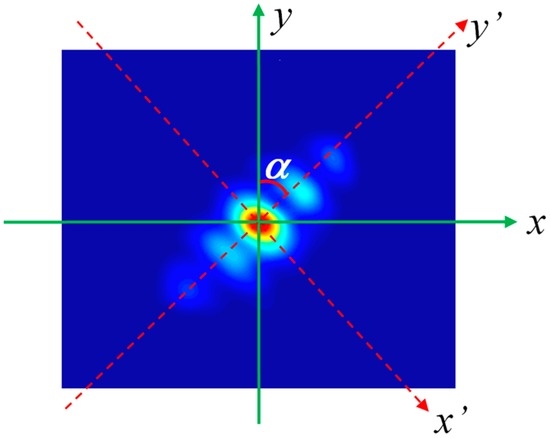

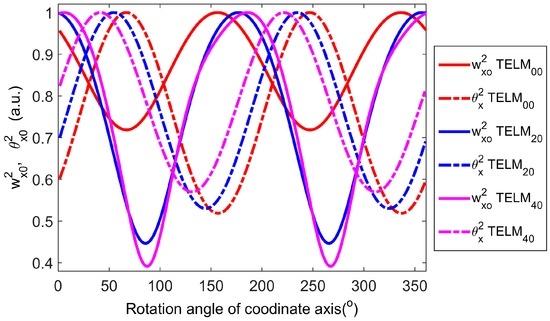

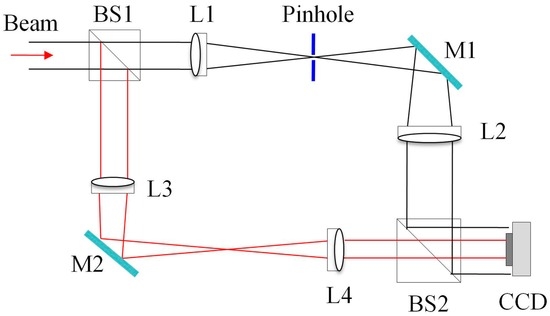

For asymmetric laser beams, the values of beam quality factor M x 2 and M y 2 are inconsistent if one selects a different coordinate system or measures beam quality with different experimental conditionals, even when analyzing the same beam. To overcome this non-uniqueness, a new beam quality characterization method named as M2-curve is developed. The M2-curve not only contains the beam quality factor M x 2 and M y 2 in the x-direction and y-direction, respectively; but also introduces a curve of M x α 2 versus rotation angle α of coordinate axis. Moreover, we also present a real-time measurement method to demonstrate beam propagation factor M2-curve with a modified self-referencing Mach-Zehnder interferometer based-wavefront sensor (henceforth SRI-WFS). The feasibility of the proposed method is demonstrated with the theoretical analysis and experiment in multimode beams. The experimental results showed that the proposed measurement method is simple, fast, and a single-shot measurement procedure without movable parts. View Full-Text
Keywords: laser beam characterization; beam quality M2-curve; self-referencing interferometer wavefront sensor; fringe pattern analysis laser beam characterization; beam quality M2-curve; self-referencing interferometer wavefront sensor; fringe pattern analysis
Figures

Figure 1
