Sensors 2016, 16(12), 2007; doi:10.3390/s16122007

Fast Interrogation of Fiber Bragg Gratings with Electro-Optical Dual Optical Frequency Combs

Department of Electronics Technology, Universidad Carlos III de Madrid, Av. Universidad 30, E-28911 Leganés, Madrid, Spain
*
Author to whom correspondence should be addressed.
Academic Editors: Manuel Lopez-Amo, Jose Miguel Lopez-Higuera and Jose Luis Santos
Received: 30 September 2016 / Revised: 21 November 2016 / Accepted: 23 November 2016 / Published: 26 November 2016
(This article belongs to the Special Issue Optical Fiber Sensors 2016)
View Full-Text   |   Download PDF [3831 KB, uploaded 26 November 2016]   |

Abstract

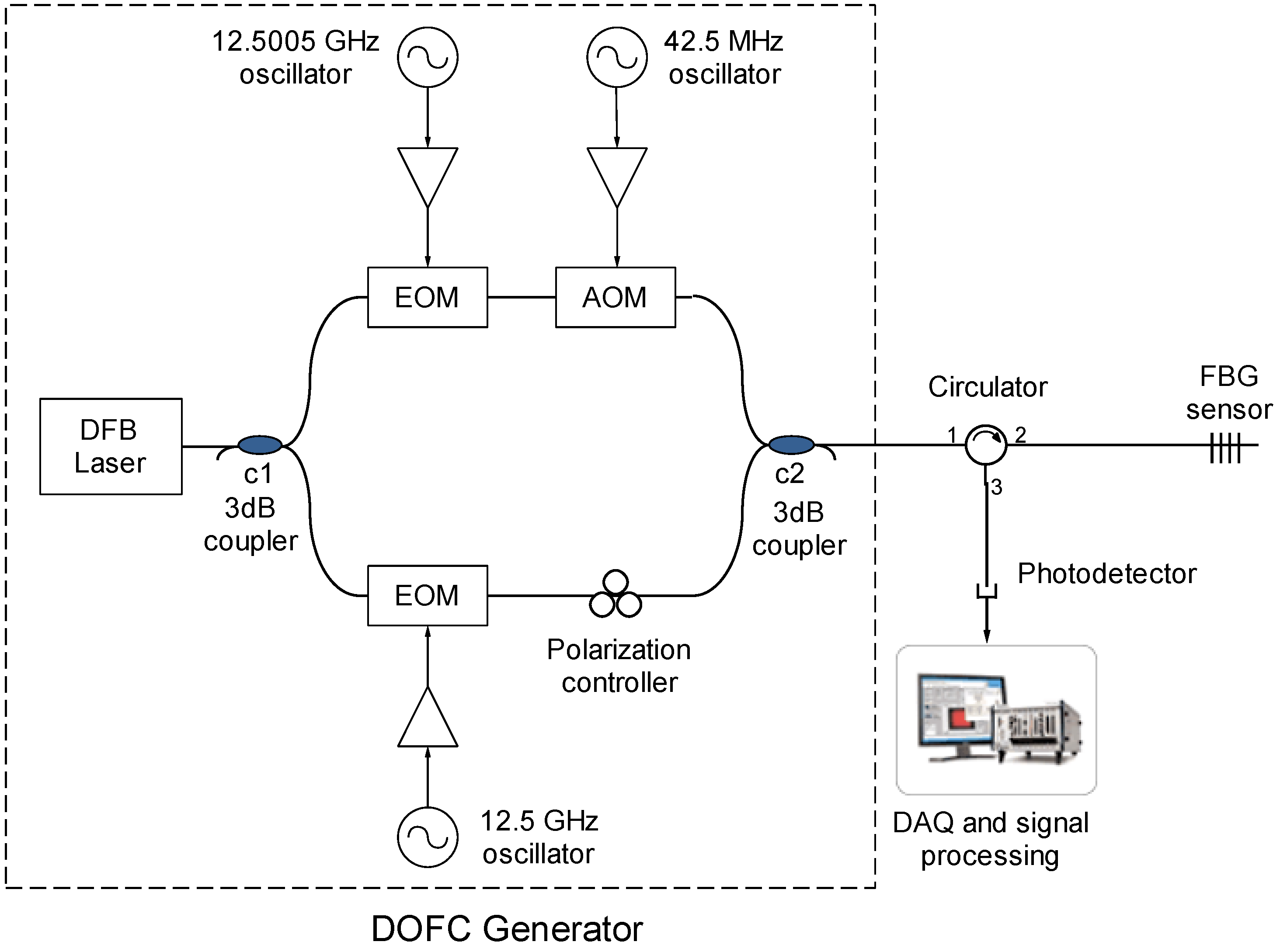

Optical frequency combs (OFC) generated by electro-optic modulation of continuous-wave lasers provide broadband coherent sources with high power per line and independent control of line spacing and the number of lines. In addition to their application in spectroscopy, they offer flexible and optimized sources for the interrogation of other sensors based on wavelength change or wavelength filtering, such as fiber Bragg grating (FBG) sensors. In this paper, a dual-OFC FBG interrogation system based on a single laser and two optical-phase modulators is presented. This architecture allows for the configuration of multimode optical source parameters such as the number of modes and their position within the reflected spectrum of the FBG. A direct read-out is obtained by mapping the optical spectrum onto the radio-frequency spectrum output of the dual-comb. This interrogation scheme is proposed for measuring fast phenomena such as vibrations and ultrasounds. Results are presented for dual-comb operation under optimized control. The optical modes are mapped onto detectable tones that are multiples of 0.5 MHz around a center radiofrequency tone (40 MHz). Measurements of ultrasounds (40 kHz and 120 kHz) are demonstrated with this sensing system. Ultrasounds induce dynamic strain onto the fiber, which generates changes in the reflected Bragg wavelength and, hence, modulates the amplitude of the OFC modes within the reflected spectrum. The amplitude modulation of two counterphase tones is detected to obtain a differential measurement proportional to the ultrasound signal. View Full-Text
Keywords: fiber Bragg gratings; dual optical frequency comb; sensor interrogation; dynamic measurements; ultrasounds fiber Bragg gratings; dual optical frequency comb; sensor interrogation; dynamic measurements; ultrasounds

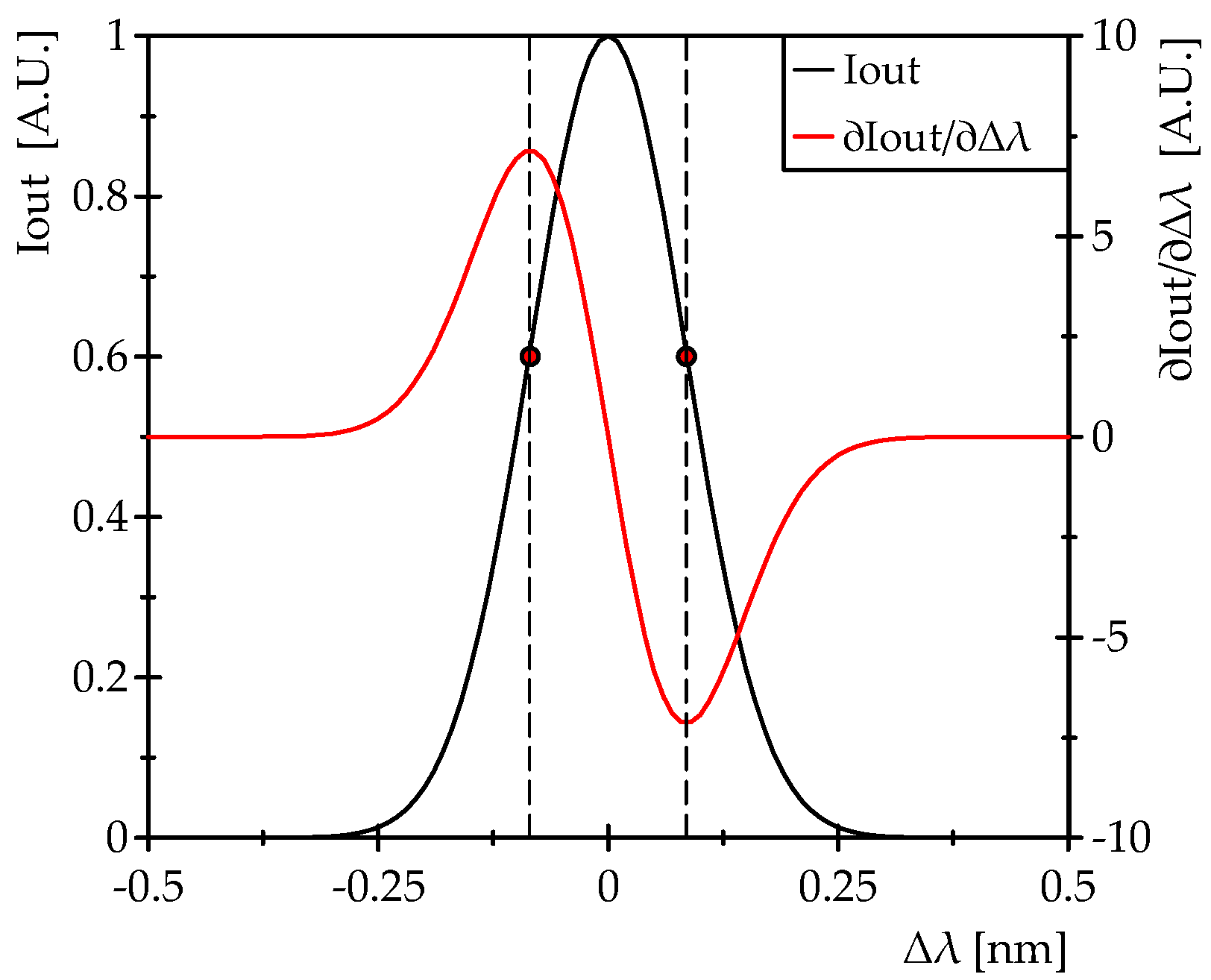

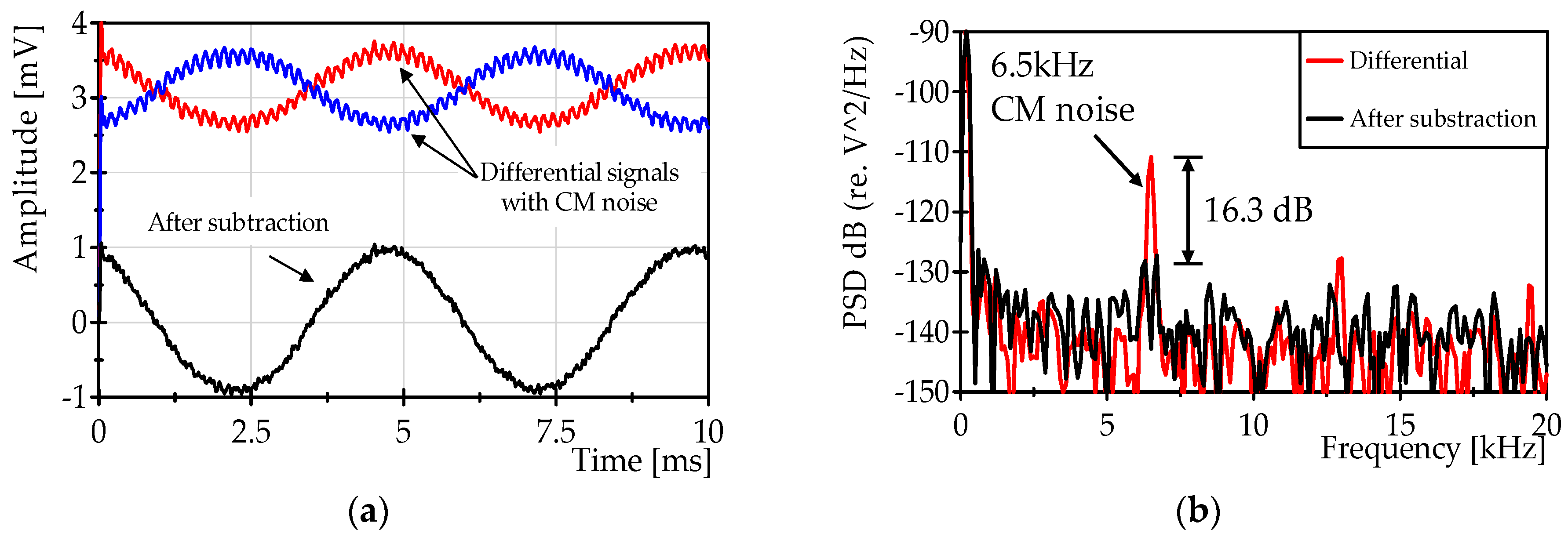

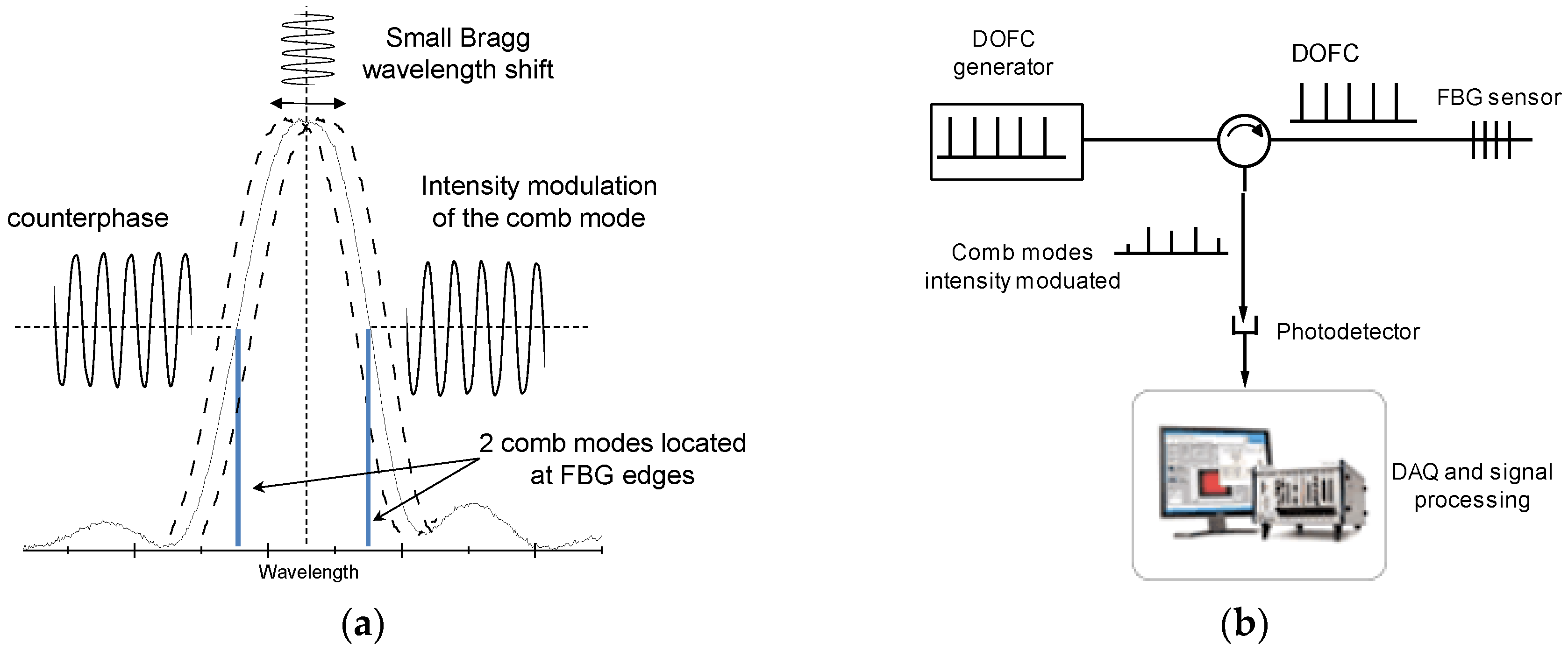

Figures

Figure 1
