Sensors 2016, 16(10), 1766; doi:10.3390/s16101766

Plantar Pressure Detection with Fiber Bragg Gratings Sensing System

1
Graduate Institute of Electrical Engineering, National Kaohsiung First University of Science and Technology, Kaohsiung City 811, Taiwan
2
Department of Sports Medicine, Kaohsiung Medical University, Kaohsiung City 807, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 17 June 2016 / Revised: 18 October 2016 / Accepted: 19 October 2016 / Published: 22 October 2016
View Full-Text   |   Download PDF [5264 KB, uploaded 22 October 2016]   |

Abstract

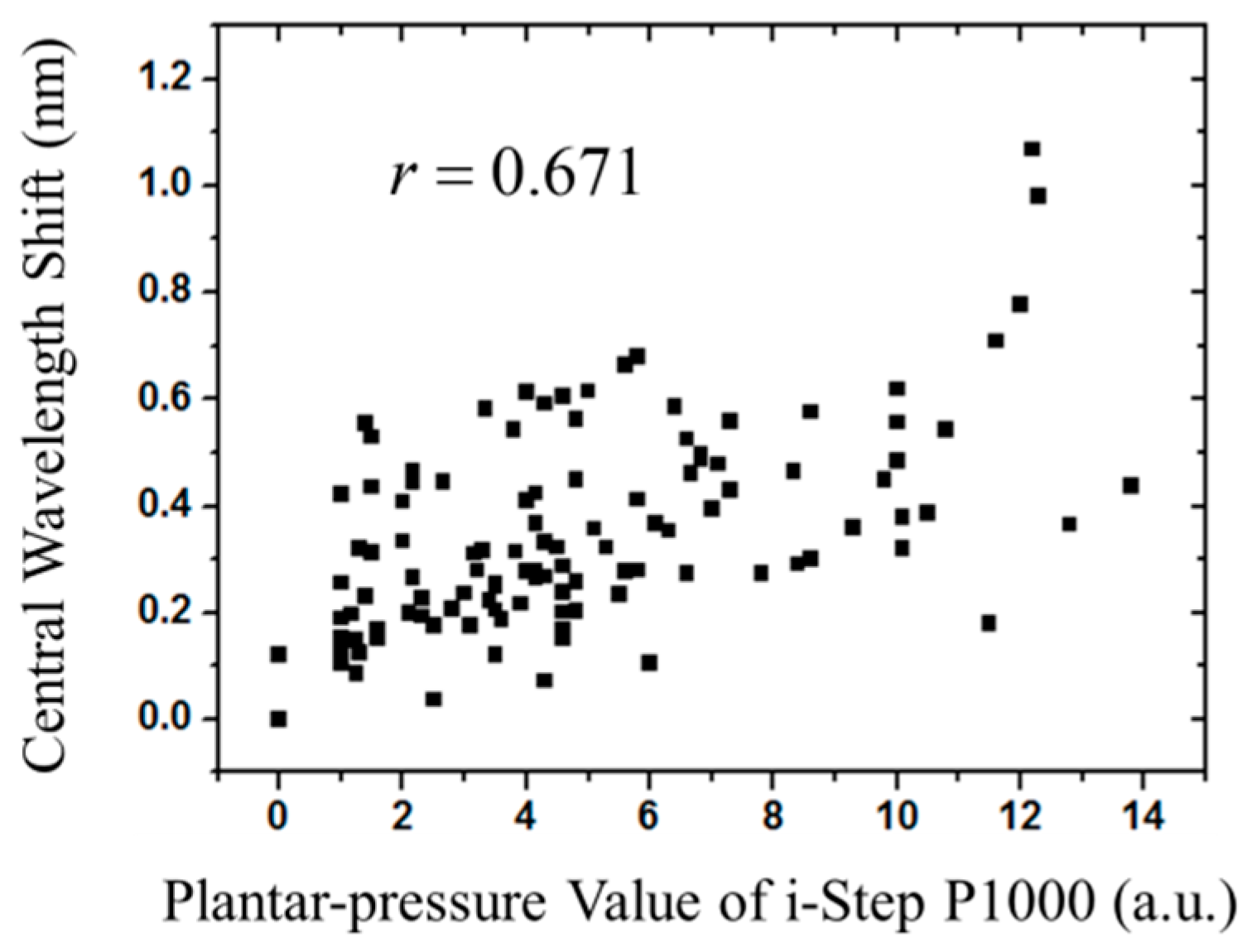

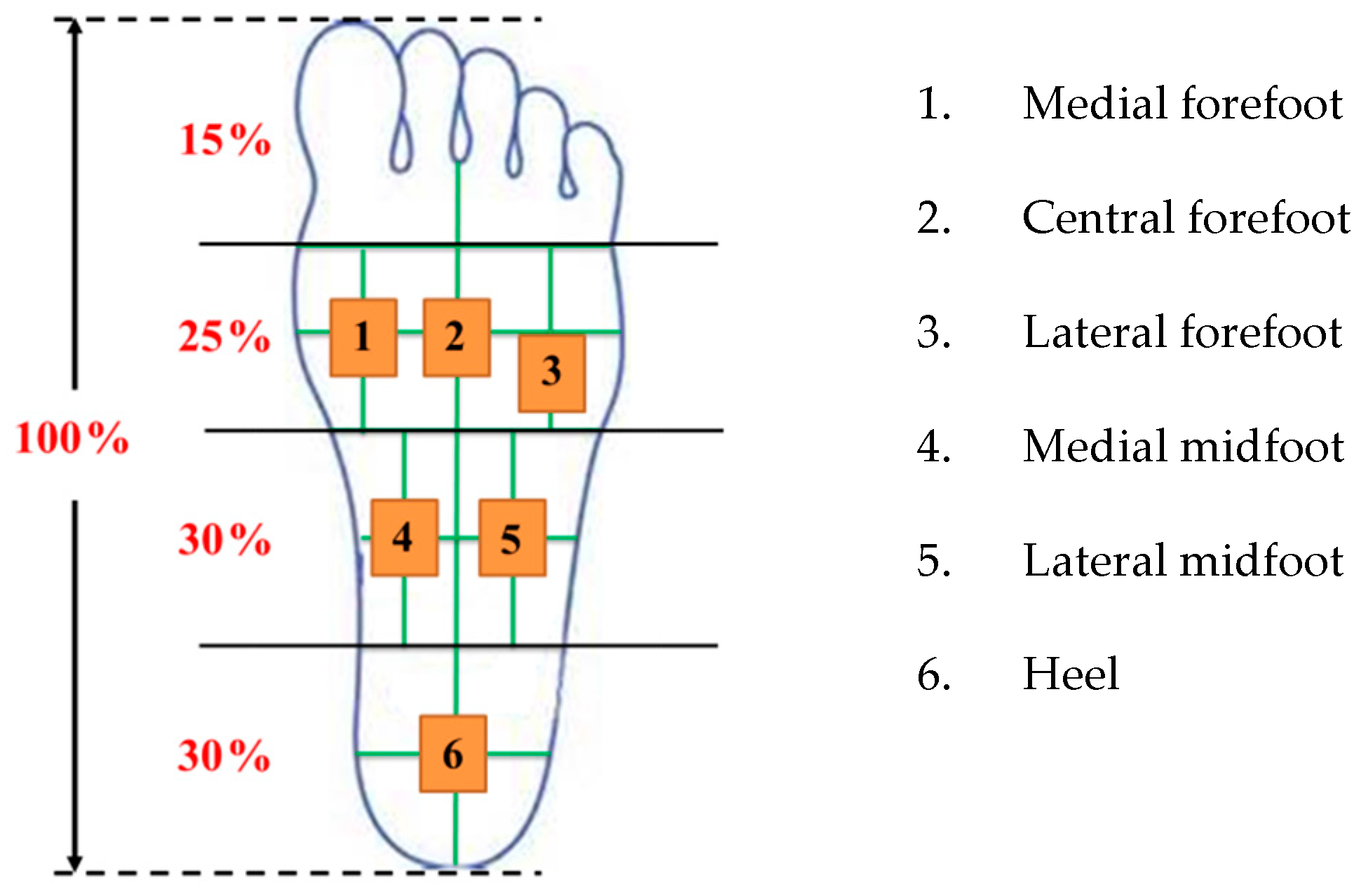

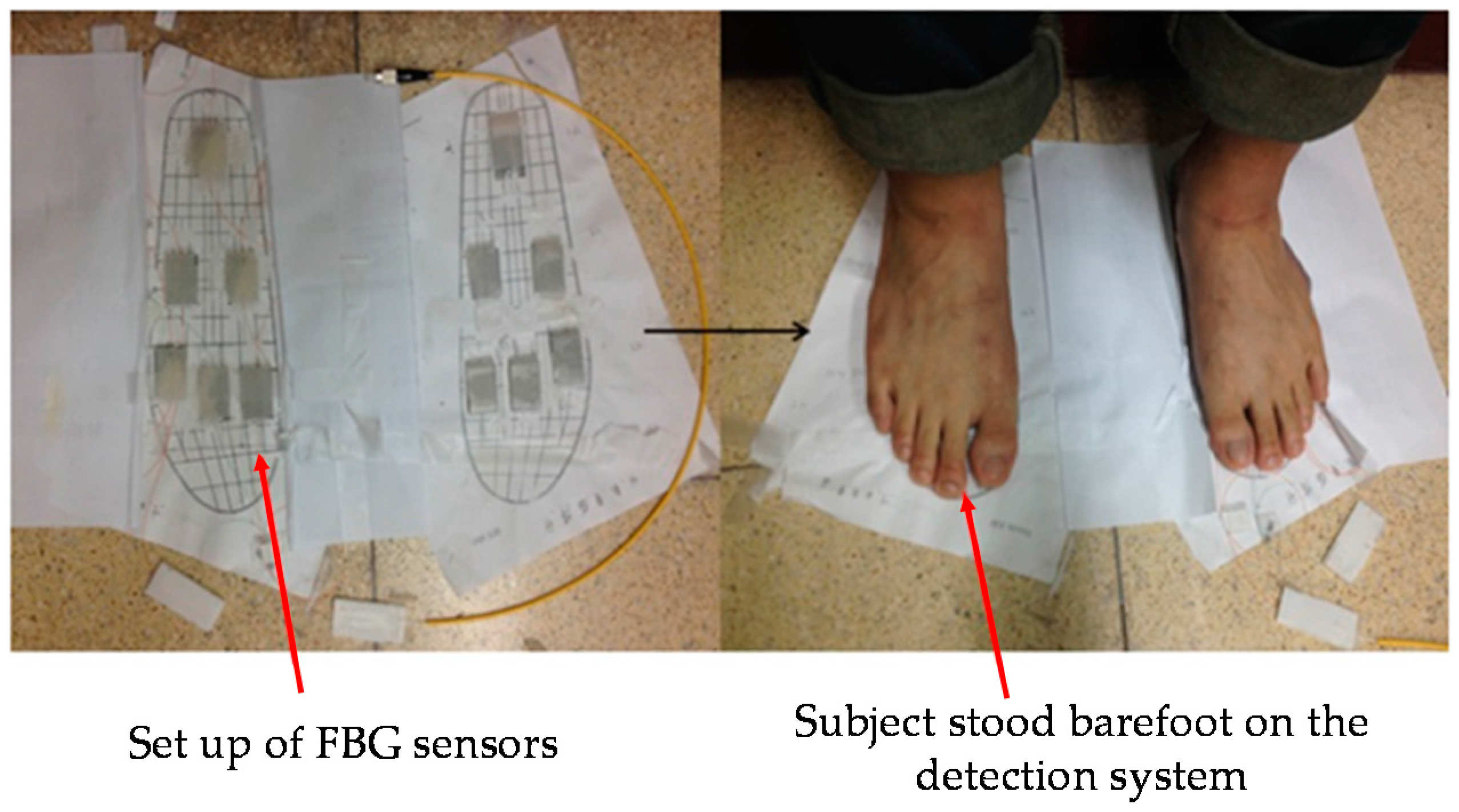

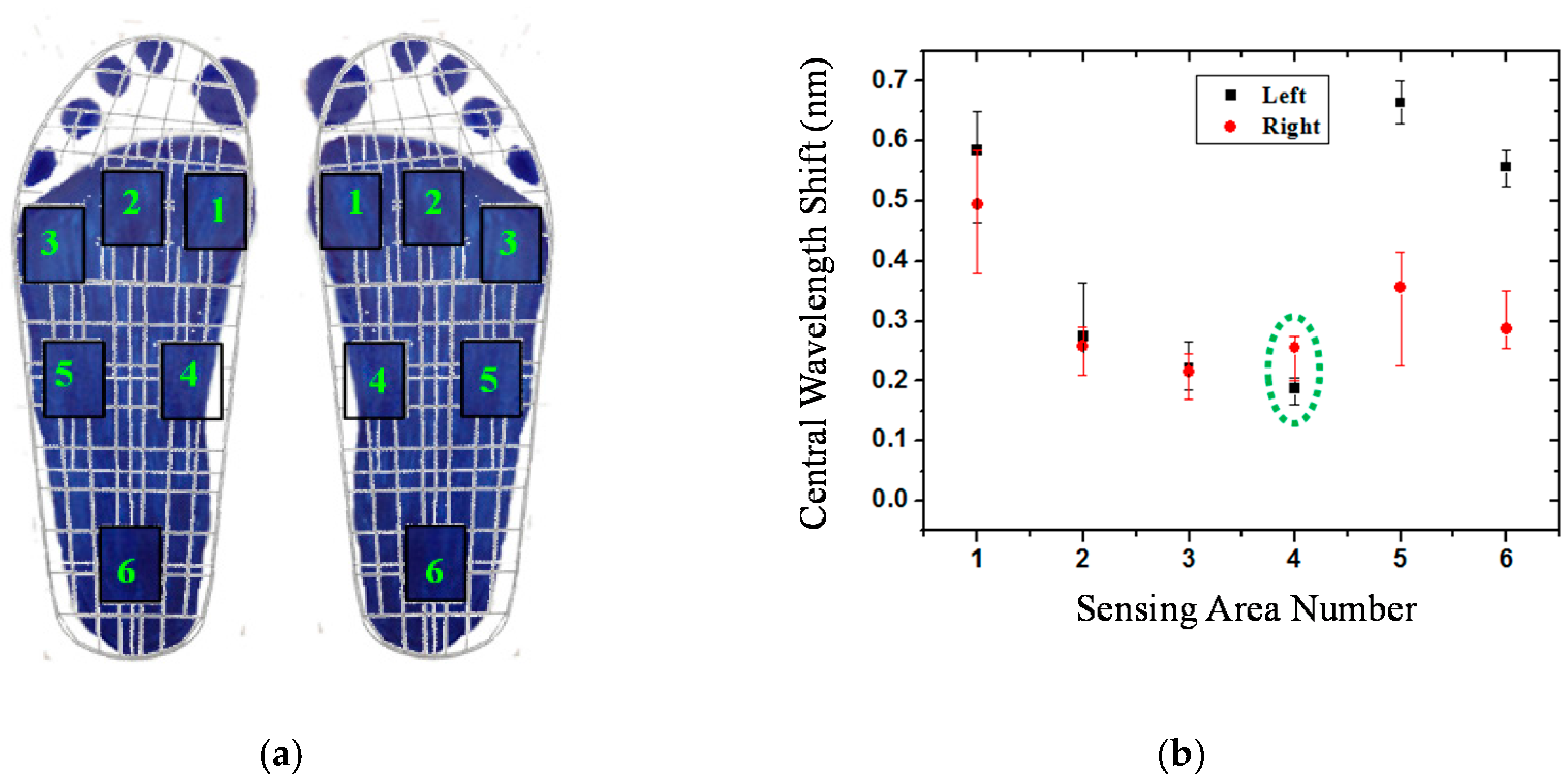

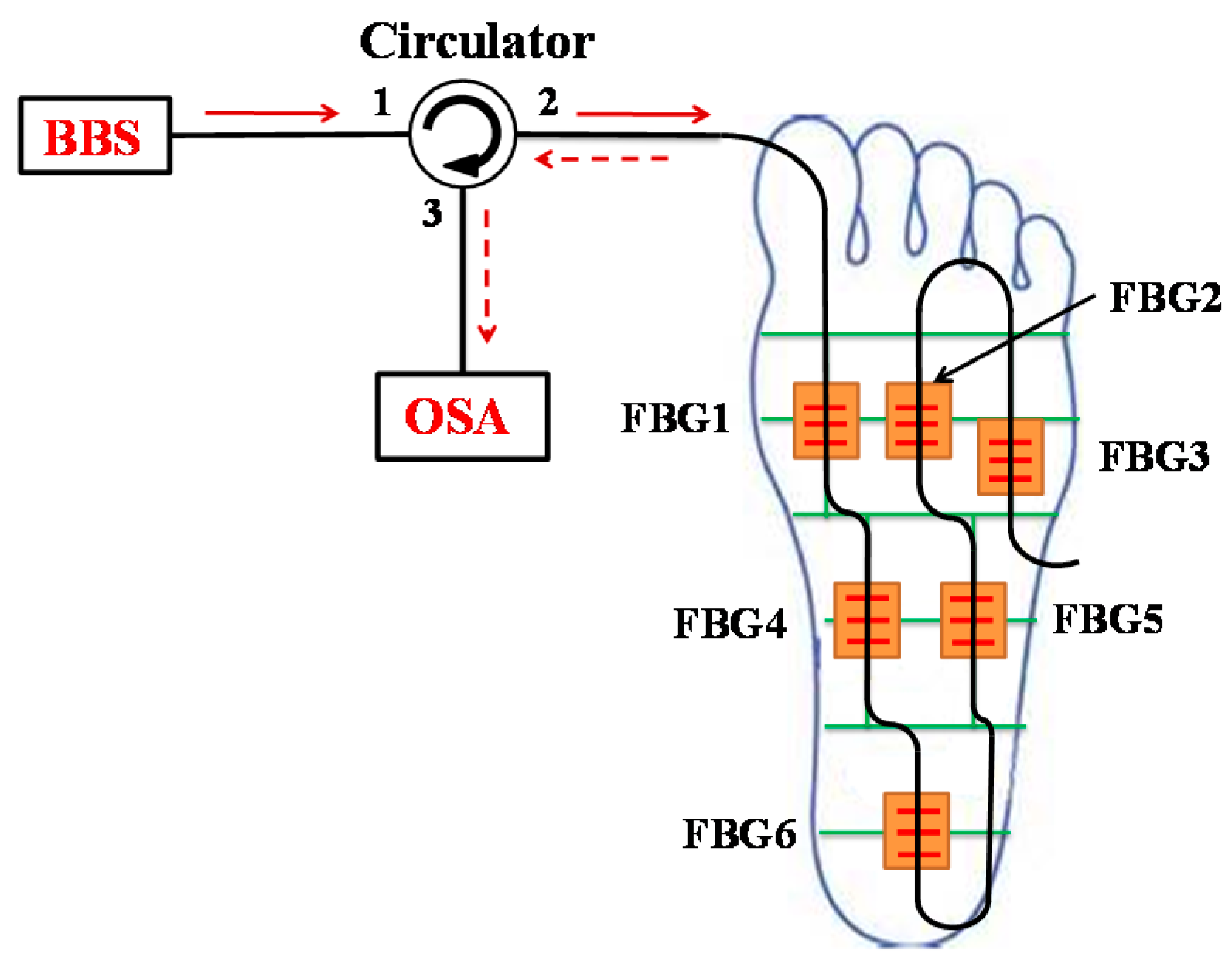

In this paper, a novel fiber-optic sensing system based on fiber Bragg gratings (FBGs) to measure foot plantar pressure is proposed. This study first explores the Pedar-X insole foot pressure types of the adult-size chart and then defines six measurement areas to effectively identify four foot types: neutral foot, cavus foot, supinated foot and flat foot. The plantar pressure signals are detected by only six FBGs, which are embedded in silicone rubber. The performance of the fiber optic sensing is examined and compared with a digital pressure plate of i-Step P1000 with 1024 barometric sensors. In the experiment, there are 11 participants with different foot types to participate in the test. The Pearson correlation coefficient, which is determined from the measured results of the homemade fiber-optic plantar pressure system and i-Step P1000 plantar pressure plate, reaches up to 0.671 (p < 0.01). According to the measured results from the plantar pressure data, the proposed fiber optic sensing system can successfully identify the four different foot types. Measurements of this study have demonstrated the feasibility of the proposed system so that it can be an alternative for plantar pressure detection systems. View Full-Text
Keywords: fiber-optic sensor; fiber Bragg grating; foot plantar pressure; Pearson product-moment correlation coefficient fiber-optic sensor; fiber Bragg grating; foot plantar pressure; Pearson product-moment correlation coefficient
