Open AccessArticle
Sensors 2016, 16(10), 1593; doi:10.3390/s16101593

Design of a Sub-Picosecond Jitter with Adjustable-Range CMOS Delay-Locked Loop for High-Speed and Low-Power Applications

1
Department of Electrical and Electronic Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400, Selangor, Malaysia
2
Department of Electronic and Communications Engineering, Al-Nahrain University, Al-Jadriya Complex, Baghdad 10070, Iraq
3
Imaging Devices Laboratory, Research Institute of Electronics, Shizuoka University, 3-5-1 Johoku, Nakaku, Hamamatsu, Shizuoka 432-8011, Japan
4
Faculty of Engineering, Multimedia University, Persiaran Multimedia, Cyberjaya 63100, Malaysia
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 28 July 2016 / Revised: 5 September 2016 / Accepted: 5 September 2016 / Published: 28 September 2016
(This article belongs to the Special Issue Imaging: Sensors and Technologies)
View Full-Text   |   Download PDF [6168 KB, uploaded 28 September 2016]   |

Abstract

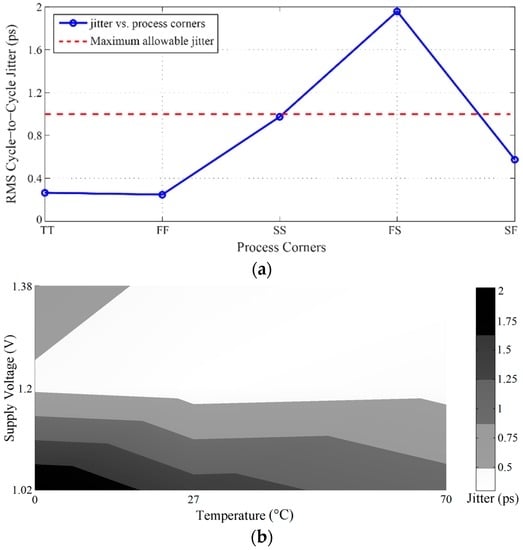

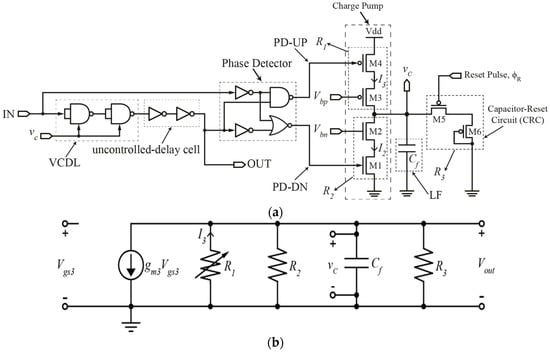

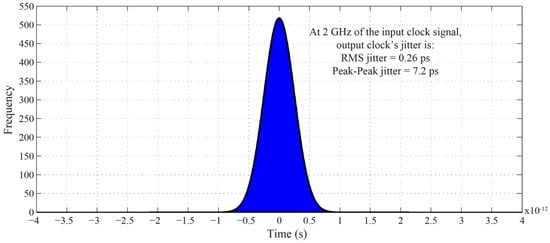

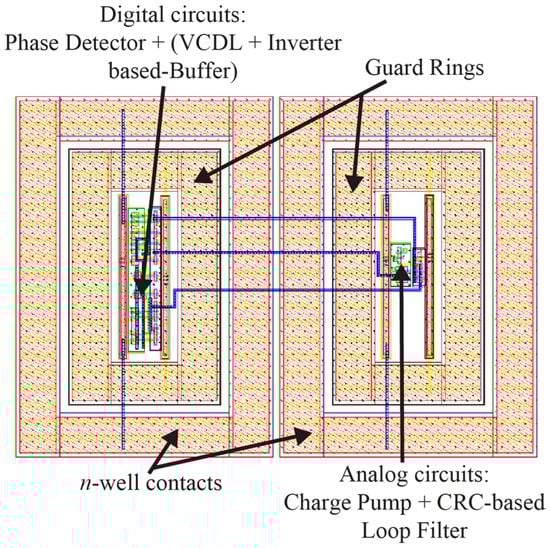

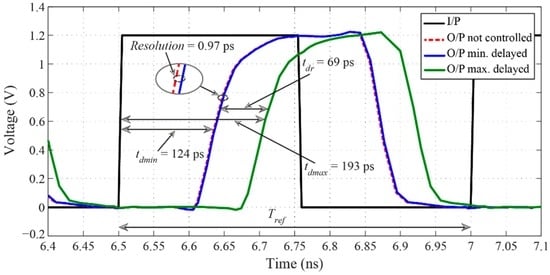

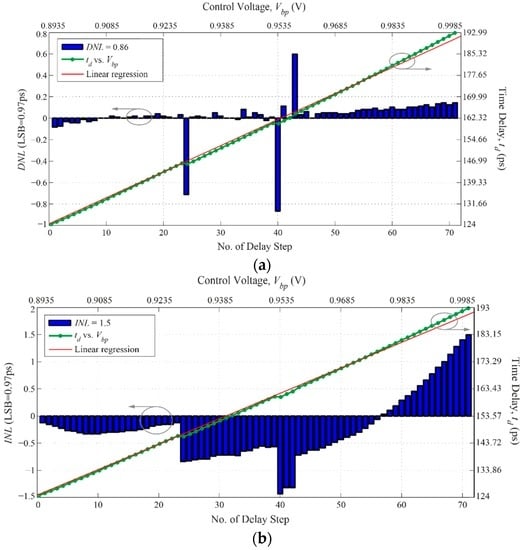

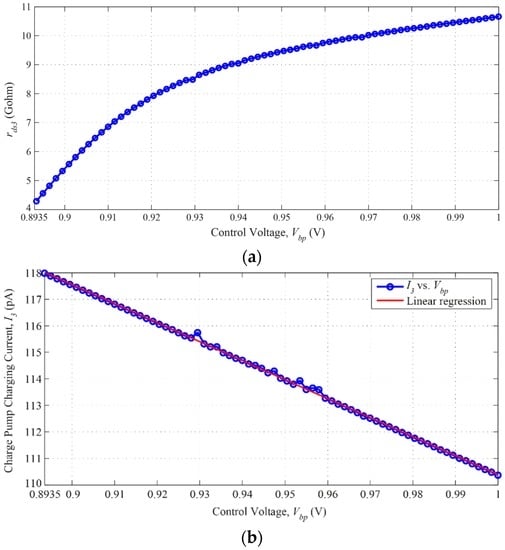

A Delay-Locked Loop (DLL) with a modified charge pump circuit is proposed for generating high-resolution linear delay steps with sub-picosecond jitter performance and adjustable delay range. The small-signal model of the modified charge pump circuit is analyzed to bring forth the relationship between the DLL’s internal control voltage and output time delay. Circuit post-layout simulation shows that a 0.97 ps delay step within a 69 ps delay range with 0.26 ps Root-Mean Square (RMS) jitter performance is achievable using a standard 0.13 µm Complementary Metal-Oxide Semiconductor (CMOS) process. The post-layout simulation results show that the power consumption of the proposed DLL architecture’s circuit is 0.1 mW when the DLL is operated at 2 GHz. View Full-Text
Keywords: delay step; delay range; time jitter; Delay-Locked Loop (DLL); charge pump; Capacitor-Reset Circuit (CRC) delay step; delay range; time jitter; Delay-Locked Loop (DLL); charge pump; Capacitor-Reset Circuit (CRC)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
