Sensors 2016, 16(1), 87; doi:10.3390/s16010087

Silica Bottle Resonator Sensor for Refractive Index and Temperature Measurements

1
Department of Engineering Physics, Polytechnique Montréal, P.O. Box 6079, Station Centre-ville, Montréal, QC H3T 1J4, Canada
2
Department of Electrical Engineering, Polytechnique Montréal, P.O. Box 6079, Station Centre-ville, Montréal, QC H3T 1J4, Canada
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 26 November 2015 / Revised: 6 January 2016 / Accepted: 6 January 2016 / Published: 9 January 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2368 KB, uploaded 9 January 2016]   |

Abstract

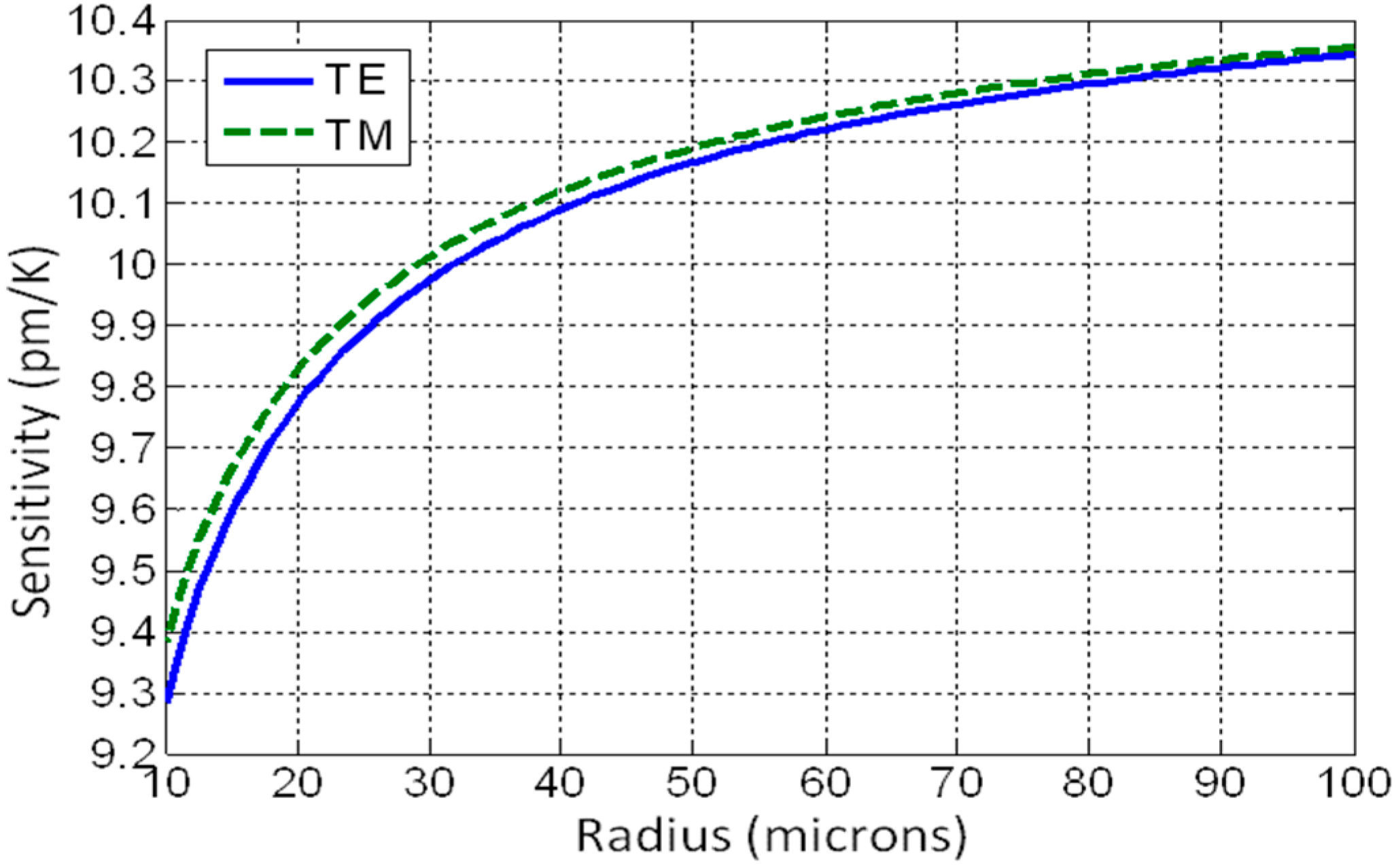

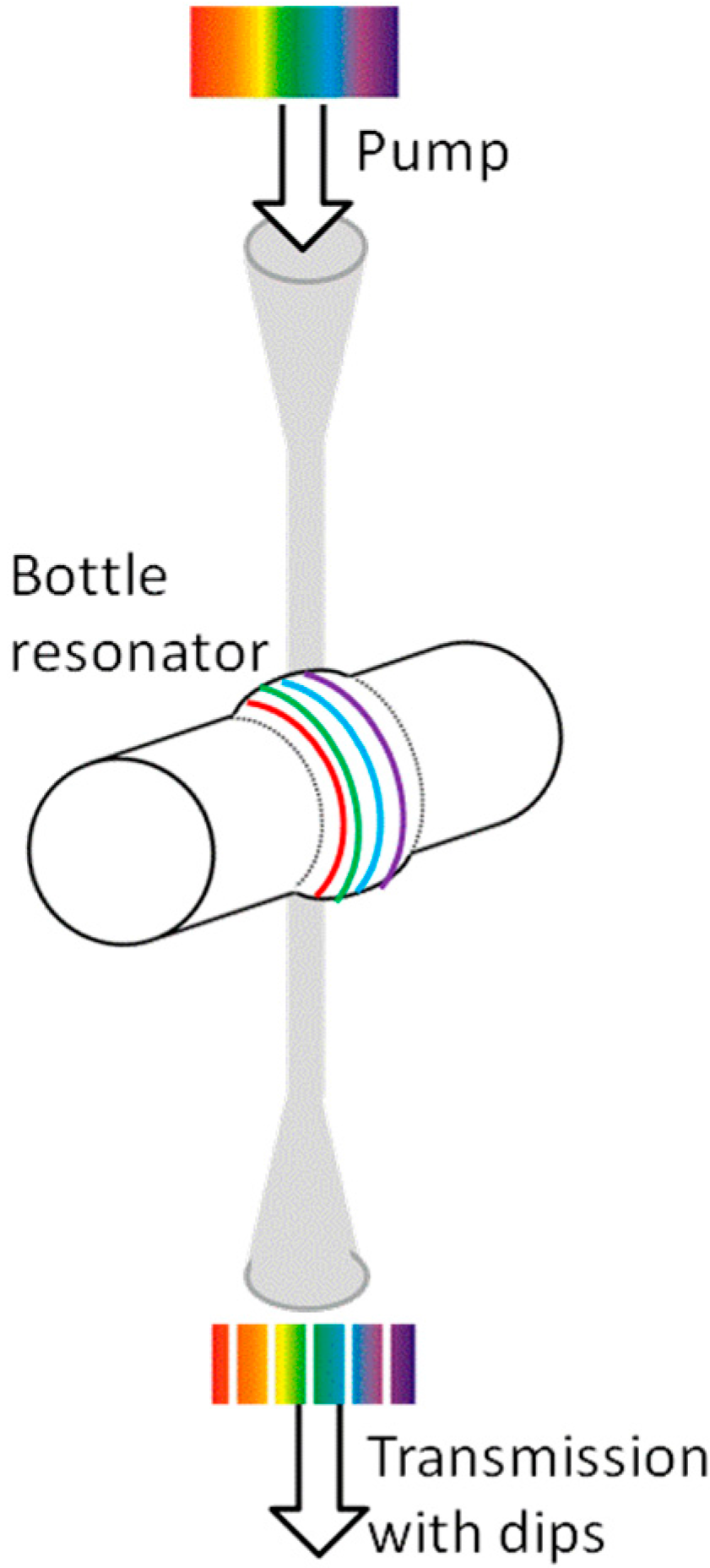

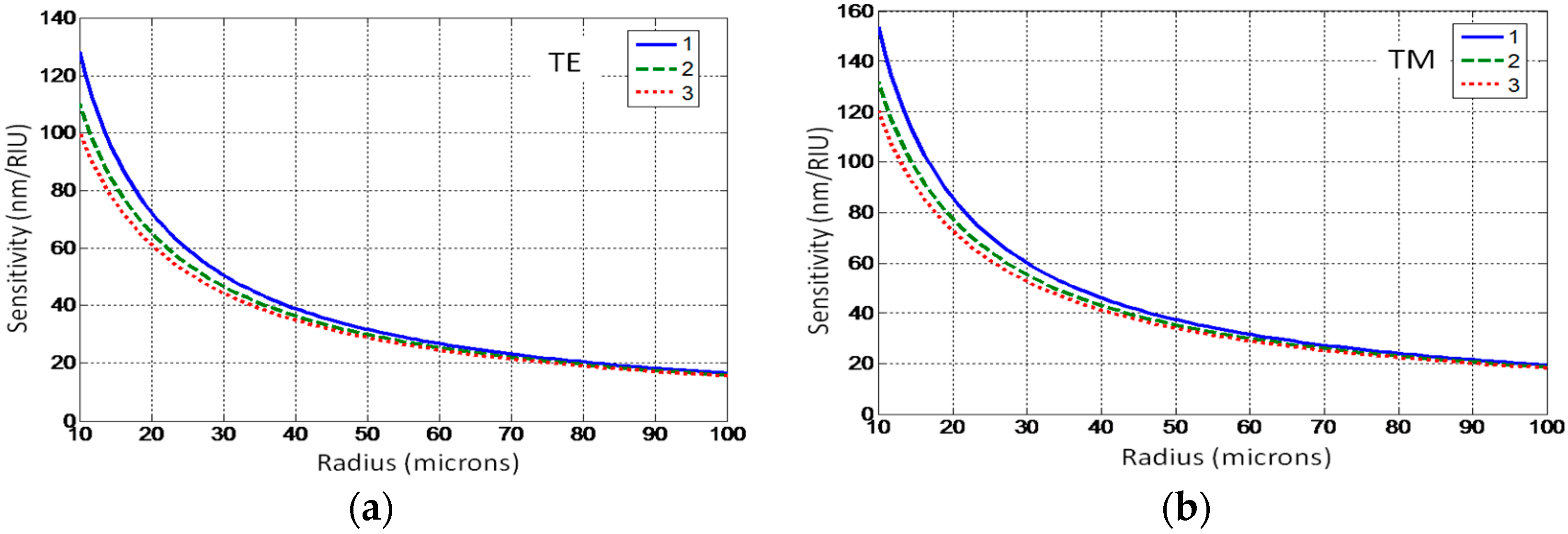

We propose and theoretically demonstrate a bottle resonator sensor with a nanoscale altitude and with alength several of hundreds of microns made on the top of the fiber with a radius of tens microns for refractive index and temperature sensor applications. The whispering gallery modes (WGMs) in the resonators can be excited with a taper fiber placed on the top of the resonator. These sensors can be considered as an alternative to fiber Bragg grating (FBG) sensors.The sensitivity of TM-polarized modes is higher than the sensitivity of the TE-polarized modes, but these values are comparable and both polarizations are suitable for sensor applications. The sensitivity ~150 (nm/RIU) can be reached with abottle resonator on the fiber with the radius 10 μm. It can be improved with theuse of a fiber with a smaller radius. The temperature sensitivity is found to be ~10 pm/K. The temperature sensitivity can decrease ~10% for a fiber with a radius rco = 10 μm instead of a fiber with a radius rco = 100 μm. These sensors have sensitivities comparable to FBG sensors. A bottle resonator sensor with a nanoscale altitude made on the top of the fiber can be easily integrated in any fiber scheme. View Full-Text
Keywords: refractive index sensor; temperature sensor; bottle resonator refractive index sensor; temperature sensor; bottle resonator
Figures

Figure 1
