Low-Power Photoplethysmogram Acquisition Integrated Circuit with Robust Light Interference Compensation

1
Samsung Electronics Inc., Suwon 16678, Korea
2
Chungnam National University, Daejeon 34134, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 10 November 2015 / Revised: 19 December 2015 / Accepted: 24 December 2015 / Published: 31 December 2015
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2611 KB, uploaded 31 December 2015]   |

Abstract

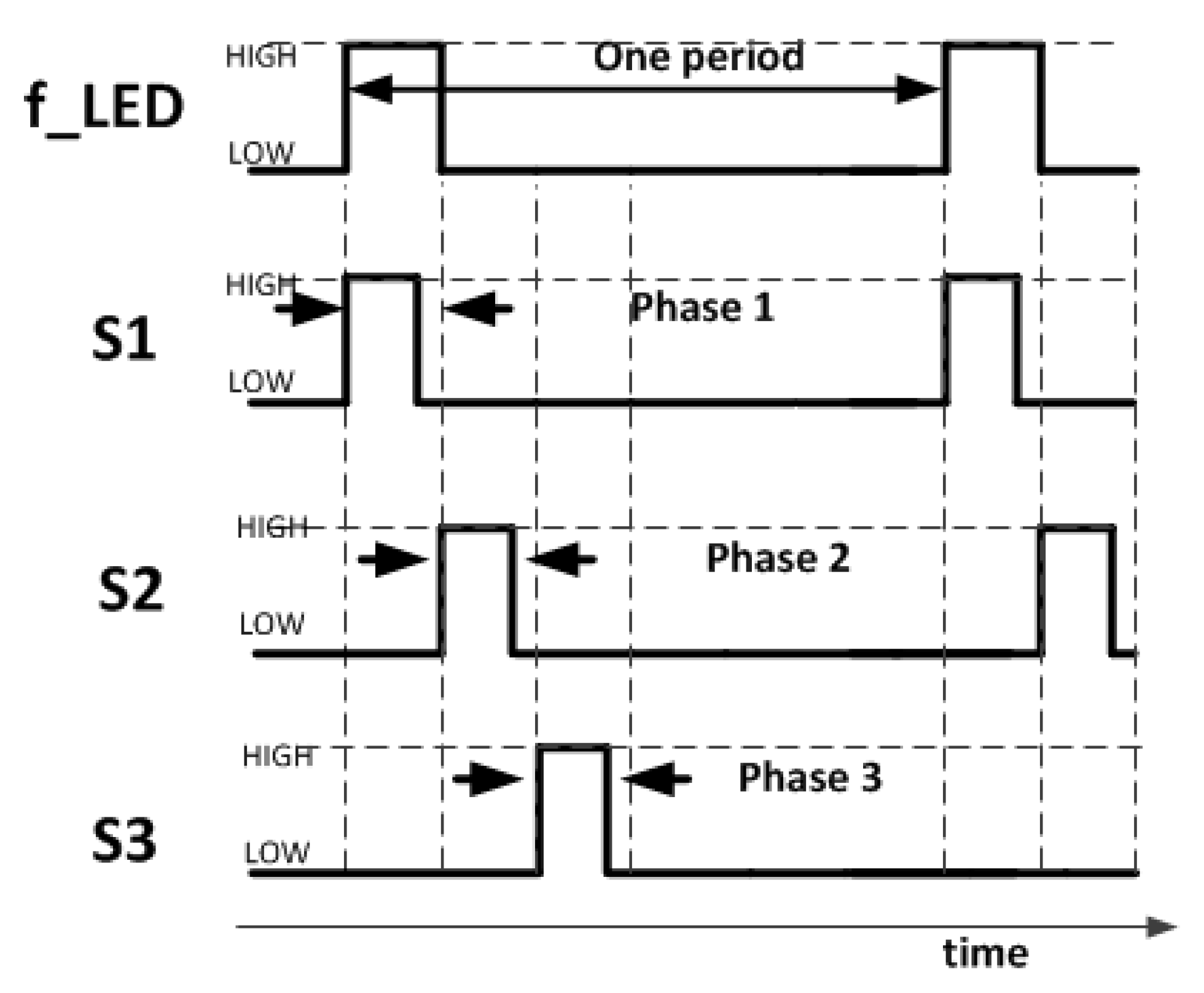

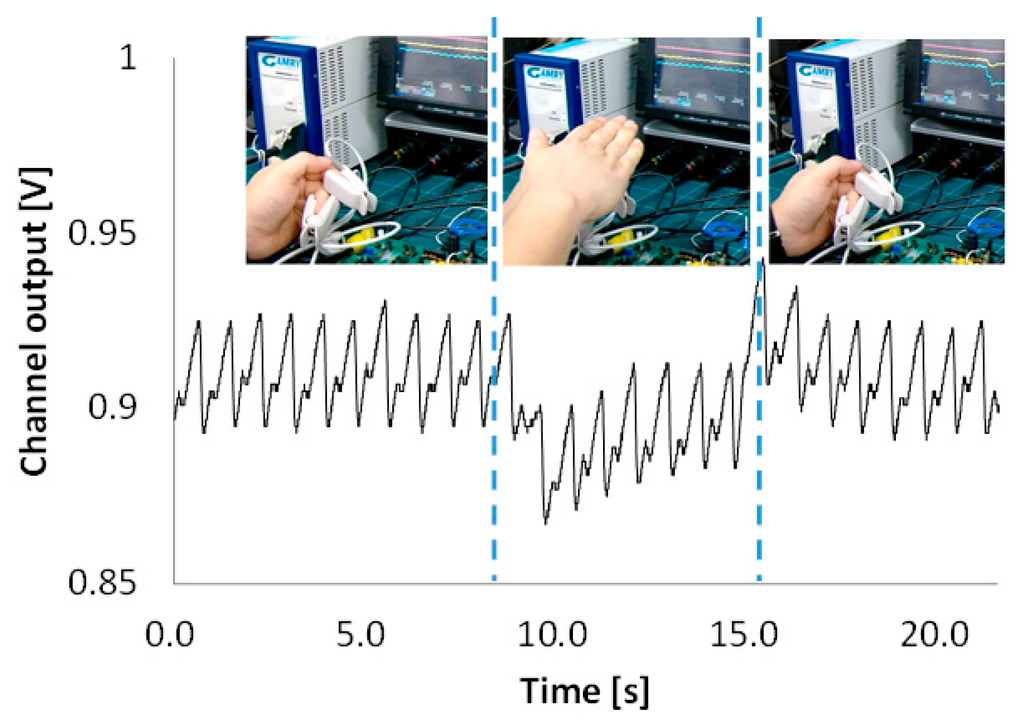

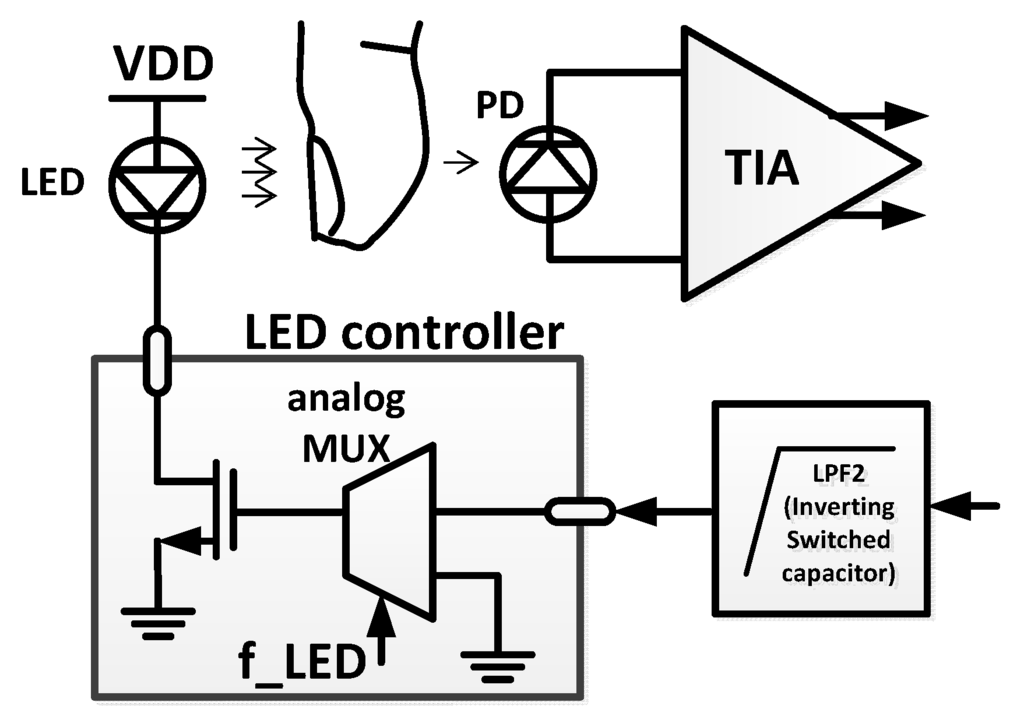

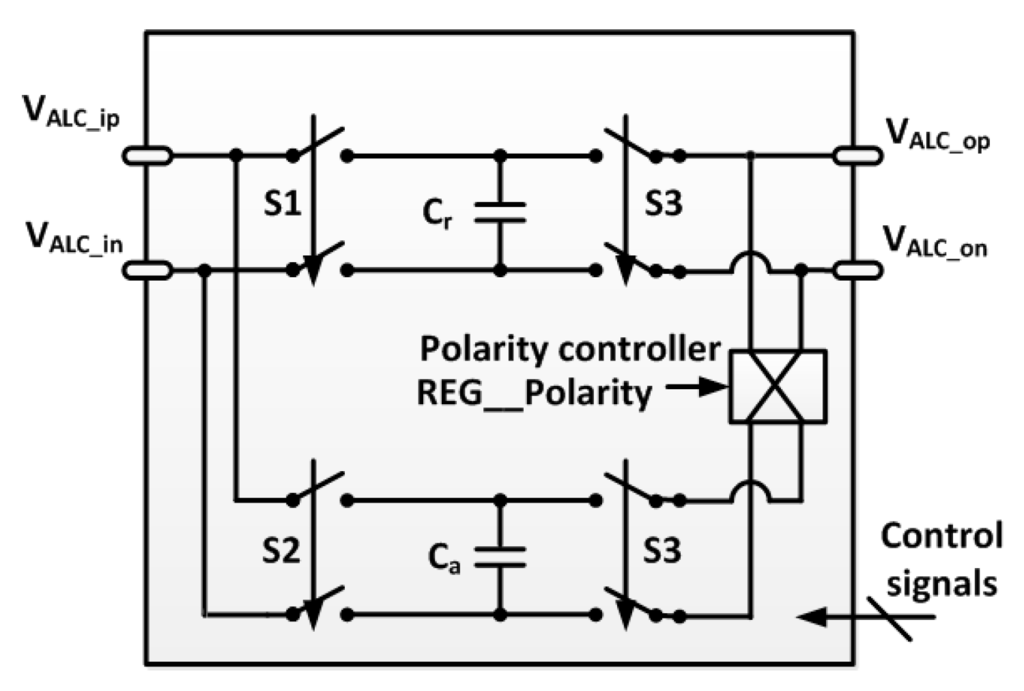

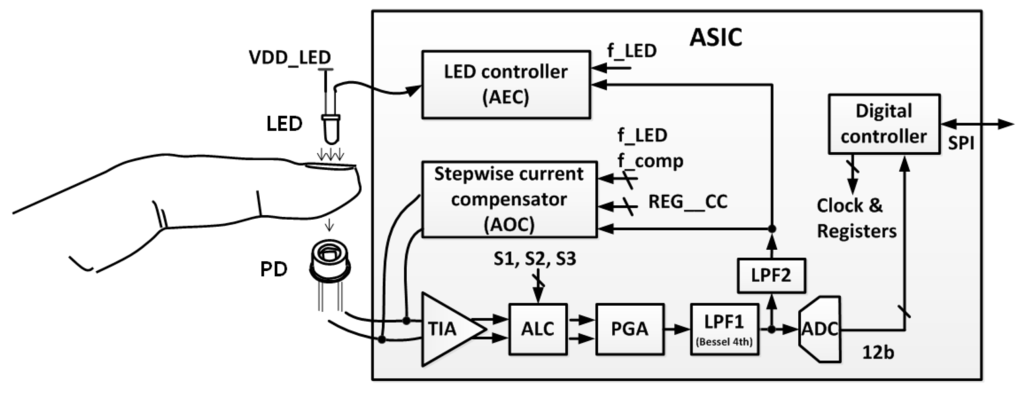

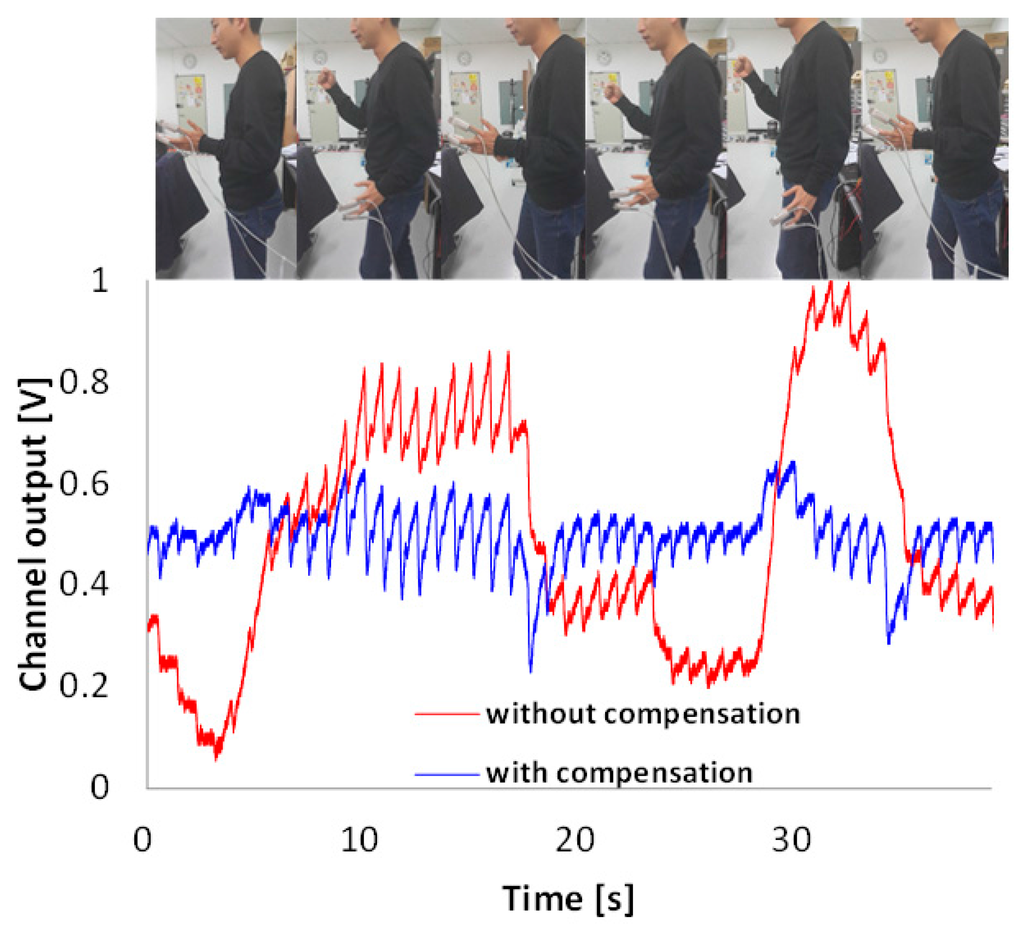

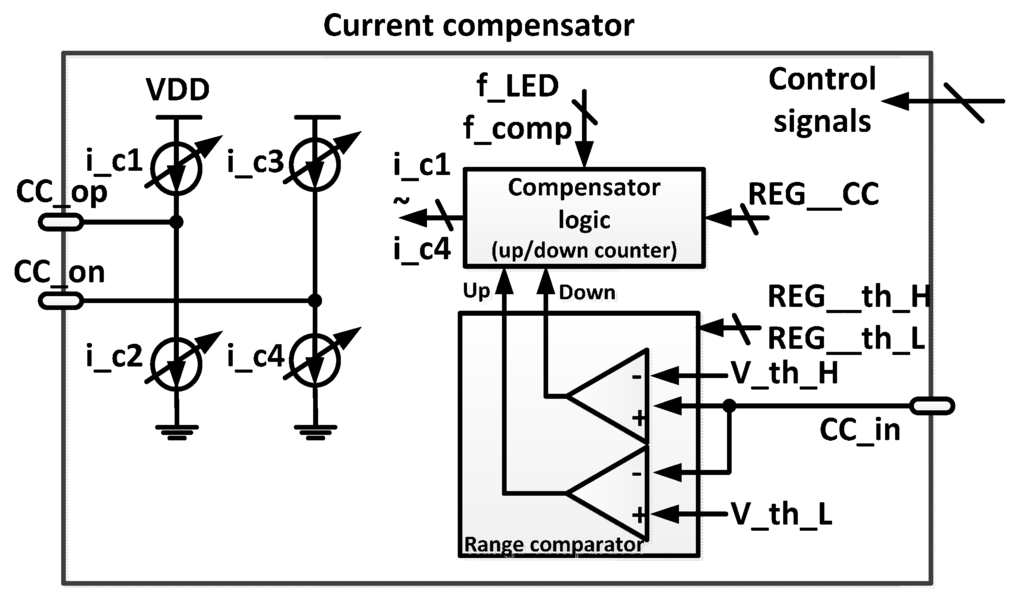

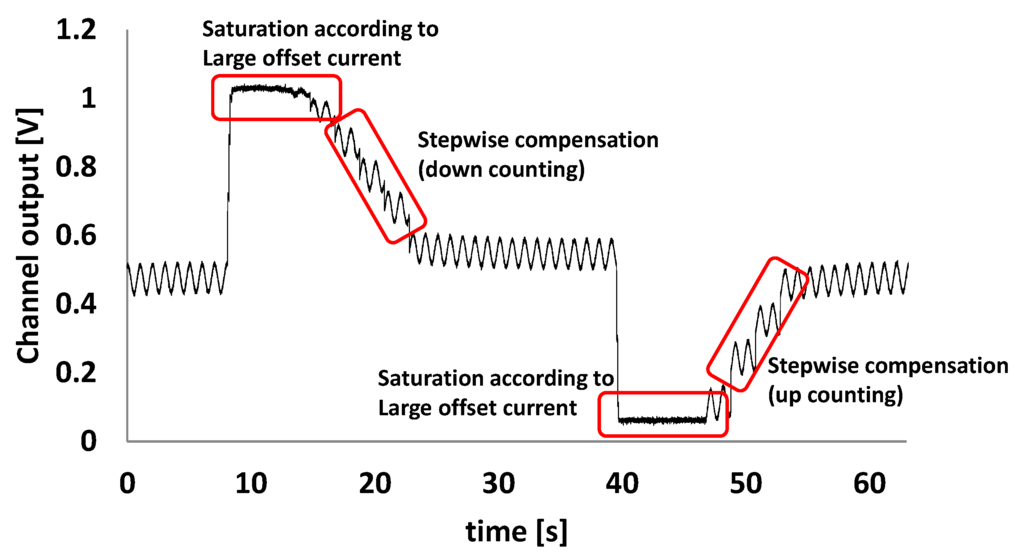

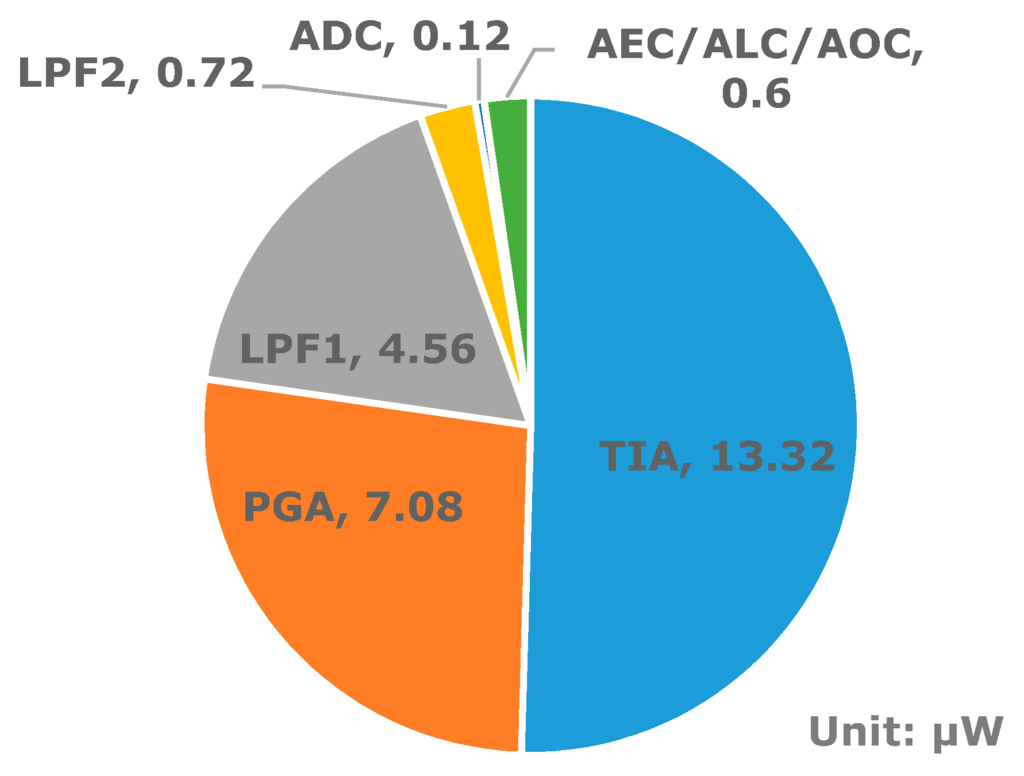

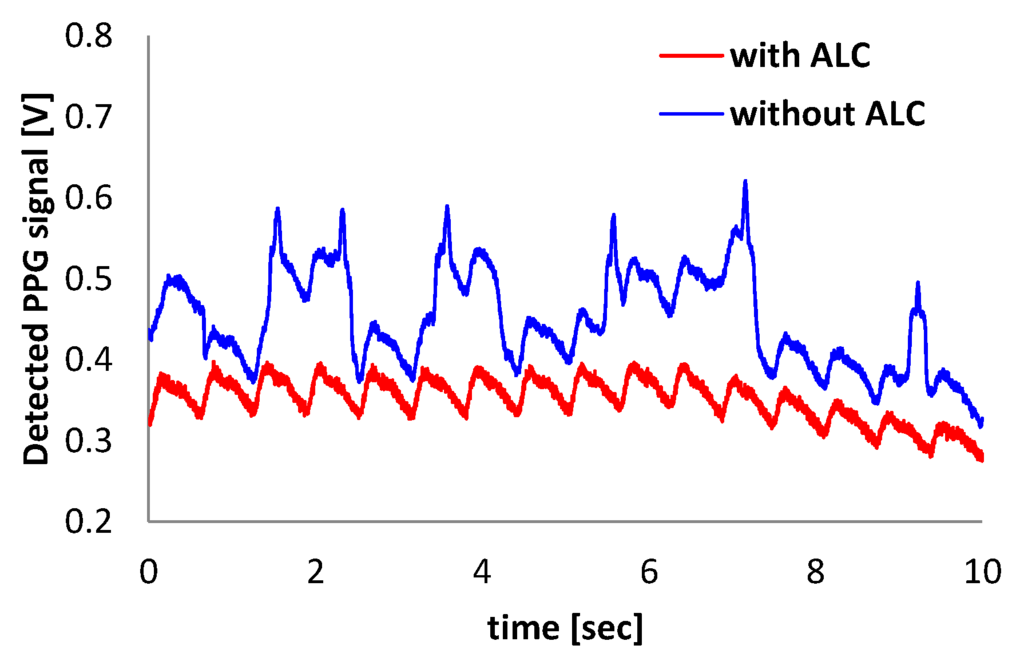

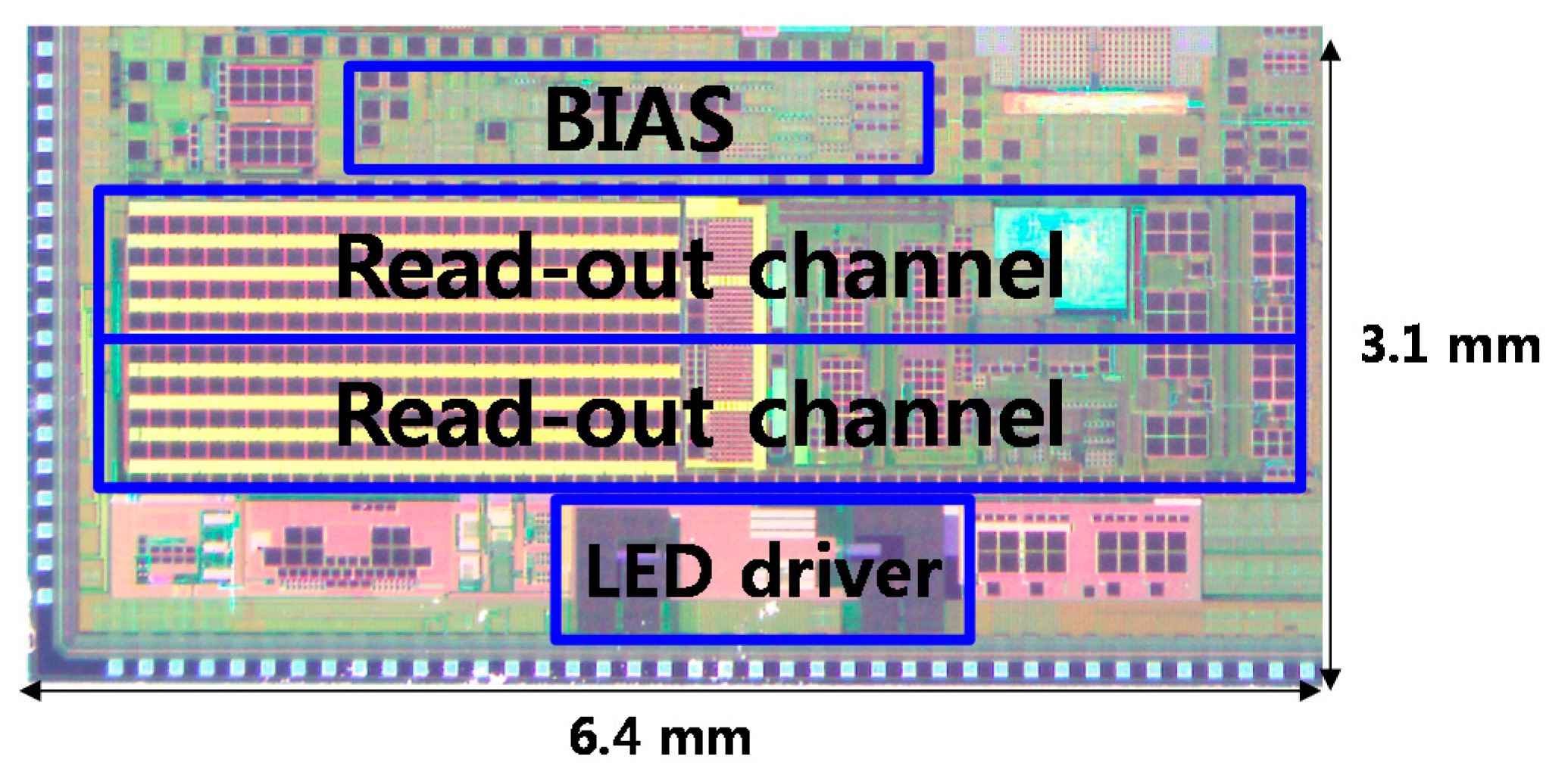

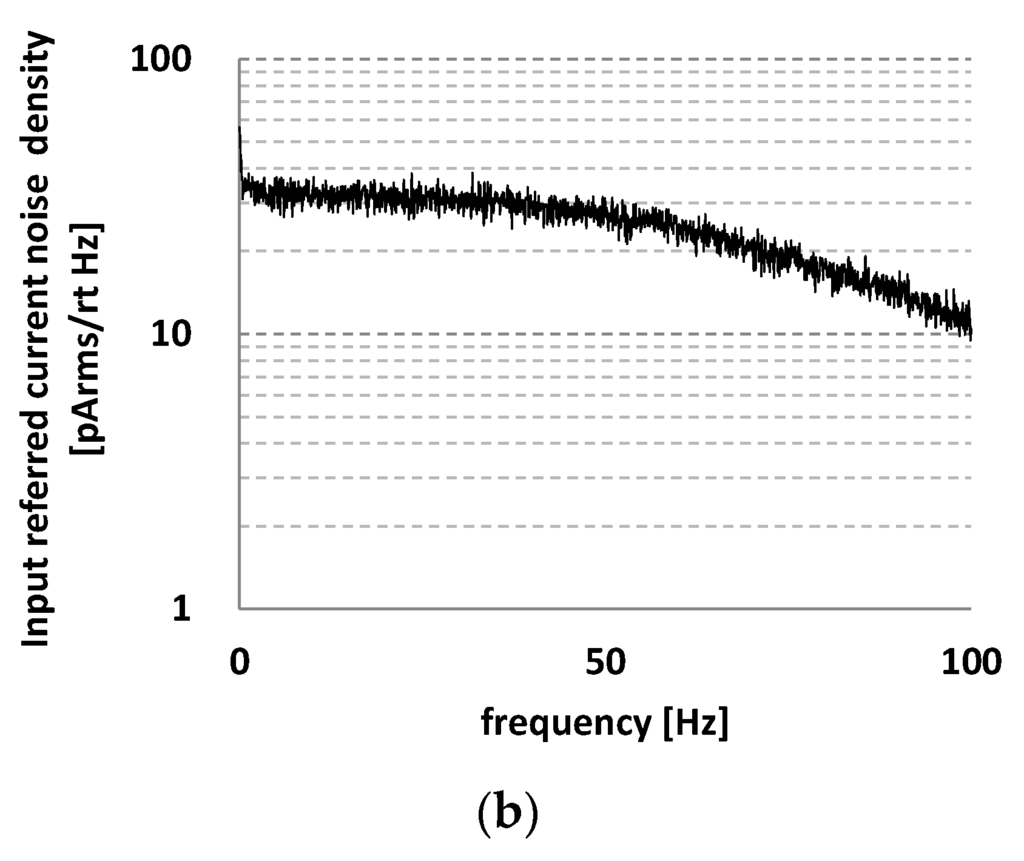

To overcome light interference, including a large DC offset and ambient light variation, a robust photoplethysmogram (PPG) readout chip is fabricated using a 0.13-μm complementary metal–oxide–semiconductor (CMOS) process. Against the large DC offset, a saturation detection and current feedback circuit is proposed to compensate for an offset current of up to 30 μA. For robustness against optical path variation, an automatic emitted light compensation method is adopted. To prevent ambient light interference, an alternating sampling and charge redistribution technique is also proposed. In the proposed technique, no additional power is consumed, and only three differential switches and one capacitor are required. The PPG readout channel consumes 26.4 μW and has an input referred current noise of 260 pArms. View Full-Text
Keywords: photoplethysmogram; transimpedance amplifier; ambient light cancellation; automatic offset compensation; automatic emitted light compensation photoplethysmogram; transimpedance amplifier; ambient light cancellation; automatic offset compensation; automatic emitted light compensation
