Sensors 2015, 15(8), 20557-20569;

The Thermoluminescence Response of Ge-Doped Flat Fibers to Gamma Radiation

Radiation Research Laboratory, Department of Physics, Faculty of Sciences, University of Malaya, Kuala Lumpur 50603, Malaysia
Department of Clinical Oncology, Faculty of Medicine, University of Malaya, Kuala Lumpur 50603, Malaysia
Centre for Nuclear and Radiation Physics, Department of Physics, University of Surrey, Guildford GU2 7XH, UK
Department of Chemistry, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia
Author to whom correspondence should be addressed.
Academic Editor: Lorenzo Pavesi
Received: 25 June 2015 / Revised: 4 August 2015 / Accepted: 11 August 2015 / Published: 20 August 2015
(This article belongs to the Special Issue Silicon Based Optical Sensors)
View Full-Text   |   Download PDF [1614 KB, uploaded 20 August 2015]   |

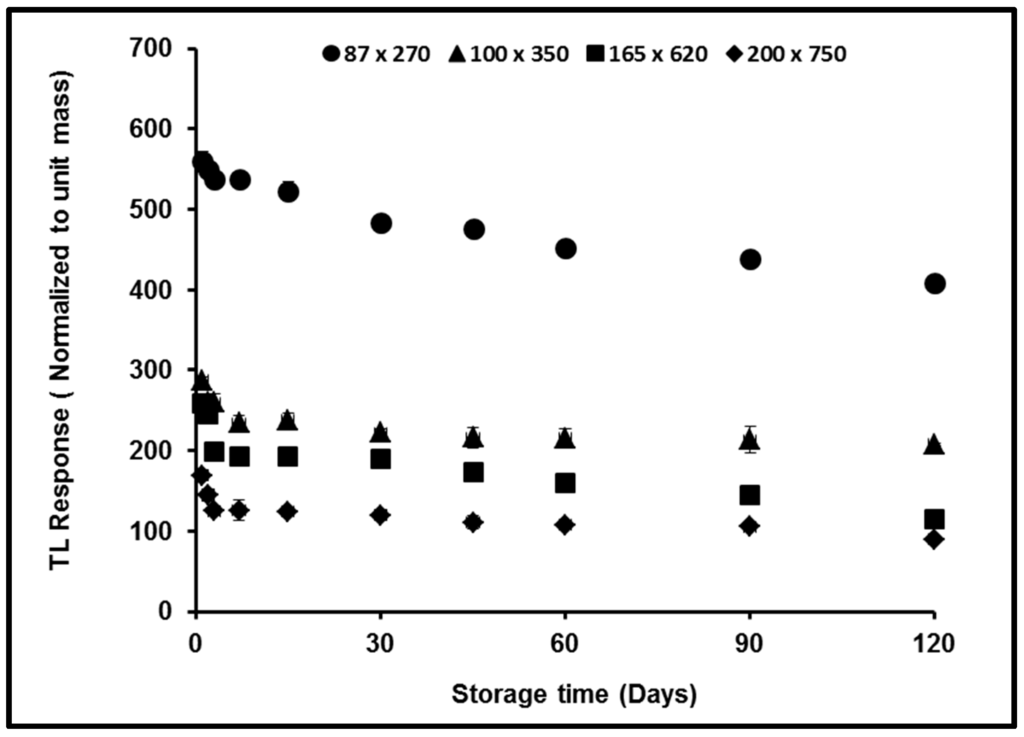

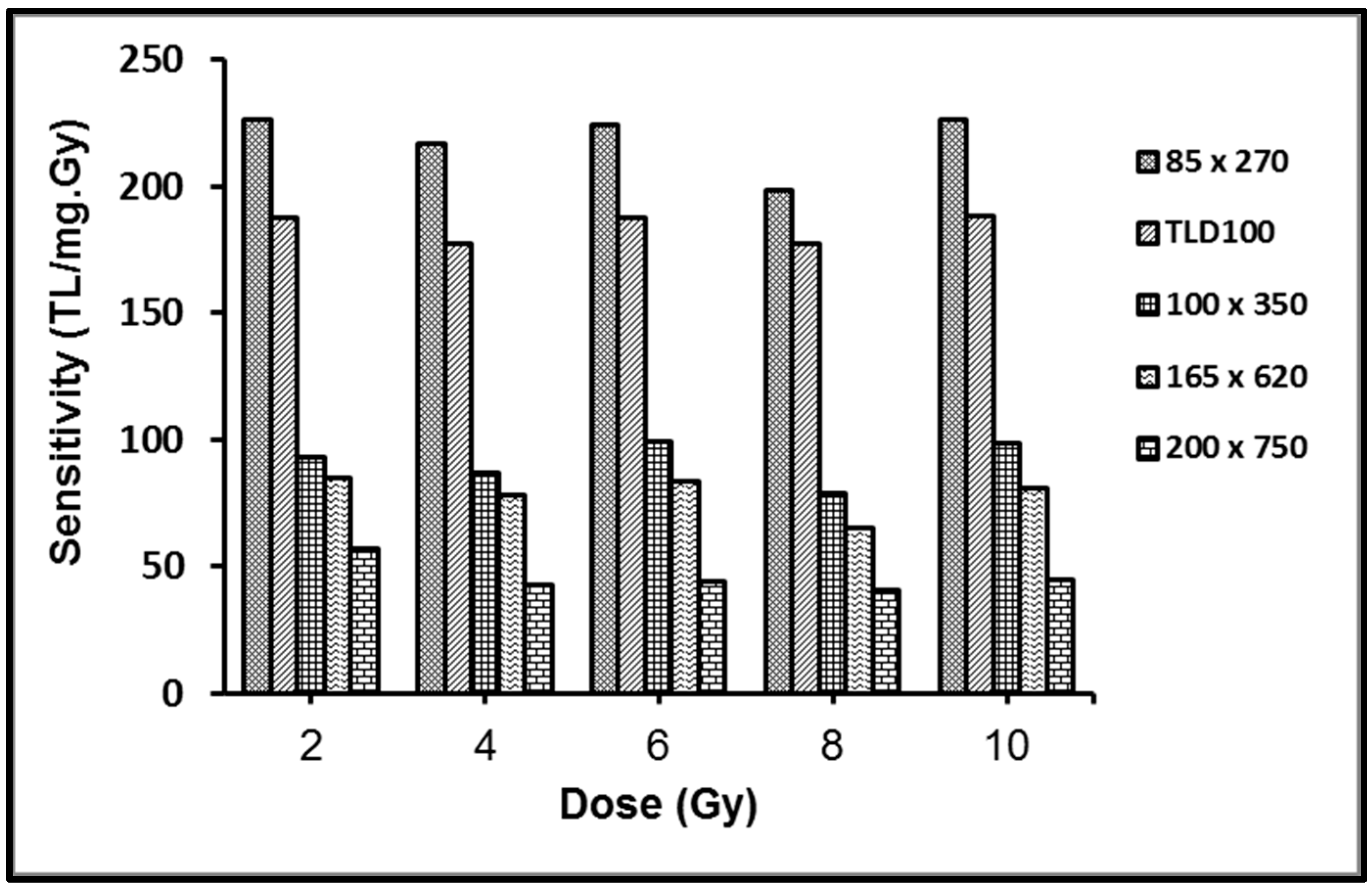

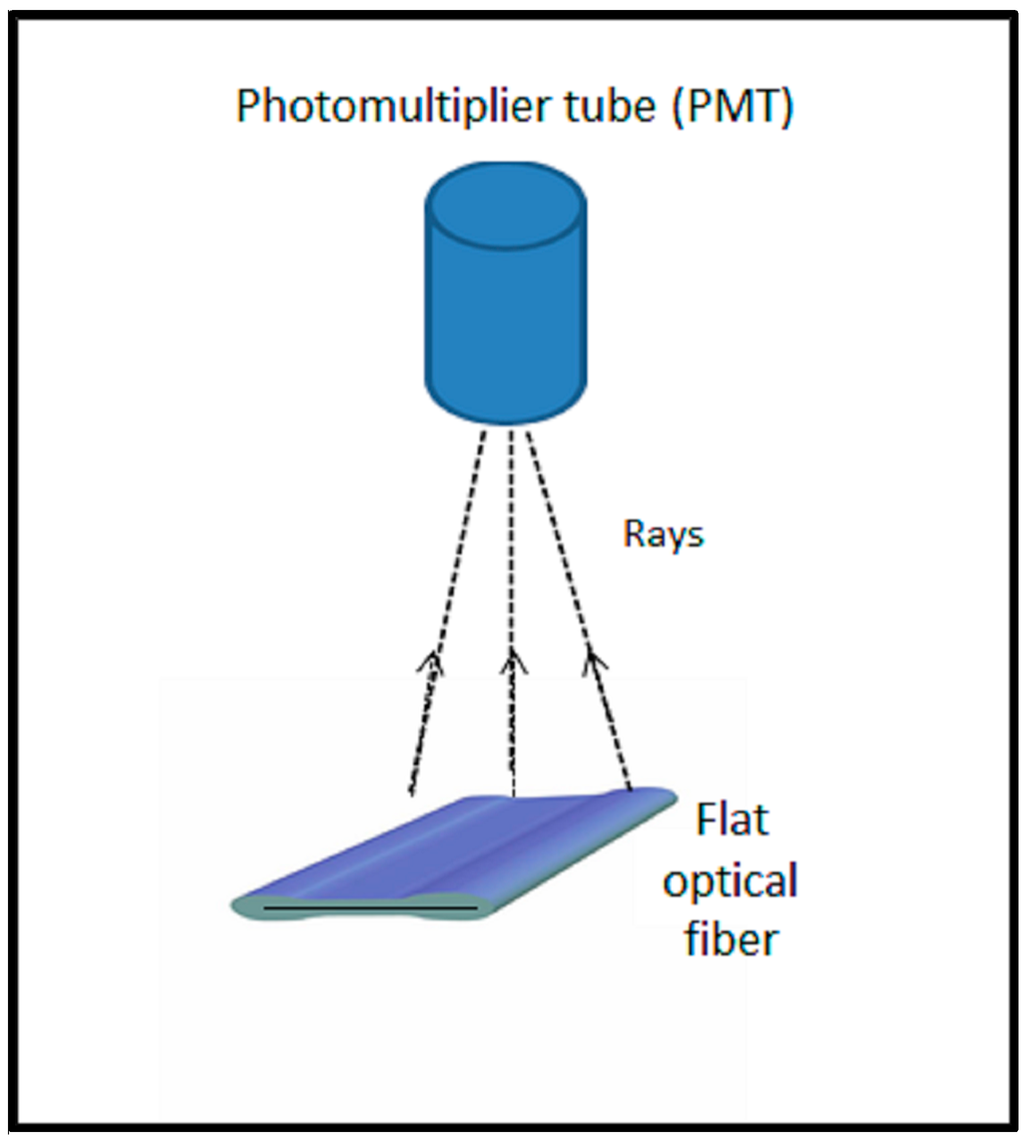

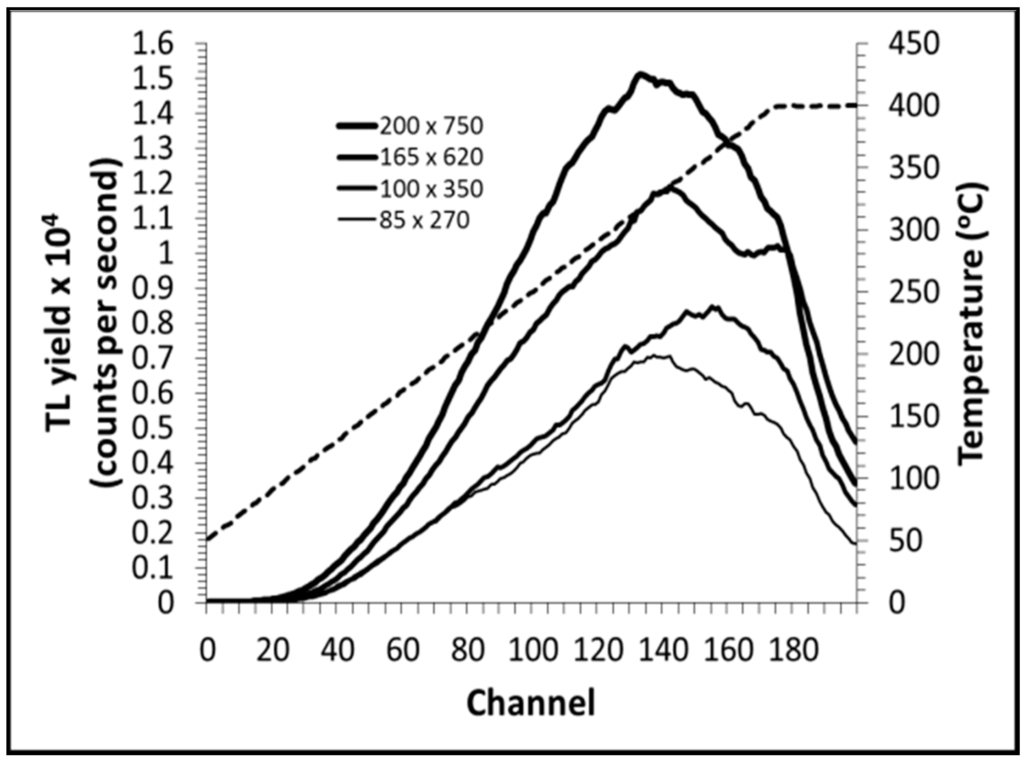

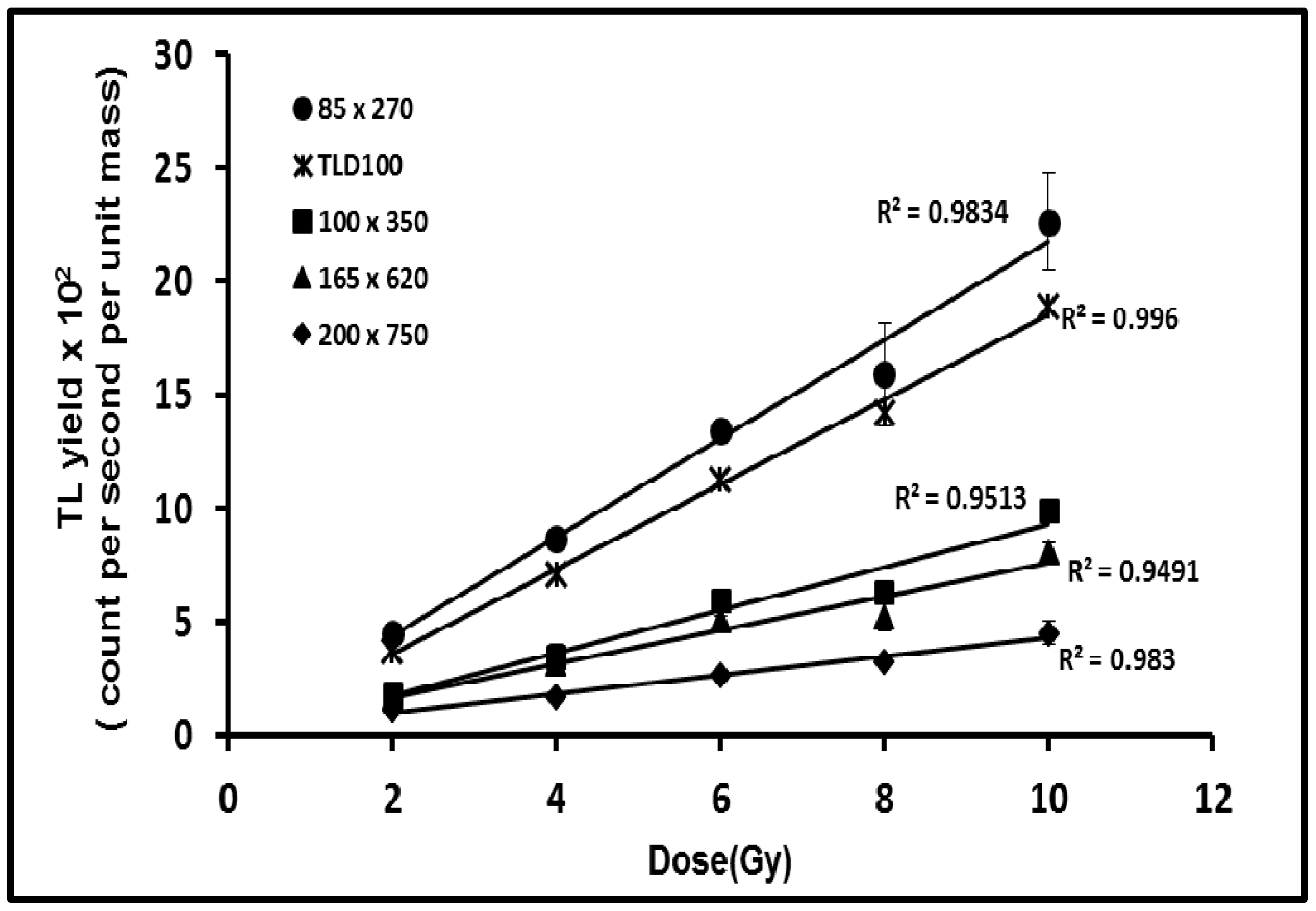

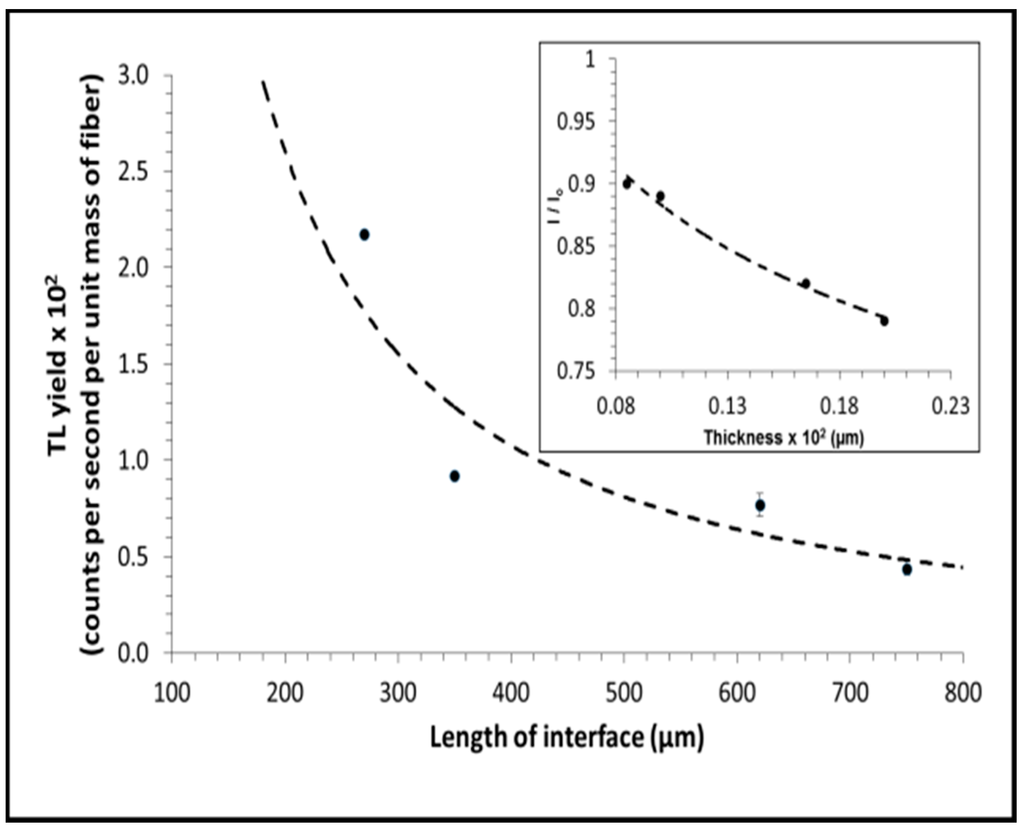

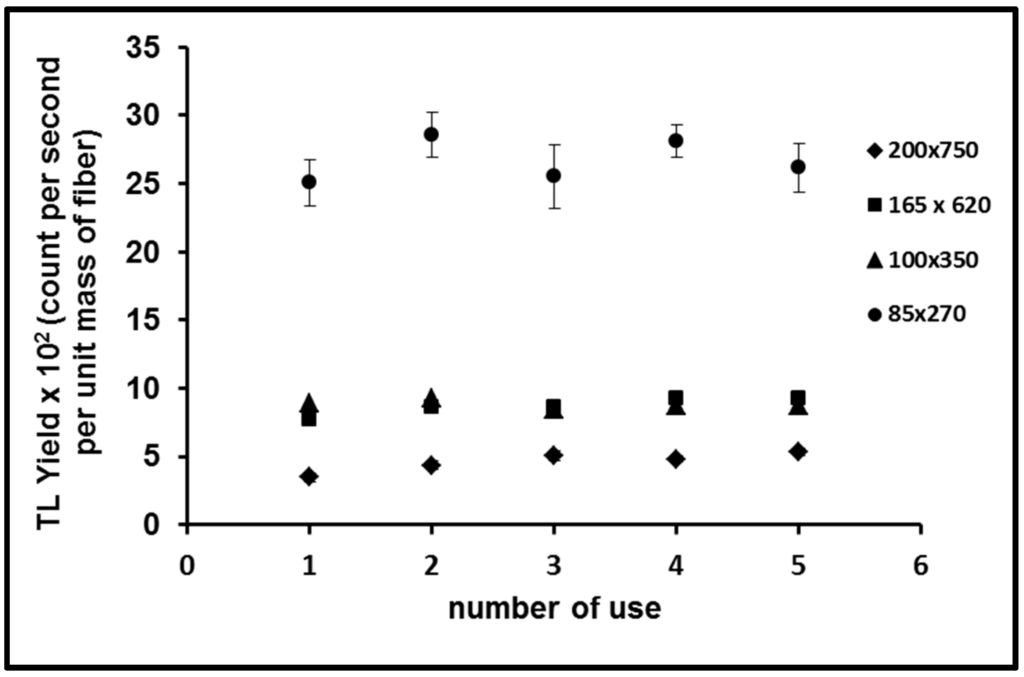

Study has been undertaken of the thermoluminescence (TL) yield of various tailor-made flat cross-section 6 mol% Ge-doped silica fibers, differing only in respect of external dimensions. Key TL dosimetric characteristics have been investigated, including glow curves, dose response, sensitivity, fading and reproducibility. Using a 60Co source, the samples were irradiated to doses within the range 1 to 10 Gy. Prior to irradiation, the flat fibers were sectioned into 6 mm lengths, weighed, and annealed at 400 °C for 1 h. TL readout was by means of a Harshaw Model 3500 TLD reader, with TLD-100 chips (LiF:Mg, Ti) used as a reference dosimeter to allow the relative response of the fibers to be evaluated. The fibers have been found to provide highly linear dose response and excellent reproducibility over the range of doses investigated, demonstrating high potential as TL-mode detectors in radiation medicine applications. Mass for mass, the results show the greatest TL yield to be provided by fibers of the smallest cross-section, analysis indicating this to be due to minimal light loss in transport of the TL through the bulk of the silica medium. View Full-Text
Keywords: thermoluminescence; flat fibers; glow curve; reproducibility; dose response thermoluminescence; flat fibers; glow curve; reproducibility; dose response

Figure 1
