Sensors 2015, 15(8), 20169-20192; doi:10.3390/s150820169

Control Parameters Optimization Based on Co-Simulation of a Mechatronic System for an UA-Based Two-Axis Inertially Stabilized Platform

1
School of Instrumentation Science and Opto-electronics Engineering, Beihang University (BUAA), Beijing 100191, China
2
Beijing Aerospace Era Laser Navigation Technology Co., Ltd., Beijing 100094, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 16 May 2015 / Revised: 14 July 2015 / Accepted: 5 August 2015 / Published: 14 August 2015
(This article belongs to the Section Physical Sensors)

Abstract

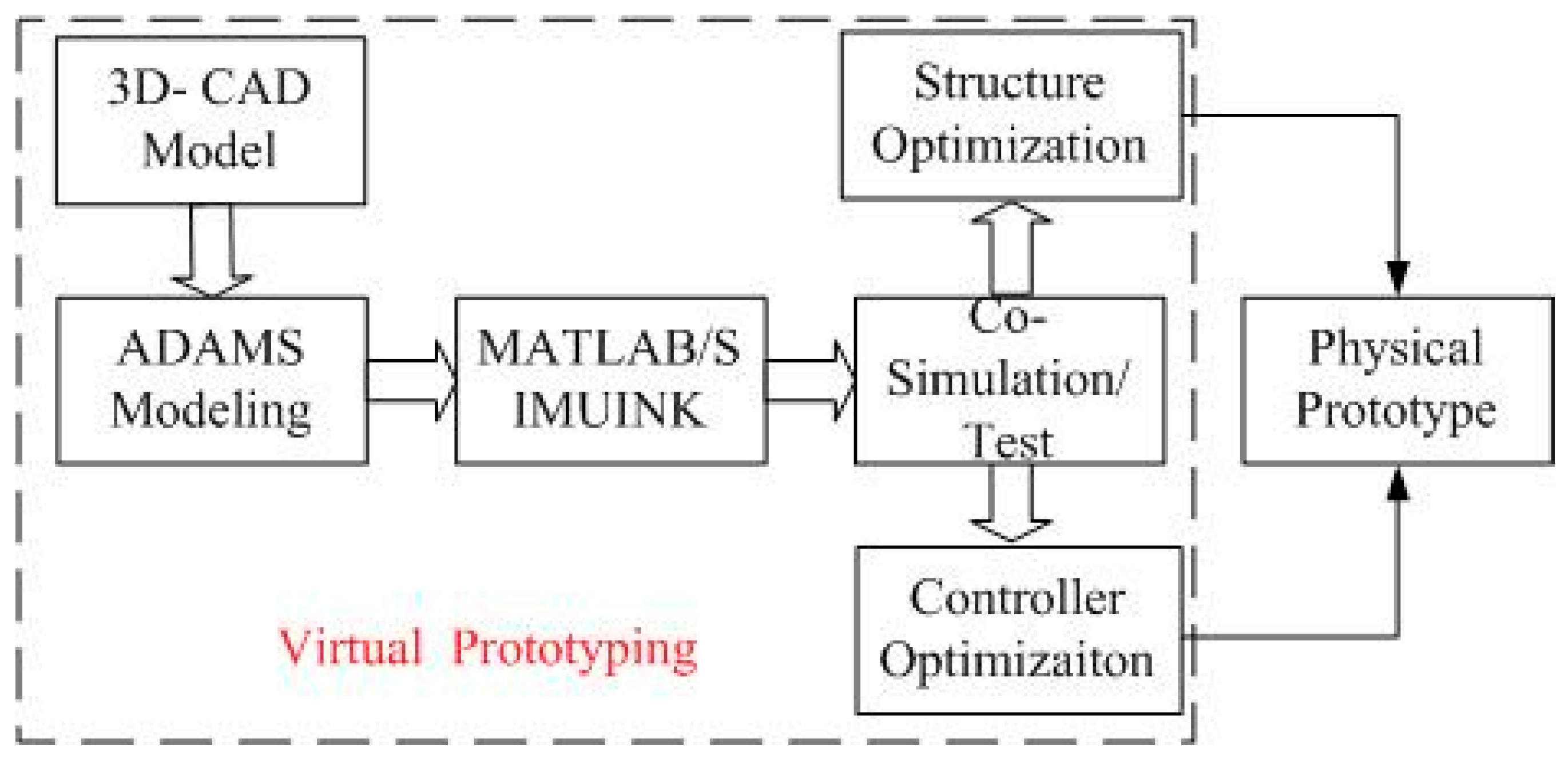

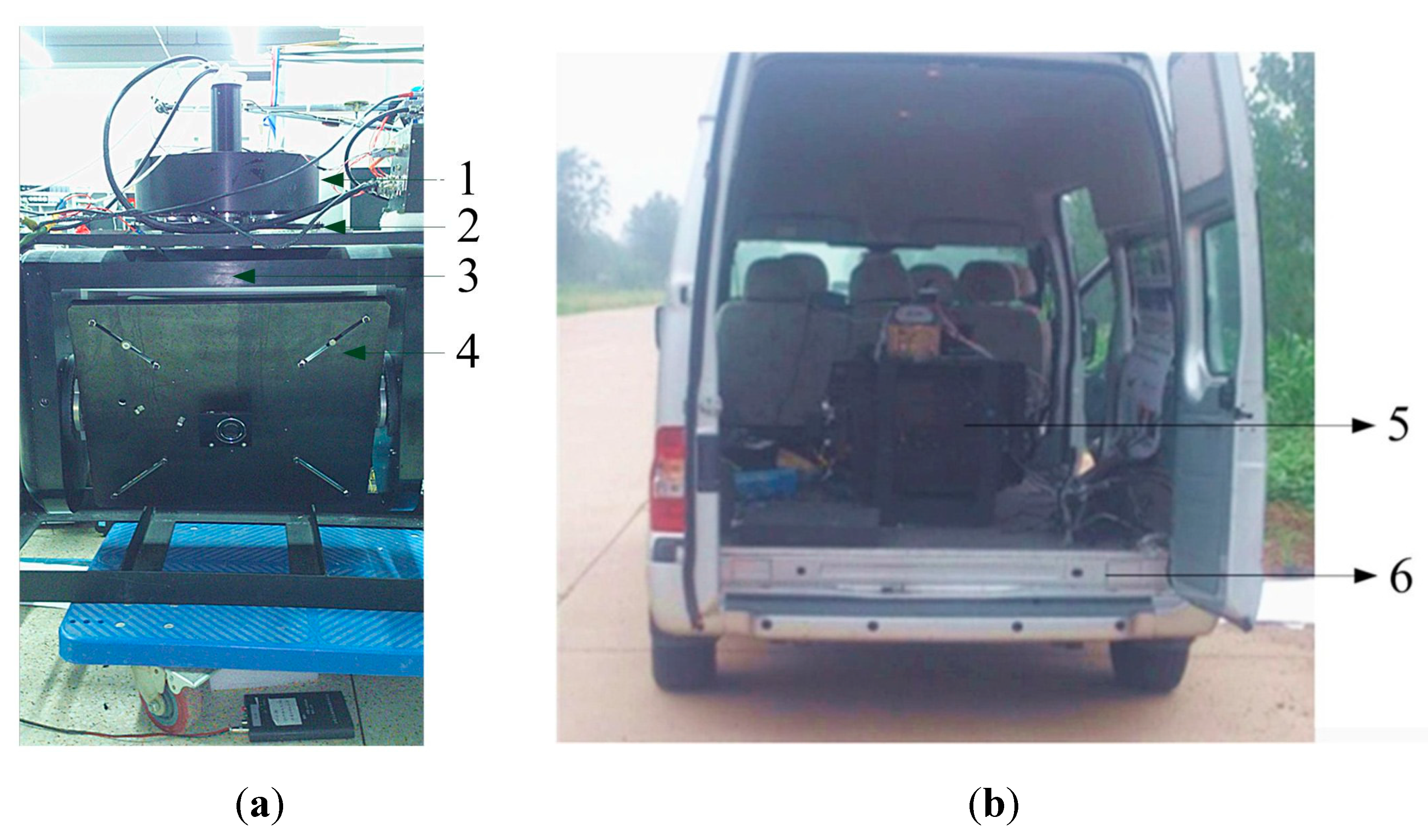

This paper presents a method based on co-simulation of a mechatronic system to optimize the control parameters of a two-axis inertially stabilized platform system (ISP) applied in an unmanned airship (UA), by which high control performance and reliability of the ISP system are achieved. First, a three-dimensional structural model of the ISP is built by using the three-dimensional parametric CAD software SOLIDWORKS®; then, to analyze the system’s kinematic and dynamic characteristics under operating conditions, dynamics modeling is conducted by using the multi-body dynamics software ADAMS™, thus the main dynamic parameters such as displacement, velocity, acceleration and reaction curve are obtained, respectively, through simulation analysis. Then, those dynamic parameters were input into the established MATLAB® SIMULINK® controller to simulate and test the performance of the control system. By these means, the ISP control parameters are optimized. To verify the methods, experiments were carried out by applying the optimized parameters to the control system of a two-axis ISP. The results show that the co-simulation by using virtual prototyping (VP) is effective to obtain optimized ISP control parameters, eventually leading to high ISP control performance. View Full-Text
Keywords: unmanned airship; two-axis inertially stabilized platform; mechatronic system co-simulation; virtual prototyping; control parameters unmanned airship; two-axis inertially stabilized platform; mechatronic system co-simulation; virtual prototyping; control parameters
