A High Resolution On-Chip Delay Sensor with Low Supply-Voltage Sensitivity for High-Performance Electronic Systems

Department of Electrical Engineering, Fu Jen Catholic University, Taipei 24205, Taiwan
*
Author to whom correspondence should be addressed.
Received: 4 December 2014 / Revised: 9 February 2015 / Accepted: 9 February 2015 / Published: 13 February 2015
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [1230 KB, uploaded 13 February 2015]   |

Abstract

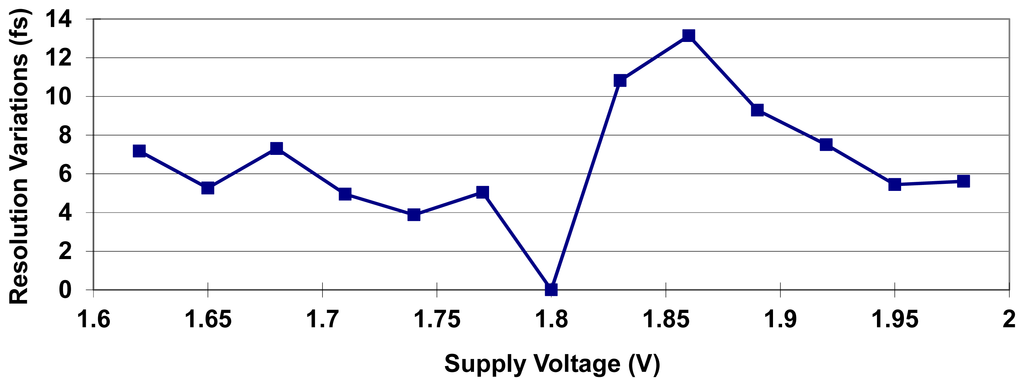

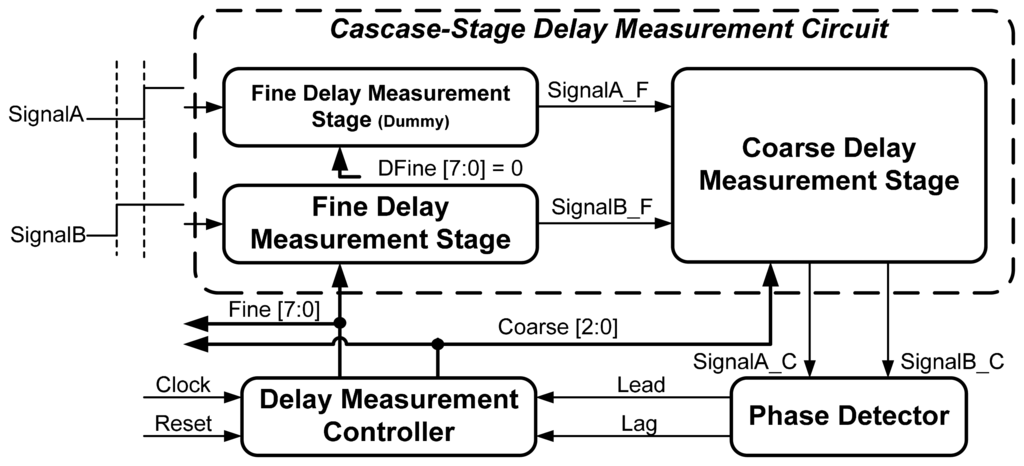

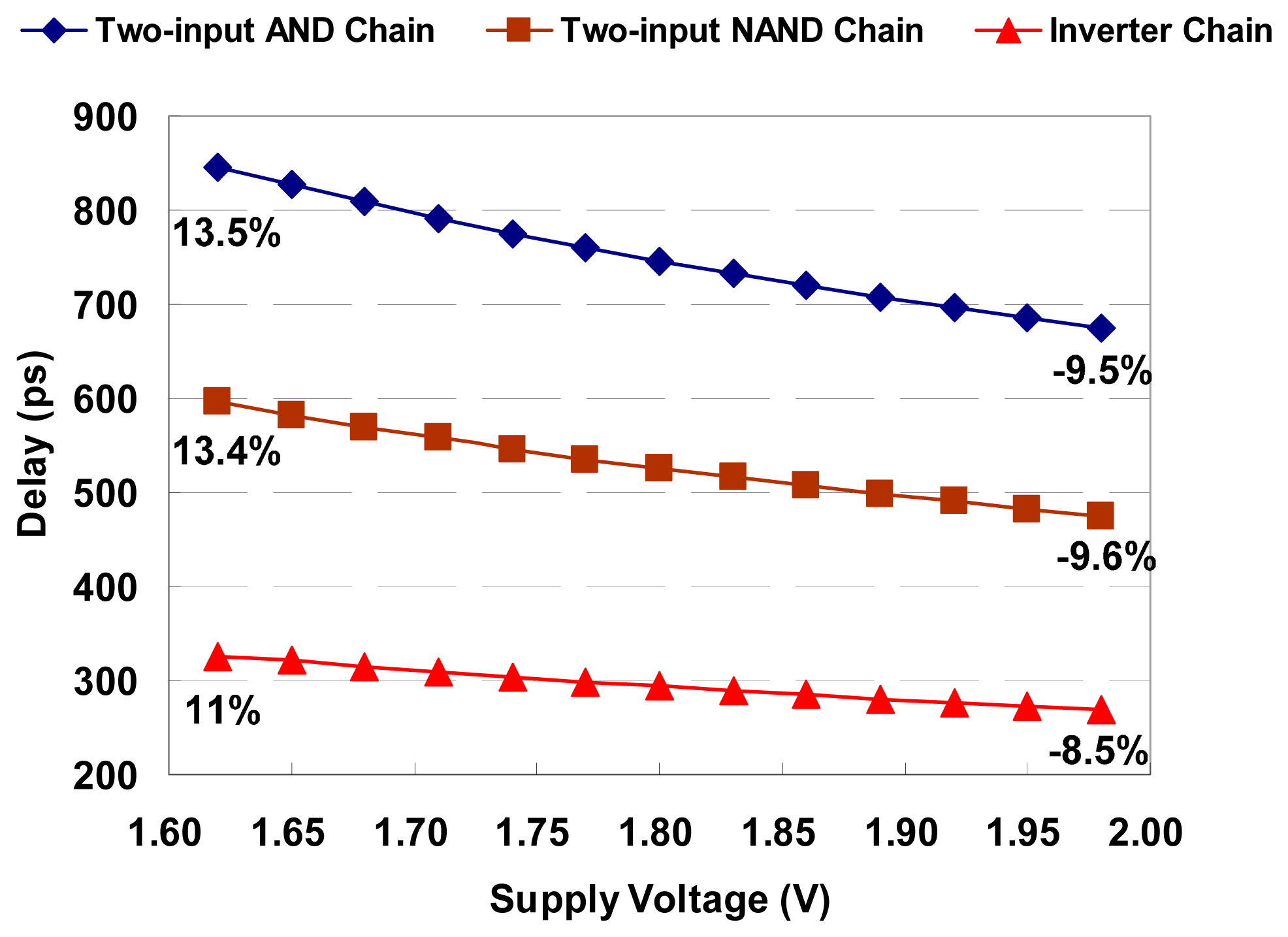

An all-digital on-chip delay sensor (OCDS) circuit with high delay-measurement resolution and low supply-voltage sensitivity for efficient detection and diagnosis in high-performance electronic system applications is presented. Based on the proposed delay measurement scheme, the quantization resolution of the proposed OCDS can be reduced to several picoseconds. Additionally, the proposed cascade-stage delay measurement circuit can enhance immunity to supply-voltage variations of the delay measurement resolution without extra self-biasing or calibration circuits. Simulation results show that the delay measurement resolution can be improved to 1.2 ps; the average delay resolution variation is 0.55% with supply-voltage variations of ±10%. Moreover, the proposed delay sensor can be implemented in an all-digital manner, making it very suitable for high-performance electronic system applications as well as system-level integration. View Full-Text
Keywords: delay sensor; voltage variations; delay measurement; VLSI; all digital delay sensor; voltage variations; delay measurement; VLSI; all digital
