Open AccessArticle
Sensors 2014, 14(9), 17146-17158; doi:10.3390/s140917146

Non-Destructive Evaluation of Depth of Surface Cracks Using Ultrasonic Frequency Analysis

Department of Mechanical Engineering, Yuan Ze University, Chung-Li 320, Taiwan
*
Author to whom correspondence should be addressed.
Received: 12 June 2014 / Revised: 2 September 2014 / Accepted: 9 September 2014 / Published: 15 September 2014
View Full-Text   |   Download PDF [1156 KB, uploaded 15 September 2014]   |

Abstract

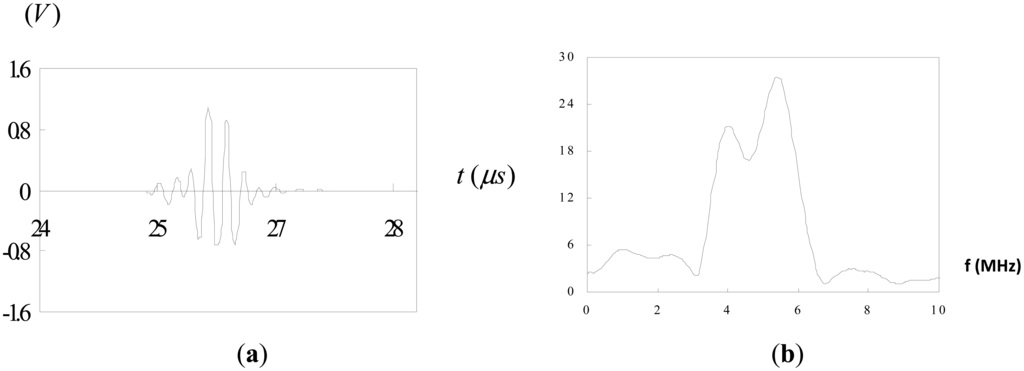

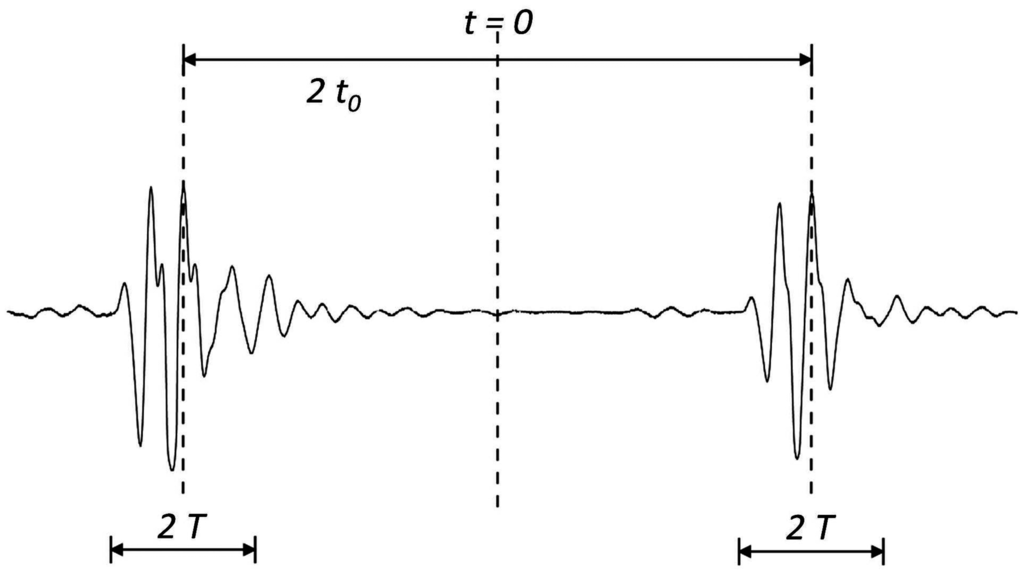

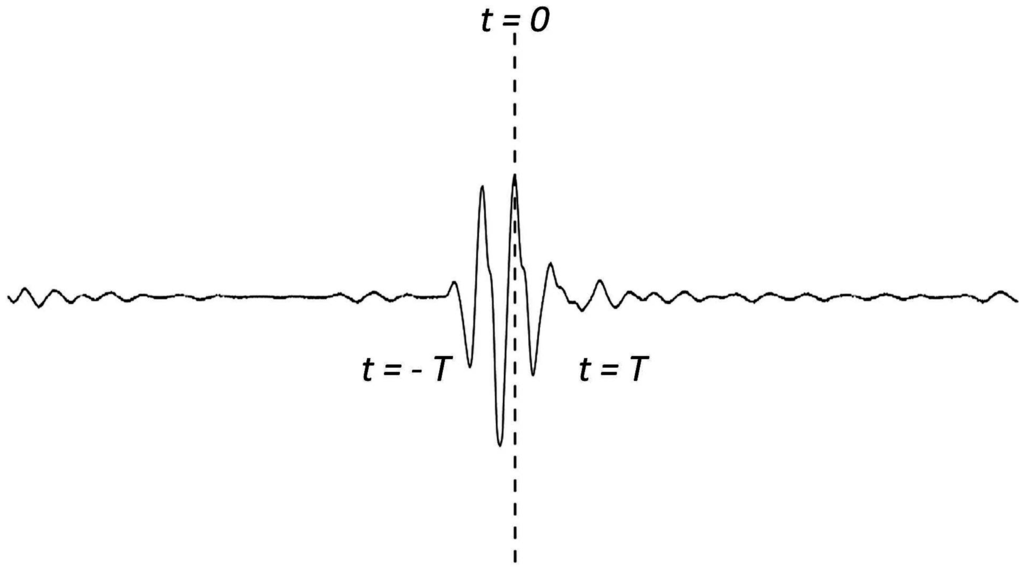

Ultrasonic is one of the most common uses of a non-destructive evaluation method for crack detection and characterization. The effectiveness of the acoustic-ultrasound Structural Health Monitoring (SHM) technique for the determination of the depth of the surface crack was presented. A method for ultrasonic sizing of surface cracks combined with the time domain and frequency spectrum was adopted. The ultrasonic frequency spectrum was obtained by Fourier transform technique. A series of test specimens with various depths of surface crack ranging from 1 mm to 8 mm was fabricated. The depth of the surface crack was evaluated using the pulse-echo technique. In this work, three different longitudinal waves with frequencies of 2.25 MHz, 5 MHz and 10 MHz were employed to investigate the effect of frequency on the sizing detection of surface cracks. Reasonable accuracies were achieved with measurement errors less than 7%. View Full-Text
Keywords: surface crack; non-destructive evaluation; ultrasonic; Fourier transform surface crack; non-destructive evaluation; ultrasonic; Fourier transform
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
