Sensors 2014, 14(4), 6370-6392; doi:10.3390/s140406370

Article
Video-Based Human Activity Recognition Using Multilevel Wavelet Decomposition and Stepwise Linear Discriminant Analysis
Muhammad Hameed Siddiqi 1, Rahman Ali 1, Md. Sohel Rana 2, Een-Kee Hong 2, Eun Soo Kim 3 and Sungyoung Lee 1,*
1
Department of Computer Engineering, Kyung Hee University, Suwon 446–701, Korea; E-Mails: siddiqi@oslab.khu.ac.kr (M.H.S.); rahmanali@oslab.khu.ac.kr (R.A.)
2
Department of Electronics and Radio Engineering, Kyung Hee University, Suwon 446–701, Korea; E-Mails: sohel@khu.ac.kr (M.S.R.); ekhong@khu.ac.kr (E.-K.H.)
3
Department of Electronic Engineering, Kwangwoon University, Seoul 139–701, Korea; E-Mail: eskim@kw.ac.kr
*
Author to whom correspondence should be addressed; E-Mail: sylee@oslab.khu.ac.kr; Tel.: +82-31-201-2514.
Received: 19 February 2014; in revised form: 26 March 2014 / Accepted: 26 March 2014 /
Published: 4 April 2014

Abstract

: Video-based human activity recognition (HAR) means the analysis of motions and behaviors of human from the low level sensors. Over the last decade, automatic HAR is an exigent research area and is considered a significant concern in the field of computer vision and pattern recognition. In this paper, we have presented a robust and an accurate activity recognition system called WS-HAR that consists of wavelet transform coupled with stepwise linear discriminant analysis (SWLDA) followed by hidden Markov model (HMM). Symlet wavelet has been employed in order to extract the features from the activity frames. The most prominent features were selected by proposing a robust technique called stepwise linear discriminant analysis (SWLDA) that focuses on selecting the localized features from the activity frames and discriminating their class based on regression values (i.e., partial F-test values). Finally, we applied a well-known sequential classifier called hidden Markov model (HMM) to give the appropriate labels to the activities. In order to validate the performance of the WS-HAR, we utilized two publicly available standard datasets under two different experimental settings, n–fold cross validation scheme based on subjects; and a set of experiments was performed in order to show the effectiveness of each approach. The weighted average recognition rate for the WS-HAR was 97% across the two different datasets that is a significant improvement in classication accuracy compared to the existing well-known statistical and state-of-the-art methods.
Keywords:
activity recognition; wavelet decomposition; stepwise linear discriminant analysis; hidden markov model

1. Introduction

Video-based human activity recognition (HAR) refers to an algorithm that a computer system uses to automatically recognize what human activity is being or was performed, given a sequence of images (video frames). Over the last decade activity recognition has become an important research area for many applications of computer vision and pattern recognition, security [1], surveillance [2], illegal car parking [3], and diagnostics of orthopedic patients and analysis of athletes' performances [4].

There are two types of classification in a typical HAR systems: First one is the frame-based classification in which only the current frame is utilized with or without a reference image to recognize the human activities in the incoming videos. The second one is the sequence-based classification in which the geometrical displacement of the feature points are calculated between the current frame and the initial frame. The frame-based methods do not have this quality; therefore, the focus of this article is the sequence-based classification method.

Generally, HAR system consists of three basic modules: preprocessing, feature extraction, and recognition. For preprocessing module, some well-known methods such as histogram equalization (HE), median filter, and homomorphic filter have been employed in order to enhance the quality of the video frames. On the other hand, there lots of works have been done for feature extraction module in the literature; however, each of them has its own limitations.

Regarding to the feature extraction, some well-known methods such space-time volume (STV) by [58] have been proposed. However, in SVT approaches, a traditional sliding window is used due to which it requires a large amount of computations for the accurate localization of actions, and also it has difficulty in recognizing the actions which cannot be spatially segmented [9]. Similarly, local binary pattern (LBP) method has been exploited by [10,11] for feature extraction. However, LBP are very sensitive to viewpoint, noise and occlusions [12] that may cause misclassification. LBP uses 3 × 3 operator for pixels comparison; however, the dominant features cannot be extracted by this small operator. Moreover, LBP does not provide directional information of the frame because it only captures the relations with its surrounding eight neighbor pixels. In order to solve, the limitations of LBP, another method was proposed by [13] named local ternary patten (LTP), which is the combination of the description property of LBP with the appearance invariance and adaptability of patch matching based methods [13]. However, the major disadvantage of LTP is that it is not invariant under grey-scale transform of intensity that is based on a fixed predefined threshold value [14].

Regarding to recognition, some well-known classifiers such as artificial neural networks (ANNs) [1517], support vector machines (SVMs) [18,19], Gaussian mixture models (GMMs) [20,21], and hidden Markov models (HMMs) [2224] have been utilized for the purpose of recognition. Among them, HMM is widely used for sequence-based classification [25] in FER systems. Because HMMs have their own advantage in handling sequential data when frame-level features are used, while the vector-based classiers such as GMMs, ANNs, and SVMs fail to learn the sequence of the feature vectors.

The objective of this paper is to propose a new feature extraction technique based on wavelet transform (especially symlet wavelet). To obtain the feature vectors, symlet wavelet family was tested for which the image was decomposed up to 4 levels. In order to select the most prominent features, we also proposed the use of a robust feature selection technique called Stepwise Linear Discriminant Analysis (SWLDA). SWLDA is easy to explain, has good predictive ability, and computational wise, it is less expensive than other existing methods [26]. Some limitations of the existing works, such as illumination change, do not affect the performance of the SWLDA. SWLDA only chooses a small subset of features from the large set of features by employing forward and backward regression models. In forward process, the most correlated features are selected based on partial F-test values from the feature space. While in the backward process, the least significant values are removed from the regression model i.e., the lower F-test values. In both processes, the F-test values were calculated on the basis of the defined class labels. The advantage of this method is that it is very efficient for seeking localized features.

We already discussed some related work about this field. Rest of the paper is organized as: Section 2 provides an overview of our WS-HAR. The experimental setup has been described in Section 3. Section 4 presents the experimental results and discussion of the WS-HAR. Finally, the paper is concluded with some future directions in Section 5.

2. Materials and Methods

The WS-HAR system consists of the following modules.

2.1. Preprocessing

In most of the activity datasets, the activity frames have various resolutions and backgrounds, and were taken under varying light conditions; therefore, the preprocessing module is necessary to improve the quality of the frames. At this stage, the background information, illumination noise, and unnecessary details are diminished for fast and easy processing. After this module, we can obtain sequences of images which have normalized intensity, size and shape. So, in the preprocessing module of the WS-HAR systems, we have employed histogram equalization in order to solve the lighting effects. Moreover, we have extracted the human bodies by subtracting the empty frames from the activity frames as shown in Figure 1.

2.2. Feature Extraction

Feature extraction is a process that deals with getting the distinguishable features from each human body shape and quantizing it as a discrete symbol. In WS-HAR, we have proposed a robust feature extraction technique as described below.

2.2.1. Wavelet Transform

After obtaining a set of body silhouettes segmented from a sequence of images the wavelet transform is applied for feature extraction. In wavelet transform, we used the decomposition process for which the video frames were in grey scale. The reason for converting from RGB to gray scale was to improve the efficiency of the proposed algorithm. The wavelet decomposition could be interpreted as signal decomposition in a set of independent feature vectors. Each vector consists of sub-vectors like:

V 0 2 D = V 0 2 D 1 , V 0 2 D 2 , . , V 0 2 D n
where V represents the 2D feature vector. If we have 2D activity frame X, and it is decomposed into orthogonal sub images corresponding to different visualization. The following equation shows one level of decomposition:
X = A 1 + D 1
where X indicates the decomposed image and A1 and D1 show approximation and detailed coefficient vectors respectively. If the activity frame is decomposed up to multilevel, then, the Equation (2) can then be written as:
X = A j + [ D j + D j 1 + D j 2 + . + D 2 + D 1 ]
where j represents the level of decomposition. Mostly, the detail coefficients consist of noise; therefore, only the approximation were utilized for feature extraction. During the decomposition process, each frame is decomposed up to four levels of decomposition, i.e., j = 4, because by exceeding the value of j = 4 the image loses lots of information due to which the informative coefficients cannot be detected properly and might cause misclassification. The detail coefficients further consist of three sub-coefficients. So the Equation (3) can be written as:
X = A 4 + [ D 4 + D 3 + D 2 + D 1 ] = A 4 + [ ( D h ) 4 + ( D υ ) 4 + ( D d ) 4 ] + [ ( D h ) 3 + ( D υ ) 3 + ( D d ) 3 ] + [ ( D h ) 2 + ( D υ ) 2 + ( D d ) 2 ] + [ ( D h ) 1 + ( D υ ) 1 + ( D d ) 1 ]

Or simply, the Equation (4) can be written as:

X = A 4 + j = 4 1 [ ( D h ) j + ( D υ ) j + ( D d ) j ]
where Dh, Dv, and Dd indicate horizontal, vertical and diagonal coefficients respectively. We can observe from Equation (4) or Equation (5), that all the coefficients are connected with each other like a chain, through which we can easily extract the prominent features. These coefficients graphically and image-wise are represented by Figures 2 and 3 respectively.

In each decomposition step, the approximation and detail coefficient vectors are obtained by passing the signal through the low-pass and high-pass filters.

After the decomposition process, the feature vector is created by taking the average of all the frequencies of the activity frames. In a specified time window the frequency of each activity frame has been estimated by analyzing the corresponding frame by utilizing the wavelet transform [27]:

C ( a i , b j ) = 1 a i y ( t ) ψ f e * ( t b j a i ) d t
where ai is the scale of the wavelet between the lower and upper frequency bounds to get higher decision for the frequency estimation, bj is the position of the wavelet from the start to end of the time window with the spacing of signal sampling period, t is the time, ψf·e is the wavelet function used for frequency estimation, and C (ai, bj) are the wavelet coefficients with the specified scale and position parameters, which is converted to the mode frequency as:
f 1 = f a ( ψ f e ) a m ( ψ f e ) Δ
where fa (ψf·e) is the average frequency of the wavelet function, and Δ is the signal sampling period. So the feature vector is obtained by taking the average of the whole frame frequencies for each activity that is given as:
f Act = ( f 1 + f 2 + f 3 + . + f K ) N
where fAct indicates the average frequency of each activity which is a feature vector for that activity, K is the last frame of the current activity, and N represents the whole number of the frames in each activity.

2.3. Feature Selection

Feature selection module is used for selecting subset of relevant features, which contain information to help distinguish one class from the others, from a large number of features extracted from the input data. Some of the human activities such as running and walking, skipping and jumping have quite similar feature values in the feature space, which can result in a high misclassification rate. This also result in high within-class variance and low between-class variance. Therefore, a method is required that not only provides dimension reduction, but also increases the low between-class variance to increase class separation before the features are fed to the classifier.

In order to solve this problem, several methods have been discussed in the machine learning literature, such as kernel discriminant analysis (KDA) [28], generalized discriminant analysis (GDA) [29], and linear discriminant analysis (LDA) [30]. Among these, LDA has been most widely employed in HAR systems.

However, LDA has two major limitations. First, it relies on the mixture model containing the correct number of components. Second, it is a linear technique that is limited in flexibility when applied to more complex datasets. Moreover, the assumption made by LDA that all classes share the same within-class covariance matrix is not valid. Additionally, large amounts of data are necessary to generate robust transforms for LDA, and there may be insufficient data to robustly estimate transforms to separate the classes. For more details on LDA, please refer to a previous study [31].

In sum, we believe that the use of LDA will not essentially yield an improvement in the performance of an HAR system. Moreover, LDA cannot provide a better classification rate due to the aforementioned limitations. Therefore, we propose the use of a robust technique such as SWLDA [26] that does not suffer from the aforementioned limitations. To the best of our knowledge, it is the first time that SWLDA is being utilized as a feature selection technique for HAR systems.

2.3.1. Stepwise Linear Discriminant Analysis (SWLDA)

Fishers linear discriminant (FLD) is a well-known linear classification method that has been utilized in order to find the optimal separation between the two classes [28]. For two classes that have a Gaussian distribution with an identical covariance, FLD is more robust than other linear classifiers with regard to optimal separation. FLD and the least-squares regression method are comparable to each other and project feature masses in binary jobs as follows:

L ^ = ( M t M ) 1 M t Y
where M indicates the pragmatic feature vectors matrix, and Y is the label of the class. FLD has the capability to provide the best classification solution for linear data; however, FLD does not provide a better solution when the data is non-linear.

Therefore, we propose the use of a non-linear classification technique such as SWLDA that has been reported to discriminate P300 Speller responses [26]. In short, SWLDA is an extended version of FLD that performs two operations in parallel: reducing the feature space by extracting informative features and removing irrelevant features.

As mentioned before, SWLDA extracts and selects the best features by utilizing two algorithms, namely forward and backward algorithms that work in parallel. The most substantial interpreter value is obtained with a model that has a p-value < 0.2 because there is no initial model at the start. When the new values are entered by the forward technique, the backward algorithm is used to remove irrelevant values (i.e., those that have a p-value > 0.25). This entry and removal procedure continues until the predefined criteria are satisfied and the resultant function is constrained to the extreme number of 200 features.

In contrast, the regression methods select the best variable, such as X, and then move on to form more X's in meaningful situations. In this method, the new entry and the selection of the best values are based on F-test values that are used to determine which value should be entered first or second. Then the two values, namely the partial F-value and the selected value, are compared. This whole process is done using the forward technique. In the next step, the deletion process is initiated using a backward regression technique (known as backward deletion) in which the testing values for all interpreter variables previously present in the backlog are calculated. The testing value with the lowest value, VL is compared with the pre-selected value, PS. Then

  • The calculation of F-test will start again if VL< PS

  • Otherwise, accept the regression equation if VL > PS.

For more details on SWLDA, please refer to a previous study [26].

2.4. Recognition

In recognition module, a classifier such as Hidden Markov Model (HMM), or Gaussian Mixture Model (GMM) or Support Vector Model (SVM) is first trained with training data and then used to generate the label of human activities contained in the incoming video data.

2.4.1. Hidden Markov Model (HMM)

As described before that HMM is the best candidate for sequential data (video-based activities) classification, which provides a statistical model λ for a set of observation sequences. These observations are called frames in HAR domain. Suppose there are sequence of observations of length T that are denoted by O1, O2, …, OT and HMM also consists of particular sequences of states S, whose lengths range from 1 to N (S = S1, S2, , SN) where N is the number of states in the model, and the time t for each state is denoted Q = q1,q2, …, qN. The likelihood P (O|λ) can be evaluated by summing over all possible state sequences:

P ( O | λ ) = Q P ( O , Q | λ )
A simple procedure for nding the parameters λ that maximize the above equation for HMMs, introduced in [32] depends on the forward and backward algorithms αt(j) = P (O1, O2,…, Ot, qt = j|λ) and βt (j) = P (O (t + 1) …Ot/qt = j, λ) respectively, such that these variables can be initiated inductively by the following three processes:
α 1 ( j ) = π j b j ( O j ) , 1 j N
β T ( j ) = 1 , 1 j N
During testing, the appropriate HMMs can then be determined by mean of likelihood estimation for the sequence of observations O calculated based on the trained λ as:
P ( O | λ ) = i = 1 N α T ( i )
The maximum likelihood for the observations provided by the trained HMMs indicates the recognized label. For more details on HMM, please refer to [33]. The following formula has been utilized to model HMM (λ):
λ = ( O , Q , π )
where O is the sequence of observations e.g., O1, O2, …, OT and and each state is denoted by Q such as Q = q1q2, …, qN, where N is the number of the states in the model, and π is the initial state probabilities. The parameters that used to model HMM (λ) for all experiments were 44, 4, and 4, respectively. These values have been selected by performing multiple experiments.

3. Experimental Setup

There are some pose-based action datasets such as Weizmann action dataset [5], and KTH action dataset [34], and some are spontaneous-based action datasets like RGBD-HuDaAct [35], UCF Youtube[36], Hollywood2 [37], HMDB51 [38], ASLAN [39], etc. Most of the activity frames in pose-based datasets have only one subject for performing the activity. While, all the spontaneous-based action datasets have more than one subject in each activity clip for the corresponding activity. However, the WS-HAR may not work on spontaneous-based action datasets because of involving more than one subject in the activity frames, and that is one the limitations of the WS-HAR system. Therefore, the performance of the WS-HAR has been tested and validated only on pose-based action datasets such as Weizmann and KTH action datasets. The detailed description on each of these datasets are as follows:

  • Weizmann Action Dataset:

    In this dataset, there were 9 subjects performed 10 actions such as bending, walking, running, skipping, jumping forward, place-jumping side-movement, one-hand-waving, and two-hand-waving. There were 90 video clips in the datasets and the average number of frames in each clip was 15. The size of each frame 144 × 180.

  • KTH Action Dataset:

    Additionally, we also employed KTH dataset of activity recognition. In this dataset, there were 25 subjects performed six activities such as walking, jogging, running, boxing, hand-waving, hand-clapping in four different scenarios. There were total 2391 sequences taken over homogenous backgrounds with a static camera. The fame size was 160 × 120.

During all the experiments, the size of each input frame was 60 × 60, where the images were first converted to a zero-mean vector of size 1 × 3600 for feature extraction. For a thorough validation, four experiments were performed.

  • In the first experiment of the WS-HAR, an n–fold cross-validation scheme based on subjects was used for each dataset, which means that, out of n subjects, data from a single subject was taken as the validation data for testing the WS-HAR, whereas the data for the remaining n − 1 subjects were used as the training data. This process was repeated n times, with data from each subject used exactly once as validation data. The value of n varied according to the dataset used. The benefit of this rule is that each activity was used for both training and testing.

  • While, in the second experiment of WS-HAR, the performance of the sub-components of WS-HAR, i.e., feature extraction (symlet wavelet transform), and SWLDA were analyzed separately.

  • In the third experiment, the performance of WS-HAR was compared with previous state-of-the-art methods.

  • Finally, in the fourth experiment, the performance of different approaches with different combination was analyzed using all the three datasets.

4. Results and Discussion

4.1. Experimental Results of WS-HAR Based on Subjects

In this experiment, the WS-HAR (Wavelet transform, Stepwise linear discriminant analysis (SWLDA)-based Human Activity Recognition) system was separately trained and tested on each dataset. In this experiment, symlet wavelet transform, SWLDA, and HMM were applied collectively on each dataset. The overall experimental results of WS-HAR using Weizmann and KTH action datasets are shown in Tables 1 and 2, respectively.

It can be seen from Tables 1 and 2 that the WS-HAR consistently achieved a high recognition rate when applied to these datasets separately: 97.11% for Weizmann action dataset, and 97.16% for KTH action dataset.

4.2. Experimental Results of WS-HAR under the Absence of Each Module

In this experiment, a set of sub-experiments were performed in order to assess the efficacy of each module of WS-HAR (feature extraction, and feature selection) separately. This experiment was repeated two times and the classification rate was analyzed under two different settings: Firstly, the experiment was repeated by employing the existing feature extraction technique such as ICA instead of using the proposed feature extraction technique (wavelet transform). While in the second experiment, a well-known feature selection technique such as PCA was utilized instead of employing the proposed feature selection method (SWLDA). The results for the two experimental settings are indicated in Tables 3, 4, 5 and 6 on Weizmann and KTH action datasets respectively.

It can be seen that in the WS-HAR, the proposed feature extraction method (symlet wavelet transform) is important as shown in Tables 3 and 4. It is because symlet wavelet can extract the most prominent information in the form of frequency from activity frames, and also it is a compactly supported wavelet on frames with the least asymmetry and highest number of vanishing moments for a given support width. The symlet wavelet has the capability to support the characteristics of orthogonal, biorthogonal, and reverse biorthogonal of gray scale images, that's why it provides better classification results.

The frequency-based assumption is supported in our experiments and we measure the statistic dependency of wavelet coefficients for all activity frames. Joint probability of a frame is computed by collecting geometrically aligned frames of the activity for each wavelet coefficient. Mutual information for the wavelet coefficients computed using these distributions is used to estimate the strength of statistical dependency between the two frames. Moreover, symlet wavelet transform is capable to extract prominent features from activity frames with the aid of locality in frequency, orientation and in space as well. Since wavelet is a multi-resolution that helps us to efficiently find the images in coarse-to-find way.

Similarly, it is also to be noted from Tables 5 and 6 that the proposed feature selection method such SWLDA has also much contribution in the WS-HAR. Without SWLDA, the WS-HAR system was unable to achieve adequate classification rate. This indicates that SWLDA is a robust feature selection method that addresses the limitations of previous feature selection techniques, especially PCA and LDA. The reason behind the better performance of SWLDA is apparent in Tables 5 and 6. Thus SWLDA not only provides dimension reduction, it also increases the low between-class variance to increase the class separation before the features are fed to the classifier. The low within class and high between class variance are achieved because of the forward and backward recognition models in the SWLDA.

4.3. Comparison of the WS-HAR with State-of-the-Art Methods

In this experiments, we compared the performance of WS-HAR with some state-of-the-art methods on both datasets, i.e., Weizmann and KTH action datasets of activities. Some of these methods including [4046]. Some of them recognized the activities by employing frame-based classification methods while some used sequential-based classification method. All these methods were implemented by us using the instructions provided in their respective papers. For each dataset, n–fold cross validation scheme (based on subjects) was utilized as described in Section 3. The average recognition rate for each method along with the WS-HAR are shown in Table 7.

It can be seen from Table 7 that the WS-HAR outperformed the existing state-of-the-art methods. Thus, the WS-HAR system shows significant potential in its ability to accurately and robustly recognize the human activities using video data.

4.4. Experimental Results of Existing Well-Known Statistical Methods

In this experiments, a set of experiments were performed using different combinations of various previously used feature extraction and classification approaches on the two datasets. The overall results of these experiments are shown in Tables 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 and 19.

Comparing Tables 1 and 2 with the abovementioned tables, one can notice that the performance of WS-HAR is much better in contrast to the performance of different combinations of the previously explored methods.

Moreover, in order to show the efficacy of the proposed approaches, we have compared the weighted recognition rate of the proposed approaches with some recent well-known feature extraction methods such as motion history image (MHI) [47,48], spatio-temporal interest points [7,49], and dense motion trajectories [50]. The over all results of along with the proposed approaches are shown in Table 20.

It can be seen from Table 20 that the proposed approaches outperformed compared to the recent existing feature extraction methods. These methods (shown in Table 20) have their own limitations. For example, the scalability is one of the major limitations of motion history image-based methods because it analyze the lateral motion of the gesture [51]. Also, it might only recognize actions of angle of 180 degree [52]. Commonly, good segmented silhouettes are required for spatio-temporal interest points features and also these methods are very sensitive to viewpoint and occlusion [53]. Although, spatio-temporal interest points features-based methods are well recognized the activities; however, these methods the time information is often discarded [54]. Likewise, dense motion trajectories-based methods typically lost the underlying sequential information provided by the ordering of the words, when the activities are represented as bags of words [55]. On the hand, the proposed approaches came up with the limitations of the aforementioned feature extraction techniques and achieved high recognition rate than the others. The details are described in Section 4.2.

5. Conclusions

The aim of video-based activity recognition systems is to automatically recognize a human activity using sequence of images (video frames). Over the last decade, HAR systems have received a great deal of attention from community due to their application in many areas of pattern recognition and computer vision. However, accurately recognizing the activities is still a major concern for most of them. This lack of accuracy can be attributed to various causes, such as the failure to extract the prominent features, and the high similarity among different activities that results due to the presence of low between-class variance in the feature space.

Accordingly, the purpose of this study was to propose an accurate and robust HAR system, called WS-HAR that is capable of exhibiting high recognition rate. The WS-HAR uses symlet wavelet transform, SWLDA, and HMM as its feature extraction, feature selection, and classification techniques respectively. Symlet wavelet can extract the most prominent information in the form of frequency from activity frames, and also it is a compactly supported wavelet on frames with the least asymmetry and highest number of vanishing moments for a given support width. Similarly, SWLDA helps the system in selecting the most significant features thereby reducing the high within class variance and increasing the low between class variance. HMM then uses these features to accurately classify the human activities. This model is capable of approximating the complex distributions using a mixture of full covariance Gaussian density functions.

The proposed WS-HAR system has been validated using two publicly available standard datasets (Weizmann and KTH action datasets). Weizmann action dataset consisted of nine activities, while KTH action dataset consisted of six activities. Each activity clip was composed of several sequence of activity frames. All of these experiments were performed in the laboratory using offline validation. Though the system was very successful in recognizing each of the activities in all of these experiments with a very high accuracy, its performance in real environment is yet to be investigated. The system performance could degrade in real-life test, especially when used with various angles, dynamic background, and clutter (unnecessary objects in a test image). Therefore, further study is needed in order to solve these issues in real-time environment.

As mentioned before that we have applied the WS-HAR system on two publicly available standard action datasets that are pose-made datasets. In these datasets, all the activity clips have only one subject for performing the activity. However, the WS-HAR systems may not work on real time datastes such as UCF Youtube, Hollywood2, HMDB51, ASLAN etc. Because, most of these datasets have more than one subject in each activity clip for the corresponding activity. Therefore, further research is needed to apply the WS-HAR in order to solve this issue in real world datasets.

This work was supported by the National Research Foundation of Korea(NRF) grant funded by the Korea government (MEST) (No. 2011-0030823).

Author Contributions

Muhammad Hameed Siddiqi, Rahman Ali, Md. Sohel Rana, and Een-Keee Hong have made substantial contributions in all experiments, data analysis, and manuscript preparation. While, Eun Soo Kim and Subgyoung Lee have provided the financial support for this manuscript.

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Vaswani, N.; Roy-Chowdhury, A.K.; Chellappa, R. Shape activity: A continuous-state HMM for moving/deforming shapes with application to abnormal activity detection. IEEE Trans. Image Process. 2005, 14, 1603–1616. [Google Scholar]
  2. Moeslund, T.B.; Hilton, A.; Krüger, V. A survey of advances in vision-based human motion capture and analysis. Comput. Vis. Image Underst. 2006, 104, 90–126. [Google Scholar]
  3. Lee, J.T.; Ryoo, M.S.; Riley, M.; Aggarwal, J.K. Real-time detection of illegally parked vehicles using 1-D transformation. Proceedings of the IEEE International Conference on Advanced Video and Signal Based Surveillance, London, UK, 5–7 September 2007; pp. 254–259.
  4. Chang, S.F. The holy grail of content-based media analysis. IEEE Multimed. 2002. [Google Scholar]
  5. Blank, M.; Gorelick, L.; Shechtman, E.; Irani, M.; Basri, R. Actions as space-time shapes. Proceedings of the Tenth IEEE International Conference onComputer Vision, Beijing, China, 17–21 October 2005; pp. 1395–1402.
  6. Ke, Y.; Sukthankar, R.; Hebert, M. Spatio-temporal shape and flow correlation for action recognition. Proceedings of the IEEE International Conference on Computer Vision and Pattern Recognition, Minneapolis, MN, USA, 18–23 June 2007; pp. 1–8.
  7. Dollár, P.; Rabaud, V.; Cottrell, G.; Belongie, S. Behavior recognition via sparse spatio-temporal features. Proceedings of the 2005 2nd Joint IEEE International Workshop on Visual Surveillance and Performance Evaluation of Tracking and Surveillance, Beijing, China, 15–16 October 2005; pp. 65–72.
  8. Shechtman, E.; Irani, M. Space-time behavior based correlation. Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, CVPR 2005, San Diego, CA, USA, 20–26 June 2005; pp. 405–412.
  9. Aggarwal, J.; Ryoo, M. Human activity analysis: A review. ACM Comput. Surv. (CSUR) 2011, 43, 16:1–16:43. [Google Scholar]
  10. Uddin, M.Z.; Kim, D.H.; Kim, J.T.; Kim, T.S. An indoor human activity recognition system for smart home using local binary pattern features with hidden markov models. Indoor Built Environ. 2013, 22, 289–298. [Google Scholar]
  11. Hu, M.; Wang, Y.; Zhang, Z.; Zhang, D.; Little, J.J. Incremental learning for video-based gait recognition with LBP flow. IEEE Trans. Cybern. 2013, 43, 77–89. [Google Scholar]
  12. Sanin, A.; Sanderson, C.; Harandi, M.T.; Lovell, B.C. Spatio-temporal covariance descriptors for action and gesture recognition. Proceedings of the IEEE International Workshop on Applications of Computer Vision (WACV), Tampa, FL, USA, 17–18 January 2013; pp. 103–110.
  13. Yeffet, L.; Wolf, L. Local trinary patterns for human action recognition. Proceedings of the IEEE 12th International Conference on Computer Vision, Kyoto, Japan, 27 September–4 October 2009; pp. 492–497.
  14. Raja, G.M.; Sadasivam, V. Optimized local ternary pattern: A new texture model with set of optimal patterns for texture analysis. J. Comput. Sci. 2013, 9, 1–15. [Google Scholar]
  15. Foroughi, H.; Naseri, A.; Saberi, A.; Yazdi, H.S. An eigenspace-based approach for human fall detection using integrated time motion image and neural network. Proceedings of the 2008 9th IEEE International Conference on Signal Processing, ICSP 2008, Beijing, China, 26–29 October 2008; pp. 1499–1503.
  16. Fiaz, M.; Ijaz, B. Vision based human activity tracking using artificial neural networks. Proceedings of the 2010 International Conference on Intelligent and Advanced Systems (ICIAS), Kuala Lumpur, Malaysia, 15–17 June 2010; pp. 1–5.
  17. Jain, A.K.; Duin, R.P.W.; Mao, J. Statistical pattern recognition: A review. IEEE Trans. Pattern Anal. Mach. Intell. 2000, 22, 4–37. [Google Scholar]
  18. Manosha Chathuramali, K.; Rodrigo, R. Faster human activity recognition with SVM. Proceedings of the 2012 IEEE International Conference onAdvances in ICT for Emerging Regions (ICTer), Colombo, Western, Sri Lanka, 12–15 December 2012; pp. 197–203.
  19. Bengalur, M.D. Human activity recognition using body pose features and support vector machine. Proceedings of the 2013 International Conference on Advances in Computing, Communications and Informatics (ICACCI), Mysore, India, 22–25 August 2013; pp. 1970–1975.
  20. Kodagoda, S.; Piyathilaka, J. Gaussian mixture based HMM for human daily activity recognition using 3D skeleton features. Proceedings of the 2013 IEEE 8th International Conference on Industrial Electronics and Applications, Melbourne, Australia, 19–21 June 2013; pp. 567–572.
  21. Lin, W.; Sun, M.T.; Poovandran, R.; Zhang, Z. Human activity recognition for video surveillance. Proceedings of the 2008 IEEE International Symposium on Circuits and Systems, ISCAS 2008, Seattle, WA, USA, 18–21 May 2008; pp. 2737–2740.
  22. Trabelsi, D.; Mohammed, S.; Chamroukhi, E.; Oukhellou, L.; Amirat, Y. An unsupervised approach for automatic activity recognition based on hidden Markov model regression. IEEE Trans. Autom. Sci. Eng. 2013, 10, 829–835. [Google Scholar]
  23. Ji, X.; Wang, C.; Li, Y.; Wu, Q. Hidden markov model-based human action recognition using mixed features. J. Comput. Inf. Syst. 2013, 9, 3659–3666. [Google Scholar]
  24. Thuc, H.L.U.; Ke, S.R.; Hwang, J.N.; van Tuan, P.; Chau, T.N. Quasi-periodic action recognition from monocular videos via 3D human models and cyclic HMMs. Proceedings of the 2012 International Conference on Advanced Technologies for Communications (ATC), Hanoi, Vietnam, 10–12 October 2012; pp. 110–113.
  25. Ordóñez, F.J.; de Toledo, P.; Sanchis, A. Activity recognition using hybrid generative/discriminative models on home environments using binary sensors. Sensors 2013, 13, 5460–5477. [Google Scholar]
  26. Krusienski, D.J.; Sellers, E.W.; McFarland, D.J.; Vaughan, T.M.; Wolpaw, J.R. Toward enhanced P300 speller performance. J. Neurosci. Methods 2008, 167, 15–21. [Google Scholar]
  27. Turunen, J. Wavelet-Based Method for Estimating Damping in Power Systems. Ph.D. Thesis, Aalto University School of Electrical Engineering, Espoo, Finland, 25 March 2011. [Google Scholar]
  28. Mika, S.; Ratsch, G.; Weston, J.; Scholkopf, B.; Mullers, K. Fisher discriminant analysis with kernels. Proceedings of the 1999 IEEE Signal Processing Society Workshop Neural Networks for Signal Processing IX, Madison, WI, USA, 23–25 August 1999; pp. 41–48.
  29. Baudat, G.; Anouar, F. Generalized discriminant analysis using a kernel approach. Neural Comput. 2000, 12, 2385–2404. [Google Scholar]
  30. Mika, S. Kernel Fisher Discriminants. Ph.D. Thesis, Universit ätsbibliothek, Leipzig, Germany, 19 December 2002. [Google Scholar]
  31. Belhumeur, P.N.; Hespanha, J.P.; Kriegman, DJ. Eigenfaces vs. fisherfaces: Recognition using class specific linear projection. IEEE Trans. Pattern Anal. Mach. Intell. 1997, 19, 711–720. [Google Scholar]
  32. Baum, L.E. An equality and associated maximization technique in statistical estimation for probabilistic functions of Markov processes. Inequalities 1972, 3, 1–8. [Google Scholar]
  33. Samaria, F.S. Face Recognition Using Hidden Markov Models. Ph.D. Thesis, University of Cambridge, Cambridge, UK, 14 February 1995. [Google Scholar]
  34. Schuldt, C.; Laptev, I.; Caputo, B. Recognizing human actions: A local SVM approach. Proceedings of the 2004 17th International Conference on Pattern Recognition, ICPR 2004, Cambridge, UK, 23–26 August 2004; pp. 32–36.
  35. Ni, B.; Wang, G.; Moulin, P. Rgbd-hudaact: A color-depth video database for human daily activity recognition. In Consumer Depth Cameras for Computer Vision; Springer: Sydney, Australia, 2013; pp. 193–208. [Google Scholar]
  36. Liu, J.; Luo, J.; Shah, M. Recognizing realistic actions from videos in the wild. Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2009, Miami, FL, USA, 20–25 June 2009; pp. 1996–2003.
  37. Laptev, I.; Marszalek, M.; Schmid, C.; Rozenfeld, B. Learning realistic human actions from movies. Proceedings of the 2008 IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2008, Anchorage, AK, USA, 24–26 June 2008; pp. 1–8.
  38. Kuehne, H.; Jhuang, H.; Stiefelhagen, R.; Serre, T. HMDB51: A large video database for human motion recognition. In High Performance Computing in Science and Engineering' 12; Springer: Ostrava Poruba, Czech Republic May 27–30, 2013. ; pp. 571–582.
  39. Kliper-Gross, O.; Hassner, T.; Wolf, L. The action similarity labeling challenge. IEEE Trans. Pattern Anal. Mach. Intell. 2012, 34, 615–621. [Google Scholar]
  40. Uddin, M.Z.; Lee, J.; Kim, T.S. Independent shape component-based human activity recognition via Hidden Markov Model. Appl. Intell. 2010, 33, 193–206. [Google Scholar]
  41. Roshtkhari, M.J.; Levine, M.D. A multi-scale hierarchical codebook method for human action recognition in videos using a single example. Proceedings of the 2012 IEEE Ninth Conference on Computer and Robot Vision (CRV), Toronto, ON, Canada, 28–30 May 2012; pp. 182–189.
  42. Ballan, L.; Bertini, M.; Del Bimbo, A.; Seidenari, L.; Serra, G. Human action recognition and localization using spatio-temporal descriptors and tracking. Proceedings of the Workshop on Pattern Recognition and Artificial Intelligence for Human Behaviour Analysis, Reggio Emilia, Italy, 12 December 2009; pp. 1–8.
  43. Goudelis, G.; Karpouzis, K.; Kollias, S. Exploring trace transform for robust human action recognition. Pattern Recognit. 2013, 46, 3238–3248. [Google Scholar]
  44. Javan Roshtkhari, M.; Levine, M.D. Human activity recognition in videos using a single example. Image Vis. Comput. 2013, 31, 864–876. [Google Scholar]
  45. Gupta, J.P.; Singh, N.; Dixit, P.; Semwal, V.B.; Dubey, S.R. Human activity recognition using gait pattern. Int. J. Comput. Vis. Image Process. (IJCVIP) 2013, 5, 31–53. [Google Scholar]
  46. Arunnehru, J.; Geetha, M.K. Motion intensity code for action recognition in video using PCA and SVM. In Mining Intelligence and Knowledge Exploration, Proceedings of the First International Conference, MIKE 2013, Tamil Nadu, India, 18–20 Deceember 2013; Springer: Virudhunagar, Tamil Nadu, India, 2013; pp. 70–81. [Google Scholar]
  47. Huang, C.P.; Hsieh, C.H.; Lai, K.T.; Huang, W.Y. Human action recognition using histogram of oriented gradient of motion history image. Proceedings of the 2011 IEEE First International Conference on Instrumentation, Measurement, Computer, Communication and Control, Beijing, China, 21–23 October 2011; pp. 353–356.
  48. Takur, R.; Mehan, N.; Namitakakkar. Recognition of human actions using motion history information extracted from the compressed. Int. J. Comput. Vis. Image Process. (IJCVIP) 2013, 3, 973–977. [Google Scholar]
  49. Everts, I.; Gemert, J.C.V.; Gevers, T. Evaluation of color spatio-temporal interest points for human action recognition. IEEE Trans. Image Process. 2014, 23, 1861–1869. [Google Scholar]
  50. Wang, H.; Klaser, A.; Schmid, C.; Liu, C.L. Action recognition by dense trajectories. Proceedings of the 2011 IEEE Conference on. Computer Vision and Pattern Recognition (CVPR), Colorado Springs, CO, USA, 20–25 June 2011; pp. 3169–3176.
  51. Liang, B.; Zheng, L.; Shah, S.A.A.; Bennamoun, M.; Boussaid, F.; El-Sallam, A.A.; Urschler, M.; Bornik, A.; Donoser, M.; Babahajiani, P.; et al. Three dimensional motion trail model for gesture recognition. Proceedings of the IEEE International Conference on Computer Vision (ICCV) Workshops, Sydney, Australia, 1–8 December 2013; pp. 684–691.
  52. Xu, X.; Tang, J.; Zhang, X.; Liu, X.; Zhang, H.; Qiu, Y. Exploring techniques for vision based human activity recognition: Methods, systems, and evaluation. Sensors 2013, 13, 1635–1650. [Google Scholar]
  53. Ke, S.R.; Thuc, H.L.U.; Lee, Y.J.; Hwang, J.N.; Yoo, J.H.; Choi, K.H. A review on video-based human activity recognition. Computers 2013, 2, 88–131. [Google Scholar]
  54. Odobez, J.M.; Emonet, R.; Tavenard, R. Time-sensitive topic models for action recognition in videos. Proceedings of the IEEE International Conference on Image Processing, Paris, France, 27–30 October 2013; pp. 2988–2992.
  55. Bettadapura, V.; Schindler, G.; Plotz, T.; Essa, I. Augmenting bag-of-words: Data-driven discovery of temporal and structural information for activity recognition. Proceedings of the 2013 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Portland, OR, USA, 23–28 June 2013; pp. 2619–2626.
Sensors 14 06370f1 1024

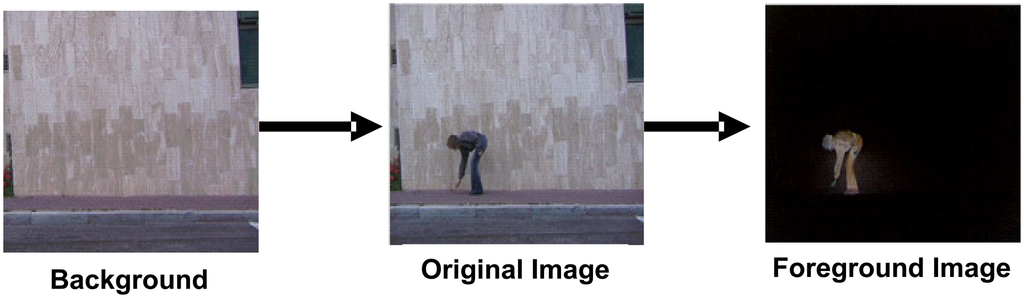

Figure 1. Example of subtracting background from an activity frame.

Click here to enlarge figure

Figure 1. Example of subtracting background from an activity frame.
Sensors 14 06370f1 1024
Sensors 14 06370f2 1024
Figure 2. All the coefficients are connected with one after another like performing head to tail rule in vector addition that produces one dimensional matrix, due to which the coefficients are extracted easily.

Click here to enlarge figure

Figure 2. All the coefficients are connected with one after another like performing head to tail rule in vector addition that produces one dimensional matrix, due to which the coefficients are extracted easily.
Sensors 14 06370f2 1024
Sensors 14 06370f3 1024

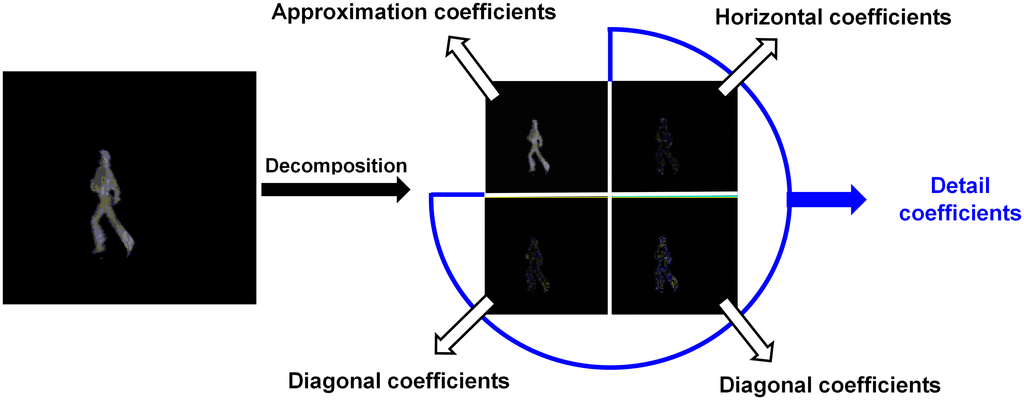

Figure 3. Decomposition of a frame along with its corresponding coefficients after using the proposed feature extraction algorithm. The blue arc shows the detail coefficients that further consists of three sub-coefficients horizontal, vertical and diagonal, respectively.

Click here to enlarge figure

Figure 3. Decomposition of a frame along with its corresponding coefficients after using the proposed feature extraction algorithm. The blue arc shows the detail coefficients that further consists of three sub-coefficients horizontal, vertical and diagonal, respectively.
Sensors 14 06370f3 1024
Table Table 1. The recognition rate of WS-HAR using Weizmann action dataset. It can be seen that the WS-HAR showed better classification rate (Unit: %).

Click here to display table

Table 1. The recognition rate of WS-HAR using Weizmann action dataset. It can be seen that the WS-HAR showed better classification rate (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend9710010100
Jack0980101000
Pjump0098101000
Run0209601100
Side0101970100
Skip0020098000
Walk1010109700
Wave10002020960
Wave20100200097

Average97.11
Table Table 2. The recognition rate of WS-HAR using KTH action dataset. It can be seen that the WS-HAR showed better classification rate (Unit: %).

Click here to display table

Table 2. The recognition rate of WS-HAR using KTH action dataset. It can be seen that the WS-HAR showed better classification rate (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking9802000
Jogging2960200
Running2097001
Boxing0009910
Hand-wave0102970
Hand-clap0004096

Average97.16
Table Table 3. Confusion matrix for the WS-HAR using Weizmann action dataset, while removing the proposed feature extraction technique (symlet wavelet transform) (Unit: %).

Click here to display table

Table 3. Confusion matrix for the WS-HAR using Weizmann action dataset, while removing the proposed feature extraction technique (symlet wavelet transform) (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend9212010121
Jack1902030202
Pjump1288301203
Run0029502010
Side0021931012
Skip2010291220
Walk1321128730
Wave10003000970
Wave20430201090

Average91.44
Table Table 4. Confusion matrix for the WS-HAR using KTH action dataset, while removing the proposed feature extraction technique (symlet wavelet transform) (Unit: %).

Click here to display table

Table 4. Confusion matrix for the WS-HAR using KTH action dataset, while removing the proposed feature extraction technique (symlet wavelet transform) (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking9024112
Jogging3894121
Running4290202
Boxing0019423
Hand-wave1321930
Hand-clap1204291

Average91.16
Table Table 5. Confusion matrix for the WS-HAR using Weizmann action dataset, while removing the proposed feature selection method (SWLDA) (Unit: %).

Click here to display table

Table 5. Confusion matrix for the WS-HAR using Weizmann action dataset, while removing the proposed feature selection method (SWLDA) (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend9202001023
Jack2863202302
Pjump0096202000
Run0019500400
Side0411922000
Skip0230094010
Walk0204129001
Wave10002020960
Wave20020102095

Average92.89
Table Table 6. Confusion matrix for the WS-HAR using KTH action dataset, while removing the proposed feature selection method (SWLDA) (Unit: %).

Click here to display table

Table 6. Confusion matrix for the WS-HAR using KTH action dataset, while removing the proposed feature selection method (SWLDA) (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking9023401
Jogging2913310
Running4393000
Boxing1328833
Hand-wave1113922
Hand-clap1123390

Average90.67
Table Table 7. Comparison results of the WS-HAR with some state-of-the-art methods (Unit: %).

Click here to display table

Table 7. Comparison results of the WS-HAR with some state-of-the-art methods (Unit: %).
Existing Works[40][41][42][43][44][45][46]WS-HAR

Accuracy Rate8681798988867097
Table Table 8. The recognition rate of PCA and hidden Markov model (HMM) using Weizmann action dataset (Unit: %).

Click here to display table

Table 8. The recognition rate of PCA and hidden Markov model (HMM) using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend6075464662
Jack6556475845
Pjump4553357896
Run3436935445
Side5673584953
Skip3462460678
Walk3564485839
Wave13498825574
Wave22864246761

Average59.00
Table Table 9. The recognition rate of PCA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 9. The recognition rate of PCA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking63679114
Jogging755119711
Running1210527910
Boxing61110501211
Hand-wave657106210
Hand-clap476111260

Average57.00
Table Table 10. The recognition rate of PCA + LDA and HMM using Weizmann action dataset (Unit: %).

Click here to display table

Table 10. The recognition rate of PCA + LDA and HMM using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend6047638363
Jack3624525757
Pjump5458876345
Run2446773454
Side4225704256
Skip3634760467
Walk7647646132
Wave13464464654
Wave24122654571

Average63.78
Table Table 11. The recognition rate of PCA + LDA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 11. The recognition rate of PCA + LDA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking5011128109
Jogging9609787
Running7966567
Boxing99857611
Hand-wave6467698
Hand-clap6746968

Average61.67
Table Table 12. The recognition rate of ICA and HMM using Weizmann action dataset (Unit: %).

Click here to display table

Table 12. The recognition rate of ICA and HMM using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend6355546345
Jack3716451343
Pjump3469632562
Run6746055643
Side5452646545
Skip7436558665
Walk4243547134
Wave15242534696
Wave26422434570

Average66.11
Table Table 13. The recognition rate of ICA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 13. The recognition rate of ICA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking7256566
Jogging7698556
Running8962678
Boxing8856397
Hand-wave6568678
Hand-clap6568768

Average66.63
Table Table 14. The recognition rate of ICA + LDA and HMM using Weizmann action dataset (Unit: %).

Click here to display table

Table 14. The recognition rate of ICA + LDA and HMM using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend7034245543
Jack4715432434
Pjump4568334463
Run4566554443
Side5634675433
Skip4341475423
Walk4534347043
Wave15435354665
Wave22353534669

Average69.00
Table Table 15. The recognition rate of ICA + LDA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 15. The recognition rate of ICA + LDA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking7186546
Jogging9688456
Running7674454
Boxing8756578
Hand-wave2346787
Hand-clap4567771

Average71.17
Table Table 16. The recognition rate of PCA + ICA and HMM using Weizmann action dataset (Unit: %).

Click here to display table

Table 16. The recognition rate of PCA + ICA and HMM using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend8132321341
Jack4753342342
Pjump4570453234
Run4546943324
Side3424744432
Skip4345472233
Walk3224327734
Wave12344243744
Wave22313234379

Average74.56
Table Table 17. The recognition rate of PCA + ICA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 17. The recognition rate of PCA + ICA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking7546754
Jogging8709453
Running5576455
Boxing4557367
Hand-wave3244816
Hand-clap4436578

Average75.50
Table Table 18. The recognition rate of PCA + ICA + LDA and HMM using Weizmann action dataset (Unit: %).

Click here to display table

Table 18. The recognition rate of PCA + ICA + LDA and HMM using Weizmann action dataset (Unit: %).
ActivitiesBendJackPjumpRunSideSkipWalkWave1Wave2
Bend8713210213
Jack2803323322
Pjump3383121232
Run3228411322
Side2322812323
Skip4323278323
Walk3232427734
Wave12242322803
Wave23224323279

Average81.00
Table Table 19. The recognition rate of PCA + ICA + LDA and HMM using KTH action dataset (Unit: %).

Click here to display table

Table 19. The recognition rate of PCA + ICA + LDA and HMM using KTH action dataset (Unit: %).
ActivitiesWalkingJoggingRunningBoxingHand-waveHand-clap
Walking8435422
Jogging5807332
Running6577453
Boxing5657644
Hand-wave3233854
Hand-clap4344580

Average80.33
Table Table 20. Comparison results of the proposed approaches with recent feature extraction methods (Unit: %).

Click here to display table

Table 20. Comparison results of the proposed approaches with recent feature extraction methods (Unit: %).
Existing Feature Extraction Methods[7][47][48][49][50]Proposed Approaches

Accuracy Rate898572928697
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
