Sensors 2014, 14(4), 6104-6123; doi:10.3390/s140406104

Article
A Pseudolite-Based Positioning System for Legacy GNSS Receivers
Chongwon Kim 1, Hyoungmin So 2, Taikjin Lee 3 and Changdon Kee 1,*
1
School of Mechanical and Aerospace Engineering and the Institute of Advanced Aerospace Technology, Seoul National University, Daehak-dong, Kwanak-gu, Seoul 151-744, Korea; E-Mail: nan772@snu.ac.kr
2
Agency for Defense Development, The 3rd R&D Institute-4, ADD, Yuseong P.O. Box 35-3, DAEJEON 305-600, Korea; E-Mail: hyoungmin.so@gmail.com
3
Sensor System Research Center, Korea Institute of Science and Technology, Hwarang-ro 14-gil 5, Seongbuk-gu, Seoul 136-791, Korea; E-Mail: taikjin@kist.re.kr
*
Author to whom correspondence should be addressed; E-Mail: kee@snu.ac.kr; Tel.: +82-2-880-1912; Fax: +82-2-888-2069.
Received: 2 December 2013; in revised form: 17 March 2014 / Accepted: 18 March 2014 /
Published: 27 March 2014

Abstract

: The ephemeris data format of legacy GPS receivers is improper for positioning stationary pseudolites on the ground. Therefore, to utilize pseudolites for navigation, GPS receivers must be modified so that they can handle the modified data formats of the pseudolites. Because of this problem, the practical use of pseudolites has so far been limited. This paper proposes a pseudolite-based positioning system that can be used with unmodified legacy GPS receivers. In the proposed system, pseudolites transmit simulated GPS signals. The signals use standard GPS ephemeris data format and contain ephemeris data of simulated GPS satellites, not those of pseudolites. The use of the standard format enables the GPS receiver to process pseudolite signals without any modification. However, the position output of the GPS receiver is not the correct position in this system, because there are additional signal delays from each pseudolite to the receiver. A post-calculation process was added to obtain the correct receiver position using GPS receiver output. This re-estimation is possible because it is based on known information about the simulated signals, pseudolites, and positioning process of the GPS receiver. Simulations using generated data and live GPS data are conducted for various geometries to verify the proposed system. The test results show that the proposed system provides the desired user position using pseudolite signals without requiring any modifications to the legacy GPS receiver. In this initial study, a pseudolite-only indoor system was assumed. However, it can be expanded to a GPS-pseudolite system outdoors.
Keywords:
GPS; pseudolite; indoor navigation

1. Introduction

Over the past few decades, there have been a number of studies on Global Navigation Satellite Systems (GNSS). Many people around the world nowadays utilize GNSS receivers on mobile devices for various kinds of applications. With the spread of location-based services and applications, the need for position information has grown even in places where GNSS signals are not available, such as indoors, in mountainous or urban canyons, and in other GNSS shadow areas. Many studies have been done to increase the availability of GNSS in these challenging environments [13]. A pseudolite is a GNSS-like signal generator and transmitter that can be used as an additional signal source to augment GNSS. Using pseudolites has many advantages over other methods [46]. Employing multiple pseudolites, it is even possible to develop an independent positioning system where the GNSS signals do not reach. However, there are some drawbacks to using pseudolites in positioning systems, including the following [7]:

(1)

Near/far problem

(2)

Phase noise

(3)

Receiver modifications

This study focuses on the receiver modification problem. The receiver modification problem refers to the need to modify GNSS receiver hardware or firmware to acquire accurate data using a pseudolite-based positioning system. In a pseudolite-based system, only GNSS receivers developed for special uses can calculate their own positions, because the pseudolite positions cannot be delivered in ephemeris format. Therefore, legacy GNSS receivers such as those in smartphones or mobile devices cannot be used with pseudolite signals.

To overcome this problem, a study was done that suggested a modified navigation message to deliver a pseudolite's position information [8]. The modification is simple yet tricky. Pseudolites ‘cheat’ the GPS receivers by filling in some ephemeris parameters with particular numbers to make the resulting coordinates independent from time and fixed at required values. However, the scale factor and the number of data bits used in GPS ephemeris data format is limited [9]. Therefore, it is impossible to make the pseudolite position perfectly independent from time, and the accuracy and precision of the pseudolite position remains limited.

This paper proposes a new positioning system for pseudolite signals that does not require any modification of legacy GPS receivers. The proposed system uses pseudolites which generate each channel signal of the GPS simulator and legacy GPS receiver without any modification. The user position is estimated using the output of the legacy GPS receiver and the information about pseudolites and simulated GPS satellites. Section 2 shows the limits of expressing pseudolite positions in GPS ephemeris format. Section 3 proposes a new positioning algorithm using pseudolite signals. The system concept and detailed algorithms are described. Simulation results will be presented in Section 4. The test was performed using simulated measurements and live GPS L1 data with additional manual delays. The results show that an accurate position can be obtained using the proposed algorithm without any receiver modification. For convenience, the GPS L1 signal with C/A code was assumed during the study.

2. Ephemeris Parameter for Pseudolites

Before switching to a pseudolite-based positioning system, it makes sense to check for the possibility of expressing pseudolite positions using GPS ephemeris parameters. Table 1 gives the definitions of the orbital parameters using typical Keplerian orbital parameter terminology, and it also lists the relevant ephemeris parameter types. Legacy GPS receivers determine GPS satellites' orbits using these parameters [9]. The parameters are two's complements with the sign bit (+ or −) occupying the MSB. Exceptions to this rule are e, A1/2, and toe.

The number of bits and scale factors of GPS ephemeris parameter are designed for GPS satellites with radii of approximately 26,000 km. In order to employ GPS ephemeris format for pseudolites located on Earth, Ω̇ should be identical to the rotation rate of the Earth, which is 7.2921151467e−5 rad/s [9]. Because this is out of the range defined for Ω̇, which has 24 bits and a scale factor of 2×10-43, it is impossible to express accurate pseudolite positions on the Earth using GPS ephemeris data format. Therefore, the ephemeris format for GPS is not suitable for pseudolites on the ground. However, legacy GPS receiver can only process the ephemeris format of GPS. Therefore a new method is needed to utilize pseudolites with legacy GPS receivers.

3. Pseudolite-Based Positioning System for Legacy GNSS Receivers

In this section, the proposed pseudolite-based positioning system will be described.

3.1. System Configuration

The proposed system is composed of four main parts: the pseudolites, the data server, the reference station, and the user terminal. Figure 1 illustrates the total system configuration.

3.1.1. Pseudolites

In this system, pseudolites generate simulated GPS L1 signals and transmit them for users. The necessary information for the simulation is provided by the Data Server. Using the simulation scenario, pseudolites generate one channel signal of the simulation scenario. Figure 2 shows the structure of the pseudolites used in this system. The CPU controls overall components of the pseudolite according to the simulation scenario received from the data server. The Digitally Controlled Oscillators (DCO) is the clock source of the pseudolite. By providing control inputs to the DCO, the timing of the transmission of the pseudolite signal can be controlled. Also, the timing of the signals of the plural pseudolites can be synchronized by providing proper control inputs to each pseudolite. Generation of the clock control input for the synchronization of the pseudolites will be described later.

As described, the pseudolites in this system do not provide any information about themselves (pseudolites) in their signals. They just broadcast simulated GPS signals as there were no pseudolites. The reason of using this kind of pseudolites is to make the legacy GPS receiver process the pseudolite signals without any modifications.

3.1.2. Reference Station

The reference station whose position is accurately known is needed for the clock synchronization of the pseudolites. It includes a reference GPS receiver to collect measurements of the pseudolite signals. The reference station provides the data server with these measurements. Then the data server generates the clock control inputs for each pseudolite.

3.1.3. Data Server

The data server plays two main roles in this system. One is to provide the pseudolites and the user terminal with necessary information. It gives the information about the simulation scenario to the pseudolites so that each pseudolite can generate a simulated GPS signal. Also, it provides the user terminal with the information about simulated GPS satellites and pseudolites. The delivered information include the positions of pseudolites and simulated GPS satellites which are required to the post-calculation module. It also includes the information about the assignment of the pseudolites and corresponding GPS satellites. Using this information, the user terminal distinguish the pseudolites using PRNs of corresponding GPS signals. The data link between the data server and the user terminal can be WiFi or any other possible means.

The other role of the data server is generating clock control for the synchronization of the pseudolites. However, this paper will not describe the synchronization of the pseudolites in detatil, because the synchronization can be achieved by using an existing method. This paper follows the method using a reference station receiver to synchronize the clocks of pseudolites [10]. Figure 3 shows the control block diagram of the pseudolite clock synchronization. According to the paper, the relative clock error of the pseudolites can be calculated by differencing the carrier phase measurements of the master pseudolite and a slave pseudolite, and subtracting the known distance values. Then the properly designed loop filter F(s) estimates the control value of each pseudolite clock. The output of the DDS (Direct Digital Synthesizing) is then controlled to eliminate the clock error α of the TCXO of the slave pseudolite. The experiment results showed cm-level accuracy in CDGPS positioning based on the clock synchronized pseudolites.

3.1.4. User Terminal

The user terminal includes a general legacy GPS receiver, a data communication module, and a post-calculation module. The GPS receiver calculates a position using pseudolite signals. However, this a priori position is not correct, because the simulated GPS signal includes additional delays due to the use of pseudolites while the receiver does not know the existence of the pseudolites. The post-calculation module re-processes this false output of the GPS receiver using information about GPS satellite positions and pseudolite positions. The detailed algorithm of the post-calculation module will be described later. Figure 4 illustrates the structure of the user terminal. A smartphone is a good example of a user terminal, as it includes a GPS receiver and data link. A platform to adapt the post-calculation algorithm is also prepared.

3.2. User Algorithm Concept

In this system, pseudolites simulate GPS signals received at a particular receiving point Rr, and each pseudolite corresponds to the simulated GPS satellite. If the distances between the user terminal and each pseudolite are identical, as in Figure 5a, the output of the GPS receiver in the user terminal becomes the receiving point Rr. The GPS receiver regards the received signals transmitted from not the pseudolites but the GPS satellites, as shown in Figure 5b, and the additional signal delay d0 due to the use of pseudolites becomes an additional common bias that does not affect the position result.

If the distances between the user terminal and each pseudolite are different from each other, as in Figure 6a, the output of the GPS receiver in the user terminal will also differ from the receiving point. From the perspective of the GPS receiver, the signals from Satellite 1 are delayed by d0 + d1, and signals from Satellite 2 are delayed by d0 + d2. Therefore, the output of the GPS receiver is neither the receiving point Rr nor the user position.

Although the output of the GPS receiver is not the desired one, it contains some information about the delays d1, and d2. Therefore, using the output position of the GPS receiver and the information about simulated GPS satellites and pseudolites obtained from the data server, it is possible to estimate d1 and d2 and use this information to re-estimate the desired user position.

3.3. Pseudolite-Based Positioning Algorithm for Legacy GNSS Receivers

In this section, the proposed user algorithm will be described with detailed formulas. Figure 7 illustrates the jth pseudolite and user terminal.

  • R j _: position vector of the jth pseudolite

  • Ru: position vector of the user

  • d u j _: distance between the user and the jth pseudolite

  • e ^ u j _: unit vector from the user to the jth pseudolite

  • Rj: position vector of the GPS satellite simulated by the jth pseudolite

  • Rr: position vector of the receiving point for the simulated signal

  • d r j: distance between the receiving point and the GPS satellite simulated by the jth pseudolite

  • e ^ r j: unit vector from the receiving point to the GPS satellite simulated by the jth pseudolite

3.3.1. Positioning Process of GPS Receiver

The legacy GPS receivers in the user terminal estimates the user position using pseudolite signals. The pseudorange measurement for the jth pseudolite can be expressed as Equation (1):

ρ j = d r j + d u j _ + T r j + I r j + T u j _ + B + ε ρ j
where T r j is the simulated tropospheric delay of the jth GPS signal, I r j is the simulated ionospheric delay of the jth GPS signal, and T u j _ is the tropospheric delay of the jth pseudolite signal. B is the clock bias of the GPS receiver, and ε ρ j is the thermal noise. This study assumes that T r j, I r j, and T u j _ are either negligible or are eliminated by the model. The pseudorange measurement model is thus simplified into Equation (2):
ρ j = d r j + d u j _ + B + ε ρ j

Equation (2) is the measurement model for true situation. However, the GPS receiver does not know the existence of pseudolite. Therefore the measurement model used by the GPS receiver will follow the general pseudorange measurement model as Equation (3):

ρ rcv j = d u , rcv j + B rcv + ε ρ rcv j = | R j R u | + B rcv + ε ρ rcv j

d u , rcv j is the distance between the jth GPS satellite and the user, Brcv is the clock bias of the receiver, and ε ρ rcv j is thermal noise. If a priori estimations of the user position and clock bias are established so that x ^ rcv = [ R ^ u , rcv T B ^ rcv ] T, the estimated pseudorange measurement should be as follows:

ρ ^ rcv j = | R j R ^ u , rcv | + B ^ rcv + ε ρ ^ rcv j

The pseudorange measurement residual can be calculated by subtracting Equation (4) from Equation (3):

δ ρ rcv j = ρ rcv j ρ ^ rcv j = | R j R u , rcv | | R j R ^ u , rcv | + B rcv B ^ rcv + ε ρ rcv j ε ρ ^ rcv j

Linearization is performed at current estimation:

δ ρ rcv j δ ρ rcv j R u , rcv | R u , rcv = R ^ u , rcv ( R u , rcv R ^ u , rcv ) + δ ρ rcv j B rcv | B rcv = B ^ rcv ( B rcv B ^ rcv ) + ( ε ρ rcv j ε ρ ^ rcv j ) = [ e ^ u , rcv j 1 ] { δ R u , rcv δ B rcv } + δ ε ρ rcv j

For m satellites, m equations are determined in the same way, and a matrix equation is constructed:

{ δ ρ rcv 1 δ ρ rcv m } δ ρ ¯ rcv = [ e ^ u , rcv 1 1 e ^ u , rcv m 1 ] H rcv { δ R u , rcv δ B rcv } δ x ¯ rcv + { δ ε ρ rcv 1 δ ε ρ rcv m } δ ε ¯ ρ rcv δ ρ ¯ rcv = H rcv δ x ¯ rcv + δ ε ¯ ρ rcv

The error state can be estimated by the Least Square Solution [11]:

δ x ^ rcv = [ δ R ^ u , rcv T δ B ^ ] T = ( H rcv T H rcv ) 1 H rcv T δ ρ ¯ rcv

Next, state variables are updated:

x ^ rcv = x ^ rcv , old + δ x ^ rcv x ^ rcv , old = x ^ r c v

These processes are repeated until the state converges. The converged state may be expressed as x ^ rcv , cvg = [ R ^ u , rcv T B ^ rcv , cvg ] T. This is the output of the GPS receiver and the a priori position for the post-calculation module.

3.3.2. Estimation of Measurements from GPS Receiver Output

The post-calculation module have to estimate the user position using the output of the legacy GPS receiver. If the GPS receiver in the user terminal provides pseudorange measurements, the receiver output position can be ignored and the desired user position can be calculated using the output measurement. However, some legacy GPS receivers and some mobile devices that are equipped with GPS receivers does not provide these measurements to the user. In these cases, the original measurements must be estimated from the output position of the GPS receiver.

As described in Section 3.2, though the GPS receiver output calculated in Section 3.3.1 does not give the correct position, it contains some information about the original measurements. The measurements from the position output can be estimated via Equation (10). Satellite position Rj is provided by the data server:

ρ j = | R j R ^ u , rcv , cvg | + B ^ rcv , cvg

3.3.3. Final Estimation of the User Position

Using given pseudorange measurements, finally the post-calculation module can estimate the user position. From Equation (2), pseudorange measurements can be rewritten using position vectors as in the following equation:

ρ j = | R j R r | + | R j _ R u | + B + ε ρ j

Again, an a priori estimation of the state vector as x ^ = [ R ^ u T B ^ ] T is assumed. The estimated pseudorange measurements may then be described by Equation (12):

ρ ^ j = | R j R r | + | R j _ R ^ u | + B ^ + ε ρ ^ j

By subtracting Equation (12) from Equation (11), the pseudorange measurement residual is calculated using the following equation:

δ ρ j = ρ j ρ ^ j = | R j _ R u | | R j _ R ^ u | + B B ^ + ε ρ j ε ρ ^ j

Equation (13) is linearized at the a priori estimation:

δ ρ j δ ρ j R u | R u = R ^ u ( R u R ^ u ) + δ ρ j B | B = B ^ ( B B ^ ) + ( ε ρ ˜ j ε ρ ^ j ) = [ e ^ u j _ 1 ] { δ R u δ B } + δ ε ρ j

The same equations can be used for m pseudolites:

{ δ ρ 1 δ ρ m } δ ρ ¯ = [ e ^ u 1 _ 1 e ^ u m _ 1 ] H { δ R u δ B } δ x ¯ + { δ ε ρ 1 δ ε ρ m } δ ε ¯ ρ δ ρ ¯ = H δ x ¯ + δ ε ¯ ρ

The error state is estimated by Least Square Solution [11]:

δ x ^ = [ δ R ^ u T δ B ^ ] T = ( H T H ) 1 H T δ ρ ¯

The original state is updated using estimated error state:

x ^ = x ^ old + δ x ^ x ^ o l d = x ^

The final estimation is obtained by repeating these processes until the states converge. The flow chart of the algorithm for the post-calculation module of the user terminal is illustrated in Figure 8.

In Figure 8, blocks in the dashed box is exactly the same as the position estimation process of general GPS receivers except the nonlinear equation used in Equation (12) (red box). The differences are coming from the existence of the pseudolites between the imaginary receiving point and the user receiver antenna.

4. Simulation Results and Discussion

Unfortunately, it was hard to be equipped with pseudolites which operates as a GPS simulator for this system. Also we could not make a hardware GPS simulator by ourselves. Therefore, the only way to verify the system was the test using simulated data. By the results, we tried to show the feasibility of the proposed new concept of the pseudolite based navigation system.

Due to the reasons above, the simulated data and SDR (Software Defined Radio) are used to verify the proposed system. The SDR used in the verification is a platform to test various receiver algorithms. The operation of legacy GPS receivers also can be implemented in the SDR. In this paper, the SDR which is designed to operate just as the legacy GPS receivers is used for the test. Therefore, the use of the SDR instead of the legacy GPS receiver seems reasonable.

The rest of this section shows some simulation results to verify the proposed system. First, a simulation is performed to show the feasibility of the algorithm. Second, the same test is carried out under poor geometries. Third, a test using live GPS signal is performed. Some manual delays due to the pseudolites are added to the live GPS measurements in this test.

4.1. Feasibility Test

The feasibility of the proposed algorithm is tested using five simulated satellites and five corresponding pseudolites. Figure 9 shows the procedure of the feasibility test.

First of all, true values are provided for the initial setting module. The positions of simulated GPS satellites and pseudolites are shown in Figure 10. For convenience, the receiving point is set at (0,0,0), and satellite positions are set as they were on the sphere of radius of 22,000 km centered at the receiving point. Local user positions were set at (0,0,0) and (1,1,0). PDOPs for GPS satellites and pseudolites were then calculated to be 1.7489 and 2.0468, respectively.

The initial setting module stores each true value to the proper variables. Using these values, pseudorange measurements are generated according to Equation (2). Tropospheric and ionospheric delays are assumed to be eliminated by the model or by other methods.

Additional Gaussian random noise is added to the measurements. Variance of the measurement noise is set to 1 meter for all pseudolites. Figure 11 shows the generated pseudorange measurements for each pseudolite received by the User #2.

The GPS receiver calculates the a priori position using generated measurements as if it were the general legacy GPS receiver. The post-calculation module uses this a priori position, the true GPS satellite position, and the true pseudolite position to re-estimate the final position. Instead of the data server, necessary information are provided to the post-calculation module directly in this simulation. Figure 12a shows that the a priori position of User #1 calculated by the algorithm stated in Section 3.3.1 is not biased. In this case, the distances from all pseudolites to the user are the same. Therefore, all pseudolite signals are subject to the same delay, which affects only the clock error, not the position measured. The horizontal and vertical drms errors are calculated to be 1.2977 m and 2.2927 m, respectively. Unlike User #1, User #2 got biased a priori positions from the GPS receiver, as shown in Figure 12b. The distances from the pseudolites to the user are different from each other in this case, and they affect the position results. However, using the proposed algorithm, the final position is estimated with reasonable accuracy. The horizontal and vertical drms errors are calculated to be 1.2977 m and 2.2927 m, respectively. The a priori position of User #2 has much bias error than that of User #1. However the error variance is calculated as the same value.

As described in Section 3.3.2, though the GPS receiver output does not give the correct position, it contains some information about the original measurements. The measurements from the position output can be estimated via Equation (10). Figure 13 shows the difference between the originally generated and re-estimated pseudorange measurements. The residual values are affected by the geometry of the simulated GPS satellites and pseudolites.

Using the a priori positions and the estimated pseudorange measurements, the final estimation of user position can be calculated as described in Section 3.3.3. Figure 14 shows the a priori and final position of User #1 and User #2. In the final estimation, the bias error is eliminated for not only the User #1, but also for User #2. The values of the horizontal and vertical drms and bias errors became smaller than those of the a priori estimates.

The results show that using the proposed system, user position can be estimated despite reliance on pseudolites combined with an unmodified legacy GPS receiver. The algorithm works regardless of the existence of bias in the output of the GPS receiver. However, it can be affected by the geometry of simulated GPS satellites and pseudolites. In the next section, simulation results for poor DOPs are presented.

4.2. Poor Geometry Test

Simulated GPS satellites never have severely poor geometry, because simulation allows the satellite configuration to be manipulated as necessary. However, the geometry may become less than ideal if the receiver unexpectedly loses a pseudolite signal corresponding to a GPS satellite. Therefore, the proposed algorithm is tested for cases involving poor GPS and pseudolite constellation geometry. Once again, five GPS satellites using five corresponding pseudolites are simulated. The simulation procedure and settings except the GPS satellites, pseudolite, and user positions are the same as the feasibility test.

Figure 15 illustrates the results for good and bad GPS satellite geometries. For each case, the DOPs for GPS are 1.7489 and 14.5487, respectively. The pseudolite DOP is calculated to be 2.0468. With higher DOPs, the a priori position gets worse, and the final position error is also affected. However, unlike the biased a priori position, the final estimated position still matches the true position.

To test for even worse cases, poor pseudolite geometries are used in addition to poor GPS geometry. Figure 16 illustrates the results for high pseudolite DOPs. In each case, the DOPs for the pseudolites are 14.1849 and 25.3421, respectively. For the same a priori positions, poor pseudolite geometry makes the final estimation even worse. Again, unlike the biased a priori positions, the final results match the true user positions.

It can be assumed that any time a pseudolite system is developed, the pseudolites will be arranged in an effective configuration. However, if the user's GPS receiver loses some pseudolite signals, the system will be left with poor geometry. Simulation results show that even when the geometry gets worse, the proposed algorithm works with only a slight loss of accuracy.

4.3. Test Using Live GPS Signals

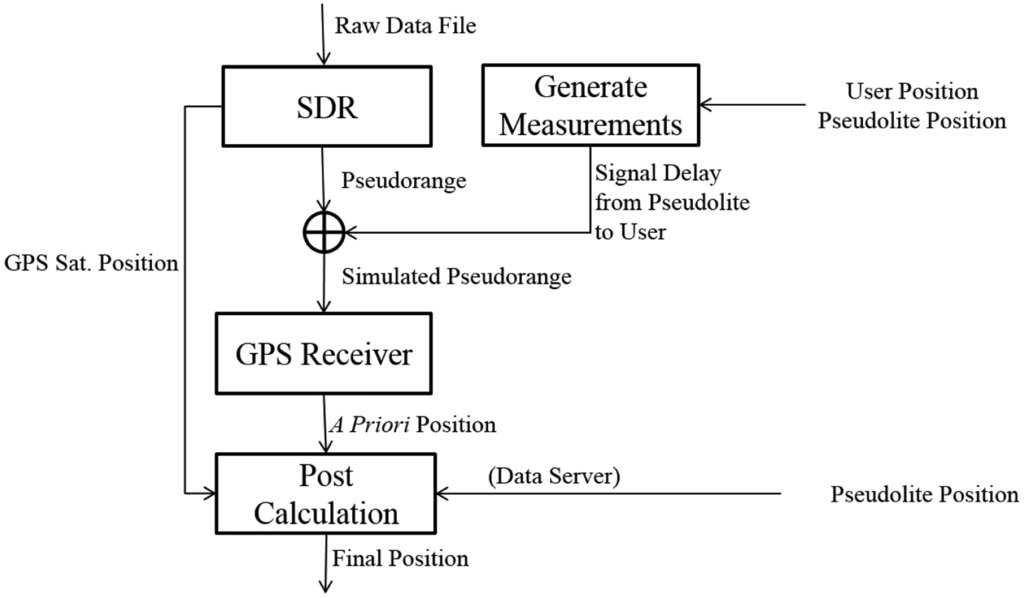

The proposed algorithm is then tested using live GPS signals. Due to a lack of available GPS-simulating pseudolites, a live GPS L1 signal is used instead of GPS-simulating pseudolites. Live GPS signals were collected using a GP 2015 RF board and an NI DAQ card [12]. The raw data was stored as a binary data file on a PC. The stored data is then processed by a Software Defined Radio (SDR) developed by the Seoul National University GNSS Laboratory [13]. The SDR output pseudorange includes the distance from the GPS satellites to the GPS antenna, clock errors, tropospheric and ionospheric delays, etc. The signal delay from the pseudolite to the user was manually generated and added. This simulated pseudorange was then used to test the proposed algorithm. Figure 17 illustrates the simulation procedure.

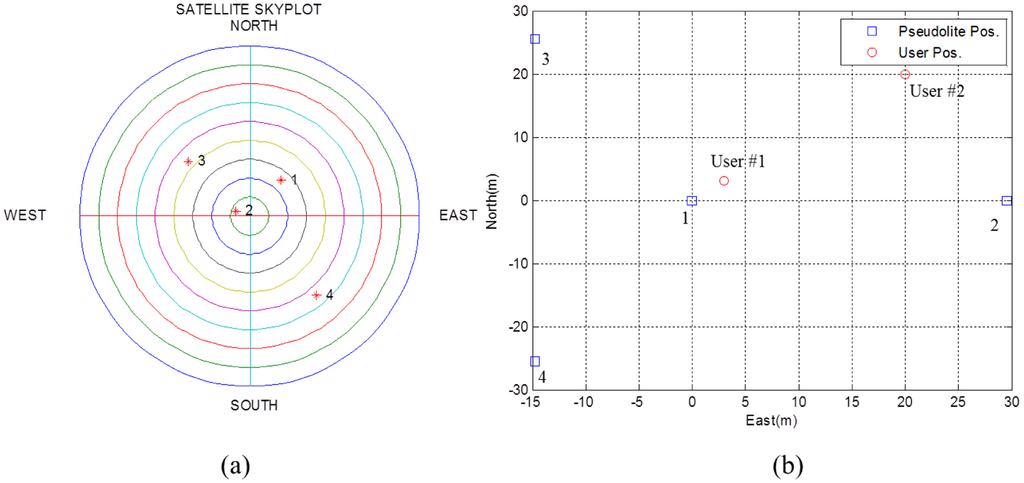

Four GPS satellites and four corresponding pseudolites are used in this test. The GPS and pseudolite constellation is shown in Figure 18. To test for different geometries, user positions are set to both (3,3,0) and (20,20,0) meters. The PDOP for pseudolites with respect to User #1 and User #2 are 2.2371 and 5.7674, respectively. The PDOP for the GPS satellites is 15.0590.

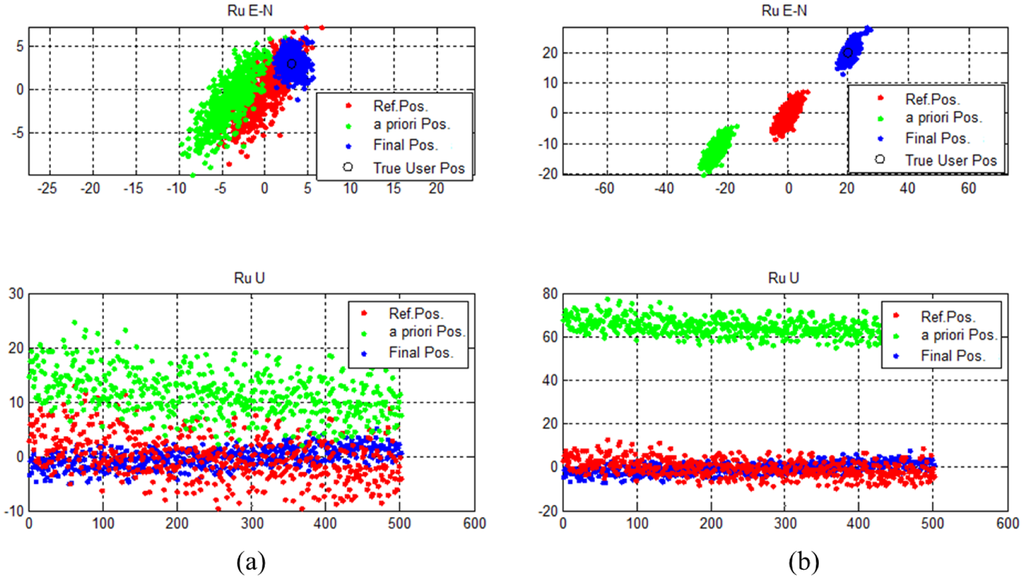

Test results for each case are illustrated in Figure 19. For both cases, the GPS receiver output is biased. The amount of bias is greater when the geometry is poor. However, the final estimated results place the users in the correct positions. The horizontal and vertical drms errors are 1.3709 m and 1.7564 m for User #1. For User #2, horizontal and vertical drms errors are calculated to be 2.7491 m and 2.4726 m.

5. Conclusions

One of the major problems inherent in pseudolite-based positioning systems is the receiver modification problem. Due to this problem, pseudolites cannot be used with general legacy GPS receivers. To resolve this problem, this study proposed a pseudolite-based positioning system that can be used by unmodified legacy GPS receivers. The proposed system uses GPS-simulating pseudolites whose signal can be processed by legacy GPS receivers. The position output of the GPS receiver is then reprocessed using the position information of the simulated GPS satellites and pseudolites.

Several simulation tests were conducted using MATLAB to verify the proposed system. It was shown that the proposed system results in an accurate user position, unlike the biased GPS receiver outputs. Even under poor geometries of pseudolites or simulated GPS satellites, the proposed algorithm successfully obtained users' positions. Because GPS-simulating pseudolites were not available, live GPS signals were used to verify the system. Intentional delays were added to the pseudorange measurements in order to simulate the GPS signals transmitted by pseudolites and received by a local user's receiver. The results show that the algorithm works well for various pseudolite geometries and corresponding simulated GPS satellite geometries.

This paper proposed a new concept of the pseudolite based navigation to overcome the receiver modification problem of the pseudolite-based positioning systems. The feasibility of the system is shown by test results using simulated data. In the future, proposed system should be tested by physically real data using real GPS-simulating pseduolites and general legacy GPS receivers.

If this system concept matures, then pseudolite-based indoor or outdoor navigation will be available for many people with GPS receivers in their smartphones. The only other requirement would be an application that reprocesses the output of the GPS receiver.

This research was supported by a grant from “Development of Wide Area Differential GNSS,” which is funded by the Ministry of Oceans and Fisheries of the Korean government, contracted through SNU-IAMD at Seoul National University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Godha, S.; Lachapelle, G.; Cannon, M. Integrated GPS/INS System for Pedestrian Navigation in a Signal Degraded Environment. Proceedings of the ION GNSS, Forth Worth, TX, USA, 26–29 September 2006.
  2. Kee, C.; Jun, H.; Yun, D.; Kim, B.; Kim, Y.; Parkinson, B.W.; Langenstein, T.; Pullen, S.; Lee, J. Development of Indoor Navigation System Using Asynchronous Pseudolites. Proceedings of the 13th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS 2000), Salt Lake City, UT, USA, 19–22 September 2000; pp. 1038–1045.
  3. Lashley, M.; Bevly, D.M.; Hung, J.Y. Performance analysis of vector tracking algorithms for weak GPS signals in high dynamics. IEEE J. Sel. Topics Signal Process. 2009, 3, 661–673, doi:10.1109/JSTSP.2009.2023341.
  4. Parkinson, B.W.; Spilker, J.J. Global Positioning System: Theory and Applications; AIAA: Reston, VA, USA, 1996; Volume 2.
  5. Stone, J.M.; LeMaster, E.A.; Powell, J.D.; Rock, S. GPS Pseudolite Transceivers and Their Applications. Proceedings of the ION National Technical Meeting, San Diego, CA, USA, 25–27 January 1999; pp. 25–27.
  6. Wang, J. Pseudolite applications in positioning and navigation: Progress and problems. J. Glob. Position. Syst. 2002, 1, 48–56, doi:10.5081/jgps.1.1.48.
  7. Cobb, H.S. GPS Pseudolites: Theory, Design, and Applications; Stanford University: Stanford, CA, USA, 1997.
  8. Rapinski, J.; Cellmer, S.; Rzepecka, Z. Modified GPS/pseudolite navigation message. J. Navig. 2012, 65, 711–716, doi:10.1017/S0373463312000124.
  9. ICD, G. Navstar GPS Space Segment/Navigation User Interfaces, Interface Specification; IS-GPS-200E: El Segundo, CA, USA, 2010.
  10. Yun, D.; Kee, C. Centimeter Accuracy Stand-alone Indoor Navigation System by Synchronized Pseudolite Constellation. Proceedings of the 15th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GPS 2002), Portland, OR, USA, 24–27 September 2002; pp. 213–225.
  11. Simon, D. Optimal State Estimation: Kalman, h Infinity, and Nonlinear Approaches; Wiley: Weinheim, Germany, 2006.
  12. Semiconductor, Z. Gp2015 GPS receiver RF front end datasheet.  2002.
  13. Jeon, S.; So, H.; No, H.; Lee, T.; Kee, C. Development of Real-time Software GPS Receiver Using Windows Visual C++ and USB RF Front-end. Proceedings of the 2010 International Technical Meeting of the Institute of Navigation, Long Beach, CA, USA, January 2001; pp. 713–721.
Sensors 14 06104f1 200

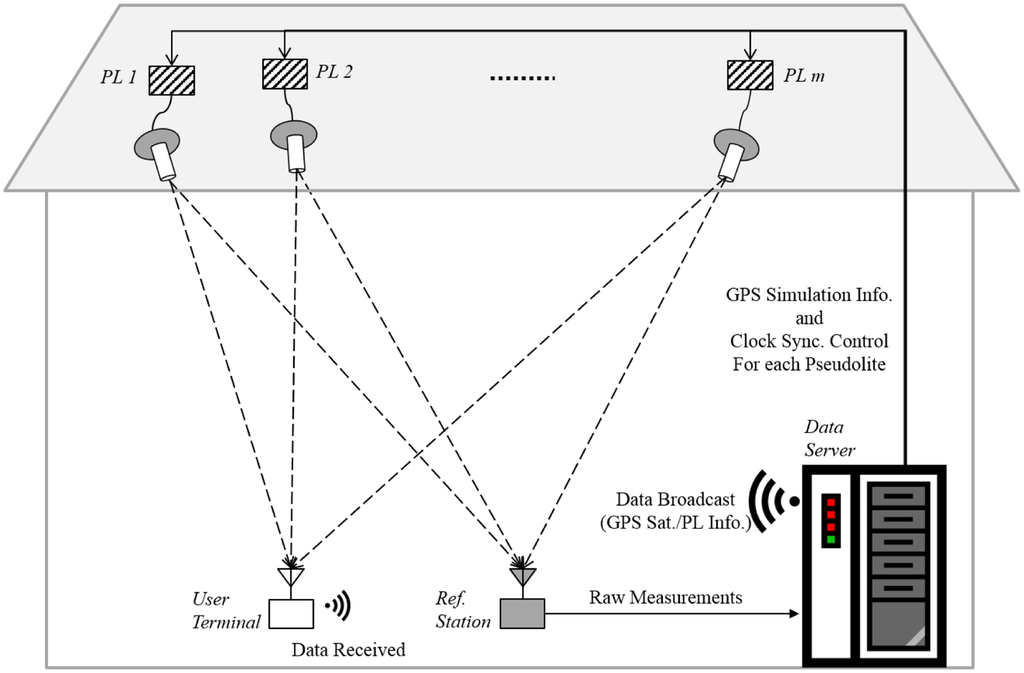

Figure 1. Illustration of proposed system.

Click here to enlarge figure

Figure 1. Illustration of proposed system.
Sensors 14 06104f1 1024
Sensors 14 06104f2 200
Figure 2. Pseudolite structure.

Click here to enlarge figure

Figure 2. Pseudolite structure.
Sensors 14 06104f2 1024
Sensors 14 06104f3 200
Figure 3. Control Block Diagram of Pseudolite Clock Synchronization [10].

Click here to enlarge figure

Figure 3. Control Block Diagram of Pseudolite Clock Synchronization [10].
Sensors 14 06104f3 1024
Sensors 14 06104f4 200

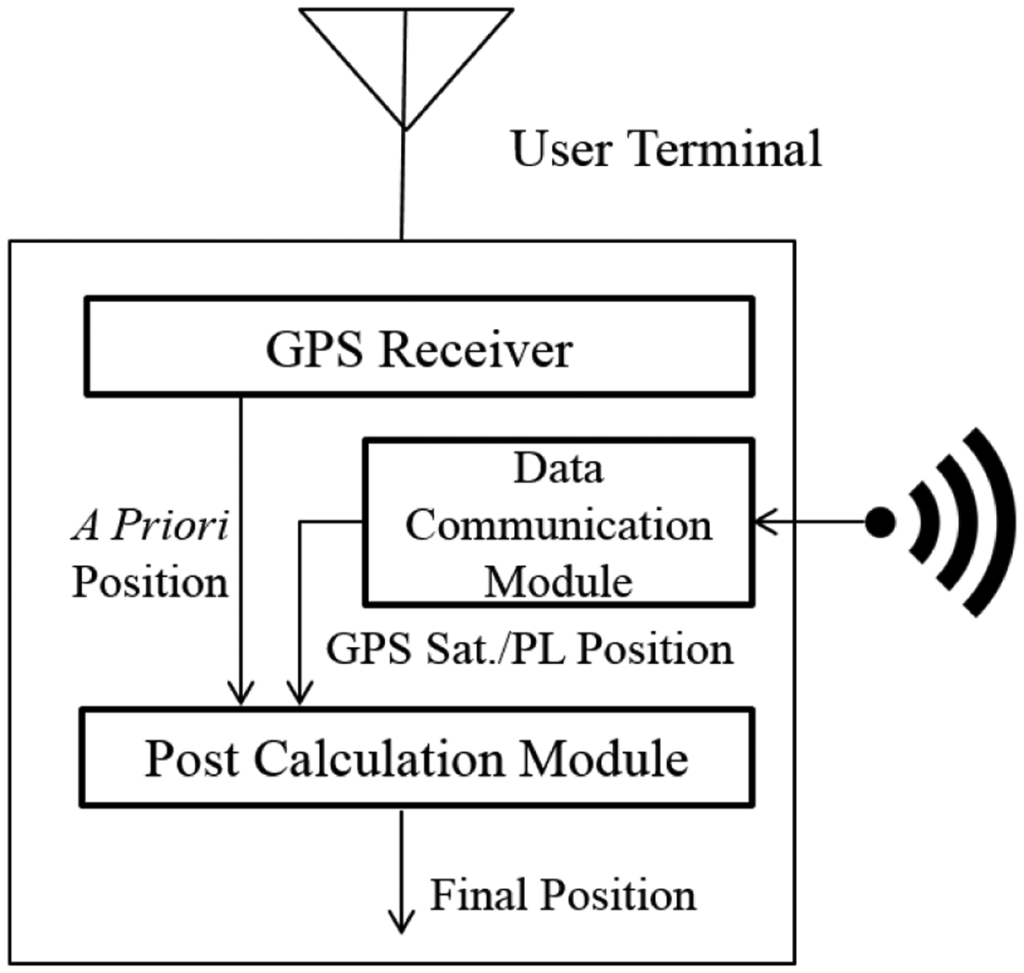

Figure 4. Block diagram of user terminal.

Click here to enlarge figure

Figure 4. Block diagram of user terminal.
Sensors 14 06104f4 1024
Sensors 14 06104f5 200

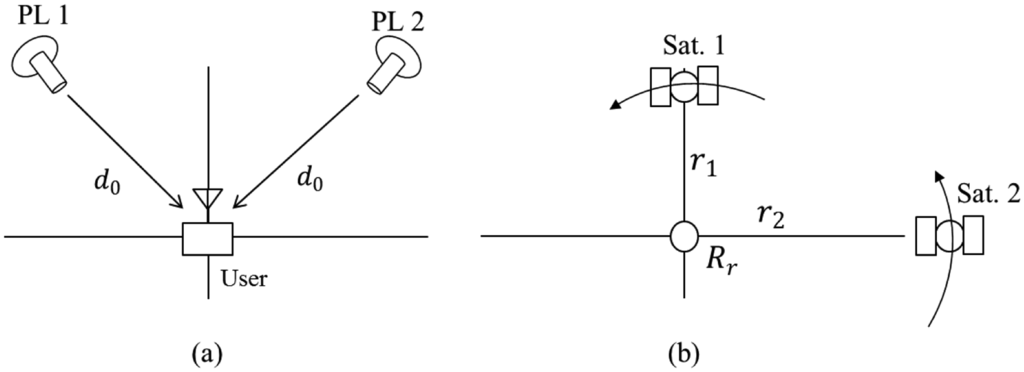

Figure 5. (a) A pseudolite-based navigation system with identical travel time for both signals (2-D case); (b) Position result as given by the GPS receiver in the user terminal (2-D case).

Click here to enlarge figure

Figure 5. (a) A pseudolite-based navigation system with identical travel time for both signals (2-D case); (b) Position result as given by the GPS receiver in the user terminal (2-D case).
Sensors 14 06104f5 1024
Sensors 14 06104f6 200

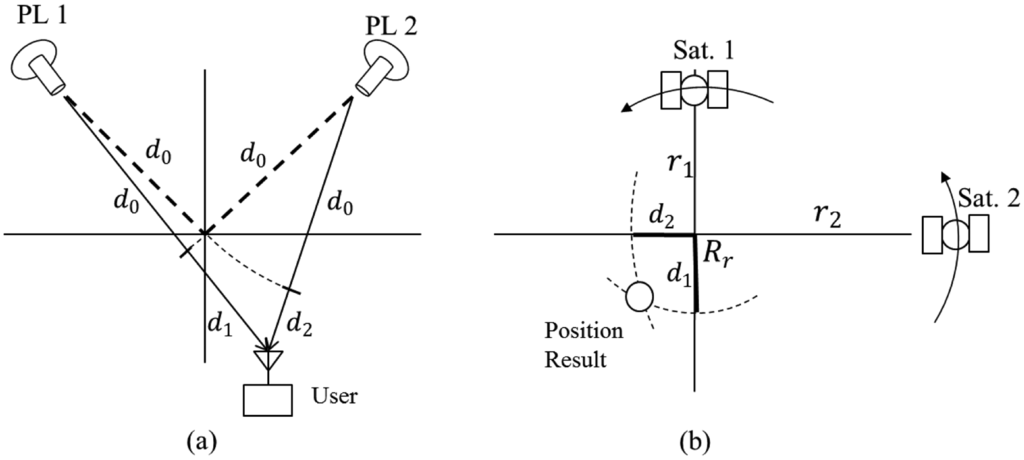

Figure 6. (a) A pseudolite-based navigation system with different travel times for each signal (2-D case); (b) Position result given by a GPS receiver in the user terminal (2-D case).

Click here to enlarge figure

Figure 6. (a) A pseudolite-based navigation system with different travel times for each signal (2-D case); (b) Position result given by a GPS receiver in the user terminal (2-D case).
Sensors 14 06104f6 1024
Sensors 14 06104f7 200

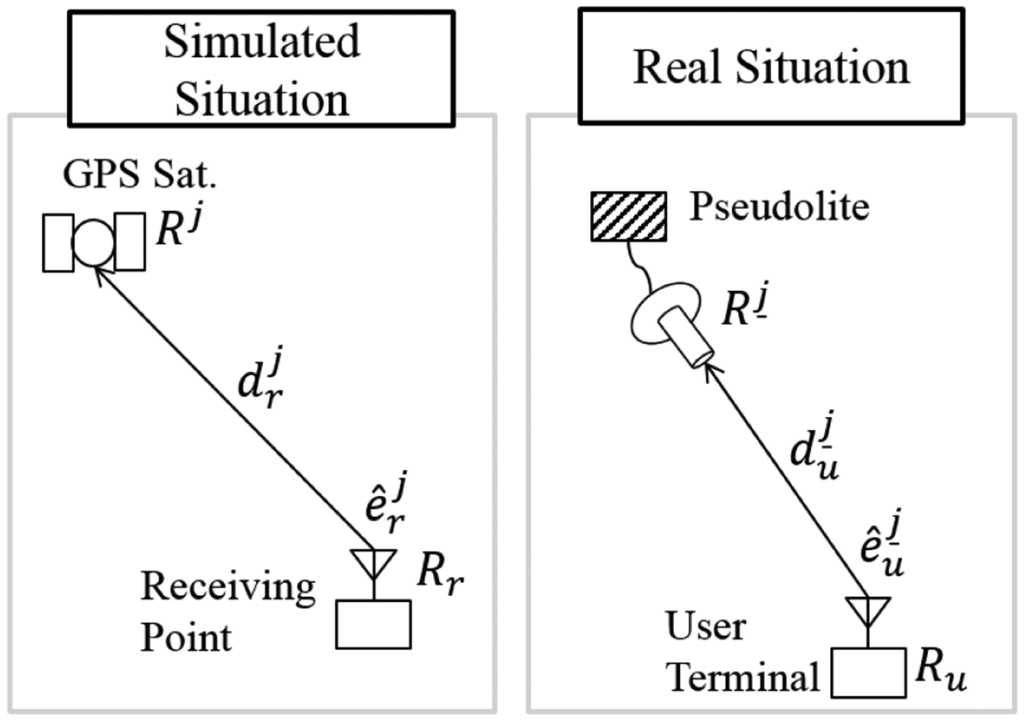

Figure 7. Illustration of jth pseudolite and user terminal (Simulated and Real Simuation).

Click here to enlarge figure

Figure 7. Illustration of jth pseudolite and user terminal (Simulated and Real Simuation).
Sensors 14 06104f7 1024
Sensors 14 06104f8 200

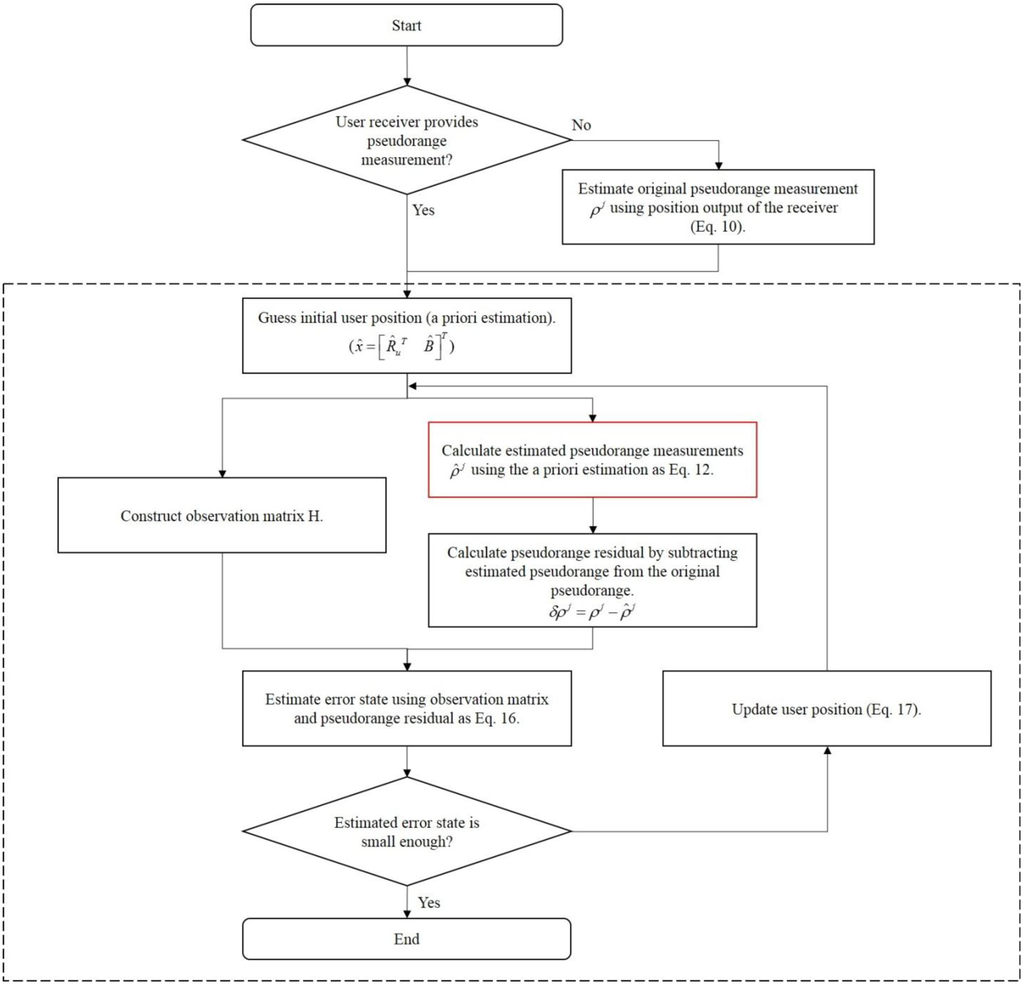

Figure 8. Algorithm for the Final Estimation of the User Position.

Click here to enlarge figure

Figure 8. Algorithm for the Final Estimation of the User Position.
Sensors 14 06104f8 1024
Sensors 14 06104f9 200

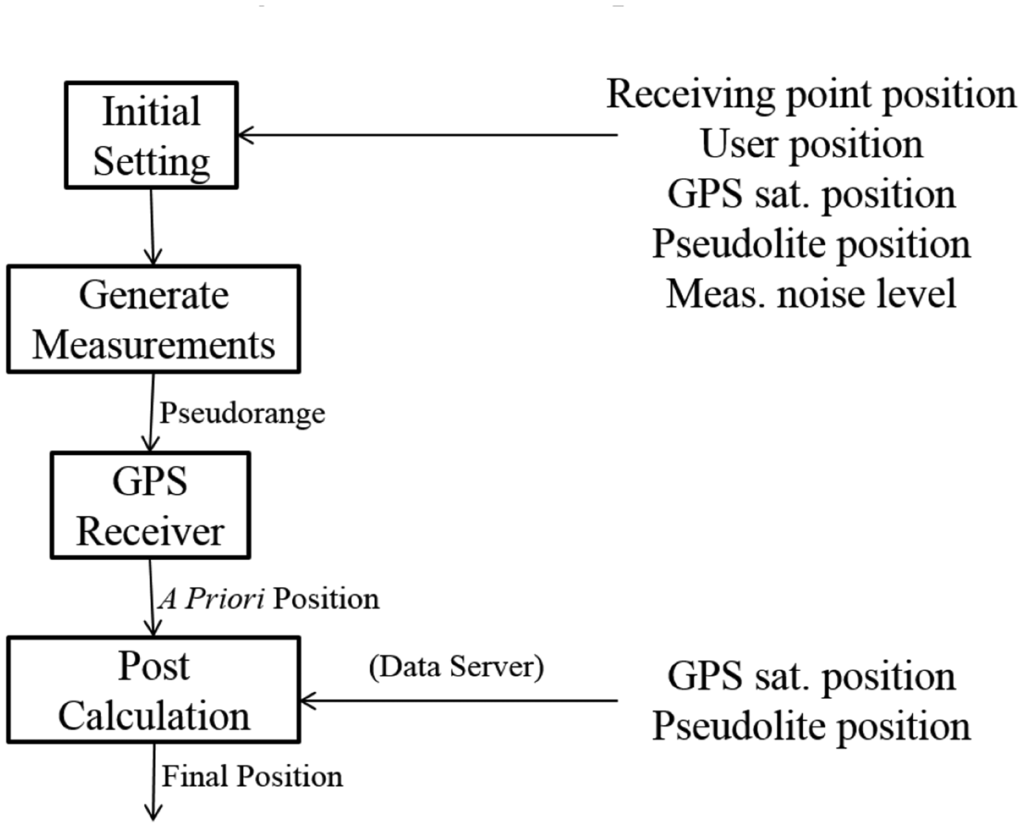

Figure 9. Simulation procedure.

Click here to enlarge figure

Figure 9. Simulation procedure.
Sensors 14 06104f9 1024
Sensors 14 06104f10 200

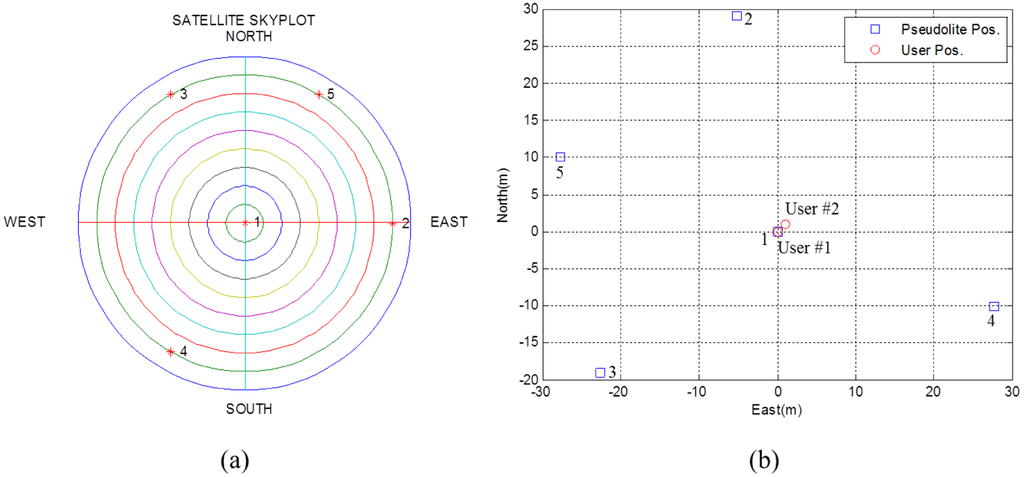

Figure 10. (a) Skyplot of simulated GPS satellites viewed from the receiving point (b) Local positions of pseudolites and user.

Click here to enlarge figure

Figure 10. (a) Skyplot of simulated GPS satellites viewed from the receiving point (b) Local positions of pseudolites and user.
Sensors 14 06104f10 1024
Sensors 14 06104f11 200
Figure 11. Generated Pseudorange Measurements.

Click here to enlarge figure

Figure 11. Generated Pseudorange Measurements.
Sensors 14 06104f11 1024
Sensors 14 06104f12 200

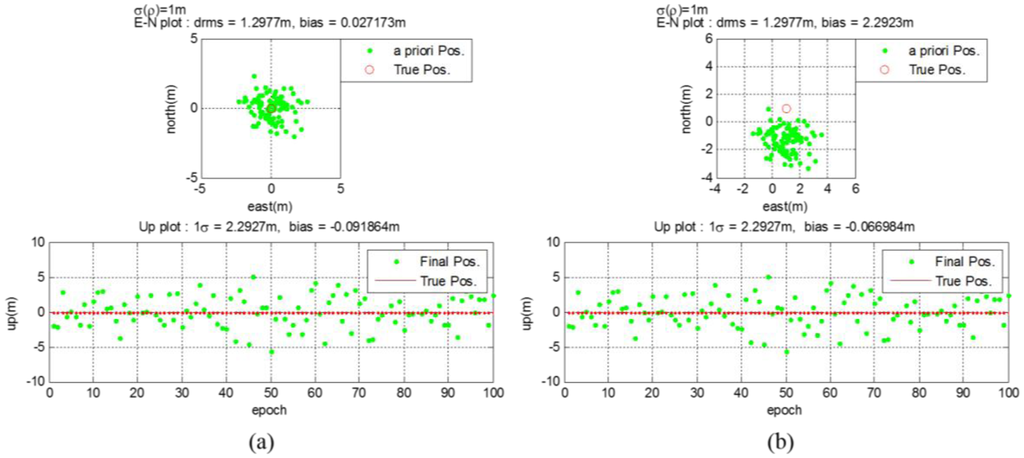

Figure 12. (a) a priori position for user #1 (b) a priori position for user #2.

Click here to enlarge figure

Figure 12. (a) a priori position for user #1 (b) a priori position for user #2.
Sensors 14 06104f12 1024
Sensors 14 06104f13 200

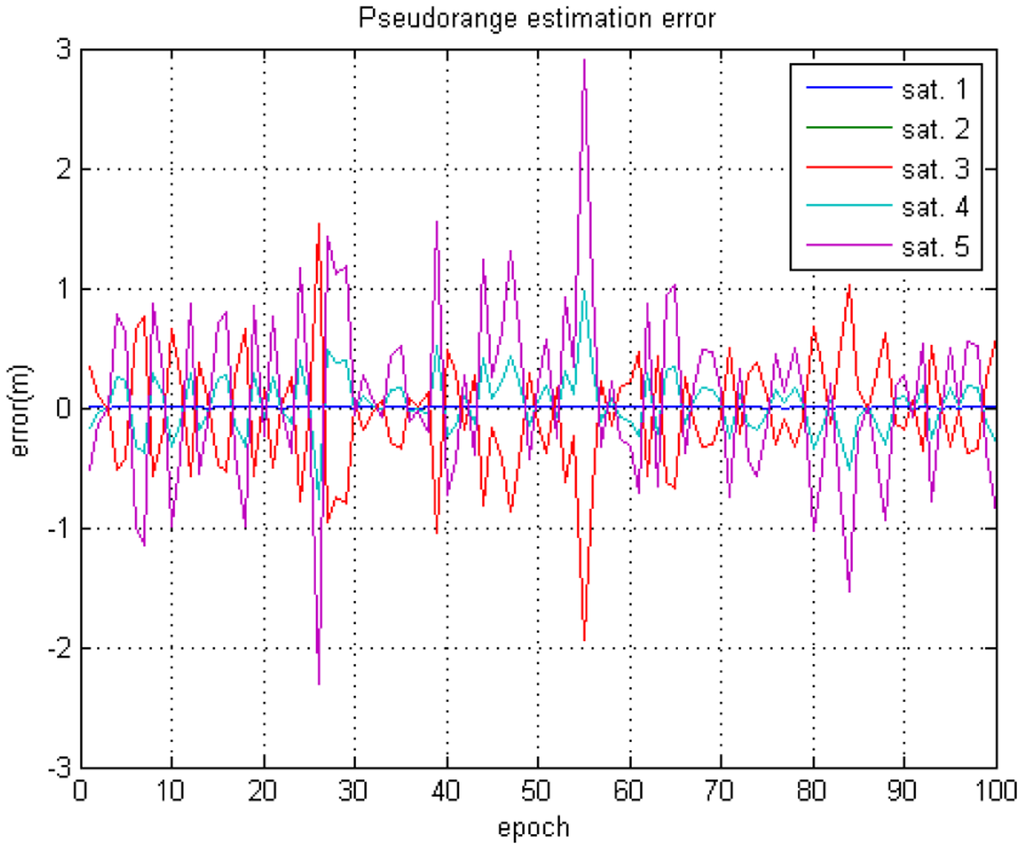

Figure 13. Estimated Pseudorange Measurements.

Click here to enlarge figure

Figure 13. Estimated Pseudorange Measurements.
Sensors 14 06104f13 1024
Sensors 14 06104f14 200

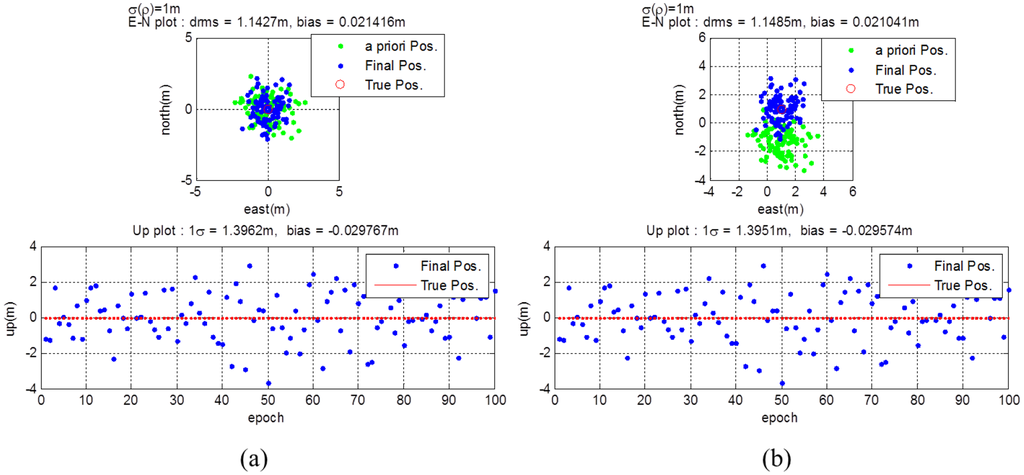

Figure 14. (a) Estimation results for user #1 (b) Estimation results for user #2.

Click here to enlarge figure

Figure 14. (a) Estimation results for user #1 (b) Estimation results for user #2.
Sensors 14 06104f14 1024
Sensors 14 06104f15 200

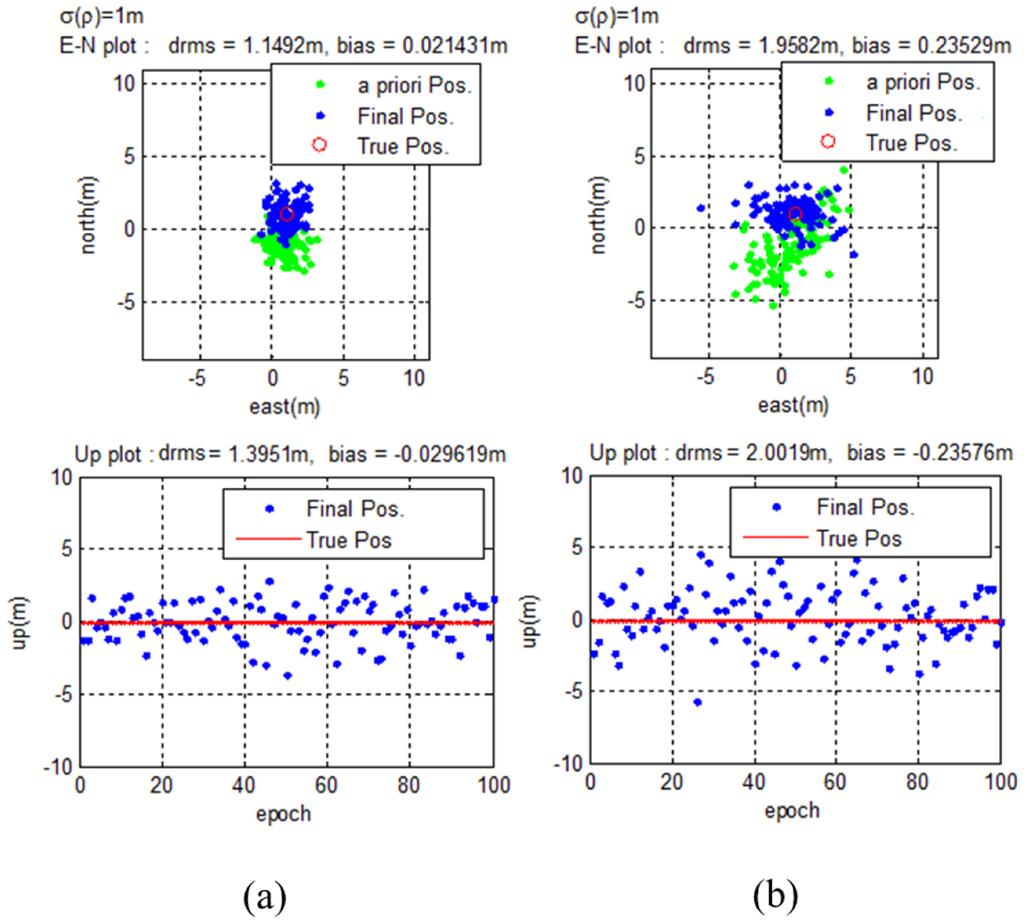

Figure 15. (a) Results for good DOP of GPS satellites (b) Results for poor DOP of GPS satellites.

Click here to enlarge figure

Figure 15. (a) Results for good DOP of GPS satellites (b) Results for poor DOP of GPS satellites.
Sensors 14 06104f15 1024
Sensors 14 06104f16 200
Figure 16. (a) Results for poor DOP of pseudolites (b) Results for worse DOP of pseudolites.

Click here to enlarge figure

Figure 16. (a) Results for poor DOP of pseudolites (b) Results for worse DOP of pseudolites.
Sensors 14 06104f16 1024
Sensors 14 06104f17 200
Figure 17. Simulation procedure.

Click here to enlarge figure

Figure 17. Simulation procedure.
Sensors 14 06104f17 1024
Sensors 14 06104f18 200
Figure 18. (a) Skyplot of live GPS satellites (b) Local positions of pseudolites and user.

Click here to enlarge figure

Figure 18. (a) Skyplot of live GPS satellites (b) Local positions of pseudolites and user.
Sensors 14 06104f18 1024
Sensors 14 06104f19 200
Figure 19. (a) Estimation results for User #1 (good DOP) (b) Estimation results for User #2 (poor DOP).

Click here to enlarge figure

Figure 19. (a) Estimation results for User #1 (good DOP) (b) Estimation results for User #2 (poor DOP).
Sensors 14 06104f19 1024
Table Table 1. Selected ephemeris parameter of GPS L1 signal.

Click here to display table

Table 1. Selected ephemeris parameter of GPS L1 signal.
Ephemeris DataDefinitionNo. of BitsScale Factor (LSB)Units
M0Mean anomaly at reference time322−31Semi-circles
ΔnMean motion difference from computed value162−43Semi-circles/sec
eEccentricity322−33Dimensionless
A1/2Square root of the semi-major axis322−19Meters1/2
Ω0Longitude of ascending node of orbit plane at weekly epoch322−31Semi-circles
i0Inclination angle at reference time322−31Semi-circles
ωArgument of perigee322−31Semi-circles
Ω̇Rate of right ascension242−43Semi-circles/sec
Rate of inclination angle142−43Semi-circles/sec
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
